Drexel University Student Center Group 15 Advisor Professor

Drexel University Student Center Group #15 Advisor: Professor Aspasia Zerva Members: Nathan Zipay Matthew Neary Brett Molash Steven Natale Courtney Dantone

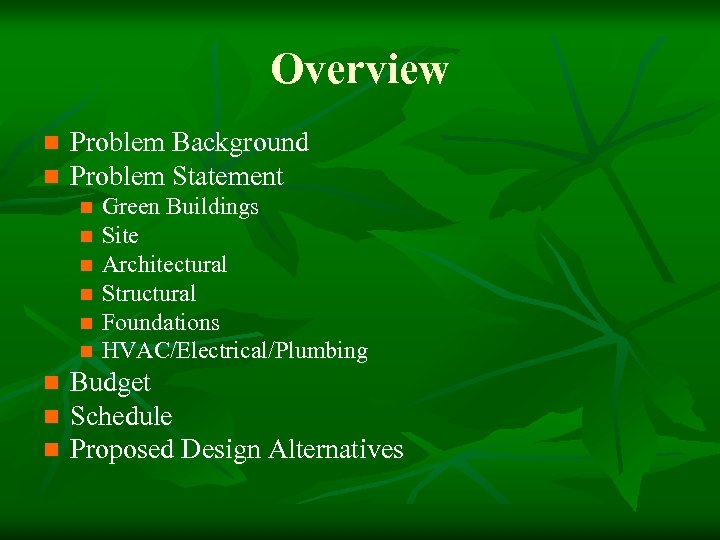

Overview n n Problem Background Problem Statement n n n n n Green Buildings Site Architectural Structural Foundations HVAC/Electrical/Plumbing Budget Schedule Proposed Design Alternatives

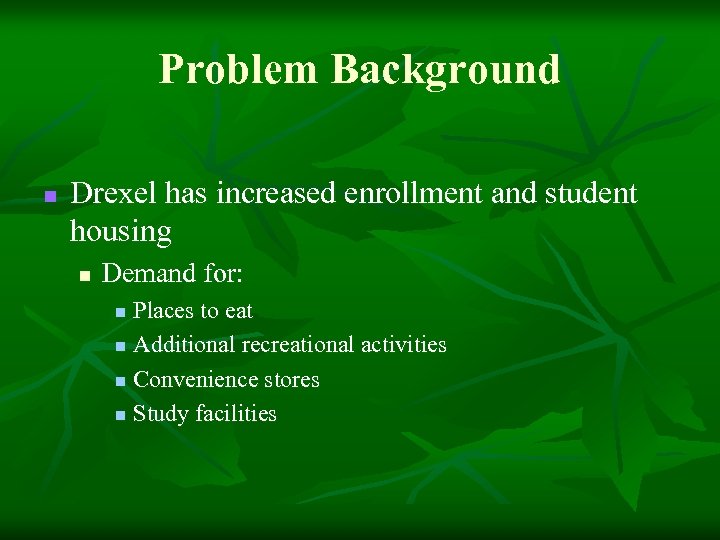

Problem Background n Drexel has increased enrollment and student housing n Demand for: Places to eat n Additional recreational activities n Convenience stores n Study facilities n

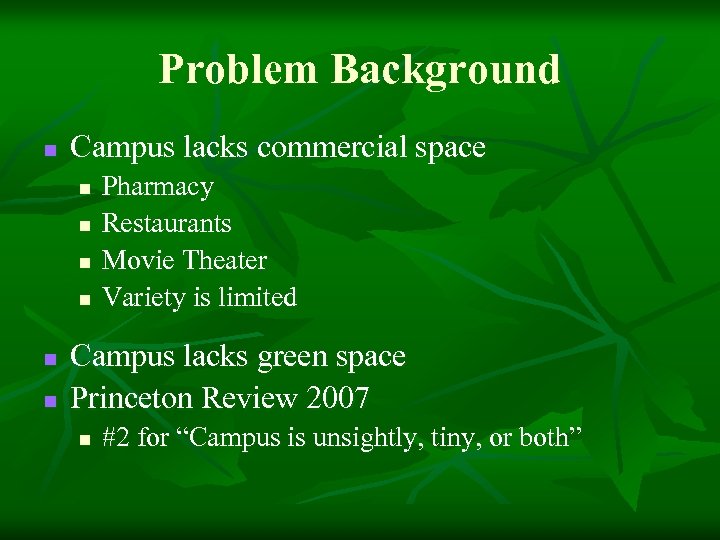

Problem Background n Campus lacks commercial space n n n Pharmacy Restaurants Movie Theater Variety is limited Campus lacks green space Princeton Review 2007 n #2 for “Campus is unsightly, tiny, or both”

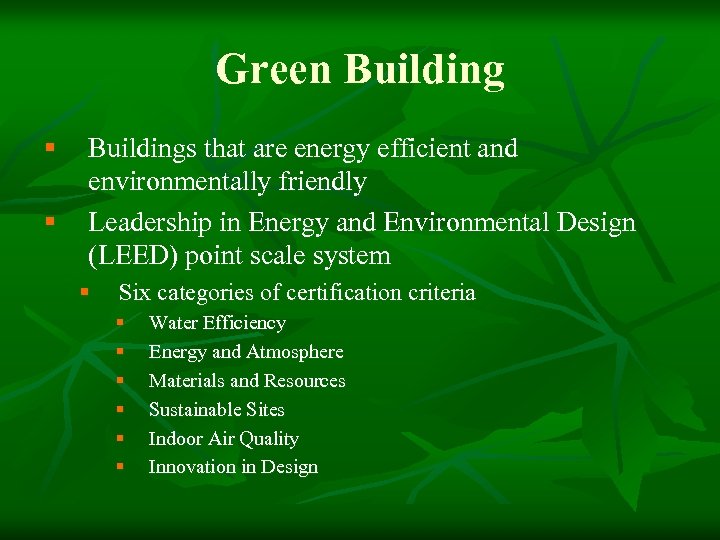

Green Building § § Buildings that are energy efficient and environmentally friendly Leadership in Energy and Environmental Design (LEED) point scale system § Six categories of certification criteria § § § Water Efficiency Energy and Atmosphere Materials and Resources Sustainable Sites Indoor Air Quality Innovation in Design

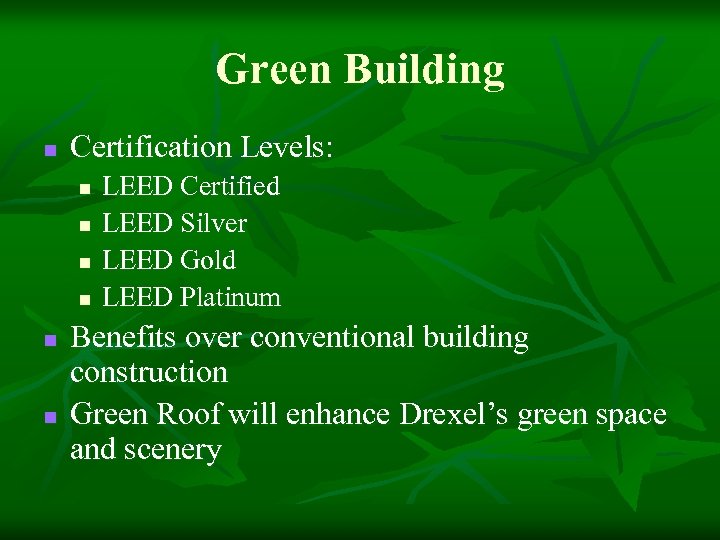

Green Building n Certification Levels: n n n LEED Certified LEED Silver LEED Gold LEED Platinum Benefits over conventional building construction Green Roof will enhance Drexel’s green space and scenery

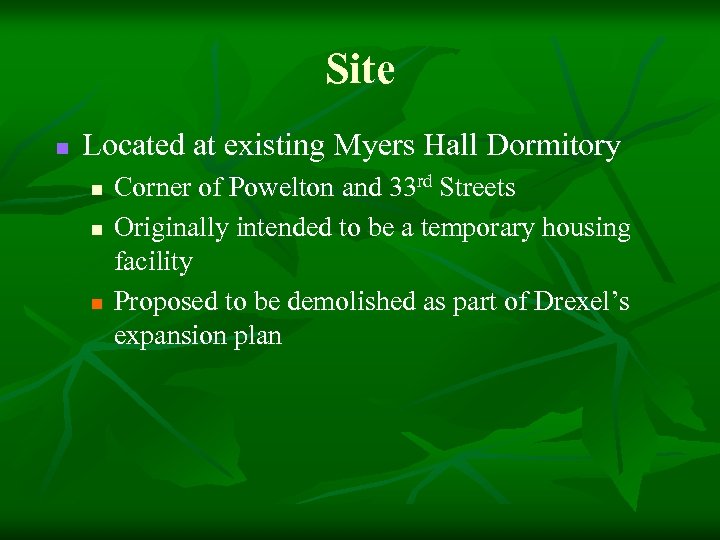

Site n Located at existing Myers Hall Dormitory n n n Corner of Powelton and 33 rd Streets Originally intended to be a temporary housing facility Proposed to be demolished as part of Drexel’s expansion plan

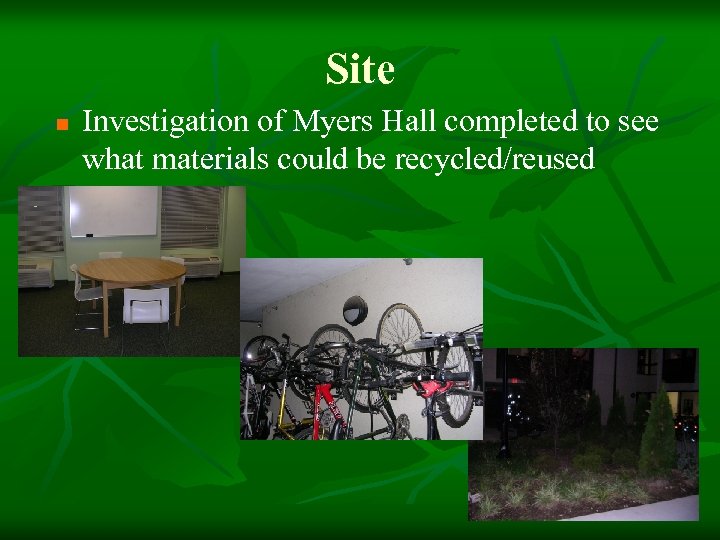

Site n Investigation of Myers Hall completed to see what materials could be recycled/reused

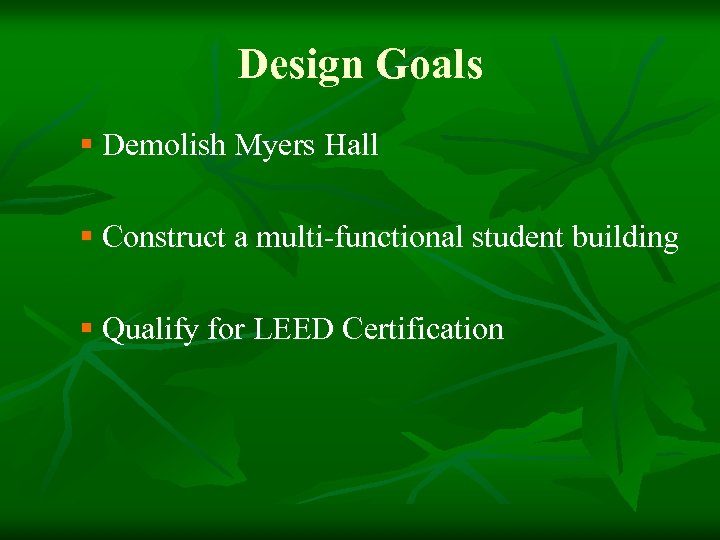

Design Goals § Demolish Myers Hall § Construct a multi-functional student building § Qualify for LEED Certification

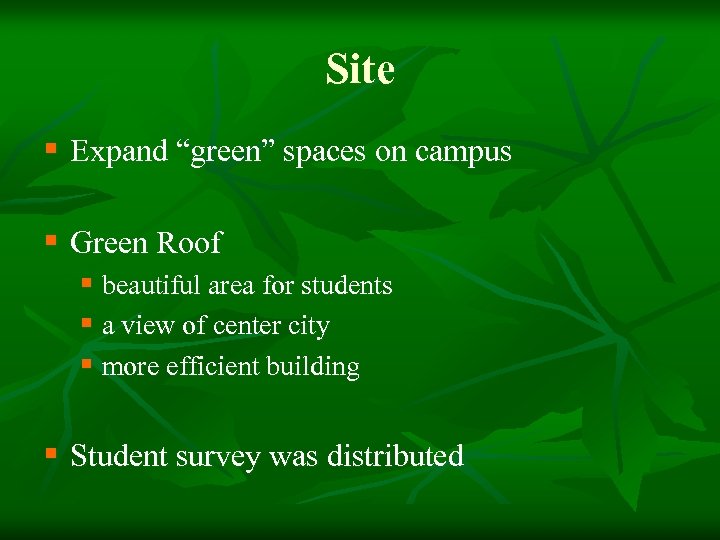

Site § Expand “green” spaces on campus § Green Roof § beautiful area for students § a view of center city § more efficient building § Student survey was distributed

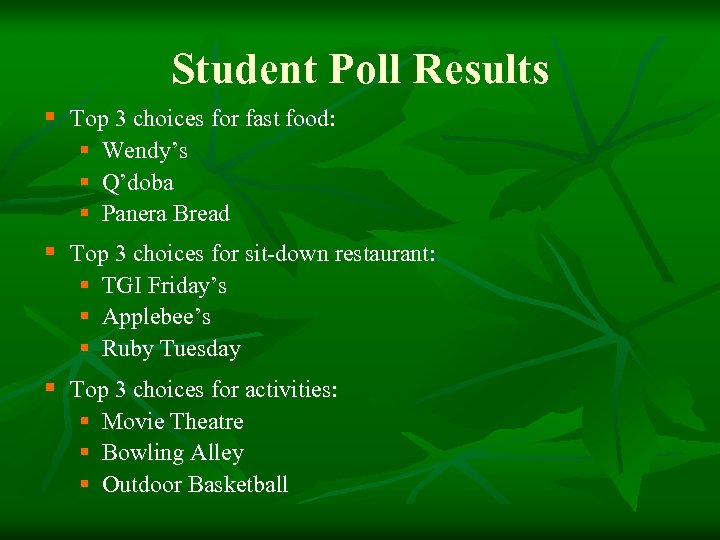

Student Poll Results § Top 3 choices for fast food: § Wendy’s § Q’doba § Panera Bread § Top 3 choices for sit-down restaurant: § TGI Friday’s § Applebee’s § Ruby Tuesday § Top 3 choices for activities: § Movie Theatre § Bowling Alley § Outdoor Basketball

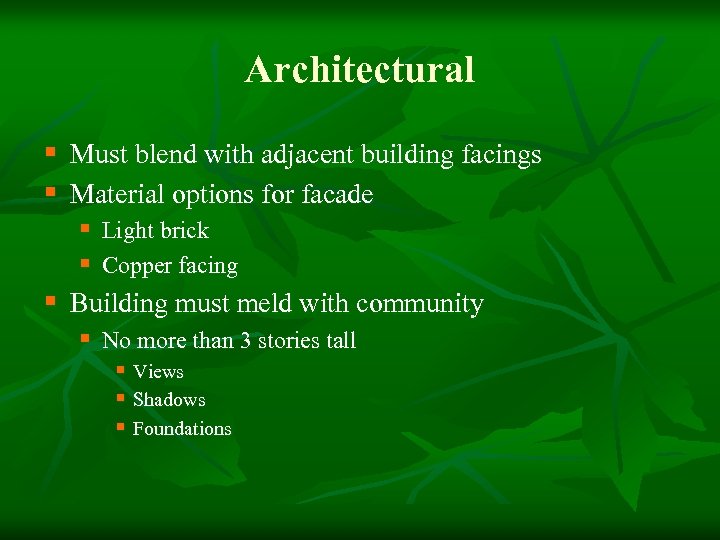

Architectural § Must blend with adjacent building facings § Material options for facade § Light brick § Copper facing § Building must meld with community § No more than 3 stories tall § § § Views Shadows Foundations

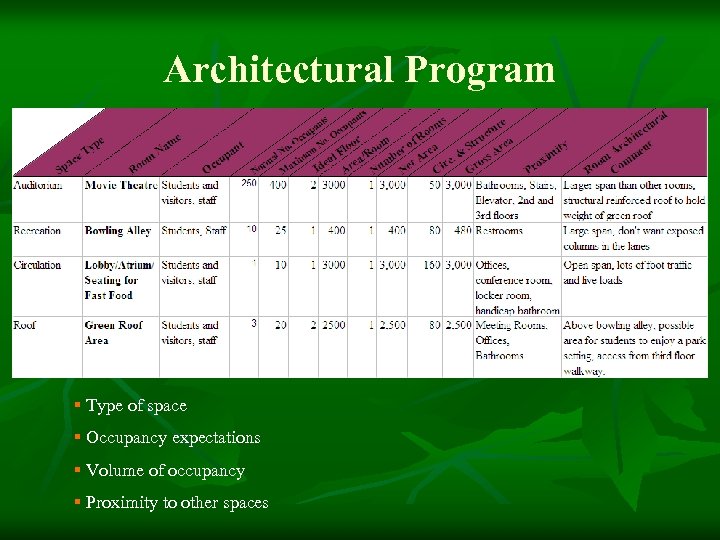

Architectural Program § Type of space § Occupancy expectations § Volume of occupancy § Proximity to other spaces

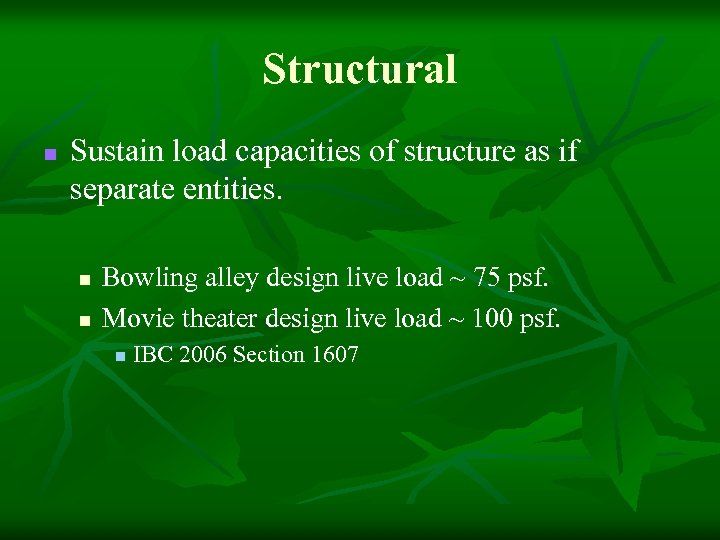

Structural n Sustain load capacities of structure as if separate entities. n n Bowling alley design live load ~ 75 psf. Movie theater design live load ~ 100 psf. n IBC 2006 Section 1607

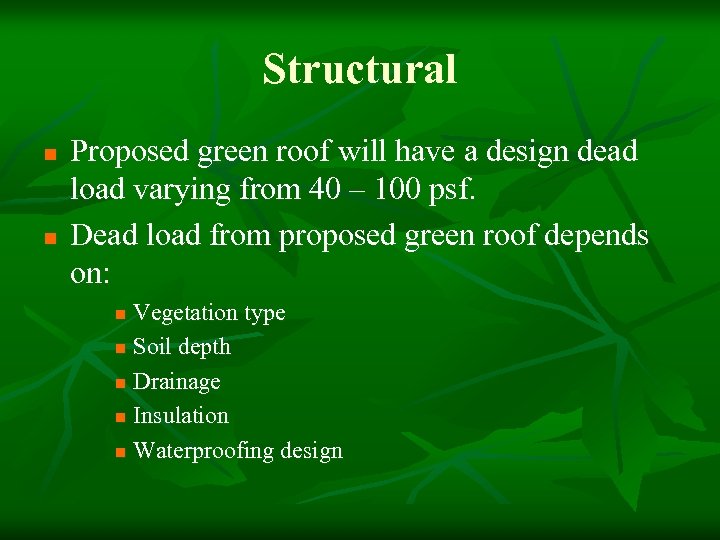

Structural n n Proposed green roof will have a design dead load varying from 40 – 100 psf. Dead load from proposed green roof depends on: Vegetation type n Soil depth n Drainage n Insulation n Waterproofing design n

Structural n Earthquake, Wind, and Snow n Philadelphia region: Seismic design exposure category “B” n Design wind speed of 90 mph n Design anticipated snow load 30 psf n n IBC 2006, Section 1613, 1608, 1609

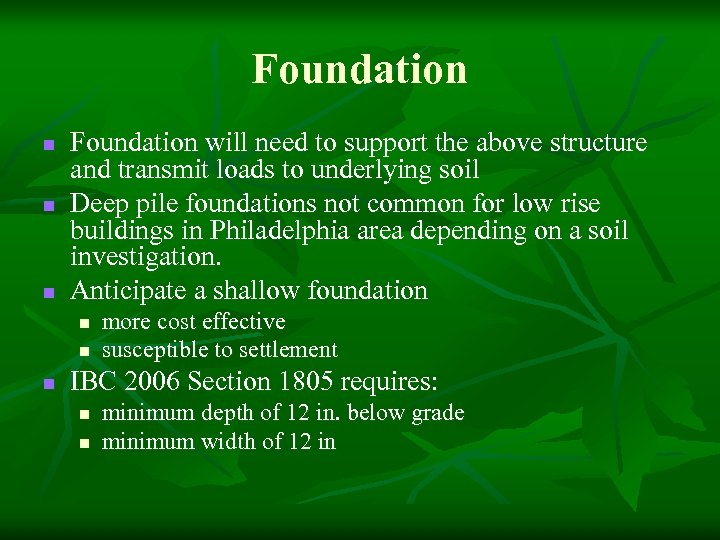

Foundation n Foundation will need to support the above structure and transmit loads to underlying soil Deep pile foundations not common for low rise buildings in Philadelphia area depending on a soil investigation. Anticipate a shallow foundation n more cost effective susceptible to settlement IBC 2006 Section 1805 requires: n n minimum depth of 12 in. below grade minimum width of 12 in

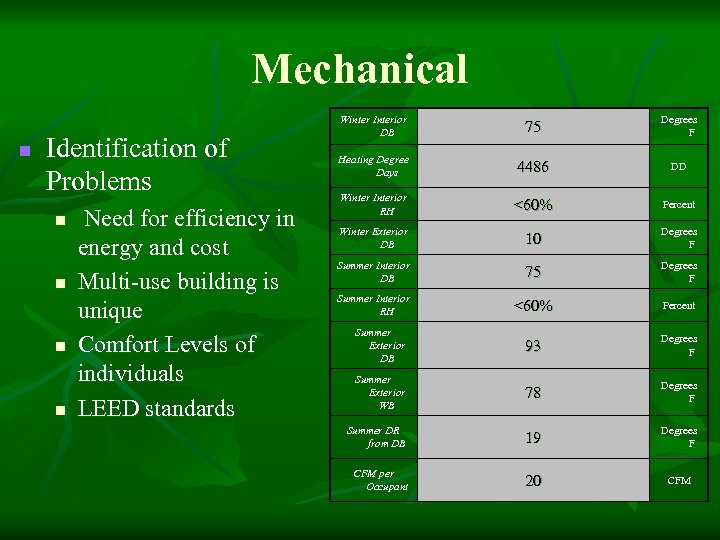

Mechanical n Identification of Problems n n Need for efficiency in energy and cost Multi-use building is unique Comfort Levels of individuals LEED standards Winter Interior DB 75 Degrees F Heating Degree Days 4486 DD Winter Interior RH <60% Percent Winter Exterior DB 10 Degrees F Summer Interior DB 75 Degrees F Summer Interior RH <60% Percent Summer Exterior DB 93 Degrees F Summer Exterior WB 78 Degrees F Summer DR from DB 19 Degrees F CFM per Occupant 20 CFM

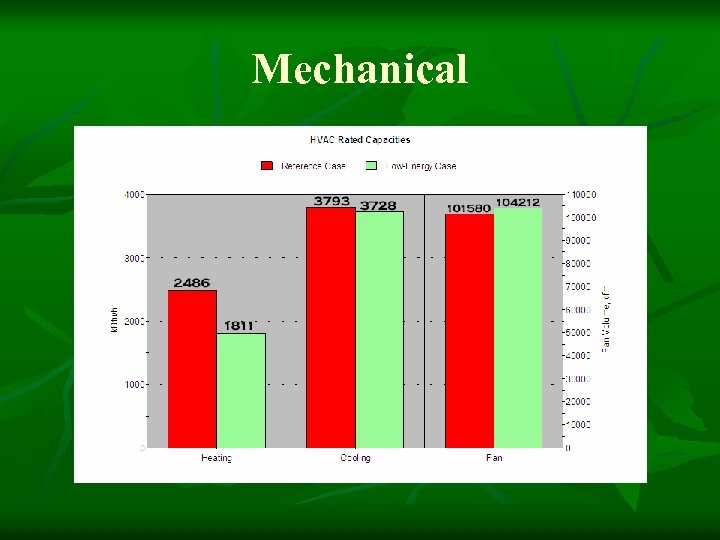

Mechanical

Mechanical (Electrical) n Proper design can reduce energy consumption by 50%! n n Energy cost reduction Sources of innovative systems Daylighting n Automated lighting control n Solar panels n n Energy-10 analysis estimates 6385 k. Wh/day or 4308 k. Wh/day

Mechanical n Plumbing/Drainage n n n Innovative waste water technology E & S Innovative runoff system Rainwater collection n Ice ball storage for cooling n Source: www. cryogel. com

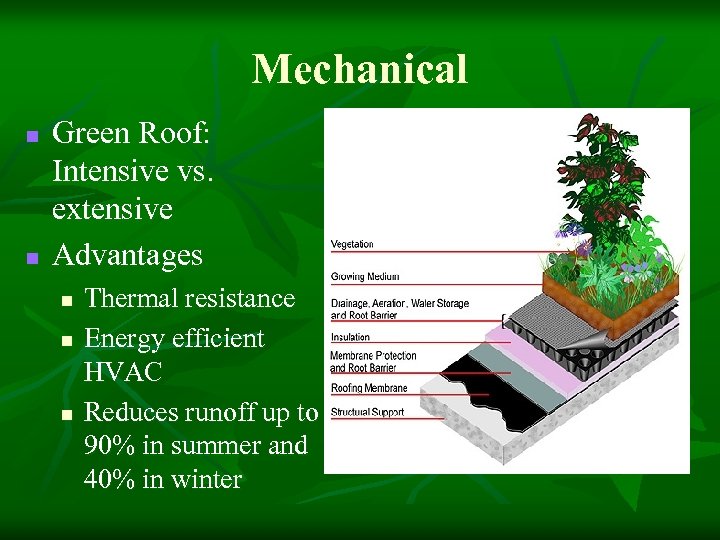

Mechanical n n Green Roof: Intensive vs. extensive Advantages n n n Thermal resistance Energy efficient HVAC Reduces runoff up to 90% in summer and 40% in winter

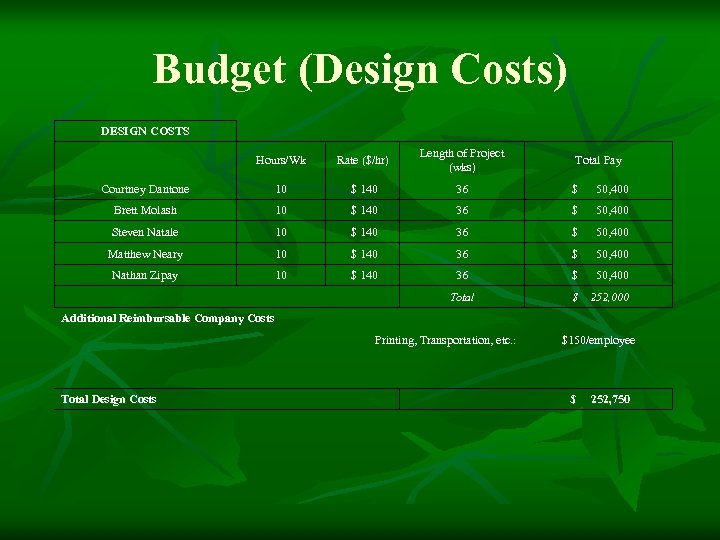

Budget (Design Costs) DESIGN COSTS Hours/Wk Rate ($/hr) Length of Project (wks) Total Pay Courtney Dantone 10 $ 140 36 $ 50, 400 Brett Molash 10 $ 140 36 $ 50, 400 Steven Natale 10 $ 140 36 $ 50, 400 Matthew Neary 10 $ 140 36 $ 50, 400 Nathan Zipay 10 $ 140 36 $ 50, 400 Total $ 252, 000 Additional Reimbursable Company Costs Printing, Transportation, etc. : Total Design Costs $150/employee $ 252, 750

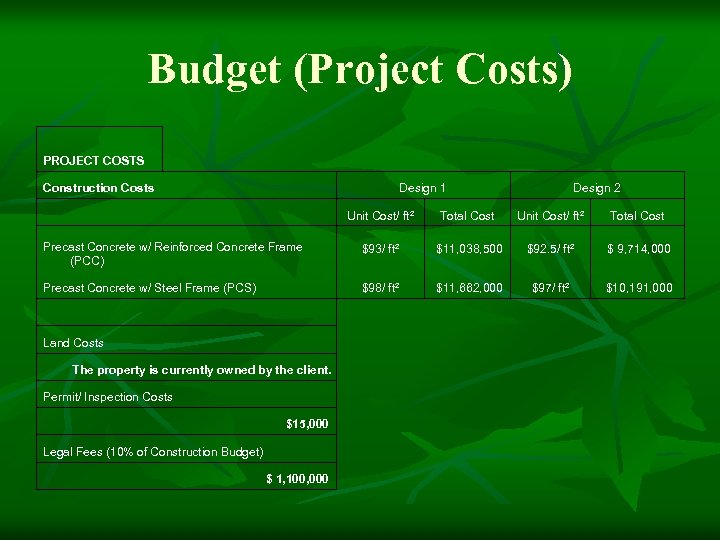

Budget (Project Costs) PROJECT COSTS Construction Costs Design 1 Design 2 Unit Cost/ ft² Total Cost Precast Concrete w/ Reinforced Concrete Frame (PCC) $93/ ft² $11, 038, 500 $92. 5/ ft² $ 9, 714, 000 Precast Concrete w/ Steel Frame (PCS) $98/ ft² $11, 662, 000 $97/ ft² $10, 191, 000 Land Costs The property is currently owned by the client. Permit/ Inspection Costs $15, 000 Legal Fees (10% of Construction Budget) $ 1, 100, 000

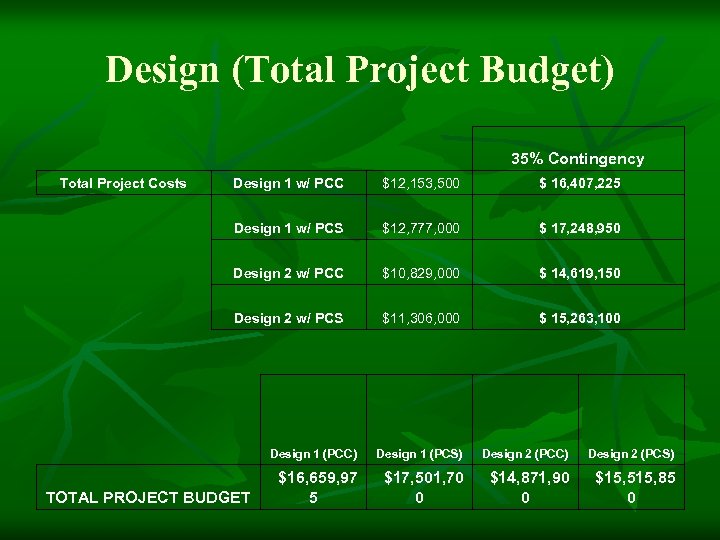

Design (Total Project Budget) 35% Contingency Total Project Costs Design 1 w/ PCC $12, 153, 500 $ 16, 407, 225 Design 1 w/ PCS $12, 777, 000 $ 17, 248, 950 Design 2 w/ PCC $10, 829, 000 $ 14, 619, 150 Design 2 w/ PCS $11, 306, 000 $ 15, 263, 100 Design 1 (PCC) Design 1 (PCS) Design 2 (PCC) Design 2 (PCS) $16, 659, 97 5 $17, 501, 70 0 $14, 871, 90 0 $15, 515, 85 0 TOTAL PROJECT BUDGET

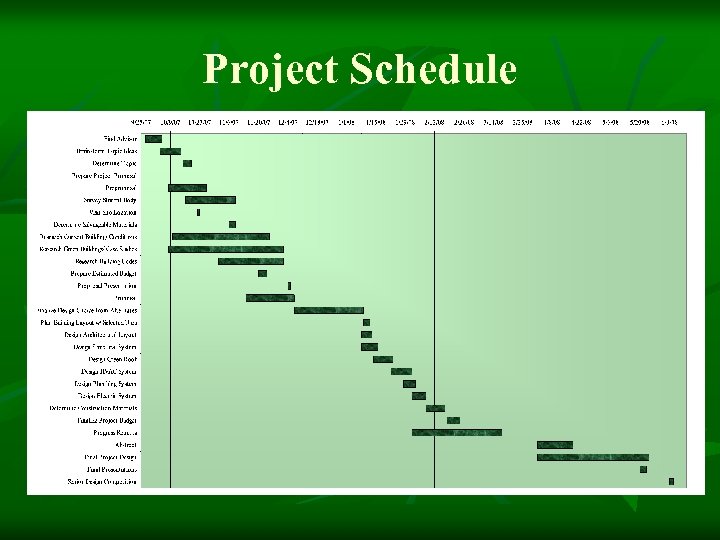

Project Schedule

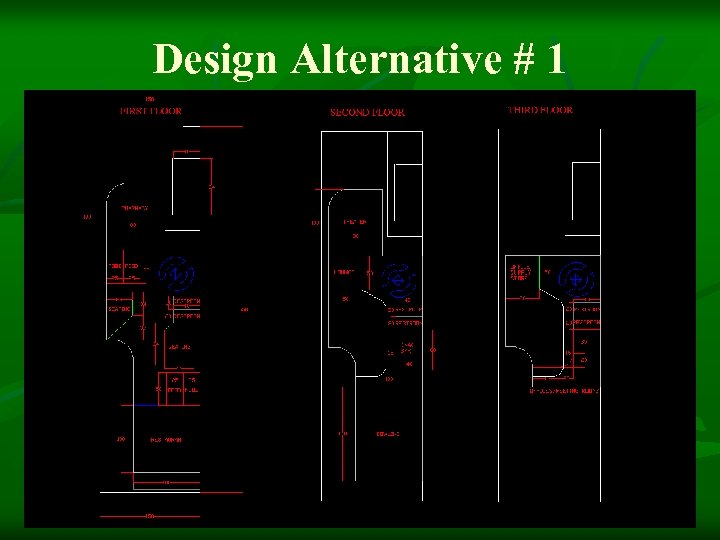

Design Alternative # 1

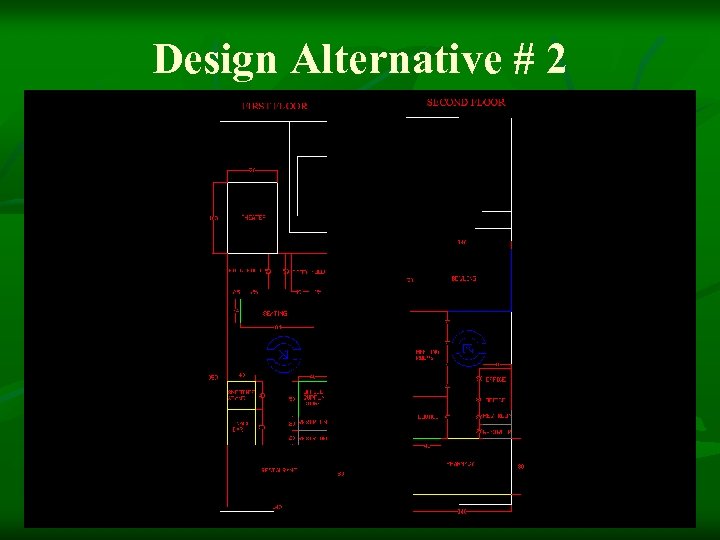

Design Alternative # 2

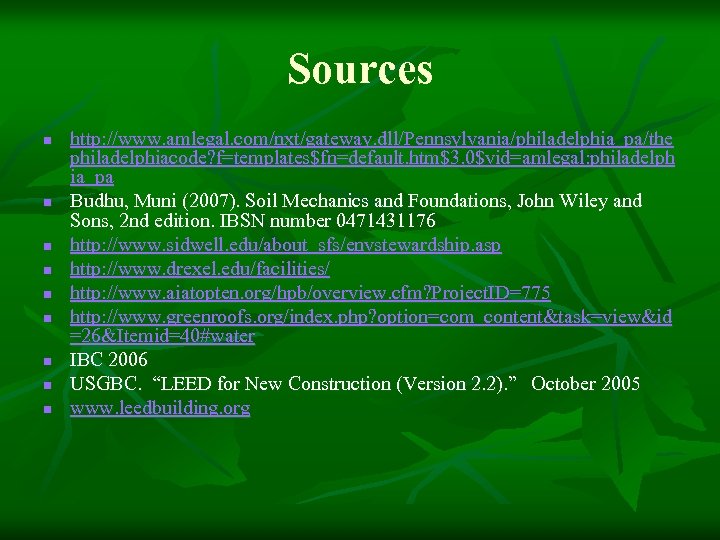

Sources n n n n n http: //www. amlegal. com/nxt/gateway. dll/Pennsylvania/philadelphia_pa/the philadelphiacode? f=templates$fn=default. htm$3. 0$vid=amlegal: philadelph ia_pa Budhu, Muni (2007). Soil Mechanics and Foundations, John Wiley and Sons, 2 nd edition. IBSN number 0471431176 http: //www. sidwell. edu/about_sfs/envstewardship. asp http: //www. drexel. edu/facilities/ http: //www. aiatopten. org/hpb/overview. cfm? Project. ID=775 http: //www. greenroofs. org/index. php? option=com_content&task=view&id =26&Itemid=40#water IBC 2006 USGBC. “LEED for New Construction (Version 2. 2). ” October 2005 www. leedbuilding. org

QUESTION & ANSWER ?
