Document No GSC 17 -PLEN-68 r 1 Source

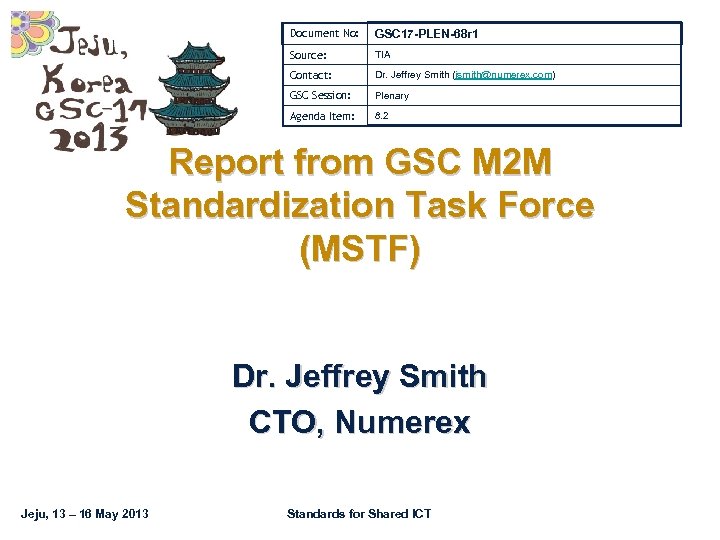

Document No: GSC 17 -PLEN-68 r 1 Source: TIA Contact: Dr. Jeffrey Smith (jsmith@numerex. com) GSC Session: Plenary Agenda Item: 8. 2 Report from GSC M 2 M Standardization Task Force (MSTF) Dr. Jeffrey Smith CTO, Numerex Jeju, 13 – 16 May 2013 Standards for Shared ICT

GSC 17 -PLEN-68 r 1 GSC MSTF 2011 Resolution (GSC 16 -Res 30) 1) To continue the GSC M 2 M Standardization Task Force (MSTF) to facilitate global coordination and harmonization 2) To openly share relevant M 2 M material through liaisons, meetings, etc. 3) To outline the worldwide M 2 M activity map and make recommendations on current and future activities 4) To encourage broad participation in the MSTF by GSC members and beyond 5) To invite MSTF to report to GSC -17 on its activities and recommendations 6) That Jeff Smith (jsmith@numerex. com) will be the chair of MSTF until GSC-17 • GSC-17, Jeju / Korea 2 Standards for Shared ICT

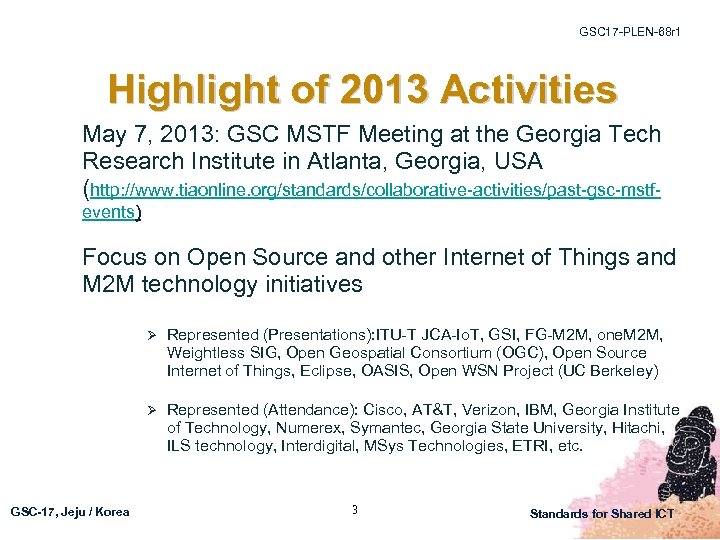

GSC 17 -PLEN-68 r 1 Highlight of 2013 Activities May 7, 2013: GSC MSTF Meeting at the Georgia Tech Research Institute in Atlanta, Georgia, USA (http: //www. tiaonline. org/standards/collaborative-activities/past-gsc-mstfevents) Focus on Open Source and other Internet of Things and M 2 M technology initiatives Ø Ø GSC-17, Jeju / Korea Represented (Presentations): ITU-T JCA-Io. T, GSI, FG-M 2 M, one. M 2 M, Weightless SIG, Open Geospatial Consortium (OGC), Open Source Internet of Things, Eclipse, OASIS, Open WSN Project (UC Berkeley) Represented (Attendance): Cisco, AT&T, Verizon, IBM, Georgia Institute of Technology, Numerex, Symantec, Georgia State University, Hitachi, ILS technology, Interdigital, MSys Technologies, ETRI, etc. 3 Standards for Shared ICT

Key Points • • GSC 17 -PLEN-68 r 1 Whatever Internet of Things (IOT) is, it is big Massive global market for machine communications M 2 M industry is fragmented – silos and verticals; need to address with a horizontal view in mind Need improved wireless network that can provide good coverage, extended battery life and low cost modules If overlapping standards, then need to explore how to harmonize those standards Enable developers to adopt the technology by use of open development tools/open source World has changed and traditional operators have to work and talk with the developers GSC-17, Jeju / Korea 4 Standards for Shared ICT

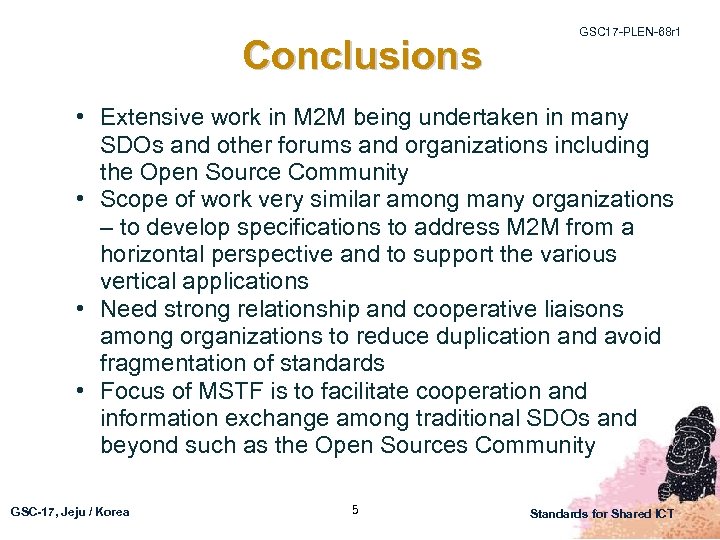

Conclusions GSC 17 -PLEN-68 r 1 • Extensive work in M 2 M being undertaken in many SDOs and other forums and organizations including the Open Source Community • Scope of work very similar among many organizations – to develop specifications to address M 2 M from a horizontal perspective and to support the various vertical applications • Need strong relationship and cooperative liaisons among organizations to reduce duplication and avoid fragmentation of standards • Focus of MSTF is to facilitate cooperation and information exchange among traditional SDOs and beyond such as the Open Sources Community GSC-17, Jeju / Korea 5 Standards for Shared ICT

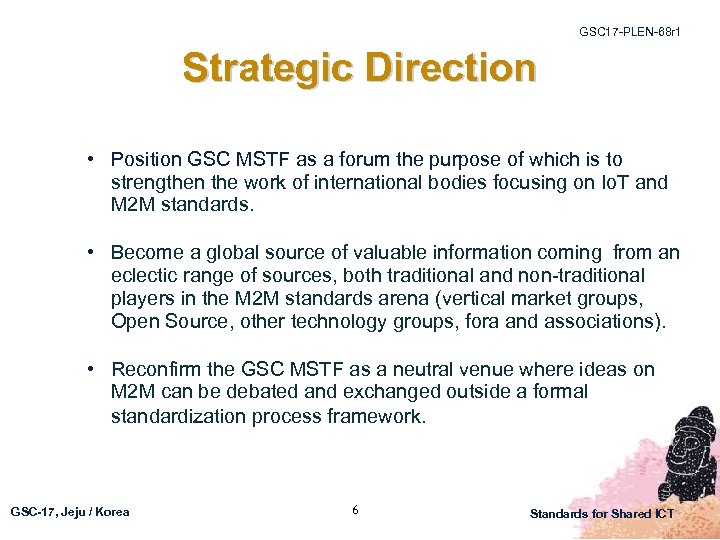

GSC 17 -PLEN-68 r 1 Strategic Direction • Position GSC MSTF as a forum the purpose of which is to strengthen the work of international bodies focusing on Io. T and M 2 M standards. • Become a global source of valuable information coming from an eclectic range of sources, both traditional and non-traditional players in the M 2 M standards arena (vertical market groups, Open Source, other technology groups, fora and associations). • Reconfirm the GSC MSTF as a neutral venue where ideas on M 2 M can be debated and exchanged outside a formal standardization process framework. GSC-17, Jeju / Korea 6 Standards for Shared ICT

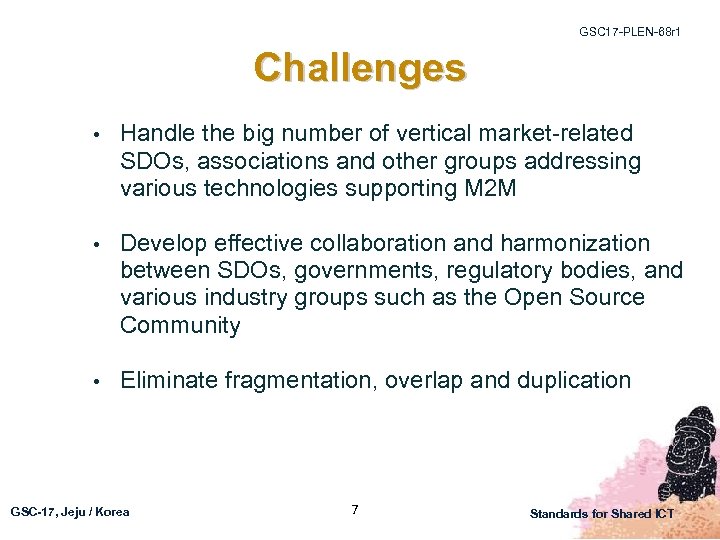

GSC 17 -PLEN-68 r 1 Challenges • Handle the big number of vertical market-related SDOs, associations and other groups addressing various technologies supporting M 2 M • Develop effective collaboration and harmonization between SDOs, governments, regulatory bodies, and various industry groups such as the Open Source Community • Eliminate fragmentation, overlap and duplication GSC-17, Jeju / Korea 7 Standards for Shared ICT

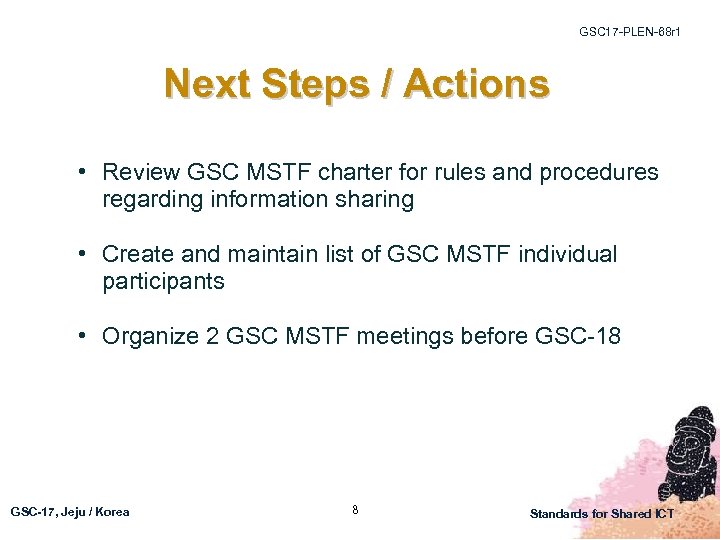

GSC 17 -PLEN-68 r 1 Next Steps / Actions • Review GSC MSTF charter for rules and procedures regarding information sharing • Create and maintain list of GSC MSTF individual participants • Organize 2 GSC MSTF meetings before GSC-18 GSC-17, Jeju / Korea 8 Standards for Shared ICT

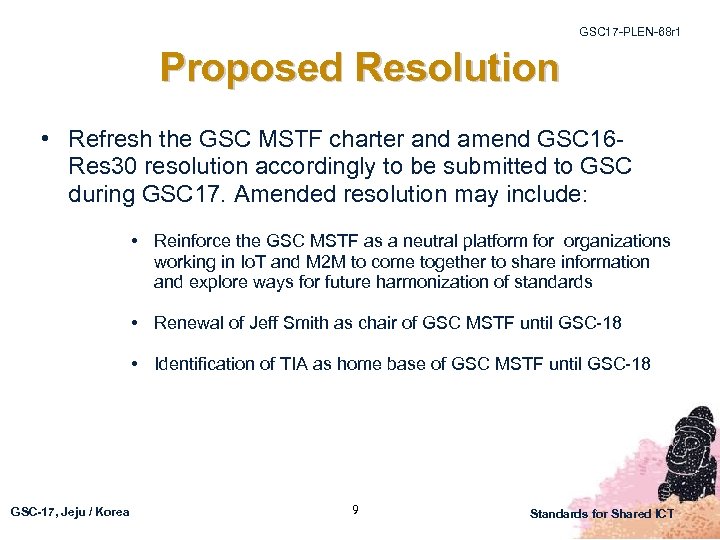

GSC 17 -PLEN-68 r 1 Proposed Resolution • Refresh the GSC MSTF charter and amend GSC 16 Res 30 resolution accordingly to be submitted to GSC during GSC 17. Amended resolution may include: • Reinforce the GSC MSTF as a neutral platform for organizations working in Io. T and M 2 M to come together to share information and explore ways for future harmonization of standards • Renewal of Jeff Smith as chair of GSC MSTF until GSC-18 • Identification of TIA as home base of GSC MSTF until GSC-18 GSC-17, Jeju / Korea 9 Standards for Shared ICT

GSC 17 -PLEN-68 r 1 Supplementary Slides GSC-17, Jeju / Korea 10 Standards for Shared ICT

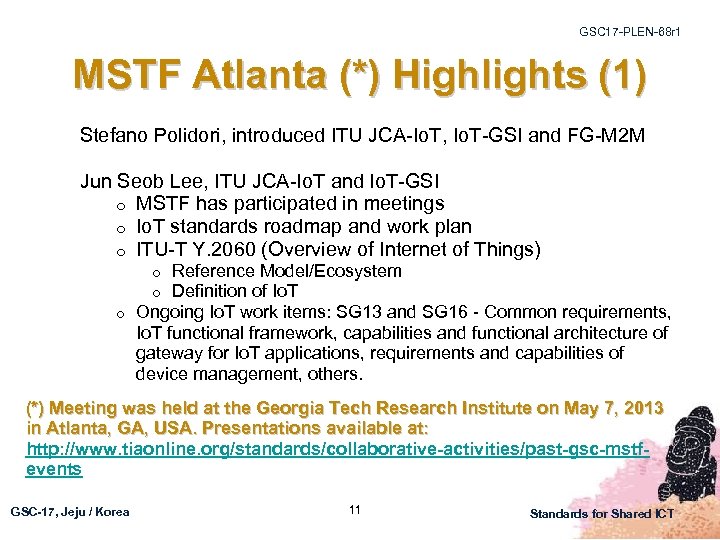

GSC 17 -PLEN-68 r 1 MSTF Atlanta (*) Highlights (1) Stefano Polidori, introduced ITU JCA-Io. T, Io. T-GSI and FG-M 2 M Jun Seob Lee, ITU JCA-Io. T and Io. T-GSI o MSTF has participated in meetings o Io. T standards roadmap and work plan o ITU-T Y. 2060 (Overview of Internet of Things) Reference Model/Ecosystem Definition of Io. T o Ongoing Io. T work items: SG 13 and SG 16 - Common requirements, Io. T functional framework, capabilities and functional architecture of gateway for Io. T applications, requirements and capabilities of device management, others. o o (*) Meeting was held at the Georgia Tech Research Institute on May 7, 2013 in Atlanta, GA, USA. Presentations available at: http: //www. tiaonline. org/standards/collaborative-activities/past-gsc-mstfevents GSC-17, Jeju / Korea 11 Standards for Shared ICT

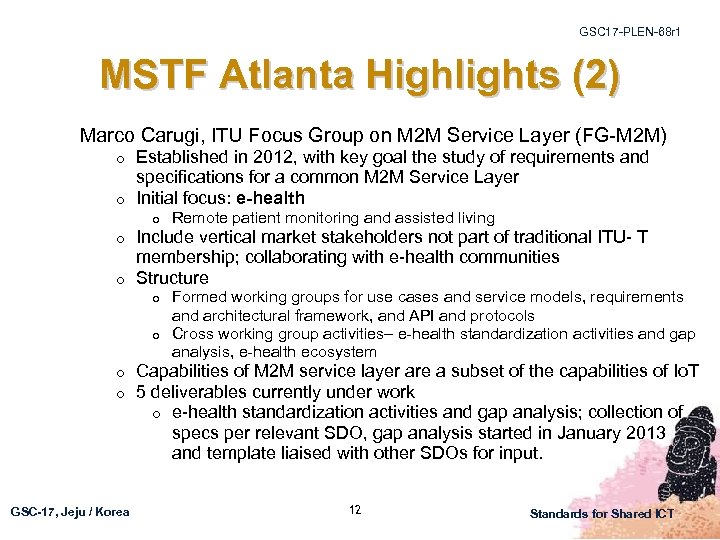

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (2) Marco Carugi, ITU Focus Group on M 2 M Service Layer (FG-M 2 M) Established in 2012, with key goal the study of requirements and specifications for a common M 2 M Service Layer o Initial focus: e-health o o Remote patient monitoring and assisted living Include vertical market stakeholders not part of traditional ITU- T membership; collaborating with e-health communities o Structure o Formed working groups for use cases and service models, requirements and architectural framework, and API and protocols o Cross working group activities– e-health standardization activities and gap analysis, e-health ecosystem o o o GSC-17, Jeju / Korea Capabilities of M 2 M service layer are a subset of the capabilities of Io. T 5 deliverables currently under work o e-health standardization activities and gap analysis; collection of specs per relevant SDO, gap analysis started in January 2013 and template liaised with other SDOs for input. 12 Standards for Shared ICT

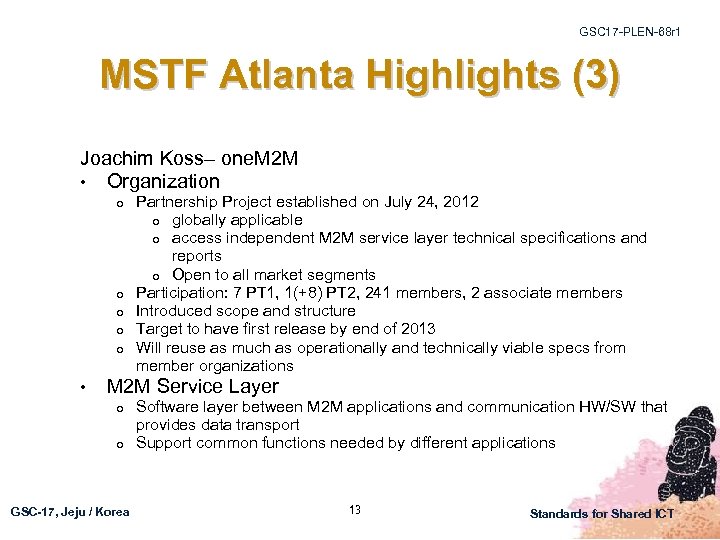

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (3) Joachim Koss– one. M 2 M • Organization o o o • Partnership Project established on July 24, 2012 o globally applicable o access independent M 2 M service layer technical specifications and reports o Open to all market segments Participation: 7 PT 1, 1(+8) PT 2, 241 members, 2 associate members Introduced scope and structure Target to have first release by end of 2013 Will reuse as much as operationally and technically viable specs from member organizations M 2 M Service Layer Software layer between M 2 M applications and communication HW/SW that provides data transport o Support common functions needed by different applications o GSC-17, Jeju / Korea 13 Standards for Shared ICT

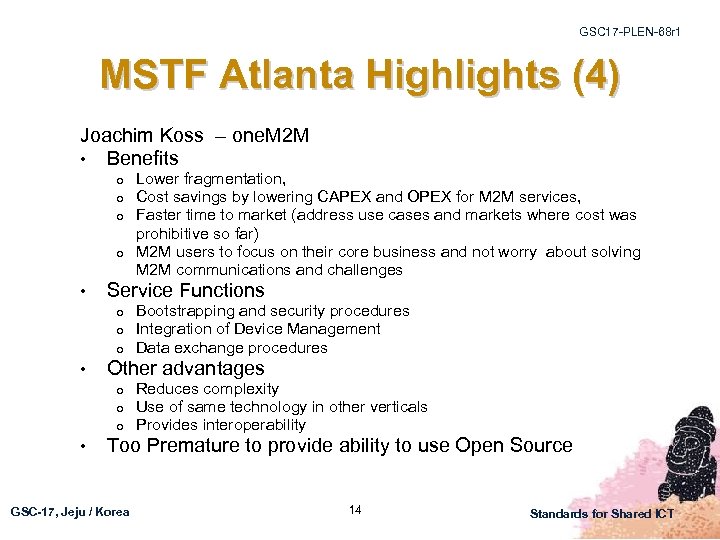

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (4) Joachim Koss – one. M 2 M • Benefits Lower fragmentation, Cost savings by lowering CAPEX and OPEX for M 2 M services, Faster time to market (address use cases and markets where cost was prohibitive so far) o M 2 M users to focus on their core business and not worry about solving M 2 M communications and challenges o o o • Service Functions o o o • • Bootstrapping and security procedures Integration of Device Management Data exchange procedures Reduces complexity Use of same technology in other verticals Provides interoperability Other advantages Too Premature to provide ability to use Open Source GSC-17, Jeju / Korea 14 Standards for Shared ICT

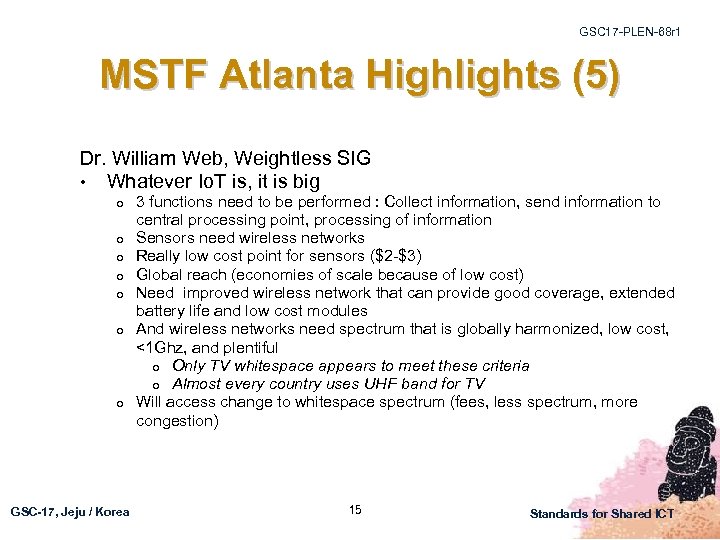

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (5) Dr. William Web, Weightless SIG • Whatever Io. T is, it is big o o o o GSC-17, Jeju / Korea 3 functions need to be performed : Collect information, send information to central processing point, processing of information Sensors need wireless networks Really low cost point for sensors ($2 -$3) Global reach (economies of scale because of low cost) Need improved wireless network that can provide good coverage, extended battery life and low cost modules And wireless networks need spectrum that is globally harmonized, low cost, <1 Ghz, and plentiful o Only TV whitespace appears to meet these criteria o Almost every country uses UHF band for TV Will access change to whitespace spectrum (fees, less spectrum, more congestion) 15 Standards for Shared ICT

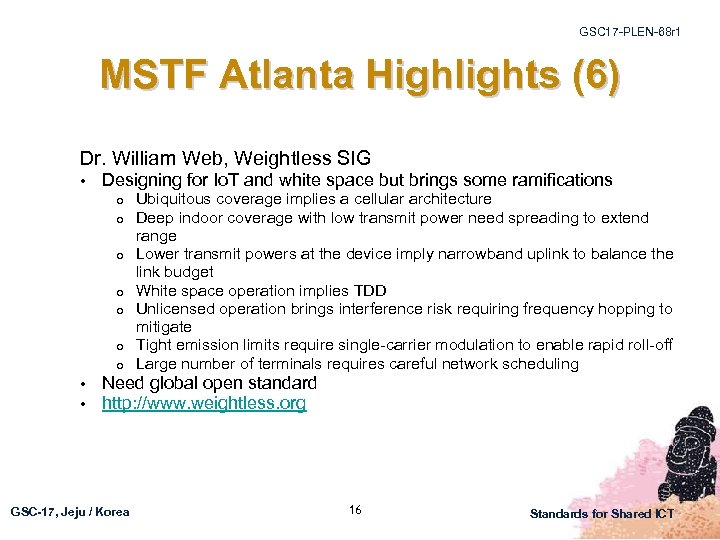

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (6) Dr. William Web, Weightless SIG • Designing for Io. T and white space but brings some ramifications o o o o • • Ubiquitous coverage implies a cellular architecture Deep indoor coverage with low transmit power need spreading to extend range Lower transmit powers at the device imply narrowband uplink to balance the link budget White space operation implies TDD Unlicensed operation brings interference risk requiring frequency hopping to mitigate Tight emission limits require single-carrier modulation to enable rapid roll-off Large number of terminals requires careful network scheduling Need global open standard http: //www. weightless. org GSC-17, Jeju / Korea 16 Standards for Shared ICT

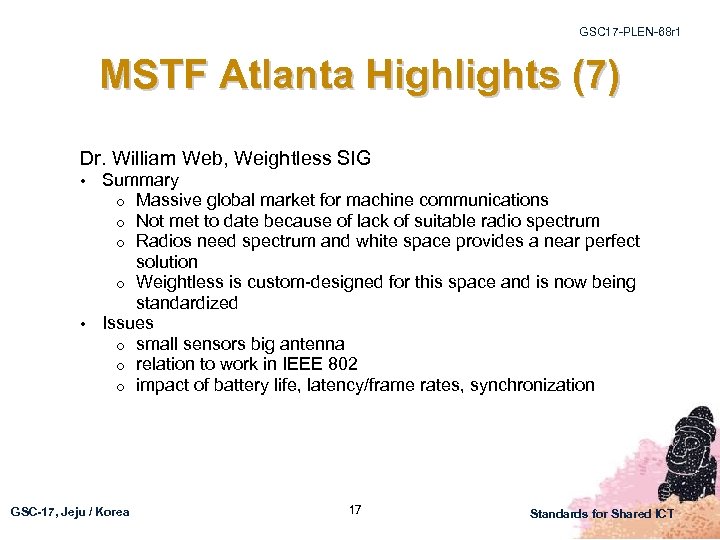

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (7) Dr. William Web, Weightless SIG Summary o Massive global market for machine communications o Not met to date because of lack of suitable radio spectrum o Radios need spectrum and white space provides a near perfect solution o Weightless is custom-designed for this space and is now being standardized • Issues o small sensors big antenna o relation to work in IEEE 802 o impact of battery life, latency/frame rates, synchronization • GSC-17, Jeju / Korea 17 Standards for Shared ICT

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (8) Dr. Steve Liang, Open Geospatial Consortium (OGC) • • • GSC-17, Jeju / Korea 500 members, consensus process, develop publicly available encoding and interface standards that geo- enable the web, wireless, location based services and mainstream IT Standards (GML, KML, O&M, Sensor. ML, WMS, WMTS, SOS, WFS) 80% of all information is geospatial Region centric, feature-centric, human-centric, device-centric OGC standards relevant to Io. T o GML (need location, semantics and geometry, especially important for smart buildings) o Indoor GML –enables indoor applications e. g. emergency control, visually handicapped guidance, indoor robots o Io. T location information should use geospatial standards 18 Standards for Shared ICT

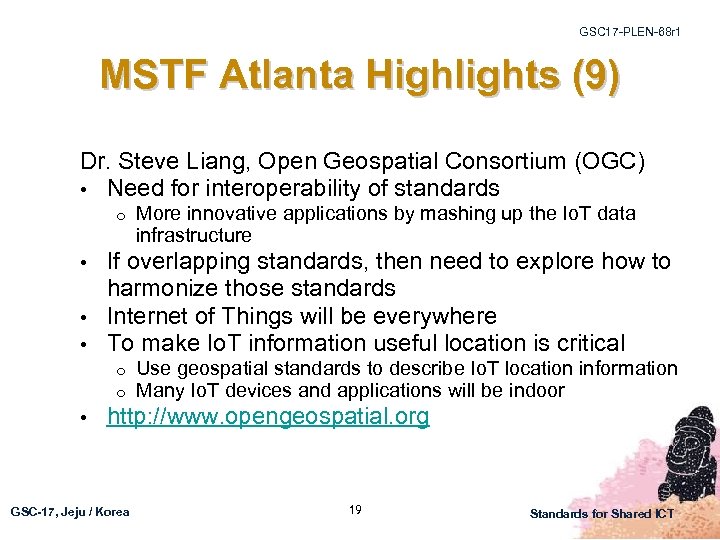

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (9) Dr. Steve Liang, Open Geospatial Consortium (OGC) • Need for interoperability of standards o More innovative applications by mashing up the Io. T data infrastructure If overlapping standards, then need to explore how to harmonize those standards • Internet of Things will be everywhere • To make Io. T information useful location is critical • o o • Use geospatial standards to describe Io. T location information Many Io. T devices and applications will be indoor http: //www. opengeospatial. org GSC-17, Jeju / Korea 19 Standards for Shared ICT

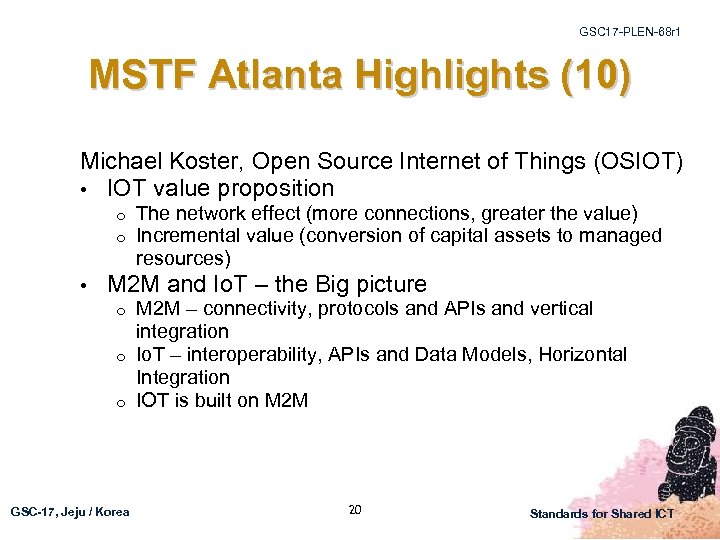

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (10) Michael Koster, Open Source Internet of Things (OSIOT) • IOT value proposition o o • The network effect (more connections, greater the value) Incremental value (conversion of capital assets to managed resources) M 2 M and Io. T – the Big picture M 2 M – connectivity, protocols and APIs and vertical integration o Io. T – interoperability, APIs and Data Models, Horizontal Integration o IOT is built on M 2 M o GSC-17, Jeju / Korea 20 Standards for Shared ICT

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (11) Michael Koster, OSIOT • IOT is built on M 2 M o Io. T is more than standardized M 2 M o o o o • Adds data model layer Open internet protocols and RESTful APIs Event Driven Architecture Platforms are both vertical and horizontal Horizontal platform Interoperability of data models Bottom up practical standard Build as an industry working together For Io. T GSC-17, Jeju / Korea 21 Standards for Shared ICT

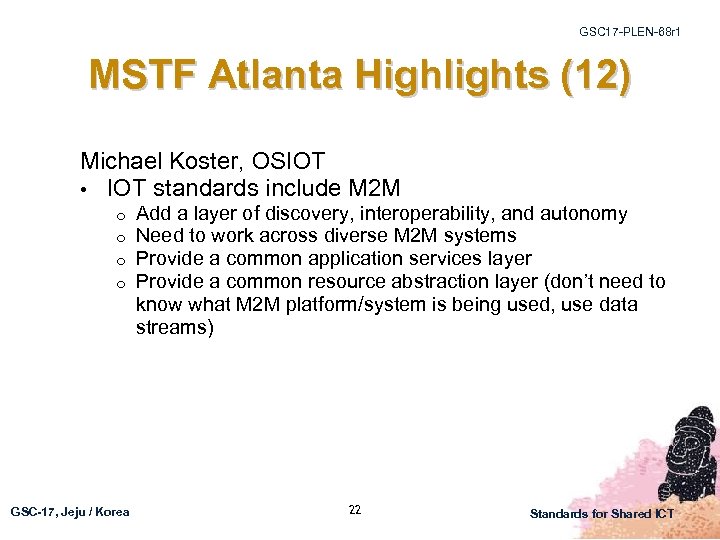

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (12) Michael Koster, OSIOT • IOT standards include M 2 M o o GSC-17, Jeju / Korea Add a layer of discovery, interoperability, and autonomy Need to work across diverse M 2 M systems Provide a common application services layer Provide a common resource abstraction layer (don’t need to know what M 2 M platform/system is being used, use data streams) 22 Standards for Shared ICT

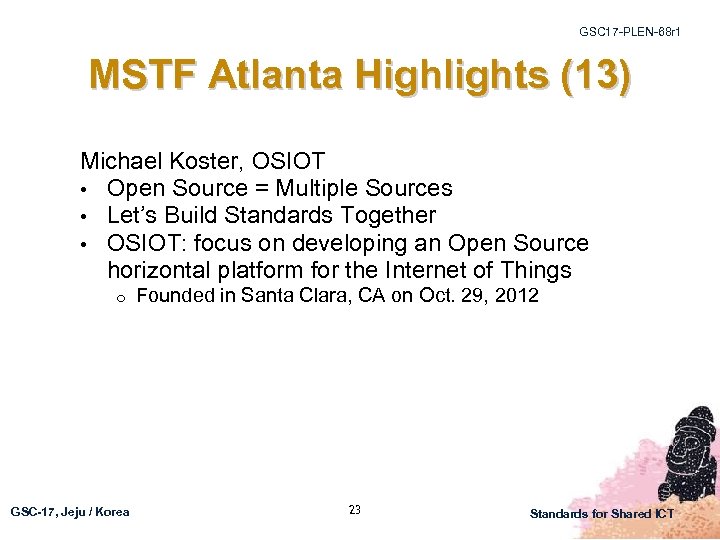

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (13) Michael Koster, OSIOT • Open Source = Multiple Sources • Let’s Build Standards Together • OSIOT: focus on developing an Open Source horizontal platform for the Internet of Things o GSC-17, Jeju / Korea Founded in Santa Clara, CA on Oct. 29, 2012 23 Standards for Shared ICT

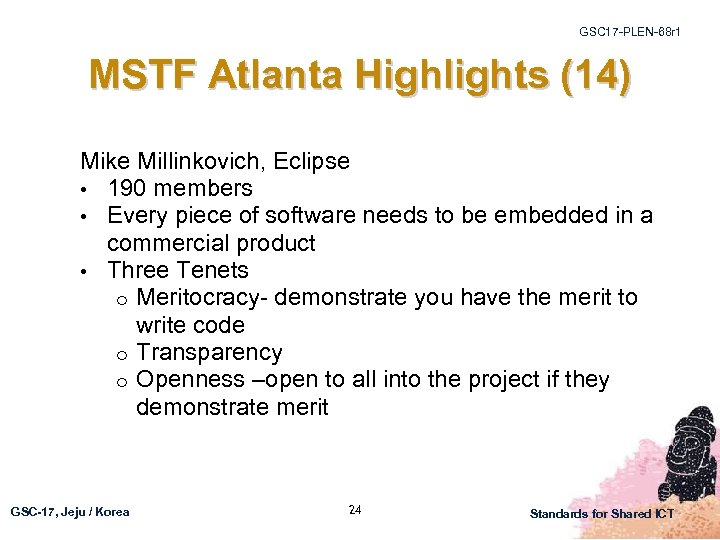

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (14) Mike Millinkovich, Eclipse • 190 members • Every piece of software needs to be embedded in a commercial product • Three Tenets o Meritocracy- demonstrate you have the merit to write code o Transparency o Openness –open to all into the project if they demonstrate merit GSC-17, Jeju / Korea 24 Standards for Shared ICT

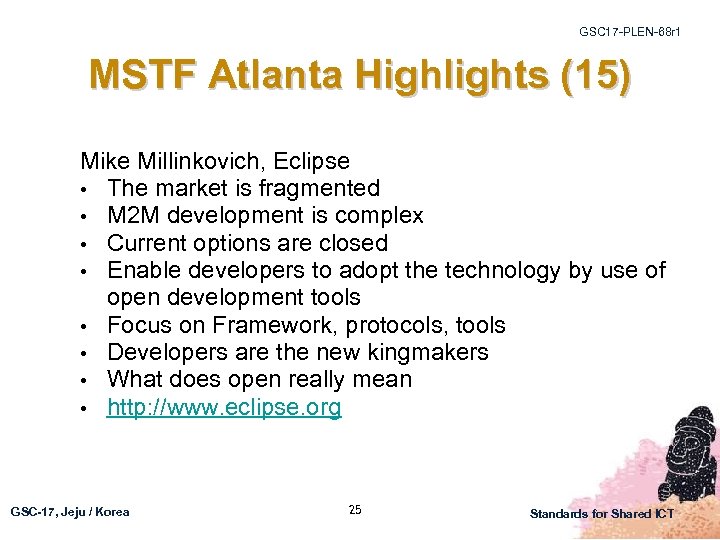

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (15) Mike Millinkovich, Eclipse • The market is fragmented • M 2 M development is complex • Current options are closed • Enable developers to adopt the technology by use of open development tools • Focus on Framework, protocols, tools • Developers are the new kingmakers • What does open really mean • http: //www. eclipse. org GSC-17, Jeju / Korea 25 Standards for Shared ICT

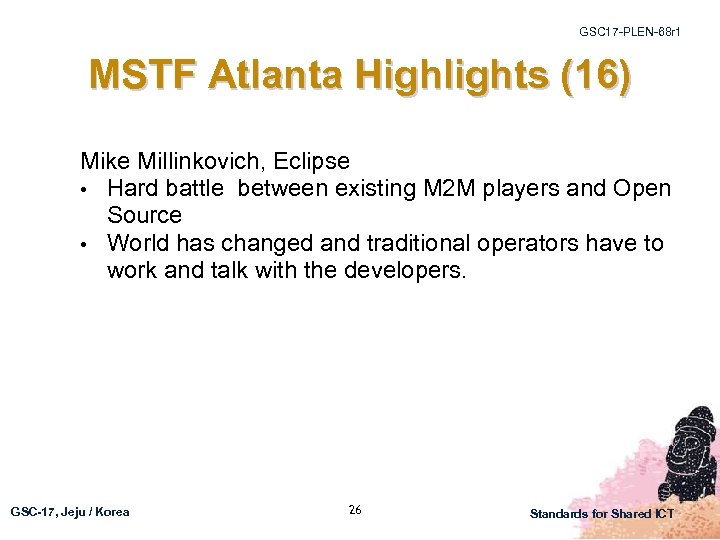

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (16) Mike Millinkovich, Eclipse • Hard battle between existing M 2 M players and Open Source • World has changed and traditional operators have to work and talk with the developers. GSC-17, Jeju / Korea 26 Standards for Shared ICT

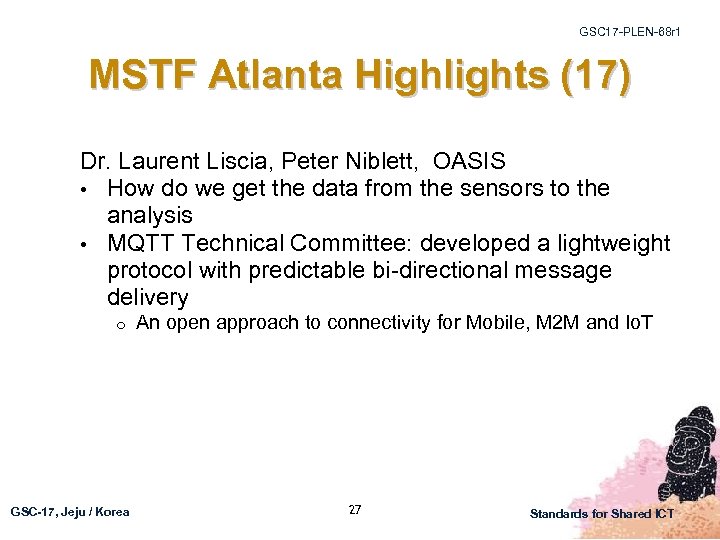

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (17) Dr. Laurent Liscia, Peter Niblett, OASIS • How do we get the data from the sensors to the analysis • MQTT Technical Committee: developed a lightweight protocol with predictable bi-directional message delivery o GSC-17, Jeju / Korea An open approach to connectivity for Mobile, M 2 M and Io. T 27 Standards for Shared ICT

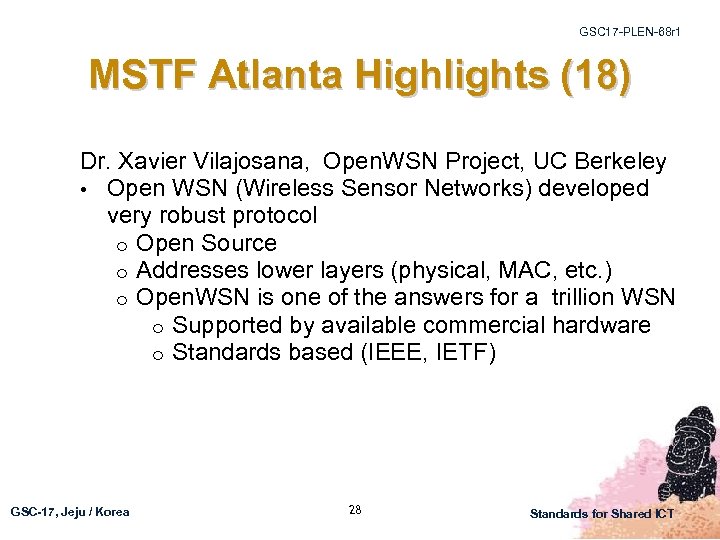

GSC 17 -PLEN-68 r 1 MSTF Atlanta Highlights (18) Dr. Xavier Vilajosana, Open. WSN Project, UC Berkeley • Open WSN (Wireless Sensor Networks) developed very robust protocol o Open Source o Addresses lower layers (physical, MAC, etc. ) o Open. WSN is one of the answers for a trillion WSN o Supported by available commercial hardware o Standards based (IEEE, IETF) GSC-17, Jeju / Korea 28 Standards for Shared ICT
