Division of Nearshore Research Texas Coastal Ocean Observation Network Dr. Gary Jeffress Dr. Patrick Michaud Jessica Tishmack May 7, 2003

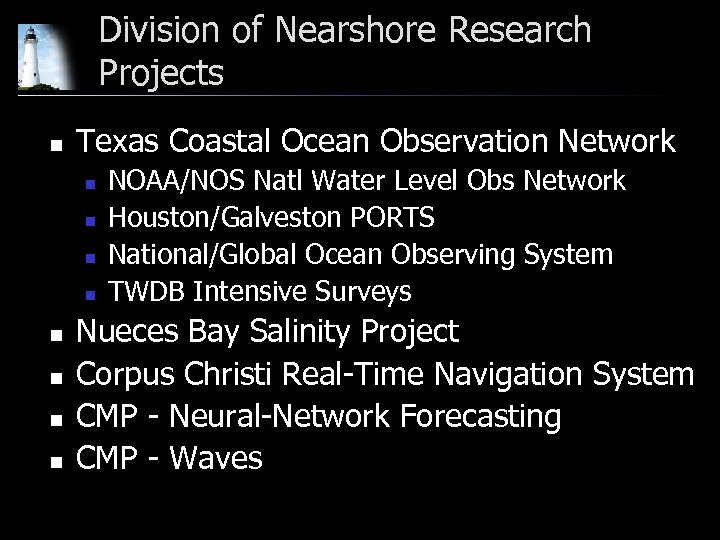

Division of Nearshore Research Projects n Texas Coastal Ocean Observation Network n n n n NOAA/NOS Natl Water Level Obs Network Houston/Galveston PORTS National/Global Ocean Observing System TWDB Intensive Surveys Nueces Bay Salinity Project Corpus Christi Real-Time Navigation System CMP - Neural-Network Forecasting CMP - Waves

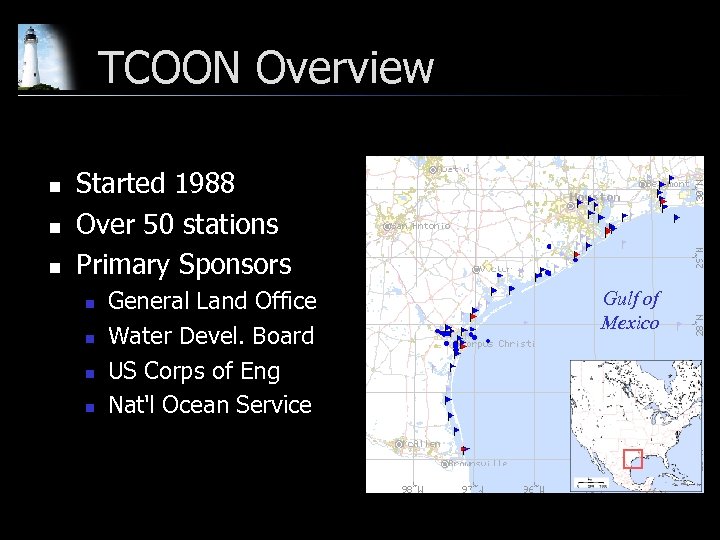

TCOON Overview n n n Started 1988 Over 50 stations Primary Sponsors n n General Land Office Water Devel. Board US Corps of Eng Nat'l Ocean Service Gulf of Mexico

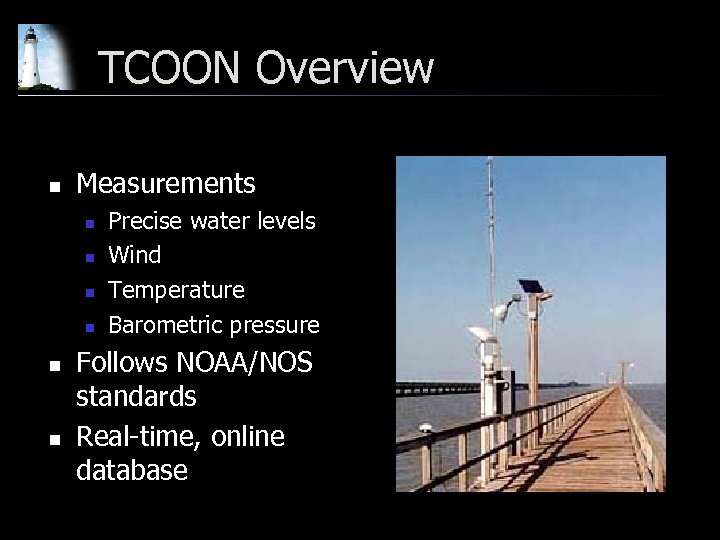

TCOON Overview n Measurements n n n Precise water levels Wind Temperature Barometric pressure Follows NOAA/NOS standards Real-time, online database

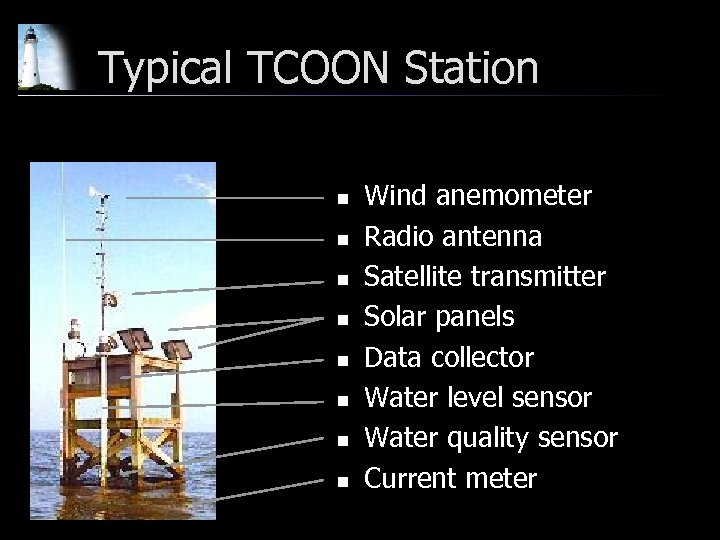

Typical TCOON Station n n n n Wind anemometer Radio antenna Satellite transmitter Solar panels Data collector Water level sensor Water quality sensor Current meter

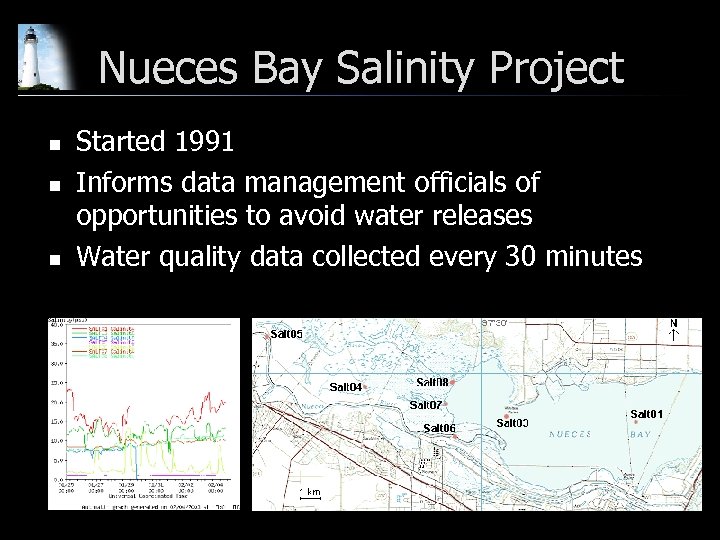

Nueces Bay Salinity Project n n n Started 1991 Informs data management officials of opportunities to avoid water releases Water quality data collected every 30 minutes

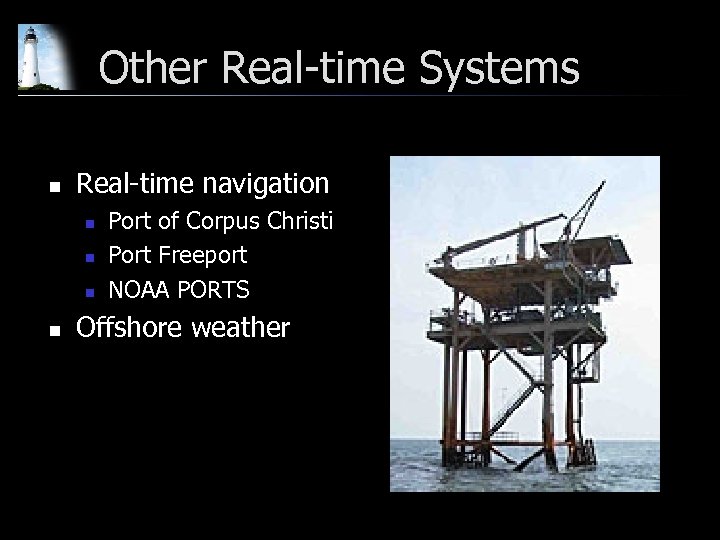

Other Real-time Systems n Real-time navigation n n Port of Corpus Christi Port Freeport NOAA PORTS Offshore weather
Data Collection Paths

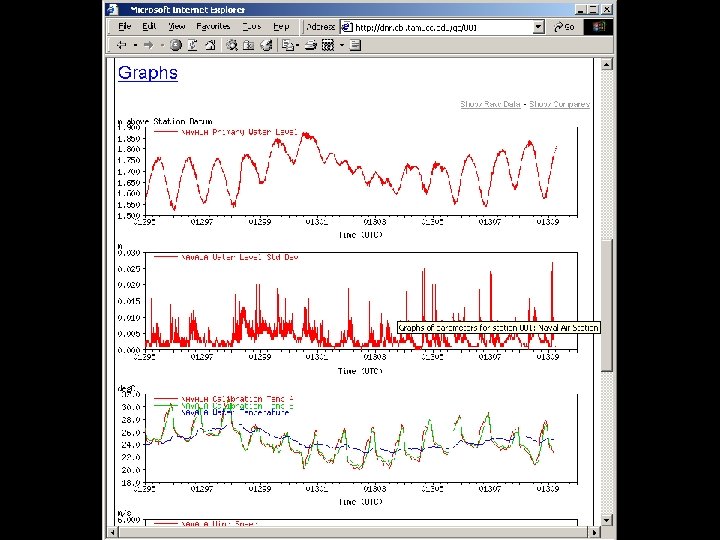

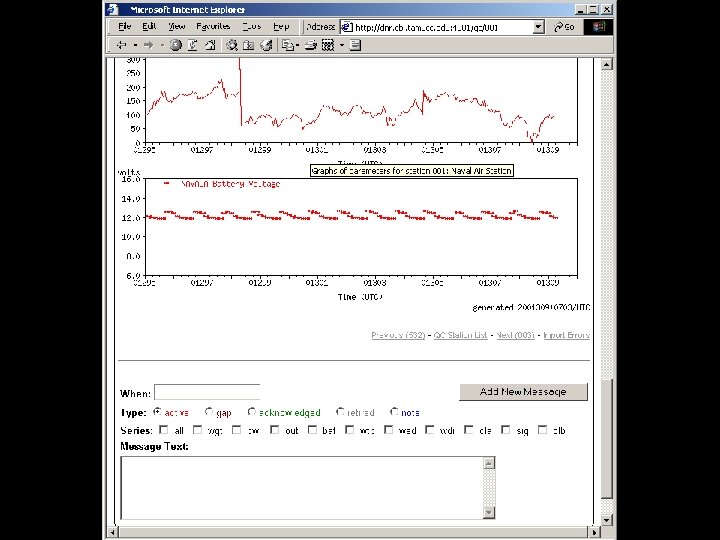

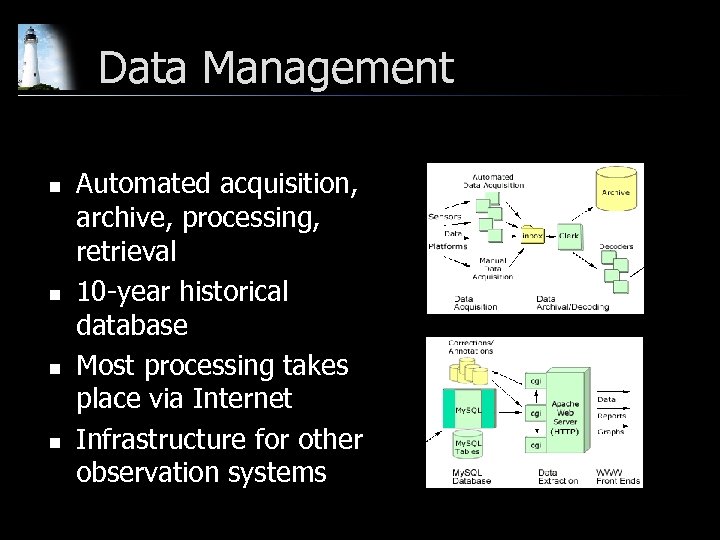

Data Management n n Automated acquisition, archive, processing, retrieval 10 -year historical database Most processing takes place via Internet Infrastructure for other observation systems

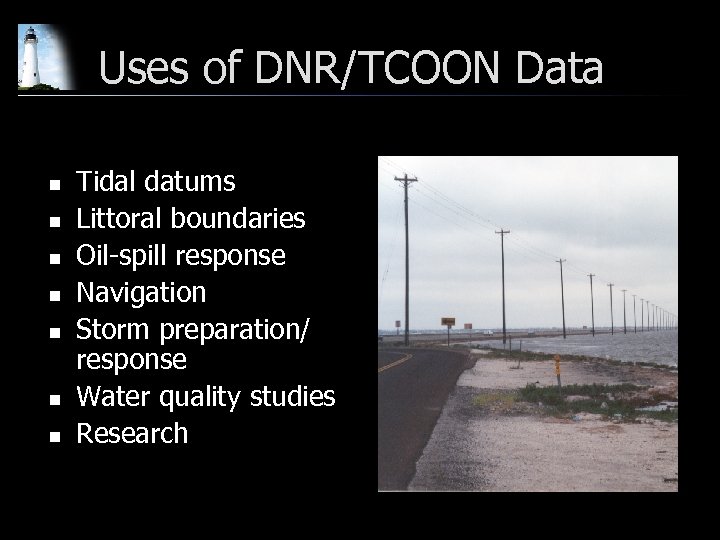

Uses of DNR/TCOON Data n n n n Tidal datums Littoral boundaries Oil-spill response Navigation Storm preparation/ response Water quality studies Research

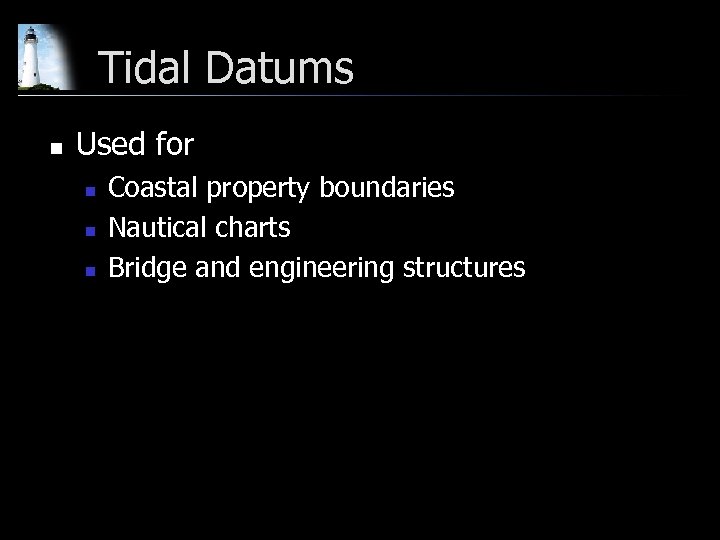

Tidal Datums n Used for n n n Coastal property boundaries Nautical charts Bridge and engineering structures

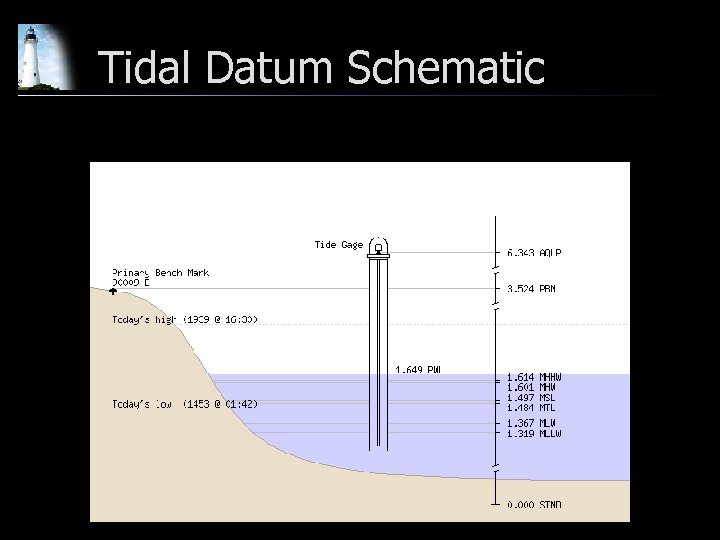

Tidal Datum Schematic

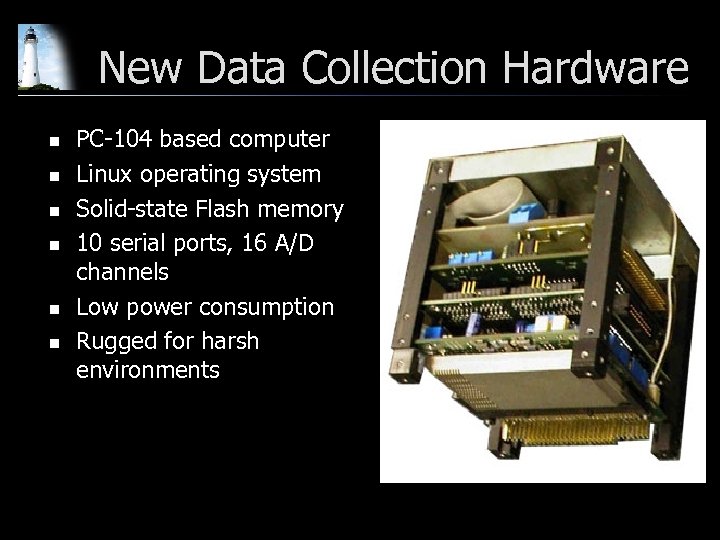

New Data Collection Hardware n n n PC-104 based computer Linux operating system Solid-state Flash memory 10 serial ports, 16 A/D channels Low power consumption Rugged for harsh environments

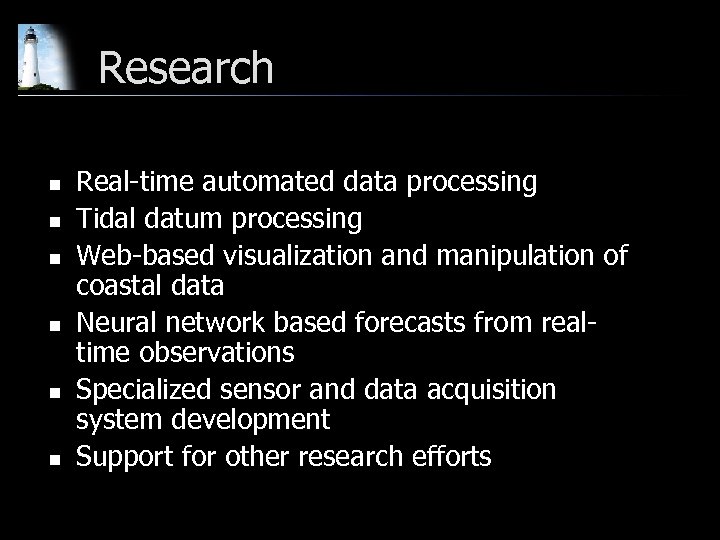

Research n n n Real-time automated data processing Tidal datum processing Web-based visualization and manipulation of coastal data Neural network based forecasts from realtime observations Specialized sensor and data acquisition system development Support for other research efforts

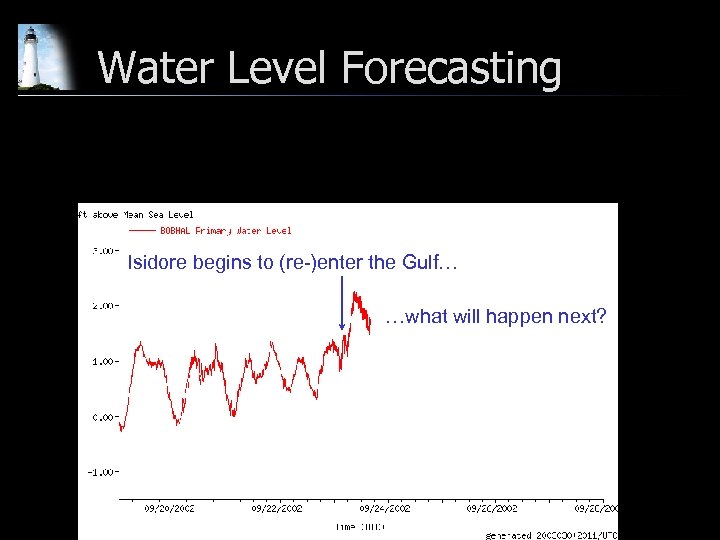

Water Level Forecasting Isidore begins to (re-)enter the Gulf… …what will happen next?

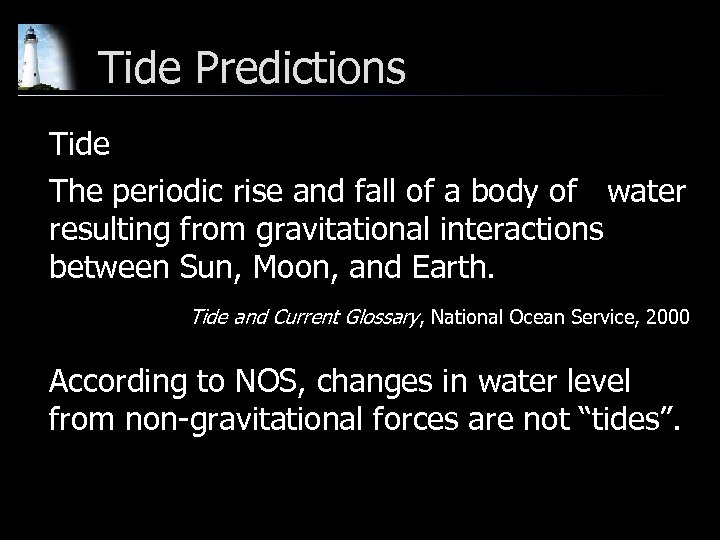

Tide Predictions Tide The periodic rise and fall of a body of water resulting from gravitational interactions between Sun, Moon, and Earth. Tide and Current Glossary, National Ocean Service, 2000 According to NOS, changes in water level from non-gravitational forces are not “tides”.
Harmonic Analysis n n n Standard method for tide predictions Represented by constituent cosine waves with known frequencies based on gravitational (periodic) forces Elevation of water is modeled as h(t) = H 0 + Hc fy, c cos(act + ey, c – kc) h(t) = elevation of water at time t H 0 = datum offset ac = frequency (speed) of constituent t fy, c ey, c = node factors/equilibrium args Hc = amplitude of constituent c kc = phase offset for constituent c
Prediction vs. Observation It’s nice when it works…

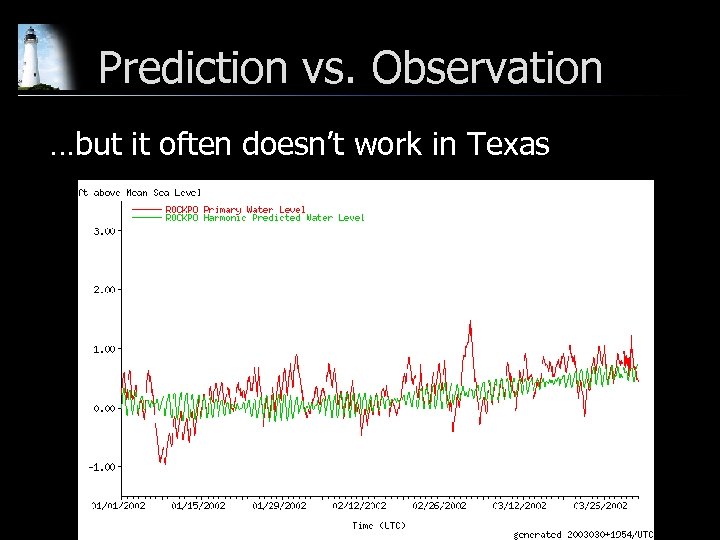

Prediction vs. Observation …but it often doesn’t work in Texas

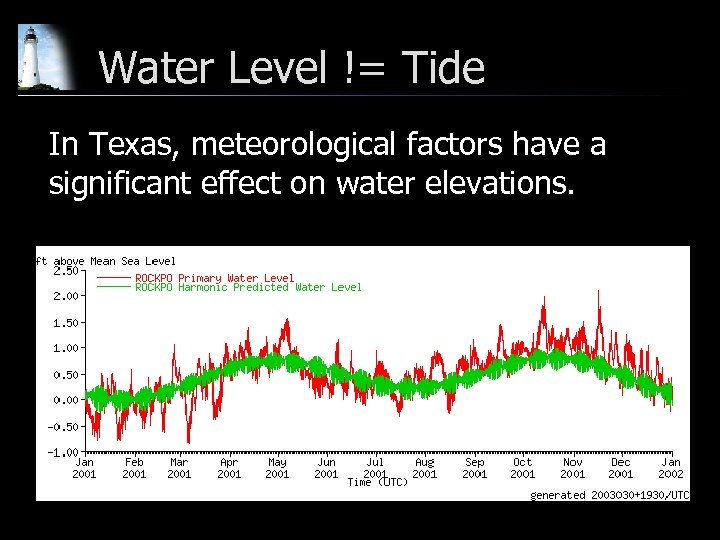

Water Level != Tide In Texas, meteorological factors have a significant effect on water elevations.

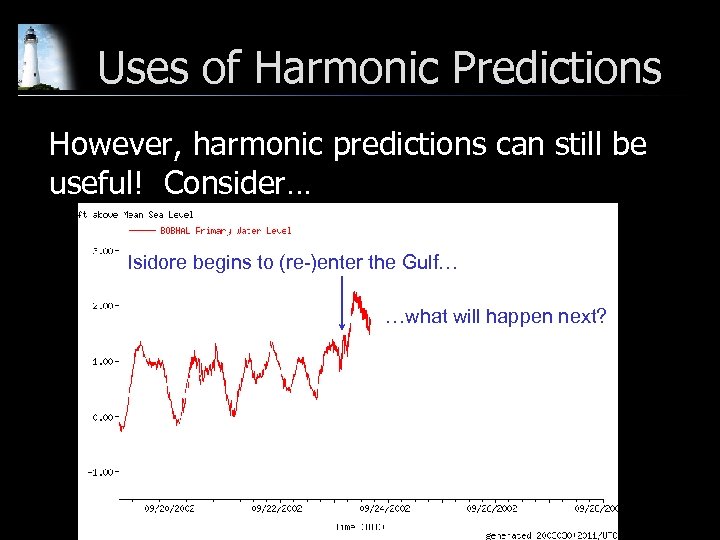

Uses of Harmonic Predictions However, harmonic predictions can still be useful! Consider… Isidore begins to (re-)enter the Gulf… …what will happen next?

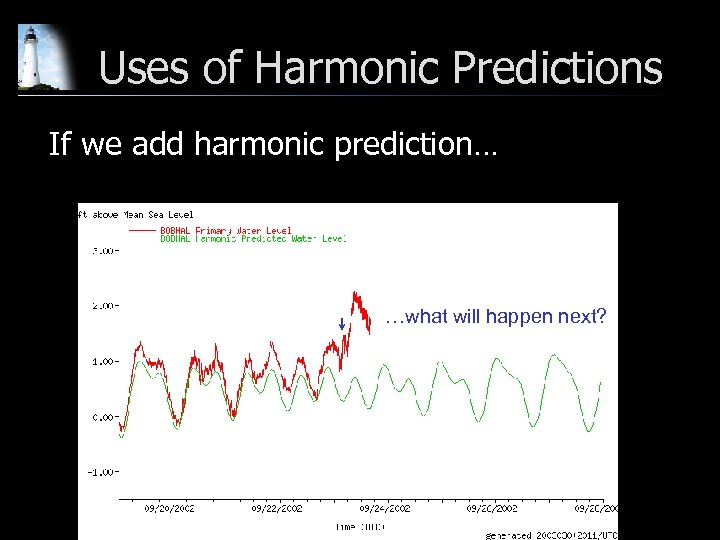

Uses of Harmonic Predictions If we add harmonic prediction… …what will happen next?

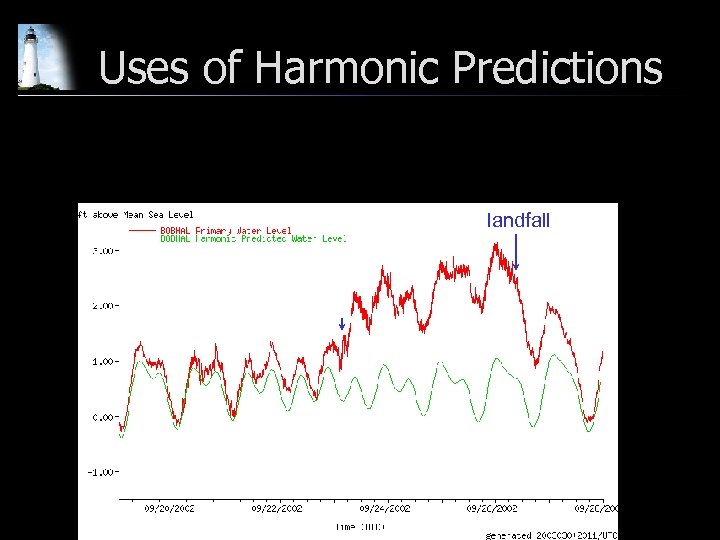

Uses of Harmonic Predictions landfall

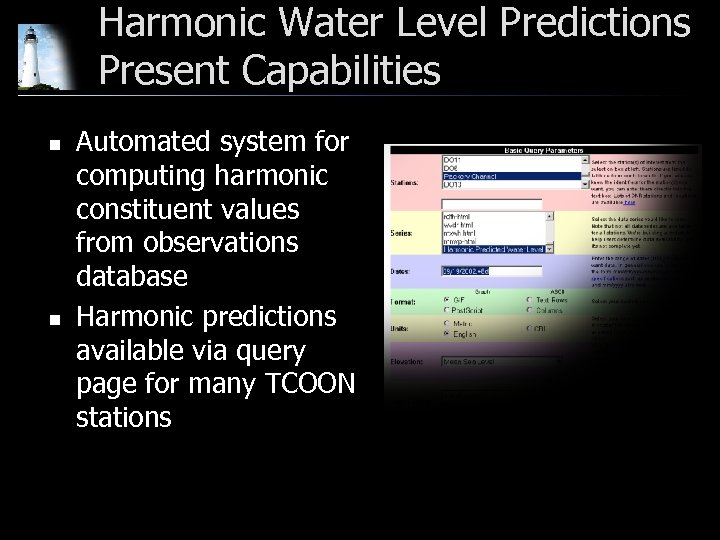

Harmonic Water Level Predictions Present Capabilities n n Automated system for computing harmonic constituent values from observations database Harmonic predictions available via query page for many TCOON stations

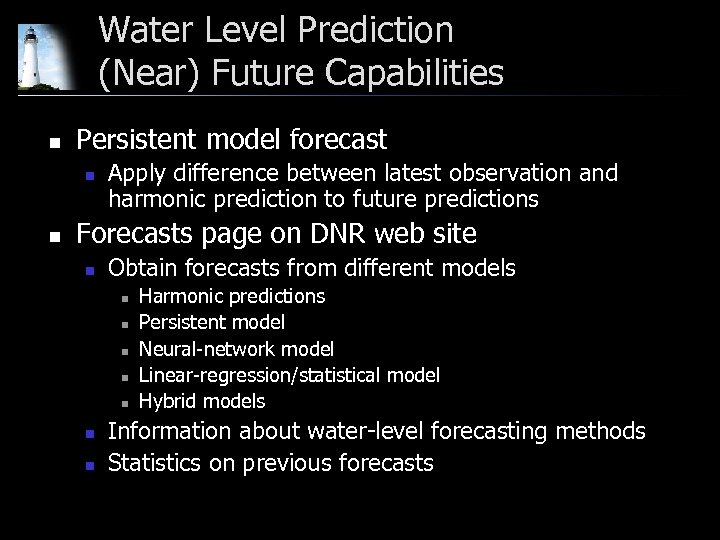

Water Level Prediction (Near) Future Capabilities n Persistent model forecast n n Apply difference between latest observation and harmonic prediction to future predictions Forecasts page on DNR web site n Obtain forecasts from different models n n n n Harmonic predictions Persistent model Neural-network model Linear-regression/statistical model Hybrid models Information about water-level forecasting methods Statistics on previous forecasts

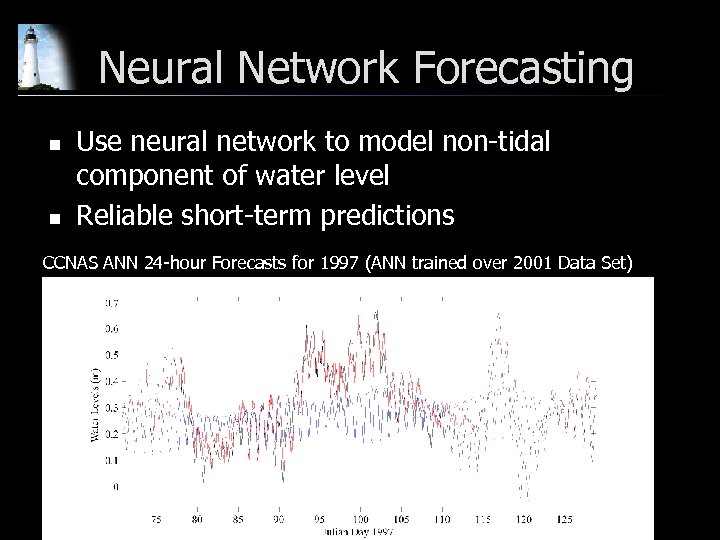

Neural Network Forecasting n n Use neural network to model non-tidal component of water level Reliable short-term predictions CCNAS ANN 24 -hour Forecasts for 1997 (ANN trained over 2001 Data Set)

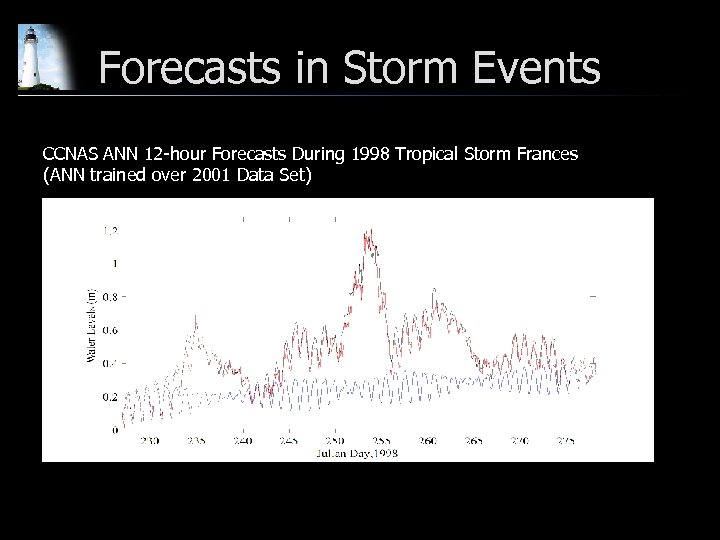

Forecasts in Storm Events CCNAS ANN 12 -hour Forecasts During 1998 Tropical Storm Frances (ANN trained over 2001 Data Set)

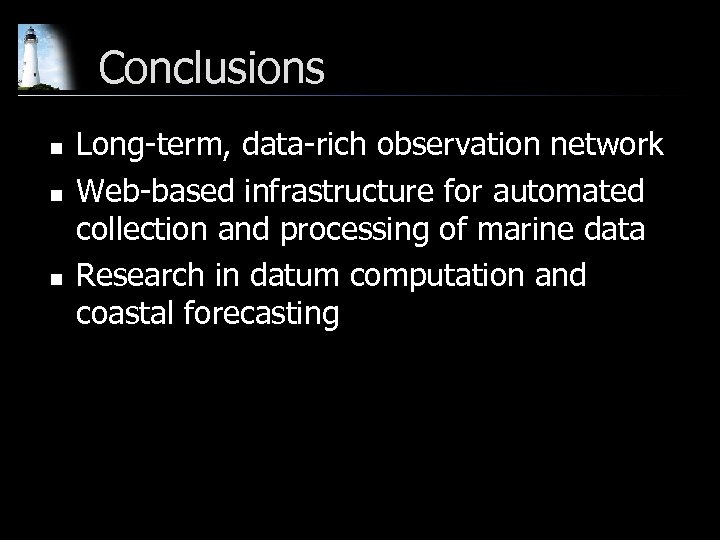

Conclusions n n n Long-term, data-rich observation network Web-based infrastructure for automated collection and processing of marine data Research in datum computation and coastal forecasting
