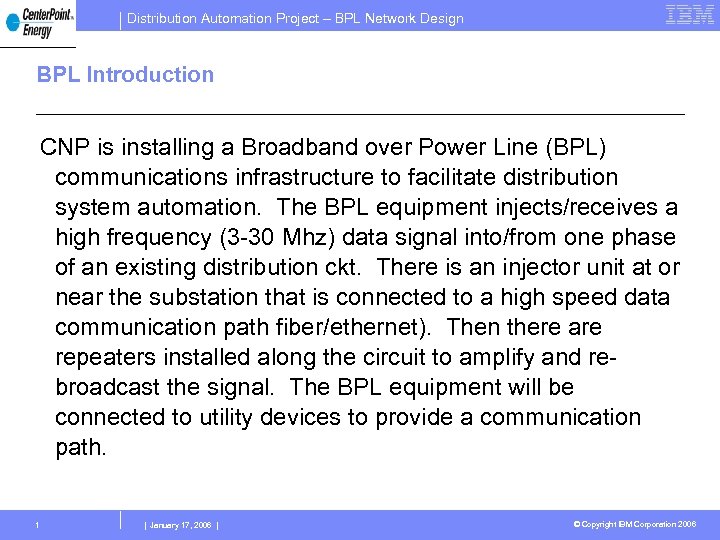

Distribution Automation Project – BPL Network Design BPL Introduction CNP is installing a Broadband over Power Line (BPL) communications infrastructure to facilitate distribution system automation. The BPL equipment injects/receives a high frequency (3 -30 Mhz) data signal into/from one phase of an existing distribution ckt. There is an injector unit at or near the substation that is connected to a high speed data communication path fiber/ethernet). Then there are repeaters installed along the circuit to amplify and rebroadcast the signal. The BPL equipment will be connected to utility devices to provide a communication path. 1 | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project – BPL Network Design BPL Introduction For 2006, 41 12 k. V ckts are scheduled to have BPL equipment installed. IBM has been hired as the BPL system integrator, and they will be doing the BPL design. The design consists of determining how many devices will be required per ckt and approximately where the devices should be located. 2 | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project BPL Network Design Bellaire BI 01 Circuit March 12 th, 2006 V 1. 9 © Copyright IBM Corporation 2006

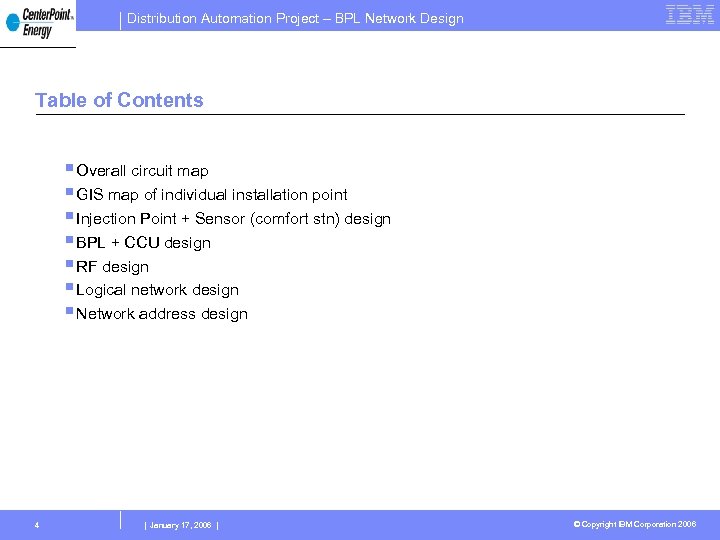

Distribution Automation Project – BPL Network Design Table of Contents § Overall circuit map § GIS map of individual installation point § Injection Point + Sensor (comfort stn) design § BPL + CCU design § RF design § Logical network design § Network address design 4 | January 17, 2006 | © Copyright IBM Corporation 2006

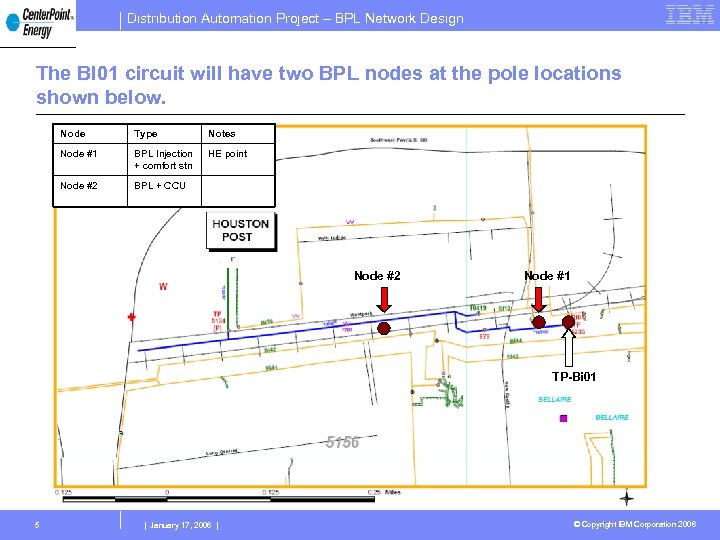

Distribution Automation Project – BPL Network Design The BI 01 circuit will have two BPL nodes at the pole locations shown below. Node Type Notes Node #1 BPL Injection + comfort stn HE point Node #2 BPL + CCU Node #2 Node #1 TP-Bi 01 5 | January 17, 2006 | © Copyright IBM Corporation 2006

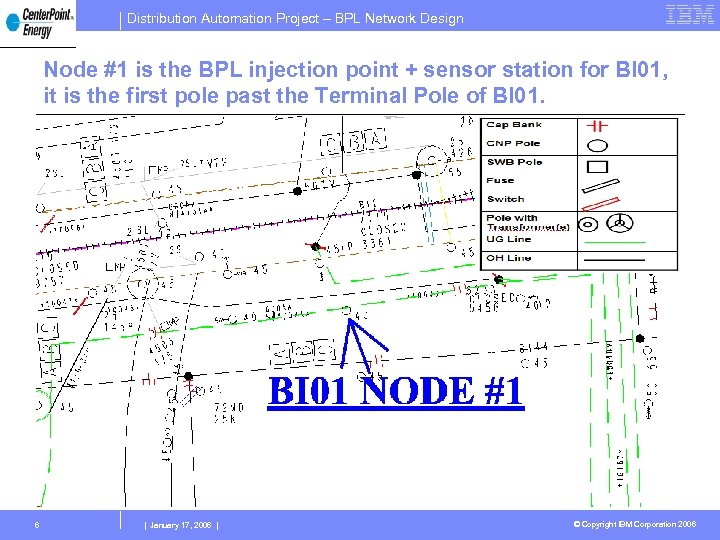

Distribution Automation Project – BPL Network Design Node #1 is the BPL injection point + sensor station for BI 01, it is the first pole past the Terminal Pole of BI 01. 6 | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project – BPL Network Design Node #2 is a BPL + CCU installation point 7 | January 17, 2006 | © Copyright IBM Corporation 2006

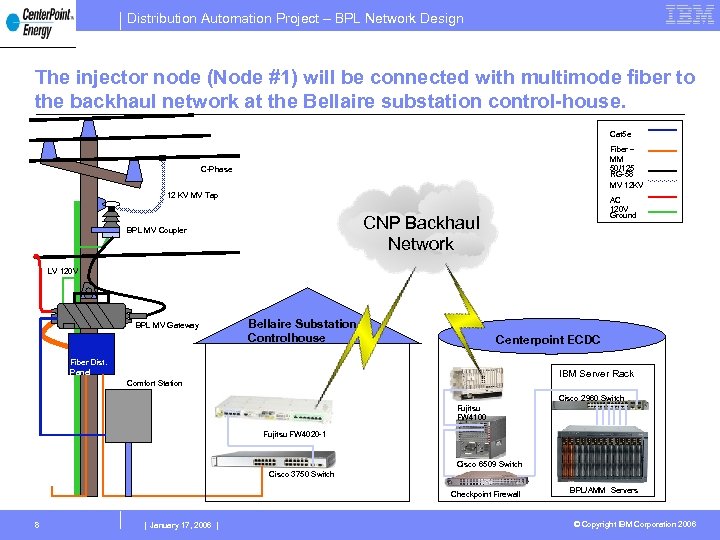

Distribution Automation Project – BPL Network Design The injector node (Node #1) will be connected with multimode fiber to the backhaul network at the Bellaire substation control-house. Cat 5 e Fiber – MM 50/125 RG-58 MV 12 KV C-Phase 12 KV MV Tap AC 120 V Ground CNP Backhaul Network BPL MV Coupler LV 120 V BPL MV Gateway Bellaire Substation Controlhouse Centerpoint ECDC Fiber Dist. Panel IBM Server Rack Comfort Station Cisco 2960 Switch Fujitsu FW 4100 Fujitsu FW 4020 -1 Cisco 6509 Switch Cisco 3750 Switch Checkpoint Firewall 8 | January 17, 2006 | BPL/AMM Servers © Copyright IBM Corporation 2006

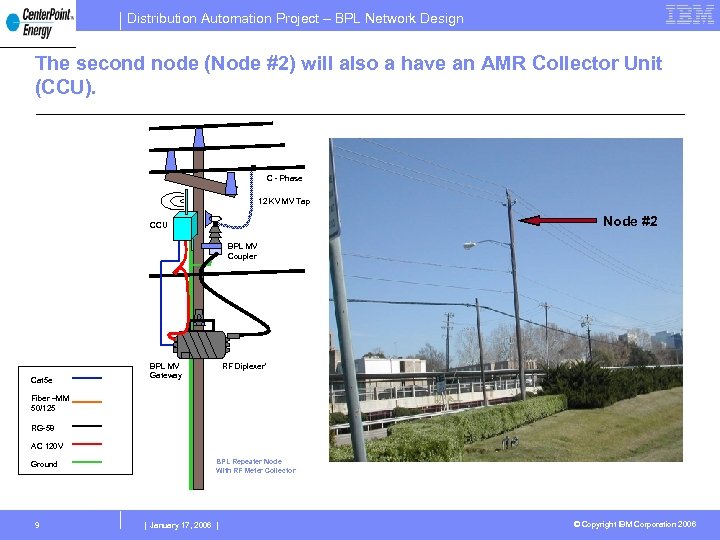

Distribution Automation Project – BPL Network Design The second node (Node #2) will also a have an AMR Collector Unit (CCU). C - Phase 12 KV MV Tap Node #2 CCU BPL MV Coupler Cat 5 e BPL MV Gateway RF Diplexer* Fiber –MM 50/125 RG-58 AC 120 V Ground 9 BPL Repeater Node With RF Meter Collector | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project – BPL Network Design RF Band allocation for BI 01 n n n Frequency Mode: 1 for Node #1 and Node #2 Frequency range 3 MHz – 13 MHz Frequency notching will be used to notch out the amateur radio bands 12 KV line, C-Phase MV Coupler Mode 1 Filter “Previous” port “next” port Node #1 10 | January 17, 2006 | Node #2 © Copyright IBM Corporation 2006

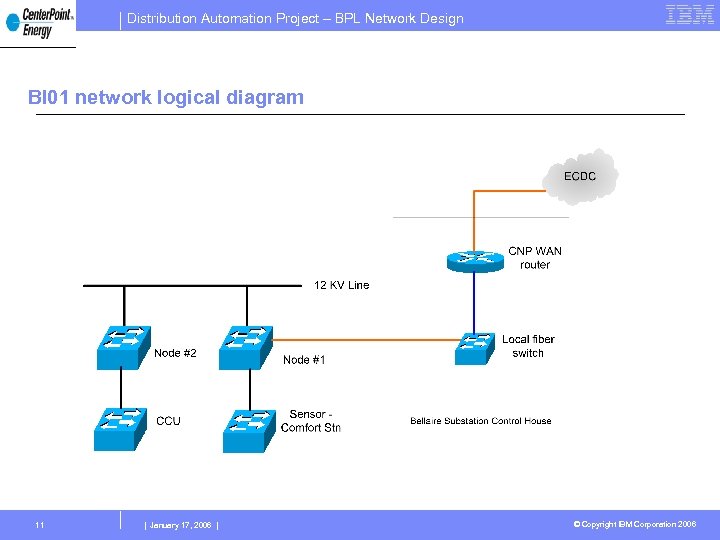

Distribution Automation Project – BPL Network Design BI 01 network logical diagram 11 | January 17, 2006 | © Copyright IBM Corporation 2006

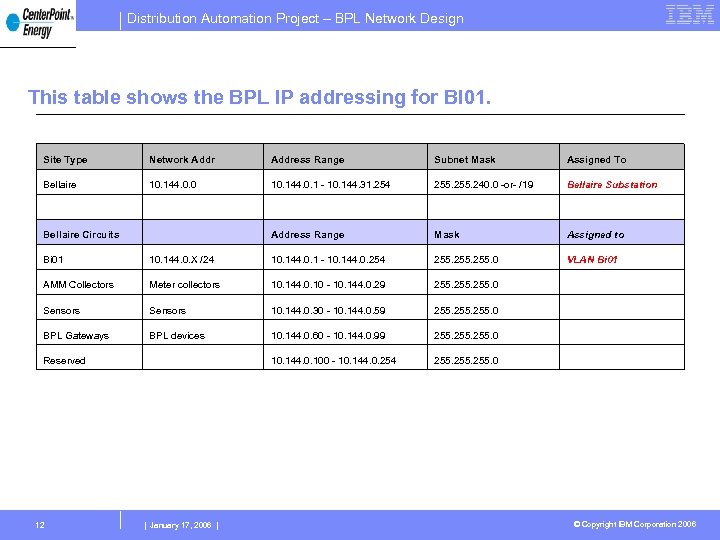

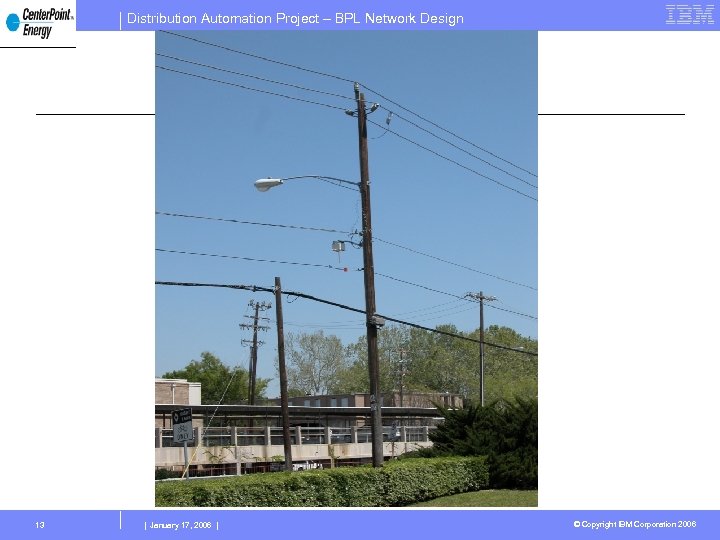

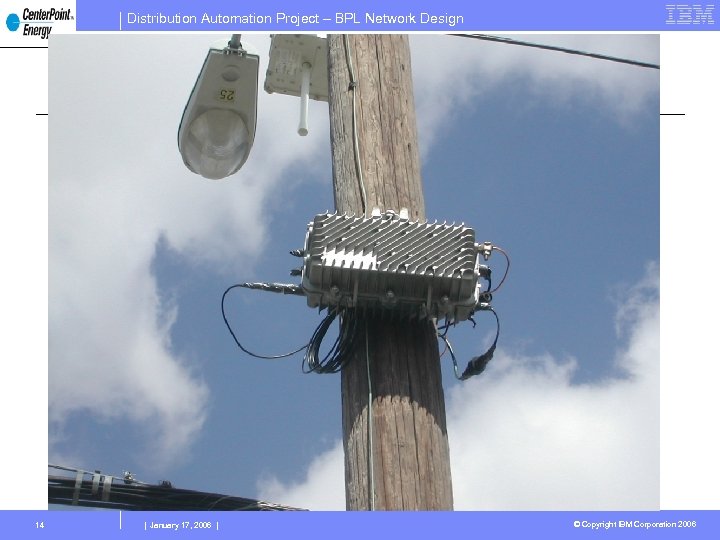

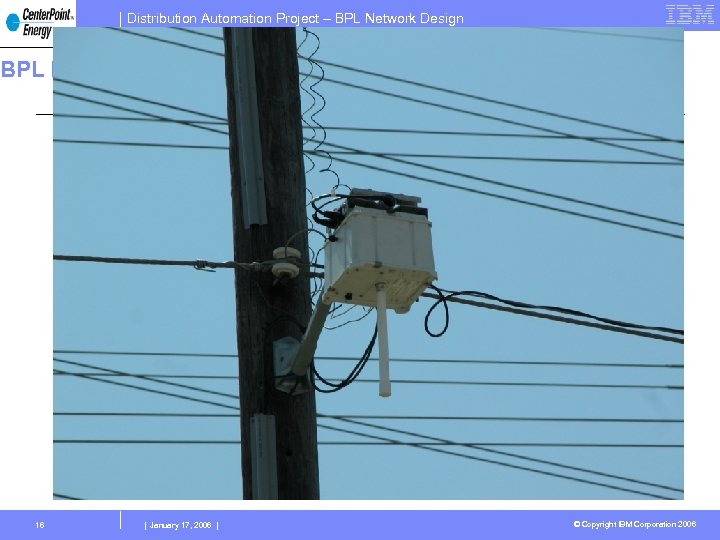

Distribution Automation Project – BPL Network Design This table shows the BPL IP addressing for BI 01. Site Type Network Address Range Subnet Mask Assigned To Bellaire 10. 144. 0. 0 10. 144. 0. 1 - 10. 144. 31. 254 255. 240. 0 -or- /19 Bellaire Substation Bellaire Circuits Address Range Mask Assigned to Bi 01 10. 144. 0. X /24 10. 144. 0. 1 - 10. 144. 0. 254 255. 0 VLAN Bi 01 AMM Collectors Meter collectors 10. 144. 0. 10 - 10. 144. 0. 29 255. 0 Sensors 10. 144. 0. 30 - 10. 144. 0. 59 255. 0 BPL Gateways BPL devices 10. 144. 0. 60 - 10. 144. 0. 99 255. 0 Reserved 10. 144. 0. 100 - 10. 144. 0. 254 255. 0 12 | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project – BPL Network Design 13 | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project – BPL Network Design 14 | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project – BPL Network Design 15 | January 17, 2006 | © Copyright IBM Corporation 2006
Distribution Automation Project – BPL Network Design BPL Pictures 16 | January 17, 2006 | © Copyright IBM Corporation 2006
