Distributed Dynamic BDD Reordering Ziv Nevo IBM Haifa

Distributed Dynamic BDD Reordering Ziv Nevo IBM Haifa Research Lab Haifa, Israel Monica Farkash IBM Systems Group Austin, Texas

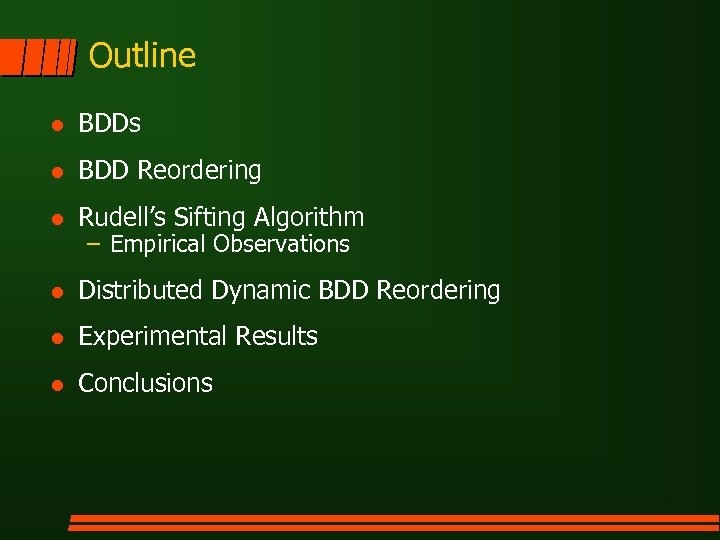

Outline l BDDs l BDD Reordering l Rudell’s Sifting Algorithm l Distributed Dynamic BDD Reordering l Experimental Results l Conclusions – Empirical Observations

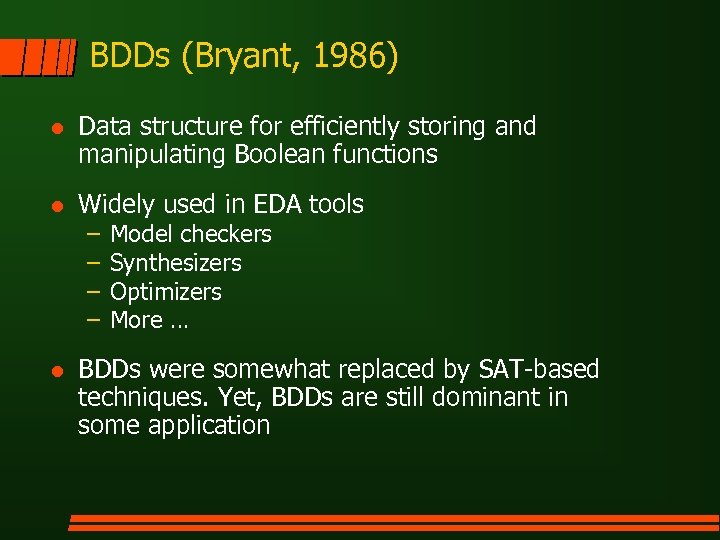

BDDs (Bryant, 1986) l Data structure for efficiently storing and manipulating Boolean functions l Widely used in EDA tools – – l Model checkers Synthesizers Optimizers More … BDDs were somewhat replaced by SAT-based techniques. Yet, BDDs are still dominant in some application

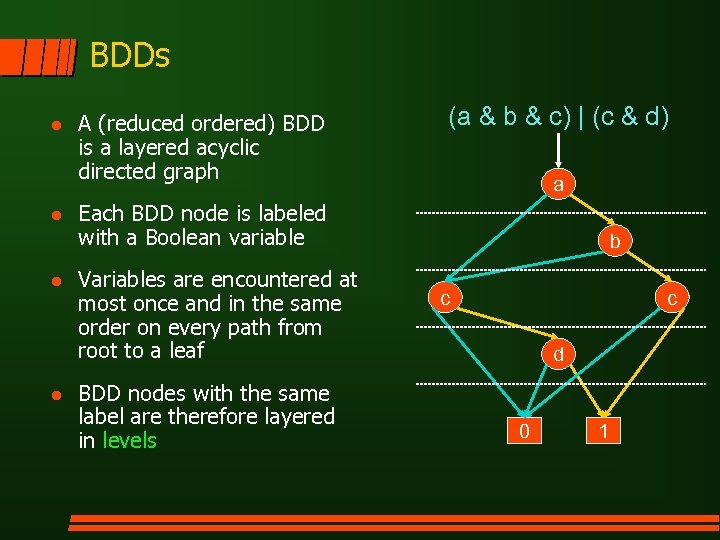

BDDs l l A (reduced ordered) BDD is a layered acyclic directed graph (a & b & c) | (c & d) a Each BDD node is labeled with a Boolean variable Variables are encountered at most once and in the same order on every path from root to a leaf BDD nodes with the same label are therefore layered in levels b c c d 0 1

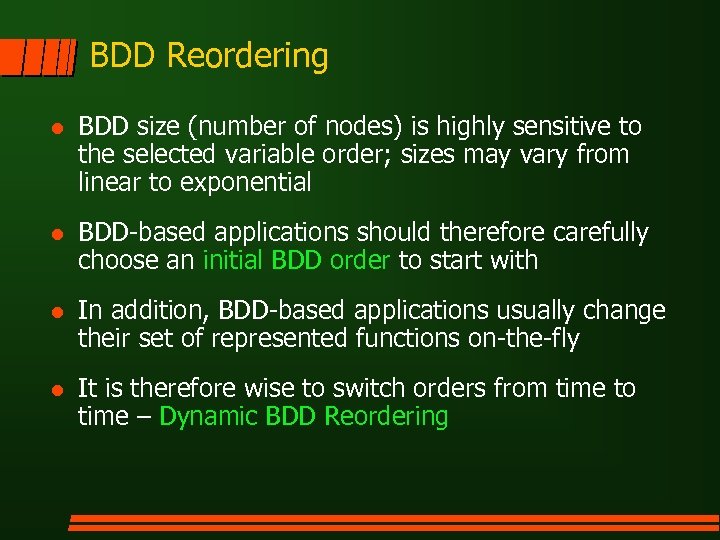

BDD Reordering l BDD size (number of nodes) is highly sensitive to the selected variable order; sizes may vary from linear to exponential l BDD-based applications should therefore carefully choose an initial BDD order to start with l In addition, BDD-based applications usually change their set of represented functions on-the-fly l It is therefore wise to switch orders from time to time – Dynamic BDD Reordering

BDD Reordering l But … l Finding the best BDD order is NP-complete l Heuristics are therefore required

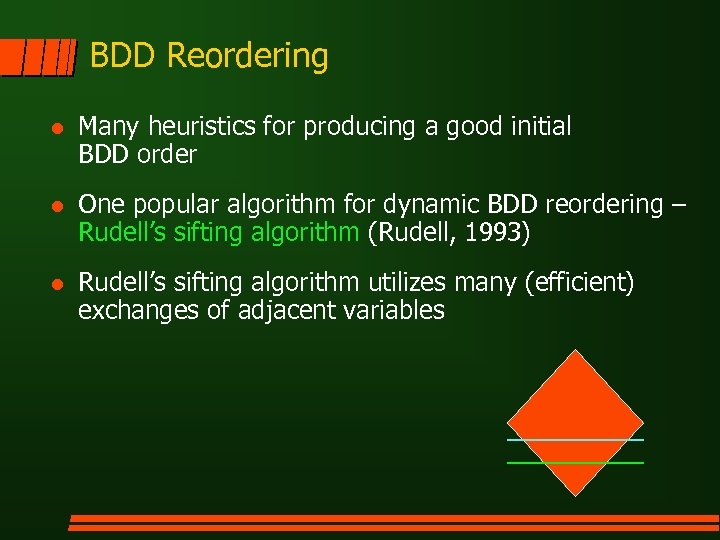

BDD Reordering l Many heuristics for producing a good initial BDD order l One popular algorithm for dynamic BDD reordering – Rudell’s sifting algorithm (Rudell, 1993) l Rudell’s sifting algorithm utilizes many (efficient) exchanges of adjacent variables

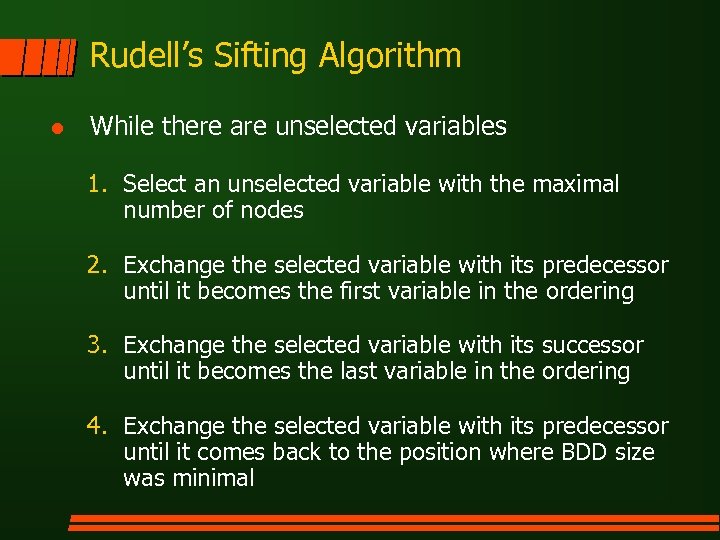

Rudell’s Sifting Algorithm l While there are unselected variables 1. Select an unselected variable with the maximal number of nodes 2. Exchange the selected variable with its predecessor until it becomes the first variable in the ordering 3. Exchange the selected variable with its successor until it becomes the last variable in the ordering 4. Exchange the selected variable with its predecessor until it comes back to the position where BDD size was minimal

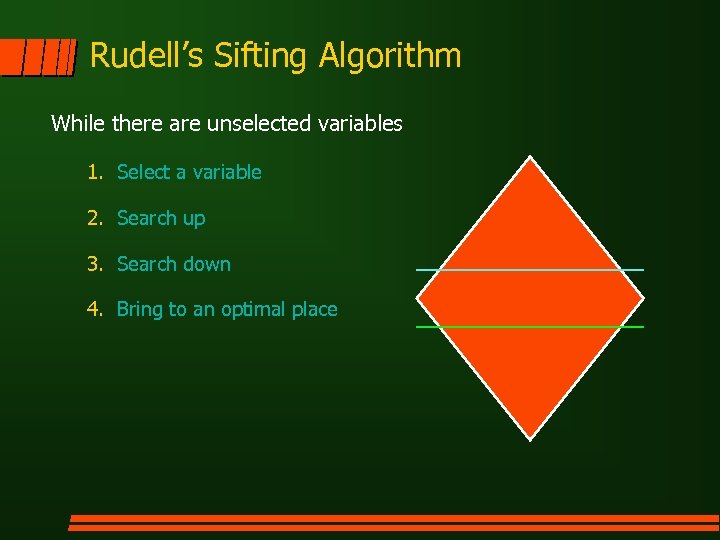

Rudell’s Sifting Algorithm While there are unselected variables 1. Select a variable 2. Search up 3. Search down 4. Bring to an optimal place

Optimizations to Rudell’s Algorithm l Search towards closest end first l Set an upper limit on BDD size during search l Group sifting (Panda and Somezni, 1995) l Block restricted sifting (Meinel and Slobodova, 1997) l Sampling methods (Slobodova and Meinel, 1998) l Lower bounds (Drechsler and Gunther, 2001; Ebendt and Drechsler, 2005)

Rudell’s Sifting Algorithm Yet, some applications spend nearly half their runtime doing dynamic BDD reordering

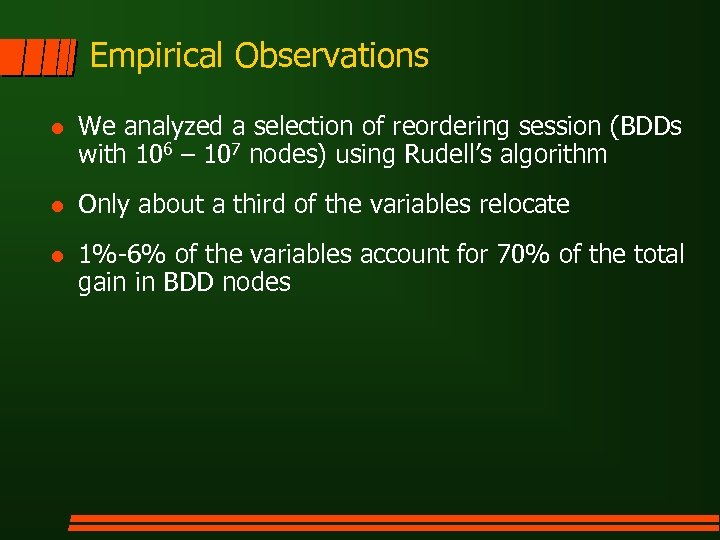

Empirical Observations l We analyzed a selection of reordering session (BDDs with 106 – 107 nodes) using Rudell’s algorithm l Only about a third of the variables relocate l 1%-6% of the variables account for 70% of the total gain in BDD nodes

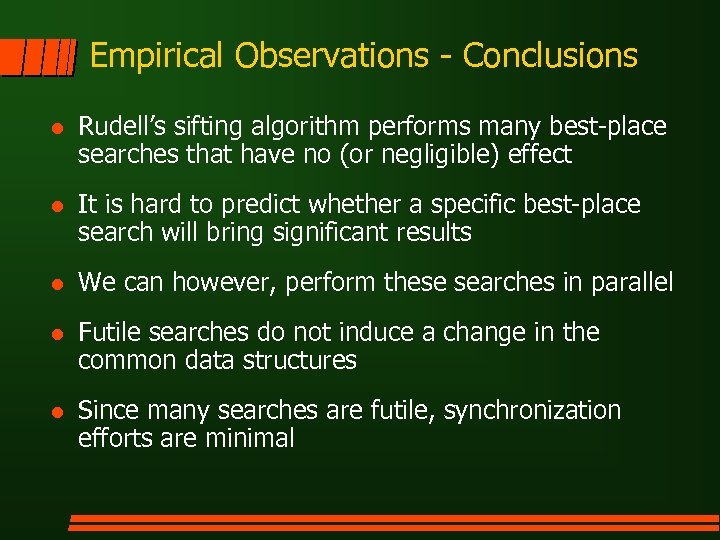

Empirical Observations - Conclusions l Rudell’s sifting algorithm performs many best-place searches that have no (or negligible) effect l It is hard to predict whether a specific best-place search will bring significant results l We can however, perform these searches in parallel l Futile searches do not induce a change in the common data structures l Since many searches are futile, synchronization efforts are minimal

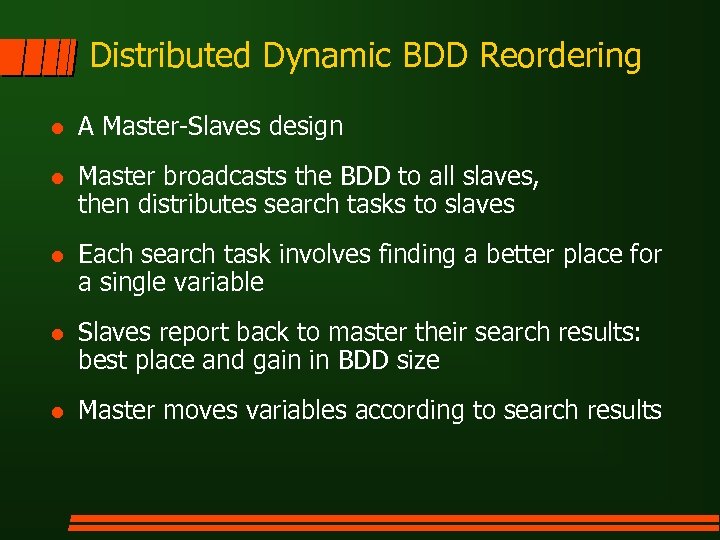

Distributed Dynamic BDD Reordering l A Master-Slaves design l Master broadcasts the BDD to all slaves, then distributes search tasks to slaves l Each search task involves finding a better place for a single variable l Slaves report back to master their search results: best place and gain in BDD size l Master moves variables according to search results

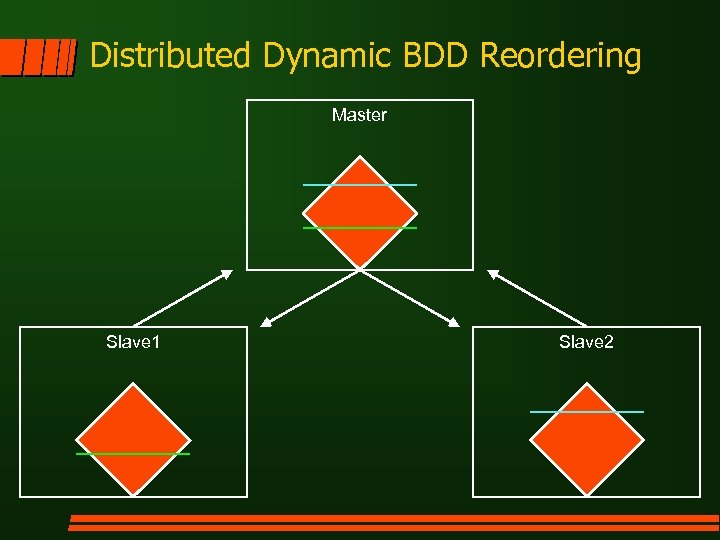

Distributed Dynamic BDD Reordering Master Slave 1 Slave 2

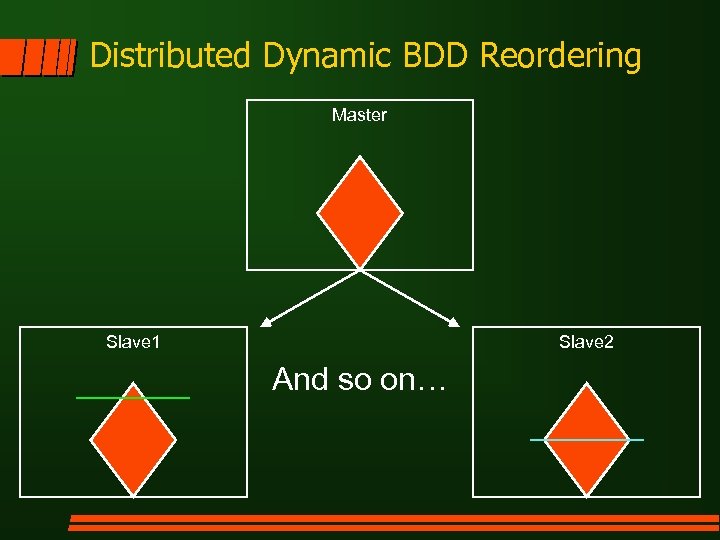

Distributed Dynamic BDD Reordering Master Slave 1 Slave 2 And so on…

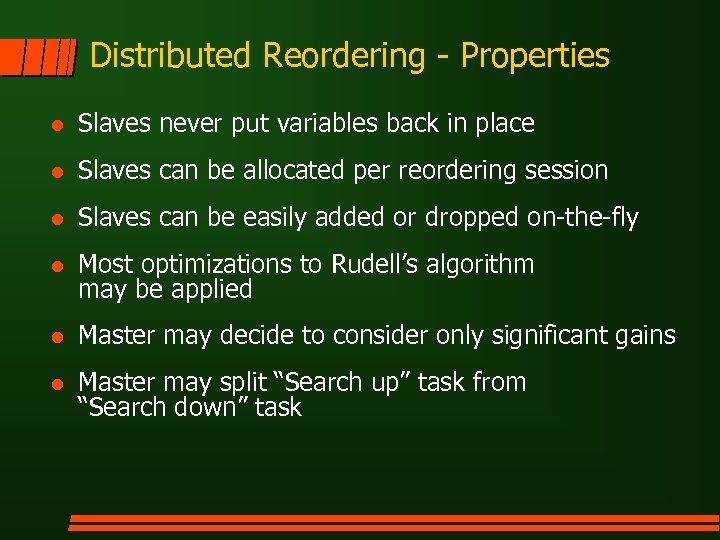

Distributed Reordering - Properties l Slaves never put variables back in place l Slaves can be allocated per reordering session l Slaves can be easily added or dropped on-the-fly l Most optimizations to Rudell’s algorithm may be applied l Master may decide to consider only significant gains l Master may split “Search up” task from “Search down” task

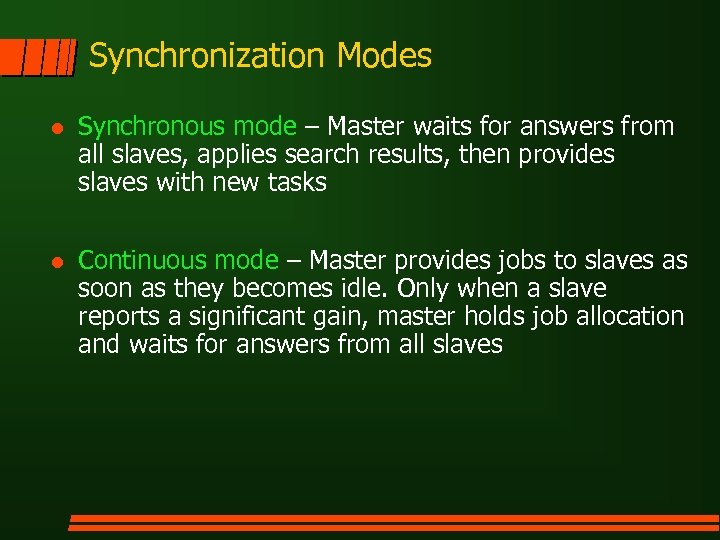

Synchronization Modes l Synchronous mode – Master waits for answers from all slaves, applies search results, then provides slaves with new tasks l Continuous mode – Master provides jobs to slaves as soon as they becomes idle. Only when a slave reports a significant gain, master holds job allocation and waits for answers from all slaves

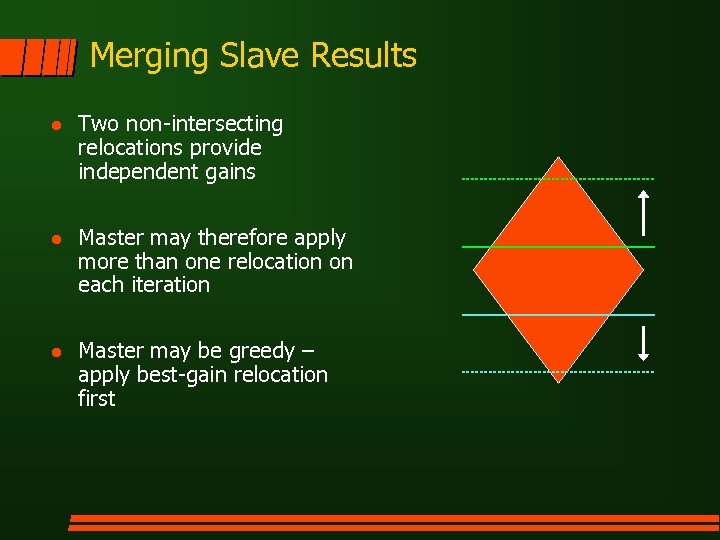

Merging Slave Results l Two non-intersecting relocations provide independent gains l Master may therefore apply more than one relocation on each iteration l Master may be greedy – apply best-gain relocation first

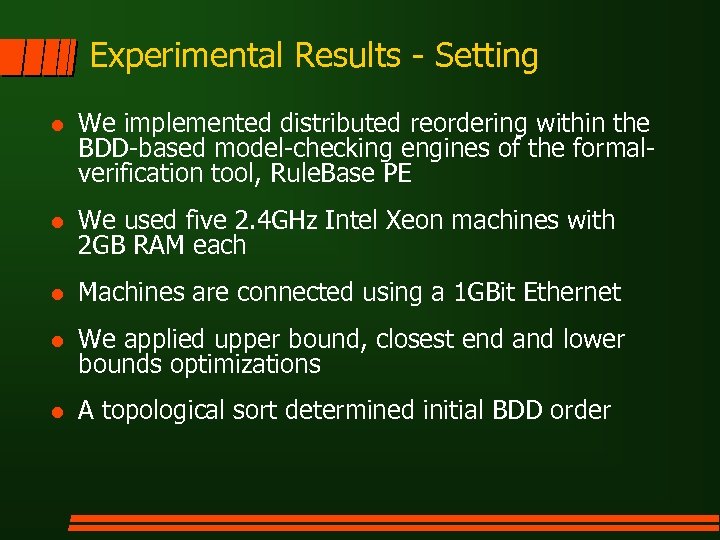

Experimental Results - Setting l We implemented distributed reordering within the BDD-based model-checking engines of the formalverification tool, Rule. Base PE l We used five 2. 4 GHz Intel Xeon machines with 2 GB RAM each l Machines are connected using a 1 GBit Ethernet l We applied upper bound, closest end and lower bounds optimizations l A topological sort determined initial BDD order

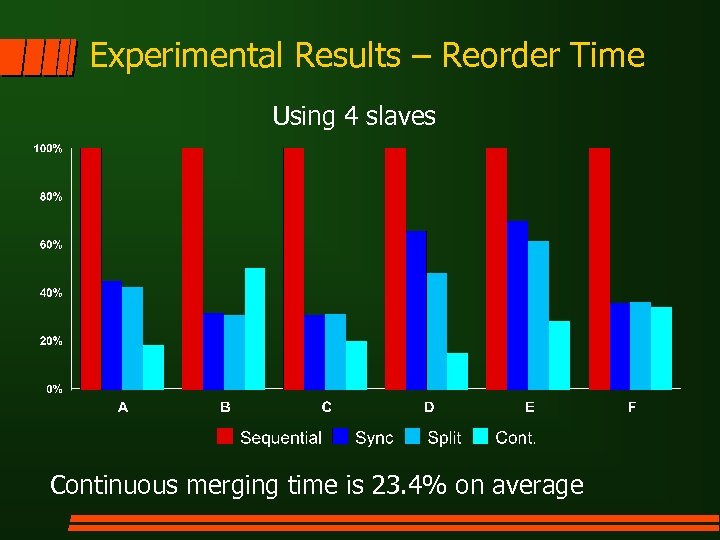

Experimental Results – Reorder Time Using 4 slaves Continuous merging time is 23. 4% on average

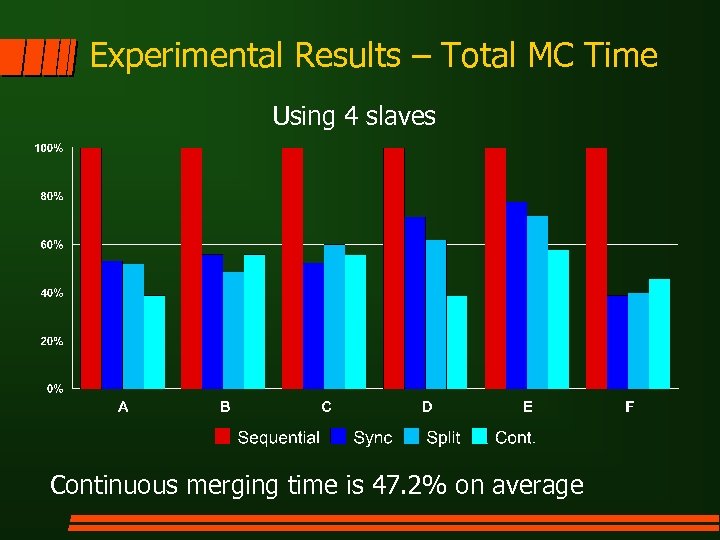

Experimental Results – Total MC Time Using 4 slaves Continuous merging time is 47. 2% on average

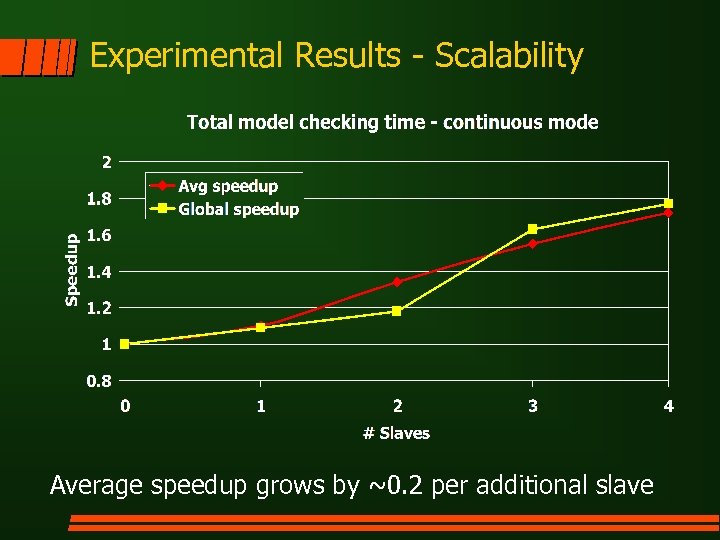

Experimental Results - Scalability Average speedup grows by ~0. 2 per additional slave

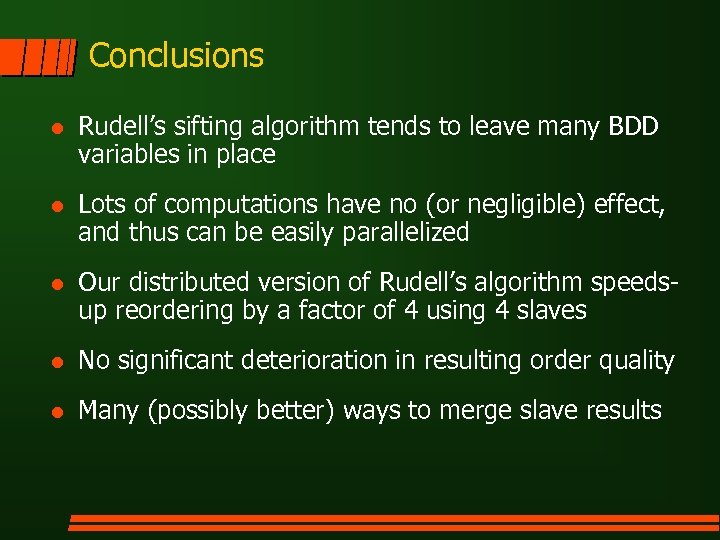

Conclusions l Rudell’s sifting algorithm tends to leave many BDD variables in place l Lots of computations have no (or negligible) effect, and thus can be easily parallelized l Our distributed version of Rudell’s algorithm speedsup reordering by a factor of 4 using 4 slaves l No significant deterioration in resulting order quality l Many (possibly better) ways to merge slave results
