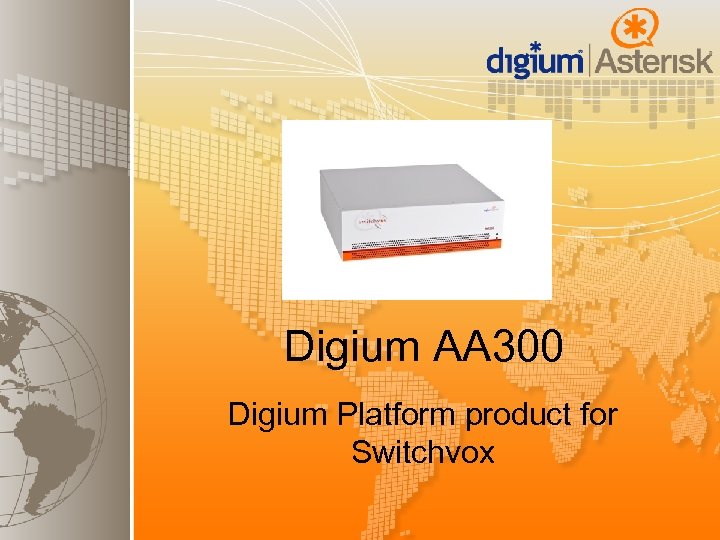

Digium AA 300 Digium Platform product for Switchvox

Digium AA 300 Digium Platform product for Switchvox

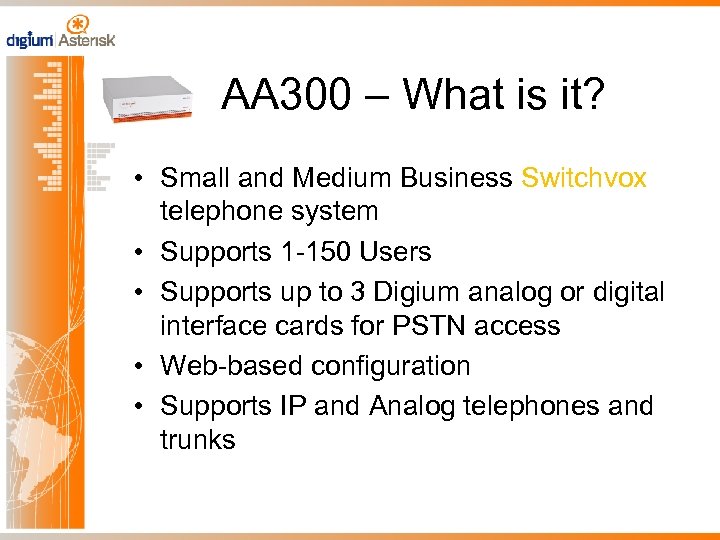

AA 300 – What is it? • Small and Medium Business Switchvox telephone system • Supports 1 -150 Users • Supports up to 3 Digium analog or digital interface cards for PSTN access • Web-based configuration • Supports IP and Analog telephones and trunks

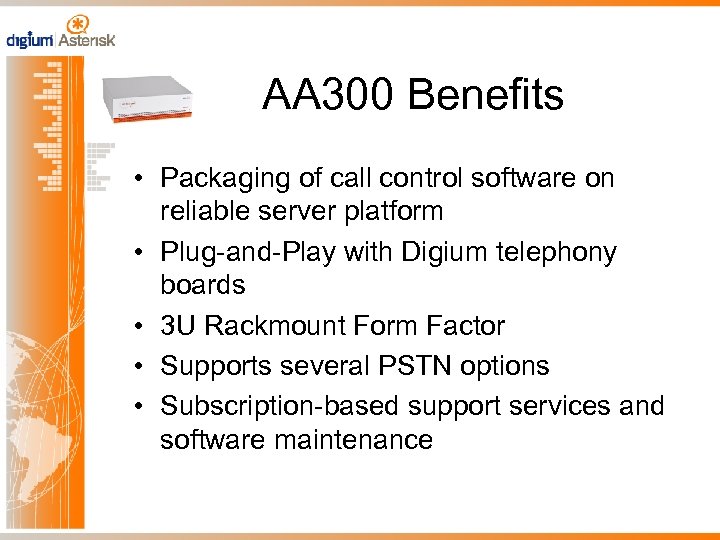

AA 300 Benefits • Packaging of call control software on reliable server platform • Plug-and-Play with Digium telephony boards • 3 U Rackmount Form Factor • Supports several PSTN options • Subscription-based support services and software maintenance

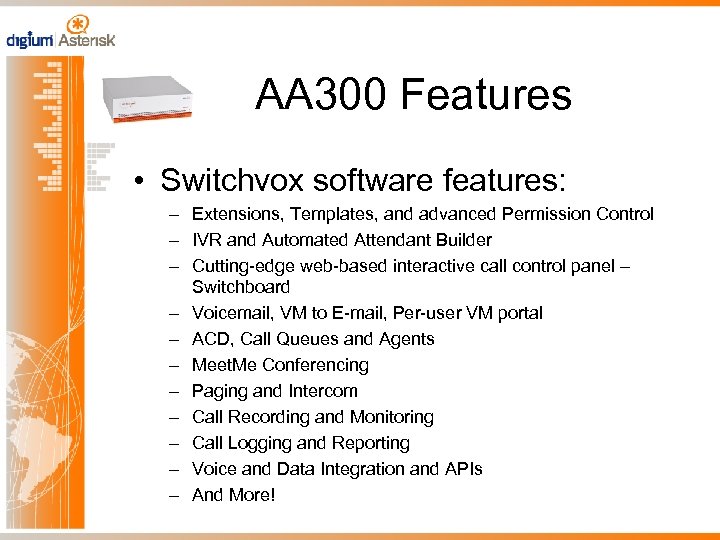

AA 300 Features • Switchvox software features: – Extensions, Templates, and advanced Permission Control – IVR and Automated Attendant Builder – Cutting-edge web-based interactive call control panel – Switchboard – Voicemail, VM to E-mail, Per-user VM portal – ACD, Call Queues and Agents – Meet. Me Conferencing – Paging and Intercom – Call Recording and Monitoring – Call Logging and Reporting – Voice and Data Integration and APIs – And More!

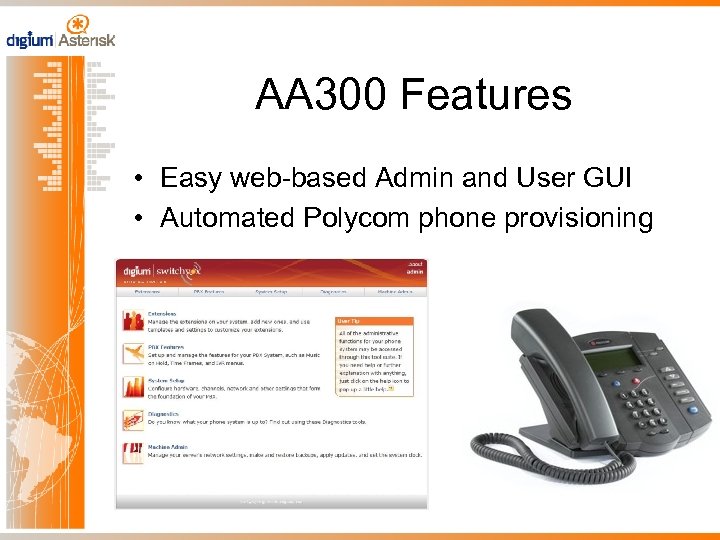

AA 300 Features • Easy web-based Admin and User GUI • Automated Polycom phone provisioning

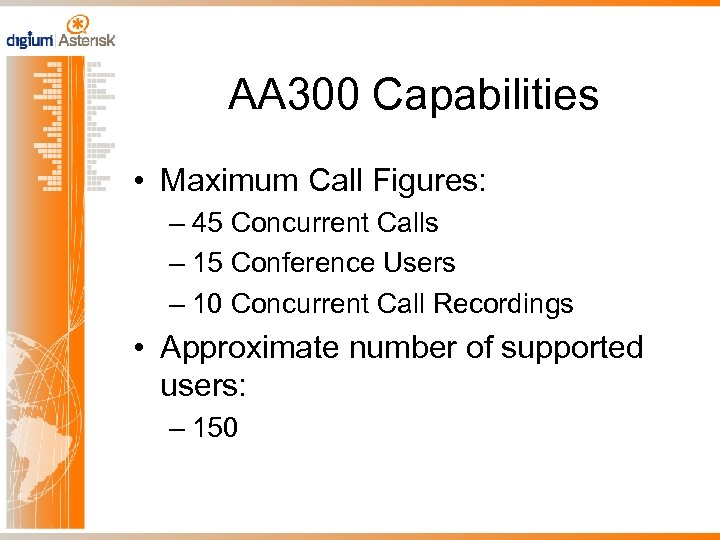

AA 300 Capabilities • Maximum Call Figures: – 45 Concurrent Calls – 15 Conference Users – 10 Concurrent Call Recordings • Approximate number of supported users: – 150

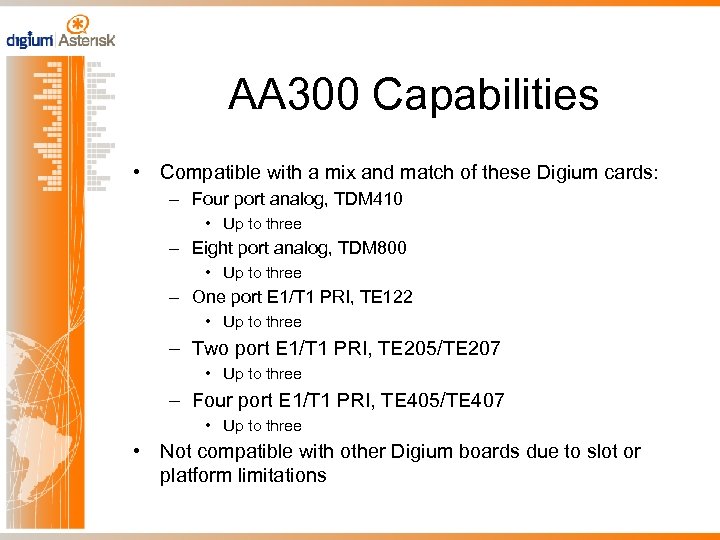

AA 300 Capabilities • Compatible with a mix and match of these Digium cards: – Four port analog, TDM 410 • Up to three – Eight port analog, TDM 800 • Up to three – One port E 1/T 1 PRI, TE 122 • Up to three – Two port E 1/T 1 PRI, TE 205/TE 207 • Up to three – Four port E 1/T 1 PRI, TE 405/TE 407 • Up to three • Not compatible with other Digium boards due to slot or platform limitations

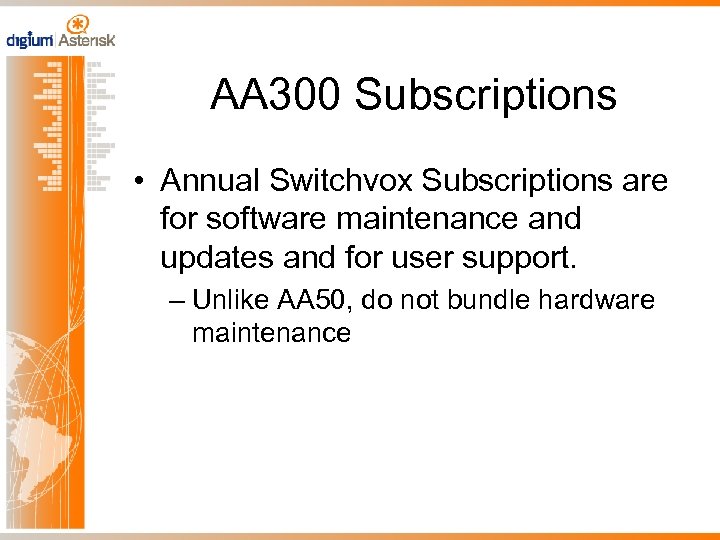

AA 300 Subscriptions • Annual Switchvox Subscriptions are for software maintenance and updates and for user support. – Unlike AA 50, do not bundle hardware maintenance

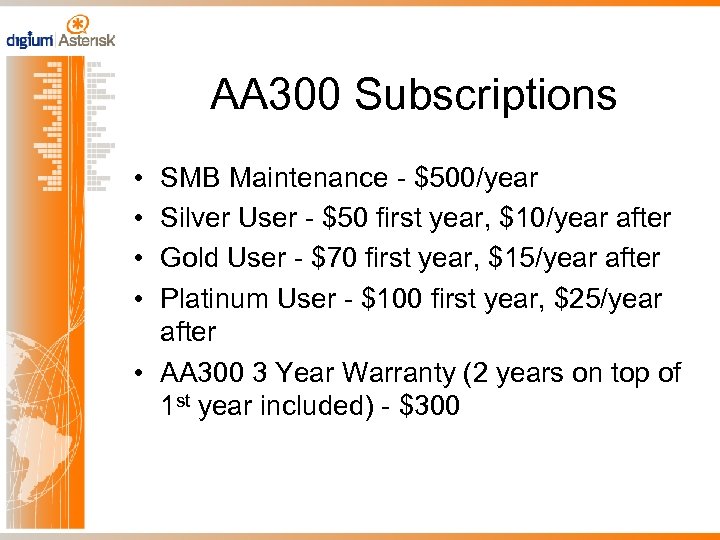

AA 300 Subscriptions • • SMB Maintenance - $500/year Silver User - $50 first year, $10/year after Gold User - $70 first year, $15/year after Platinum User - $100 first year, $25/year after • AA 300 3 Year Warranty (2 years on top of 1 st year included) - $300

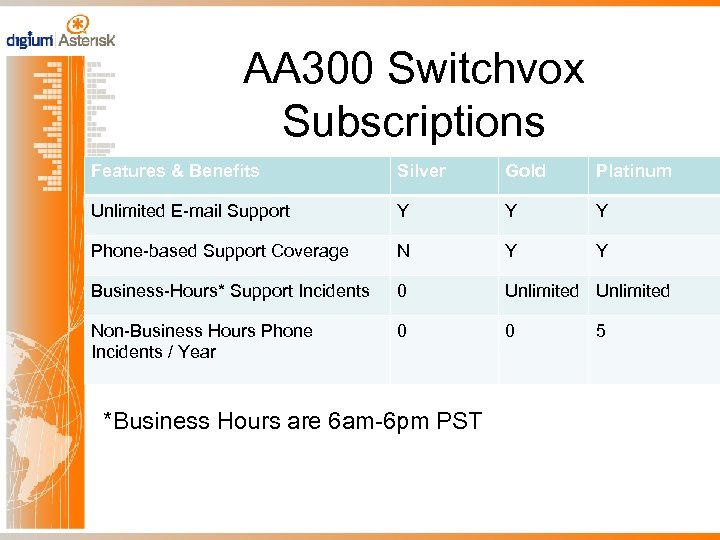

AA 300 Switchvox Subscriptions Features & Benefits Silver Gold Platinum Unlimited E-mail Support Y Y Y Phone-based Support Coverage N Y Y Business-Hours* Support Incidents 0 Unlimited Non-Business Hours Phone Incidents / Year 0 0 *Business Hours are 6 am-6 pm PST 5

When is the AA 300 right for me? • When a need a feature-rich phone system for a medium number of users • When I need more PSTN connectivity than the AA 60 • When I want to record more calls than the AA 60 • When I need a rackmount system

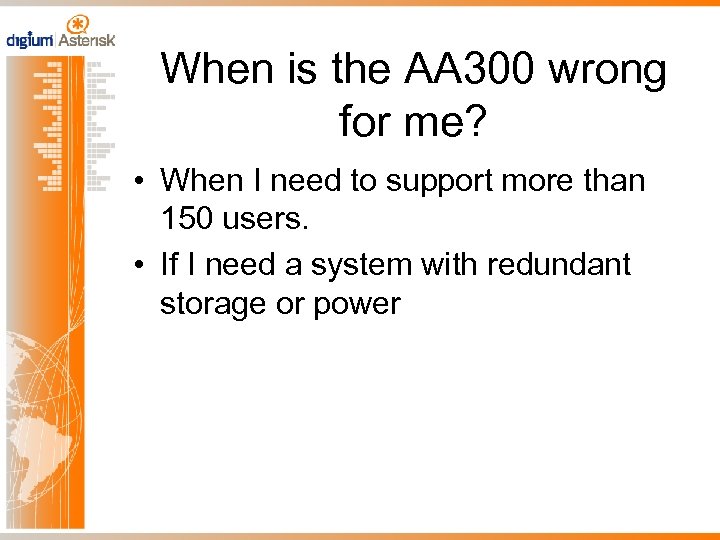

When is the AA 300 wrong for me? • When I need to support more than 150 users. • If I need a system with redundant storage or power

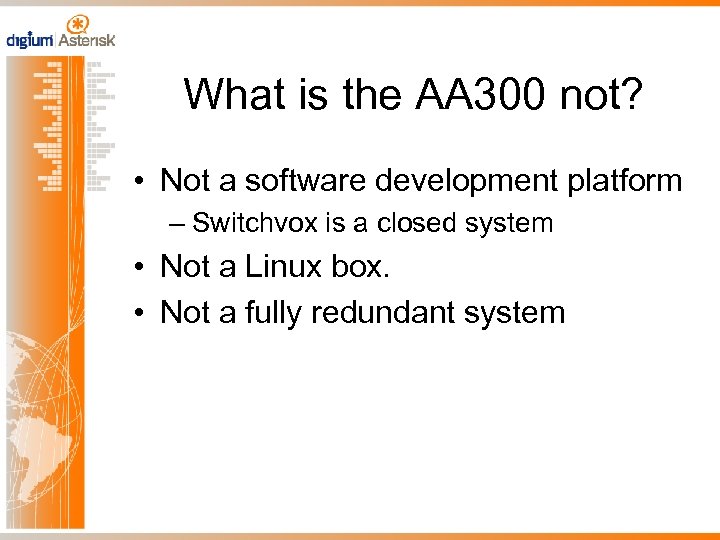

What is the AA 300 not? • Not a software development platform – Switchvox is a closed system • Not a Linux box. • Not a fully redundant system

AA 300 Specifications • Physical – Size: • W: 19” (482. 6 mm) • H: 5. 25” (133. 35 mm) • D: 15. 25” (387. 35 mm) – Weight: • Full Assembly + Packing: 30 lbs » Not Including Interface Cards

AA 300 Specifications • Interfaces • • Keyboard, PS/2 2 x USB 2. 0 Hi-Speed Interfaces 2 x 10/1000 base. T Ethernet VGA, D-sub 15

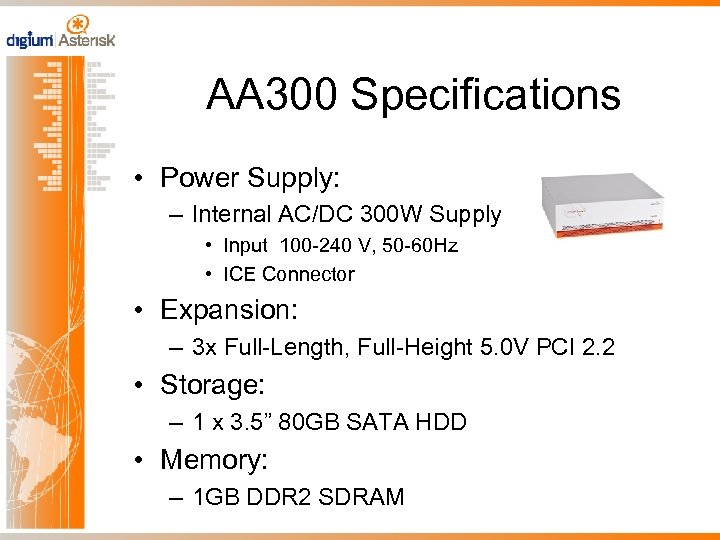

AA 300 Specifications • Power Supply: – Internal AC/DC 300 W Supply • Input 100 -240 V, 50 -60 Hz • ICE Connector • Expansion: – 3 x Full-Length, Full-Height 5. 0 V PCI 2. 2 • Storage: – 1 x 3. 5” 80 GB SATA HDD • Memory: – 1 GB DDR 2 SDRAM

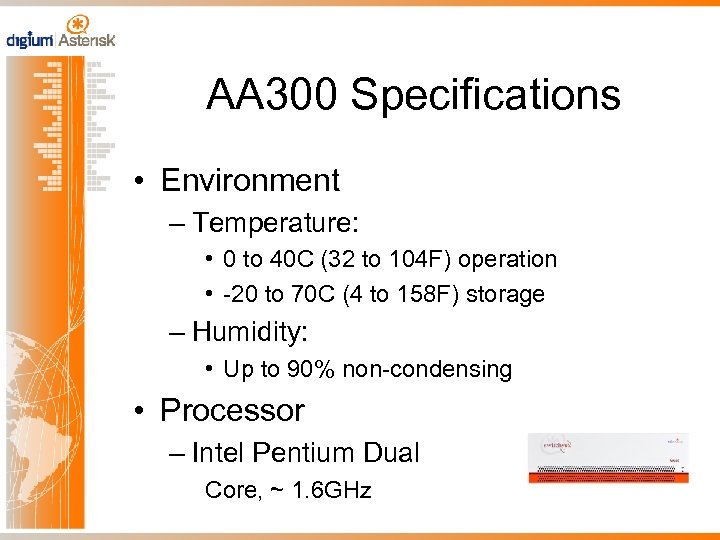

AA 300 Specifications • Environment – Temperature: • 0 to 40 C (32 to 104 F) operation • -20 to 70 C (4 to 158 F) storage – Humidity: • Up to 90% non-condensing • Processor – Intel Pentium Dual Core, ~ 1. 6 GHz

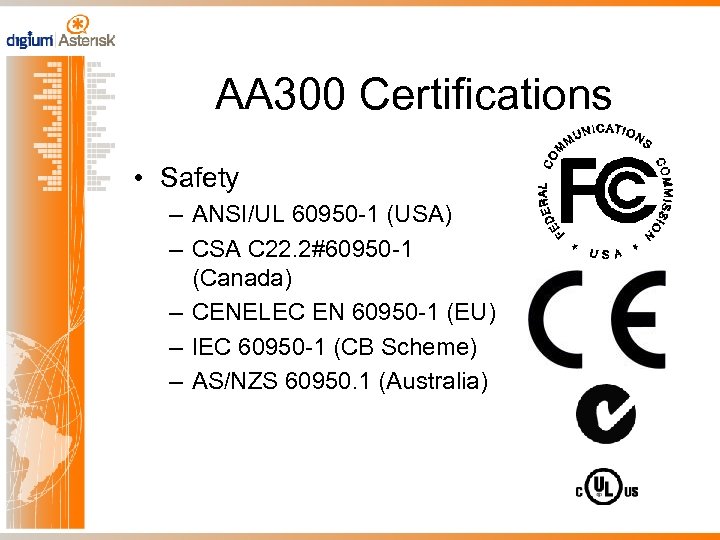

AA 300 Certifications • Safety – ANSI/UL 60950 -1 (USA) – CSA C 22. 2#60950 -1 (Canada) – CENELEC EN 60950 -1 (EU) – IEC 60950 -1 (CB Scheme) – AS/NZS 60950. 1 (Australia)

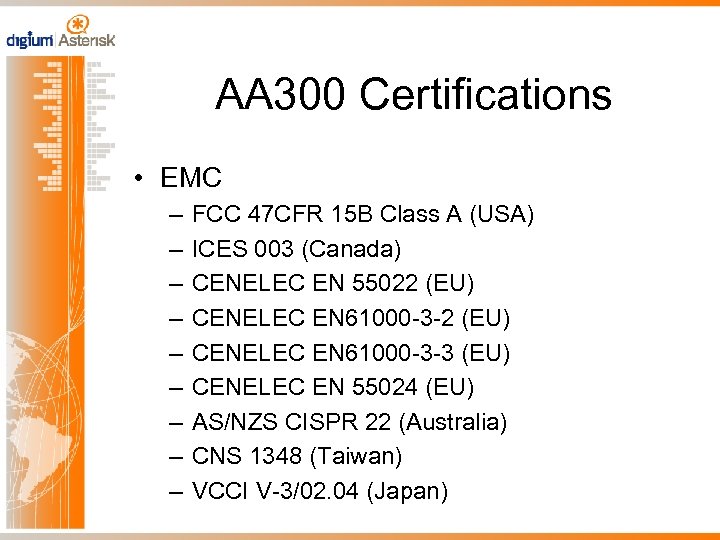

AA 300 Certifications • EMC – – – – – FCC 47 CFR 15 B Class A (USA) ICES 003 (Canada) CENELEC EN 55022 (EU) CENELEC EN 61000 -3 -3 (EU) CENELEC EN 55024 (EU) AS/NZS CISPR 22 (Australia) CNS 1348 (Taiwan) VCCI V-3/02. 04 (Japan)

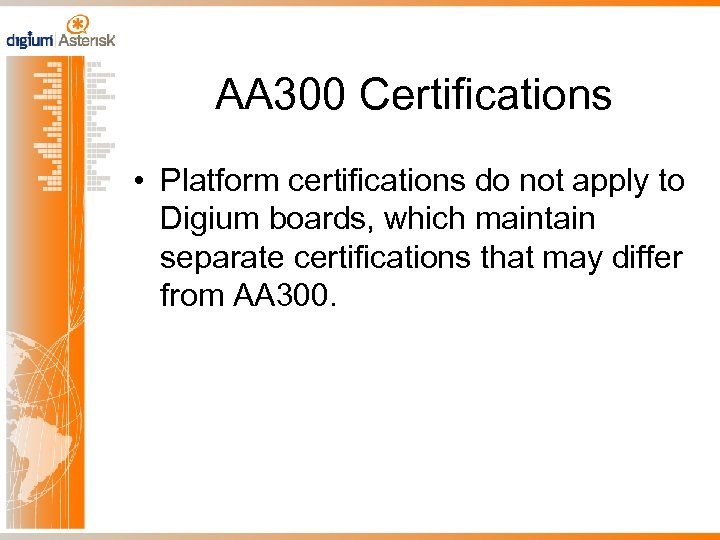

AA 300 Certifications • Platform certifications do not apply to Digium boards, which maintain separate certifications that may differ from AA 300.

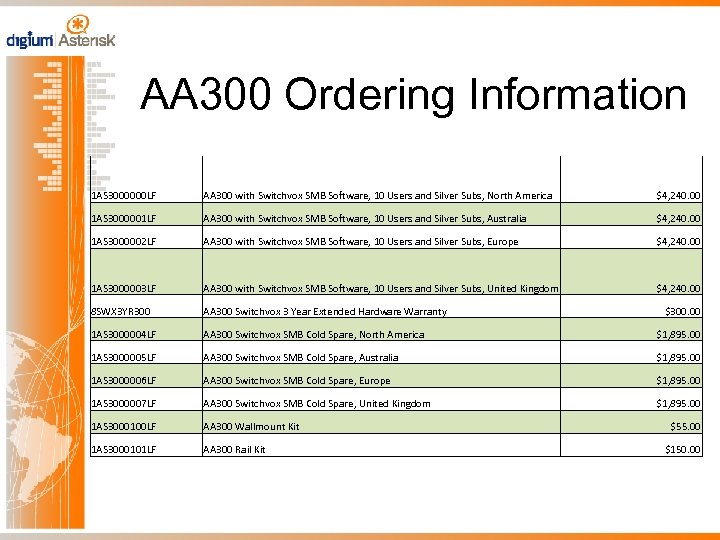

AA 300 Ordering Information 1 AS 3000000 LF AA 300 with Switchvox SMB Software, 10 Users and Silver Subs, North America $4, 240. 00 1 AS 3000001 LF AA 300 with Switchvox SMB Software, 10 Users and Silver Subs, Australia $4, 240. 00 1 AS 3000002 LF AA 300 with Switchvox SMB Software, 10 Users and Silver Subs, Europe $4, 240. 00 1 AS 3000003 LF AA 300 with Switchvox SMB Software, 10 Users and Silver Subs, United Kingdom $4, 240. 00 8 SWX 3 YR 300 AA 300 Switchvox 3 Year Extended Hardware Warranty 1 AS 3000004 LF AA 300 Switchvox SMB Cold Spare, North America $1, 895. 00 1 AS 3000005 LF AA 300 Switchvox SMB Cold Spare, Australia $1, 895. 00 1 AS 3000006 LF AA 300 Switchvox SMB Cold Spare, Europe $1, 895. 00 1 AS 3000007 LF AA 300 Switchvox SMB Cold Spare, United Kingdom $1, 895. 00 1 AS 3000100 LF AA 300 Wallmount Kit 1 AS 3000101 LF AA 300 Rail Kit $300. 00 $55. 00 $150. 00

Available June 9, 2008 Thank you.
