Digital Ultrasonic Diagnostic Imaging System — DUS 60 2013

Digital Ultrasonic Diagnostic Imaging System -- DUS 60(2013) Edan Instruments, Inc. Ultrasonic Imaging System www. edan. com. cn care for health Feb. , 19, 2013

General Information DUS 60(2013) Certificate: CE care for health

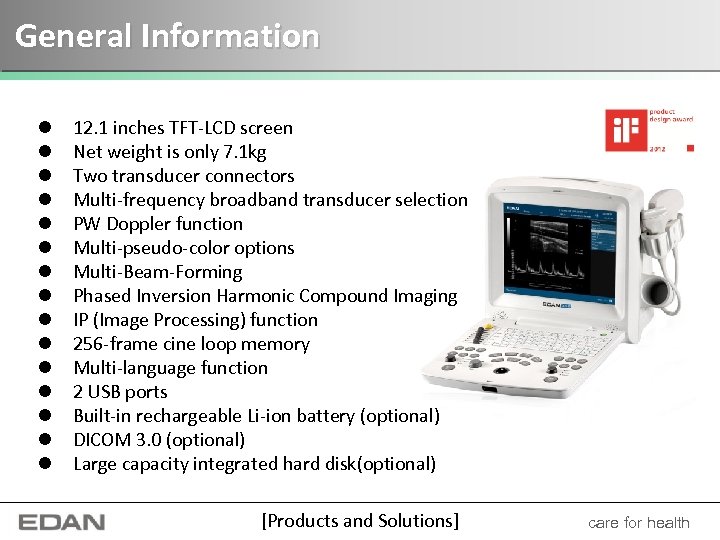

General Information l l l l 12. 1 inches TFT-LCD screen Net weight is only 7. 1 kg Two transducer connectors Multi-frequency broadband transducer selection PW Doppler function Multi-pseudo-color options Multi-Beam-Forming Phased Inversion Harmonic Compound Imaging IP (Image Processing) function 256 -frame cine loop memory Multi-language function 2 USB ports Built-in rechargeable Li-ion battery (optional) DICOM 3. 0 (optional) Large capacity integrated hard disk(optional) [Products and Solutions] care for health

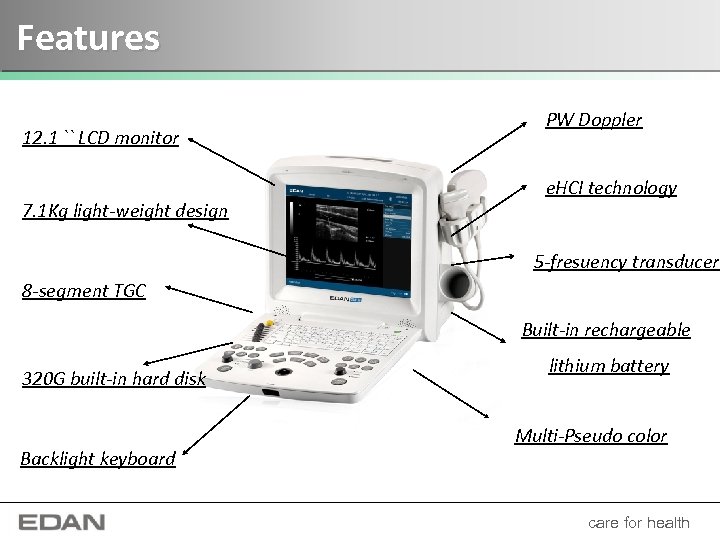

Features 12. 1 `` LCD monitor 7. 1 Kg light-weight design PW Doppler e. HCI technology 5 -fresuency transducer 8 -segment TGC Built-in rechargeable 320 G built-in hard disk Backlight keyboard lithium battery Multi-Pseudo color care for health

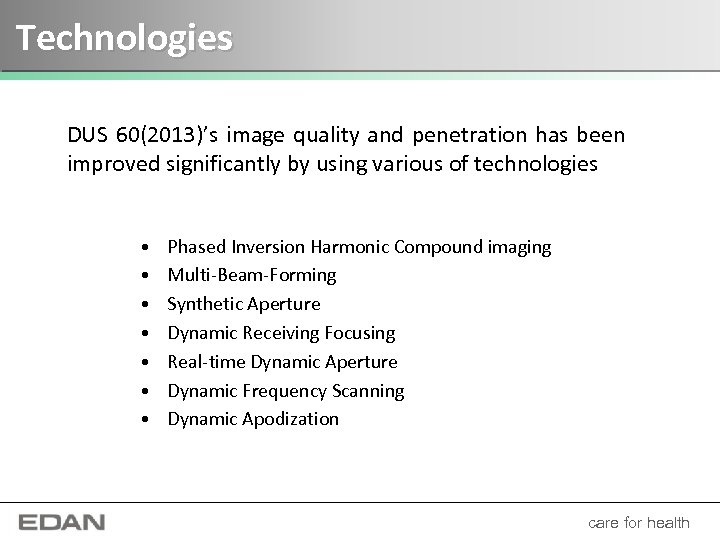

Technologies DUS 60(2013)’s image quality and penetration has been improved significantly by using various of technologies • • Phased Inversion Harmonic Compound imaging Multi-Beam-Forming Synthetic Aperture Dynamic Receiving Focusing Real-time Dynamic Aperture Dynamic Frequency Scanning Dynamic Apodization care for health

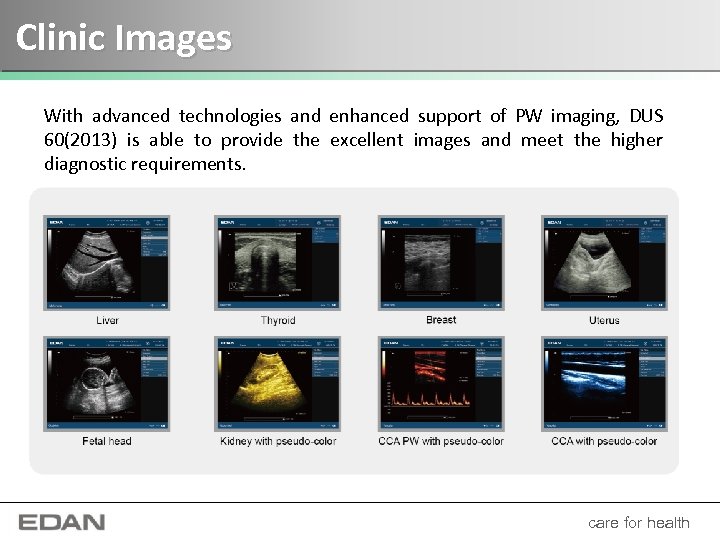

Clinic Images With advanced technologies and enhanced support of PW imaging, DUS 60(2013) is able to provide the excellent images and meet the higher diagnostic requirements. care for health

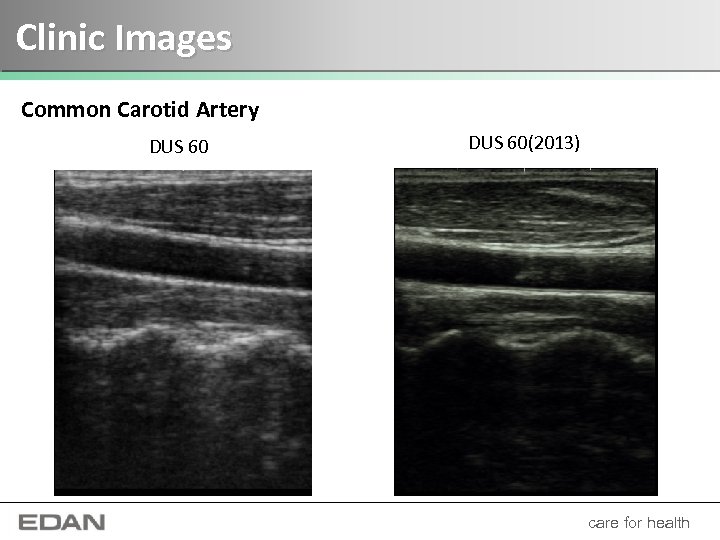

Clinic Images Common Carotid Artery DUS 60(2013) care for health

Clinic Images Tyroid DUS 60(2013) care for health

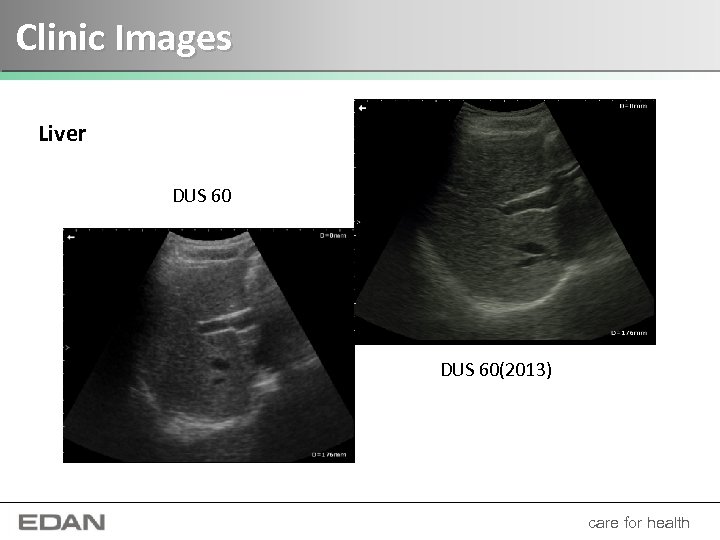

Clinic Images Liver DUS 60(2013) care for health

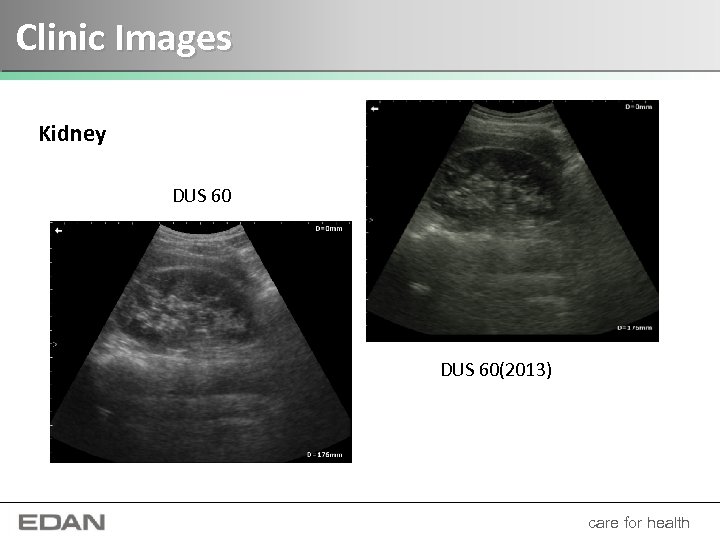

Clinic Images Kidney DUS 60(2013) care for health

Transducers DUS 60 (2013) provides superb value across the entire range of applications with varies of transducers. Convex array transducer C 361 -2, Applications: Abdomen, OB, GYN, Urology Frequencies: 2. 5/3. 5/4. 5/H 2. 7 Scanning Angle: 60° Convex array transducer C 341 -2, Applications: Abdomen, OB, GYN Frequencies: 2. 5/3. 5/4. 5/H 2. 7 Scanning Angle: 90° Convex array transducer C 363 -2, Applications: Abdomen, OB, GYN, Urology Frequencies: 2. 5/3. 5/4. 5/H 2. 7 Scanning Angle: 60° care for health

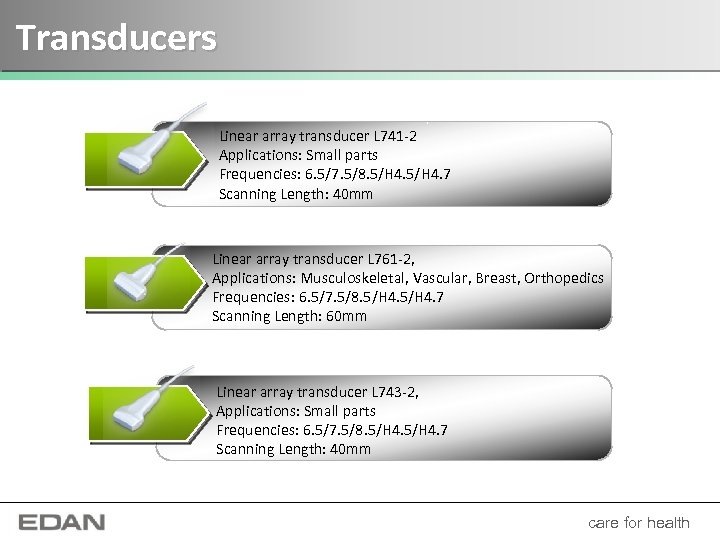

Transducers Linear array transducer L 741 -2 Applications: Small parts Frequencies: 6. 5/7. 5/8. 5/H 4. 7 Scanning Length: 40 mm Linear array transducer L 761 -2, Applications: Musculoskeletal, Vascular, Breast, Orthopedics Frequencies: 6. 5/7. 5/8. 5/H 4. 7 Scanning Length: 60 mm Linear array transducer L 743 -2, Applications: Small parts Frequencies: 6. 5/7. 5/8. 5/H 4. 7 Scanning Length: 40 mm care for health

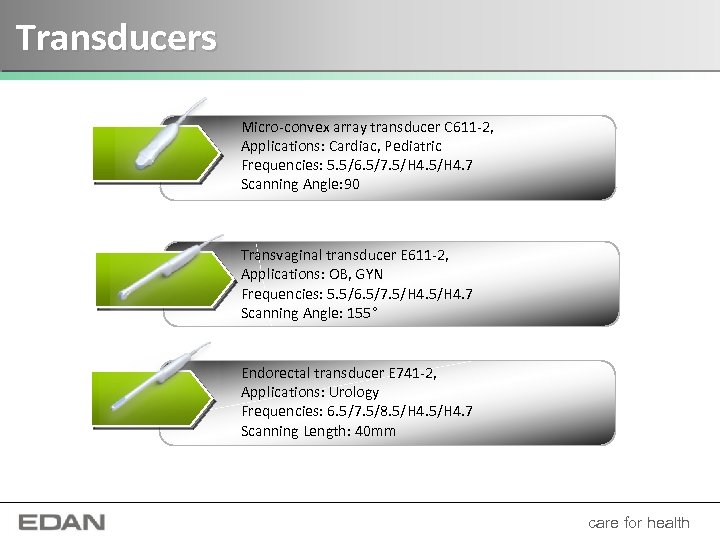

Transducers Micro-convex array transducer C 611 -2, Applications: Cardiac, Pediatric Frequencies: 5. 5/6. 5/7. 5/H 4. 7 Scanning Angle: 90 Transvaginal transducer E 611 -2, Applications: OB, GYN Frequencies: 5. 5/6. 5/7. 5/H 4. 7 Scanning Angle: 155° Endorectal transducer E 741 -2, Applications: Urology Frequencies: 6. 5/7. 5/8. 5/H 4. 7 Scanning Length: 40 mm care for health

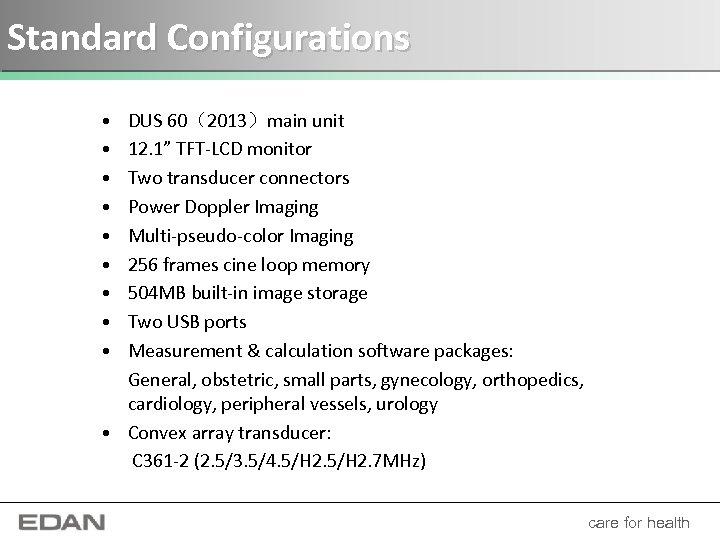

Standard Configurations • • • DUS 60（2013）main unit 12. 1” TFT-LCD monitor Two transducer connectors Power Doppler Imaging Multi-pseudo-color Imaging 256 frames cine loop memory 504 MB built-in image storage Two USB ports Measurement & calculation software packages: General, obstetric, small parts, gynecology, orthopedics, cardiology, peripheral vessels, urology • Convex array transducer: C 361 -2 (2. 5/3. 5/4. 5/H 2. 7 MHz) care for health

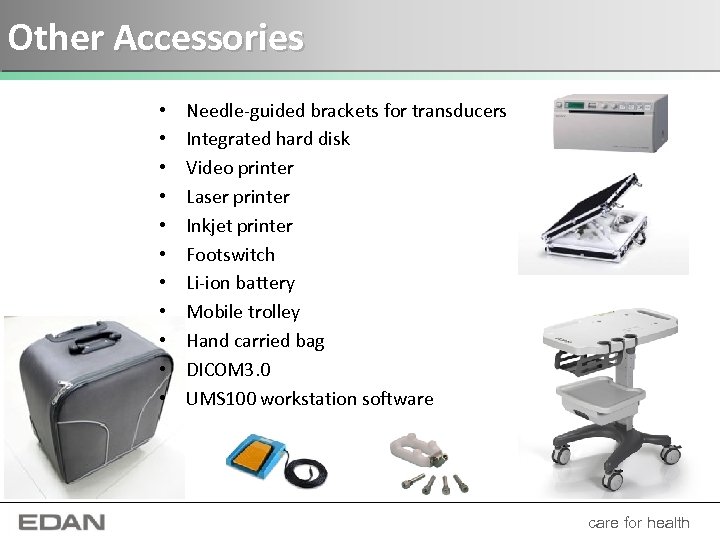

Other Accessories • • • Needle-guided brackets for transducers Integrated hard disk Video printer Laser printer Inkjet printer Footswitch Li-ion battery Mobile trolley Hand carried bag DICOM 3. 0 UMS 100 workstation software care for health

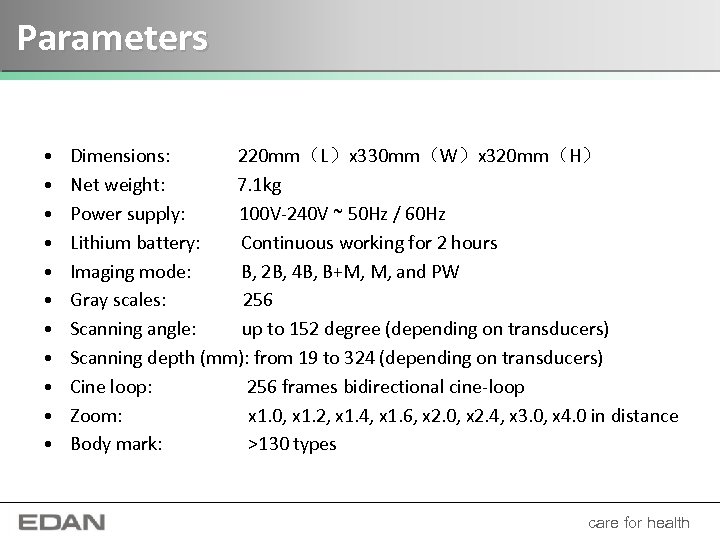

Parameters • • • Dimensions: 220 mm（L）x 330 mm（W）x 320 mm（H） Net weight: 7. 1 kg Power supply: 100 V-240 V ~ 50 Hz / 60 Hz Lithium battery: Continuous working for 2 hours Imaging mode: B, 2 B, 4 B, B+M, M, and PW Gray scales: 256 Scanning angle: up to 152 degree (depending on transducers) Scanning depth (mm): from 19 to 324 (depending on transducers) Cine loop: 256 frames bidirectional cine-loop Zoom: x 1. 0, x 1. 2, x 1. 4, x 1. 6, x 2. 0, x 2. 4, x 3. 0, x 4. 0 in distance Body mark: >130 types care for health

Peripheral port • • USB port: 2 S-video output: 1 Footswitch port: 1 Ethernet port: 1 VGA output: 1 Video output: 1 Remote control: 1 care for health

Competition Analysis Domestic Competitors • Mindray: DP 50, DP 30, DP 6900 • Sono. Scape: A 6 care for health

Competition Analysis DP 30 DP 6900 care for health

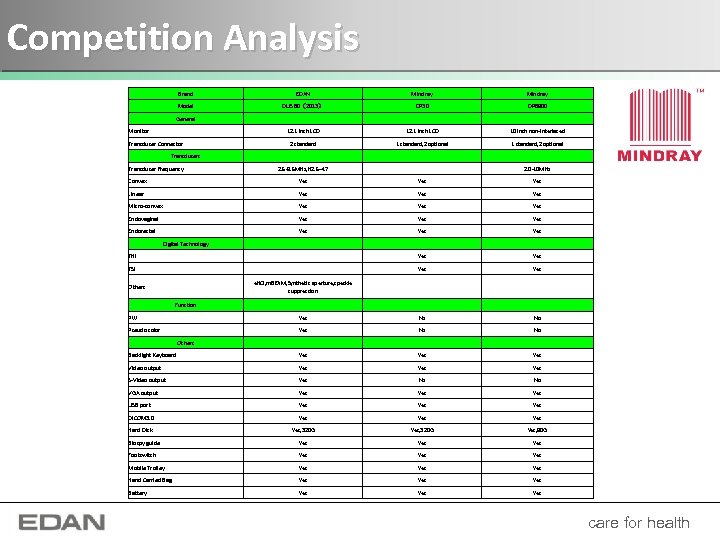

Competition Analysis Brand EDAN Mindray Model DUS 60（2013） DP 30 DP 6900 General 　 　 　 12. 1 inch LCD 10 inch non-interlaced 2 standard 1 standard, 2 optional 　 　 Monitor Transducer Connector Transducers Transducer Frequency 2. 5 -8. 5 MHz, H 2. 5 -4. 7 　 2. 0 -10 MHz Convex Yes Yes Linear Yes Yes Micro-convex Yes Yes Endovaginal Yes Yes Endorectal Yes Yes 　 　 　 THI 　 Yes TSI 　 Yes e. HCI, m. BEAM, Synthetic aperture, speckle suppression 　 　 Digital Technology Others Function 　 　 　 Yes No No 　 　 　 Backlight Keyboard Yes Yes Video output Yes Yes S-Video output Yes No No VGA output Yes Yes USB port Yes Yes DICOM 3. 0 Yes Yes Hard Disk PW Pseudo color Others Yes, 320 G Yes, 80 G Biospy guide Yes Yes Footswitch Yes Yes Mobile Trolley Yes Yes Hand Carried Bag Yes Yes Battery Yes Yes care for health

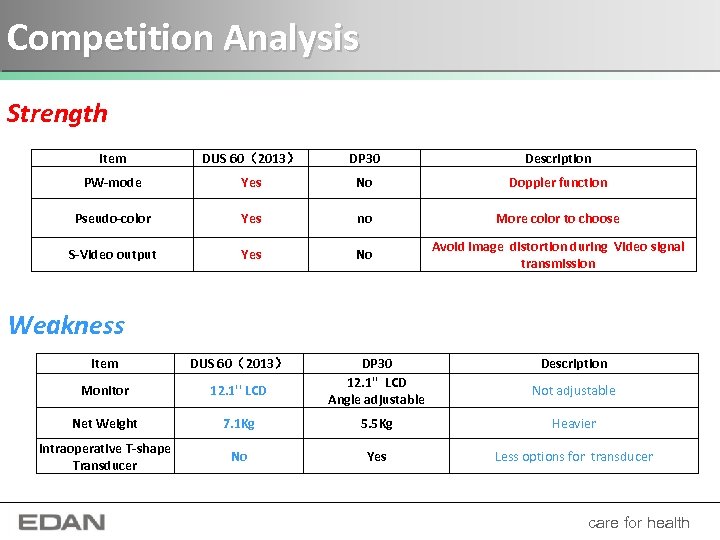

Competition Analysis Strength Item DUS 60（2013） DP 30 Description PW-mode Yes No Doppler function Pseudo-color Yes no More color to choose S-Video output Yes No Avoid image distortion during Video signal transmission Weakness Item DUS 60（2013） DP 30 12. 1'' LCD Angle adjustable Description Monitor 12. 1'' LCD Net Weight 7. 1 Kg 5. 5 Kg Heavier Intraoperative T-shape Transducer No Yes Less options for transducer Not adjustable care for health

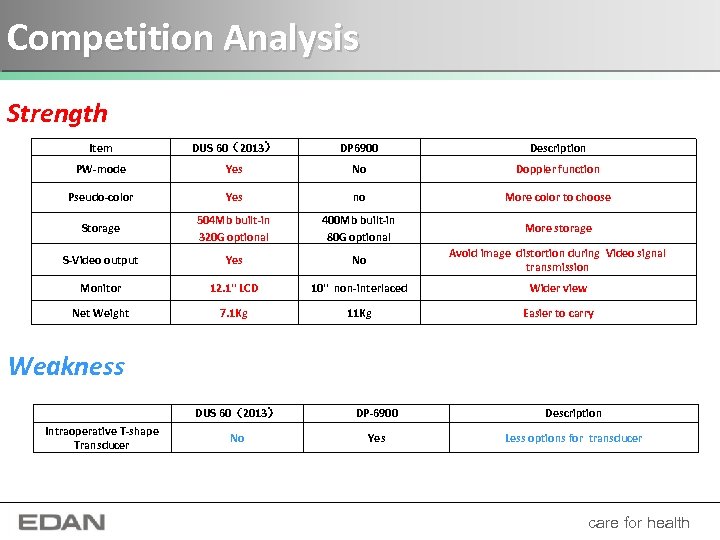

Competition Analysis Strength Item DUS 60（2013） DP 6900 Description PW-mode Yes No Doppler function Pseudo-color Yes no More color to choose Storage 504 Mb built-in 320 G optional 400 Mb built-in 80 G optional More storage S-Video output Yes No Avoid image distortion during Video signal transmission Monitor 12. 1'' LCD 10'' non-interlaced Wider view Net Weight 7. 1 Kg 11 Kg Easier to carry Weakness DUS 60（2013） Intraoperative T-shape Transducer DP-6900 Description No Yes Less options for transducer care for health

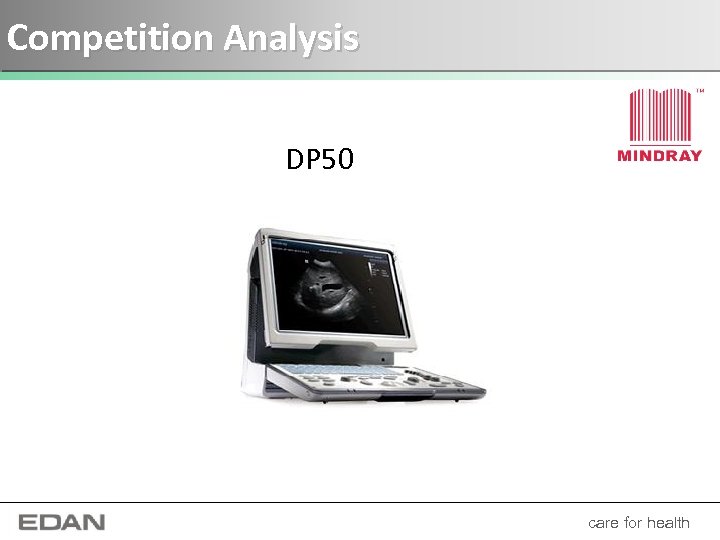

Competition Analysis DP 50 care for health

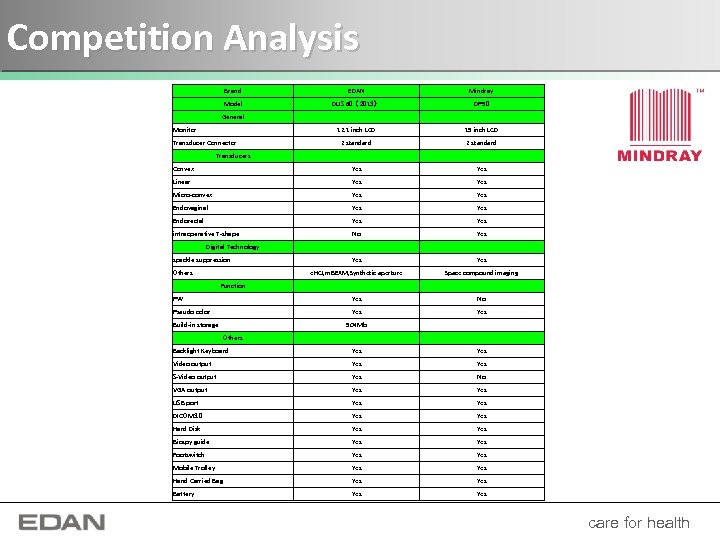

Competition Analysis Brand EDAN Mindray Model DUS 60（2013） DP 50 General 　 　 12. 1 inch LCD 15 inch LCD 2 standard Monitor Transducer Connector Transducers 　 　 Convex Yes Linear Yes Micro-convex Yes Endovaginal Yes Endorectal Yes No Yes intraoperative T-shape Digital Technology Others Function 　 Yes e. HCI, m. BEAM, Synthetic aperture speckle suppression 　 Space compound imaging Yes Build-in storage Others 　 No Yes 504 Mb Pseudo color 　 Yes PW 　 　 　 Backlight Keyboard Yes Video output Yes S-Video output Yes No VGA output Yes USB port Yes DICOM 3. 0 Yes Hard Disk Yes Biospy guide Yes Footswitch Yes Mobile Trolley Yes Hand Carried Bag Yes Battery Yes care for health

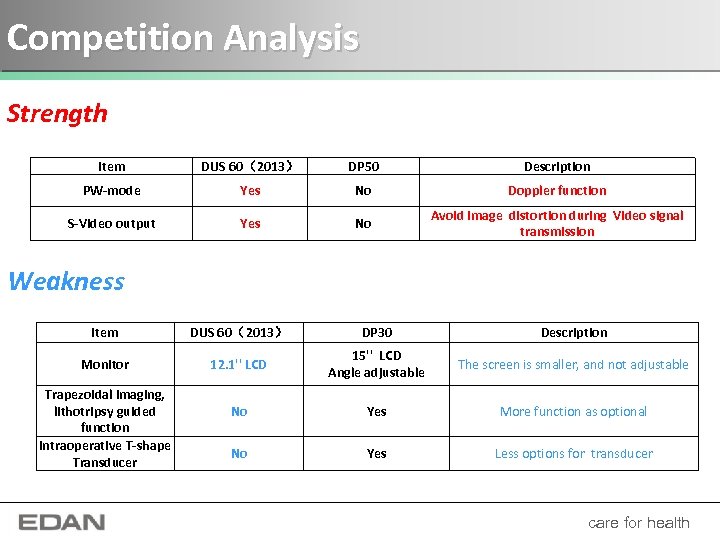

Competition Analysis Strength Item DUS 60（2013） DP 50 Description PW-mode Yes No Doppler function S-Video output Yes No Avoid image distortion during Video signal transmission Weakness Item DUS 60（2013） DP 30 Description Monitor 12. 1'' LCD 15'' LCD Angle adjustable The screen is smaller, and not adjustable No Yes More function as optional No Yes Less options for transducer Trapezoidal imaging, lithotripsy guided function Intraoperative T-shape Transducer care for health

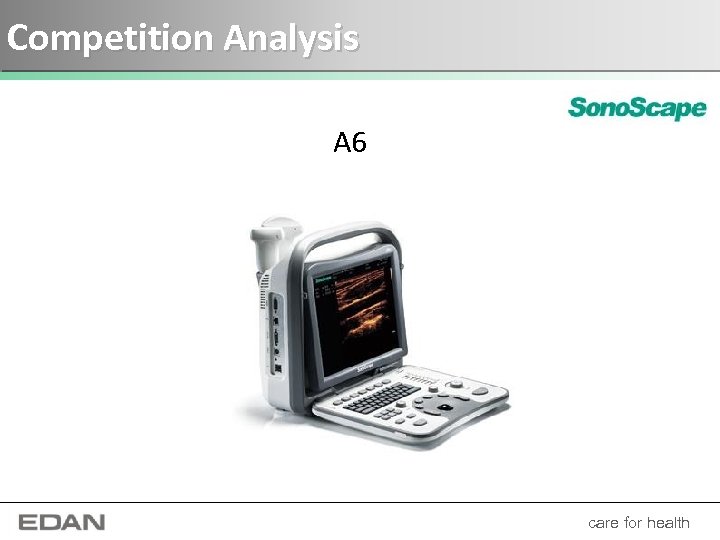

Competition Analysis A 6 care for health

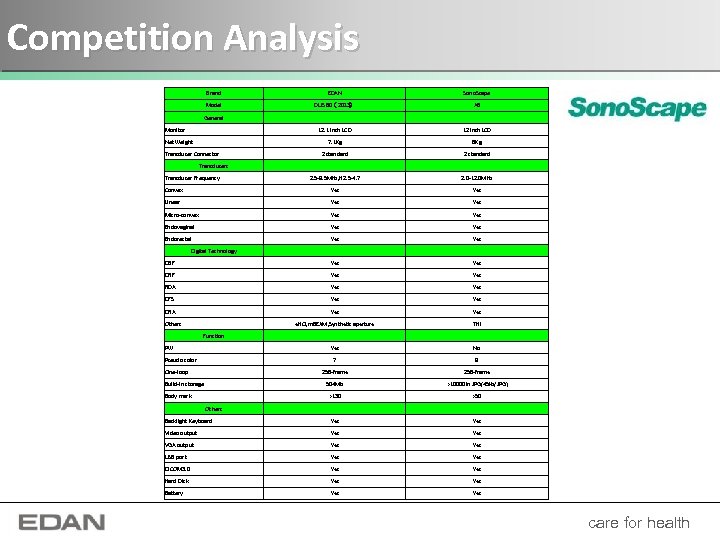

Competition Analysis Brand EDAN Sono. Scape Model DUS 60（2013） A 6 General Net Weight 　 　 12. 1 inch LCD Monitor 12 inch LCD 7. 1 Kg Transducer Connector Transducers 6 Kg 2 standard 　 　 2. 5 -8. 5 MHz, H 2. 5 -4. 7 2. 0 -12. 0 MHz Convex Yes Linear Yes Micro-convex Yes Endovaginal Yes Endorectal Yes Transducer Frequency Digital Technology 　 　 DBF Yes DRF Yes RDA Yes DFS Yes DRA Yes e. HCI, m. BEAM, Synthetic aperture THI Others Function Pseudo color 　 Yes PW 　 No 7 Others >10000 in JPG(45 kb/JPG) >130 Body mark 256 -frame 504 Mb Build-in storage 8 256 -frame Cine-loop >50 　 　 Backlight Keyboard Yes Video output Yes VGA output Yes USB port Yes DICOM 3. 0 Yes Hard Disk Yes Battery Yes care for health

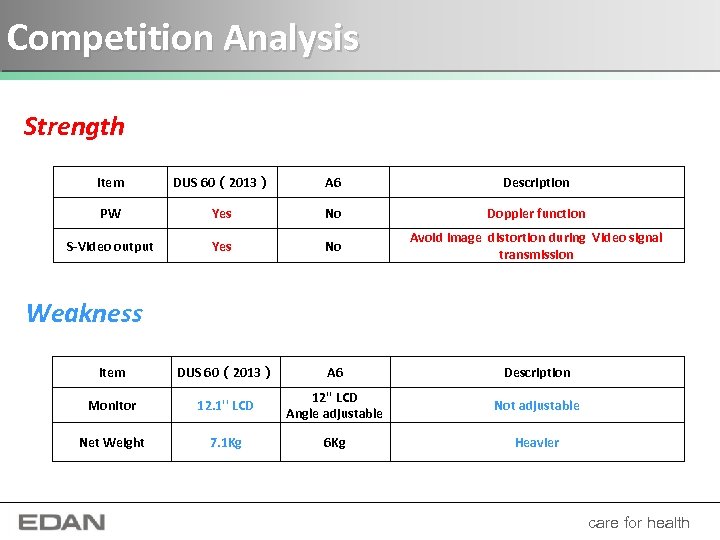

Competition Analysis Strength Item DUS 60（2013） A 6 Description PW Yes No Doppler function S-Video output Yes No Avoid image distortion during Video signal transmission Item DUS 60（2013） A 6 Description Monitor 12. 1'' LCD 12'' LCD Angle adjustable Not adjustable Net Weight 7. 1 Kg 6 Kg Heavier Weakness care for health
