DIGGS Digital Interchange for Geotechnical and Geoenvironmental Specialists Presentation to Trans. XML Workshop December 9, 2013 Marc Hoit, PI, NC State University FHWA Pooled fund study TPF-5(111) Robert Schweinfurth, PI, ASCE Geo. Isntitute Ohio DOT Grant

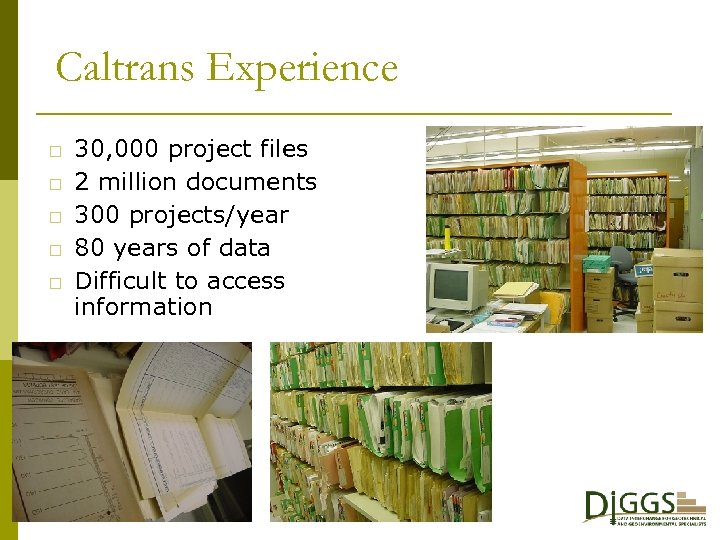

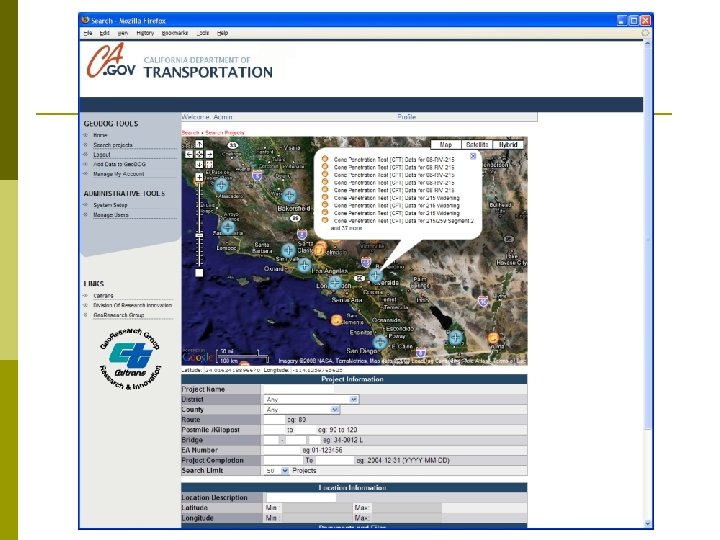

Caltrans Experience 30, 000 project files 2 million documents 300 projects/year 80 years of data Difficult to access information

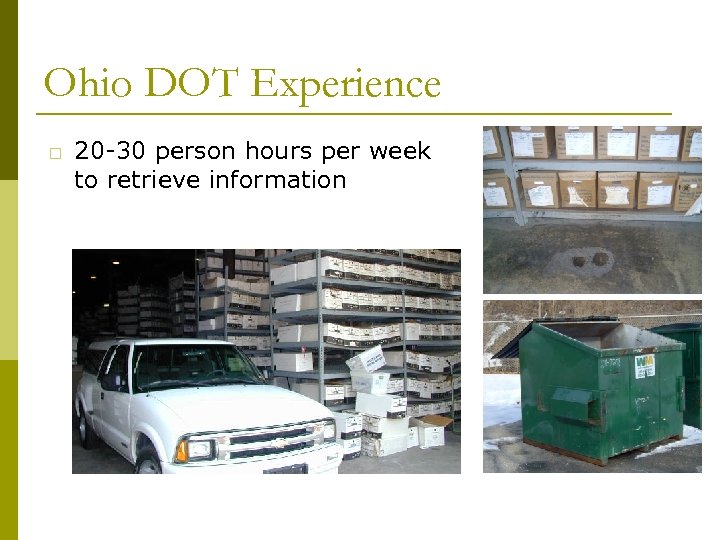

Ohio DOT Experience 20 -30 person hours per week to retrieve information

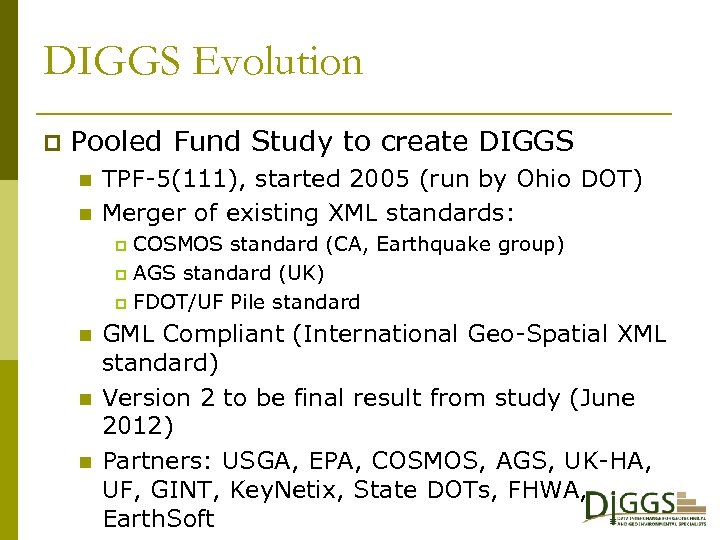

DIGGS Evolution p Pooled Fund Study to create DIGGS n n TPF-5(111), started 2005 (run by Ohio DOT) Merger of existing XML standards: COSMOS standard (CA, Earthquake group) p AGS standard (UK) p FDOT/UF Pile standard p n n n GML Compliant (International Geo-Spatial XML standard) Version 2 to be final result from study (June 2012) Partners: USGA, EPA, COSMOS, AGS, UK-HA, UF, GINT, Key. Netix, State DOTs, FHWA, Earth. Soft

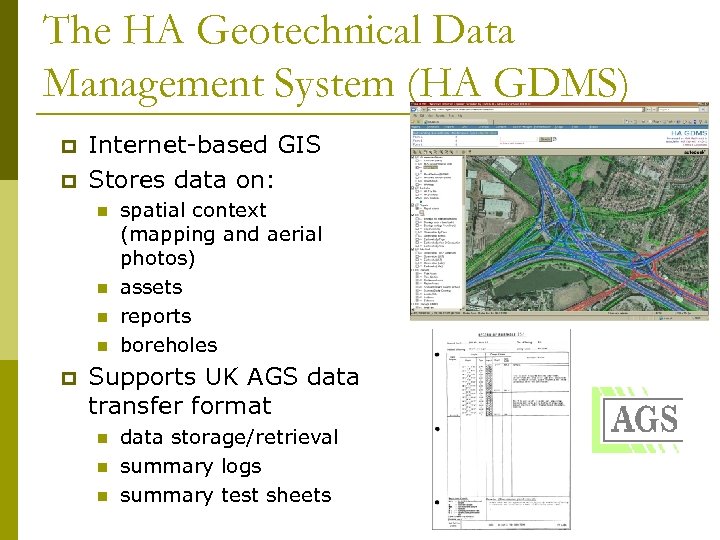

The HA Geotechnical Data Management System (HA GDMS) p p Internet-based GIS Stores data on: n n p spatial context (mapping and aerial photos) assets reports boreholes Supports UK AGS data transfer format n n n data storage/retrieval summary logs summary test sheets

HA Milestones UK Spec for GI (SISG Pt 3) AGS 3. 1 AGS M AGS 3 AGS 2 AGS 1 AGS Implementation Timeline Increased adoption by UK industry Revised GI Spec (draft) HA Specification requires AGS 2 HA Standard requires AGS data HA GDMS goes live HA GDMS update improve AGS data handling

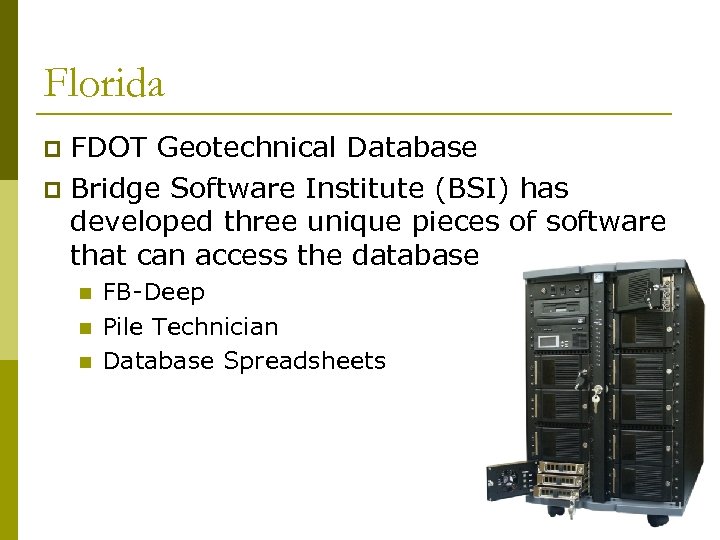

Florida FDOT Geotechnical Database p Bridge Software Institute (BSI) has developed three unique pieces of software that can access the database p n n n FB-Deep Pile Technician Database Spreadsheets

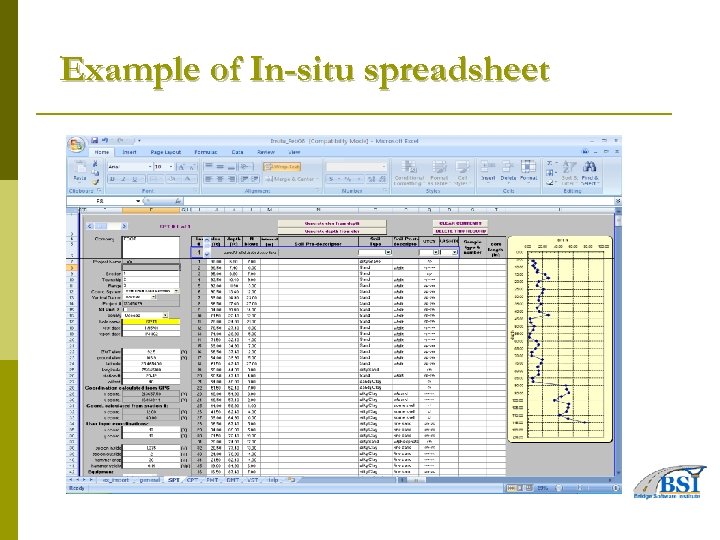

Example of In-situ spreadsheet

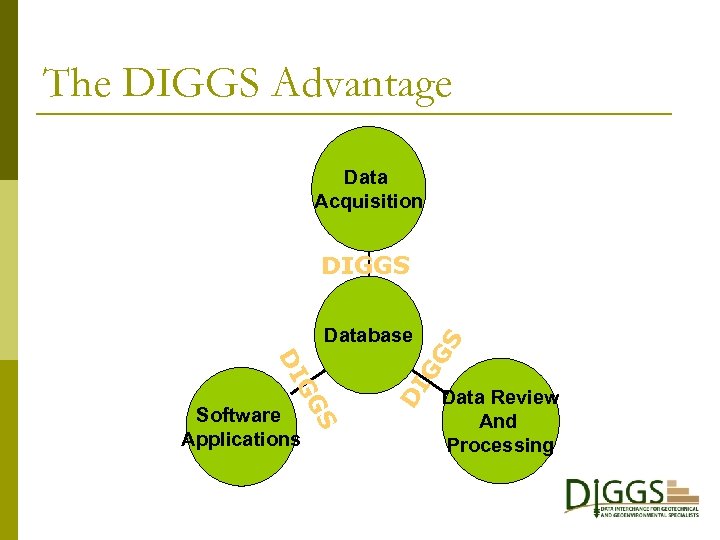

The DIGGS Advantage Data Acquisition DI S GG DI Software Applications GG Database S DIGGS Data Review And Processing

Key Activities p Borehole Data n n Point Location Drilling Operations

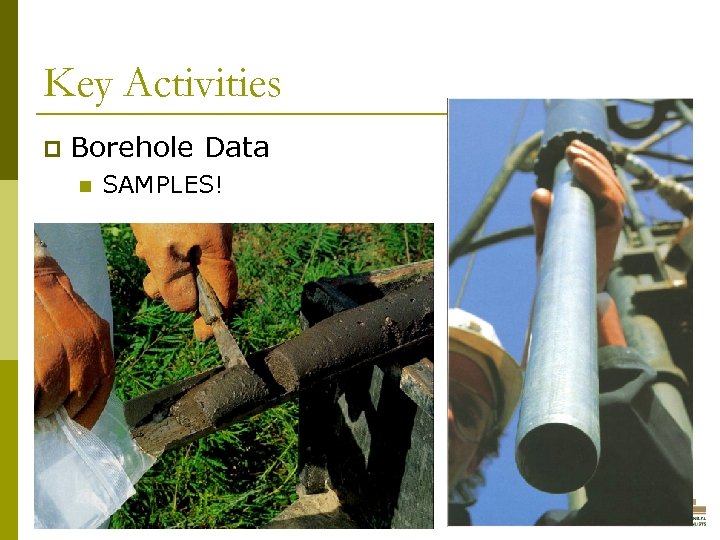

Key Activities p Borehole Data n SAMPLES!

Data TRANSFER Site Information p Depth Information p n n n Field Lab Testing Soil and Rock

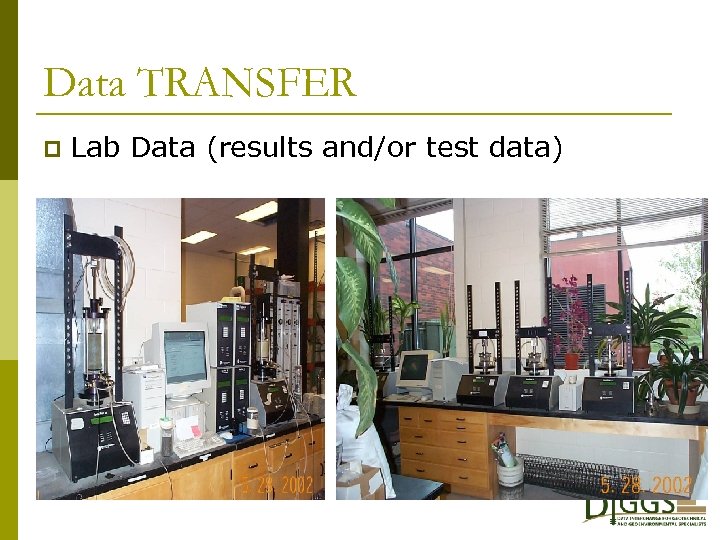

Data TRANSFER p Lab Data (results and/or test data)

Logs and Log Data p Electronic / Paper

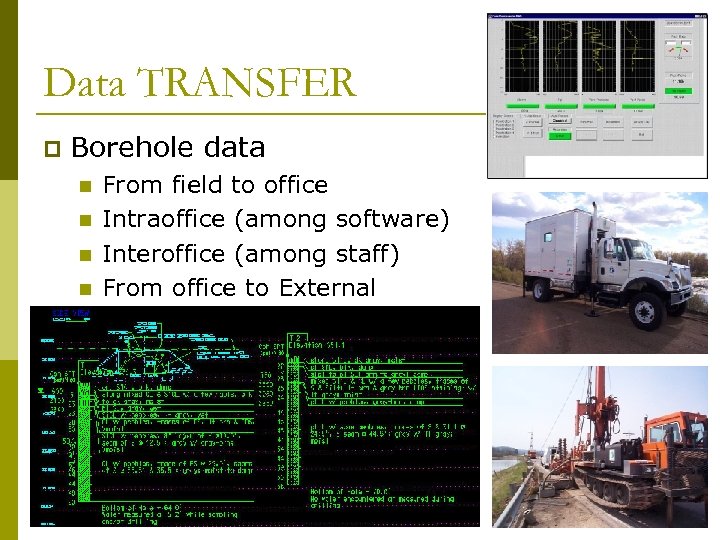

Data TRANSFER p Borehole data n n From field to office Intraoffice (among software) Interoffice (among staff) From office to External

QC/QA Testing PDA/CAPWAP p O-Cell/SLT p

Sensor Data Manual p Automated p

Cost Savings Ohio DOT: Florida DOT: 10 -15% fewer borings per bridge Missouri DOT: Fewer borings saving $250, 000 - $500, 000 on one project Missouri DOT: 10 -20% less drilling, savings $12 -24 M per year $81, 000 savings per year in boring log preparation by using electronic data entry in the field California DOT: 20% savings ($200 k/year) with laboratory data management system implementation

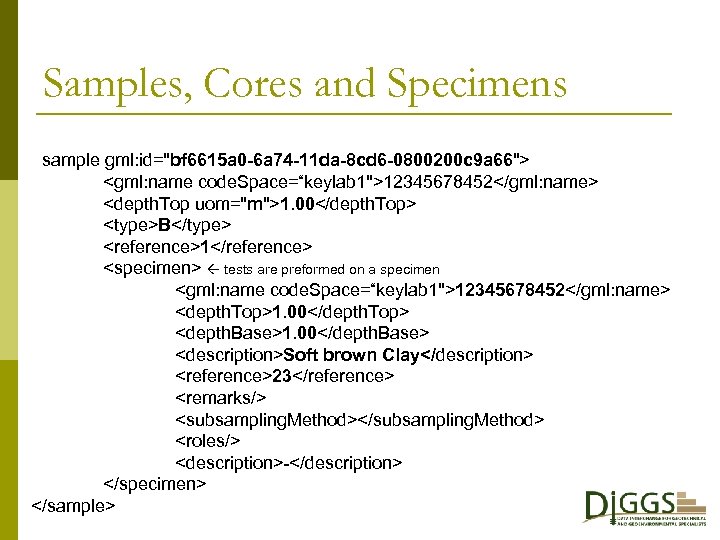

Samples, Cores and Specimens 12345678452 1. 00 B 1 tests are preformed on a specimen 12345678452 1. 00 1. 00 Soft brown Clay 23 -

12345678452 12345678452 Laboratory Tests 12345678452 8452 1. 00 1. 00 Soft brown Clay 23 Tests then hang off specimen 23 <--- who tested, checked and QAd it etc <--- BS xxxyyy clause 2 -

Example 2 – Sample Taken from an Exploratory Hole, tested for NMC, LL and PL Real World Data Construction Project locations Sample collected from exploratory hole “FIELD”Hole ID = ABCD-1 samples Sample Sub-samples created in laboratory “LAB” ID = ABCD-12 Source = ABCD 1 ID = ABCD-123 Source = ABCD-12 Project ID = ABCD-124 Sample Source = ABCD-12 samples Sample ID = ABCD-12 Source = ABCD 1 Sample ID = ABCD-123 Source = ABCD-12 Sample Moisture. Content ID = ABCD-124 Source = ABCD-12 laboratory. Testin g ID = ABCD-12345 Source = ABCD-123 laboratory. Testin g 105 ° ID = ABCD-12345 Source = ABCD-123 Subsample tested for NMC Subsample tested for LL Subsample tested for PL ID = ABCD-23456 Source = ABCD-124 ID = Atterberg. Limits ABCD-23456 Source = ABCD-124 Moisture. Content Atterberg. Limits

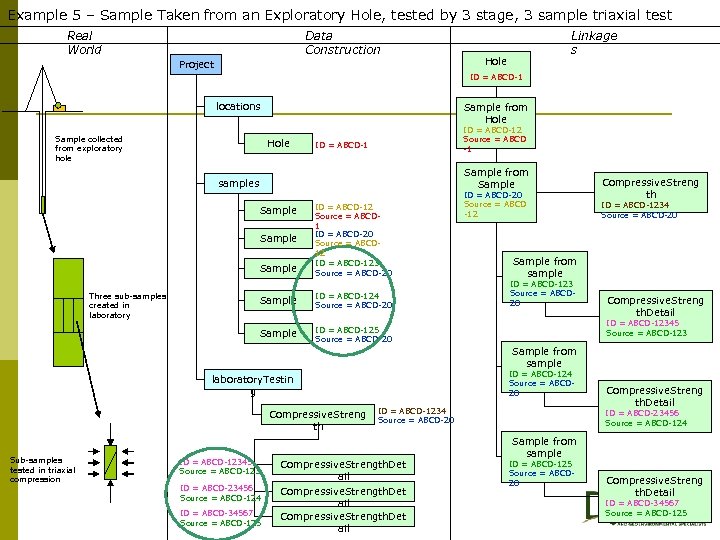

Example 5 – Sample Taken from an Exploratory Hole, tested by 3 stage, 3 sample triaxial test Real World Data Construction Project Linkage s Hole ID = ABCD-1 locations Sample collected from exploratory hole Sample from Hole ID = ABCD-12 Source = ABCD -1 ID = ABCD-1 Sample from Sample samples Sample Three sub-samples created in laboratory ID = ABCD-12 Source = ABCD 1 ID = ABCD-20 Source = ABCD 12 ID = ABCD-123 Source = ABCD-20 Sample ID = ABCD-124 Source = ABCD-20 Sample ID = ABCD-20 Source = ABCD -12 Compressive. Streng th ID = ABCD-1234 Source = ABCD-20 Sample from sample ID = ABCD-123 Source = ABCD 20 ID = ABCD-125 Source = ABCD-20 Compressive. Streng th. Detail ID = ABCD-12345 Source = ABCD-123 Sample from sample ID = ABCD-124 Source = ABCD 20 laboratory. Testin g Compressive. Streng th Sub-samples tested in triaxial compression ID = ABCD-12345 Source = ABCD-123 ID = ABCD-23456 Source = ABCD-124 ID = ABCD-34567 Source = ABCD-125 ID = ABCD-1234 Source = ABCD-20 Compressive. Strength. Det ail Compressive. Streng th. Detail ID = ABCD-23456 Source = ABCD-124 Sample from sample ID = ABCD-125 Source = ABCD 20 Compressive. Streng th. Detail ID = ABCD-34567 Source = ABCD-125

Example 7 – Geoenvironmental: Field Quality Control Samples Real World Data Construction Project Borehole with well installed Hole This is one example of a considerable number of complex examples that have been considered ID = DMDC-BH 1 Sensors Installation water level ID = DMDCBH 1 W Samples standard sample ID = DMDC-BH 1 W_20070613 Source = DMDC-BH 1 W duplicate sample Sample ID = DMDC-BH 1 W_20070613 b Source = DMDC-BH 1 W Sample groundwater samples Sample ID = DMDC-TB 1_20070613 trip blank sample Groupings duplicate groundwater samples Group ID = DMDC-GROUP_1 ID = DMDC-BH 1 W_20070613 b duplicate group Group trip blank sample trip blank group ID ID = = DMDC-GROUP_2 DMDC-TB 1_20070613 DMDC-BH 1 W_20070613 b

http: //diggsml. com – Website

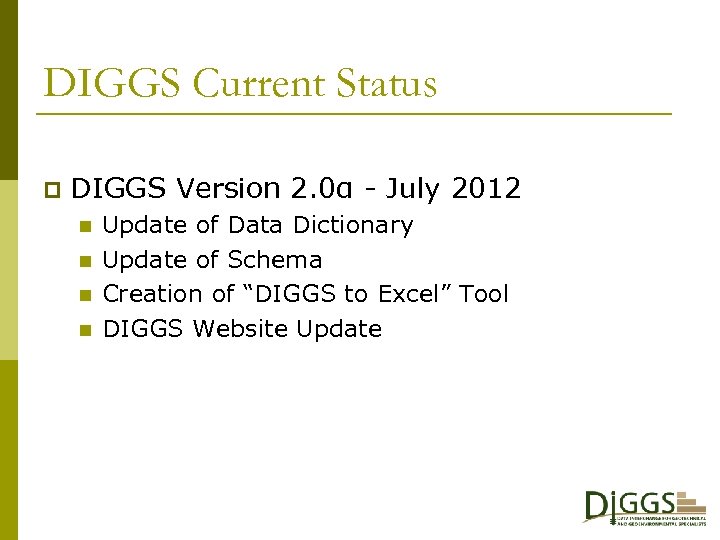

DIGGS Current Status p DIGGS Version 2. 0α - July 2012 n n Update of Data Dictionary Update of Schema Creation of “DIGGS to Excel” Tool DIGGS Website Update

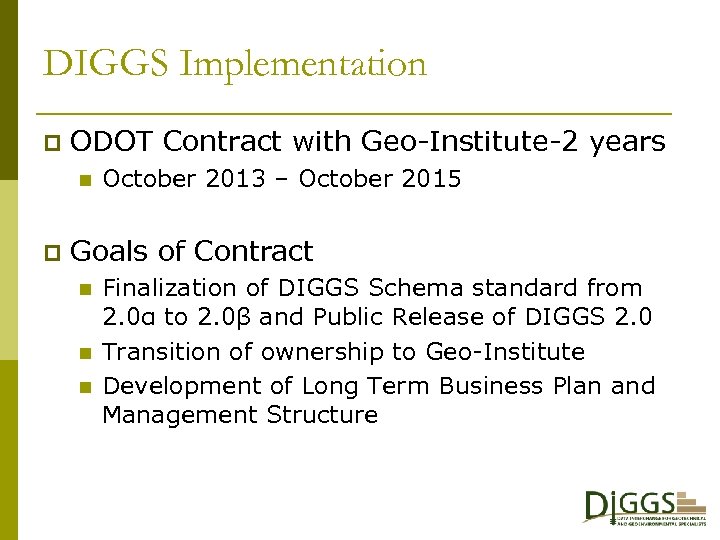

DIGGS Implementation p ODOT Contract with Geo-Institute-2 years n p October 2013 – October 2015 Goals of Contract n n n Finalization of DIGGS Schema standard from 2. 0α to 2. 0β and Public Release of DIGGS 2. 0 Transition of ownership to Geo-Institute Development of Long Term Business Plan and Management Structure

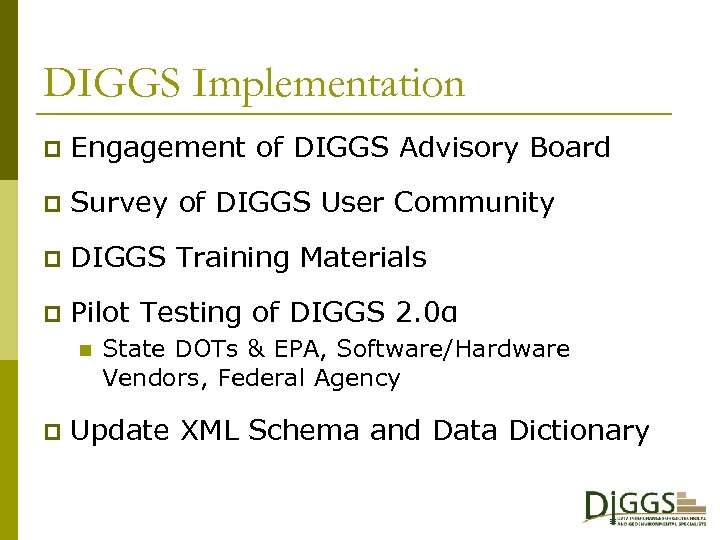

DIGGS Implementation p Engagement of DIGGS Advisory Board p Survey of DIGGS User Community p DIGGS Training Materials p Pilot Testing of DIGGS 2. 0α n p State DOTs & EPA, Software/Hardware Vendors, Federal Agency Update XML Schema and Data Dictionary

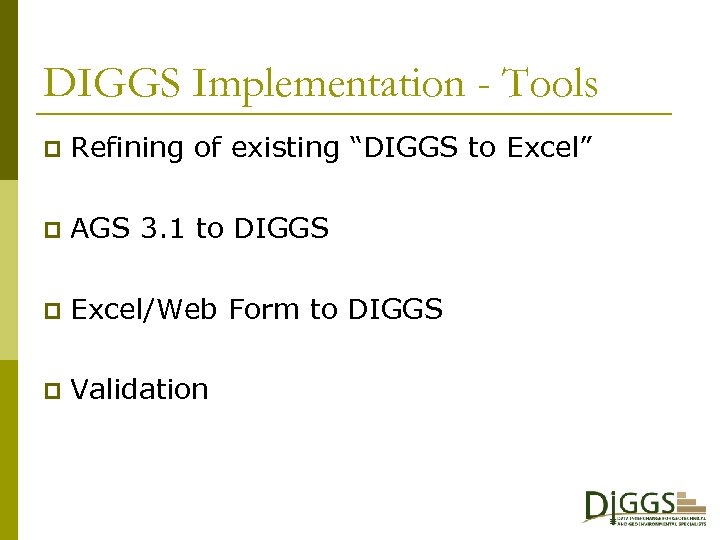

DIGGS Implementation - Tools p Refining of existing “DIGGS to Excel” p AGS 3. 1 to DIGGS p Excel/Web Form to DIGGS p Validation
