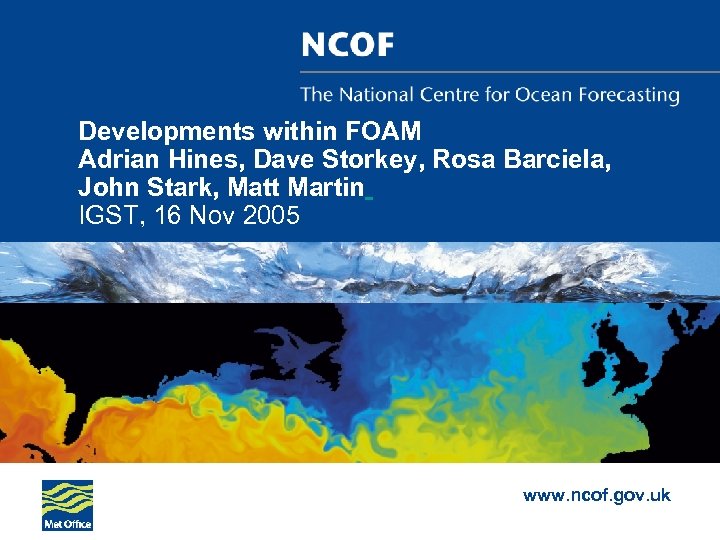

Developments within FOAM Adrian Hines, Dave Storkey, Rosa Barciela, John Stark, Matt Martin IGST, 16 Nov 2005 www. ncof. gov. uk

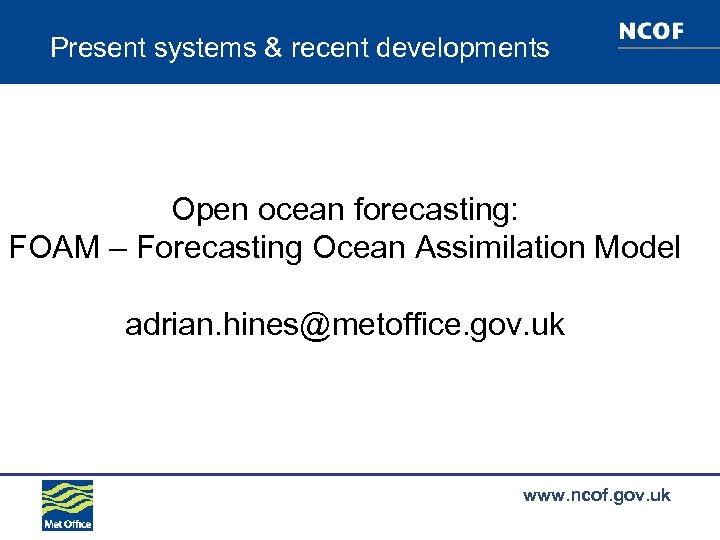

Present systems & recent developments Open ocean forecasting: FOAM – Forecasting Ocean Assimilation Model adrian. hines@metoffice. gov. uk www. ncof. gov. uk

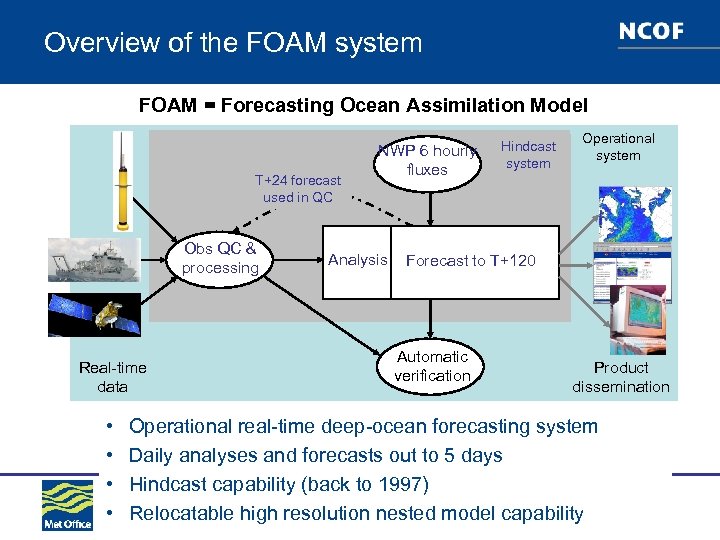

Overview of the FOAM system FOAM = Forecasting Ocean Assimilation Model T+24 forecast used in QC Obs QC & processing Real-time data • • NWP 6 hourly fluxes Analysis Hindcast system Operational system Forecast to T+120 Automatic verification Product dissemination Operational real-time deep-ocean forecasting system Daily analyses and forecasts out to 5 days Hindcast capability (back to 1997) www. ncof. gov. uk Relocatable high resolution nested model capability

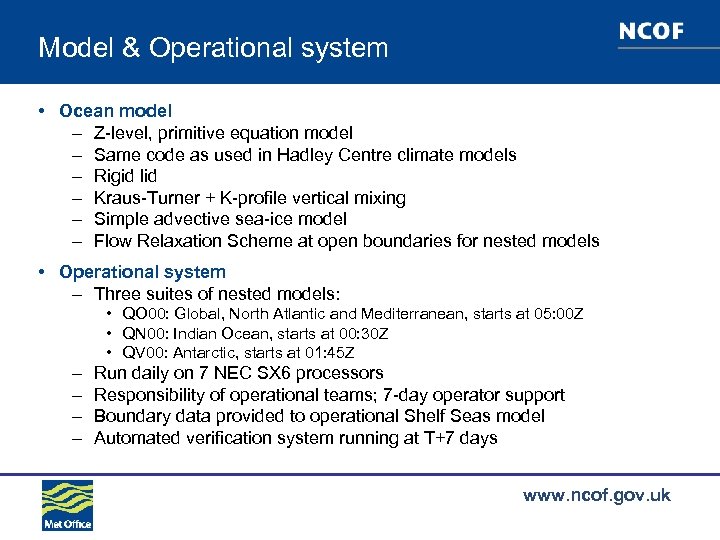

Model & Operational system • Ocean model – Z-level, primitive equation model – Same code as used in Hadley Centre climate models – Rigid lid – Kraus-Turner + K-profile vertical mixing – Simple advective sea-ice model – Flow Relaxation Scheme at open boundaries for nested models • Operational system – Three suites of nested models: • QO 00: Global, North Atlantic and Mediterranean, starts at 05: 00 Z • QN 00: Indian Ocean, starts at 00: 30 Z • QV 00: Antarctic, starts at 01: 45 Z – – Run daily on 7 NEC SX 6 processors Responsibility of operational teams; 7 -day operator support Boundary data provided to operational Shelf Seas model Automated verification system running at T+7 days www. ncof. gov. uk

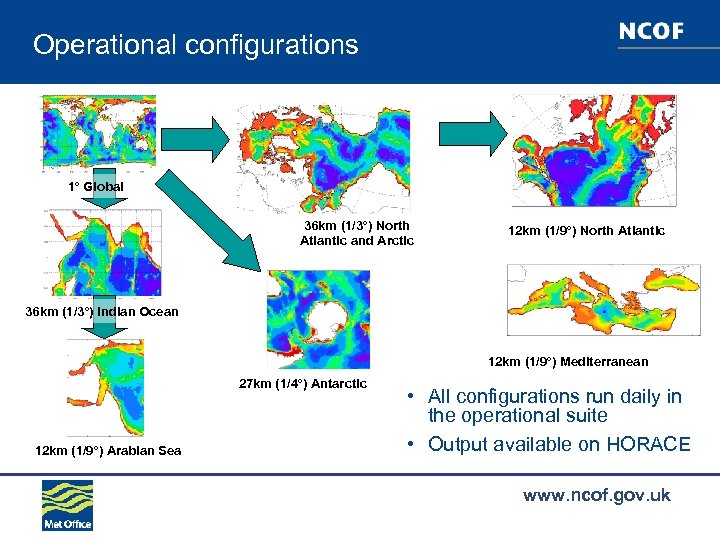

Operational configurations 1º Global 36 km (1/3º) North Atlantic and Arctic 12 km (1/9º) North Atlantic 36 km (1/3º) Indian Ocean 12 km (1/9º) Mediterranean 27 km (1/4º) Antarctic 12 km (1/9º) Arabian Sea • All configurations run daily in the operational suite • Output available on HORACE www. ncof. gov. uk

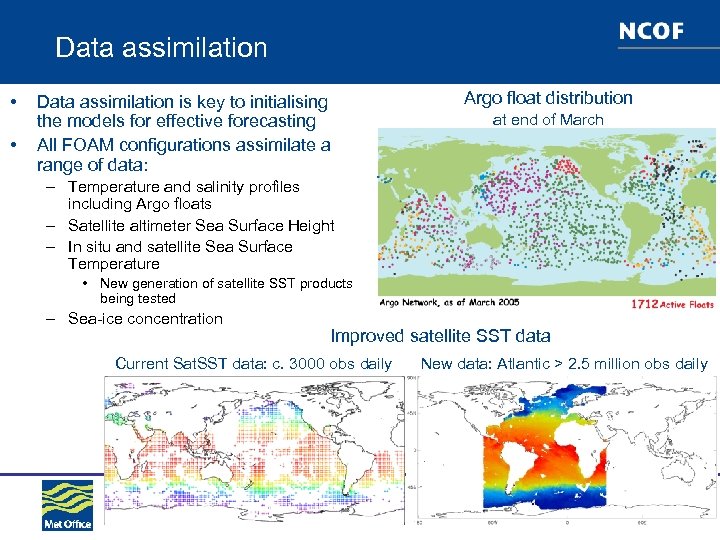

Data assimilation • • Data assimilation is key to initialising the models for effective forecasting All FOAM configurations assimilate a range of data: Argo float distribution at end of March – Temperature and salinity profiles including Argo floats – Satellite altimeter Sea Surface Height – In situ and satellite Sea Surface Temperature • New generation of satellite SST products being tested – Sea-ice concentration Improved satellite SST data Current Sat. SST data: c. 3000 obs daily New data: Atlantic > 2. 5 million obs daily www. ncof. gov. uk

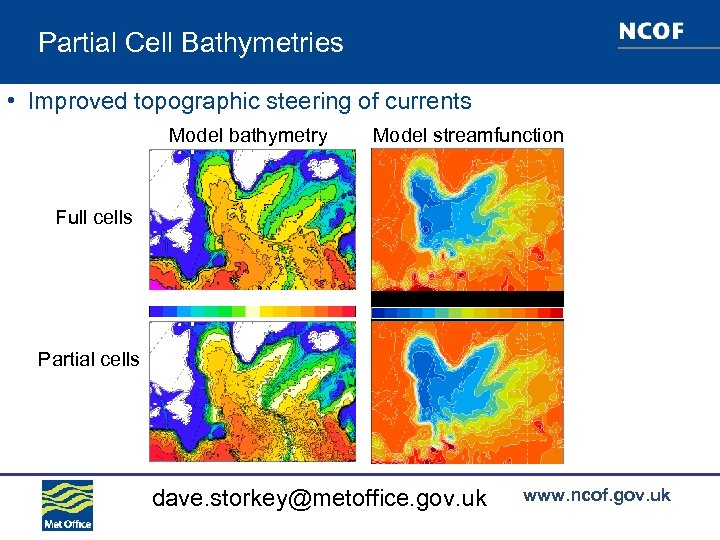

Partial Cell Bathymetries • Improved topographic steering of currents Model bathymetry Model streamfunction Full cells Partial cells dave. storkey@metoffice. gov. uk www. ncof. gov. uk

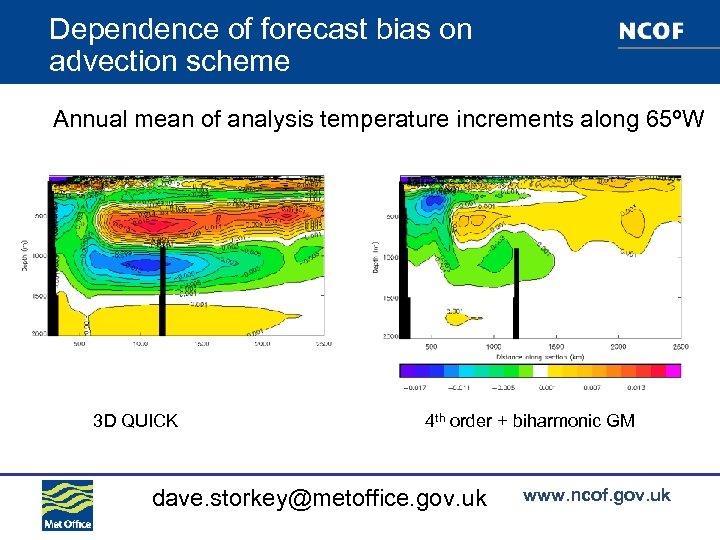

Dependence of forecast bias on advection scheme Annual mean of analysis temperature increments along 65ºW 3 D QUICK 4 th order + biharmonic GM dave. storkey@metoffice. gov. uk www. ncof. gov. uk

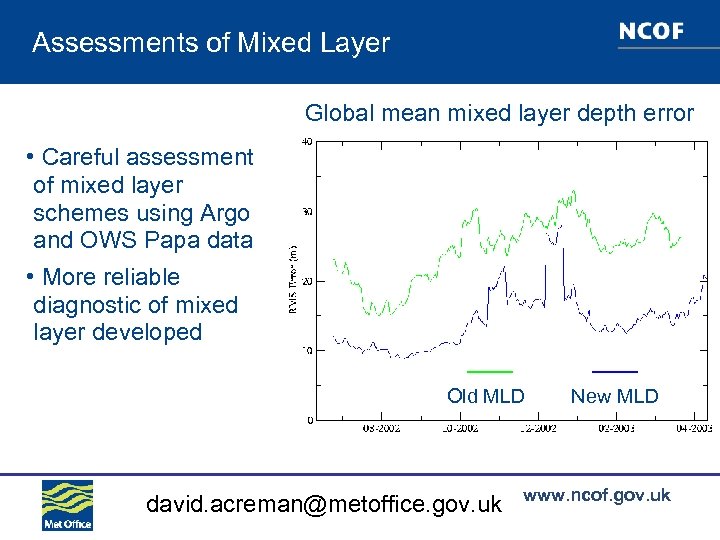

Assessments of Mixed Layer Global mean mixed layer depth error • Careful assessment of mixed layer schemes using Argo and OWS Papa data • More reliable diagnostic of mixed layer developed Old MLD david. acreman@metoffice. gov. uk New MLD www. ncof. gov. uk

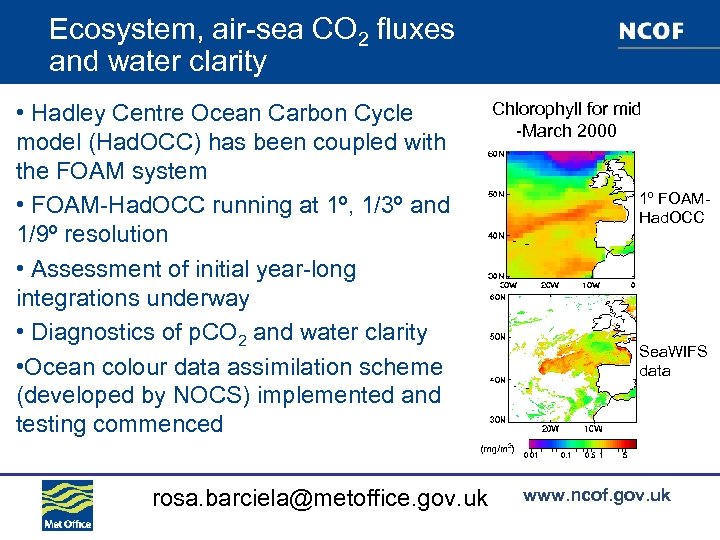

Ecosystem, air-sea CO 2 fluxes and water clarity • Hadley Centre Ocean Carbon Cycle model (Had. OCC) has been coupled with the FOAM system • FOAM-Had. OCC running at 1º, 1/3º and 1/9º resolution • Assessment of initial year-long integrations underway • Diagnostics of p. CO 2 and water clarity • Ocean colour data assimilation scheme (developed by NOCS) implemented and testing commenced rosa. barciela@metoffice. gov. uk Chlorophyll for mid -March 2000 1º FOAMHad. OCC Sea. WIFS data www. ncof. gov. uk

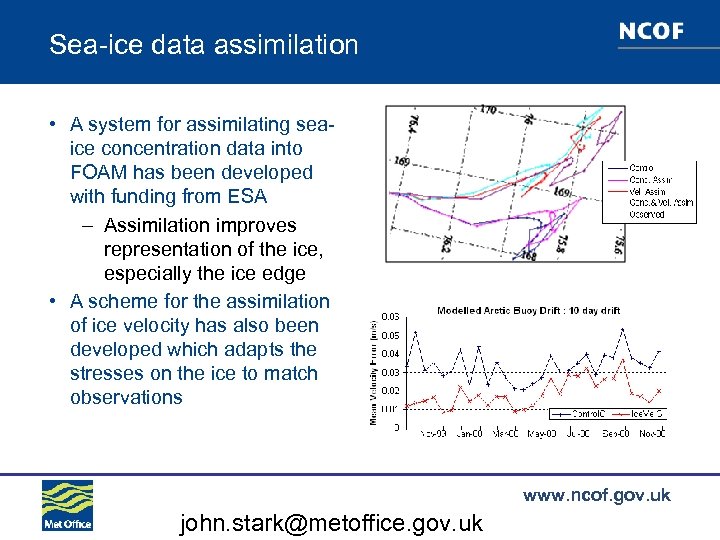

Sea-ice data assimilation • A system for assimilating seaice concentration data into FOAM has been developed with funding from ESA – Assimilation improves representation of the ice, especially the ice edge • A scheme for the assimilation of ice velocity has also been developed which adapts the stresses on the ice to match observations www. ncof. gov. uk john. stark@metoffice. gov. uk

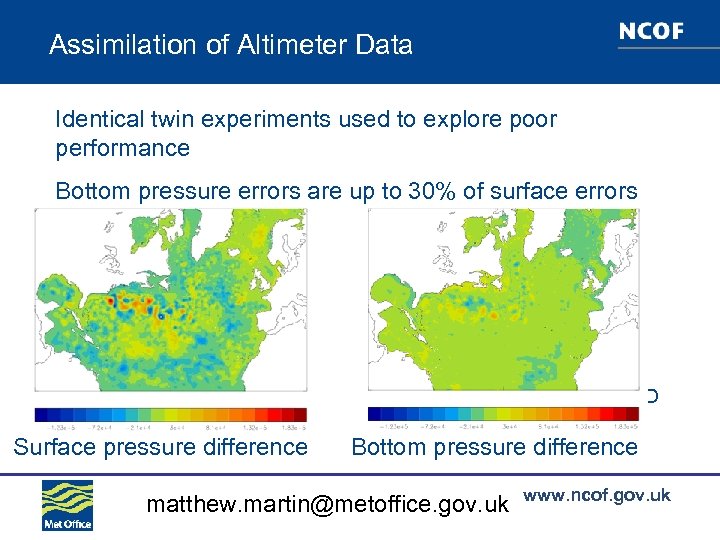

Assimilation of Altimeter Data Identical twin experiments used to explore poor performance Bottom pressure errors are up to 30% of surface errors Old MLD Surface pressure difference New MLD Bottom pressure difference matthew. martin@metoffice. gov. uk www. ncof. gov. uk
