developments in dynamic continuous and automated water quality

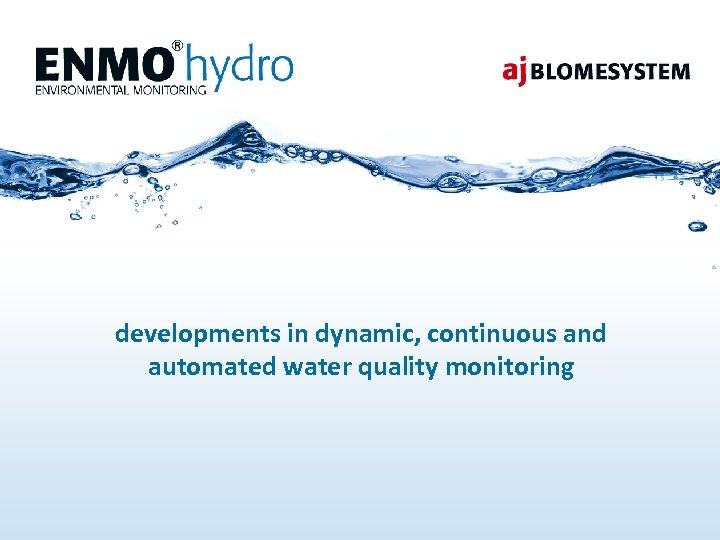

developments in dynamic, continuous and automated water quality monitoring

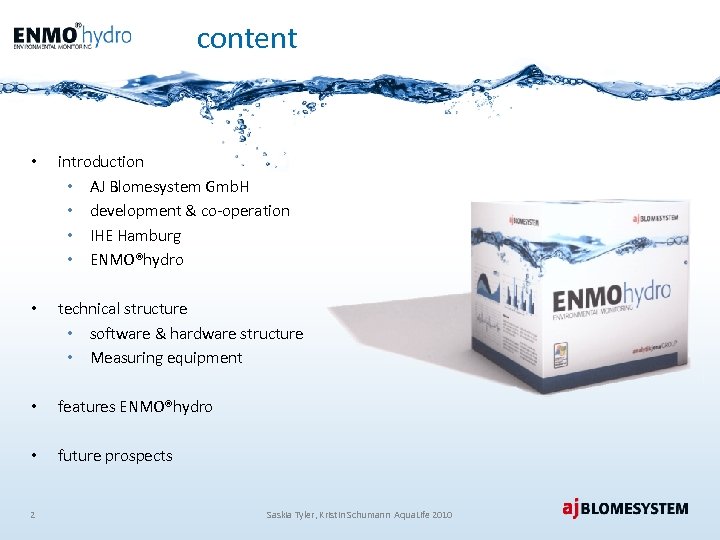

content • introduction • AJ Blomesystem Gmb. H • development & co-operation • IHE Hamburg • ENMO®hydro • technical structure • software & hardware structure • Measuring equipment • features ENMO®hydro • future prospects 2 Saskia Tyler, Kristin Schumann Aqua. Life 2010

AJ Blomesystem Gmb. H • integral part and a 100% subsidiary of Analytik Jena AG • expert in the field of the development and implementation of LIMS • introduction customers: • global players like Coca Cola and BASF • medium-sized companies • institutions technical structure features ENMO®hydro future prospects 3 Saskia Tyler, Kristin Schumann Aqua. Life 2010

development & co-operation • ENMO®hydro as result of a co- operation with Hamburg’s Institute for Hygiene and Environment • IHE Hamburg: water quality measuring network monitoring the river Elbe since 1988 • a contribution to the compliance of the EU Water Frame-work Directive • introduction WFD aims to achieve good ecological and chemical condition of water- ways in the EU by 2015 technical structure features ENMO®hydro future prospects 4 Saskia Tyler, Kristin Schumann Aqua. Life 2010

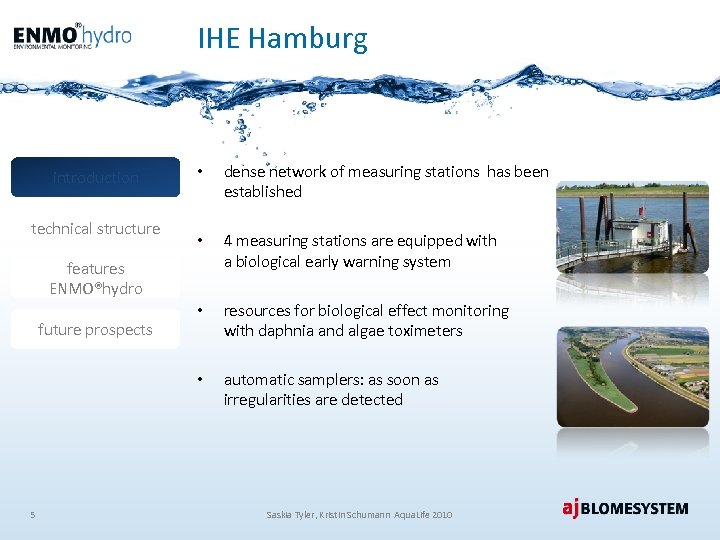

IHE Hamburg technical structure • dense network of measuring stations has been established • 4 measuring stations are equipped with a biological early warning system • resources for biological effect monitoring with daphnia and algae toximeters • introduction automatic samplers: as soon as irregularities are detected features ENMO®hydro future prospects 5 Saskia Tyler, Kristin Schumann Aqua. Life 2010

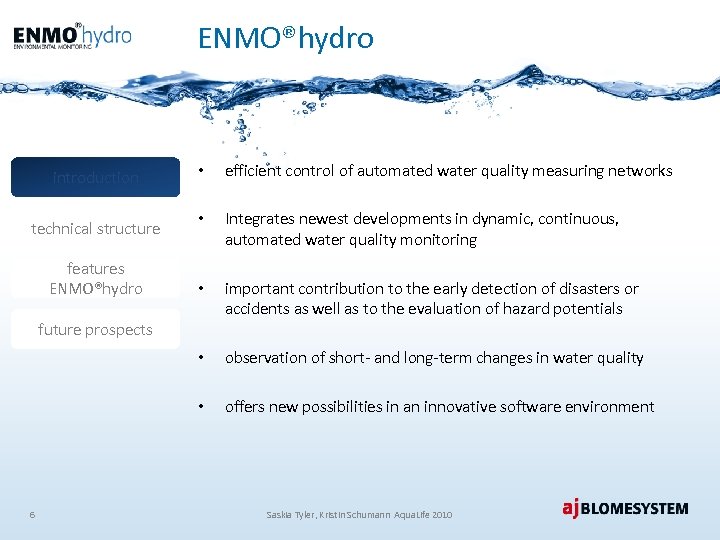

ENMO®hydro features ENMO®hydro efficient control of automated water quality measuring networks • Integrates newest developments in dynamic, continuous, automated water quality monitoring • important contribution to the early detection of disasters or accidents as well as to the evaluation of hazard potentials observation of short- and long-term changes in water quality • technical structure • • introduction offers new possibilities in an innovative software environment future prospects 6 Saskia Tyler, Kristin Schumann Aqua. Life 2010

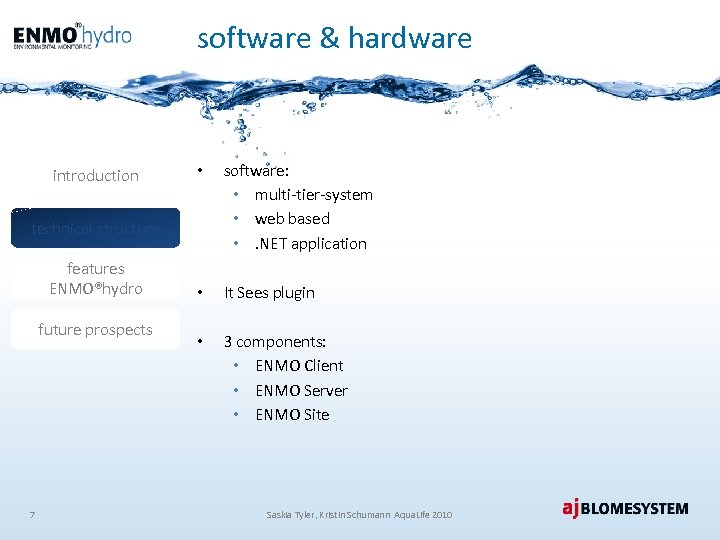

software & hardware introduction • software: • multi-tier-system • web based • . NET application • It Sees plugin • 3 components: • ENMO Client • ENMO Server • ENMO Site technical structure features ENMO®hydro future prospects 7 Saskia Tyler, Kristin Schumann Aqua. Life 2010

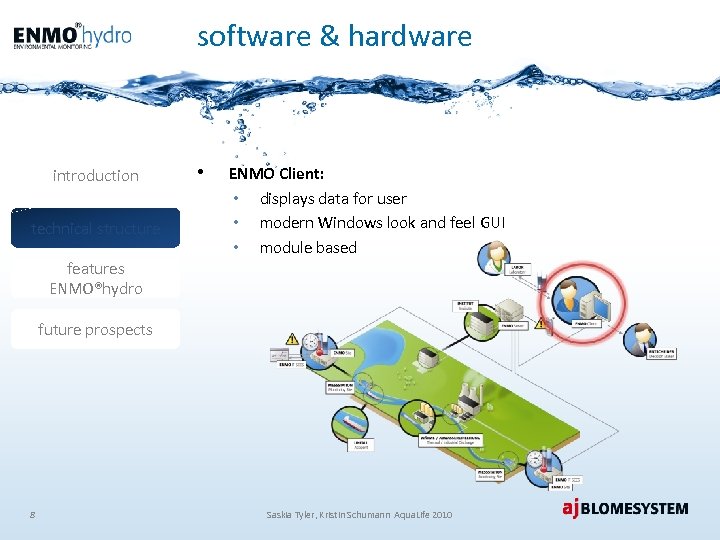

software & hardware introduction technical structure • ENMO Client: • displays data for user • modern Windows look and feel GUI • module based features ENMO®hydro future prospects 8 Saskia Tyler, Kristin Schumann Aqua. Life 2010

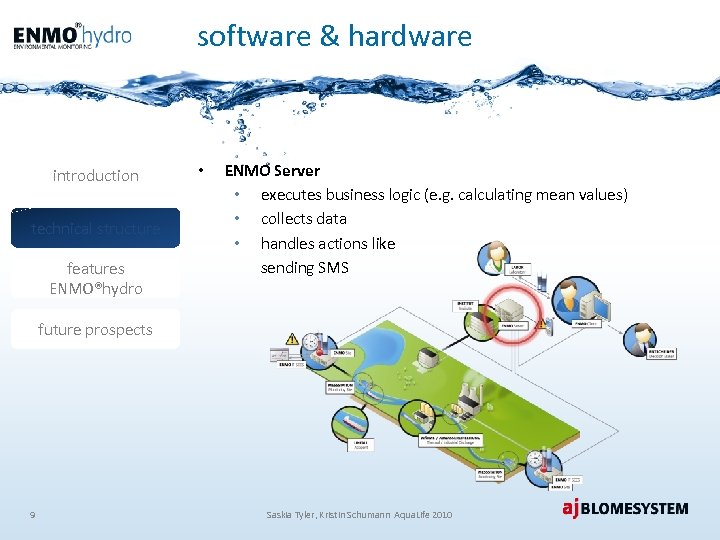

software & hardware introduction technical structure features ENMO®hydro • ENMO Server • executes business logic (e. g. calculating mean values) • collects data • handles actions like sending SMS future prospects 9 Saskia Tyler, Kristin Schumann Aqua. Life 2010

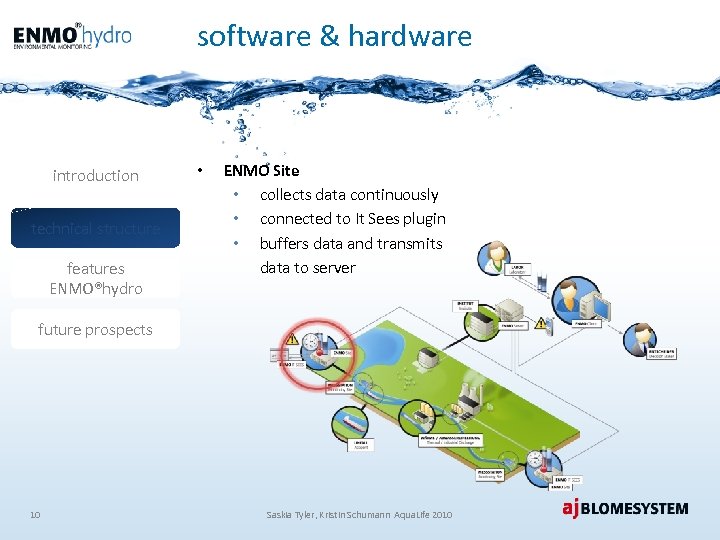

software & hardware introduction technical structure features ENMO®hydro • ENMO Site • collects data continuously • connected to It Sees plugin • buffers data and transmits data to server future prospects 10 Saskia Tyler, Kristin Schumann Aqua. Life 2010

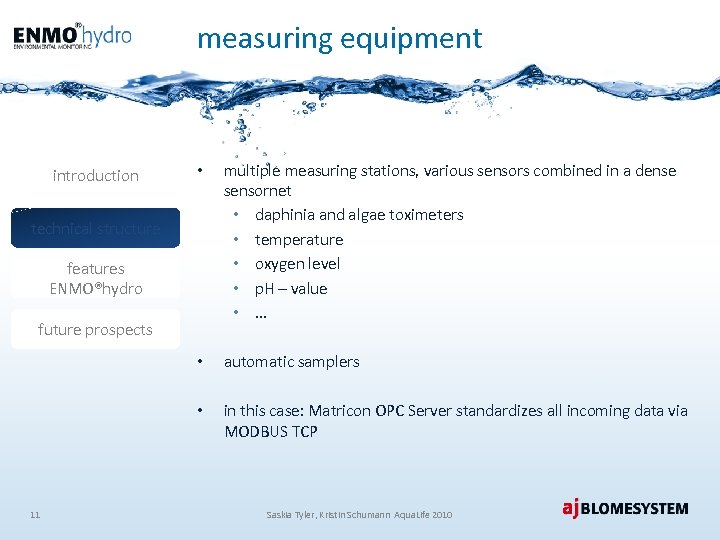

measuring equipment • multiple measuring stations, various sensors combined in a dense sensornet • daphinia and algae toximeters • temperature • oxygen level • p. H – value • … • automatic samplers • introduction in this case: Matricon OPC Server standardizes all incoming data via MODBUS TCP technical structure features ENMO®hydro future prospects 11 Saskia Tyler, Kristin Schumann Aqua. Life 2010

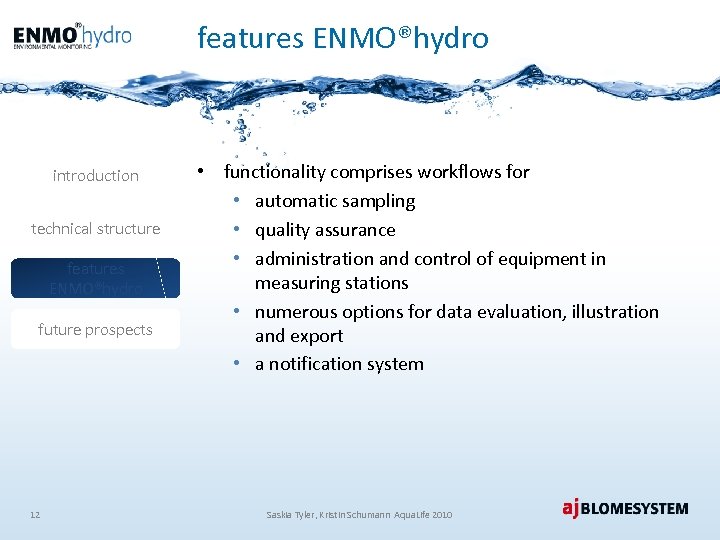

features ENMO®hydro introduction technical structure features ENMO®hydro future prospects 12 • functionality comprises workflows for • automatic sampling • quality assurance • administration and control of equipment in measuring stations • numerous options for data evaluation, illustration and export • a notification system Saskia Tyler, Kristin Schumann Aqua. Life 2010

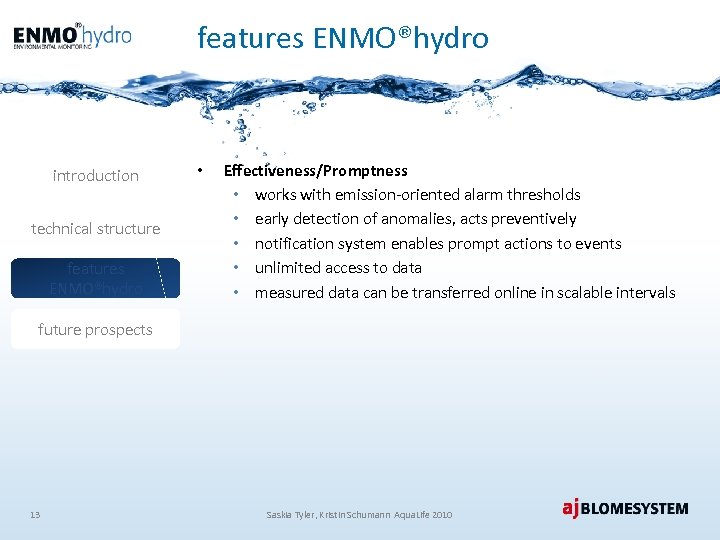

features ENMO®hydro introduction technical structure features ENMO®hydro • Effectiveness/Promptness • works with emission-oriented alarm thresholds • early detection of anomalies, acts preventively • notification system enables prompt actions to events • unlimited access to data • measured data can be transferred online in scalable intervals future prospects 13 Saskia Tyler, Kristin Schumann Aqua. Life 2010

features ENMO®hydro introduction technical structure features ENMO®hydro • Quality • DIN ISO 17025 • audit trail to track all changes • logbook • defined access rights per user, up to the station level future prospects 14 Saskia Tyler, Kristin Schumann Aqua. Life 2010

features ENMO®hydro introduction technical structure • Integration • integrates to existing systems easily • data can be uploaded to website for customer service • visualization of measured data via web browser features ENMO®hydro future prospects 15 Saskia Tyler, Kristin Schumann Aqua. Life 2010

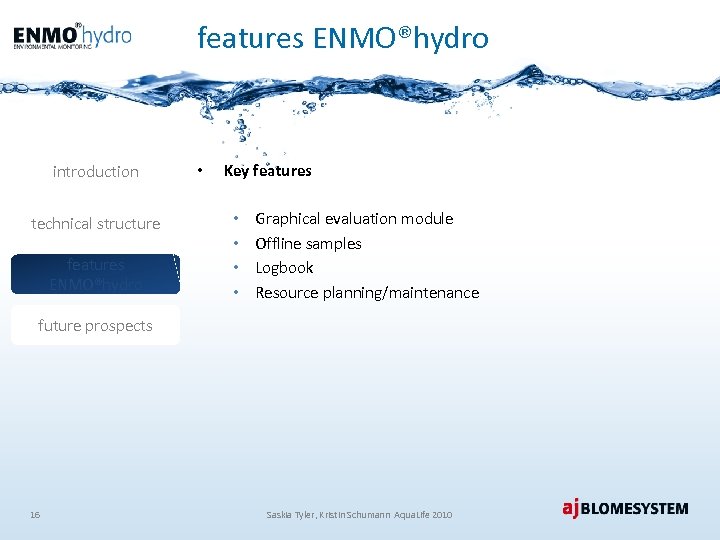

features ENMO®hydro introduction technical structure features ENMO®hydro • Key features • • Graphical evaluation module Offline samples Logbook Resource planning/maintenance future prospects 16 Saskia Tyler, Kristin Schumann Aqua. Life 2010

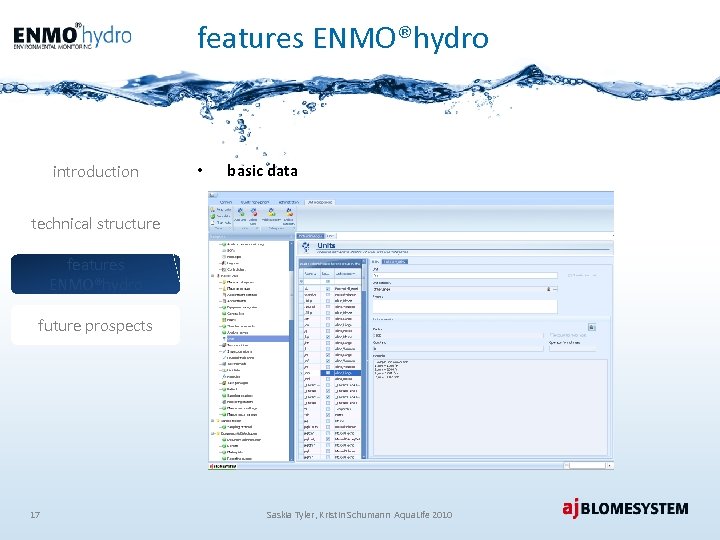

features ENMO®hydro introduction • basic data technical structure features ENMO®hydro future prospects 17 Saskia Tyler, Kristin Schumann Aqua. Life 2010

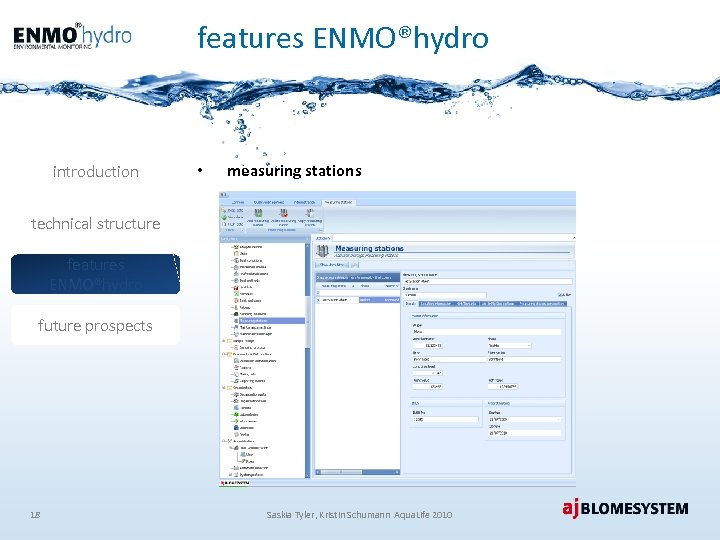

features ENMO®hydro introduction • measuring stations technical structure features ENMO®hydro future prospects 18 Saskia Tyler, Kristin Schumann Aqua. Life 2010

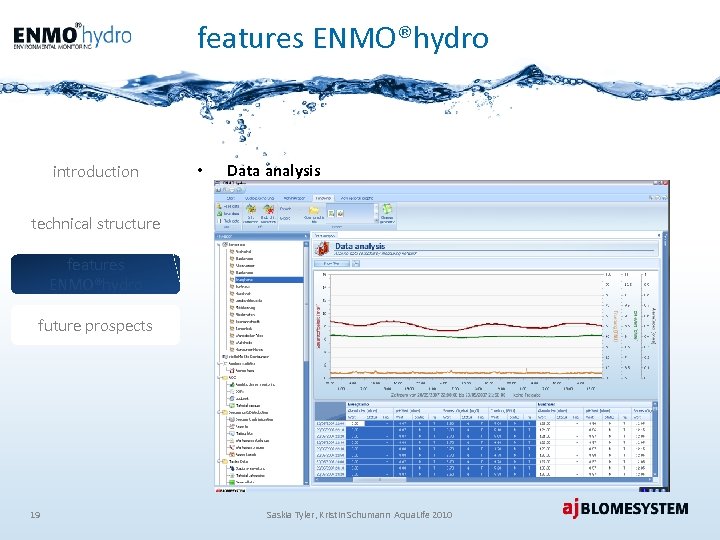

features ENMO®hydro introduction • Data analysis technical structure features ENMO®hydro future prospects 19 Saskia Tyler, Kristin Schumann Aqua. Life 2010

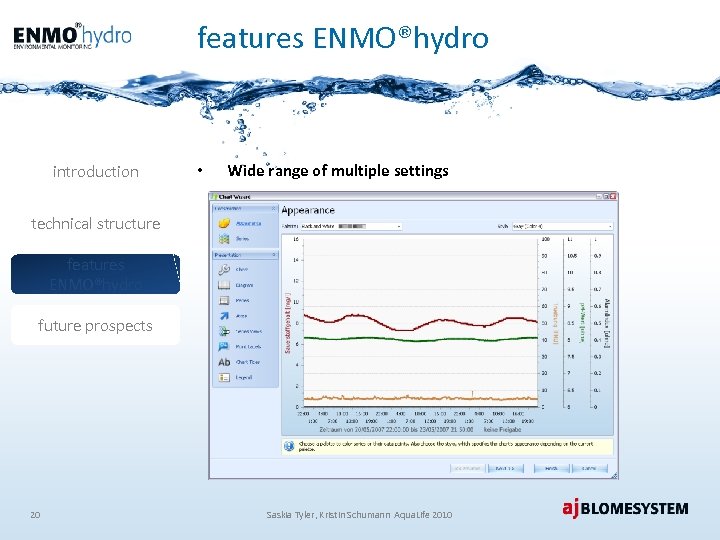

features ENMO®hydro introduction • Wide range of multiple settings technical structure features ENMO®hydro future prospects 20 Saskia Tyler, Kristin Schumann Aqua. Life 2010

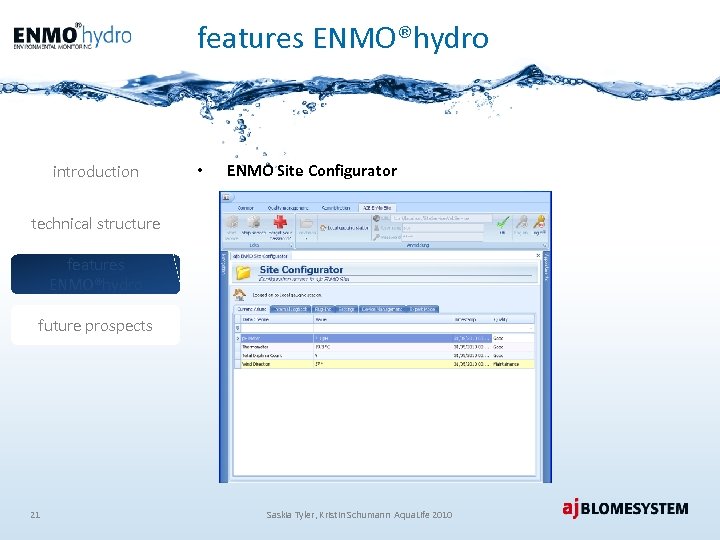

features ENMO®hydro introduction • ENMO Site Configurator technical structure features ENMO®hydro future prospects 21 Saskia Tyler, Kristin Schumann Aqua. Life 2010

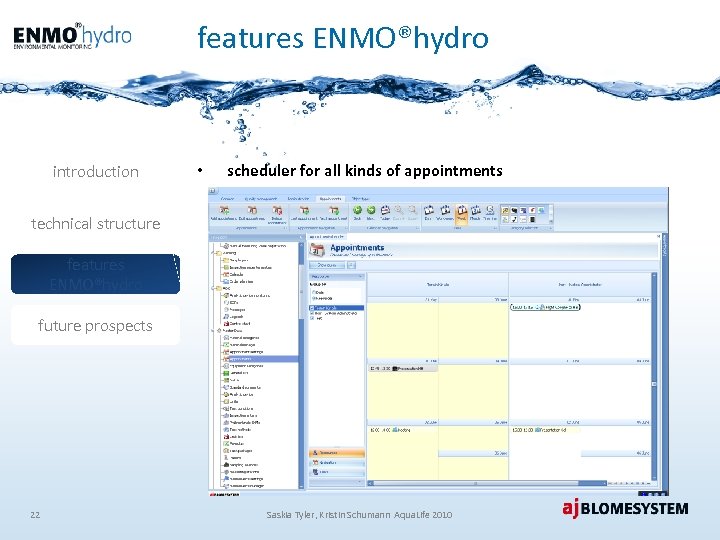

features ENMO®hydro introduction • scheduler for all kinds of appointments technical structure features ENMO®hydro future prospects 22 Saskia Tyler, Kristin Schumann Aqua. Life 2010

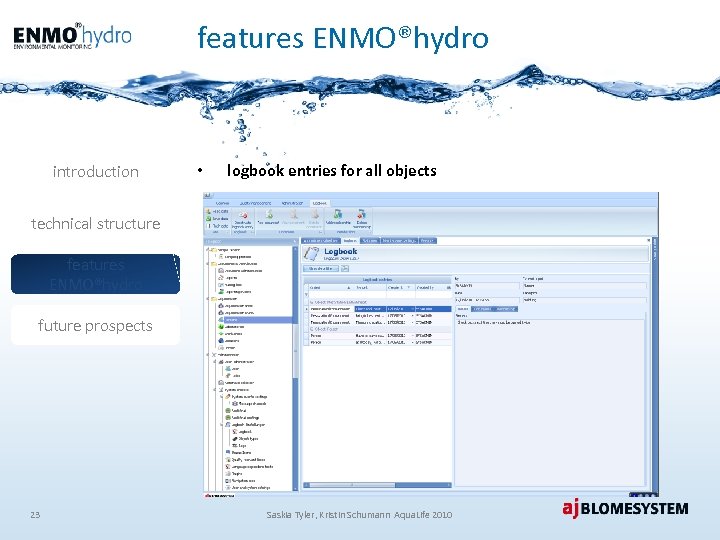

features ENMO®hydro introduction • logbook entries for all objects technical structure features ENMO®hydro future prospects 23 Saskia Tyler, Kristin Schumann Aqua. Life 2010

future prospects introduction • mobile application: • ENMOmobile • keep customers on track: • publish information to the web technical structure features ENMO®hydro future prospects 24 Saskia Tyler, Kristin Schumann Aqua. Life 2010

Do you have any questions? Thanks for your attention. Kristin Schumann, Saskia Tyler AJ Blomesystem Gmb. H Konrad-Zuse-Straße 1 D-07745 Jena, Germany Tel. : +49 36 41 77 – 98 77 Fax: +49 36 41 77 – 76 98 00 E-Mail: sales@aj-blomesystem. de website: http: //www. enmohydro. com 25 Saskia Tyler, Kristin Schumann Aqua. Life 2010
