Design Cost Modeling and Data Collection Infrastructure Andrew B. Kahng and Stefanus Mantik* UCSD CSE and ECE Departments (*) Cadence Design Systems, Inc. http: //vlsicad. ucsd. edu/

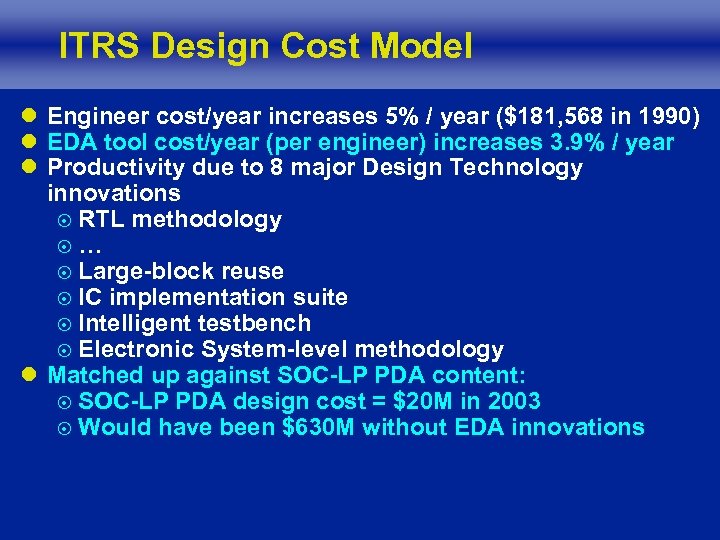

ITRS Design Cost Model l Engineer cost/year increases 5% / year ($181, 568 in 1990) l EDA tool cost/year (per engineer) increases 3. 9% / year l Productivity due to 8 major Design Technology innovations ¤ RTL methodology ¤… ¤ Large-block reuse ¤ IC implementation suite ¤ Intelligent testbench ¤ Electronic System-level methodology l Matched up against SOC-LP PDA content: ¤ SOC-LP PDA design cost = $20 M in 2003 ¤ Would have been $630 M without EDA innovations

SOC Design Cost

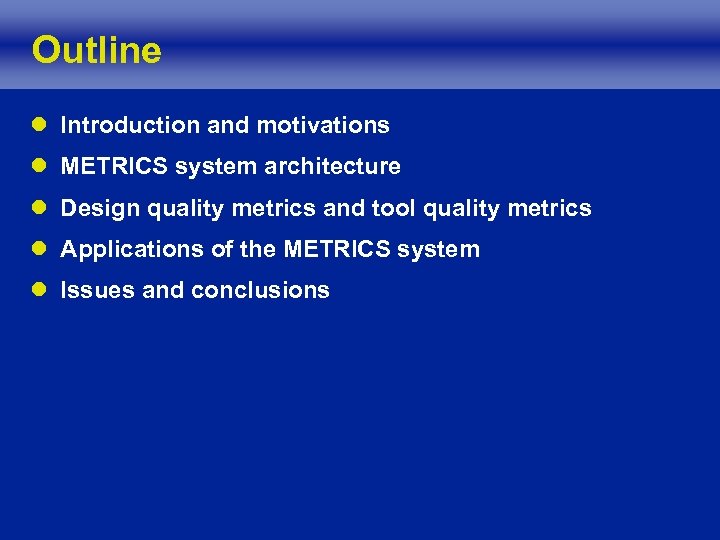

Outline l Introduction and motivations l METRICS system architecture l Design quality metrics and tool quality metrics l Applications of the METRICS system l Issues and conclusions

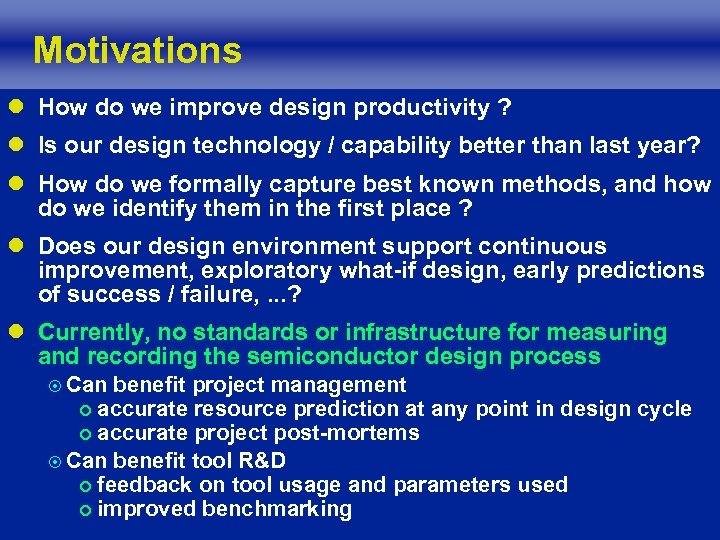

Motivations l How do we improve design productivity ? l Is our design technology / capability better than last year? l How do we formally capture best known methods, and how do we identify them in the first place ? l Does our design environment support continuous improvement, exploratory what-if design, early predictions of success / failure, . . . ? l Currently, no standards or infrastructure for measuring and recording the semiconductor design process ¤ Can benefit project management ¢ accurate resource prediction at any point in design cycle ¢ accurate project post-mortems ¤ Can benefit tool R&D ¢ feedback on tool usage and parameters used ¢ improved benchmarking

Fundamental Gaps l Data to be measured is not available ¤ Data is only available through tool log files ¤ Metrics naming and semantics are not consistent among different tools l We do not always know what data should be measured ¤ Some metrics are less obviously useful ¤ Other metrics are almost impossible to discern

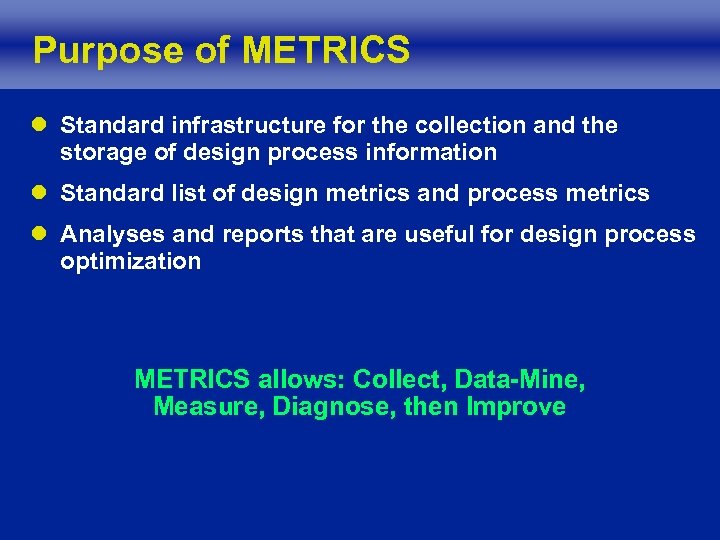

Purpose of METRICS l Standard infrastructure for the collection and the storage of design process information l Standard list of design metrics and process metrics l Analyses and reports that are useful for design process optimization METRICS allows: Collect, Data-Mine, Measure, Diagnose, then Improve

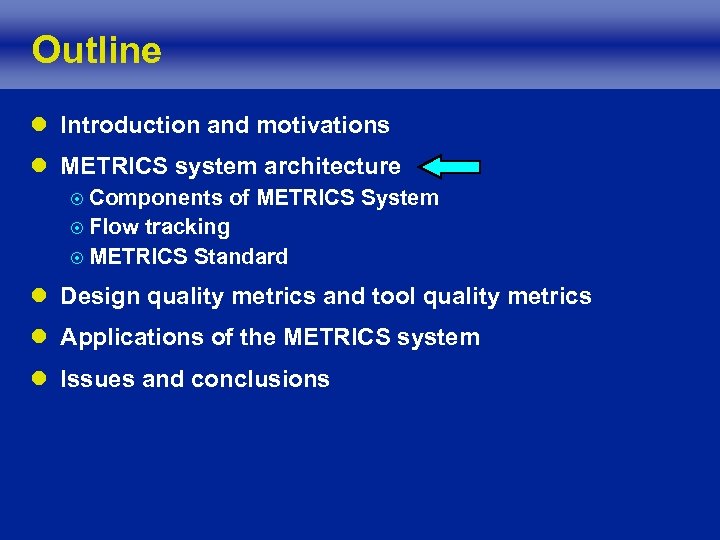

Outline l Introduction and motivations l METRICS system architecture ¤ Components of METRICS System ¤ Flow tracking ¤ METRICS Standard l Design quality metrics and tool quality metrics l Applications of the METRICS system l Issues and conclusions

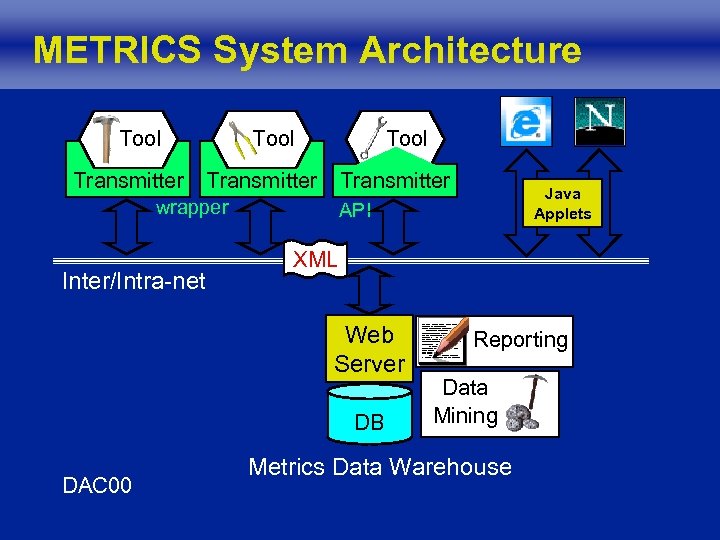

METRICS System Architecture Tool Transmitter wrapper Inter/Intra-net API XML Web Server DB DAC 00 Java Applets Reporting Data Mining Metrics Data Warehouse

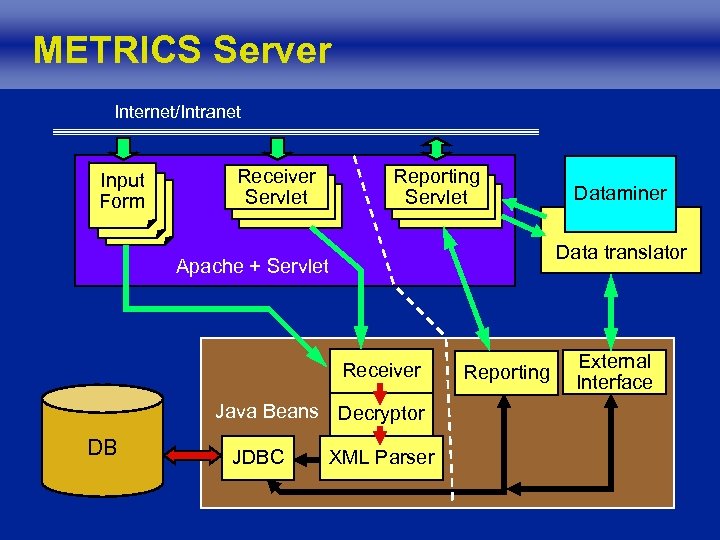

METRICS Server Internet/Intranet Input Form Receiver Servlet Reporting Servlet Data translator Apache + Servlet Receiver Java Beans Decryptor DB JDBC Dataminer XML Parser Reporting External Interface

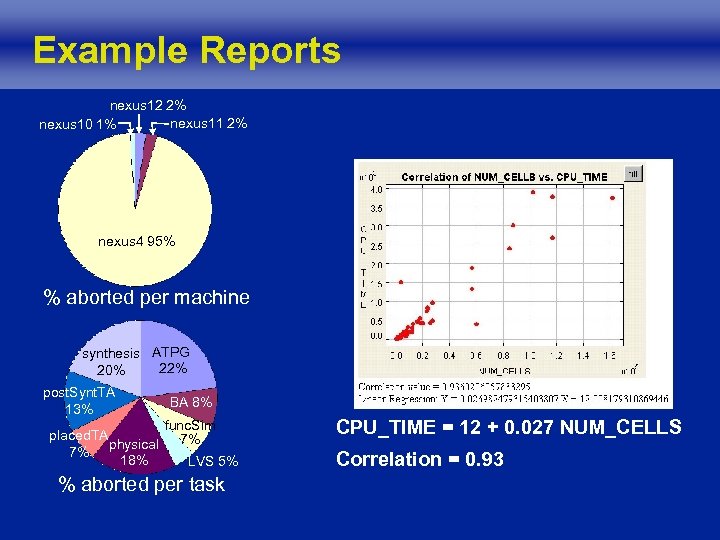

Example Reports nexus 12 2% nexus 11 2% nexus 10 1% nexus 4 95% % aborted per machine synthesis ATPG 22% 20% post. Synt. TA 13% placed. TA physical 7% 18% BA 8% func. Sim 7% LVS 5% % aborted per task CPU_TIME = 12 + 0. 027 NUM_CELLS Correlation = 0. 93

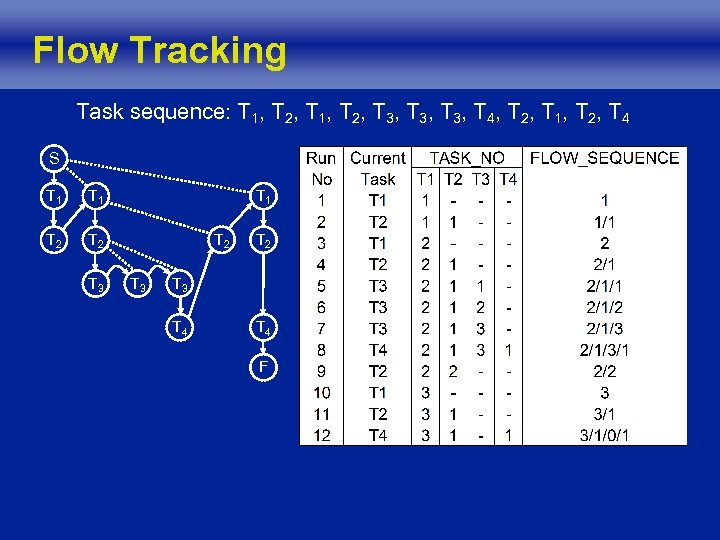

Flow Tracking Task sequence: T 1, T 2, T 3, T 4, T 2, T 1, T 2, T 4 S T 1 T 2 T 3 T 4 F

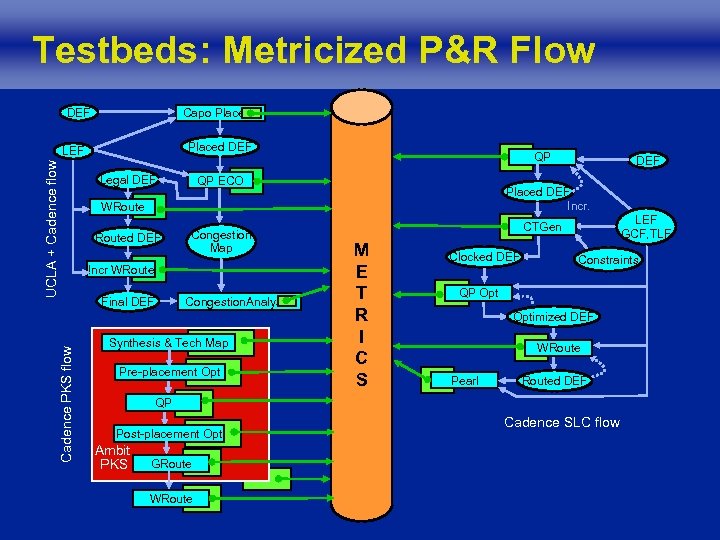

Testbeds: Metricized P&R Flow DEF Capo Placer Placed DEF Cadence PKS flow UCLA + Cadence flow LEF Legal DEF QP QP ECO Placed DEF Incr. WRouted DEF Congestion Map Incr WRoute Final DEF Congestion. Analysis Synthesis & Tech Map Pre-placement Opt DEF LEF GCF, TLF CTGen M E T R I C S Clocked DEF Constraints QP Optimized DEF WRoute Pearl Routed DEF QP Post-placement Opt Ambit PKS GRoute WRoute Cadence SLC flow

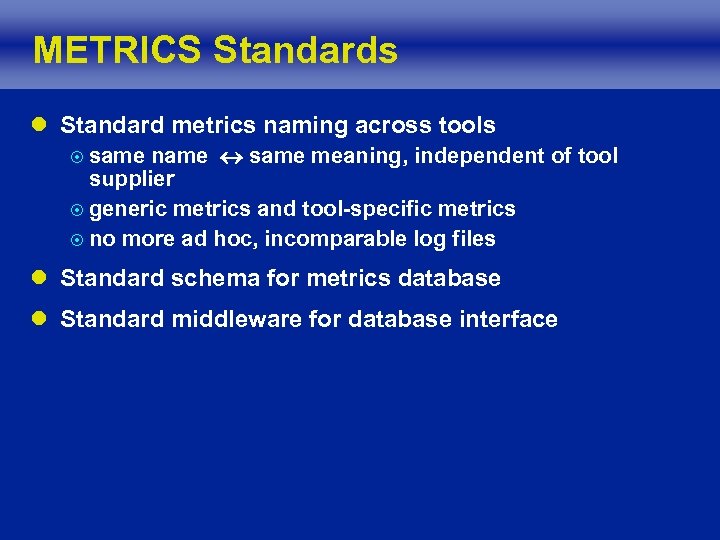

METRICS Standards l Standard metrics naming across tools name « same meaning, independent of tool supplier ¤ generic metrics and tool-specific metrics ¤ no more ad hoc, incomparable log files ¤ same l Standard schema for metrics database l Standard middleware for database interface

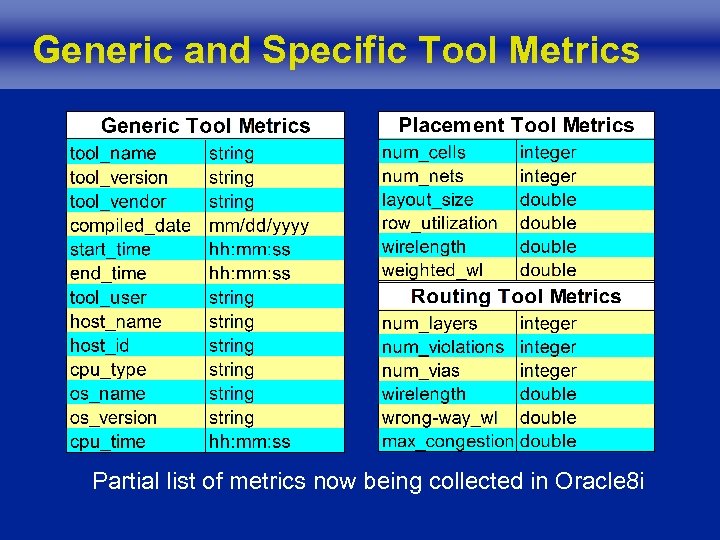

Generic and Specific Tool Metrics Partial list of metrics now being collected in Oracle 8 i

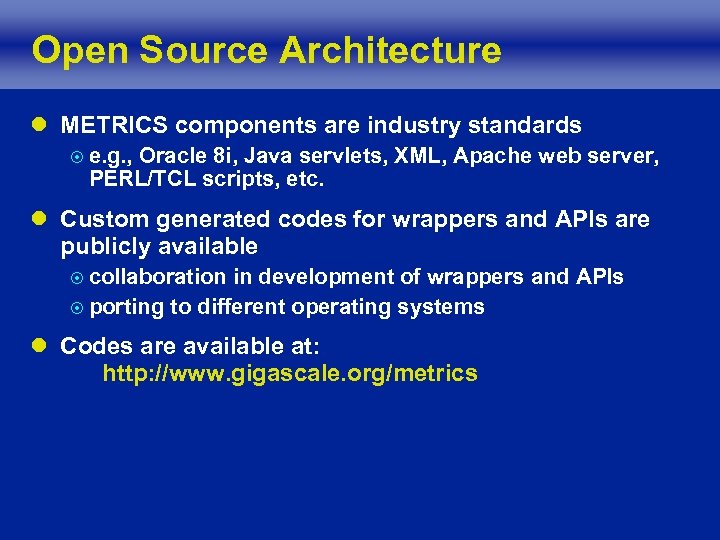

Open Source Architecture l METRICS components are industry standards ¤ e. g. , Oracle 8 i, Java servlets, XML, Apache web server, PERL/TCL scripts, etc. l Custom generated codes for wrappers and APIs are publicly available ¤ collaboration in development of wrappers and APIs ¤ porting to different operating systems l Codes are available at: http: //www. gigascale. org/metrics

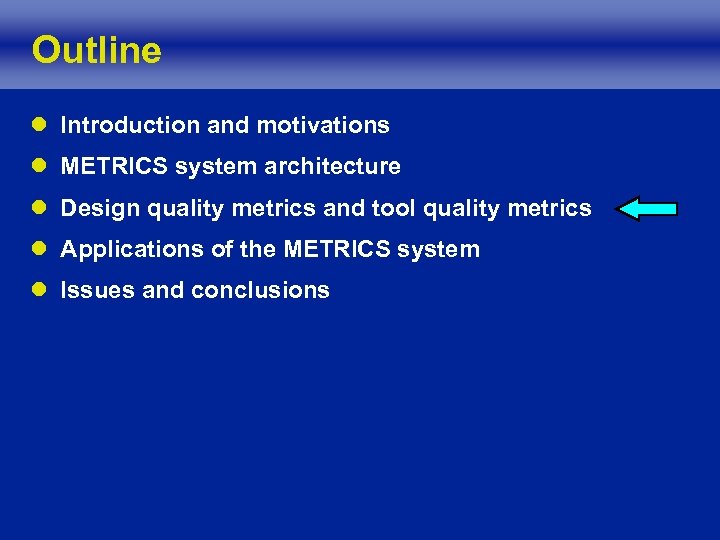

Outline l Introduction and motivations l METRICS system architecture l Design quality metrics and tool quality metrics l Applications of the METRICS system l Issues and conclusions

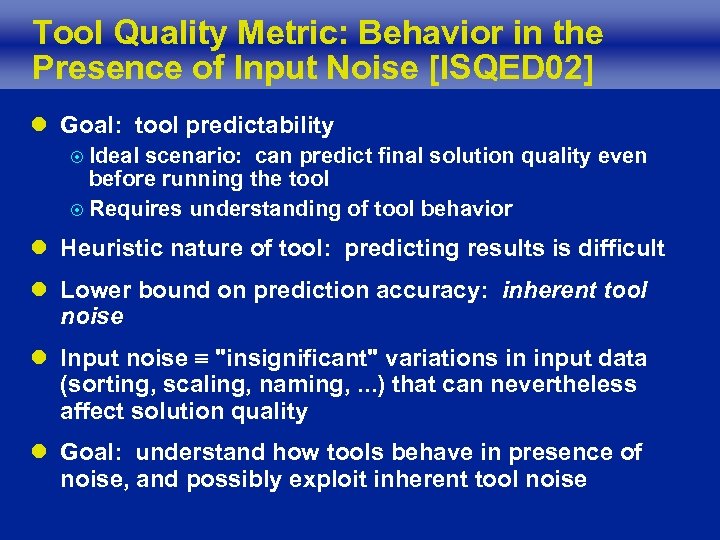

Tool Quality Metric: Behavior in the Presence of Input Noise [ISQED 02] l Goal: tool predictability ¤ Ideal scenario: can predict final solution quality even before running the tool ¤ Requires understanding of tool behavior l Heuristic nature of tool: predicting results is difficult l Lower bound on prediction accuracy: inherent tool noise l Input noise "insignificant" variations in input data (sorting, scaling, naming, . . . ) that can nevertheless affect solution quality l Goal: understand how tools behave in presence of noise, and possibly exploit inherent tool noise

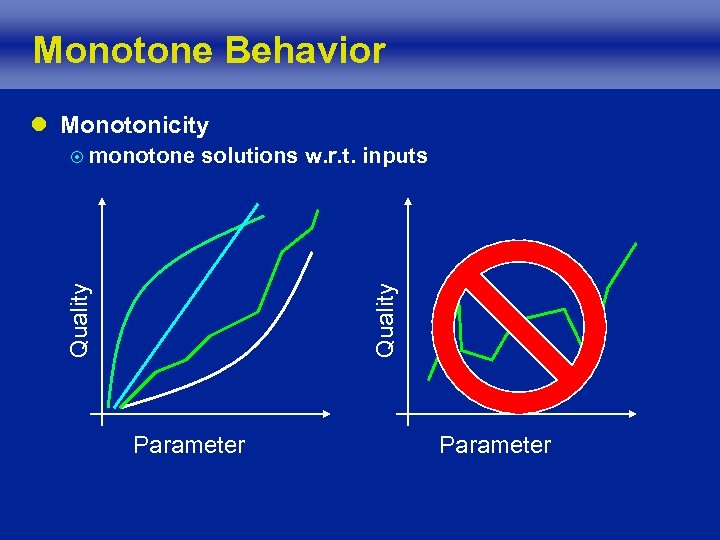

Monotone Behavior l Monotonicity solutions w. r. t. inputs Quality ¤ monotone Parameter

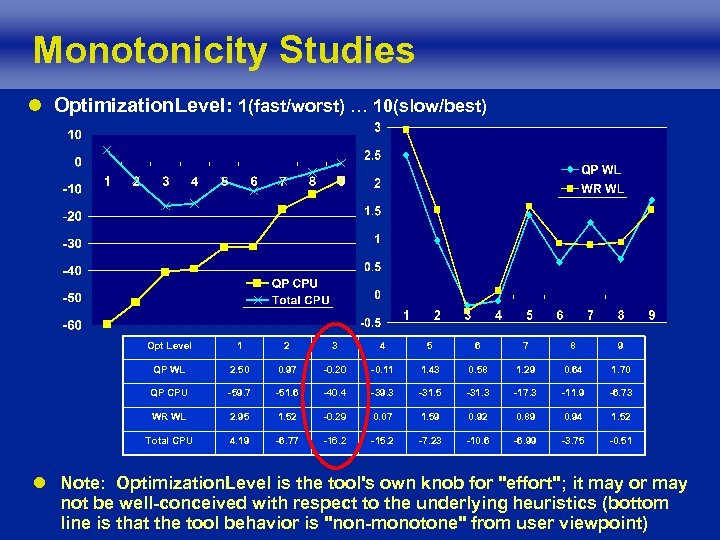

Monotonicity Studies l Optimization. Level: 1(fast/worst) … 10(slow/best) Opt Level 1 2 3 4 5 6 7 8 9 QP WL 2. 50 0. 97 -0. 20 -0. 11 1. 43 0. 58 1. 29 0. 64 1. 70 QP CPU -59. 7 -51. 6 -40. 4 -39. 3 -31. 5 -31. 3 -17. 3 -11. 9 -6. 73 WR WL 2. 95 1. 52 -0. 29 0. 07 1. 59 0. 92 0. 89 0. 94 1. 52 Total CPU 4. 19 -6. 77 -16. 2 -15. 2 -7. 23 -10. 6 -6. 99 -3. 75 -0. 51 l Note: Optimization. Level is the tool's own knob for "effort"; it may or may not be well-conceived with respect to the underlying heuristics (bottom line is that the tool behavior is "non-monotone" from user viewpoint)

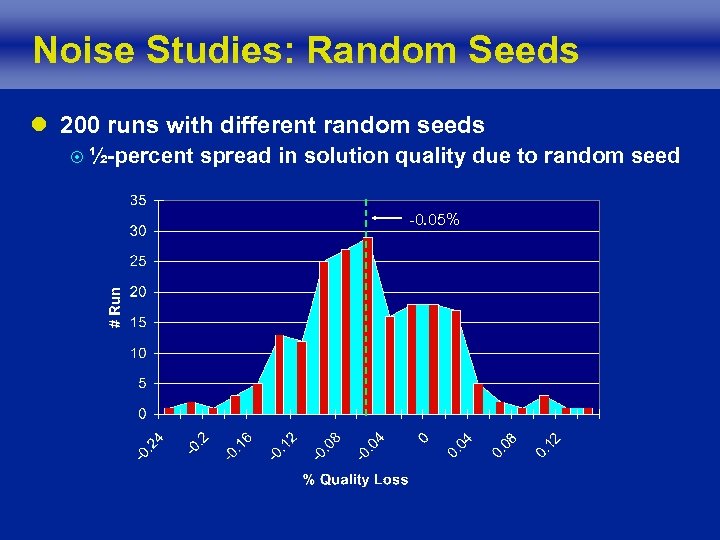

Noise Studies: Random Seeds l 200 runs with different random seeds ¤ ½-percent spread in solution quality due to random seed -0. 05%

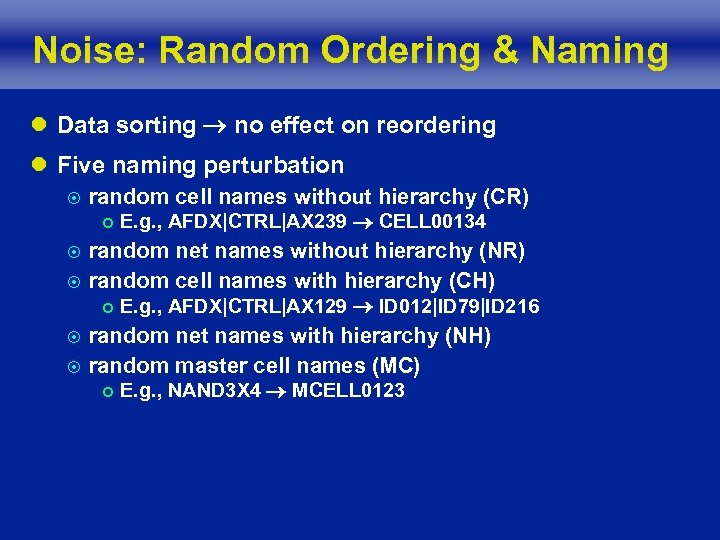

Noise: Random Ordering & Naming l Data sorting no effect on reordering l Five naming perturbation ¤ random cell names without hierarchy (CR) ¢ ¤ ¤ random net names without hierarchy (NR) random cell names with hierarchy (CH) ¢ ¤ ¤ E. g. , AFDX|CTRL|AX 239 CELL 00134 E. g. , AFDX|CTRL|AX 129 ID 012|ID 79|ID 216 random net names with hierarchy (NH) random master cell names (MC) ¢ E. g. , NAND 3 X 4 MCELL 0123

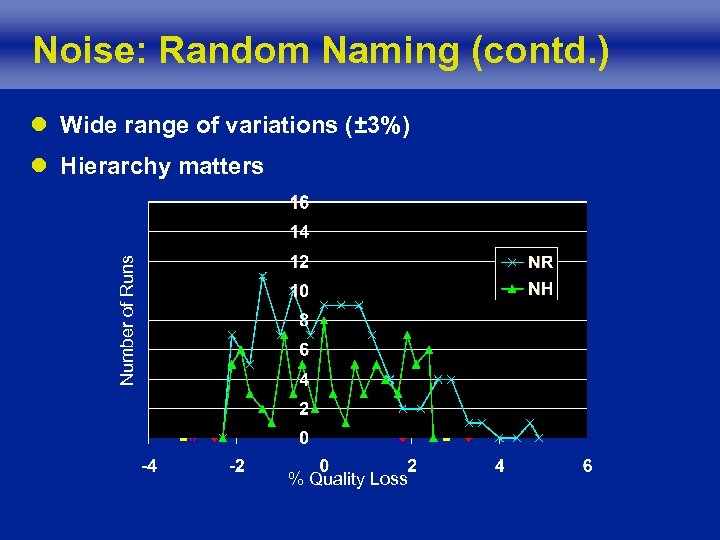

Noise: Random Naming (contd. ) l Wide range of variations (± 3%) Number of Runs l Hierarchy matters % Quality Loss

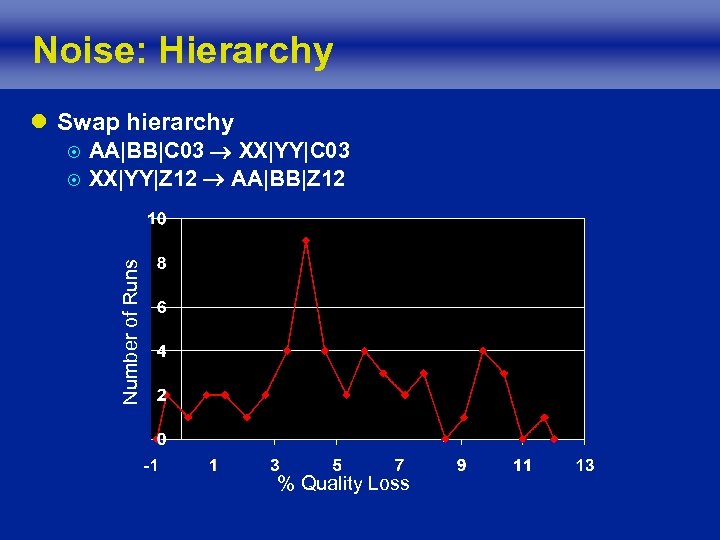

Noise: Hierarchy l Swap hierarchy ¤ AA|BB|C 03 XX|YY|C 03 XX|YY|Z 12 AA|BB|Z 12 Number of Runs ¤ % Quality Loss

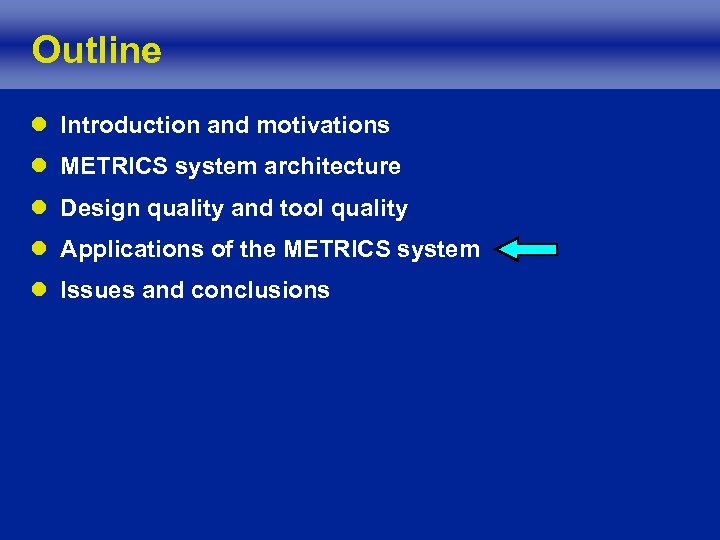

Outline l Introduction and motivations l METRICS system architecture l Design quality and tool quality l Applications of the METRICS system l Issues and conclusions

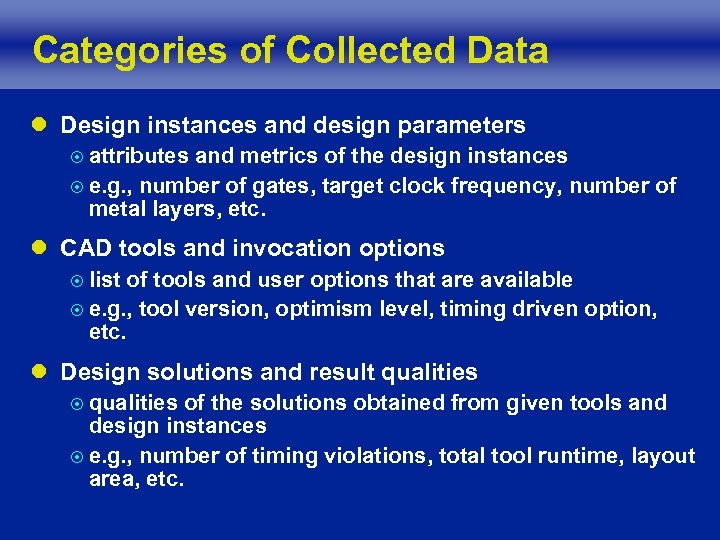

Categories of Collected Data l Design instances and design parameters ¤ attributes and metrics of the design instances ¤ e. g. , number of gates, target clock frequency, number of metal layers, etc. l CAD tools and invocation options ¤ list of tools and user options that are available ¤ e. g. , tool version, optimism level, timing driven option, etc. l Design solutions and result qualities ¤ qualities of the solutions obtained from given tools and design instances ¤ e. g. , number of timing violations, total tool runtime, layout area, etc.

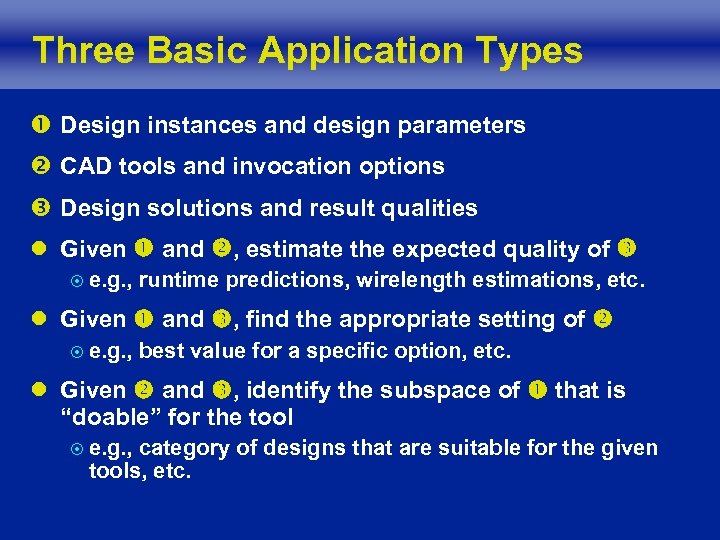

Three Basic Application Types Design instances and design parameters CAD tools and invocation options Design solutions and result qualities l Given and , estimate the expected quality of ¤ e. g. , runtime predictions, wirelength estimations, etc. l Given and , find the appropriate setting of ¤ e. g. , best value for a specific option, etc. l Given and , identify the subspace of that is “doable” for the tool ¤ e. g. , category of designs that are suitable for the given tools, etc.

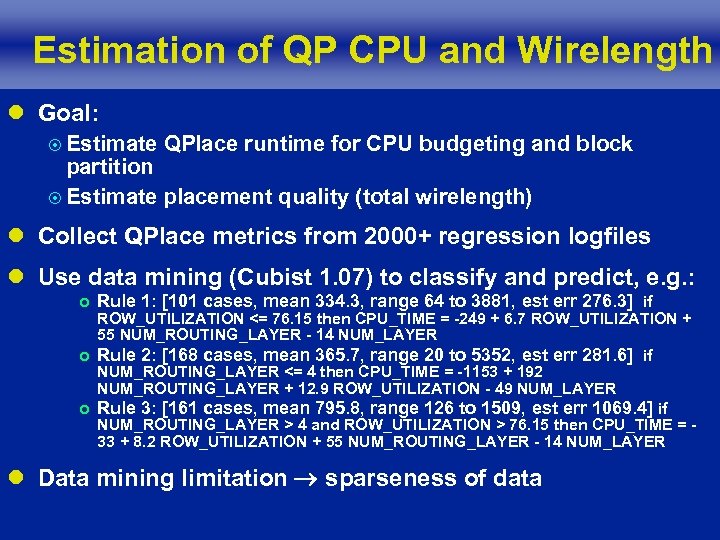

Estimation of QP CPU and Wirelength l Goal: ¤ Estimate QPlace runtime for CPU budgeting and block partition ¤ Estimate placement quality (total wirelength) l Collect QPlace metrics from 2000+ regression logfiles l Use data mining (Cubist 1. 07) to classify and predict, e. g. : ¢ ¢ ¢ Rule 1: [101 cases, mean 334. 3, range 64 to 3881, est err 276. 3] if ROW_UTILIZATION <= 76. 15 then CPU_TIME = -249 + 6. 7 ROW_UTILIZATION + 55 NUM_ROUTING_LAYER - 14 NUM_LAYER Rule 2: [168 cases, mean 365. 7, range 20 to 5352, est err 281. 6] if NUM_ROUTING_LAYER <= 4 then CPU_TIME = -1153 + 192 NUM_ROUTING_LAYER + 12. 9 ROW_UTILIZATION - 49 NUM_LAYER Rule 3: [161 cases, mean 795. 8, range 126 to 1509, est err 1069. 4] if NUM_ROUTING_LAYER > 4 and ROW_UTILIZATION > 76. 15 then CPU_TIME = 33 + 8. 2 ROW_UTILIZATION + 55 NUM_ROUTING_LAYER - 14 NUM_LAYER l Data mining limitation sparseness of data

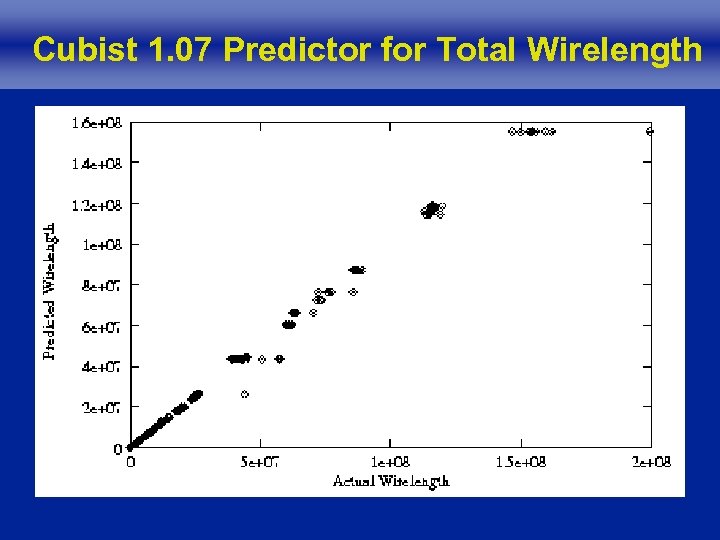

Cubist 1. 07 Predictor for Total Wirelength

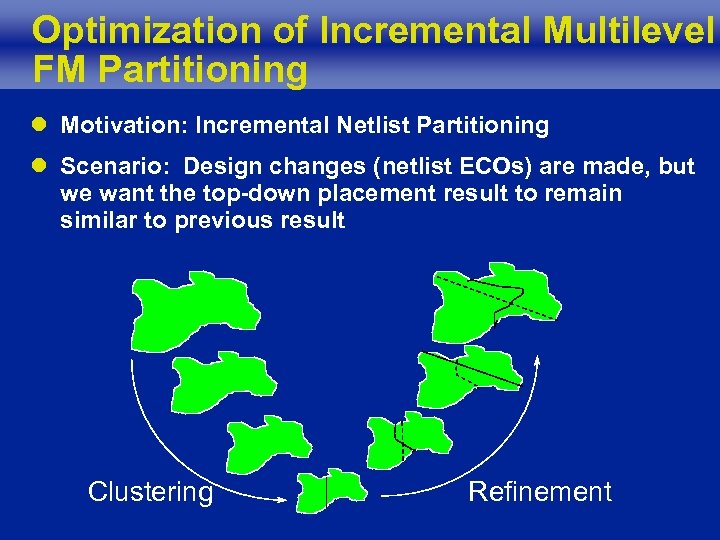

Optimization of Incremental Multilevel FM Partitioning l Motivation: Incremental Netlist Partitioning l Scenario: Design changes (netlist ECOs) are made, but we want the top-down placement result to remain similar to previous result Clustering Refinement

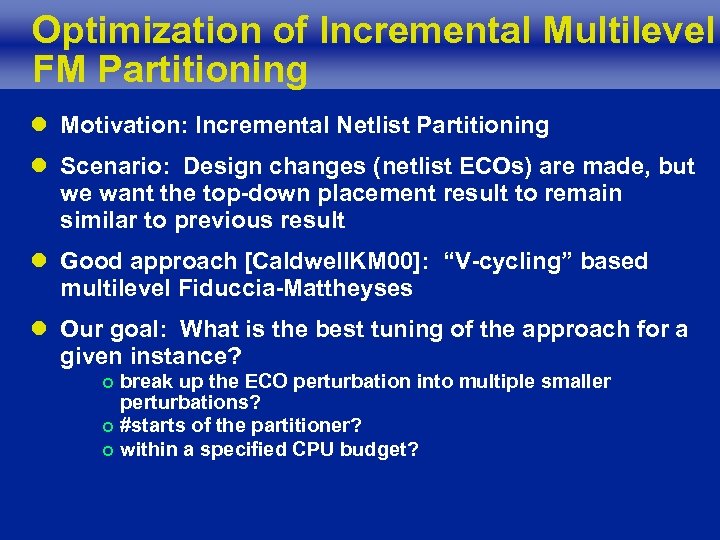

Optimization of Incremental Multilevel FM Partitioning l Motivation: Incremental Netlist Partitioning l Scenario: Design changes (netlist ECOs) are made, but we want the top-down placement result to remain similar to previous result l Good approach [Caldwell. KM 00]: “V-cycling” based multilevel Fiduccia-Mattheyses l Our goal: What is the best tuning of the approach for a given instance? ¢ ¢ ¢ break up the ECO perturbation into multiple smaller perturbations? #starts of the partitioner? within a specified CPU budget?

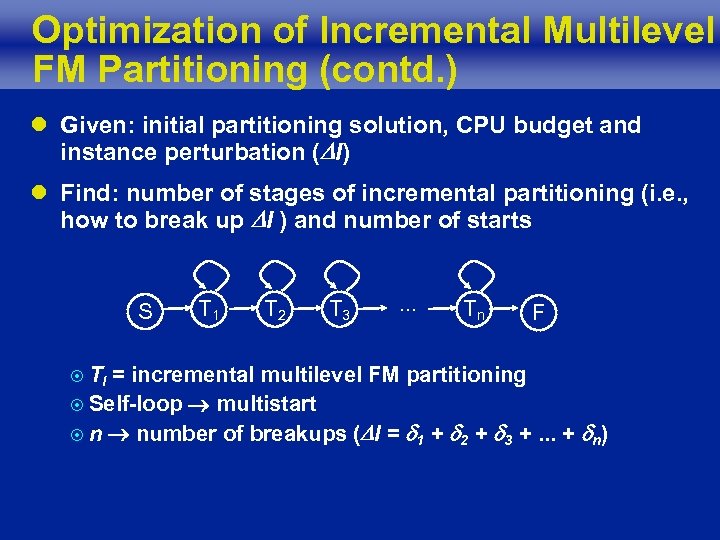

Optimization of Incremental Multilevel FM Partitioning (contd. ) l Given: initial partitioning solution, CPU budget and instance perturbation ( I) l Find: number of stages of incremental partitioning (i. e. , how to break up I ) and number of starts S ¤ Ti T 1 T 2 T 3 . . . Tn F = incremental multilevel FM partitioning ¤ Self-loop multistart ¤ n number of breakups ( I = 1 + 2 + 3 +. . . + n)

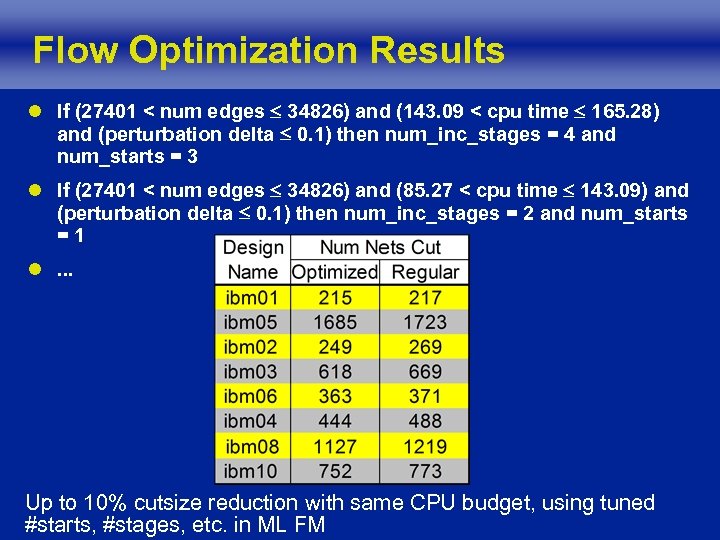

Flow Optimization Results l If (27401 < num edges 34826) and (143. 09 < cpu time 165. 28) and (perturbation delta 0. 1) then num_inc_stages = 4 and num_starts = 3 l If (27401 < num edges 34826) and (85. 27 < cpu time 143. 09) and (perturbation delta 0. 1) then num_inc_stages = 2 and num_starts =1 l. . . Up to 10% cutsize reduction with same CPU budget, using tuned #starts, #stages, etc. in ML FM

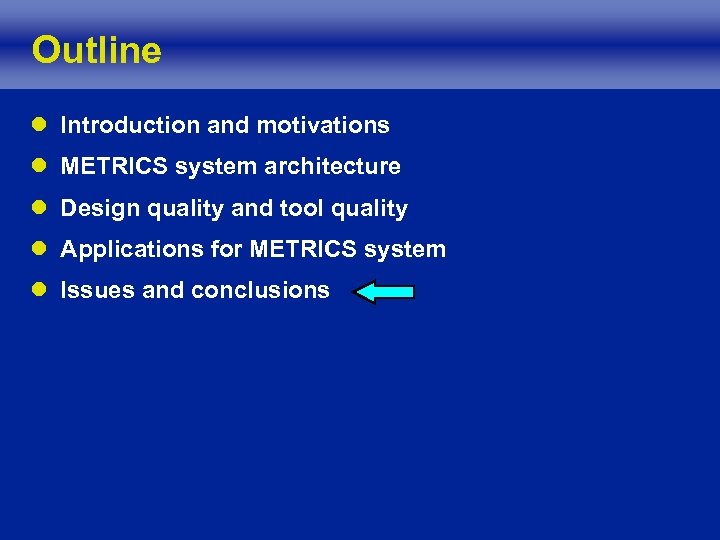

Outline l Introduction and motivations l METRICS system architecture l Design quality and tool quality l Applications for METRICS system l Issues and conclusions

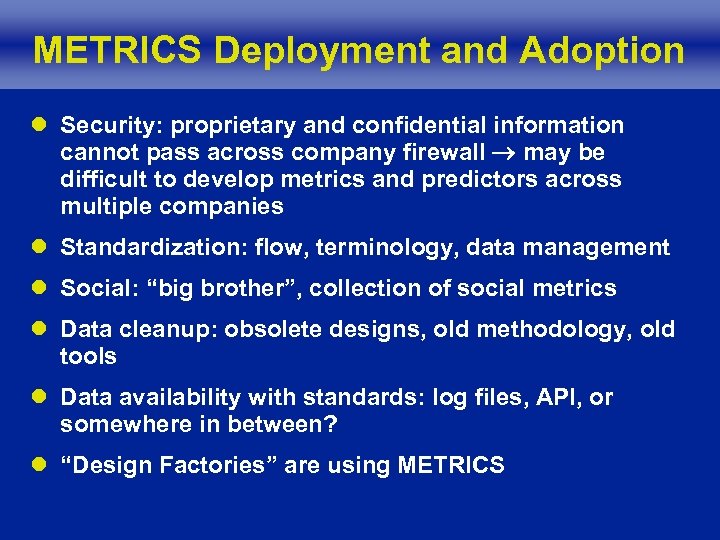

METRICS Deployment and Adoption l Security: proprietary and confidential information cannot pass across company firewall may be difficult to develop metrics and predictors across multiple companies l Standardization: flow, terminology, data management l Social: “big brother”, collection of social metrics l Data cleanup: obsolete designs, old methodology, old tools l Data availability with standards: log files, API, or somewhere in between? l “Design Factories” are using METRICS

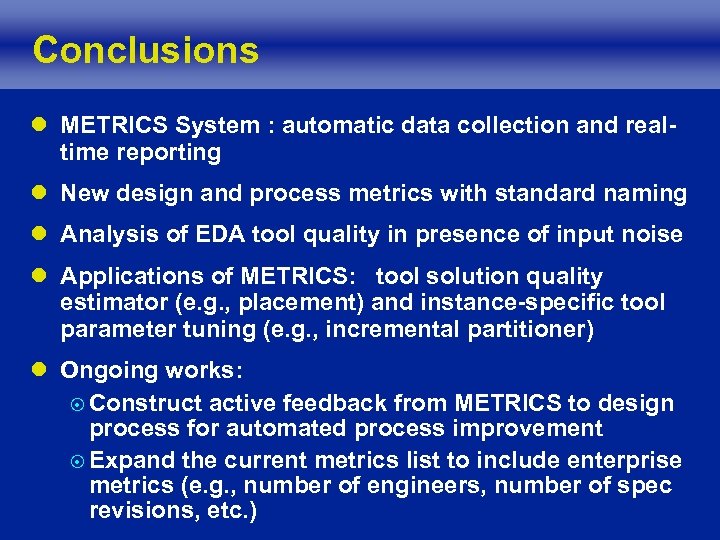

Conclusions l METRICS System : automatic data collection and realtime reporting l New design and process metrics with standard naming l Analysis of EDA tool quality in presence of input noise l Applications of METRICS: tool solution quality estimator (e. g. , placement) and instance-specific tool parameter tuning (e. g. , incremental partitioner) l Ongoing works: ¤ Construct active feedback from METRICS to design process for automated process improvement ¤ Expand the current metrics list to include enterprise metrics (e. g. , number of engineers, number of spec revisions, etc. )
