DESCRIPTION OF TECHNOLOGY FOR WASTE MANAGEMENT GOALS

DESCRIPTION OF TECHNOLOGY FOR WASTE MANAGEMENT

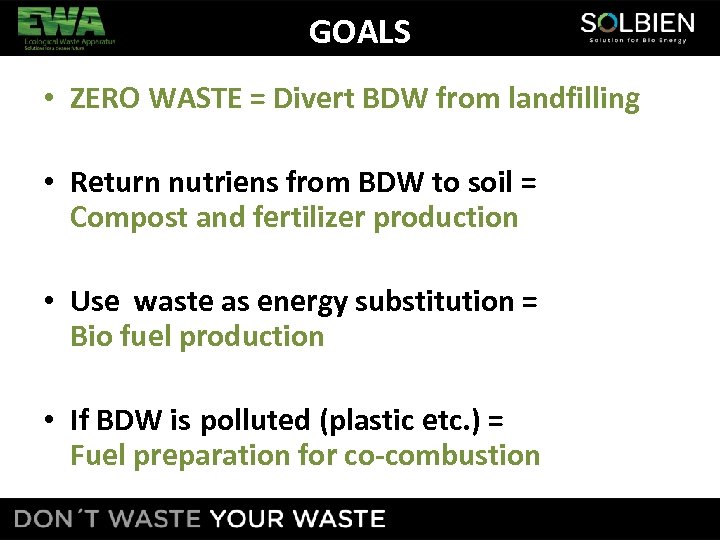

GOALS • ZERO WASTE = Divert BDW from landfilling • Return nutriens from BDW to soil = Compost and fertilizer production • Use waste as energy substitution = Bio fuel production • If BDW is polluted (plastic etc. ) = Fuel preparation for co-combustion

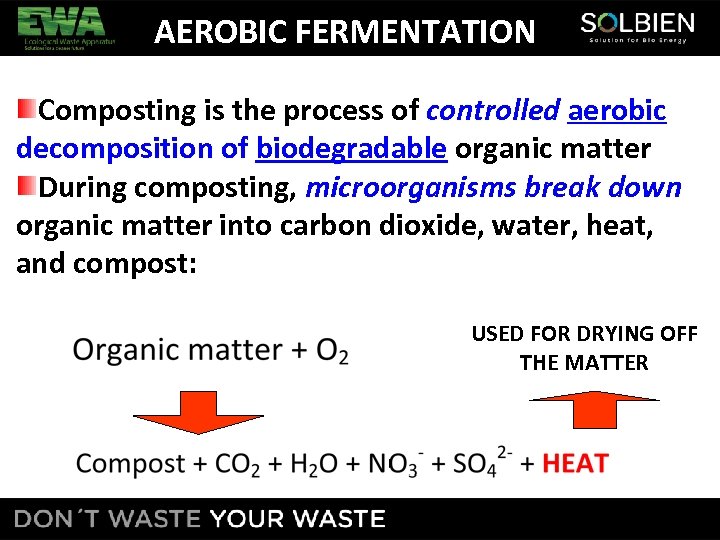

AEROBIC FERMENTATION Composting is the process of controlled aerobic decomposition of biodegradable organic matter During composting, microorganisms break down organic matter into carbon dioxide, water, heat, and compost: USED FOR DRYING OFF THE MATTER

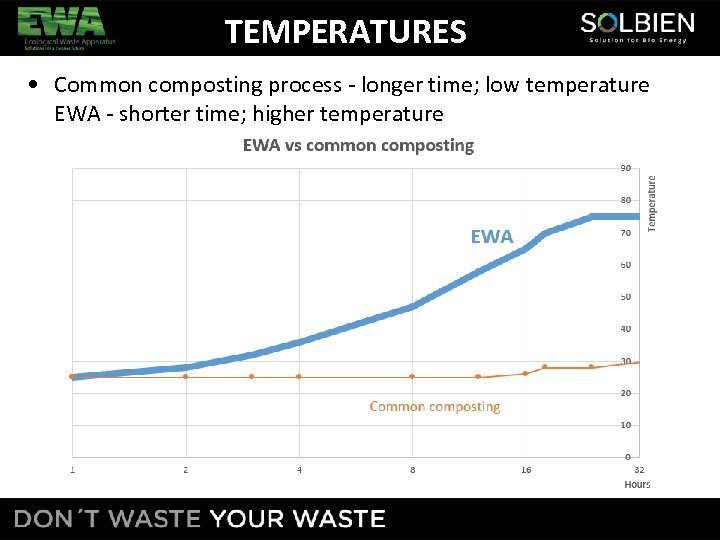

TEMPERATURES • Common composting process - longer time; low temperature EWA - shorter time; higher temperature

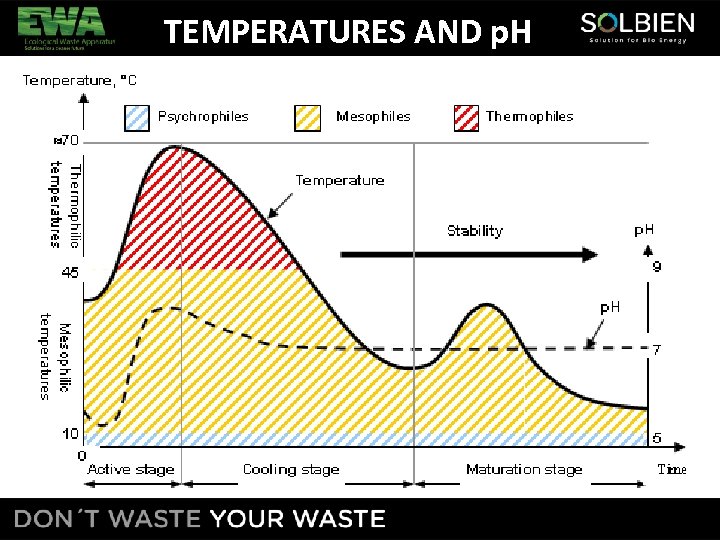

TEMPERATURES AND p. H

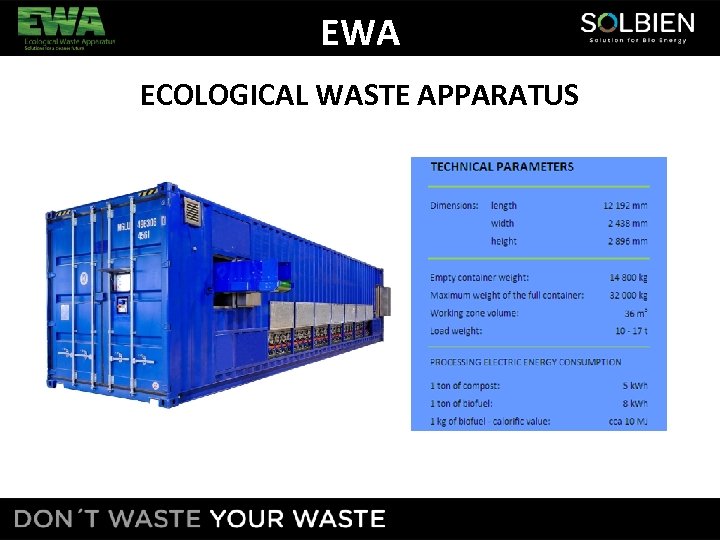

EWA ECOLOGICAL WASTE APPARATUS

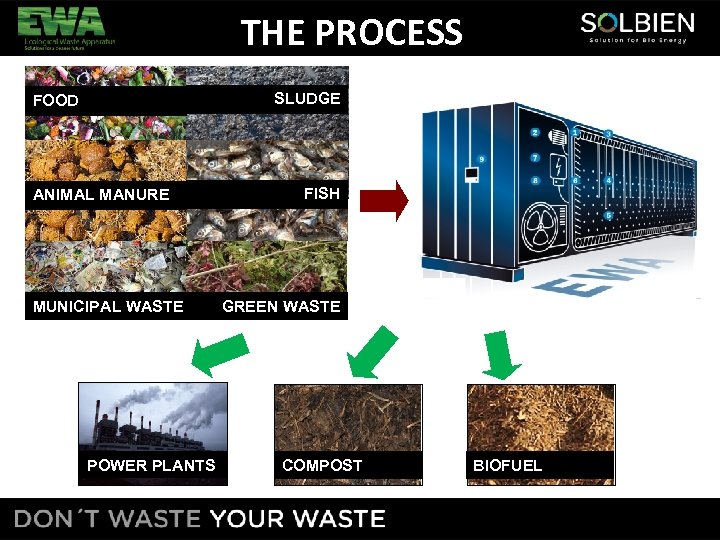

THE PROCESS SLUDGE FOOD ANIMAL MANURE MUNICIPAL WASTE POWER PLANTS FISH GREEN WASTE COMPOST BIOFUEL

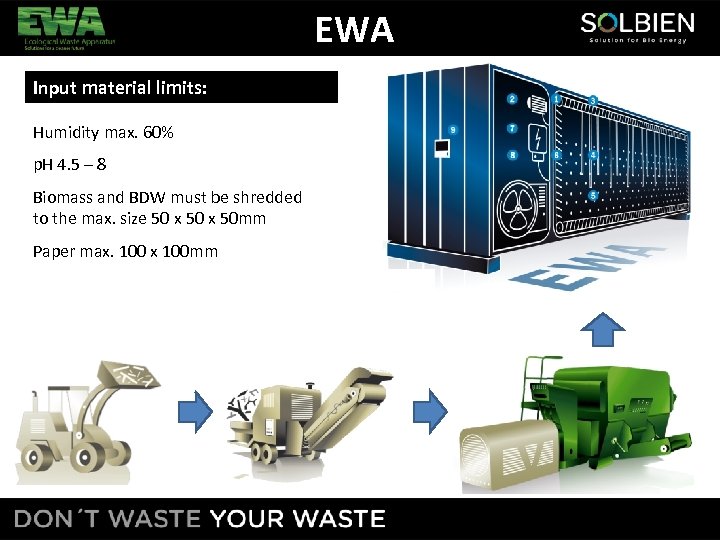

EWA Input material limits: Humidity max. 60% p. H 4. 5 – 8 Biomass and BDW must be shredded to the max. size 50 x 50 mm Paper max. 100 x 100 mm

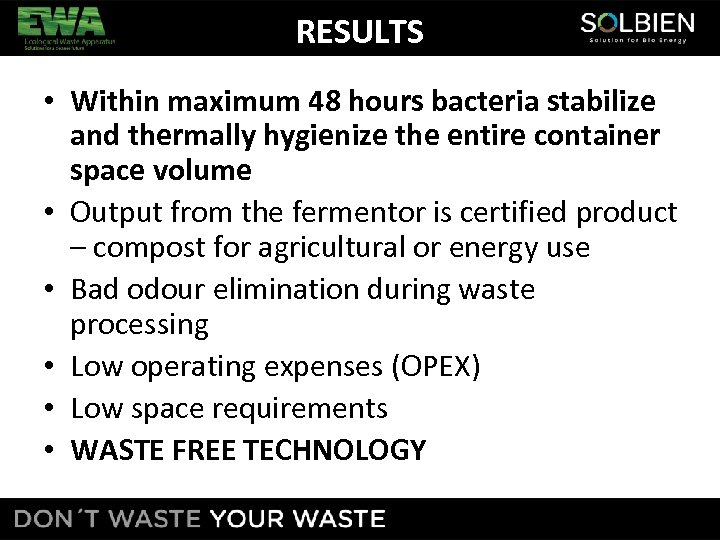

RESULTS • Within maximum 48 hours bacteria stabilize and thermally hygienize the entire container space volume • Output from the fermentor is certified product – compost for agricultural or energy use • Bad odour elimination during waste processing • Low operating expenses (OPEX) • Low space requirements • WASTE FREE TECHNOLOGY

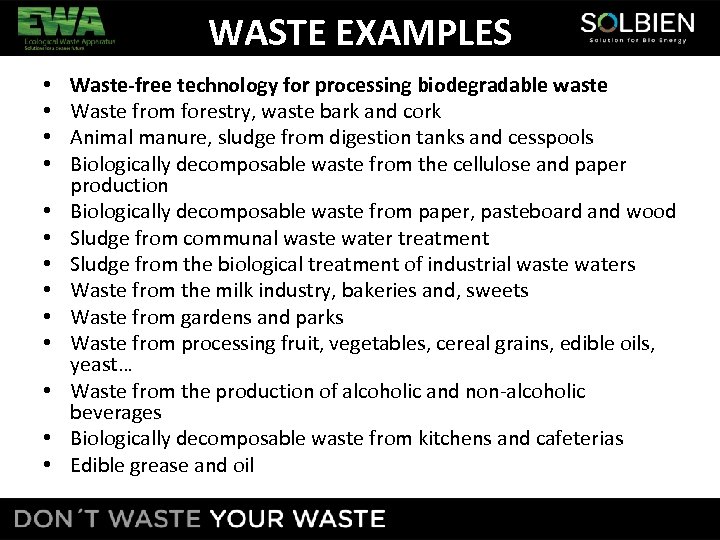

WASTE EXAMPLES • • • • Waste-free technology for processing biodegradable waste Waste from forestry, waste bark and cork Animal manure, sludge from digestion tanks and cesspools Biologically decomposable waste from the cellulose and paper production Biologically decomposable waste from paper, pasteboard and wood Sludge from communal waste water treatment Sludge from the biological treatment of industrial waste waters Waste from the milk industry, bakeries and, sweets Waste from gardens and parks Waste from processing fruit, vegetables, cereal grains, edible oils, yeast… Waste from the production of alcoholic and non-alcoholic beverages Biologically decomposable waste from kitchens and cafeterias Edible grease and oil

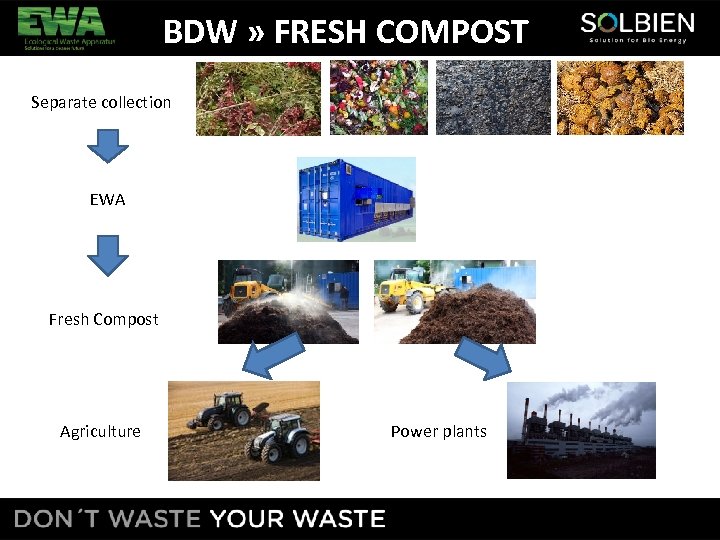

BDW » FRESH COMPOST Separate collection EWA Fresh Compost Agriculture Power plants

UNDERSIZED FRACTION Municipal waste sorting Undersized fraction EWA Power plants

HYGIENIZATION FUNCTIONALITY PROOF USING WANDERING PATRONS Patron with defined microorganisms Cartridges position in bioreactor Contamination of cartridges with injected microbs: TCB, enterococcus, salmonella, clostridium 109 for each indicator

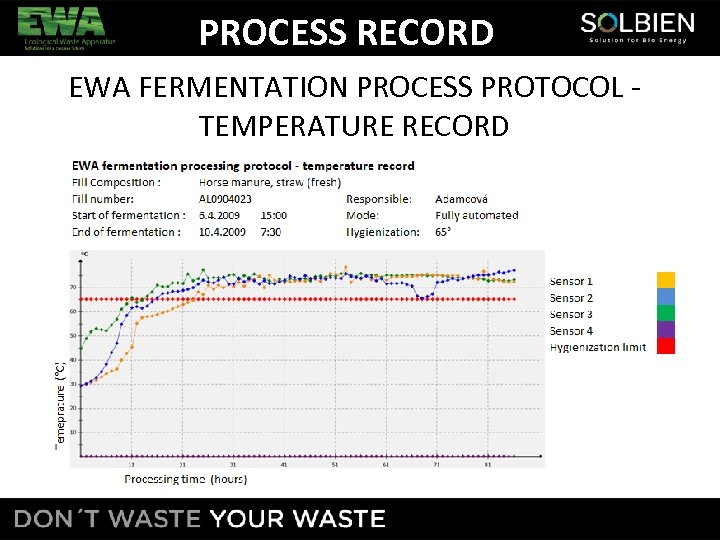

PROCESS RECORD EWA FERMENTATION PROCESS PROTOCOL TEMPERATURE RECORD

PATENTS AND AWARDS EWA Technology patent Aerobic fermentor EWA certificate Gold Medal from the International Fair

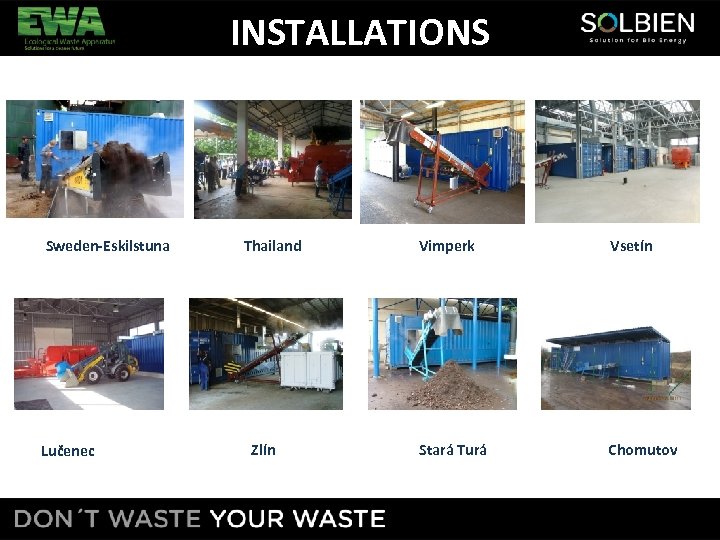

INSTALLATIONS Sweden-Eskilstuna Lučenec Thailand Zlín Vimperk Vsetín Stará Turá Chomutov

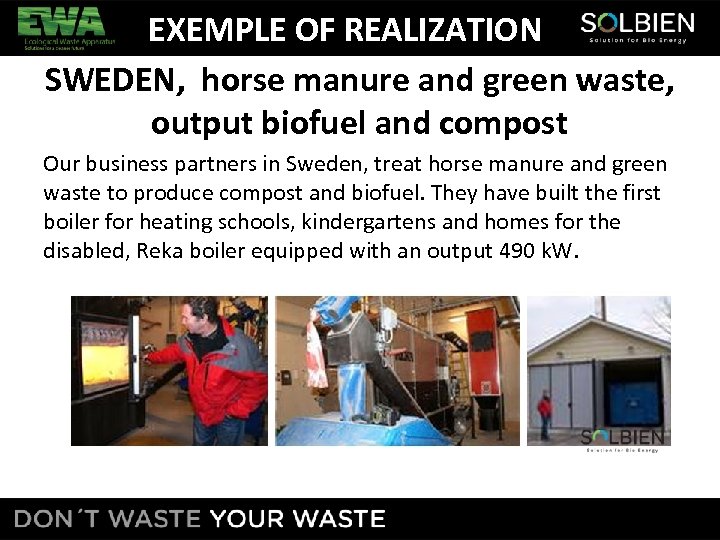

EXEMPLE OF REALIZATION SWEDEN, horse manure and green waste, output biofuel and compost Our business partners in Sweden, treat horse manure and green waste to produce compost and biofuel. They have built the first boiler for heating schools, kindergartens and homes for the disabled, Reka boiler equipped with an output 490 k. W.

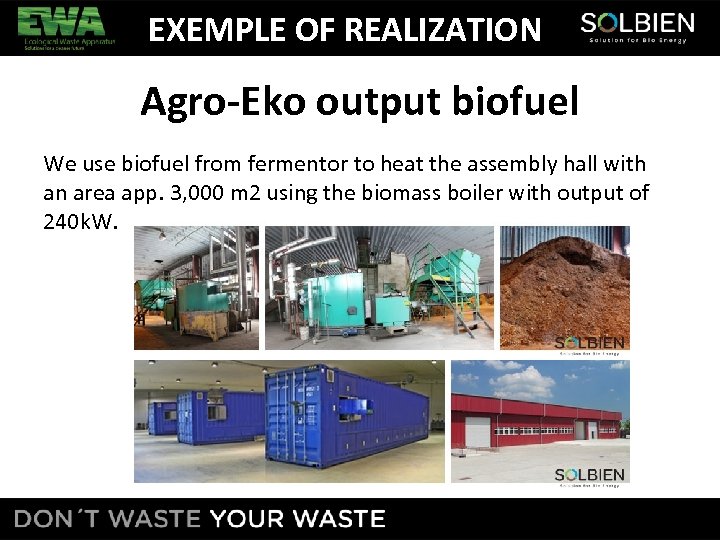

EXEMPLE OF REALIZATION Agro-Eko output biofuel We use biofuel from fermentor to heat the assembly hall with an area app. 3, 000 m 2 using the biomass boiler with output of 240 k. W.

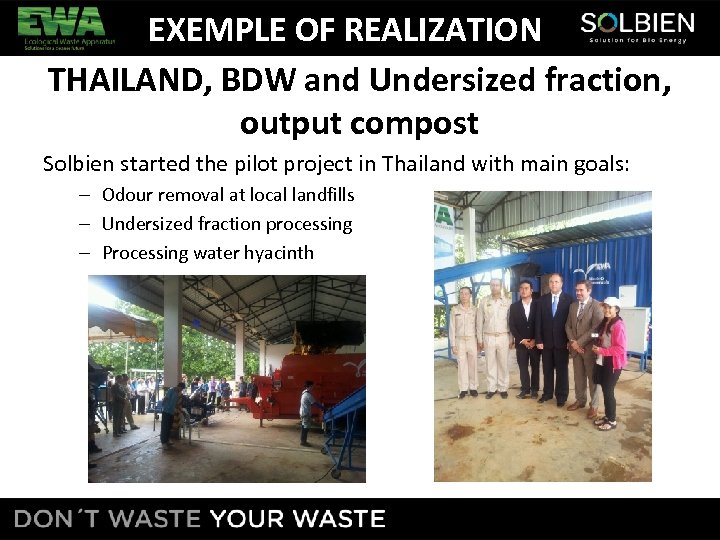

EXEMPLE OF REALIZATION THAILAND, BDW and Undersized fraction, output compost Solbien started the pilot project in Thailand with main goals: – Odour removal at local landfills – Undersized fraction processing – Processing water hyacinth

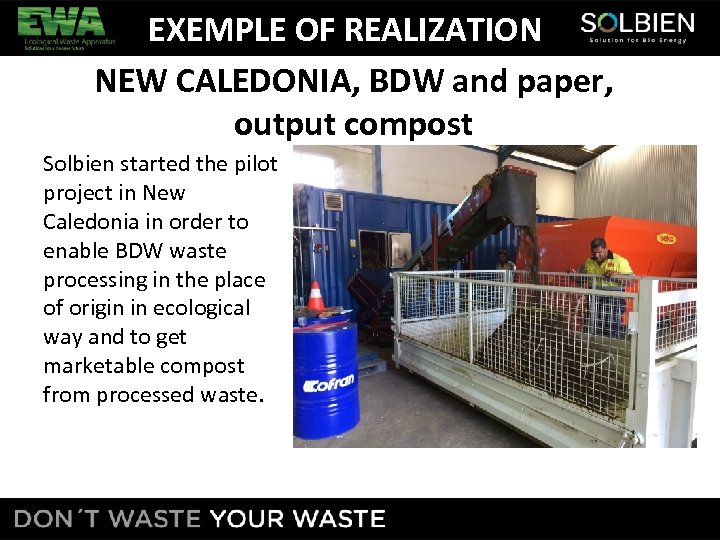

EXEMPLE OF REALIZATION NEW CALEDONIA, BDW and paper, output compost Solbien started the pilot project in New Caledonia in order to enable BDW waste processing in the place of origin in ecological way and to get marketable compost from processed waste.

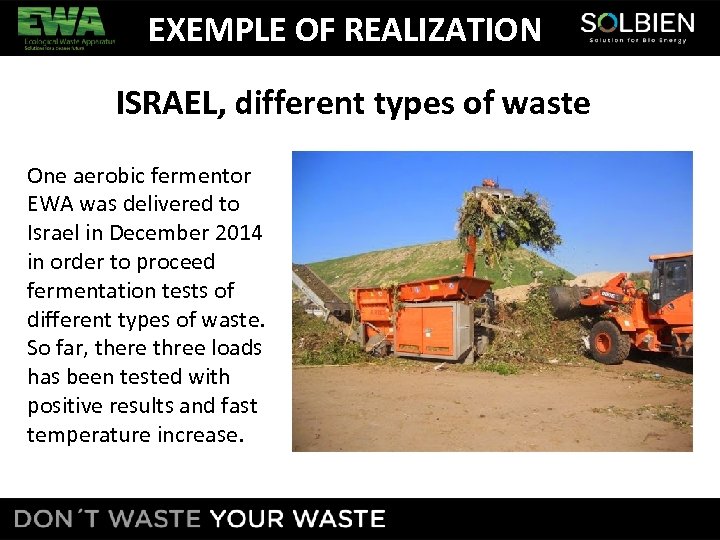

EXEMPLE OF REALIZATION ISRAEL, different types of waste One aerobic fermentor EWA was delivered to Israel in December 2014 in order to proceed fermentation tests of different types of waste. So far, there three loads has been tested with positive results and fast temperature increase.

UNDERSIZED FRACTION CO - COMBUSTION

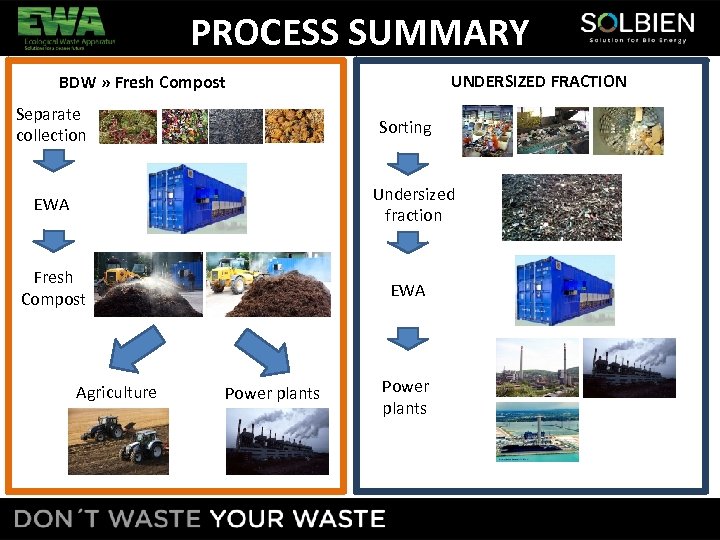

PROCESS SUMMARY UNDERSIZED FRACTION BDW » Fresh Compost Separate collection Sorting Undersized fraction EWA Fresh Compost Agriculture EWA Power plants

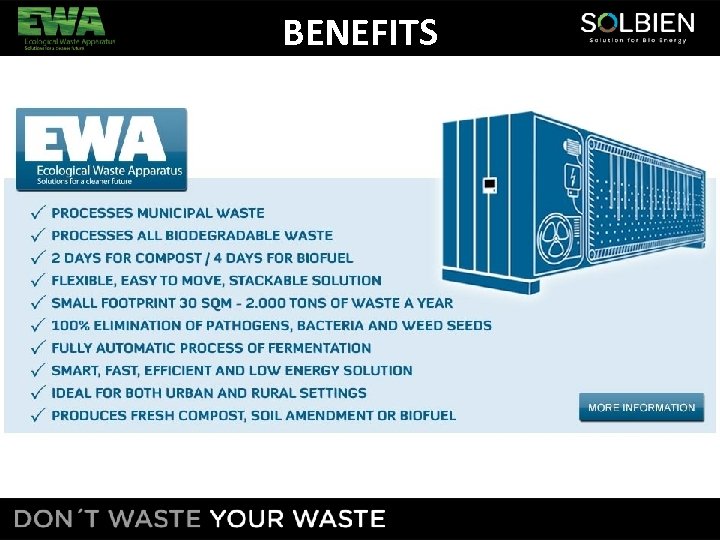

BENEFITS

THANK YOU FOR YOUR ATTENTION www. solbien. com ; http: //youtu. be/tv. Zp. B 4 xn 4 IA Dvorakova 15, 702 00 Ostrava, Czech Republic Katerina Elisova; +420 702 070 263; elisova@solbien. com
