Depuis Workshop on International Standards Rome 14 – 15 May 2008 Paul van Exel, Depuis Workshop on International Standards Rome 14 – 15 May 2008 Paul van Exel, Director USPI: Association for the Oil, Gas, Process & Power Industry 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 1

Overview of PLIB Standards and Current Applications in Industry Wolfgang Wilkes University of Hagen, Overview of PLIB Standards and Current Applications in Industry Wolfgang Wilkes University of Hagen, Germany wolfgang. wilkes@fernuni-hagen. de 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 2

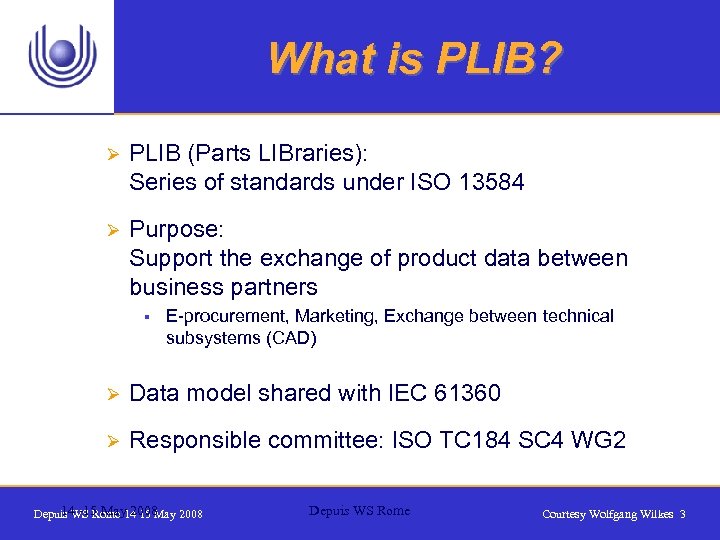

What is PLIB? Ø PLIB (Parts LIBraries): Series of standards under ISO 13584 Ø What is PLIB? Ø PLIB (Parts LIBraries): Series of standards under ISO 13584 Ø Purpose: Support the exchange of product data between business partners § E-procurement, Marketing, Exchange between technical subsystems (CAD) Ø Data model shared with IEC 61360 Ø Responsible committee: ISO TC 184 SC 4 WG 2 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 3

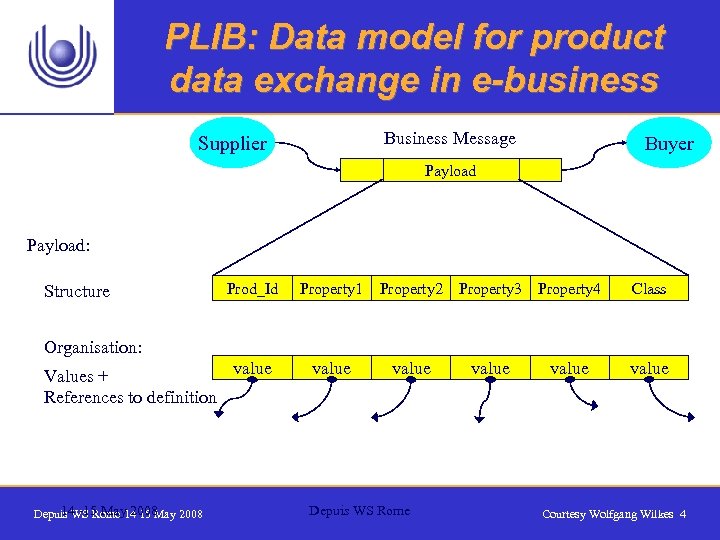

PLIB: Data model for product data exchange in e-business Business Message Supplier Buyer Payload: PLIB: Data model for product data exchange in e-business Business Message Supplier Buyer Payload: Structure Prod_Id Property 1 Property 2 Property 3 Property 4 Class value value Organisation: value Values + References to definition 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 4

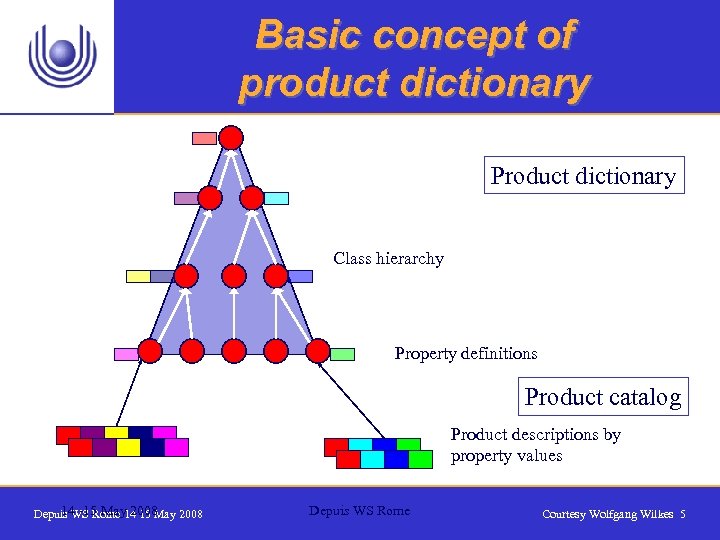

Basic concept of product dictionary Product dictionary Class hierarchy Property definitions Product catalog Product Basic concept of product dictionary Product dictionary Class hierarchy Property definitions Product catalog Product descriptions by property values 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 5

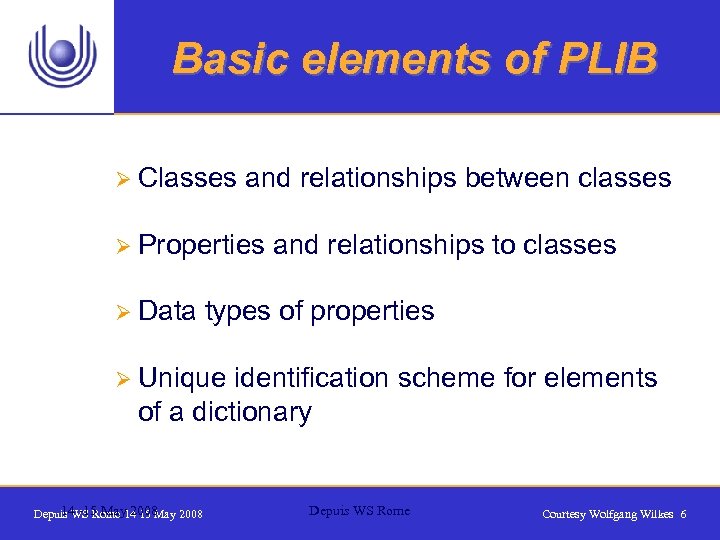

Basic elements of PLIB Ø Classes and relationships between classes Ø Properties Ø Data Basic elements of PLIB Ø Classes and relationships between classes Ø Properties Ø Data and relationships to classes types of properties Ø Unique identification scheme for elements of a dictionary 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 6

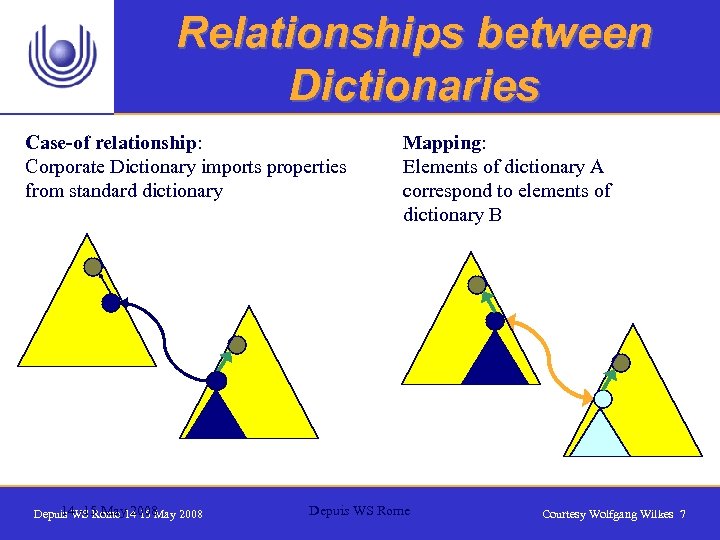

Relationships between Dictionaries Case-of relationship: Corporate Dictionary imports properties from standard dictionary 14 -15 Relationships between Dictionaries Case-of relationship: Corporate Dictionary imports properties from standard dictionary 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Mapping: Elements of dictionary A correspond to elements of dictionary B Depuis WS Rome Courtesy Wolfgang Wilkes 7

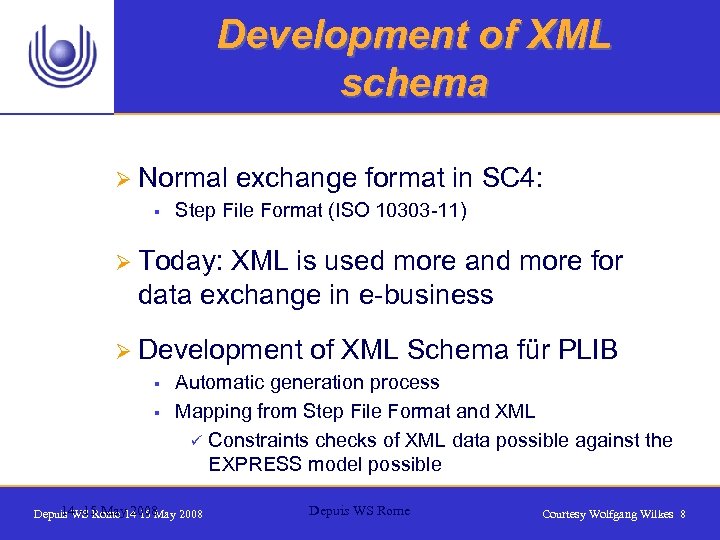

Development of XML schema Ø Normal § exchange format in SC 4: Step File Development of XML schema Ø Normal § exchange format in SC 4: Step File Format (ISO 10303 -11) Ø Today: XML is used more and more for data exchange in e-business Ø Development § § of XML Schema für PLIB Automatic generation process Mapping from Step File Format and XML ü Constraints checks of XML data possible against the EXPRESS model possible 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 8

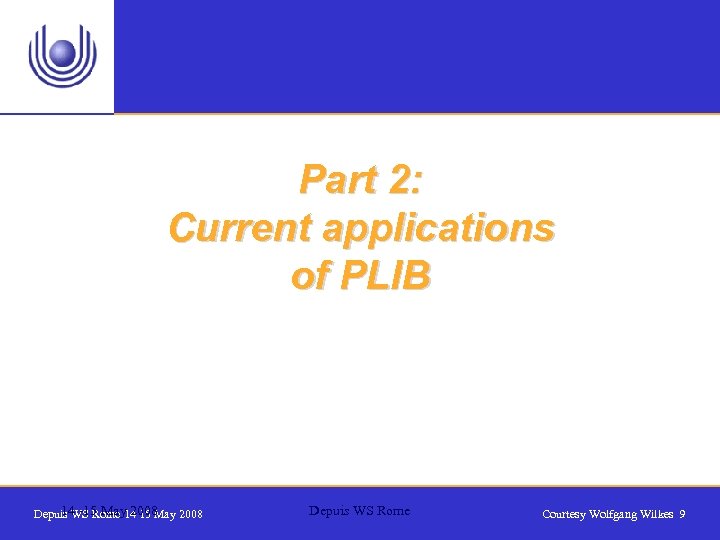

Part 2: Current applications of PLIB 14 -15 May 2008 Depuis WS Rome 14 Part 2: Current applications of PLIB 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 9

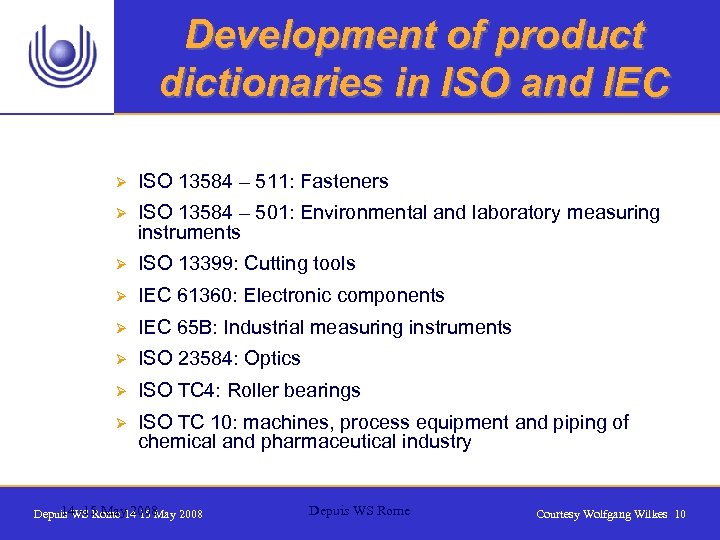

Development of product dictionaries in ISO and IEC Ø ISO 13584 – 511: Fasteners Development of product dictionaries in ISO and IEC Ø ISO 13584 – 511: Fasteners Ø ISO 13584 – 501: Environmental and laboratory measuring instruments Ø ISO 13399: Cutting tools Ø IEC 61360: Electronic components Ø IEC 65 B: Industrial measuring instruments Ø ISO 23584: Optics Ø ISO TC 4: Roller bearings Ø ISO TC 10: machines, process equipment and piping of chemical and pharmaceutical industry 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 10

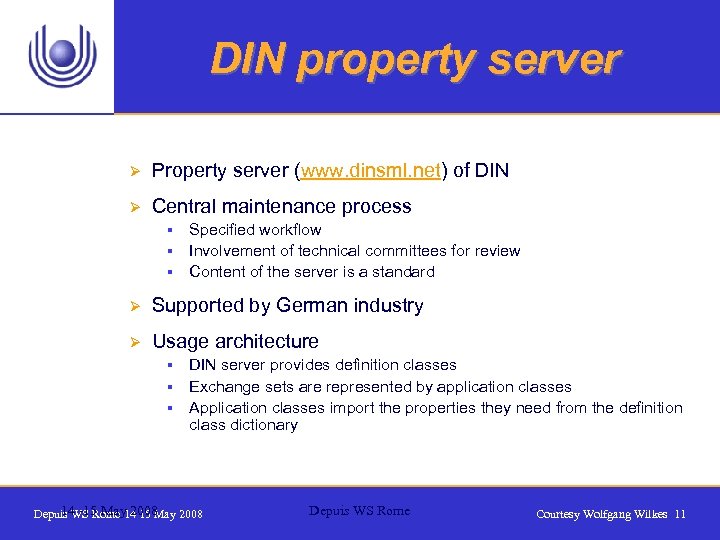

DIN property server Ø Property server (www. dinsml. net) of DIN Ø Central maintenance DIN property server Ø Property server (www. dinsml. net) of DIN Ø Central maintenance process § § § Specified workflow Involvement of technical committees for review Content of the server is a standard Ø Supported by German industry Ø Usage architecture § § § DIN server provides definition classes Exchange sets are represented by application classes Application classes import the properties they need from the definition class dictionary 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 11

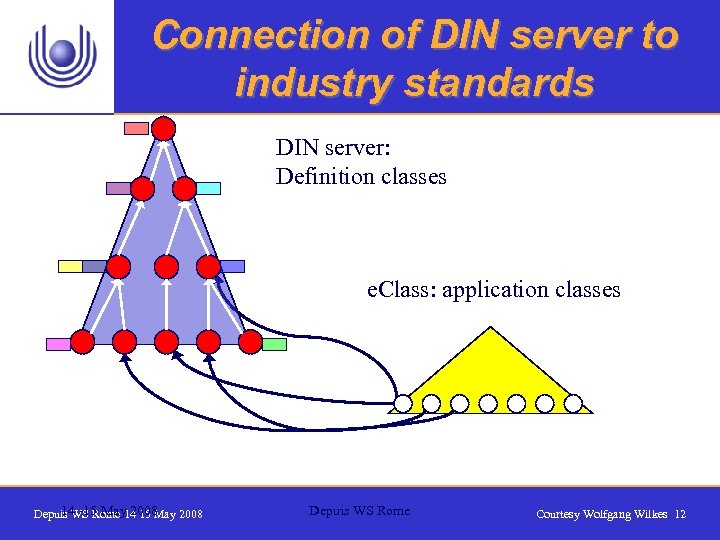

Connection of DIN server to industry standards DIN server: Definition classes e. Class: application Connection of DIN server to industry standards DIN server: Definition classes e. Class: application classes 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 12

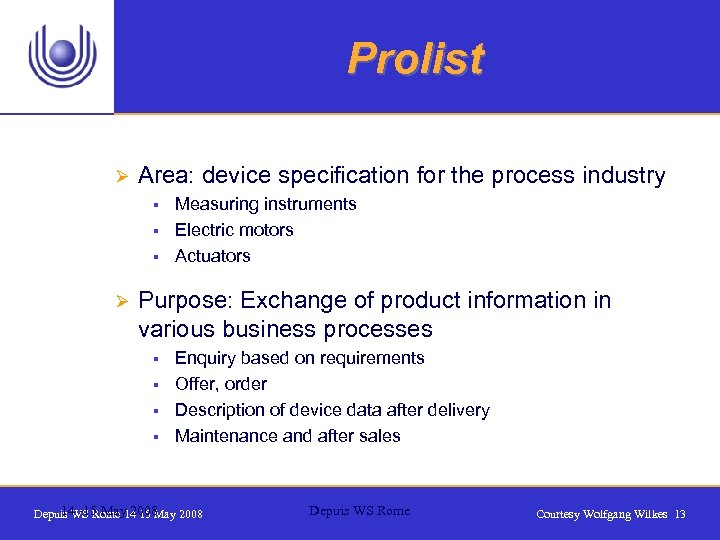

Prolist Ø Area: device specification for the process industry § § § Ø Measuring Prolist Ø Area: device specification for the process industry § § § Ø Measuring instruments Electric motors Actuators Purpose: Exchange of product information in various business processes § § Enquiry based on requirements Offer, order Description of device data after delivery Maintenance and after sales 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 13

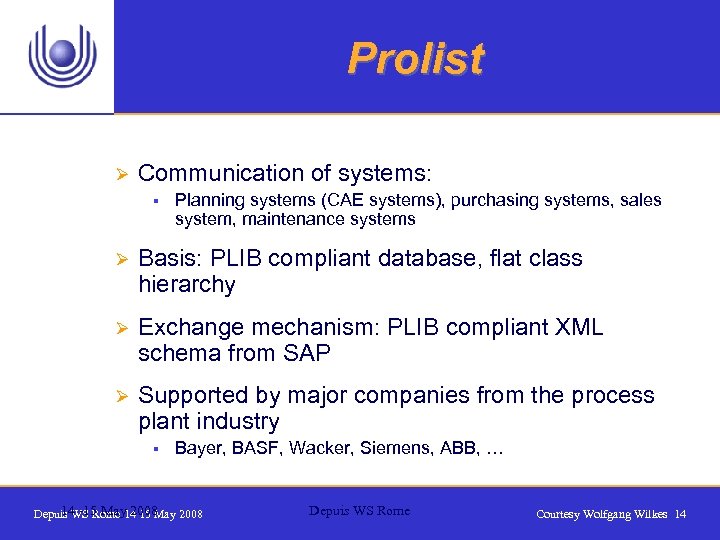

Prolist Ø Communication of systems: § Planning systems (CAE systems), purchasing systems, sales system, Prolist Ø Communication of systems: § Planning systems (CAE systems), purchasing systems, sales system, maintenance systems Ø Basis: PLIB compliant database, flat class hierarchy Ø Exchange mechanism: PLIB compliant XML schema from SAP Ø Supported by major companies from the process plant industry § Bayer, BASF, Wacker, Siemens, ABB, … 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 14

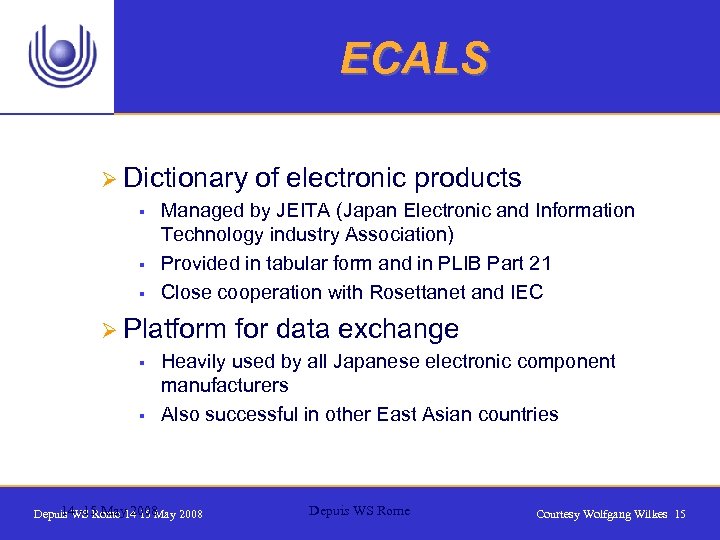

ECALS Ø Dictionary § § § Managed by JEITA (Japan Electronic and Information Technology ECALS Ø Dictionary § § § Managed by JEITA (Japan Electronic and Information Technology industry Association) Provided in tabular form and in PLIB Part 21 Close cooperation with Rosettanet and IEC Ø Platform § § of electronic products for data exchange Heavily used by all Japanese electronic component manufacturers Also successful in other East Asian countries 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 15

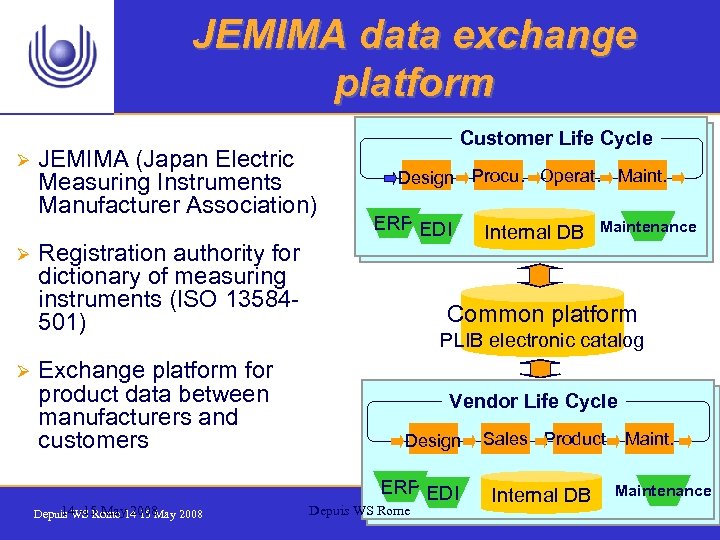

JEMIMA data exchange platform Ø Ø Ø JEMIMA (Japan Electric Measuring Instruments Manufacturer Association) JEMIMA data exchange platform Ø Ø Ø JEMIMA (Japan Electric Measuring Instruments Manufacturer Association) Registration authority for dictionary of measuring instruments (ISO 13584501) Exchange platform for product data between manufacturers and customers 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Customer Life Cycle Design Procu. Operat. Maint. ERP EDI Internal DB Maintenance Common platform PLIB electronic catalog Vendor Life Cycle Design ERP EDI Depuis WS Rome Sales Product. Maint. Internal DB Maintenance Courtesy Wolfgang Wilkes 16

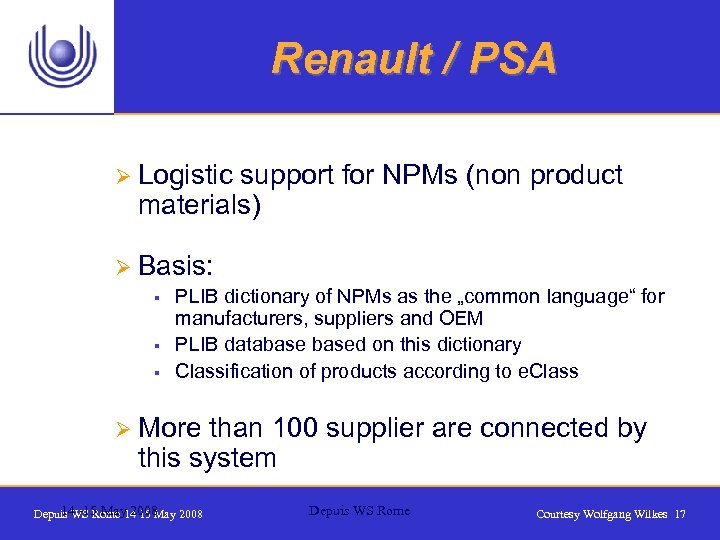

Renault / PSA Ø Logistic support for NPMs (non product materials) Ø Basis: § Renault / PSA Ø Logistic support for NPMs (non product materials) Ø Basis: § § § PLIB dictionary of NPMs as the „common language“ for manufacturers, suppliers and OEM PLIB databased on this dictionary Classification of products according to e. Class Ø More than 100 supplier are connected by this system 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 17

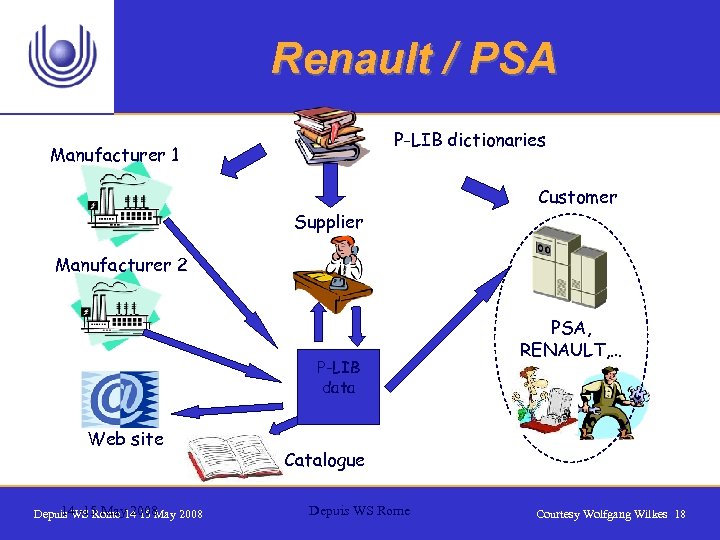

Renault / PSA P-LIB dictionaries Manufacturer 1 Supplier Customer Manufacturer 2 P-LIB data Web Renault / PSA P-LIB dictionaries Manufacturer 1 Supplier Customer Manufacturer 2 P-LIB data Web site 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 PSA, RENAULT, … Catalogue Depuis WS Rome Courtesy Wolfgang Wilkes 18

Renault / PSA Ø Expected benefits § Savings of 3 million Euros per OEM Renault / PSA Ø Expected benefits § Savings of 3 million Euros per OEM group per year ü Reduced information capture ü Reduced administrative problems (procurement, accountancy, …) ü Reduced production losses § Reduction of administration and transformation costs for suppliers and manufacturers 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 19

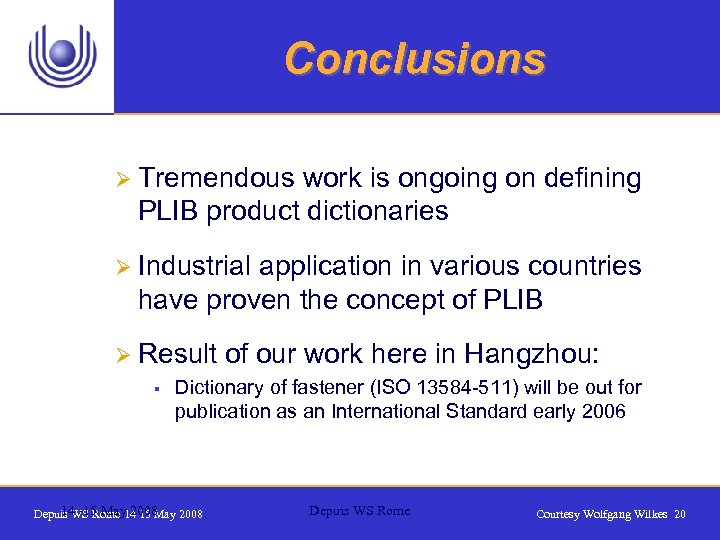

Conclusions Ø Tremendous work is ongoing on defining PLIB product dictionaries Ø Industrial application Conclusions Ø Tremendous work is ongoing on defining PLIB product dictionaries Ø Industrial application in various countries have proven the concept of PLIB Ø Result § of our work here in Hangzhou: Dictionary of fastener (ISO 13584 -511) will be out for publication as an International Standard early 2006 14 -15 May 2008 Depuis WS Rome 14 15 May 2008 Depuis WS Rome Courtesy Wolfgang Wilkes 20
