Deployment of Broad Band WMAN using Wi-max Standards

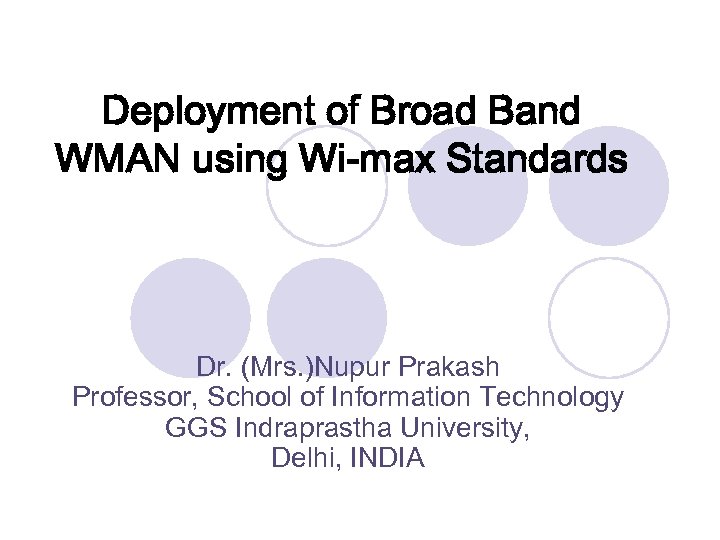

Deployment of Broad Band WMAN using Wi-max Standards Dr. (Mrs. )Nupur Prakash Professor, School of Information Technology GGS Indraprastha University, Delhi, INDIA

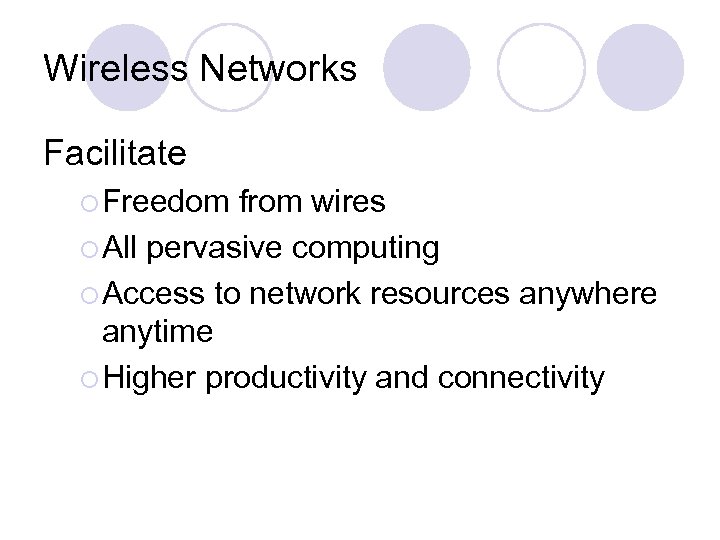

Wireless Networks Facilitate ¡ Freedom from wires ¡ All pervasive computing ¡ Access to network resources anywhere anytime ¡ Higher productivity and connectivity

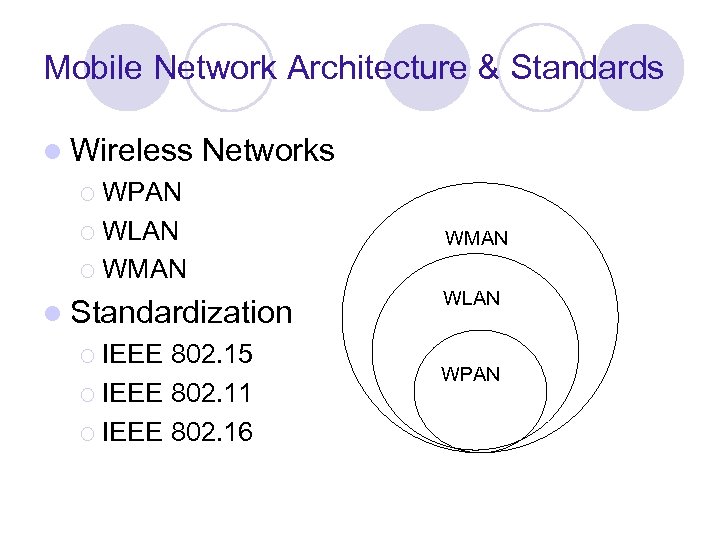

Mobile Network Architecture & Standards l Wireless Networks ¡ WPAN ¡ WLAN WMAN ¡ WMAN l Standardization ¡ IEEE 802. 15 ¡ IEEE 802. 11 ¡ IEEE 802. 16 WLAN WPAN

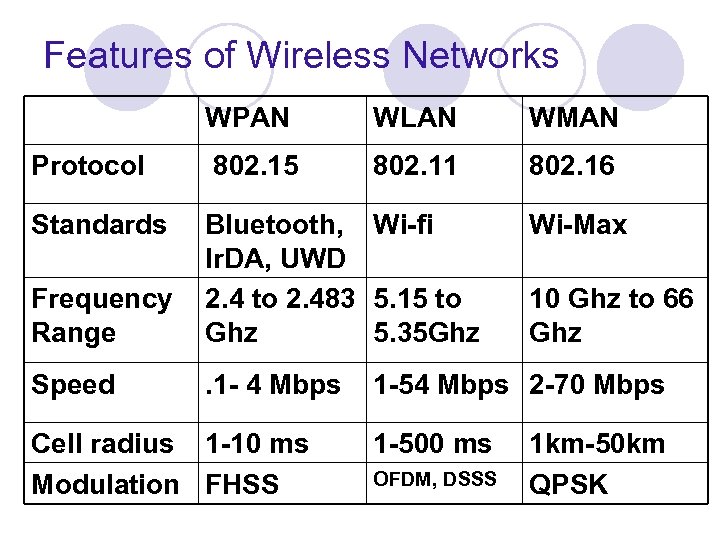

Features of Wireless Networks WPAN WLAN WMAN Protocol 802. 15 802. 11 802. 16 Standards Frequency Range Bluetooth, Wi-fi Ir. DA, UWD 2. 4 to 2. 483 5. 15 to Ghz 5. 35 Ghz Speed . 1 - 4 Mbps Cell radius 1 -10 ms Modulation FHSS Wi-Max 10 Ghz to 66 Ghz 1 -54 Mbps 2 -70 Mbps 1 -500 ms OFDM, DSSS 1 km-50 km QPSK

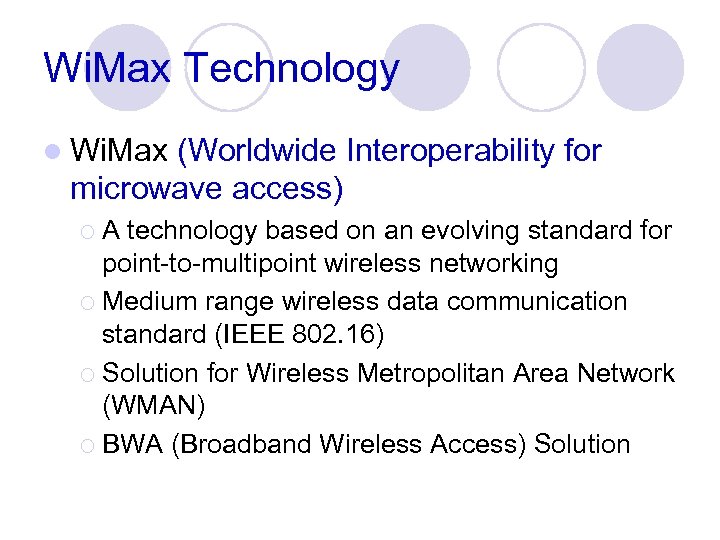

Wi. Max Technology l Wi. Max (Worldwide Interoperability for microwave access) ¡A technology based on an evolving standard for point-to-multipoint wireless networking ¡ Medium range wireless data communication standard (IEEE 802. 16) ¡ Solution for Wireless Metropolitan Area Network (WMAN) ¡ BWA (Broadband Wireless Access) Solution

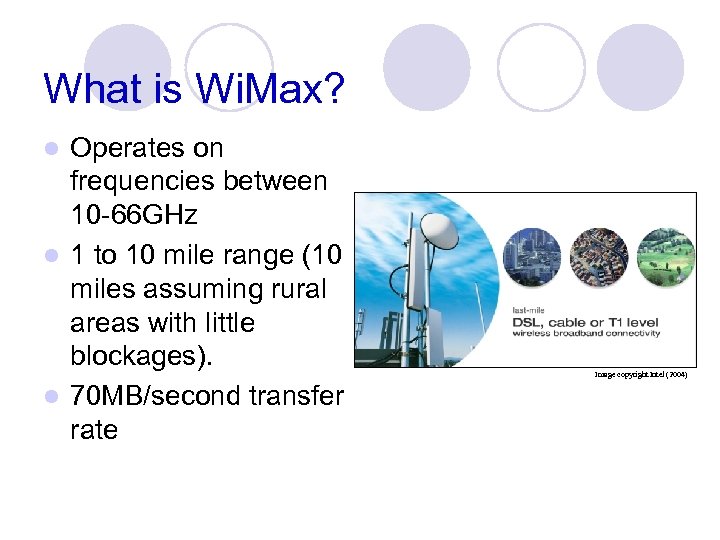

What is Wi. Max? Operates on frequencies between 10 -66 GHz l 1 to 10 mile range (10 miles assuming rural areas with little blockages). l 70 MB/second transfer rate l Image copyright Intel (2004)

Broadband Fixed wireless access architecture l Supports ¡ P-MP configuration ¡ Hub uses broad coverage antenna mounted on towers or tall building and transmits to a group of subscribers ¡ Subscriber uses highly directional antenna pointed towards the hub

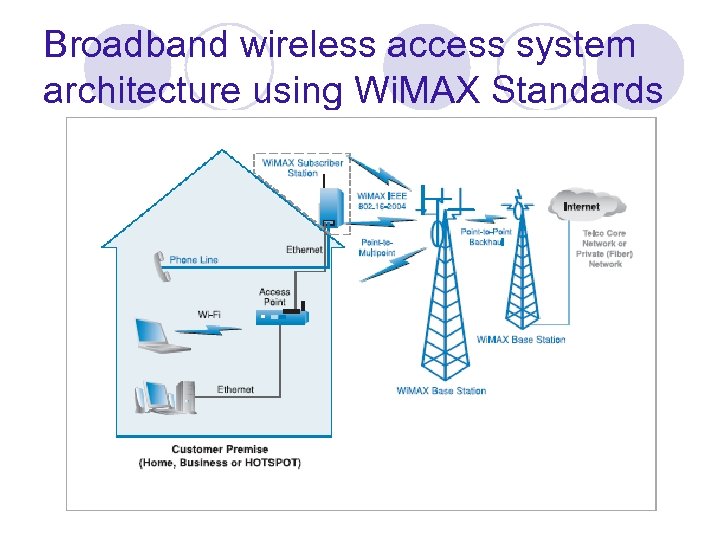

Broadband wireless access system architecture using Wi. MAX Standards

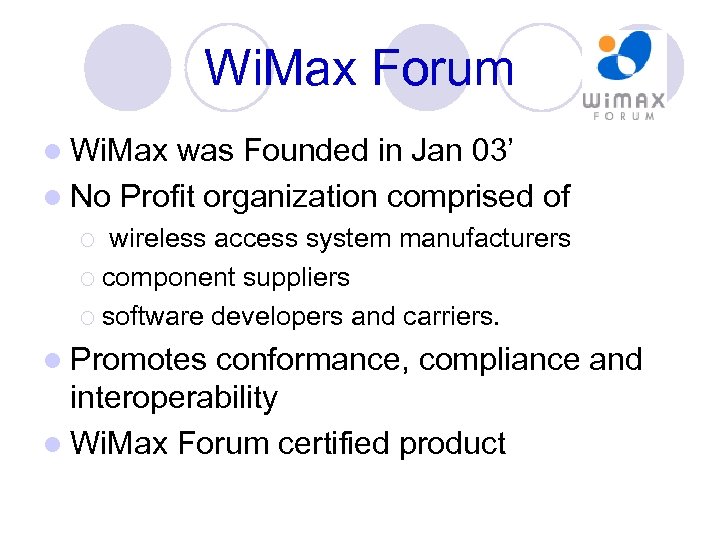

Wi. Max Forum l Wi. Max was Founded in Jan 03’ l No Profit organization comprised of wireless access system manufacturers ¡ component suppliers ¡ software developers and carriers. ¡ l Promotes conformance, compliance and interoperability l Wi. Max Forum certified product

Wi. MAX Forum Initial Founding Members (2003) Wi. MAX Members * Fujitsu Hughes Network Systems Intel Alcatel Reliance Infocom China Motion Telecom Alvarion Proxim Siemens * OFDM Forum France Telecom Tata Teleservices PCCW Atheros British Telecom Qwest Aperto Networks ZTE Partial List

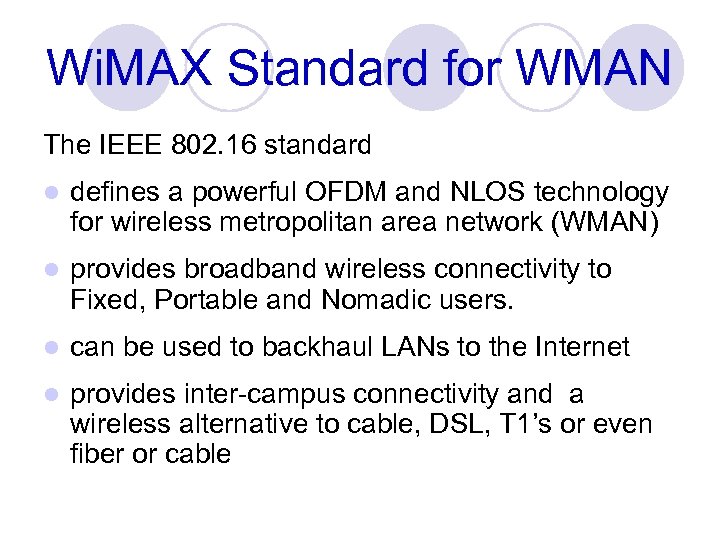

Wi. MAX Standard for WMAN The IEEE 802. 16 standard l defines a powerful OFDM and NLOS technology for wireless metropolitan area network (WMAN) l provides broadband wireless connectivity to Fixed, Portable and Nomadic users. l can be used to backhaul LANs to the Internet l provides inter-campus connectivity and a wireless alternative to cable, DSL, T 1’s or even fiber or cable

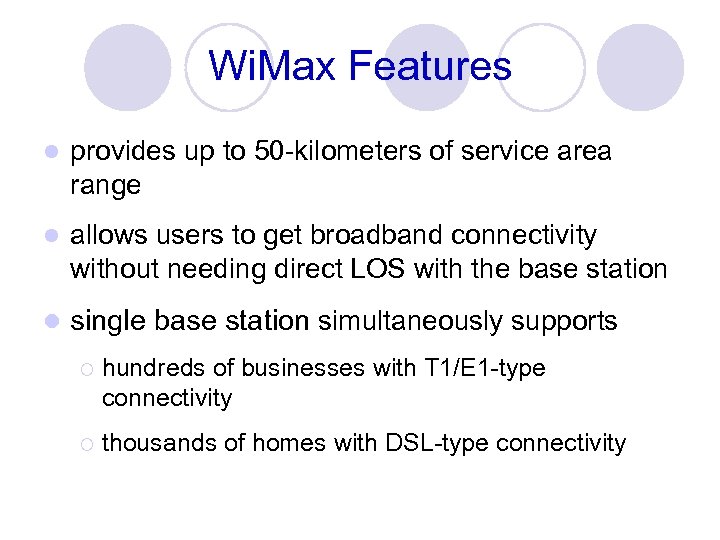

Wi. Max Features l provides up to 50 -kilometers of service area range l allows users to get broadband connectivity without needing direct LOS with the base station l single base station simultaneously supports ¡ hundreds of businesses with T 1/E 1 -type connectivity ¡ thousands of homes with DSL-type connectivity

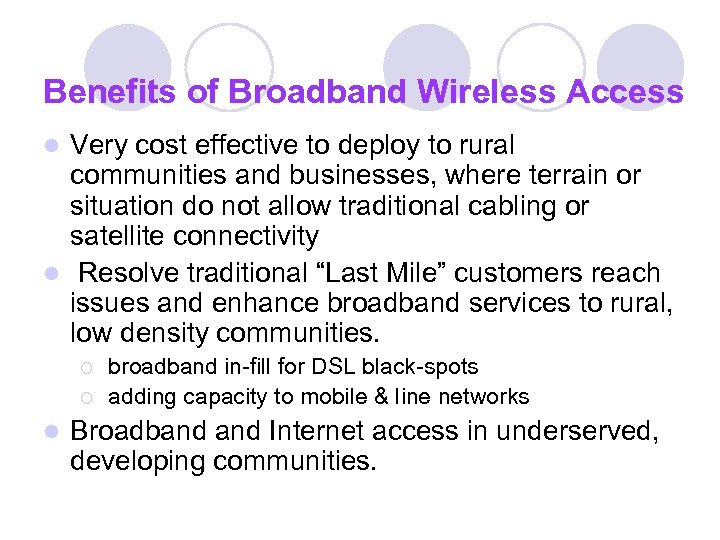

Benefits of Broadband Wireless Access Very cost effective to deploy to rural communities and businesses, where terrain or situation do not allow traditional cabling or satellite connectivity l Resolve traditional “Last Mile” customers reach issues and enhance broadband services to rural, low density communities. l ¡ ¡ l broadband in-fill for DSL black-spots adding capacity to mobile & line networks Broadband Internet access in underserved, developing communities.

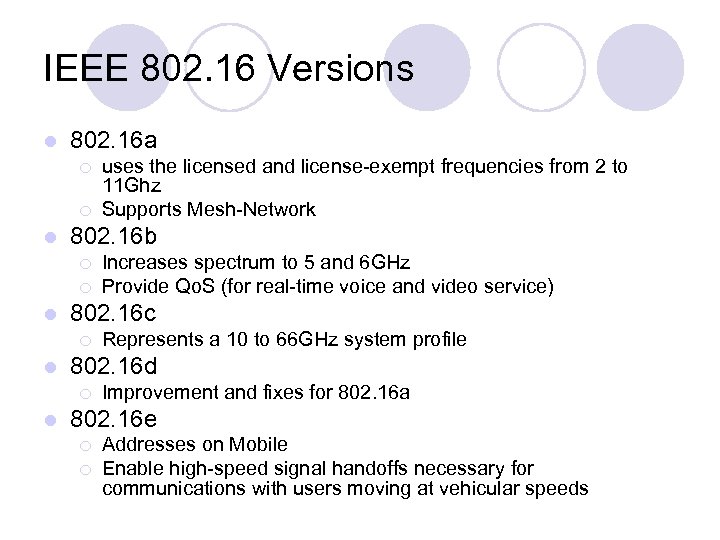

IEEE 802. 16 Versions l 802. 16 a ¡ ¡ l 802. 16 b ¡ ¡ l Represents a 10 to 66 GHz system profile 802. 16 d ¡ l Increases spectrum to 5 and 6 GHz Provide Qo. S (for real-time voice and video service) 802. 16 c ¡ l uses the licensed and license-exempt frequencies from 2 to 11 Ghz Supports Mesh-Network Improvement and fixes for 802. 16 a 802. 16 e ¡ ¡ Addresses on Mobile Enable high-speed signal handoffs necessary for communications with users moving at vehicular speeds

The family of 802. 16 standard

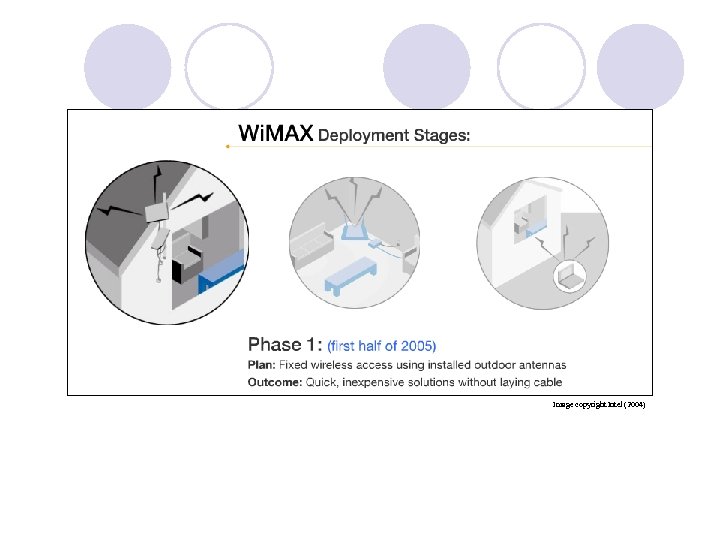

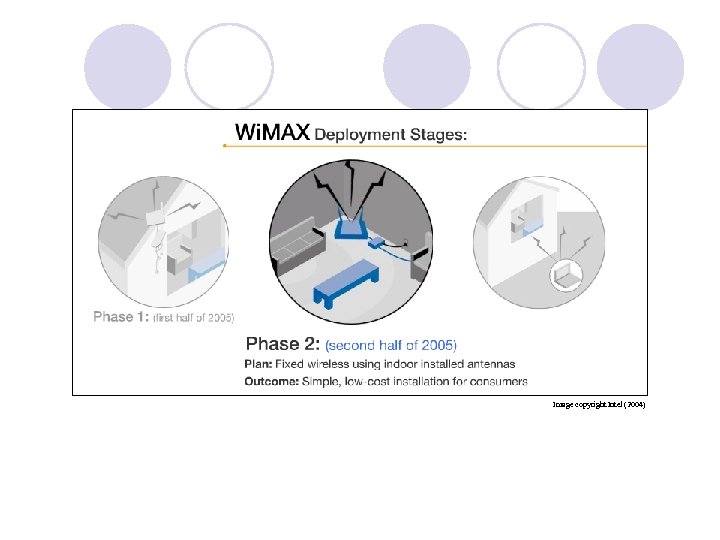

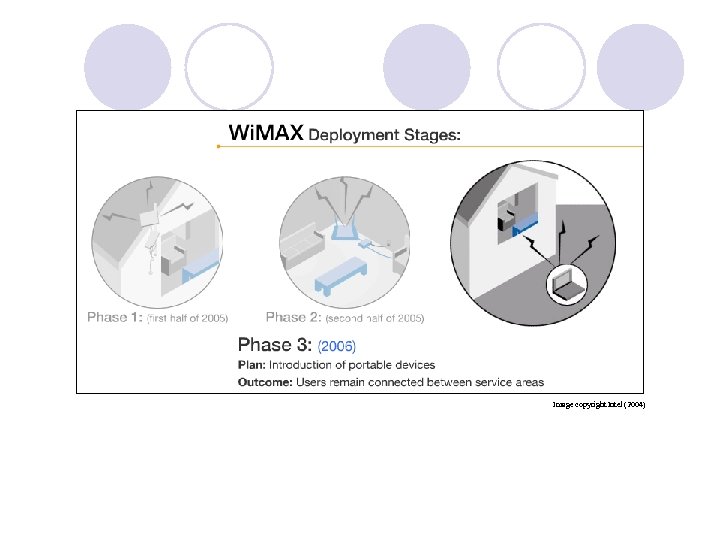

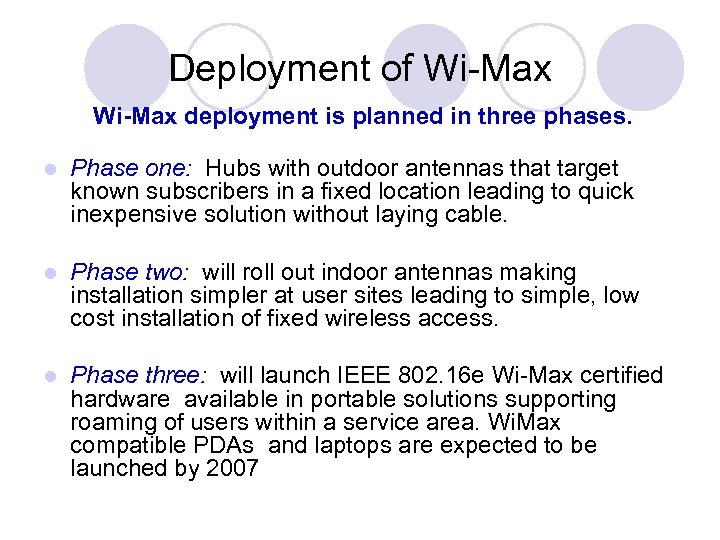

Deployment of Wi-Max deployment is planned in three phases. l Phase one: Hubs with outdoor antennas that target known subscribers in a fixed location leading to quick inexpensive solution without laying cable. l Phase two: will roll out indoor antennas making installation simpler at user sites leading to simple, low cost installation of fixed wireless access. l Phase three: will launch IEEE 802. 16 e Wi-Max certified hardware available in portable solutions supporting roaming of users within a service area. Wi. Max compatible PDAs and laptops are expected to be launched by 2007

Image copyright Intel (2004)

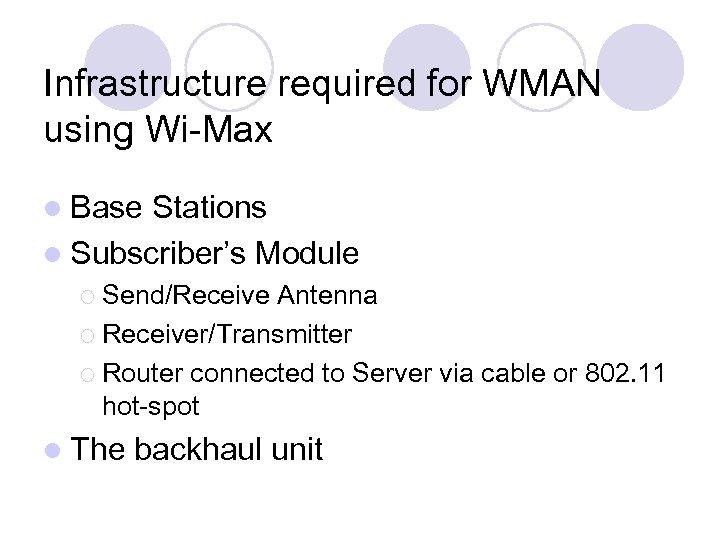

Infrastructure required for WMAN using Wi-Max l Base Stations l Subscriber’s Module ¡ Send/Receive Antenna ¡ Receiver/Transmitter ¡ Router connected to Server via cable or 802. 11 hot-spot l The backhaul unit

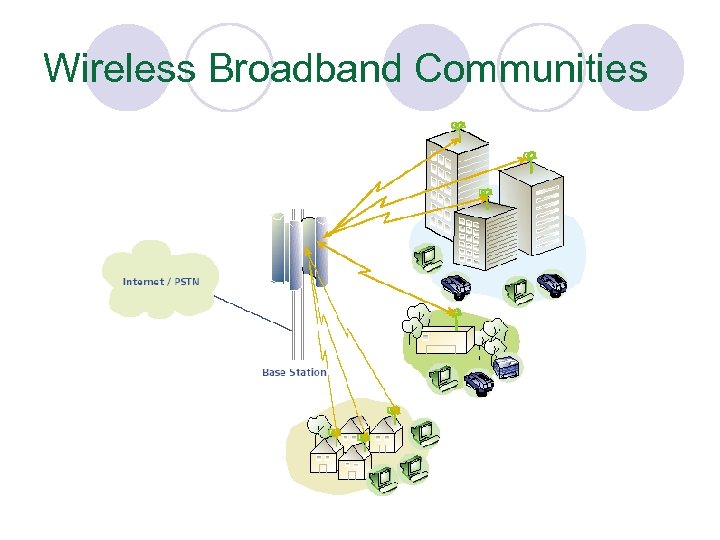

Wireless Broadband Communities

Wi. Max Protocol stack MAC Convergence Sublayer (ATM, Ethernet. 802. 1 Q, IP) MAC Privacy Sublayer Physical Layer ATM Ethernet, 802. 1 Q Internet Protocol Packing, Fragmentation ARQ, Qo. S Authentication, Key Exchange Privacy(encryption) OFDM, Ranging Power Control, DFS, Tx, Rx

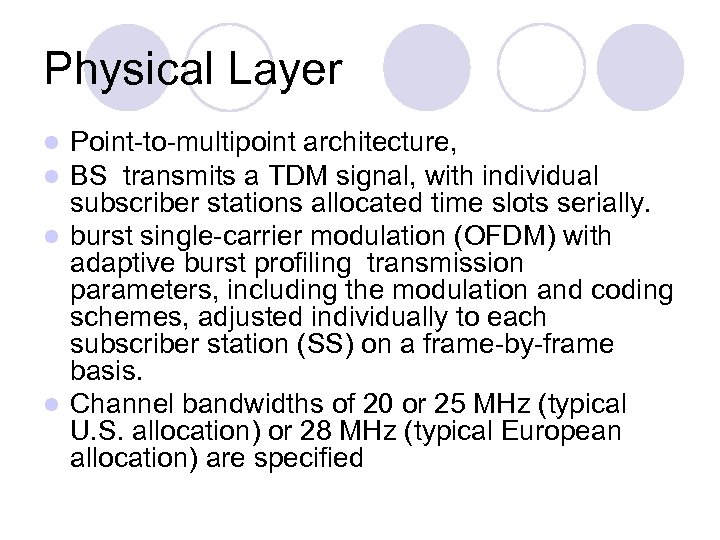

Physical Layer Point-to-multipoint architecture, BS transmits a TDM signal, with individual subscriber stations allocated time slots serially. l burst single-carrier modulation (OFDM) with adaptive burst profiling transmission parameters, including the modulation and coding schemes, adjusted individually to each subscriber station (SS) on a frame-by-frame basis. l Channel bandwidths of 20 or 25 MHz (typical U. S. allocation) or 28 MHz (typical European allocation) are specified l l

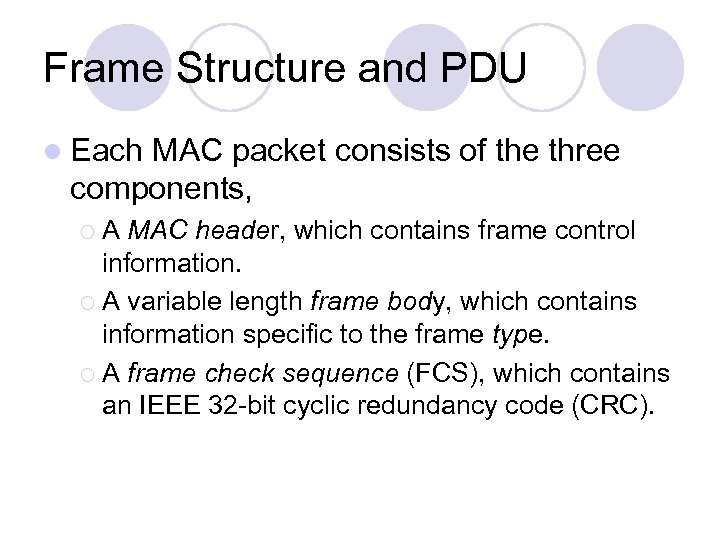

Frame Structure and PDU l Each MAC packet consists of the three components, ¡A MAC header, which contains frame control information. ¡ A variable length frame body, which contains information specific to the frame type. ¡ A frame check sequence (FCS), which contains an IEEE 32 -bit cyclic redundancy code (CRC).

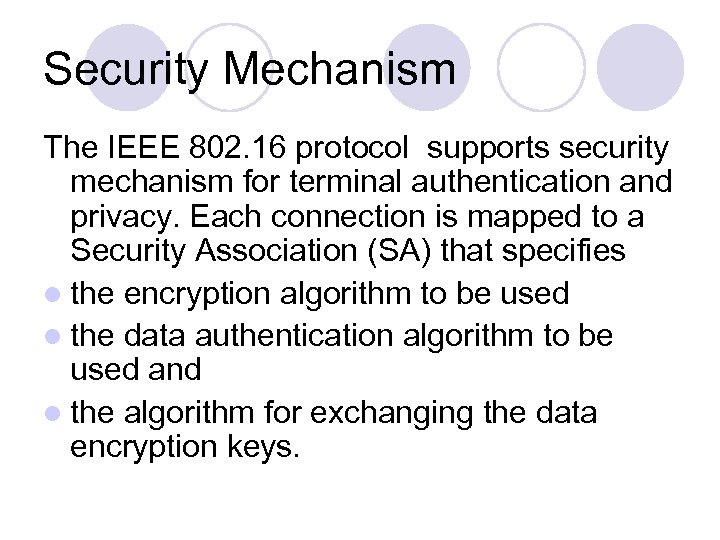

Security Mechanism The IEEE 802. 16 protocol supports security mechanism for terminal authentication and privacy. Each connection is mapped to a Security Association (SA) that specifies l the encryption algorithm to be used l the data authentication algorithm to be used and l the algorithm for exchanging the data encryption keys.

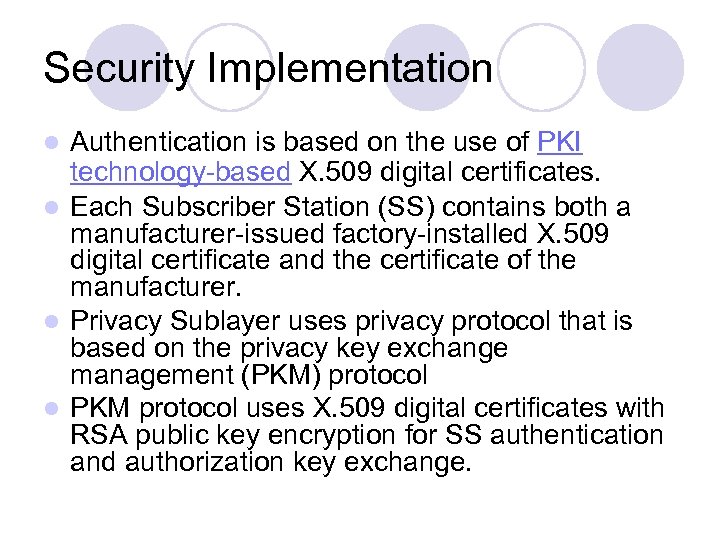

Security Implementation Authentication is based on the use of PKI technology-based X. 509 digital certificates. l Each Subscriber Station (SS) contains both a manufacturer-issued factory-installed X. 509 digital certificate and the certificate of the manufacturer. l Privacy Sublayer uses privacy protocol that is based on the privacy key exchange management (PKM) protocol l PKM protocol uses X. 509 digital certificates with RSA public key encryption for SS authentication and authorization key exchange. l

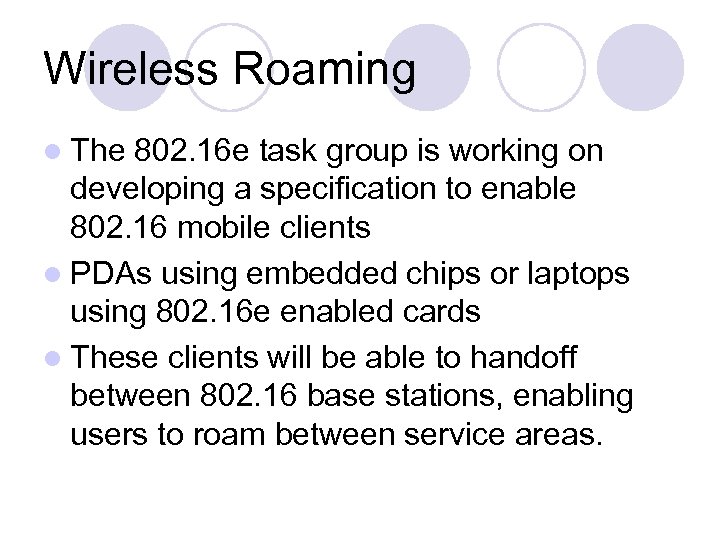

Wireless Roaming l The 802. 16 e task group is working on developing a specification to enable 802. 16 mobile clients l PDAs using embedded chips or laptops using 802. 16 e enabled cards l These clients will be able to handoff between 802. 16 base stations, enabling users to roam between service areas.

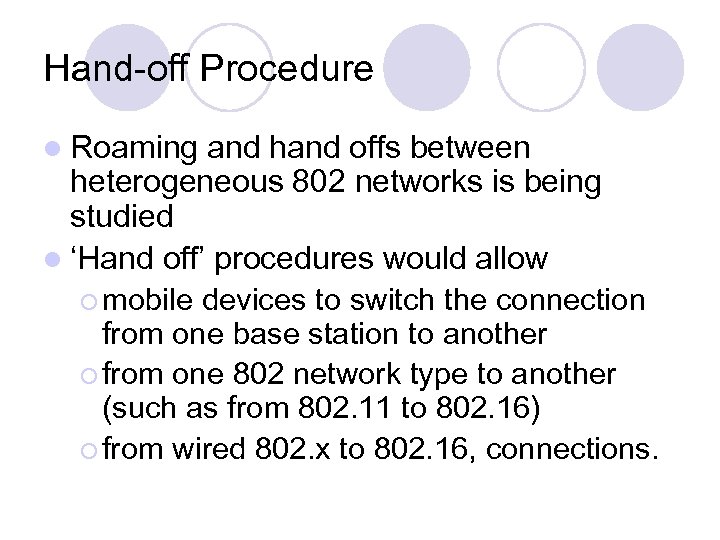

Hand-off Procedure l Roaming and hand offs between heterogeneous 802 networks is being studied l ‘Hand off’ procedures would allow ¡ mobile devices to switch the connection from one base station to another ¡ from one 802 network type to another (such as from 802. 11 to 802. 16) ¡ from wired 802. x to 802. 16, connections.

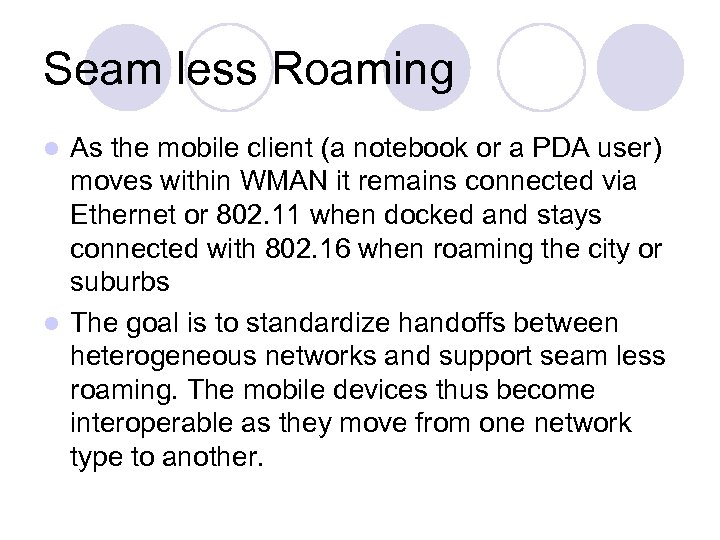

Seam less Roaming As the mobile client (a notebook or a PDA user) moves within WMAN it remains connected via Ethernet or 802. 11 when docked and stays connected with 802. 16 when roaming the city or suburbs l The goal is to standardize handoffs between heterogeneous networks and support seam less roaming. The mobile devices thus become interoperable as they move from one network type to another. l

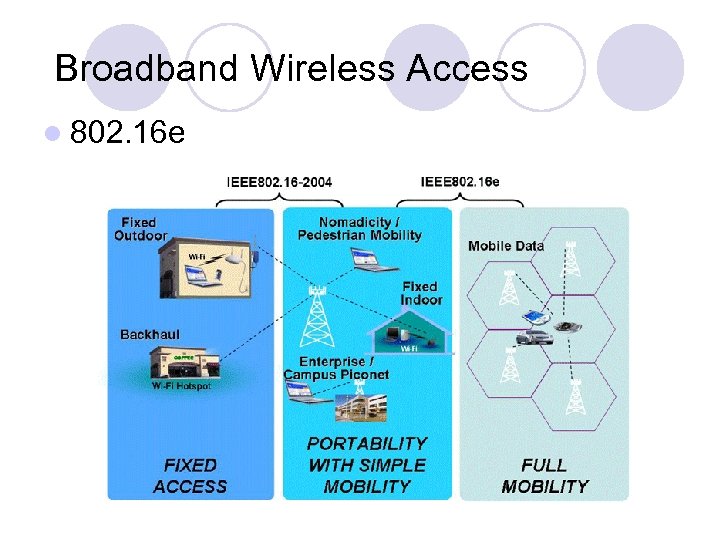

Broadband Wireless Access l 802. 16 e

Expected players Backed by 140 companies in the Wi. Max Forum (www. wimaxforum. org) l Intel is producing chips and currently managing 50 test sites around the country l Covad (currently a big DSL provider) is considering using Wi. Max for last mile connections. l

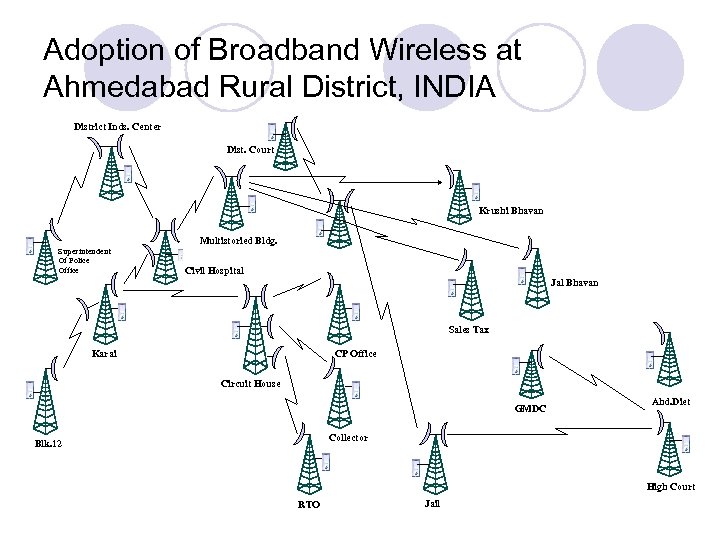

Adoption of Broadband Wireless at Ahmedabad Rural District, INDIA District Inds. Center Dist. Court Krushi Bhavan Multistoried Bldg. Superintendent Of Police Office Civil Hospital Jal Bhavan Sales Tax Karai CP Office Circuit House GMDC Ahd. Diet Collector Blk. 12 High Court RTO Jail

Gujarat State Govt BB Wireless WAN Project

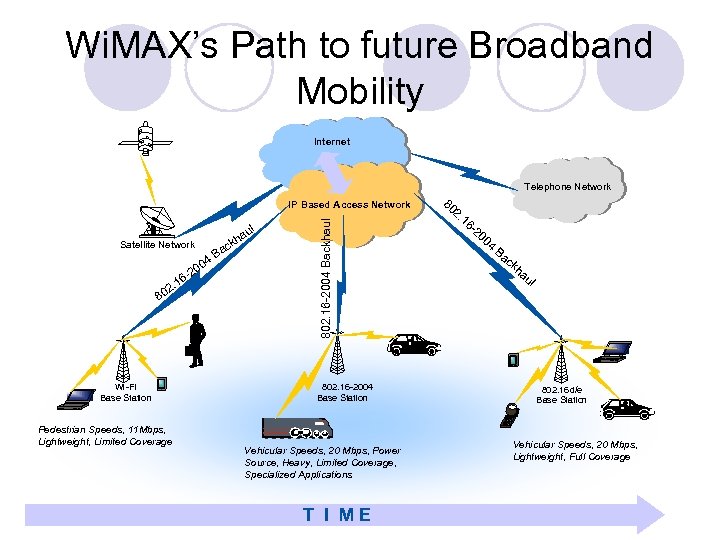

Wi. MAX’s Path to future Broadband Mobility Internet Telephone Network ck Ba 4 00 -2 ul ha Satellite Network 6 2. 1 0 8 Wi-Fi Base Station Pedestrian Speeds, 11 Mbps, Lightweight, Limited Coverage 802. 16 -2004 Backhaul IP Based Access Network 802. 16 -2004 Base Station Vehicular Speeds, 20 Mbps, Power Source, Heavy, Limited Coverage, Specialized Applications T I ME 80 2. 1 620 04 Ba c kh au l 802. 16 d/e Base Station Vehicular Speeds, 20 Mbps, Lightweight, Full Coverage
