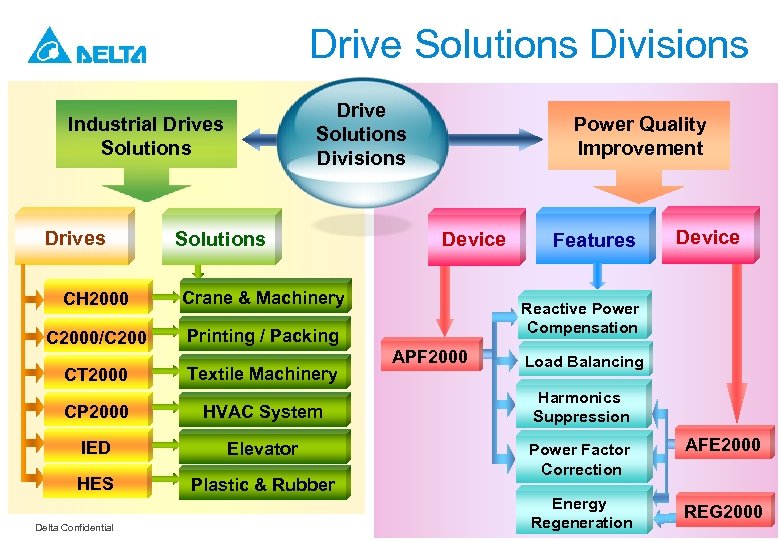

Drive Solutions Divisions Industrial Drives Solutions CH 2000 Device Crane & Machinery C 2000/C 200 Power Quality Improvement Printing / Packing CT 2000 Textile Machinery CP 2000 HVAC System IED Elevator HES Plastic & Rubber Delta Confidential Features Device Reactive Power Compensation APF 2000 Load Balancing Harmonics Suppression Power Factor Correction AFE 2000 Energy Regeneration REG 2000

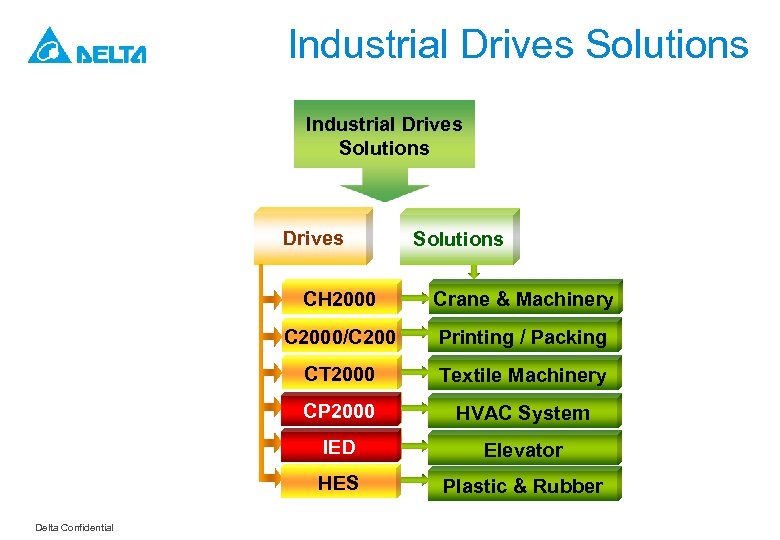

Industrial Drives Solutions CH 2000 C 2000/C 200 Printing / Packing CT 2000 Textile Machinery CP 2000 HVAC System IED Elevator HES Delta Confidential Crane & Machinery Plastic & Rubber

Delta Confidential

CP 2000 TOP Features Control methods: V/F control & SVC control, PID control and sleep/wake up function, multipumps control, fire mode, PLC, real time clock. Optional cards: communication cards & I/O extension card, CANopen(DS-402) Built-in: RS-485, MODBUS and BACnet MS/TP User-designed PLC program for sequential control PLC(10 K step) D 24 A I/O card Delta Confidential R 6 AA COP 01 Relay card CANopen cards Built-in protocol BACnet MODBUS Device. Net Profi. BUS Ethernet IP MODBUS TCP

CP 2000 Communication Protocol Most common used, various high-speed network: n Built-in BACnet MS/TP Delta Confidential

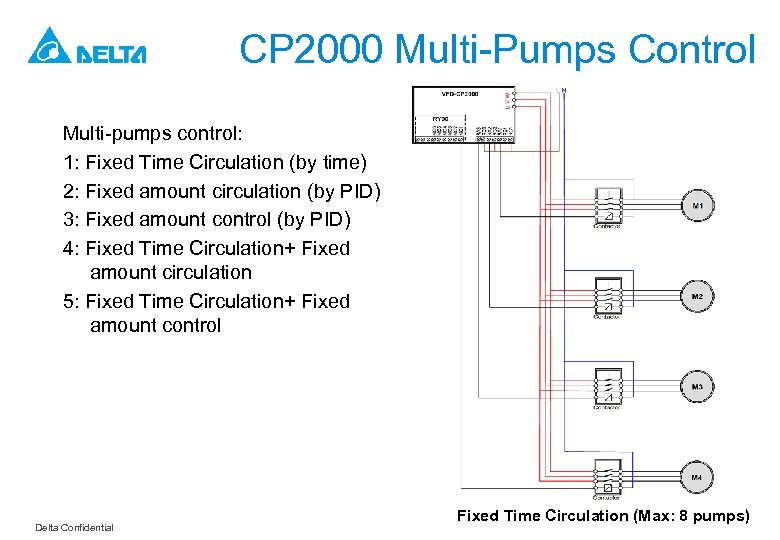

CP 2000 Multi-Pumps Control Multi-pumps control: 1: Fixed Time Circulation (by time) 2: Fixed amount circulation (by PID) 3: Fixed amount control (by PID) 4: Fixed Time Circulation+ Fixed amount circulation 5: Fixed Time Circulation+ Fixed amount control Delta Confidential Fixed Time Circulation (Max: 8 pumps)

CP 2000 Multi-Pumps Control Fixed amount circulation (Max: 4 pumps) Delta Confidential Fixed amount control (Max: 8 pumps)

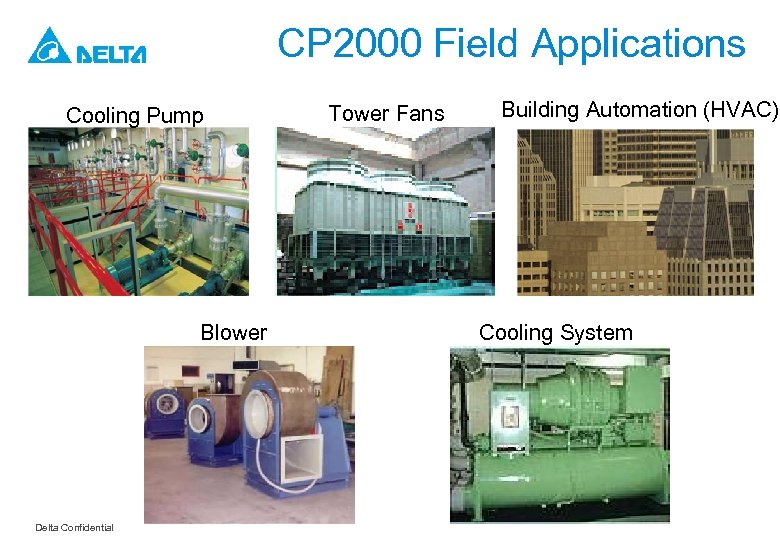

CP 2000 Field Applications Cooling Pump Blower Delta Confidential Tower Fans Building Automation (HVAC) Cooling System

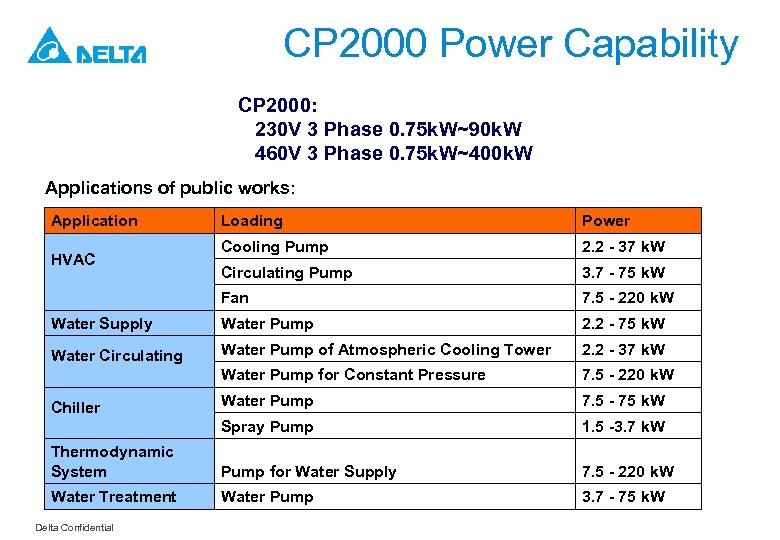

CP 2000 Power Capability CP 2000: 230 V 3 Phase 0. 75 k. W~90 k. W 460 V 3 Phase 0. 75 k. W~400 k. W Applications of public works: Application Loading Power Cooling Pump 2. 2 - 37 k. W Circulating Pump 3. 7 - 75 k. W Fan 7. 5 - 220 k. W Water Supply Water Pump 2. 2 - 75 k. W Water Circulating 　 Water Pump of Atmospheric Cooling Tower 2. 2 - 37 k. W Water Pump for Constant Pressure 7. 5 - 220 k. W Chiller 　 Water Pump 7. 5 - 75 k. W Spray Pump 1. 5 -3. 7 k. W Thermodynamic System Pump for Water Supply 7. 5 - 220 k. W Water Treatment Water Pump 3. 7 - 75 k. W HVAC 　 　 Delta Confidential

IED Series Delta Confidential

What is IED? IED = Integrated Elevator Drive Integrated = Independent Indispensable Easy to Use = Economic Environment Friendly Delta Confidential Design = Drive Deliver

Delta Solution for Elevator Industry Door Drive & Motor VFD-DD Integrated Elevator Drive AFE 2000 Active Front End C 2000 VFD-E Escalator Hydraulic Elevator Delta Confidential Elevator Drive VFD-VL

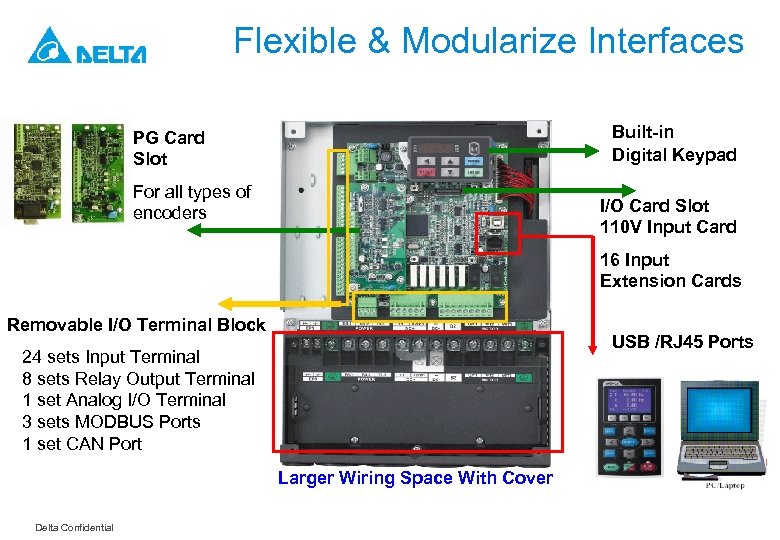

Flexible & Modularize Interfaces Built-in Digital Keypad PG Card Slot For all types of encoders I/O Card Slot 110 V Input Card 16 Input Extension Cards Removable I/O Terminal Block USB /RJ 45 Ports 24 sets Input Terminal 8 sets Relay Output Terminal 1 set Analog I/O Terminal 3 sets MODBUS Ports 1 set CAN Port Larger Wiring Space With Cover Delta Confidential

Full Set Accessories of IED • EA-CT 01 Junction Board for Car Signal IED • EA-CP 16 Car Instruction Board • EA-FM 02 MH Matrix Display Panel for Vertical Type and Horizontal Type EA-CT 01 EA-FM 20 MH • EA-FM 02 MV Straight-matrix Display Panel EA-CP 16 EA-FM 20 MV • EA-FM 02 MH Matrix Display Panel for Vertical Type and Horizontal Type EA-FM 20 MV Delta Confidential

IED Seven Excellent Features 1. Single MCU 2. Thin & Compact Drive Design 3. Built-in Digital Keypad 4. Smooth Start/Stop 5. Protection Functions 6. USB Port 7. Allows Auto-Tuning with Load Operation Control Delta Confidential

4 Unique Features of IED 1 Single MCU 2 Safety Ensured 3 Long Service Life 4 UL & CE Delta Confidential l Integrates professional elevator technology in one MCU l Watch-Dog Timer for real-time MCU monitoring l Phase loss protection to ensure the tractor is function properly l Automatic torque output checking, release braking safely l Dual circuit relay l Long service life design of capacitor and IGBT l Approved by UL&CE

Power Range Frame B 2. 2 k. W Single-phase 230 V 3. 7 k. W 3 -phase 230 V 4 k. W 3 -phase 460 V Frame C 5. 5~11 k. W 3 -phase 230 V/ 3 -phase 460 V Frame D 15~22 k. W 3 -phase 230 V 15~30 k. W 3 -phase 460 V Frame E 30~37 k. W 37~75 k. W Delta Confidential 3 -phase 230 V 3 -phase 460 V

International Safety Certificate IED is approved by UL and CE and complies with global standards. Service Locations: China: 31 Global: over 300 Delta Confidential

Power Quality Improvement Device Features Device Reactive Power Compensation APF 2000 Load Balancing Harmonics Suppression Power Factor Correction Energy Regeneration Delta Confidential AFE 2000 REG 2000

REG 2000 Delta Confidential

Comparison of AFE, REG and Braking Unit Active Front End Braking Modules VFDB Series • Reduce Harmonics • Improve PF • Power Regenerating Dissipate Regenerated Energy as Heat Mains Power VFD M Mains Power Braking Modules Braking Resistor REG 2000 Convert Regenerated Energy into Regenerative Power Mains Power VFD REG Delta Confidential REG M DC Bus 6 units parallel AFE VFD M

Industrial Solution-Power Quality Improvement Delta Confidential

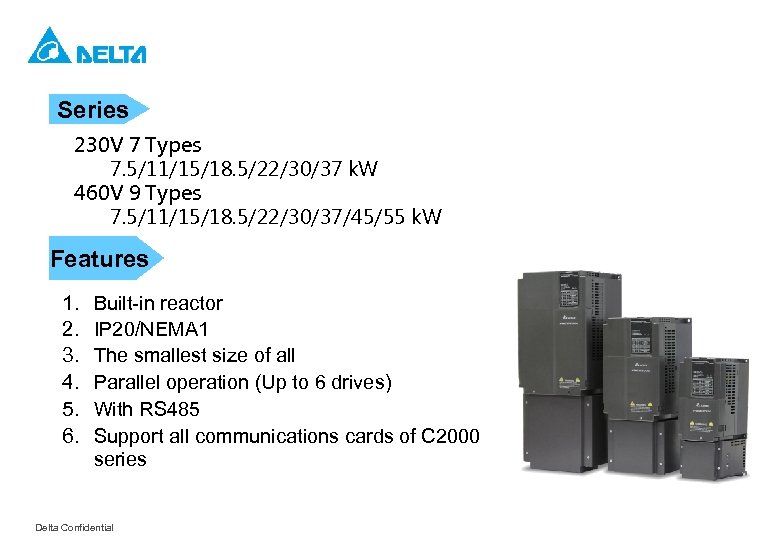

Series 230 V 7 Types 7. 5/11/15/18. 5/22/30/37 k. W 460 V 9 Types 7. 5/11/15/18. 5/22/30/37/45/55 k. W Features 1. 2. 3. 4. 5. 6. Built-in reactor IP 20/NEMA 1 The smallest size of all Parallel operation (Up to 6 drives) With RS 485 Support all communications cards of C 2000 series Delta Confidential

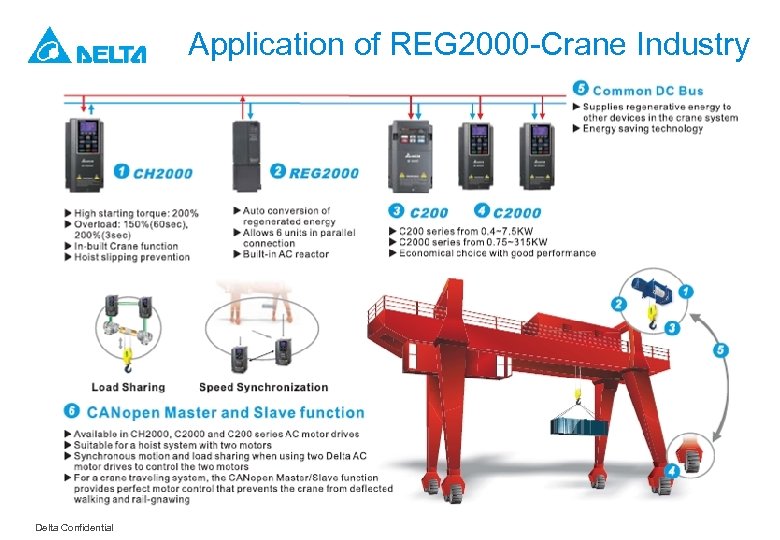

Application of REG 2000 -Crane Industry Delta Confidential
