DECT Vo. IP Phone VIP-321 / DCT-101 www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.

Presentation Outline www. planet. com. tw

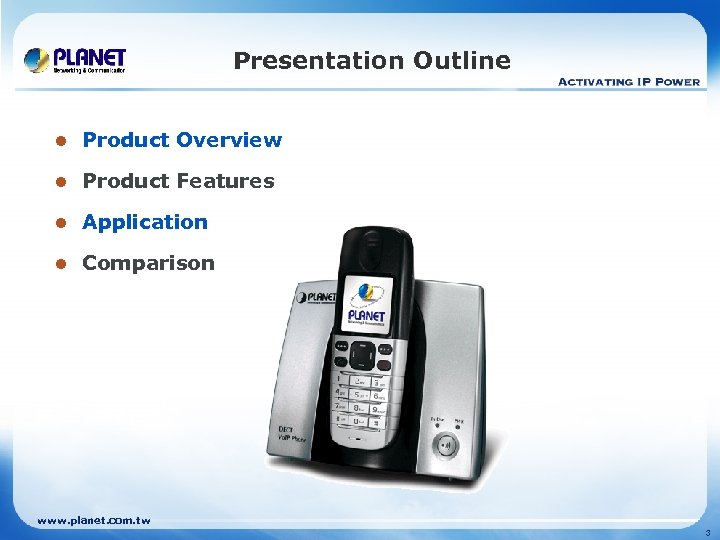

Presentation Outline l Product Overview l Product Features l Application l Comparison www. planet. com. tw 3

Product Overview l VIP-321 § Cordless DECT IP Phone § Interfaces ü 1 x PSTN (RJ-11) ü 2 x RJ-45, 10/100 Base-TX (LAN & WAN) l DCT-101 § 1. 8 G ~1. 9 G MHZ GAP DECT Telephone § Interfaces ü 1. 5 inches Color LCD Display ü 3 x AAA Ni-Mh re-chargeable battery ü 7 country language interface www. planet. com. tw 4

Product Overview l Front Panel of VIP-321 ü LED : 1, PWR/System 1, In Use/DECT Phone ü Button : 1, PAGE/Registration Button ü PIN : 2, Charger contact pin www. planet. com. tw 5

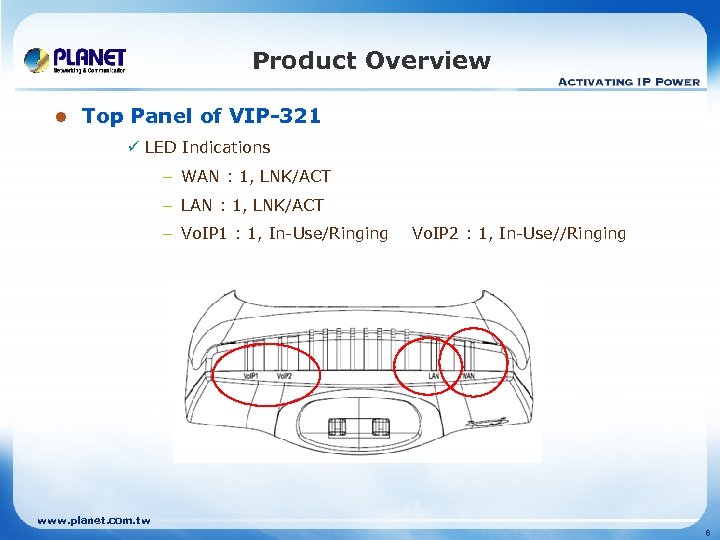

Product Overview l Top Panel of VIP-321 ü LED Indications – WAN : 1, LNK/ACT – LAN : 1, LNK/ACT – Vo. IP 1 : 1, In-Use/Ringing Vo. IP 2 : 1, In-Use//Ringing www. planet. com. tw 6

Product Overview l Rear Panel of VIP-321 ü 7 V DC / 600 m. A, Power Connector ü 1 x Line, 1 x Reset, 1 x LAN , 1 x WAN www. planet. com. tw 7

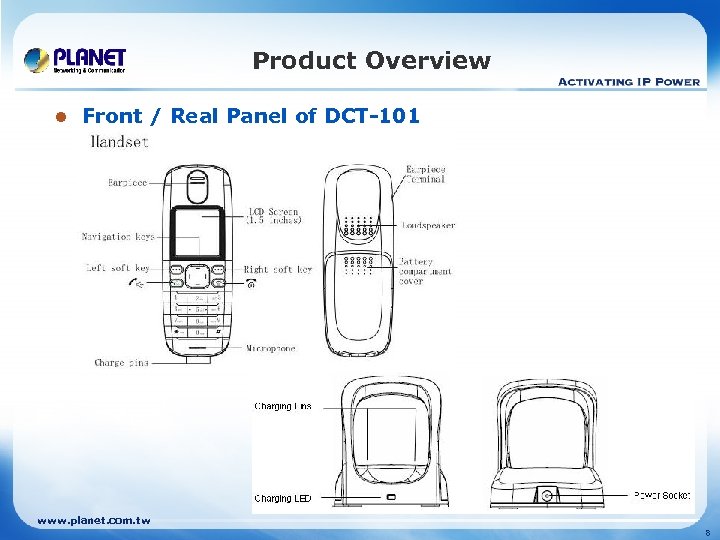

Product Overview l Front / Real Panel of DCT-101 www. planet. com. tw 8

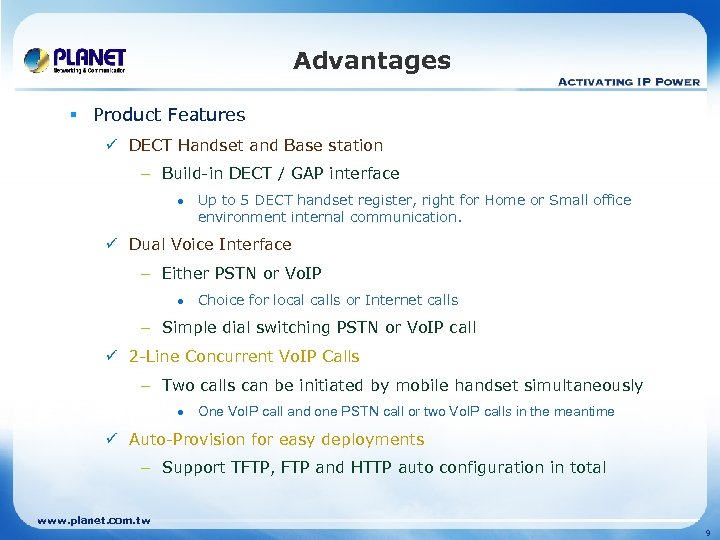

Advantages § Product Features ü DECT Handset and Base station – Build-in DECT / GAP interface l Up to 5 DECT handset register, right for Home or Small office environment internal communication. ü Dual Voice Interface – Either PSTN or Vo. IP l Choice for local calls or Internet calls – Simple dial switching PSTN or Vo. IP call ü 2 -Line Concurrent Vo. IP Calls – Two calls can be initiated by mobile handset simultaneously l One Vo. IP call and one PSTN call or two Vo. IP calls in the meantime ü Auto-Provision for easy deployments – Support TFTP, FTP and HTTP auto configuration in total www. planet. com. tw 9

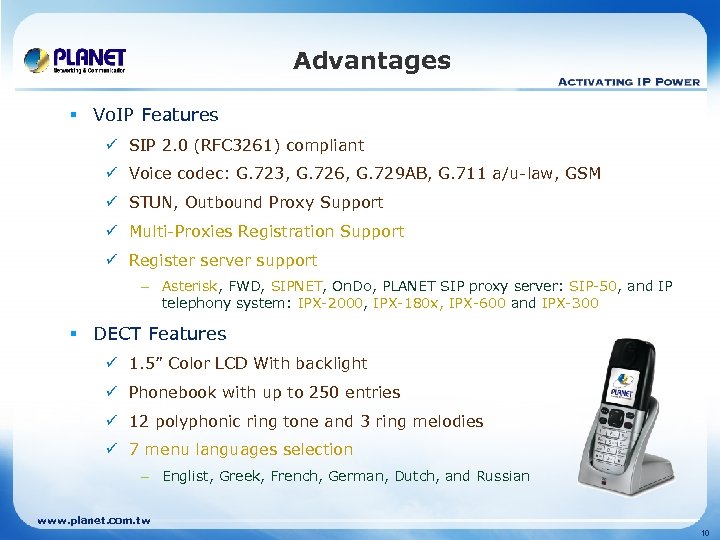

Advantages § Vo. IP Features ü SIP 2. 0 (RFC 3261) compliant ü Voice codec: G. 723, G. 726, G. 729 AB, G. 711 a/u-law, GSM ü STUN, Outbound Proxy Support ü Multi-Proxies Registration Support ü Register server support – Asterisk, FWD, SIPNET, On. Do, PLANET SIP proxy server: SIP-50, and IP telephony system: IPX-2000, IPX-180 x, IPX-600 and IPX-300 § DECT Features ü 1. 5” Color LCD With backlight ü Phonebook with up to 250 entries ü 12 polyphonic ring tone and 3 ring melodies ü 7 menu languages selection – Englist, Greek, French, German, Dutch, and Russian www. planet. com. tw 10

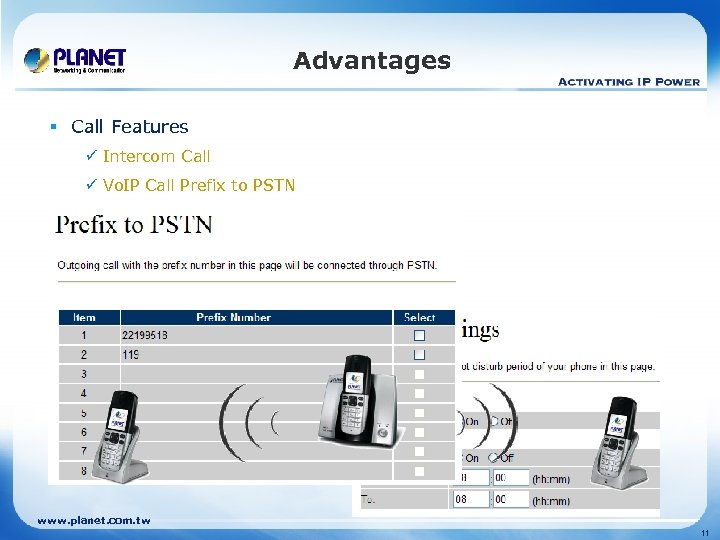

Advantages § Call Features ü Intercom Call ü Vo. IP Call Prefix to PSTN ü Caller ID Display ü Call Forward (Always / Busy / No answer) ü Call Transfer / Call Hold / Call Waiting ü Speed Dial / Phone Book / Dial plan ü Call Block (Do Not Disturb) ü Three-way conference calls www. planet. com. tw 11

Product Features § User Friendly Web Configuration for Network Configuration for SIP account Account register status and parts of related settings Configuration Menu Main page www. planet. com. tw 12

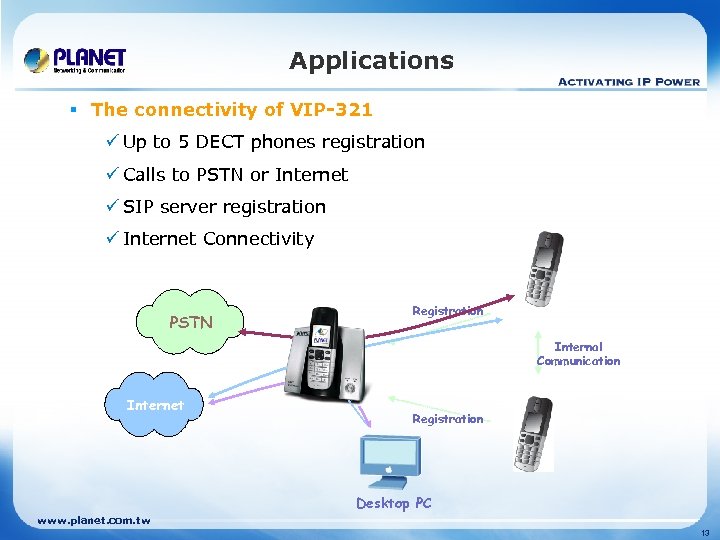

Applications § The connectivity of VIP-321 ü Up to 5 DECT phones registration ü Calls to PSTN or Internet ü SIP server registration ü Internet Connectivity PSTN Registration Internal Communication Internet Registration Desktop PC www. planet. com. tw 13

Applications § SOHO’s all-in-one devices ü Phone with multiple handsets wirelessly – Make calls to friends, relatives through Internet with free of charge [Peer-to-Peer mode] www. planet. com. tw 14

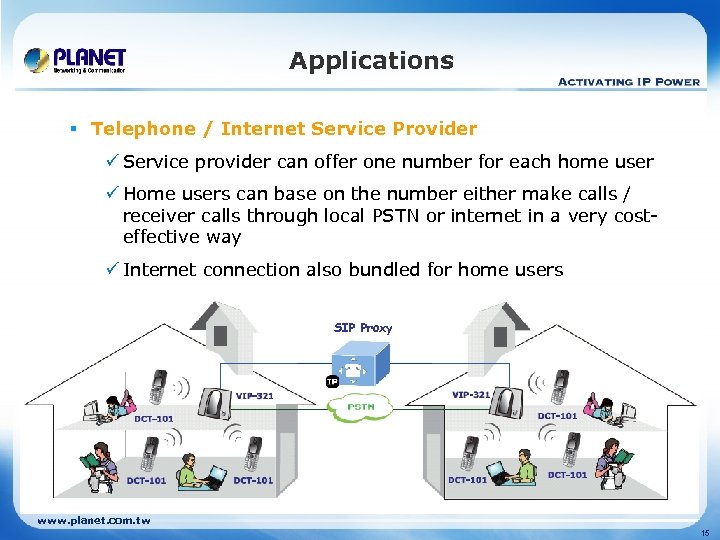

Applications § Telephone / Internet Service Provider ü Service provider can offer one number for each home user ü Home users can base on the number either make calls / receiver calls through local PSTN or internet in a very costeffective way ü Internet connection also bundled for home users SIP Proxy www. planet. com. tw 15

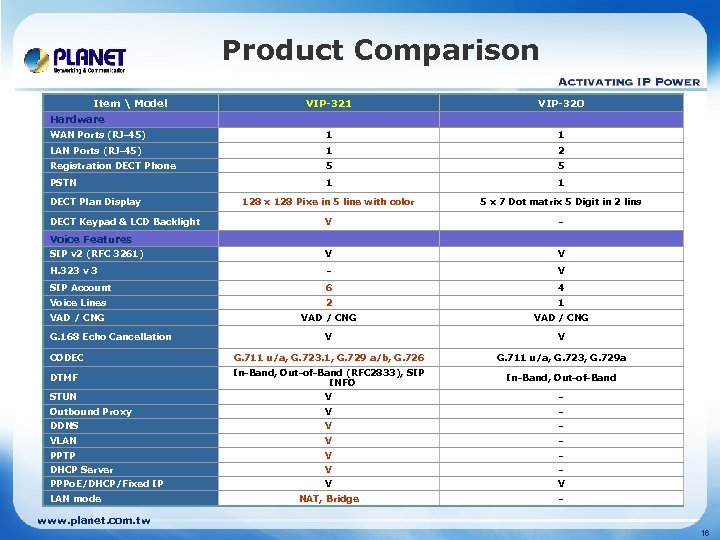

Product Comparison Item Model VIP-321 VIP-320 WAN Ports (RJ-45) 1 1 LAN Ports (RJ-45) 1 2 Registration DECT Phone 5 5 PSTN 1 1 128 x 128 Pixe in 5 line with color 5 x 7 Dot matrix 5 Digit in 2 lins V - SIP v 2 (RFC 3261) V V H. 323 v 3 - V SIP Account 6 4 Voice Lines 2 1 VAD / CNG V V CODEC G. 711 u/a, G. 723. 1, G. 729 a/b, G. 726 G. 711 u/a, G. 723, G. 729 a DTMF In-Band, Out-of-Band (RFC 2833), SIP INFO In-Band, Out-of-Band STUN V - Outbound Proxy V - DDNS V - VLAN V - PPTP V - DHCP Server V - PPPo. E/DHCP/Fixed IP V V NAT, Bridge - Hardware DECT Plan Display DECT Keypad & LCD Backlight Voice Features G. 168 Echo Cancellation LAN mode www. planet. com. tw 16

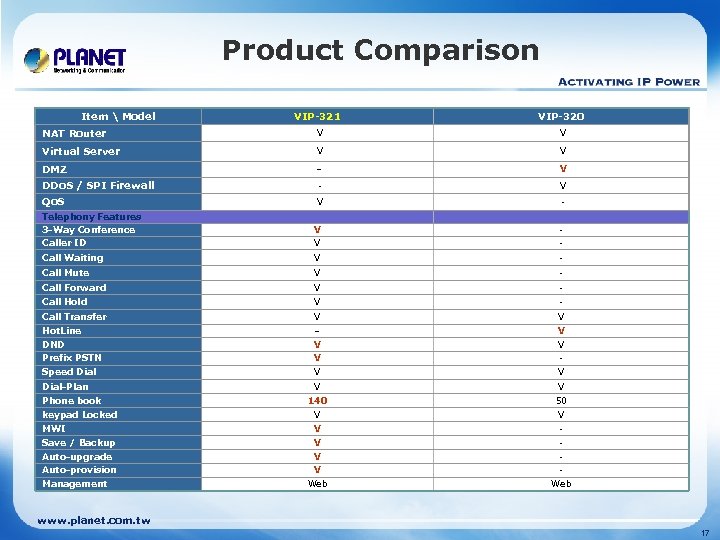

Product Comparison Item Model VIP-321 VIP-320 NAT Router V V Virtual Server V V DMZ - V DDo. S / SPI Firewall - V Qo. S V - Telephony Features 3 -Way Conference Caller ID V V - Call Waiting V - Call Mute V - Call Forward V - Call Hold V - Call Transfer V V Hot. Line DND V V V Prefix PSTN V - Speed Dial V V Dial-Plan V V 140 50 keypad Locked V V MWI V - Save / Backup V - Auto-upgrade V - Phone book Auto-provision Management V - Web www. planet. com. tw 17

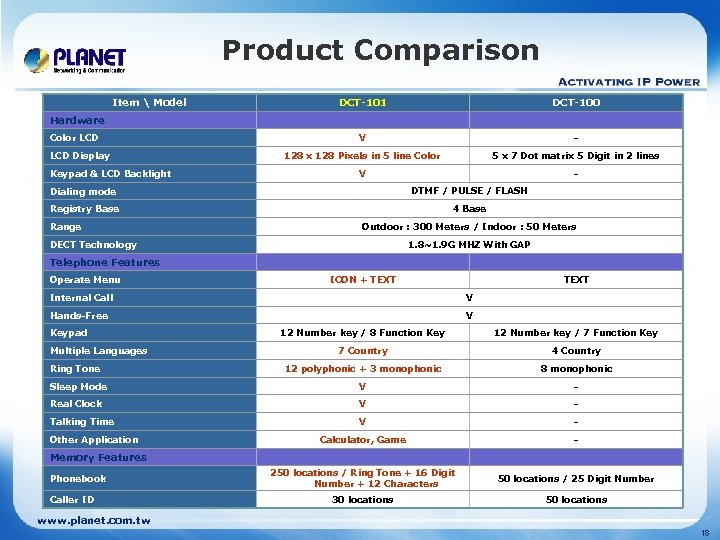

Product Comparison Item Model DCT-101 DCT-100 V - 128 x 128 Pixels in 5 line Color 5 x 7 Dot matrix 5 Digit in 2 lines V - Hardware Color LCD Display Keypad & LCD Backlight Dialing mode DTMF / PULSE / FLASH Registry Base 4 Base Range Outdoor : 300 Meters / Indoor : 50 Meters 1. 8~1. 9 G MHZ With GAP DECT Technology Telephone Features Operate Menu ICON + TEXT Internal Call V Hands-Free V Keypad 12 Number key / 8 Function Key 12 Number key / 7 Function Key 7 Country 4 Country 12 polyphonic + 3 monophonic 8 monophonic Sleep Mode V - Real Clock V - Talking Time V - Calculator, Game - 250 locations / Ring Tone + 16 Digit Number + 12 Characters 50 locations / 25 Digit Number 30 locations 50 locations Multiple Languages Ring Tone Other Application Memory Features Phonebook Caller ID www. planet. com. tw 18

www. planet. com. tw

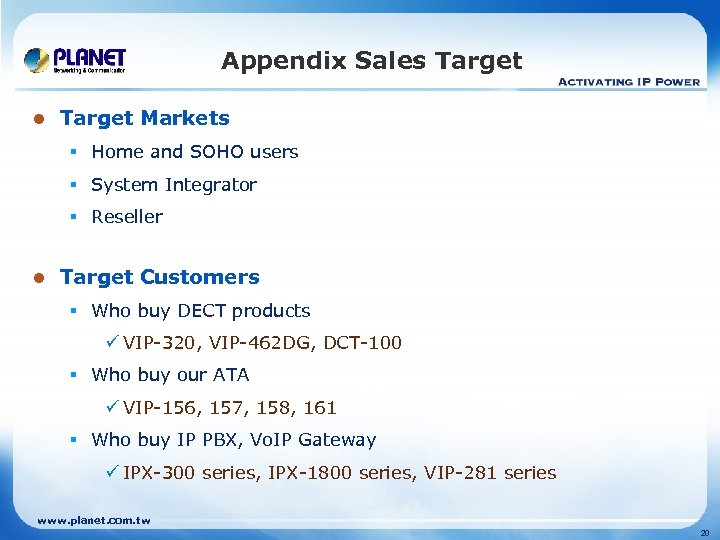

Appendix Sales Target l Target Markets § Home and SOHO users § System Integrator § Reseller l Target Customers § Who buy DECT products ü VIP-320, VIP-462 DG, DCT-100 § Who buy our ATA ü VIP-156, 157, 158, 161 § Who buy IP PBX, Vo. IP Gateway ü IPX-300 series, IPX-1800 series, VIP-281 series www. planet. com. tw 20
