DC Protect Innovative backup and restore solution

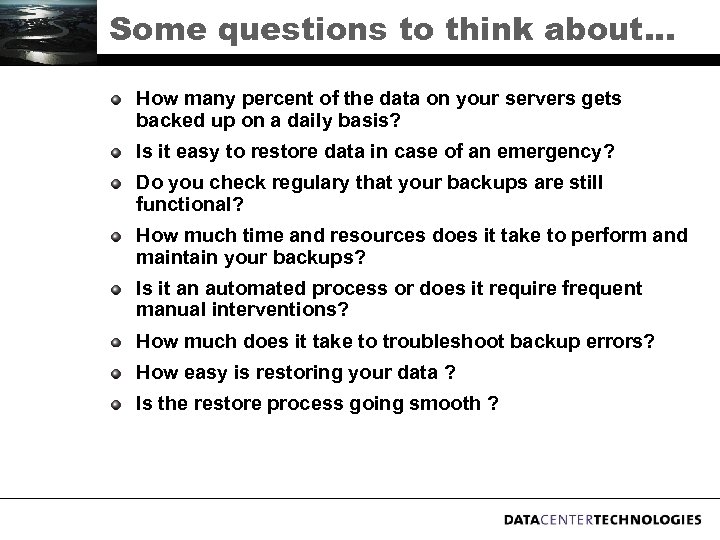

Some questions to think about. . . How many percent of the data on your servers gets backed up on a daily basis? Is it easy to restore data in case of an emergency? Do you check regulary that your backups are still functional? How much time and resources does it take to perform and maintain your backups? Is it an automated process or does it require frequent manual interventions? How much does it take to troubleshoot backup errors? How easy is restoring your data ? Is the restore process going smooth ?

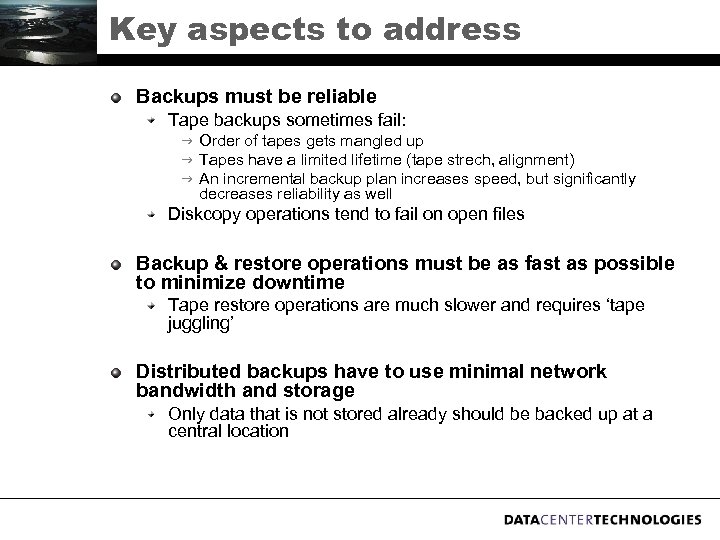

Key aspects to address Backups must be reliable Tape backups sometimes fail: g Order of tapes gets mangled up g Tapes have a limited lifetime (tape strech, alignment) g An incremental backup plan increases speed, but significantly decreases reliability as well Diskcopy operations tend to fail on open files Backup & restore operations must be as fast as possible to minimize downtime Tape restore operations are much slower and requires ‘tape juggling’ Distributed backups have to use minimal network bandwidth and storage Only data that is not stored already should be backed up at a central location

Key aspects to address (cont. ) Backup & restore operations should be easy to perform Central management and event monitoring Backup solutions must be easy to setup and be scalable as well Support for all major operating systems (Windows, Linux, Solaris, HP UX, IBM AIX. . )

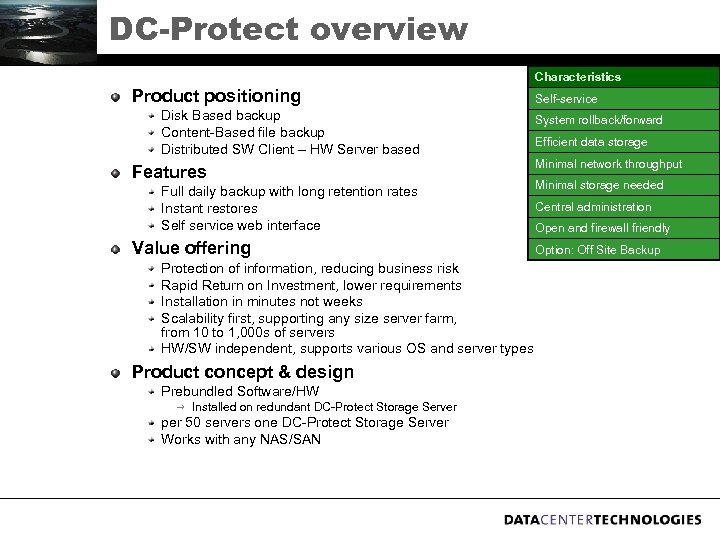

DC-Protect overview Characteristics Product positioning Disk Based backup Content-Based file backup Distributed SW Client – HW Server based Features Full daily backup with long retention rates Instant restores Self service web interface Value offering Protection of information, reducing business risk Rapid Return on Investment, lower requirements Installation in minutes not weeks Scalability first, supporting any size server farm, from 10 to 1, 000 s of servers HW/SW independent, supports various OS and server types Product concept & design Prebundled Software/HW g Installed on redundant DC-Protect Storage Server per 50 servers one DC-Protect Storage Server Works with any NAS/SAN Self-service System rollback/forward Efficient data storage Minimal network throughput Minimal storage needed Central administration Open and firewall friendly Option: Off Site Backup

Feature Overview DC-Protect

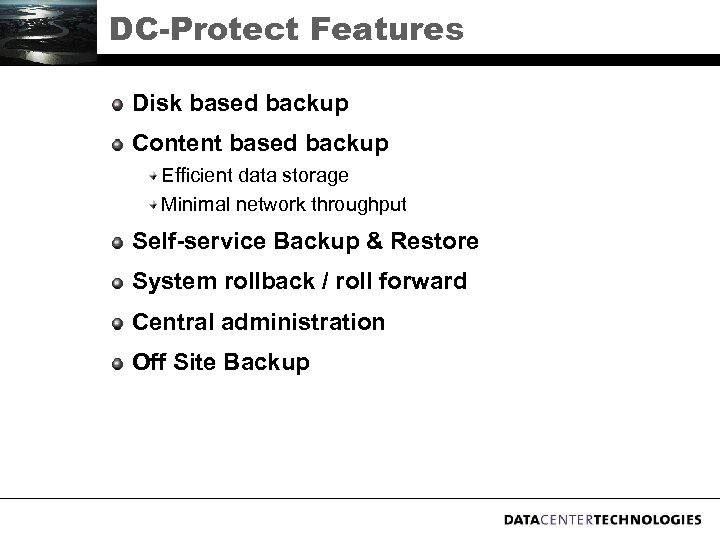

DC-Protect Features Disk based backup Content based backup Efficient data storage Minimal network throughput Self-service Backup & Restore System rollback / roll forward Central administration Off Site Backup

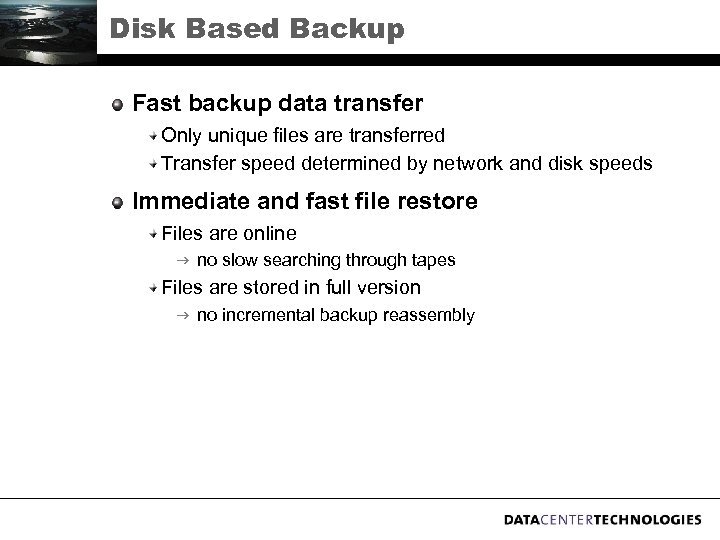

Disk Based Backup Fast backup data transfer Only unique files are transferred Transfer speed determined by network and disk speeds Immediate and fast file restore Files are online g no slow searching through tapes Files are stored in full version g no incremental backup reassembly

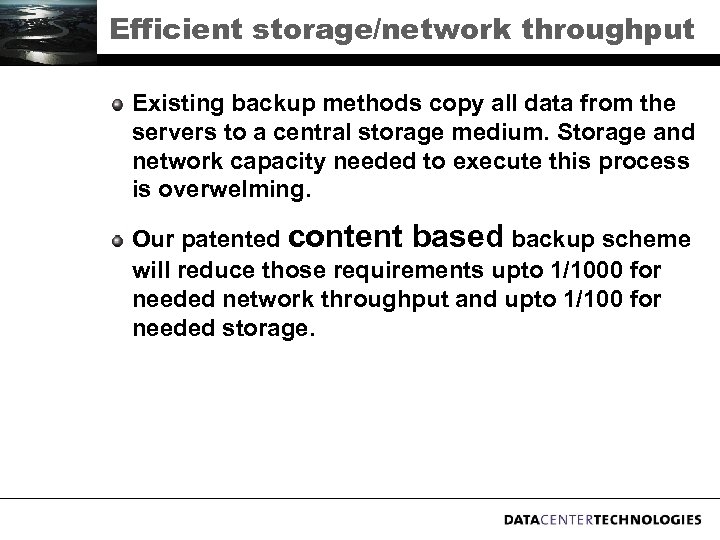

Efficient storage/network throughput Existing backup methods copy all data from the servers to a central storage medium. Storage and network capacity needed to execute this process is overwelming. Our patented content based backup scheme will reduce those requirements upto 1/1000 for needed network throughput and upto 1/100 for needed storage.

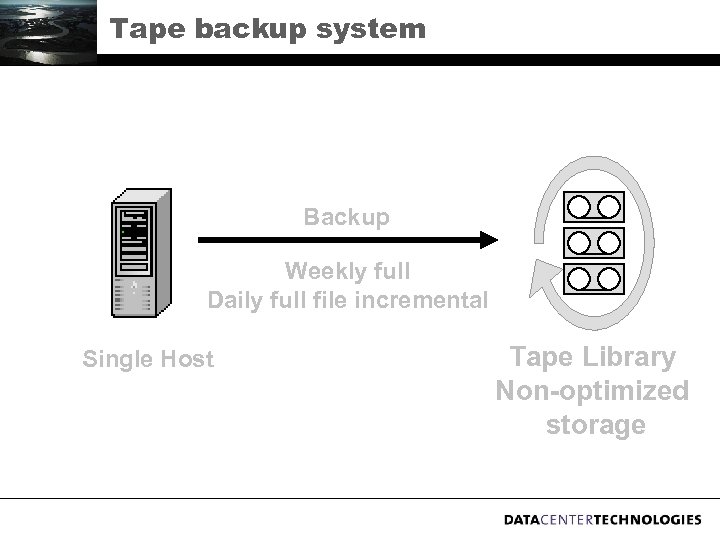

Tape backup system Backup Weekly full Daily full file incremental Single Host Tape Library Non-optimized storage

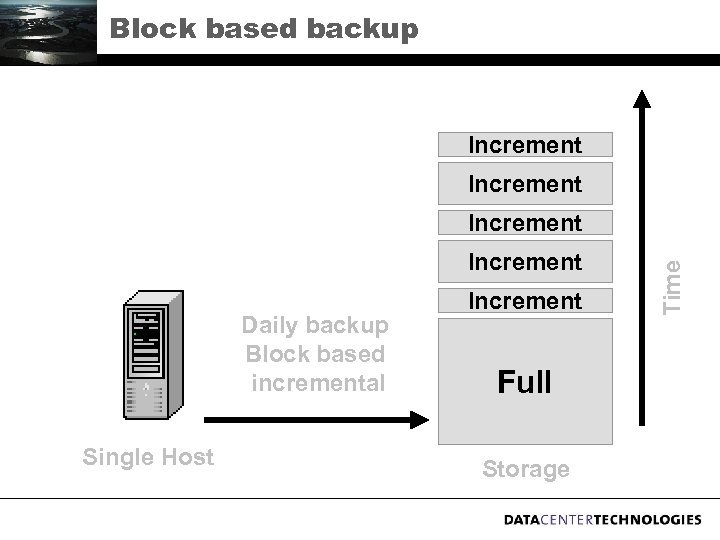

Block based backup Increment Daily backup Block based incremental Single Host Increment Full Storage Time Increment

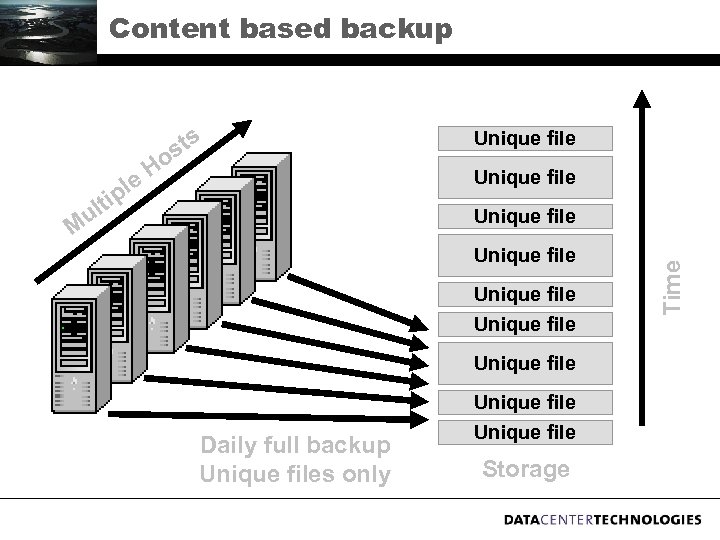

Content based backup s Unique file M Unique file Daily full backup Unique files only Unique file Storage Time e pl lti u st Ho

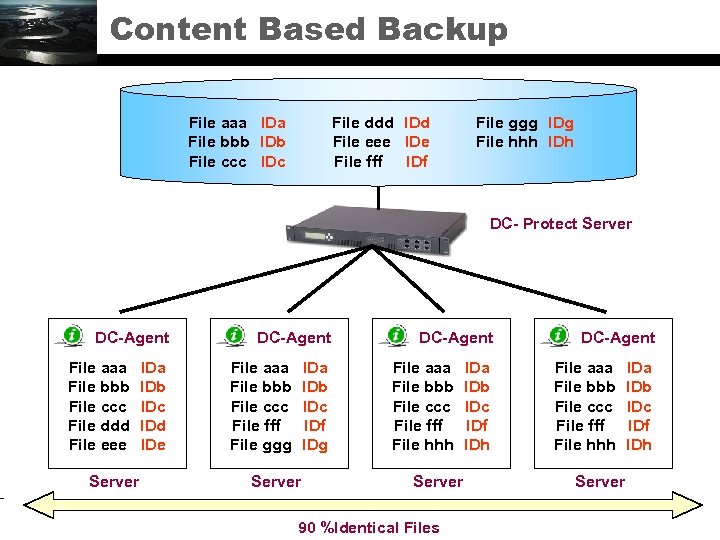

Content Based Backup Disk Storage DC-Agent File aaa File bbb File ccc File ddd File eee Server IDa IDb IDc IDd IDe File ddd IDd File eee IDe File fff IDf Backup Server File aaa IDa File bbb IDb File ccc IDc DC-Agent File aaa File bbb File ccc File fff File ggg IDa IDb IDc IDf IDg Server File ggg IDg File hhh IDh DC- Protect Server DC-Agent File aaa File bbb File ccc File fff File hhh Server 90 %Identical Files IDa IDb IDc IDf IDh DC-Agent File aaa File bbb File ccc File fff File hhh Server IDa IDb IDc IDf IDh

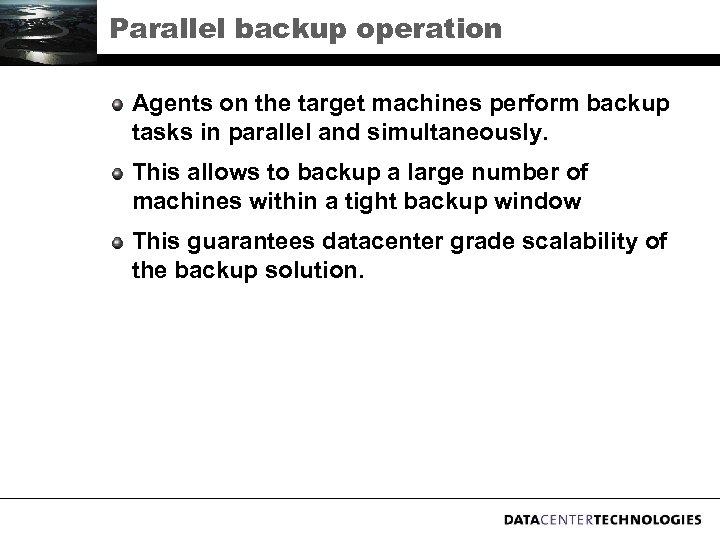

Parallel backup operation Agents on the target machines perform backup tasks in parallel and simultaneously. This allows to backup a large number of machines within a tight backup window This guarantees datacenter grade scalability of the backup solution.

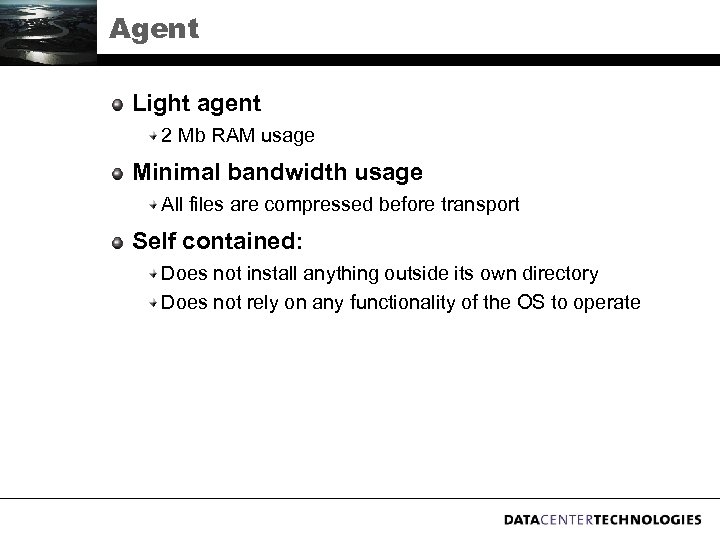

Agent Light agent 2 Mb RAM usage Minimal bandwidth usage All files are compressed before transport Self contained: Does not install anything outside its own directory Does not rely on any functionality of the OS to operate

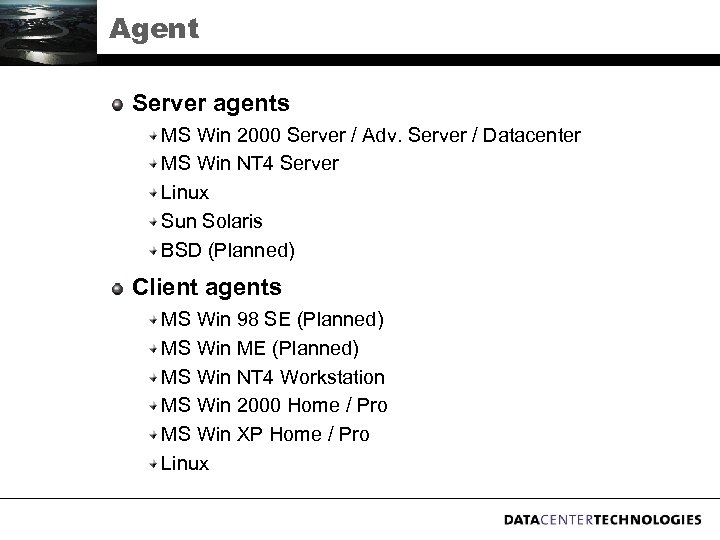

Agent Server agents MS Win 2000 Server / Adv. Server / Datacenter MS Win NT 4 Server Linux Sun Solaris BSD (Planned) Client agents MS Win 98 SE (Planned) MS Win ME (Planned) MS Win NT 4 Workstation MS Win 2000 Home / Pro MS Win XP Home / Pro Linux

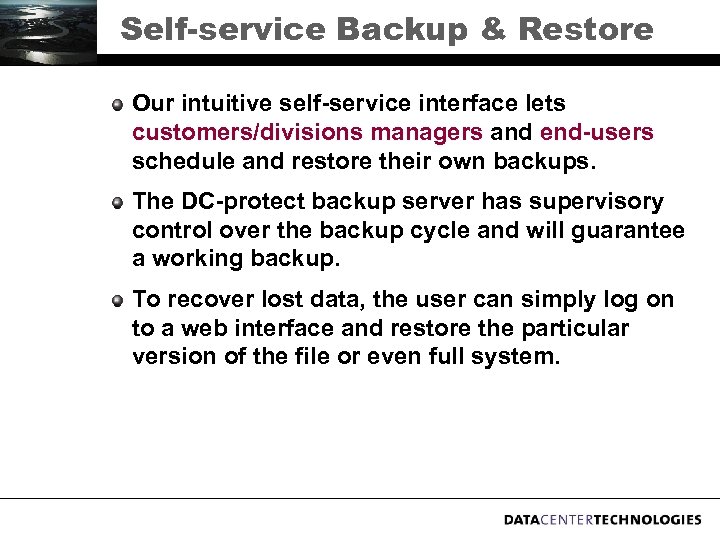

Self-service Backup & Restore Our intuitive self-service interface lets customers/divisions managers and end-users schedule and restore their own backups. The DC-protect backup server has supervisory control over the backup cycle and will guarantee a working backup. To recover lost data, the user can simply log on to a web interface and restore the particular version of the file or even full system.

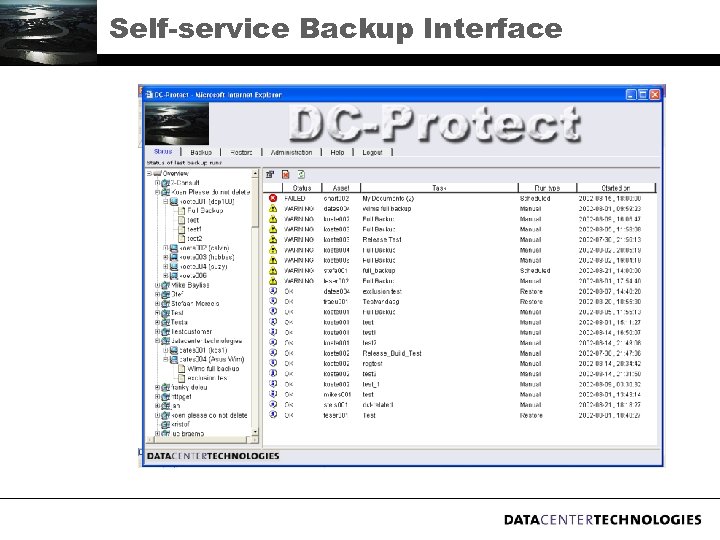

Self-service Backup Interface

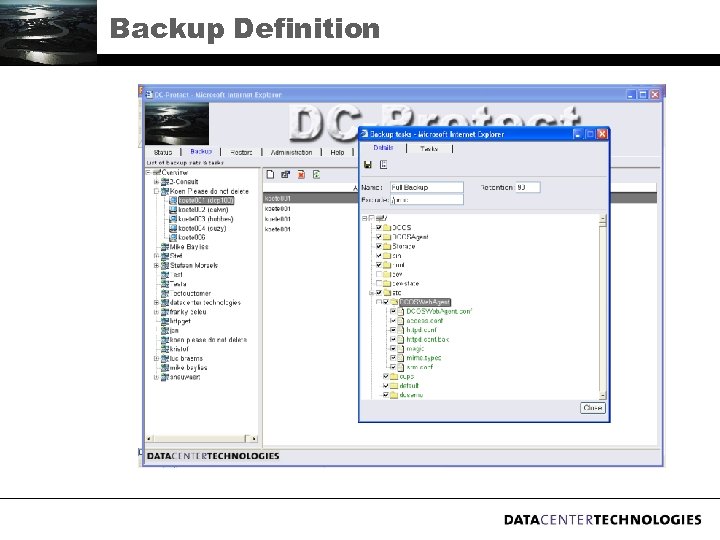

Backup Definition

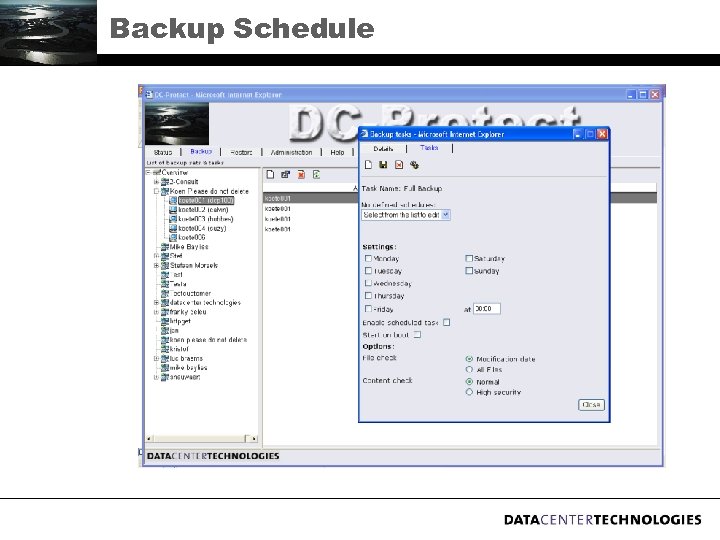

Backup Schedule

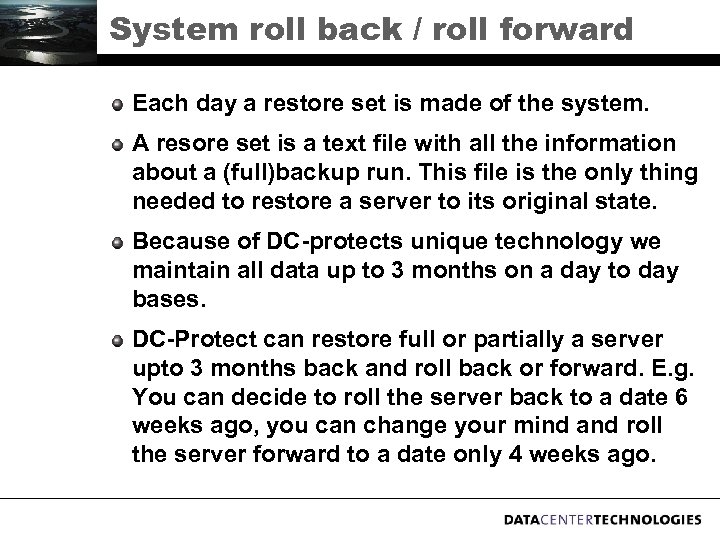

System roll back / roll forward Each day a restore set is made of the system. A resore set is a text file with all the information about a (full)backup run. This file is the only thing needed to restore a server to its original state. Because of DC-protects unique technology we maintain all data up to 3 months on a day to day bases. DC-Protect can restore full or partially a server upto 3 months back and roll back or forward. E. g. You can decide to roll the server back to a date 6 weeks ago, you can change your mind and roll the server forward to a date only 4 weeks ago.

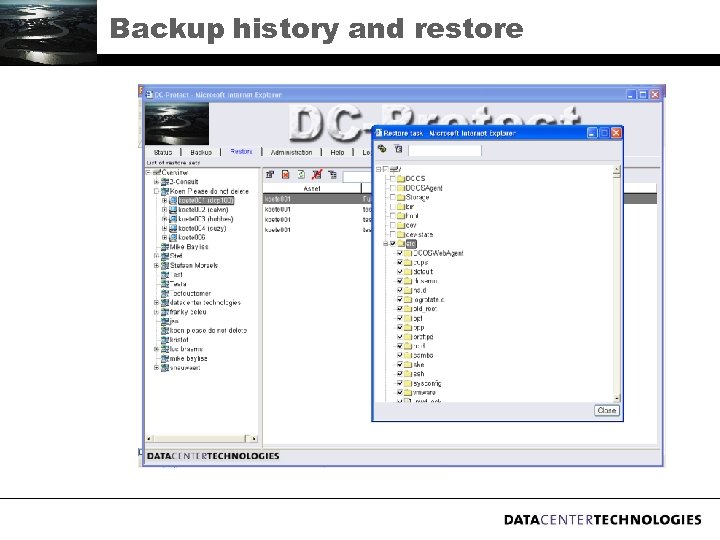

Backup history and restore

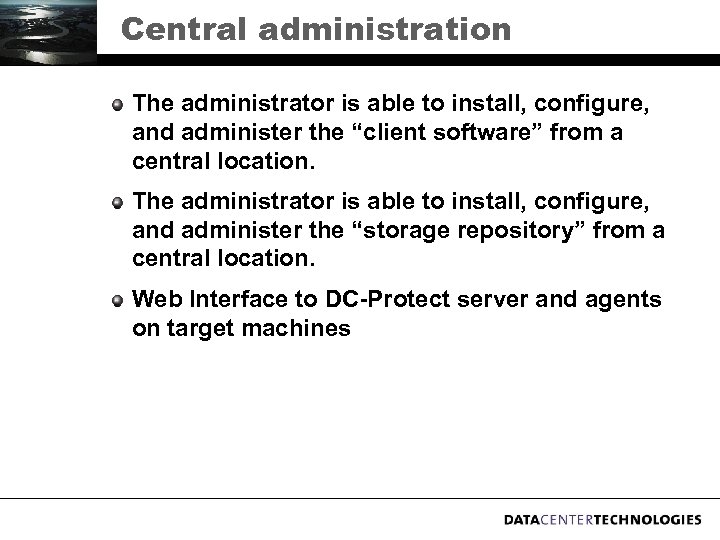

Central administration The administrator is able to install, configure, and administer the “client software” from a central location. The administrator is able to install, configure, and administer the “storage repository” from a central location. Web Interface to DC-Protect server and agents on target machines

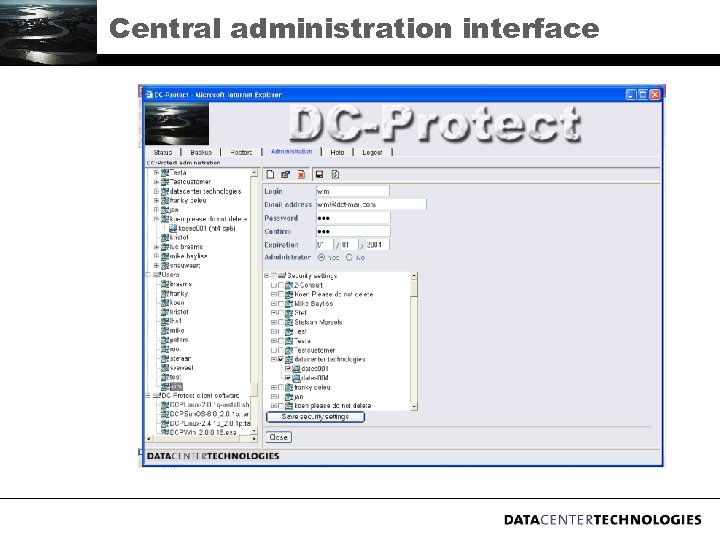

Central administration interface

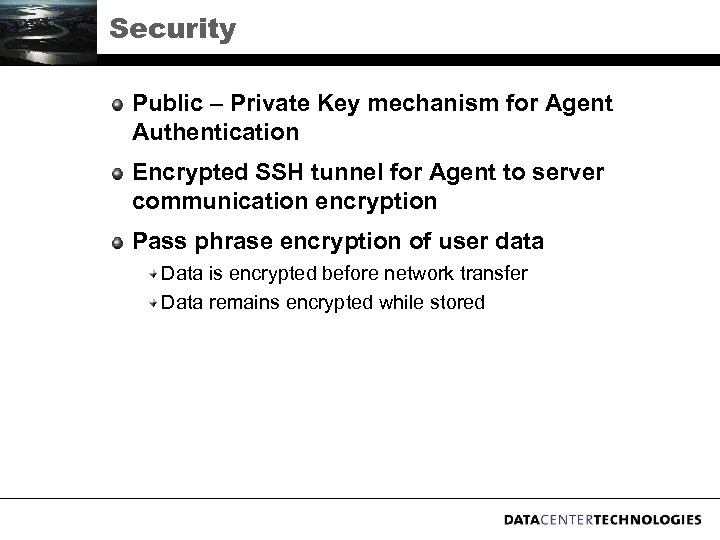

Security Public – Private Key mechanism for Agent Authentication Encrypted SSH tunnel for Agent to server communication encryption Pass phrase encryption of user data Data is encrypted before network transfer Data remains encrypted while stored

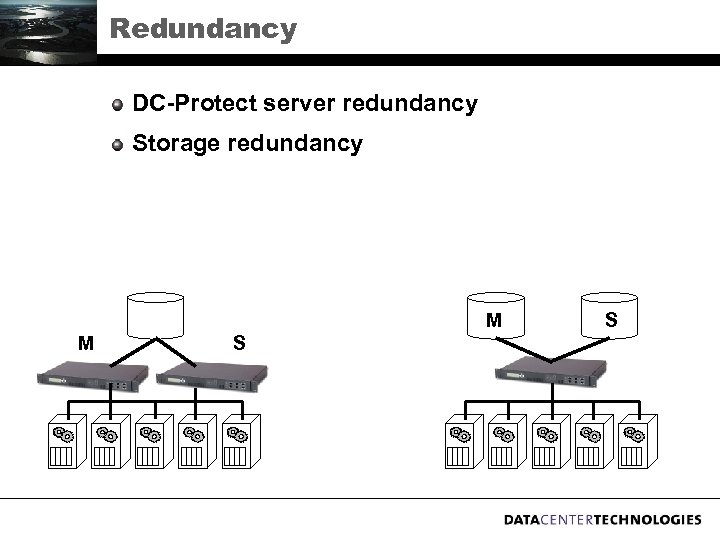

Redundancy DC-Protect server redundancy Storage redundancy M M S S

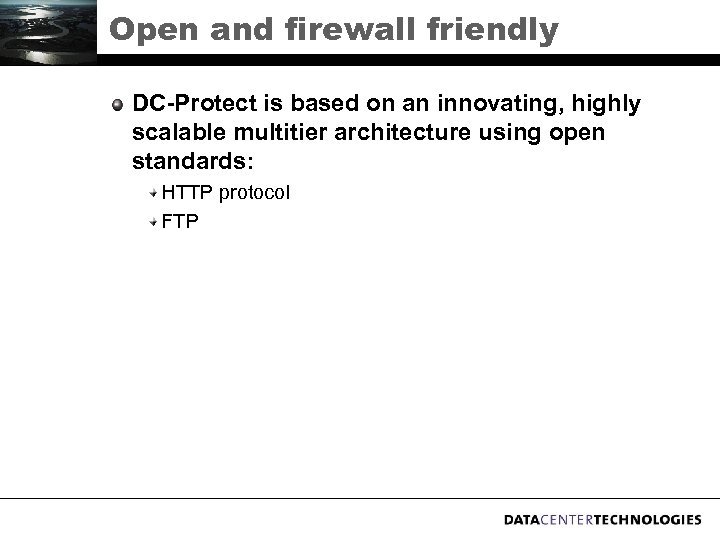

Open and firewall friendly DC-Protect is based on an innovating, highly scalable multitier architecture using open standards: HTTP protocol FTP

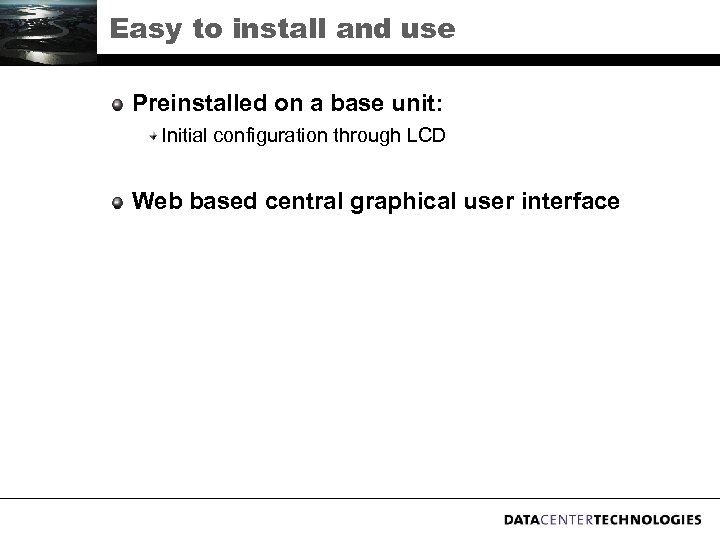

Easy to install and use Preinstalled on a base unit: Initial configuration through LCD Web based central graphical user interface

Platform HW platform (1 U) Basic Configuration through front LCD display Terminal connection for disaster recovery Minimal (no) maintenance design Internal HD for logging information. 6 network connections (4 * for connecting the storage (e. g. DCStorage or 3 e party NAS, 1 * for connectivity towards the servers link, 1 * for redundancy sync and heartbeat) Optional redundant configuration One DC-Protect platform for up to 50 servers to be managed. Runs our DC-Protect or DC-Operate software.
