Data security in mobile Java applications - how to select and use third-party security toolkits Independent Study: Wireless Security Weiyang Zhang March 20, 2003 Wireless security 1

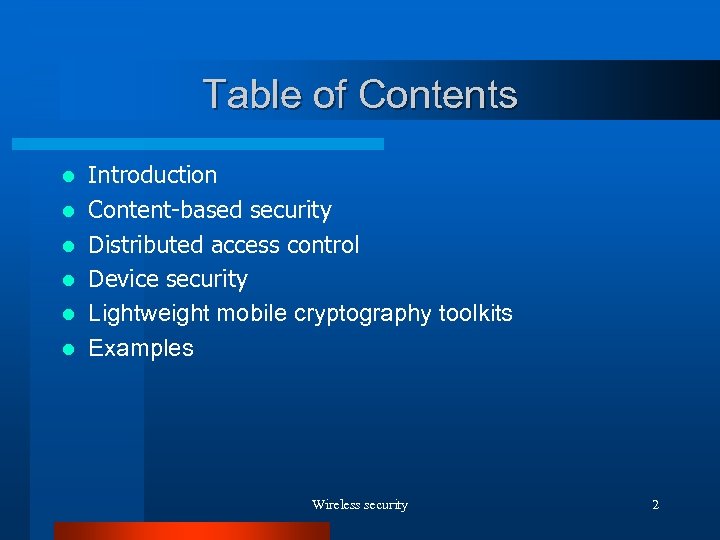

Table of Contents l l l Introduction Content-based security Distributed access control Device security Lightweight mobile cryptography toolkits Examples Wireless security 2

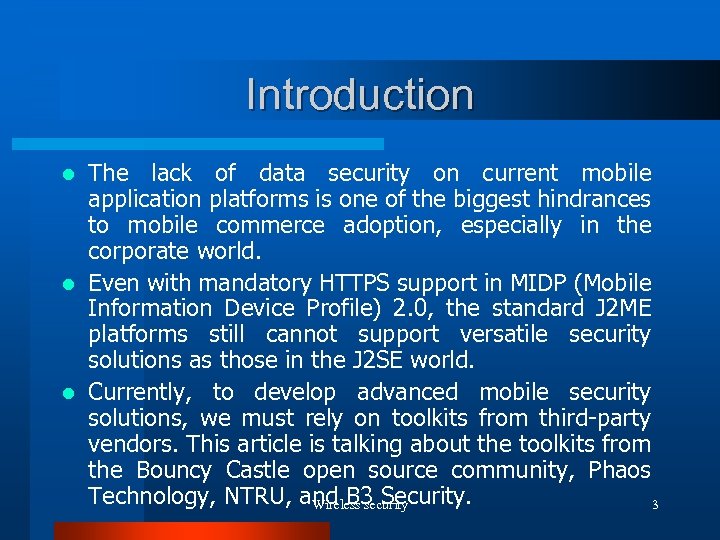

Introduction The lack of data security on current mobile application platforms is one of the biggest hindrances to mobile commerce adoption, especially in the corporate world. l Even with mandatory HTTPS support in MIDP (Mobile Information Device Profile) 2. 0, the standard J 2 ME platforms still cannot support versatile security solutions as those in the J 2 SE world. l Currently, to develop advanced mobile security solutions, we must rely on toolkits from third-party vendors. This article is talking about the toolkits from the Bouncy Castle open source community, Phaos Technology, NTRU, and B 3 Security. Wireless security 3 l

Content-based security HTTPS, SSL, and TLS are connection-based security protocols. l The basic idea is to secure communication channels and hence, secure everything that passes through those channels. l Wireless security 4

Problems of Content-based security(1) l Direct connection between client and server must be established Wireless security 5

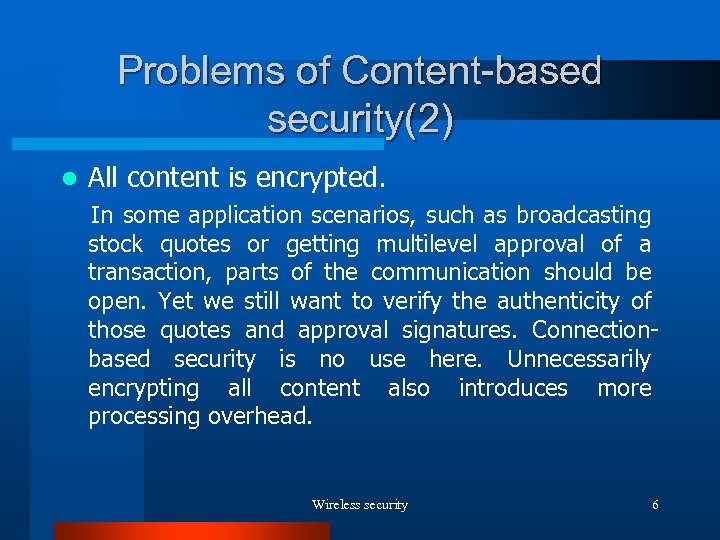

Problems of Content-based security(2) l All content is encrypted. In some application scenarios, such as broadcasting stock quotes or getting multilevel approval of a transaction, parts of the communication should be open. Yet we still want to verify the authenticity of those quotes and approval signatures. Connectionbased security is no use here. Unnecessarily encrypting all content also introduces more processing overhead. Wireless security 6

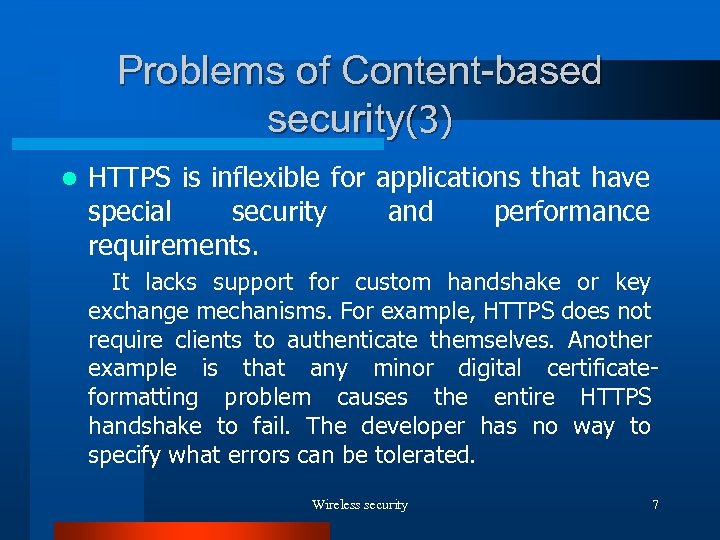

Problems of Content-based security(3) l HTTPS is inflexible for applications that have special security and performance requirements. It lacks support for custom handshake or key exchange mechanisms. For example, HTTPS does not require clients to authenticate themselves. Another example is that any minor digital certificateformatting problem causes the entire HTTPS handshake to fail. The developer has no way to specify what errors can be tolerated. Wireless security 7

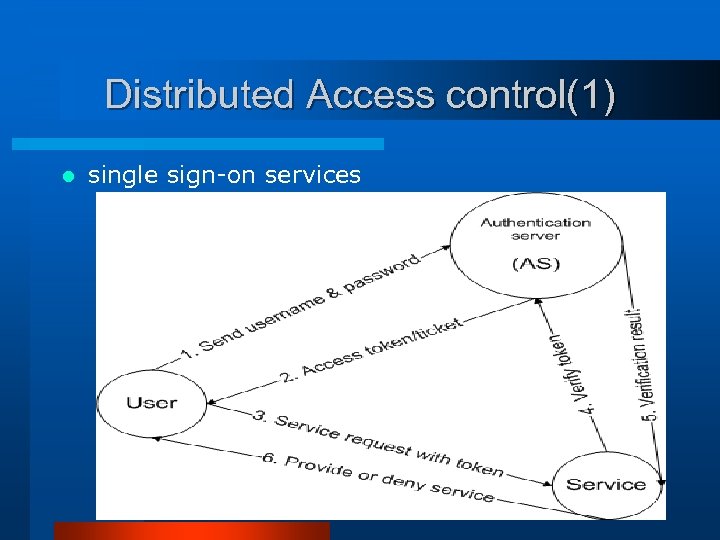

Distributed Access control(1) l single sign-on services Wireless security 8

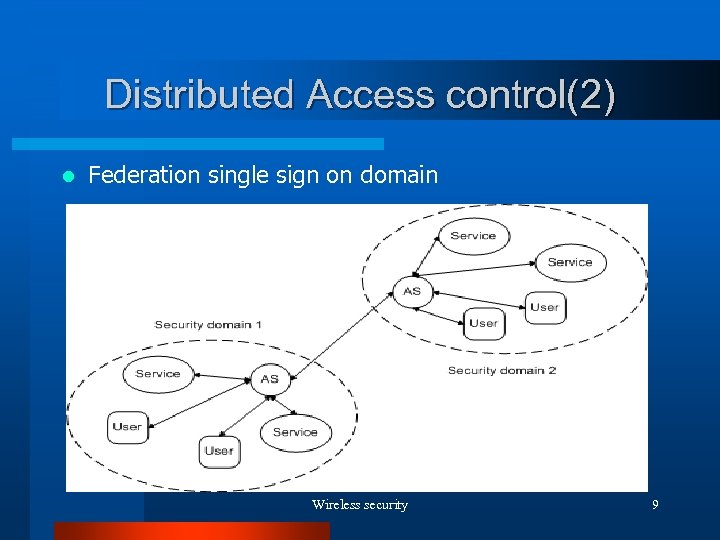

Distributed Access control(2) l Federation single sign on domain Wireless security 9

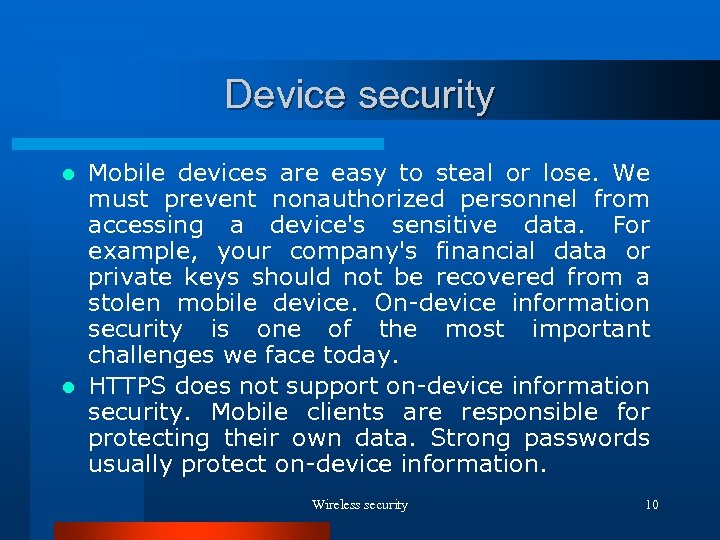

Device security Mobile devices are easy to steal or lose. We must prevent nonauthorized personnel from accessing a device's sensitive data. For example, your company's financial data or private keys should not be recovered from a stolen mobile device. On-device information security is one of the most important challenges we face today. l HTTPS does not support on-device information security. Mobile clients are responsible for protecting their own data. Strong passwords usually protect on-device information. l Wireless security 10

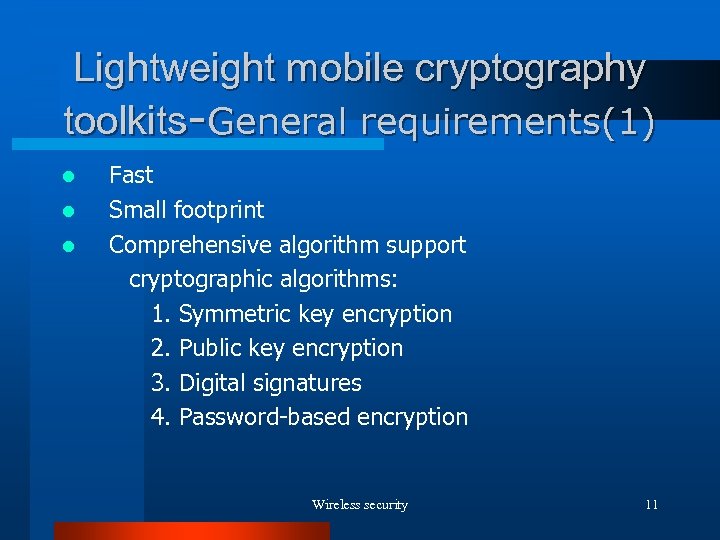

Lightweight mobile cryptography toolkits-General requirements(1) Fast l Small footprint l Comprehensive algorithm support cryptographic algorithms: 1. Symmetric key encryption 2. Public key encryption 3. Digital signatures 4. Password-based encryption l Wireless security 11

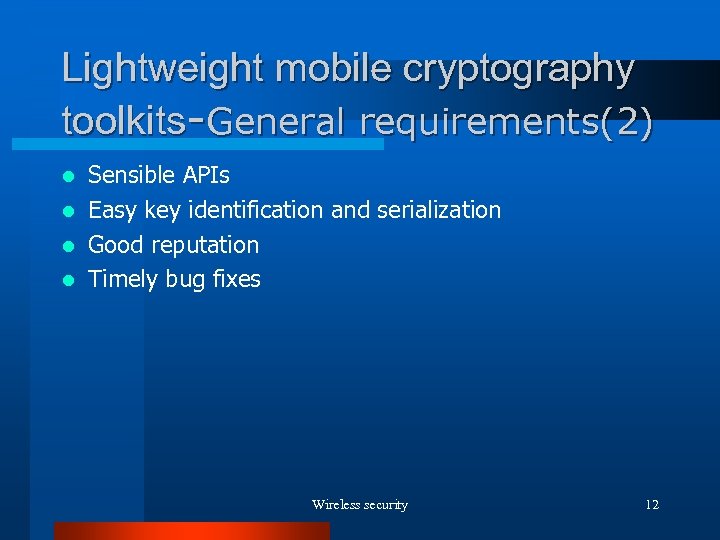

Lightweight mobile cryptography toolkits-General requirements(2) Sensible APIs l Easy key identification and serialization l Good reputation l Timely bug fixes l Wireless security 12

Bouncy Castle lightweight API l Bouncy Castle (BC) started out as a community effort to implement a free, clean-room, open source JCE provider. l The Bouncy Castle J 2 ME download package contains the implementation of the BC lightweight API as well as two core Java classes not supported in J 2 ME/CLDC: java. math. Big. Integer and java. security. Sercure. Random. Wireless security 13

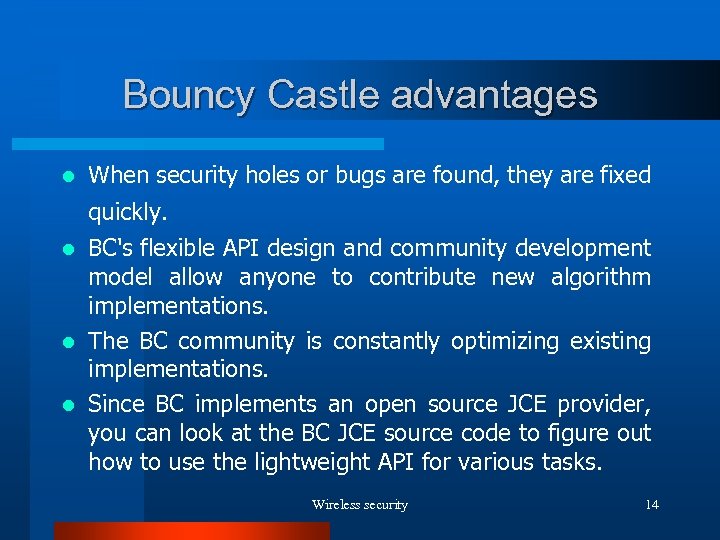

Bouncy Castle advantages l When security holes or bugs are found, they are fixed quickly. BC's flexible API design and community development model allow anyone to contribute new algorithm implementations. l The BC community is constantly optimizing existing implementations. l Since BC implements an open source JCE provider, you can look at the BC JCE source code to figure out how to use the lightweight API for various tasks. l Wireless security 14

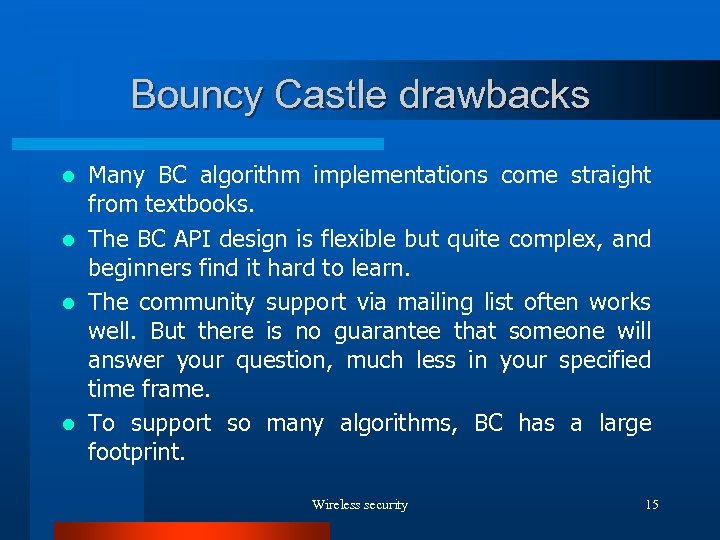

Bouncy Castle drawbacks Many BC algorithm implementations come straight from textbooks. l The BC API design is flexible but quite complex, and beginners find it hard to learn. l The community support via mailing list often works well. But there is no guarantee that someone will answer your question, much less in your specified time frame. l To support so many algorithms, BC has a large footprint. l Wireless security 15

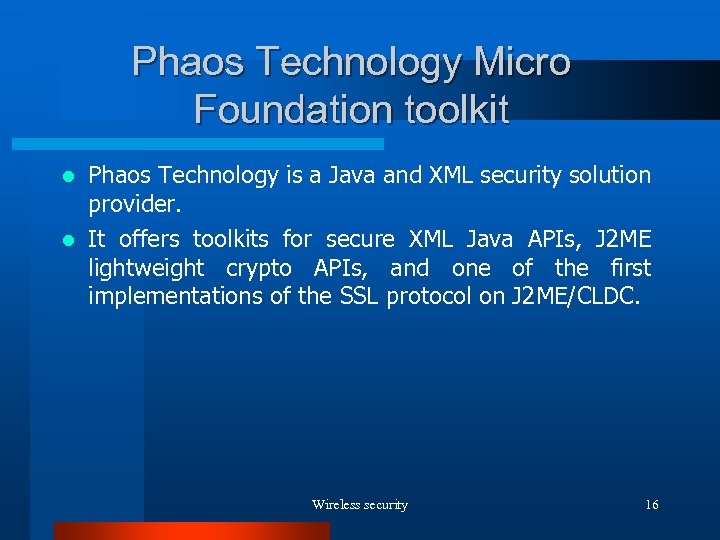

Phaos Technology Micro Foundation toolkit Phaos Technology is a Java and XML security solution provider. l It offers toolkits for secure XML Java APIs, J 2 ME lightweight crypto APIs, and one of the first implementations of the SSL protocol on J 2 ME/CLDC. l Wireless security 16

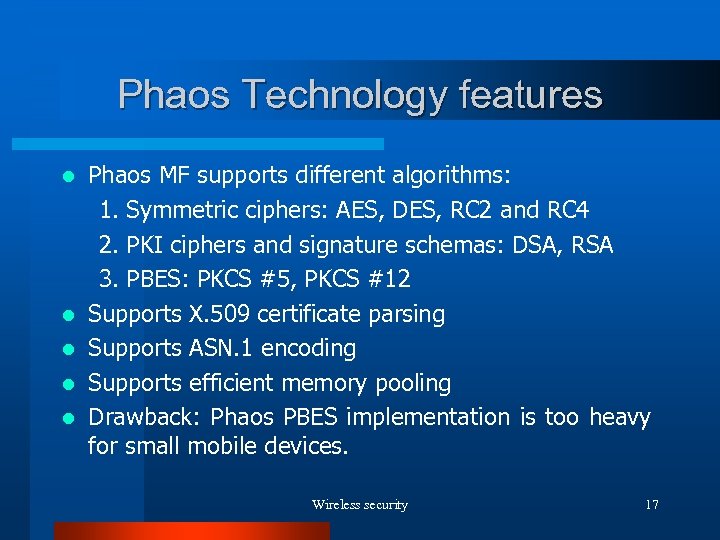

Phaos Technology features Phaos MF supports different algorithms: 1. Symmetric ciphers: AES, DES, RC 2 and RC 4 2. PKI ciphers and signature schemas: DSA, RSA 3. PBES: PKCS #5, PKCS #12 l Supports X. 509 certificate parsing l Supports ASN. 1 encoding l Supports efficient memory pooling l Drawback: Phaos PBES implementation is too heavy for small mobile devices. l Wireless security 17

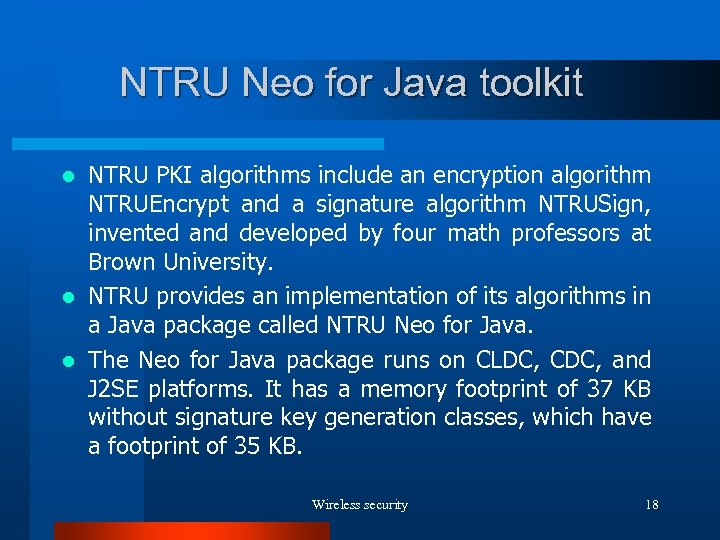

NTRU Neo for Java toolkit NTRU PKI algorithms include an encryption algorithm NTRUEncrypt and a signature algorithm NTRUSign, invented and developed by four math professors at Brown University. l NTRU provides an implementation of its algorithms in a Java package called NTRU Neo for Java. l The Neo for Java package runs on CLDC, CDC, and J 2 SE platforms. It has a memory footprint of 37 KB without signature key generation classes, which have a footprint of 35 KB. l Wireless security 18

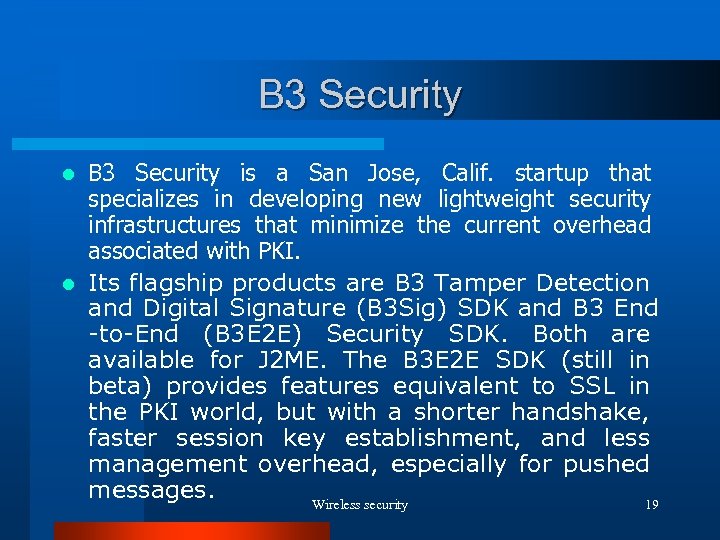

B 3 Security is a San Jose, Calif. startup that specializes in developing new lightweight security infrastructures that minimize the current overhead associated with PKI. l Its flagship products are B 3 Tamper Detection and Digital Signature (B 3 Sig) SDK and B 3 End -to-End (B 3 E 2 E) Security SDK. Both are available for J 2 ME. The B 3 E 2 E SDK (still in beta) provides features equivalent to SSL in the PKI world, but with a shorter handshake, faster session key establishment, and less management overhead, especially for pushed messages. Wireless security 19 l

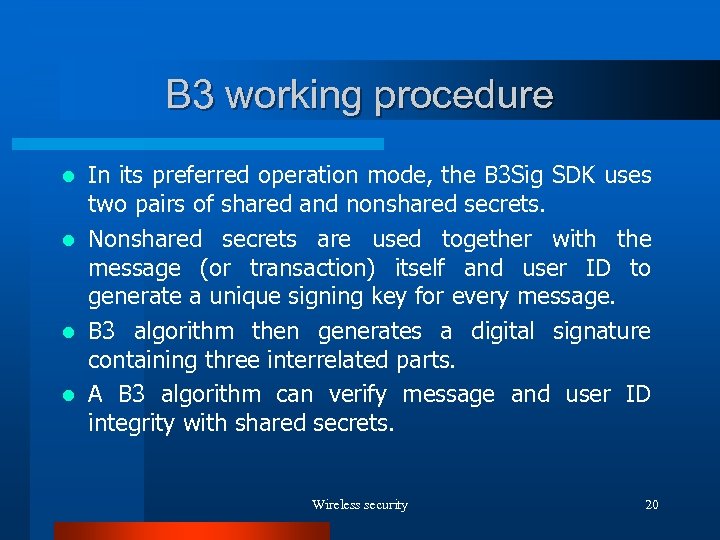

B 3 working procedure In its preferred operation mode, the B 3 Sig SDK uses two pairs of shared and nonshared secrets. l Nonshared secrets are used together with the message (or transaction) itself and user ID to generate a unique signing key for every message. l B 3 algorithm then generates a digital signature containing three interrelated parts. l A B 3 algorithm can verify message and user ID integrity with shared secrets. l Wireless security 20

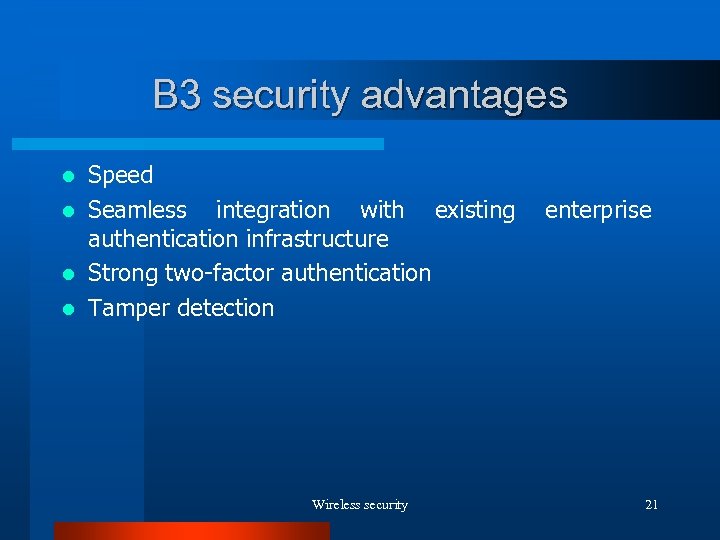

B 3 security advantages Speed l Seamless integration with existing enterprise authentication infrastructure l Strong two-factor authentication l Tamper detection l Wireless security 21

Digital signature examples(1) Digital signature can guarantee message integrity and authenticity in an open network. To generate a signature, you first calculate a hash (also called digest) of your message. Then you encrypt that hash with your private key to generate a signature. l The party at the receiving end first decrypts your signature into a hash using your public key. Then she calculates the hash from your message. If the two hashes match, the message is indeed from you and unaltered. l Wireless security 22

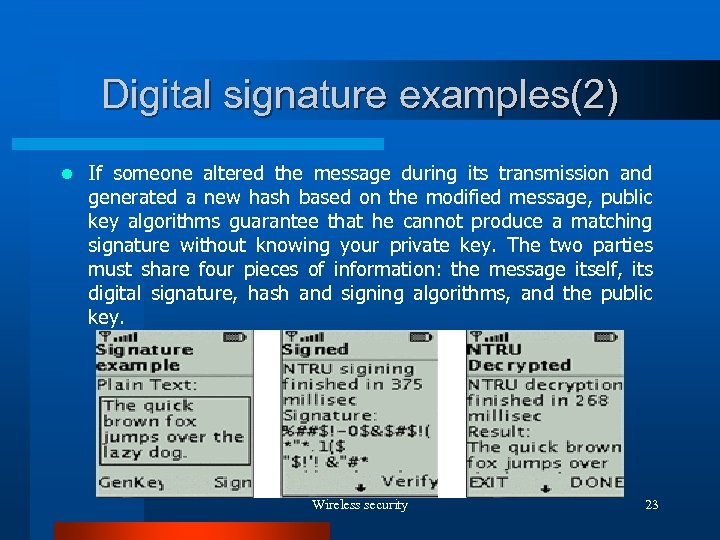

Digital signature examples(2) l If someone altered the message during its transmission and generated a new hash based on the modified message, public key algorithms guarantee that he cannot produce a matching signature without knowing your private key. The two parties must share four pieces of information: the message itself, its digital signature, hash and signing algorithms, and the public key. Wireless security 23

Digital signature examples(3) l Bouncy Castle supports DSA, RSA, and ECC (Elliptic Curve Cryptography) digital signature algorithms. My code example only shows how to use the RSA signature. Wireless security 24

Digital signature examples(4) l Bouncy Castle RSA key generation in Crypto. Engine: public void generate. RSAKey. Pair () throws Exception { Secure. Random sr = new Secure. Random(); Big. Integer pub. Exp = new Big. Integer("10001", 16); RSAKey. Generation. Parameters RSAKey. Gen. Para = new RSAKey. Generation. Parameters(pub. Exp, sr, 1024, 80); RSAKey. Pair. Generator RSAKey. Pair. Gen = new RSAKey. Pair. Generator(); RSAKey. Pair. Gen. init(RSAKey. Gen. Para); Asymmetric. Cipher. Key. Pair key. Pair = RSAKey. Pair. Gen. generate. Key. Pair(); RSApriv. Key = (RSAPrivate. Crt. Key. Parameters) key. Pair. get. Private(); RSApub. Key = (RSAKey. Parameters) key. Pair. get. Public(); } Wireless security 25
