Data Center Consolidation and Virtualization Michael Macica Solutions Architect, HP SLED Technology Solutions Group, Hewlett-Packard © 2009 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice

Dynamic Business Climate 2 3/19/2018 Hard-Wired Data Center

Yesterday’s infrastructure Built one server at a time Line of business selects application Get purchase approvals Project planning meetings Order server And more meetings server network storage facilities Server delivery unpack inventory Move to test center • Move to production environment Re-cable and move into production Many people Many manual steps • Many weeks • Human error • Change control approvals Build process

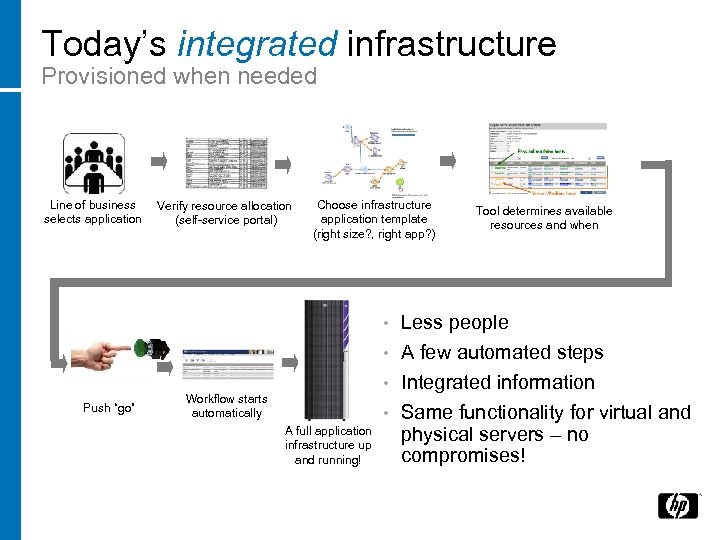

Today’s integrated infrastructure Provisioned when needed Line of business selects application Verify resource allocation (self-service portal) Choose infrastructure application template (right size? , right app? ) Tool determines available resources and when Less people • A few automated steps • Push “go” Integrated information • Same functionality for virtual and physical servers – no compromises! • Workflow starts automatically A full application infrastructure up and running!

Blade. System Matrix delivers Infrastructure as a Service Enabling a shared services model Service Portal Service Catalog Service Requester Service Compliance Supply Portal Service Template s Service Supplier Inventory

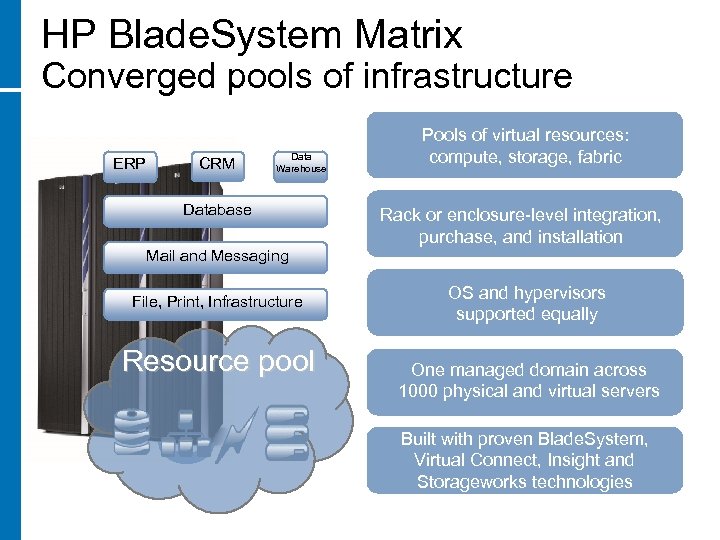

HP Blade. System Matrix Converged pools of infrastructure ERP CRM Data Warehouse Database Pools of virtual resources: compute, storage, fabric Rack or enclosure-level integration, purchase, and installation Mail and Messaging File, Print, Infrastructure Resource pool OS and hypervisors supported equally One managed domain across 1000 physical and virtual servers Built with proven Blade. System, Virtual Connect, Insight and Storageworks technologies

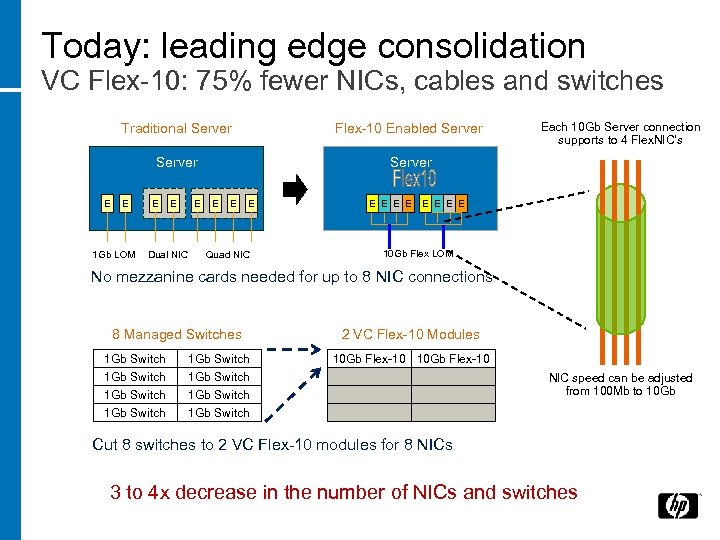

Today: leading edge consolidation VC Flex-10: 75% fewer NICs, cables and switches Traditional Server E Flex-10 Enabled Server Each 10 Gb Server connection supports to 4 Flex. NIC’s Server E 1 Gb LOM E E Dual NIC E E Quad NIC E E E E 10 Gb Flex LOM No mezzanine cards needed for up to 8 NIC connections 8 Managed Switches 1 Gb Switch 1 Gb Switch 2 VC Flex-10 Modules 10 Gb Flex-10 NIC speed can be adjusted from 100 Mb to 10 Gb Cut 8 switches to 2 VC Flex-10 modules for 8 NICs 3 to 4 x decrease in the number of NICs and switches

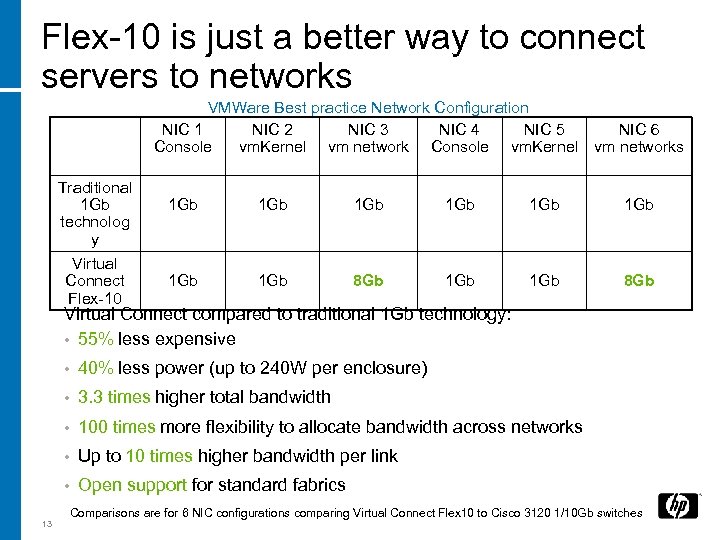

Flex-10 is just a better way to connect servers to networks VMWare Best practice Network Configuration NIC 1 NIC 2 NIC 3 NIC 4 NIC 5 Console vm. Kernel vm network Console vm. Kernel Traditional 1 Gb technolog y Virtual Connect Flex-10 NIC 6 vm networks 1 Gb 1 Gb 8 Gb 1 Gb 8 Gb Virtual Connect compared to traditional 1 Gb technology: • 55% less expensive • • 3. 3 times higher total bandwidth • 100 times more flexibility to allocate bandwidth across networks • Up to 10 times higher bandwidth per link • 13 40% less power (up to 240 W per enclosure) Open support for standard fabrics Comparisons are for 6 NIC configurations comparing Virtual Connect Flex 10 to Cisco 3120 1/10 Gb switches

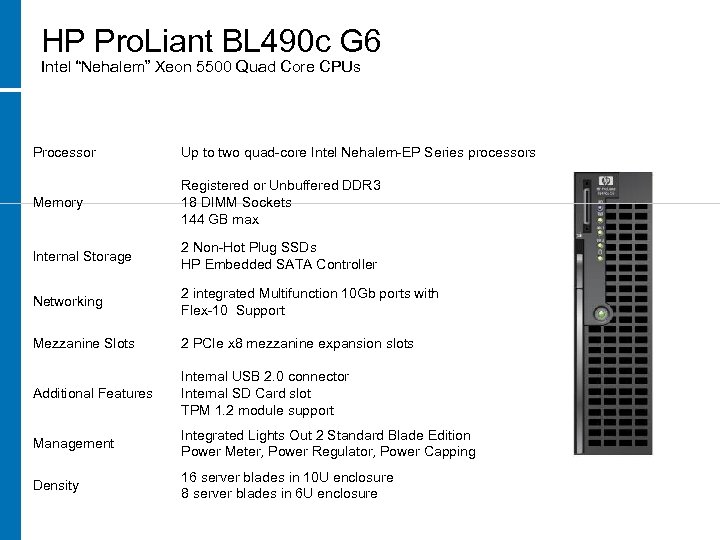

HP Pro. Liant BL 490 c G 6 Intel “Nehalem” Xeon 5500 Quad Core CPUs BL 490 c G 6 Processor Up to two quad-core Intel Nehalem-EP Series processors Memory Registered or Unbuffered DDR 3 18 DIMM Sockets 144 GB max Internal Storage 2 Non-Hot Plug SSDs HP Embedded SATA Controller Networking 2 integrated Multifunction 10 Gb ports with Flex-10 Support Mezzanine Slots 2 PCIe x 8 mezzanine expansion slots Additional Features Internal USB 2. 0 connector Internal SD Card slot TPM 1. 2 module support Management Integrated Lights Out 2 Standard Blade Edition Power Meter, Power Regulator, Power Capping Density 16 server blades in 10 U enclosure 8 server blades in 6 U enclosure 14

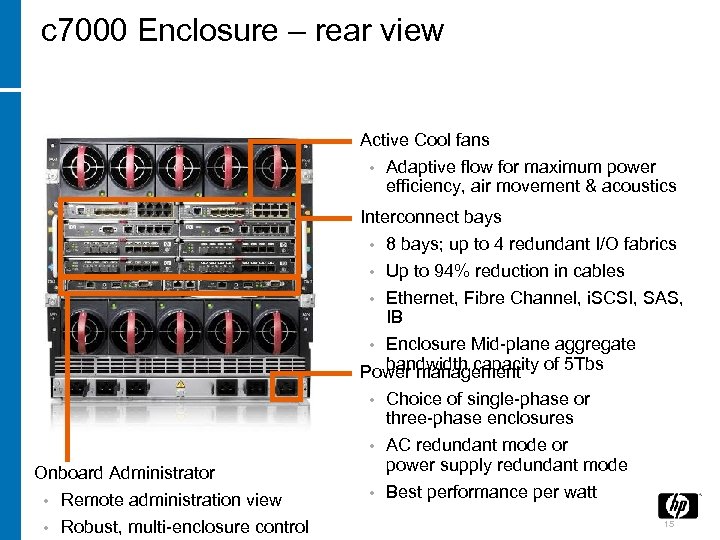

c 7000 Enclosure – rear view Active Cool fans • Adaptive flow for maximum power efficiency, air movement & acoustics Interconnect bays 8 bays; up to 4 redundant I/O fabrics • Up to 94% reduction in cables • Ethernet, Fibre Channel, i. SCSI, SAS, IB • Enclosure Mid-plane aggregate bandwidth capacity of 5 Tbs Power management • Choice of single-phase or three-phase enclosures • AC redundant mode or power supply redundant mode • Best performance per watt • Onboard Administrator Remote administration view • Robust, multi-enclosure control • 15

HP Insight Dynamics – VSE Continuously analyze and optimize your infrastructure • Bring the flexibility of virtualization to physical servers Real-time capacity planning for servers and power • Control physical and virtual resources in the same way • Building on the value of HP Systems Insight Manager, Insight Control and Virtual Server Environment Addressing key data center issues: cost, speed, quality and energy 17

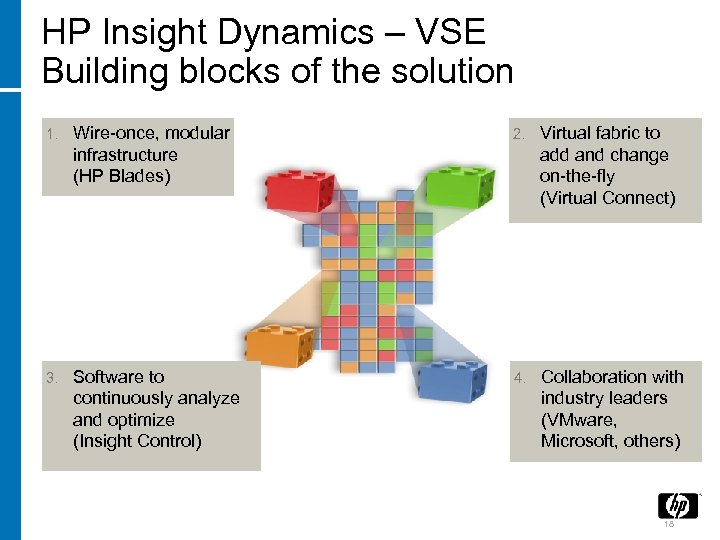

HP Insight Dynamics – VSE Building blocks of the solution 1. Wire-once, modular infrastructure (HP Blades) 2. Virtual fabric to add and change on-the-fly (Virtual Connect) 3. Software to continuously analyze and optimize (Insight Control) 4. Collaboration with industry leaders (VMware, Microsoft, others) 18

ID-VSE brings flexibility of virtualization to physical servers Logical server Image Configuration requirements Unique IDs Server HP Logical Server technology • A server profile that is easily created and freely moved across physical and virtual machines Logical servers can be: • Active physical servers • Active virtual machines • Offline templates Virtual Fabric 19

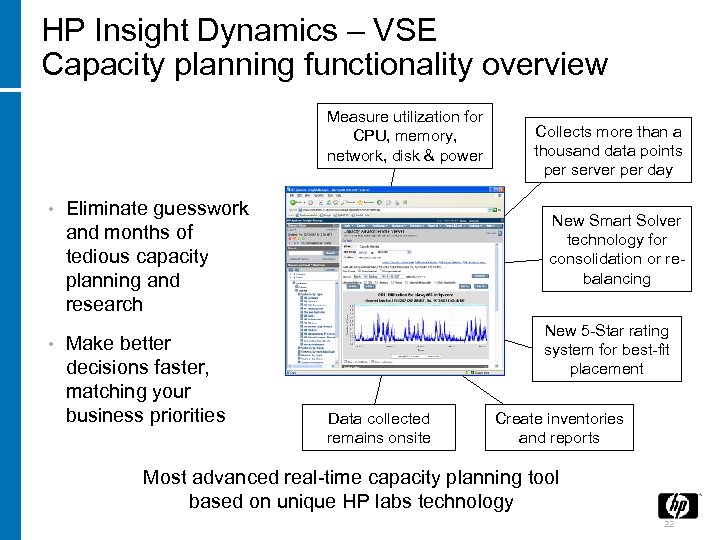

HP Insight Dynamics – VSE Capacity planning functionality overview Measure utilization for CPU, memory, network, disk & power • • Eliminate guesswork and months of tedious capacity planning and research Make better decisions faster, matching your business priorities Collects more than a thousand data points per server per day New Smart Solver technology for consolidation or rebalancing New 5 -Star rating system for best-fit placement Data collected remains onsite Create inventories and reports Most advanced real-time capacity planning tool based on unique HP labs technology 22

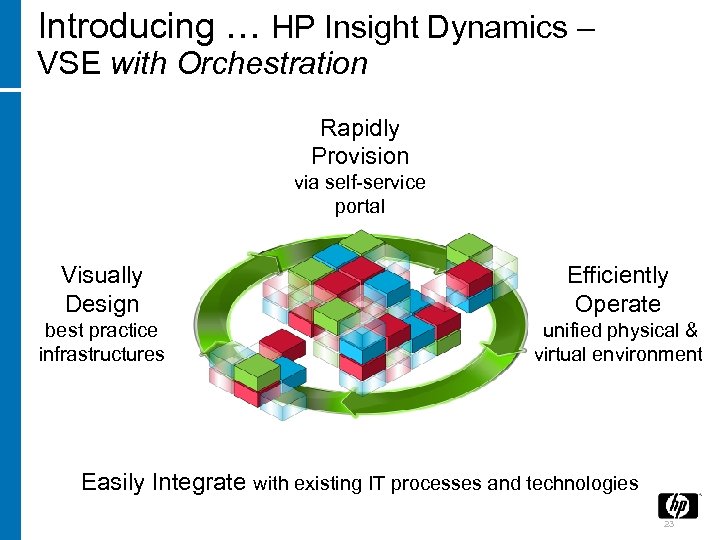

Introducing … HP Insight Dynamics – VSE with Orchestration Rapidly Provision via self-service portal Visually Design Efficiently Operate best practice infrastructures unified physical & virtual environment Easily Integrate with existing IT processes and technologies 23

ID-VSE with Orchestration Capabilities Summary Templates, Workflows, Automation Consistency and Standardization IT Teams Provision Design • Visually design infrastructure service templates • Publish bestpractice templates to self-service portal Operate IT Systems • Optimize through energy-aware capacity planning , placement, control • Manage & recover • Store, copy, • Select approved physical and virtual share templates template and environments across Dev, provision from Test, resource pool Production, DR - with existing IT processes and technologies Integrate • Deep integration with HP Software automation technology • Support for industry leading virtualization environments Systems Insight Manager & Insight Control Virtual Connect/VCEM Server, Network, Storage Network Storage Servers virtual machines 25

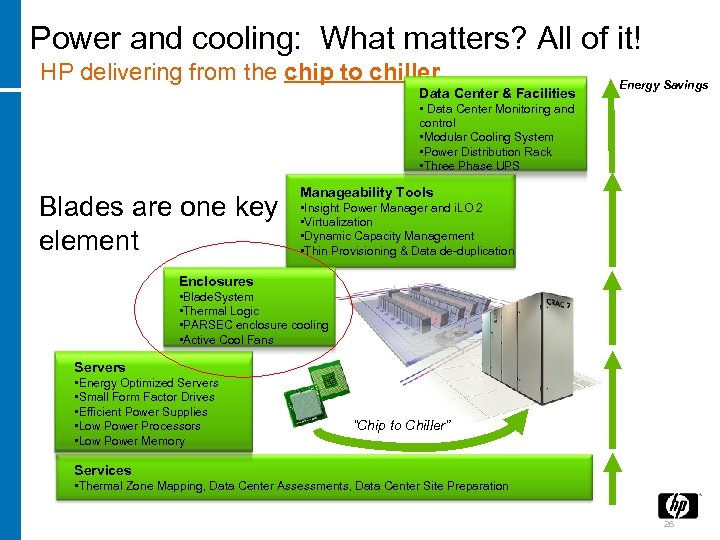

Power and cooling: What matters? All of it! HP delivering from the chip to chiller Data Center & Facilities Energy Savings • Data Center Monitoring and control • Modular Cooling System • Power Distribution Rack • Three Phase UPS Blades are one key element Manageability Tools • Insight Power Manager and i. LO 2 • Virtualization • Dynamic Capacity Management • Thin Provisioning & Data de-duplication Enclosures • Blade. System • Thermal Logic • PARSEC enclosure cooling • Active Cool Fans Servers • Energy Optimized Servers • Small Form Factor Drives • Efficient Power Supplies • Low Power Processors • Low Power Memory “Chip to Chiller” Services • Thermal Zone Mapping, Data Center Assessments, Data Center Site Preparation 26

General Industry DC cooling Best Practices 1. 2. 3. 4. 5. Hot aisle/cold aisle Eliminate gaps in rows Use longer rows Use blanking panels Orient AC units perpendicular to hot aisles 6. Use 0. 8 m to 1. 0 m high floors Results 7. Seal cable cutouts in… 8. Use high/low density areas matching airflow requirements. 9. Deploy power efficient platforms 10. Enable server power management features Lower server temperatures • Better system reliability • Better uptime • Extends life of current data center • Maximizes server density • Increased reliability of your servers • Lower energy usage • Lower TCO • 27

Datacenter Environmental Edge HP Datacenter Environmental Edge is a Datacenter Environmental Visualization Solution with • • • Wireless Rack level temperature and humidity sensors every 3 rd rack 6 External and 2 internal sensors per rack, Air pressure sensors every 500 ft 2/50 m 2, Other optional sensors as needed, (i. e. KWH, Chilled water flow) Graphical visualization interface providing Datacenter temperature, humidity & air pressure Services required − Hardware and Software installation − System commissioning − Post deployment support. 28

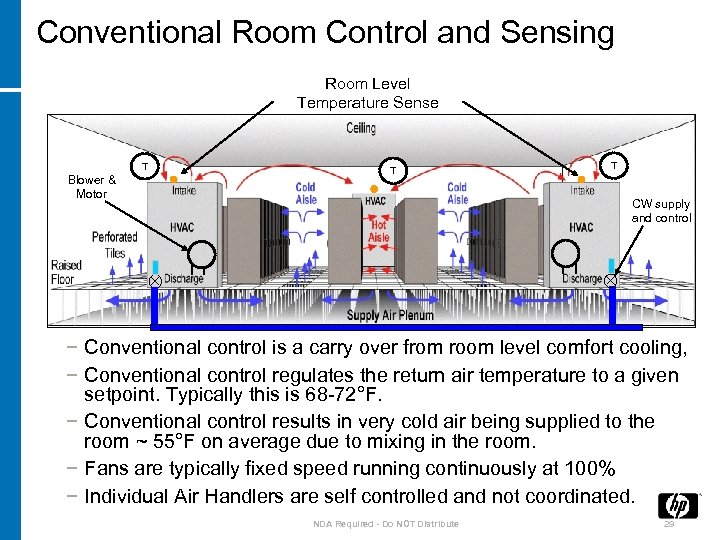

Conventional Room Control and Sensing Room Level Temperature Sense Points T Blower & Motor T T AC Unit CW supply Air Movers and control Chilled Valve Room Chilled Water Supply − Conventional control is a carry over from room level comfort cooling, − Conventional control regulates the return air temperature to a given setpoint. Typically this is 68 -72°F. − Conventional control results in very cold air being supplied to the room ~ 55°F on average due to mixing in the room. − Fans are typically fixed speed running continuously at 100% − Individual Air Handlers are self controlled and not coordinated. NDA Required - Do NOT Distribute 29

HP Datacenter Environmental Edge Key Monitoring Points 30

Data Center Consolidation and Virtualization Thank you! © 2009 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice
