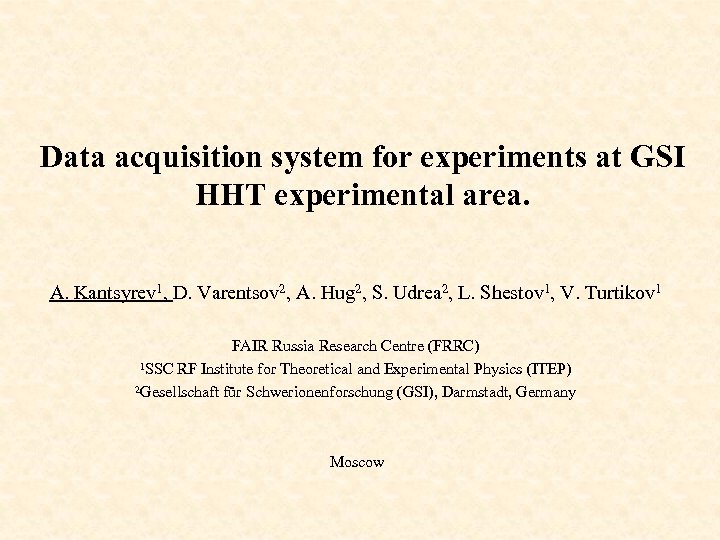

Data acquisition system for experiments at GSI HHT experimental area. A. Kantsyrev 1, D. Data acquisition system for experiments at GSI HHT experimental area. A. Kantsyrev 1, D. Varentsov 2, A. Hug 2, S. Udrea 2, L. Shestov 1, V. Turtikov 1 FAIR Russia Research Centre (FRRC) 1 SSC RF Institute for Theoretical and Experimental Physics (ITEP) 2 Gesellschaft für Schwerionenforschung (GSI), Darmstadt, Germany Moscow

HEDge. HOB collaboration will construct and run at FAIR two HEDP experiments: HIHEX, LAPLAS HEDge. HOB collaboration will construct and run at FAIR two HEDP experiments: HIHEX, LAPLAS and proton radiography setup (proton microscope for FAIR - PRIOR) HIHEX Heavy Ion Heating and Expansion LAPLAS Laboratory Planetary Sciences uniform quasi-isochoric heating of a large-volume dense target hollow (ring-shaped) beam heats a heavy tamper shell quasi-isentropic expansion in 1 D (plane or cylindrical) geometry cylindrical implosion and low-entropy compression Numerous high-entropy HED states: EOS and transport properties of e. g. , non-ideal plasmas, WDM and the critical point regions for various materials GSI (SIS-18) HHT experiments already present Mbar pressures @ moderate temperatures ultra-high density HED states, e. g. hydrogen metallization problem, interior of Jupiter, Saturn and Earth WOBLER prototype in ITEP will start in 2011

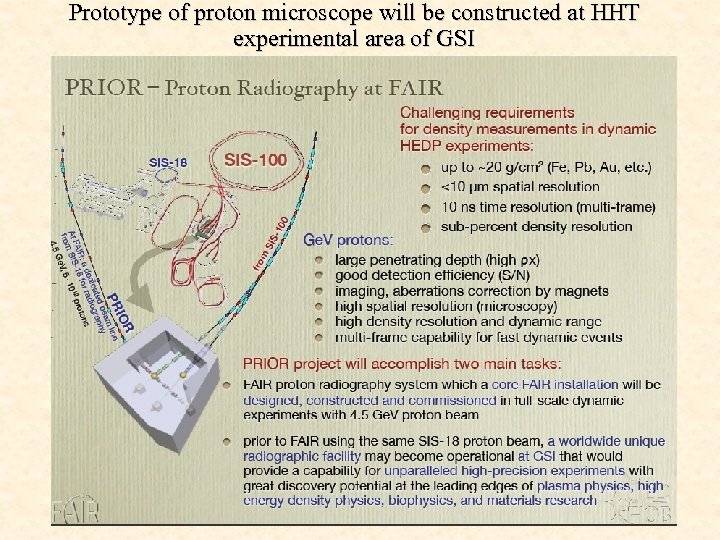

Prototype of proton microscope will be constructed at HHT experimental area of GSI Prototype of proton microscope will be constructed at HHT experimental area of GSI

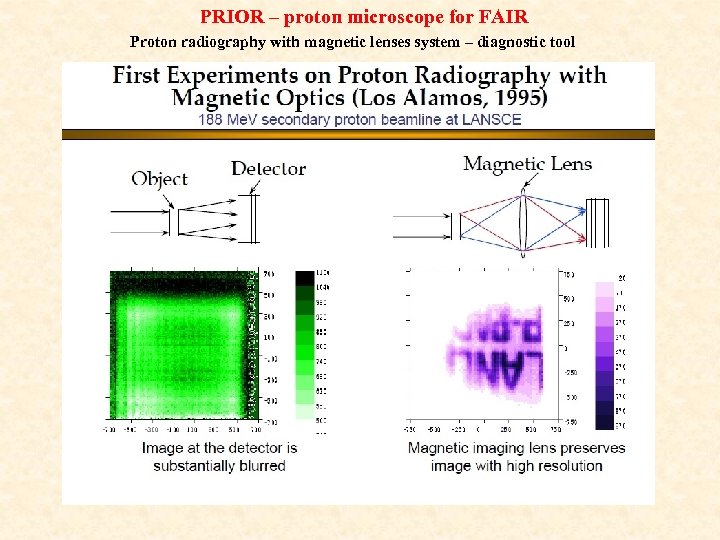

PRIOR – proton microscope for FAIR Proton radiography with magnetic lenses system – diagnostic PRIOR – proton microscope for FAIR Proton radiography with magnetic lenses system – diagnostic tool

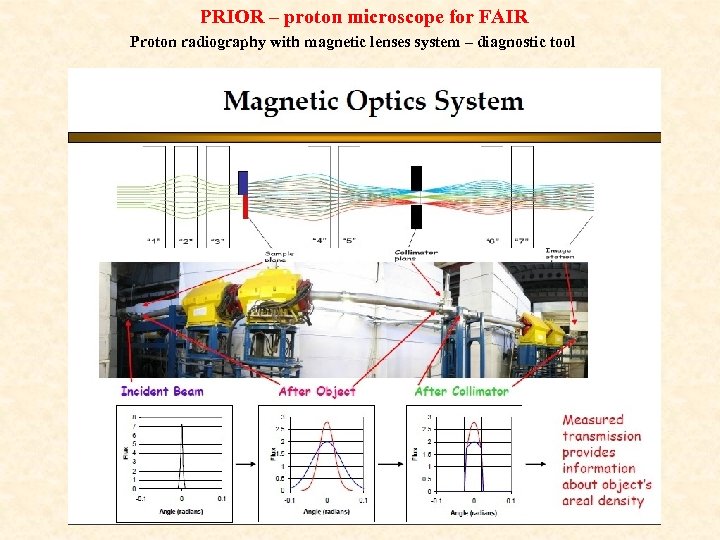

PRIOR – proton microscope for FAIR Proton radiography with magnetic lenses system – diagnostic PRIOR – proton microscope for FAIR Proton radiography with magnetic lenses system – diagnostic tool

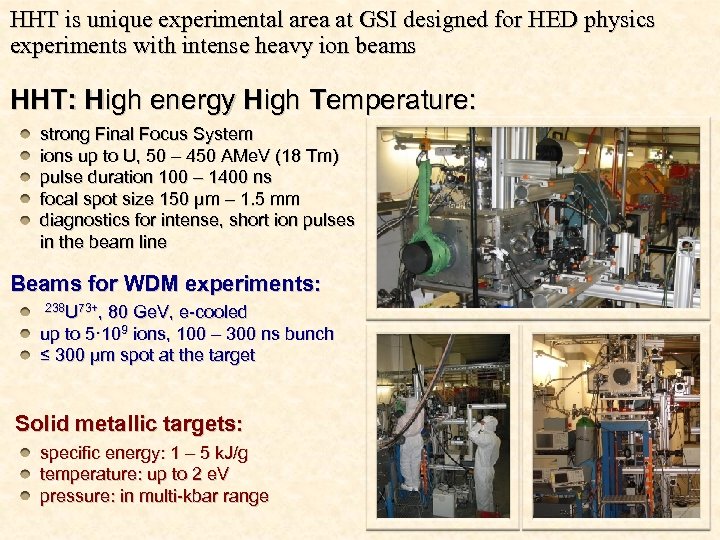

HHT is unique experimental area at GSI designed for HED physics experiments with intense HHT is unique experimental area at GSI designed for HED physics experiments with intense heavy ion beams HHT: High energy High Temperature: strong Final Focus System ions up to U, 50 – 450 AMe. V (18 Tm) pulse duration 100 – 1400 ns focal spot size 150 μm – 1. 5 mm diagnostics for intense, short ion pulses in the beam line Beams for WDM experiments: 238 U 73+, 80 Ge. V, e-cooled up to 5· 109 ions, 100 – 300 ns bunch ≤ 300 μm spot at the target Solid metallic targets: specific energy: 1 – 5 k. J/g temperature: up to 2 e. V pressure: in multi-kbar range

Data acquisition system for HEDP experiments at HHT was developed and tested Data acquisition Data acquisition system for HEDP experiments at HHT was developed and tested Data acquisition and control system, for HEDP experiments on FAIR and GSI, consists of a set of hardware –software modules (HSMs), each of which includes one measuring, diagnostic, or actuating device and the relevant program for acquisition or processing of experimental data. The HSM programs reside in several personal computers integrated into a local Ethernet network. Data communication between the HSM programs has been organized via the TCP/IP socket interface.

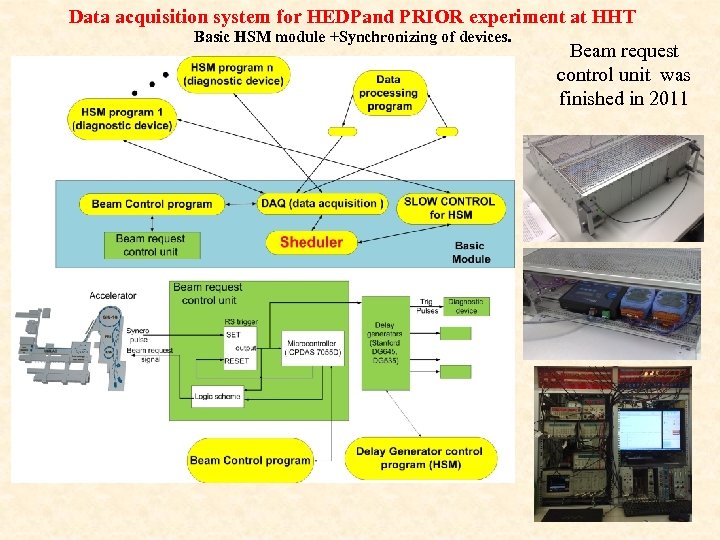

Data acquisition system for HEDPand PRIOR experiment at HHT Basic HSM module +Synchronizing of Data acquisition system for HEDPand PRIOR experiment at HHT Basic HSM module +Synchronizing of devices. Beam request control unit was finished in 2011

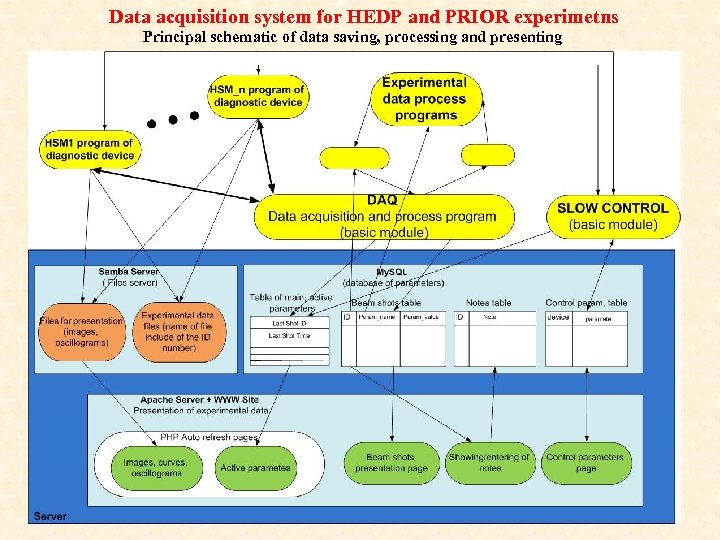

Data acquisition system for HEDP and PRIOR experimetns Principal schematic of data saving, processing Data acquisition system for HEDP and PRIOR experimetns Principal schematic of data saving, processing and presenting

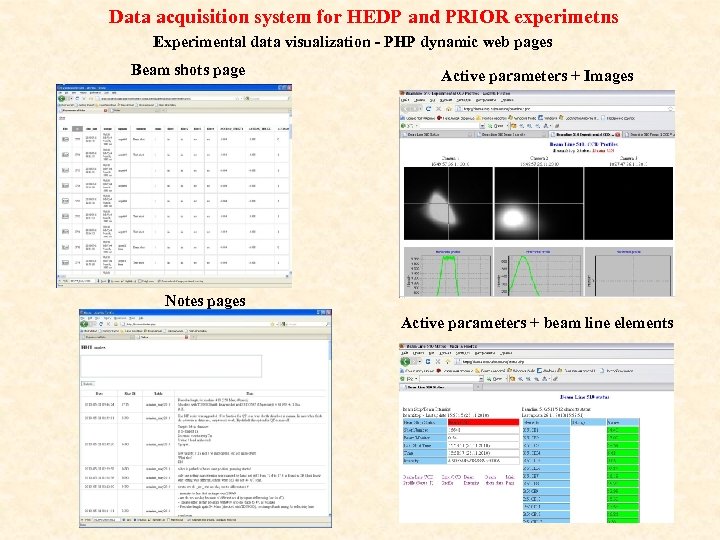

Data acquisition system for HEDP and PRIOR experimetns Experimental data visualization - PHP dynamic Data acquisition system for HEDP and PRIOR experimetns Experimental data visualization - PHP dynamic web pages Beam shots page Active parameters + Images Notes pages Active parameters + beam line elements

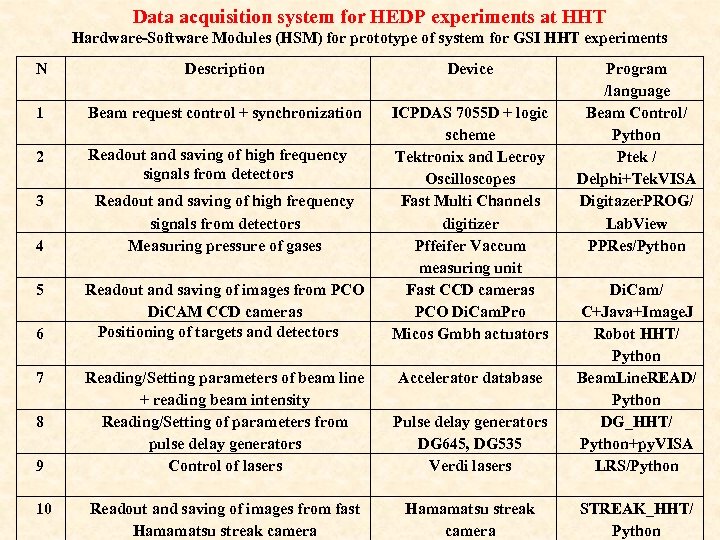

Data acquisition system for HEDP experiments at HHT Hardware-Software Modules (HSM) for prototype of Data acquisition system for HEDP experiments at HHT Hardware-Software Modules (HSM) for prototype of system for GSI HHT experiments N Description Device 1 Beam request control + synchronization 2 Readout and saving of high frequency signals from detectors ICPDAS 7055 D + logic scheme Tektronix and Lecroy Oscilloscopes Fast Multi Channels digitizer Pffeifer Vaccum measuring unit Fast CCD cameras PCO Di. Cam. Pro Micos Gmbh actuators 3 4 5 6 7 8 9 10 Readout and saving of high frequency signals from detectors Measuring pressure of gases Readout and saving of images from PCO Di. CAM CCD cameras Positioning of targets and detectors Program /language Beam Control/ Python Ptek / Delphi+Tek. VISA Digitazer. PROG/ Lab. View PPRes/Python Reading/Setting parameters of beam line + reading beam intensity Reading/Setting of parameters from pulse delay generators Control of lasers Pulse delay generators DG 645, DG 535 Verdi lasers Di. Cam/ C+Java+Image. J Robot HHT/ Python Beam. Line. READ/ Python DG_HHT/ Python+py. VISA LRS/Python Readout and saving of images from fast Hamamatsu streak camera STREAK_HHT/ Python Accelerator database

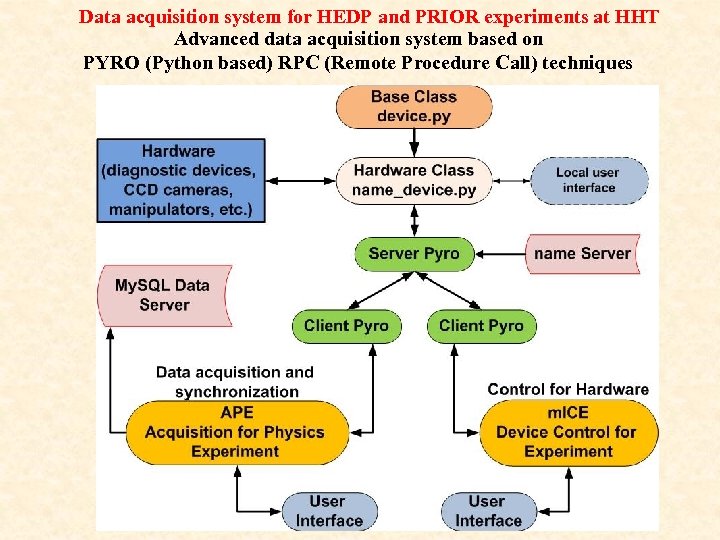

Data acquisition system for HEDP and PRIOR experiments at HHT Advanced data acquisition system Data acquisition system for HEDP and PRIOR experiments at HHT Advanced data acquisition system based on PYRO (Python based) RPC (Remote Procedure Call) techniques

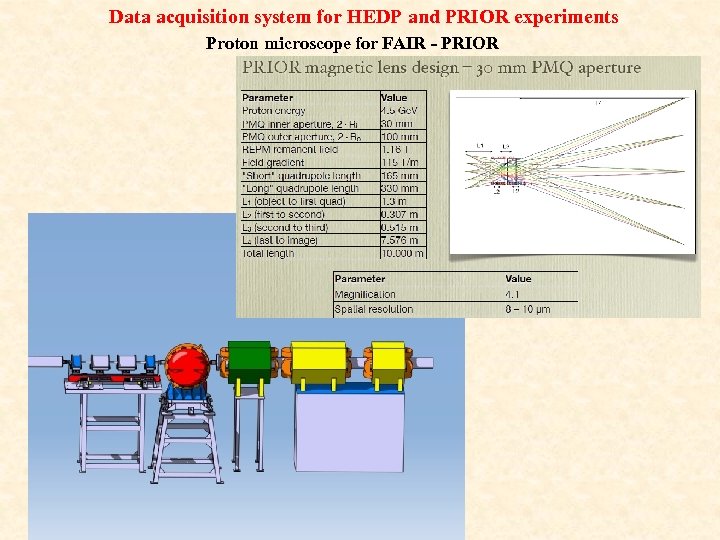

Data acquisition system for HEDP and PRIOR experiments Proton microscope for FAIR - PRIOR Data acquisition system for HEDP and PRIOR experiments Proton microscope for FAIR - PRIOR

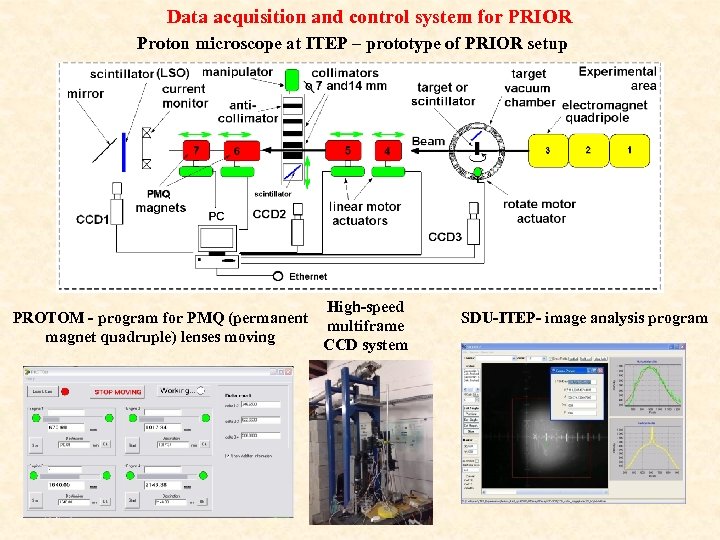

Data acquisition and control system for PRIOR Proton microscope at ITEP – prototype of Data acquisition and control system for PRIOR Proton microscope at ITEP – prototype of PRIOR setup High-speed PROTOM - program for PMQ (permanent multiframe magnet quadruple) lenses moving CCD system SDU-ITEP- image analysis program

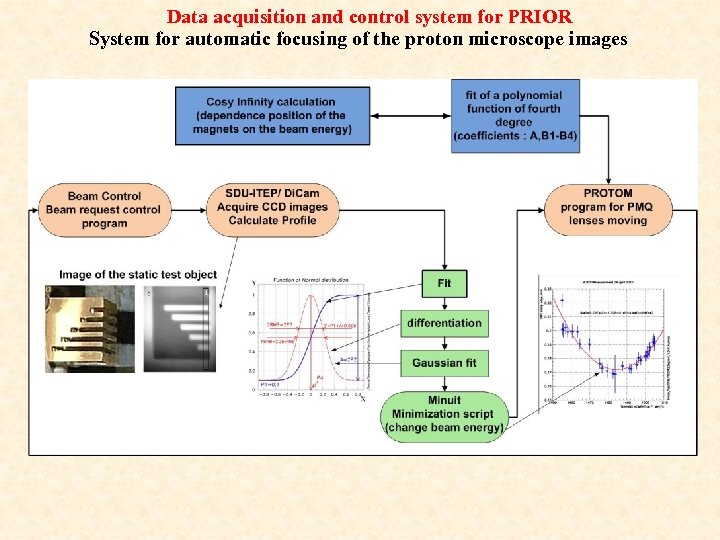

Data acquisition and control system for PRIOR System for automatic focusing of the proton Data acquisition and control system for PRIOR System for automatic focusing of the proton microscope images

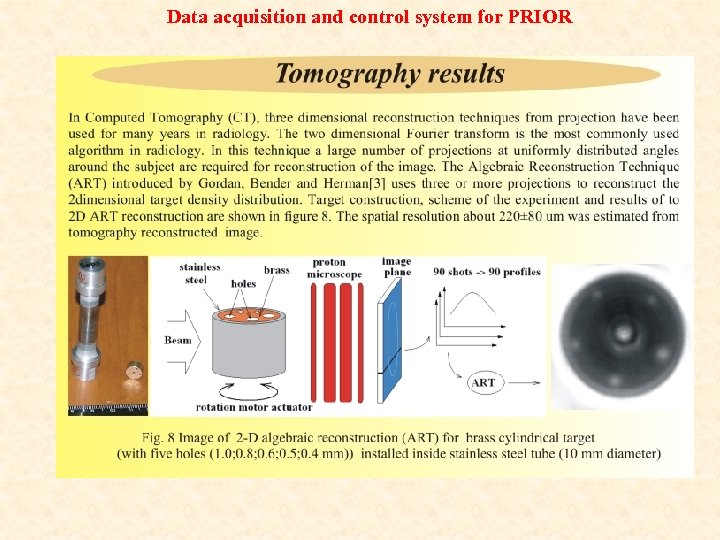

Data acquisition and control system for PRIOR Data acquisition and control system for PRIOR

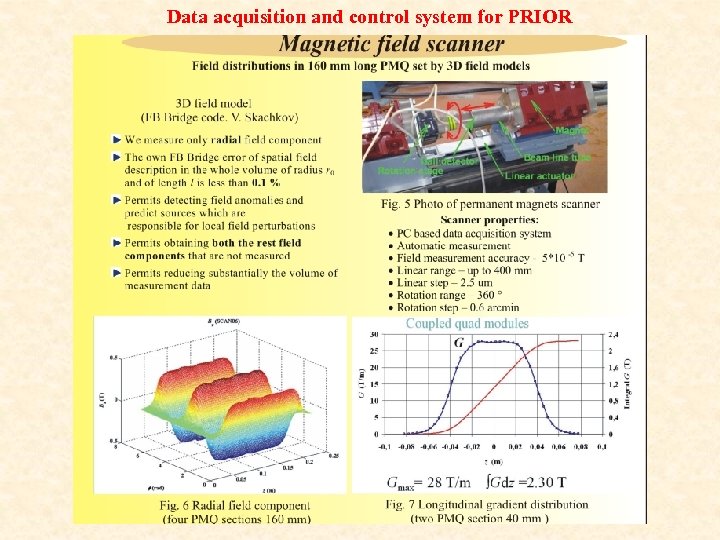

Data acquisition and control system for PRIOR Data acquisition and control system for PRIOR
