Data acquisition and control system for HEDP experiments on FAIR and GSI. A. Kantsyrev Data acquisition and control system for HEDP experiments on FAIR and GSI. A. Kantsyrev 1, D. Varentsov 2, A. Hug 2, S. Udrea 2, L. Shestov 1, V. Turtikov 1 FAIR Russia Research Centre (FRRC) 1 SSC RF Institute for Theoretical and Experimental Physics (ITEP) 2 Gesellschaft für Schwerionenforschung (GSI), Darmstadt, Germany Moscow

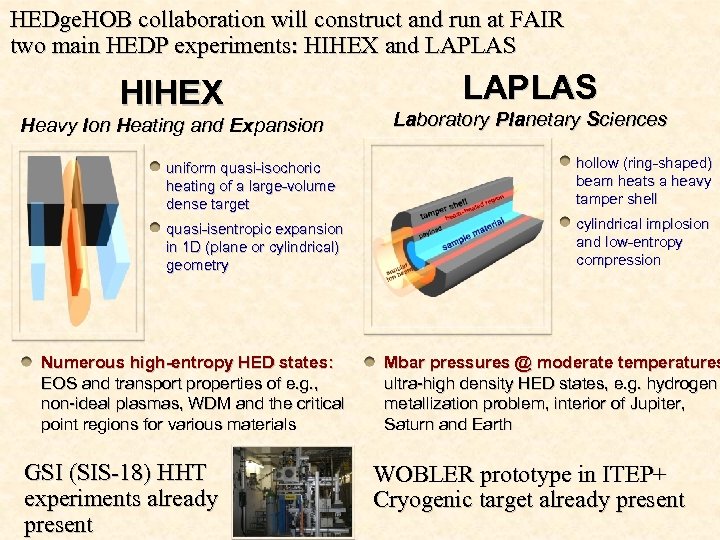

HEDge. HOB collaboration will construct and run at FAIR two main HEDP experiments: HIHEX HEDge. HOB collaboration will construct and run at FAIR two main HEDP experiments: HIHEX and LAPLAS HIHEX Heavy Ion Heating and Expansion LAPLAS Laboratory Planetary Sciences uniform quasi-isochoric heating of a large-volume dense target hollow (ring-shaped) beam heats a heavy tamper shell quasi-isentropic expansion in 1 D (plane or cylindrical) geometry cylindrical implosion and low-entropy compression Numerous high-entropy HED states: EOS and transport properties of e. g. , non-ideal plasmas, WDM and the critical point regions for various materials GSI (SIS-18) HHT experiments already present Mbar pressures @ moderate temperatures ultra-high density HED states, e. g. hydrogen metallization problem, interior of Jupiter, Saturn and Earth WOBLER prototype in ITEP+ Cryogenic target already present

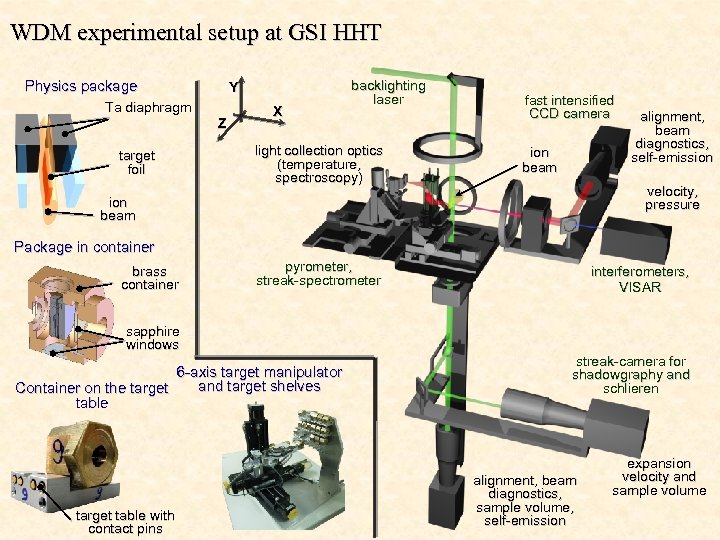

WDM experimental setup at GSI HHT Physics package Y Ta diaphragm Z target foil WDM experimental setup at GSI HHT Physics package Y Ta diaphragm Z target foil X backlighting laser light collection optics (temperature, spectroscopy) fast intensified CCD camera ion beam alignment, beam diagnostics, self-emission velocity, pressure ion beam Package in container brass container pyrometer, streak-spectrometer interferometers, VISAR sapphire windows 6 -axis target manipulator and target shelves Container on the target table with contact pins streak-camera for shadowgraphy and schlieren alignment, beam diagnostics, sample volume, self-emission expansion velocity and sample volume

Data acquisition and control system, for HEDP experiments on FAIR and GSI, consists of Data acquisition and control system, for HEDP experiments on FAIR and GSI, consists of a set of hardware–software modules (HSMs), each of which includes one measuring, diagnostic, or actuating device and the relevant program for acquisition or processing of experimental data. The HSM programs reside in several personal computers integrated into a local Ethernet network. Data communication between the HSM programs has been organized via the TCP/IP socket interface.

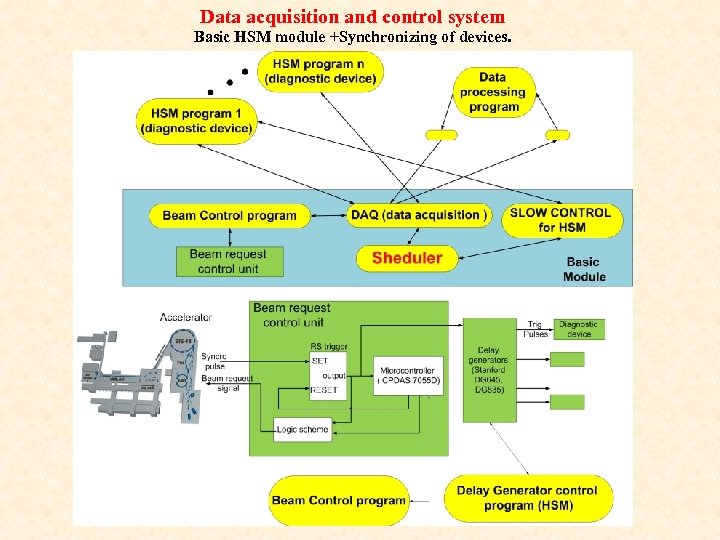

Data acquisition and control system Basic HSM module +Synchronizing of devices. Data acquisition and control system Basic HSM module +Synchronizing of devices.

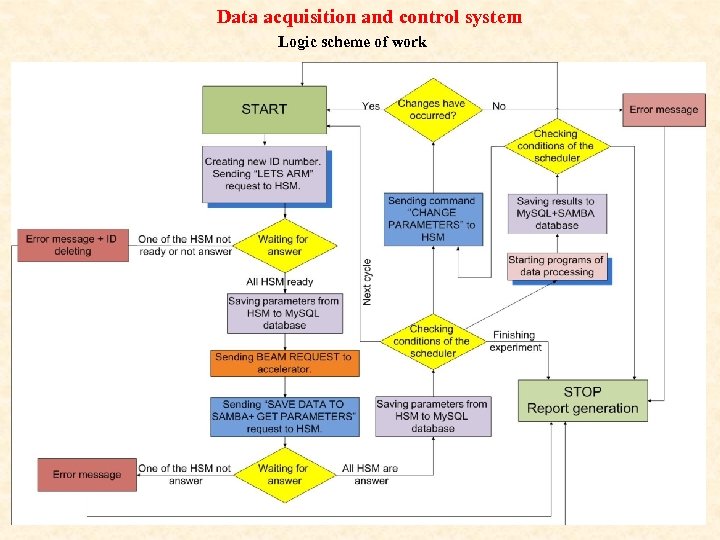

Data acquisition and control system Logic scheme of work Data acquisition and control system Logic scheme of work

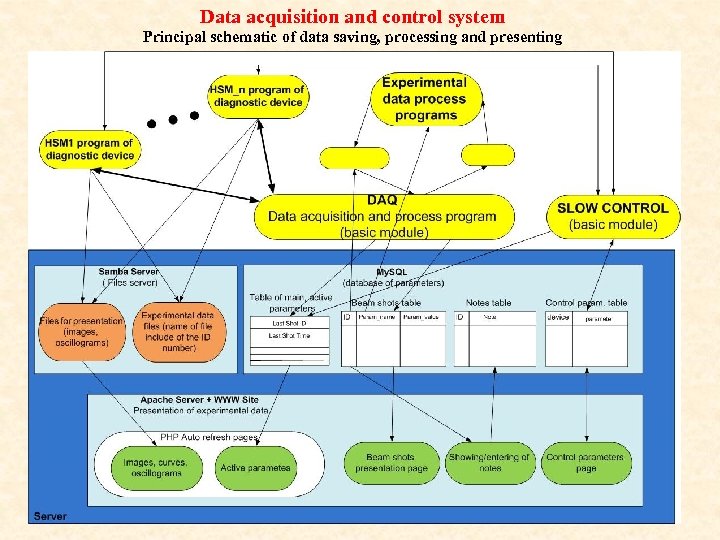

Data acquisition and control system Principal schematic of data saving, processing and presenting Data acquisition and control system Principal schematic of data saving, processing and presenting

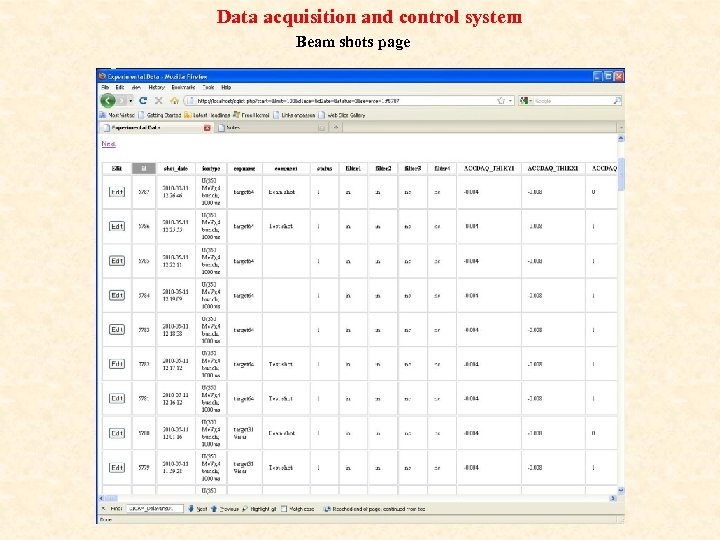

Data acquisition and control system Beam shots page Data acquisition and control system Beam shots page

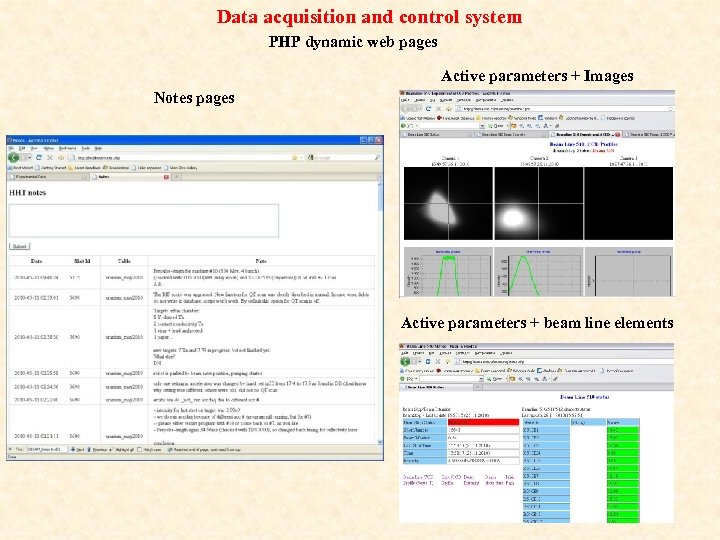

Data acquisition and control system PHP dynamic web pages Active parameters + Images Notes Data acquisition and control system PHP dynamic web pages Active parameters + Images Notes pages Active parameters + beam line elements

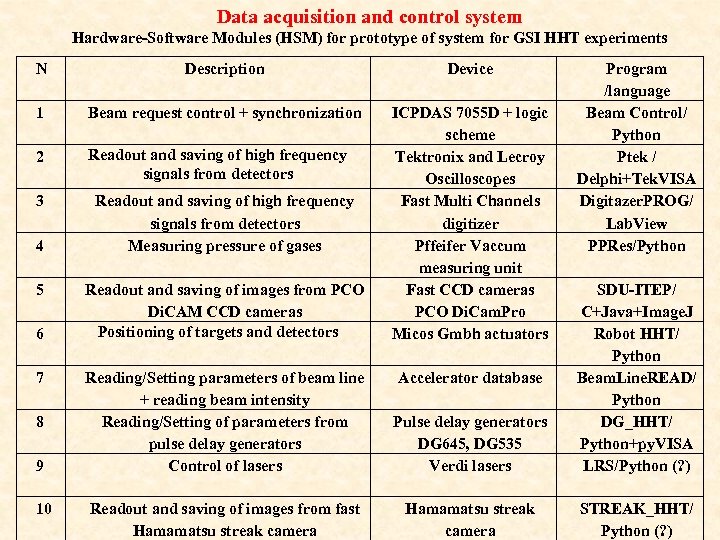

Data acquisition and control system Hardware-Software Modules (HSM) for prototype of system for GSI Data acquisition and control system Hardware-Software Modules (HSM) for prototype of system for GSI HHT experiments N Description Device 1 Beam request control + synchronization 2 Readout and saving of high frequency signals from detectors ICPDAS 7055 D + logic scheme Tektronix and Lecroy Oscilloscopes Fast Multi Channels digitizer Pffeifer Vaccum measuring unit Fast CCD cameras PCO Di. Cam. Pro Micos Gmbh actuators 3 4 5 6 7 8 9 10 Readout and saving of high frequency signals from detectors Measuring pressure of gases Readout and saving of images from PCO Di. CAM CCD cameras Positioning of targets and detectors Program /language Beam Control/ Python Ptek / Delphi+Tek. VISA Digitazer. PROG/ Lab. View PPRes/Python Reading/Setting parameters of beam line + reading beam intensity Reading/Setting of parameters from pulse delay generators Control of lasers Pulse delay generators DG 645, DG 535 Verdi lasers SDU-ITEP/ C+Java+Image. J Robot HHT/ Python Beam. Line. READ/ Python DG_HHT/ Python+py. VISA LRS/Python (? ) Readout and saving of images from fast Hamamatsu streak camera STREAK_HHT/ Python (? ) Accelerator database

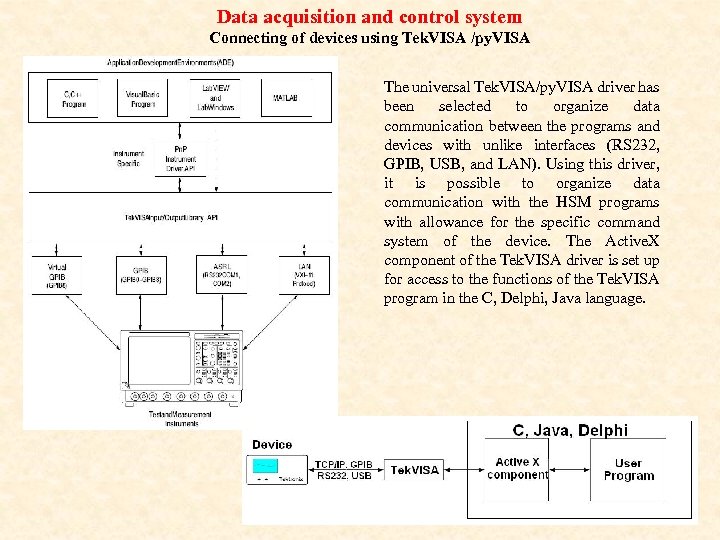

Data acquisition and control system Connecting of devices using Tek. VISA /py. VISA The Data acquisition and control system Connecting of devices using Tek. VISA /py. VISA The universal Tek. VISA/py. VISA driver has been selected to organize data communication between the programs and devices with unlike interfaces (RS 232, GPIB, USB, and LAN). Using this driver, it is possible to organize data communication with the HSM programs with allowance for the specific command system of the device. The Active. X component of the Tek. VISA driver is set up for access to the functions of the Tek. VISA program in the C, Delphi, Java language.

Data acquisition and control system DAQ+ beam control program HSM programs CCD camera control Data acquisition and control system DAQ+ beam control program HSM programs CCD camera control programs Ptek (tektronix) control program Robot + Streak camera control program Digitizer control program

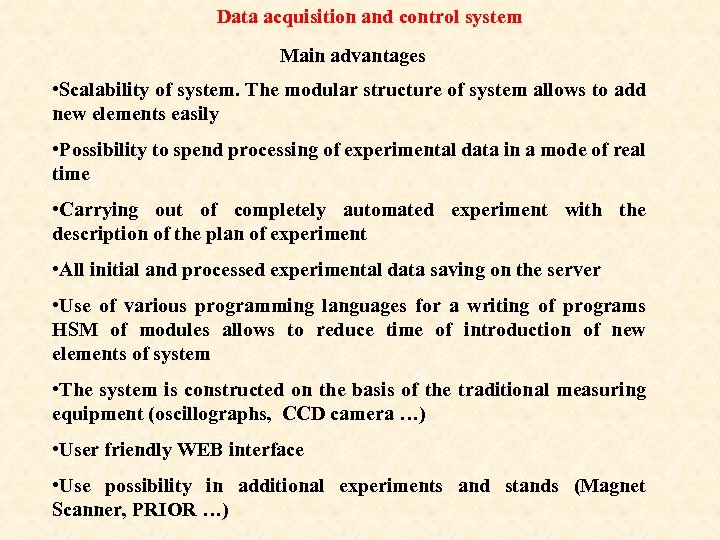

Data acquisition and control system Main advantages • Scalability of system. The modular structure Data acquisition and control system Main advantages • Scalability of system. The modular structure of system allows to add new elements easily • Possibility to spend processing of experimental data in a mode of real time • Carrying out of completely automated experiment with the description of the plan of experiment • All initial and processed experimental data saving on the server • Use of various programming languages for a writing of programs HSM of modules allows to reduce time of introduction of new elements of system • The system is constructed on the basis of the traditional measuring equipment (oscillographs, CCD camera …) • User friendly WEB interface • Use possibility in additional experiments and stands (Magnet Scanner, PRIOR …)
