Dartmouth PKI (Scott Rea) EDUCAUSE PKI Deployment Forum Madison, WI - April 16, 2008 Dartmouth PKI (Scott Rea) EDUCAUSE PKI Deployment Forum Madison, WI - April 16, 2008

Contents • PKI at Dartmouth – the details • Some Dartmouth PKI history • Contents • PKI at Dartmouth – the details • Some Dartmouth PKI history • Conclusion 2

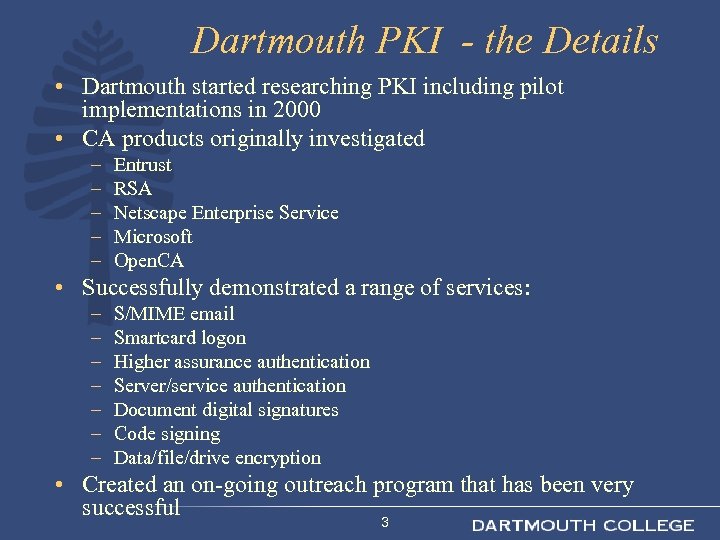

Dartmouth PKI - the Details • Dartmouth started researching PKI including pilot implementations in Dartmouth PKI - the Details • Dartmouth started researching PKI including pilot implementations in 2000 • CA products originally investigated – – – Entrust RSA Netscape Enterprise Service Microsoft Open. CA • Successfully demonstrated a range of services: – – – – S/MIME email Smartcard logon Higher assurance authentication Server/service authentication Document digital signatures Code signing Data/file/drive encryption • Created an on-going outreach program that has been very successful 3

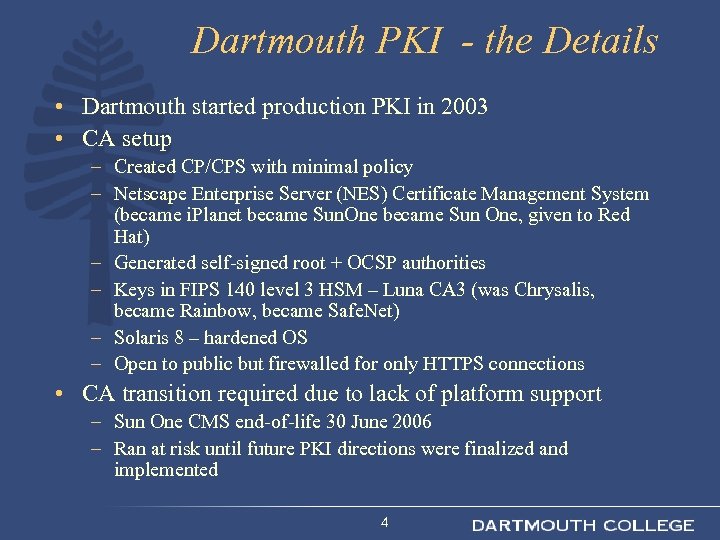

Dartmouth PKI - the Details • Dartmouth started production PKI in 2003 • CA Dartmouth PKI - the Details • Dartmouth started production PKI in 2003 • CA setup – Created CP/CPS with minimal policy – Netscape Enterprise Server (NES) Certificate Management System (became i. Planet became Sun. One became Sun One, given to Red Hat) – Generated self-signed root + OCSP authorities – Keys in FIPS 140 level 3 HSM – Luna CA 3 (was Chrysalis, became Rainbow, became Safe. Net) – Solaris 8 – hardened OS – Open to public but firewalled for only HTTPS connections • CA transition required due to lack of platform support – Sun One CMS end-of-life 30 June 2006 – Ran at risk until future PKI directions were finalized and implemented 4

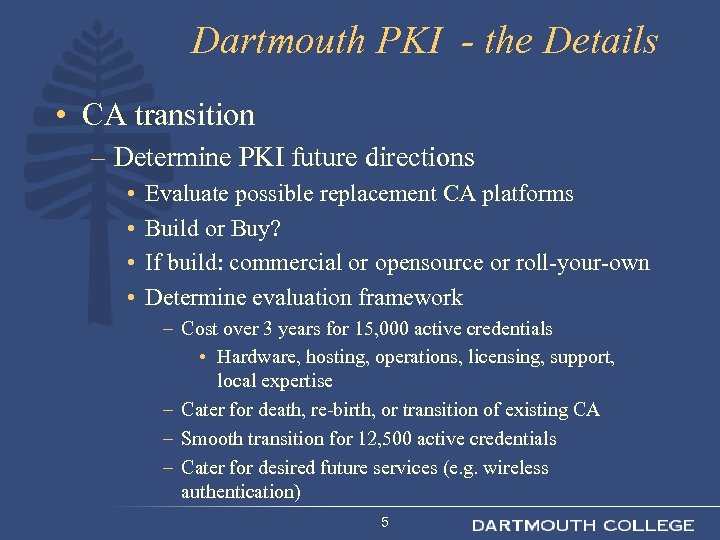

Dartmouth PKI - the Details • CA transition – Determine PKI future directions • Dartmouth PKI - the Details • CA transition – Determine PKI future directions • • Evaluate possible replacement CA platforms Build or Buy? If build: commercial or opensource or roll-your-own Determine evaluation framework – Cost over 3 years for 15, 000 active credentials • Hardware, hosting, operations, licensing, support, local expertise – Cater for death, re-birth, or transition of existing CA – Smooth transition for 12, 500 active credentials – Cater for desired future services (e. g. wireless authentication) 5

Dartmouth PKI - the Details • CA transition – Process began in May 2006 Dartmouth PKI - the Details • CA transition – Process began in May 2006 – Decision from management to run at risk with existing platform for 12 months – Plan to be in production by 1 April 2007 to give us 3 months to transition existing users and well in time to handle freshman intake in mid. September – Run old infrastructure in parallel until end of September 2007 to mitigate any unforeseen issues – Platforms evaluated: • Outsource Managed Services (BUY) – – Verisign Cyber. Trust (now Verizon Business Solutions) Identrus (previously DST, now Iden. Trust) Geo. Trust • Inhouse Commercial Platform (BUILD-a) – Microsoft CA – RSA • Inhouse Opensource Platform (BUILD-b) – Open. CA – EJBCA • Inhouse Roll-your-own (BUILD-c) – CAPSO – Open. SSL 6

Dartmouth PKI - the Details • CA transition – Outsource Managed Services (BUY) • Dartmouth PKI - the Details • CA transition – Outsource Managed Services (BUY) • Quickly discounted as too expensive ($135 K-$490 K) – Inhouse Commercial Platform (BUILD-a) • Microsoft CA – right price, but aversion to platform • RSA – too expensive – Inhouse Opensource Platform (BUILD-b) • Open. CA – too difficult to manage (Started working on Open. CA-NG) • EJBCA – not enough support – Inhouse Roll-your-own (BUILD-c) • CAPSO – negotiated free-to-higher-ed-and-research agreement • Open. SSL – too much work • CAPSO chosen as basis from which to roll-our-own CA – – – – JCE based CA Supports our particular HSM setup Developed at University of Graz in Austria Local expertise with base cryptographic modules and platform Support available from Graz Utilized for production in other places (e. g. Austrian Govt, UGraz) Run on preferred enterprise OS platform – Red Hat (RHEL) 7

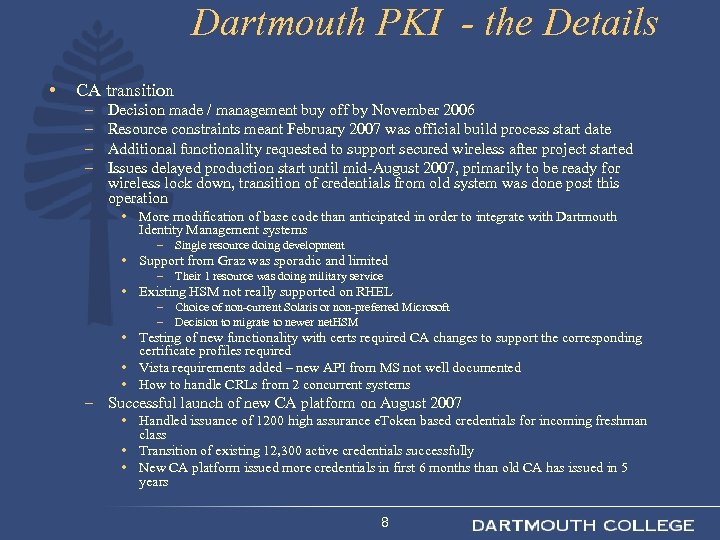

Dartmouth PKI - the Details • CA transition – – Decision made / management Dartmouth PKI - the Details • CA transition – – Decision made / management buy off by November 2006 Resource constraints meant February 2007 was official build process start date Additional functionality requested to support secured wireless after project started Issues delayed production start until mid-August 2007, primarily to be ready for wireless lock down, transition of credentials from old system was done post this operation • More modification of base code than anticipated in order to integrate with Dartmouth Identity Management systems – Single resource doing development • Support from Graz was sporadic and limited – Their 1 resource was doing military service • Existing HSM not really supported on RHEL – Choice of non-current Solaris or non-preferred Microsoft – Decision to migrate to newer net. HSM • Testing of new functionality with certs required CA changes to support the corresponding certificate profiles required • Vista requirements added – new API from MS not well documented • How to handle CRLs from 2 concurrent systems – Successful launch of new CA platform on August 2007 • Handled issuance of 1200 high assurance e. Token based credentials for incoming freshman class • Transition of existing 12, 300 active credentials successfully • New CA platform issued more credentials in first 6 months than old CA has issued in 5 years 8

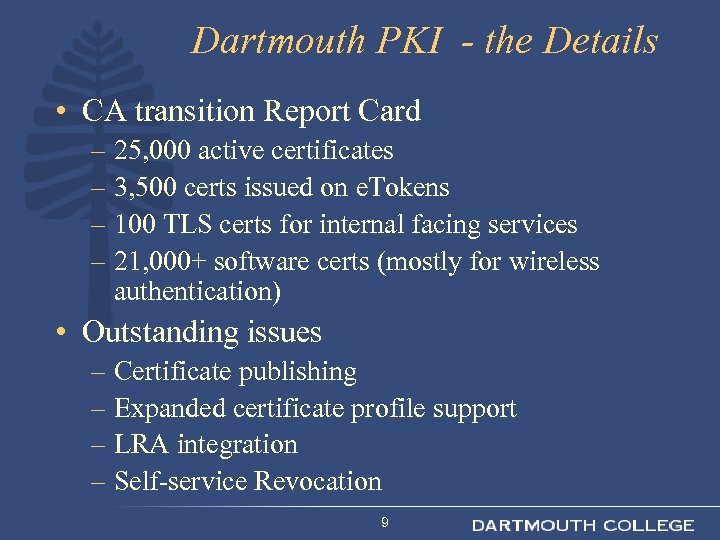

Dartmouth PKI - the Details • CA transition Report Card – 25, 000 active Dartmouth PKI - the Details • CA transition Report Card – 25, 000 active certificates – 3, 500 certs issued on e. Tokens – 100 TLS certs for internal facing services – 21, 000+ software certs (mostly for wireless authentication) • Outstanding issues – Certificate publishing – Expanded certificate profile support – LRA integration – Self-service Revocation 9

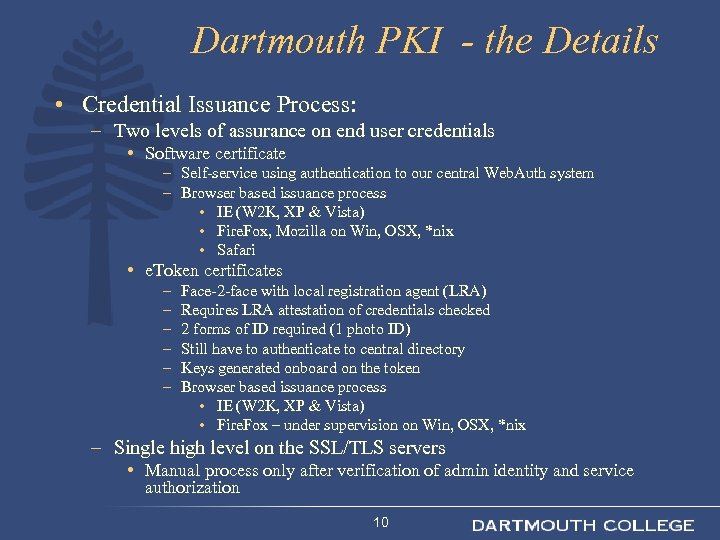

Dartmouth PKI - the Details • Credential Issuance Process: – Two levels of assurance Dartmouth PKI - the Details • Credential Issuance Process: – Two levels of assurance on end user credentials • Software certificate – Self-service using authentication to our central Web. Auth system – Browser based issuance process • IE (W 2 K, XP & Vista) • Fire. Fox, Mozilla on Win, OSX, *nix • Safari • e. Token certificates – – – Face-2 -face with local registration agent (LRA) Requires LRA attestation of credentials checked 2 forms of ID required (1 photo ID) Still have to authenticate to central directory Keys generated onboard on the token Browser based issuance process • IE (W 2 K, XP & Vista) • Fire. Fox – under supervision on Win, OSX, *nix – Single high level on the SSL/TLS servers • Manual process only after verification of admin identity and service authorization 10

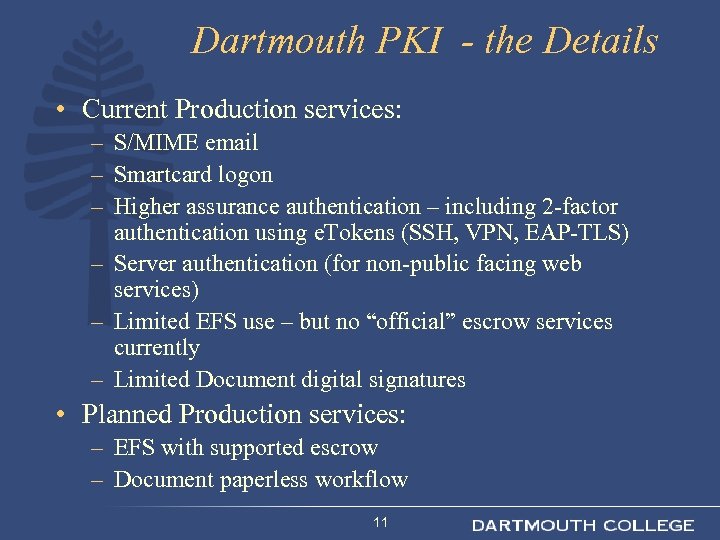

Dartmouth PKI - the Details • Current Production services: – S/MIME email – Smartcard Dartmouth PKI - the Details • Current Production services: – S/MIME email – Smartcard logon – Higher assurance authentication – including 2 -factor authentication using e. Tokens (SSH, VPN, EAP-TLS) – Server authentication (for non-public facing web services) – Limited EFS use – but no “official” escrow services currently – Limited Document digital signatures • Planned Production services: – EFS with supported escrow – Document paperless workflow 11

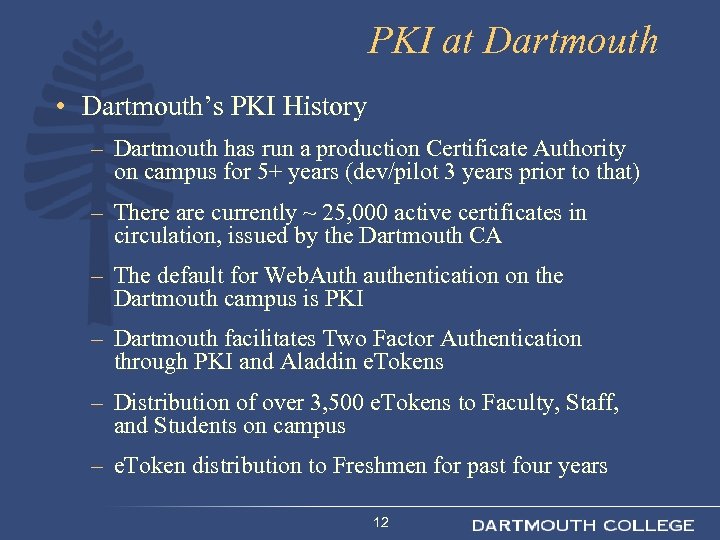

PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth has run a production Certificate PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth has run a production Certificate Authority on campus for 5+ years (dev/pilot 3 years prior to that) – There are currently ~ 25, 000 active certificates in circulation, issued by the Dartmouth CA – The default for Web. Auth authentication on the Dartmouth campus is PKI – Dartmouth facilitates Two Factor Authentication through PKI and Aladdin e. Tokens – Distribution of over 3, 500 e. Tokens to Faculty, Staff, and Students on campus – e. Token distribution to Freshmen for past four years 12

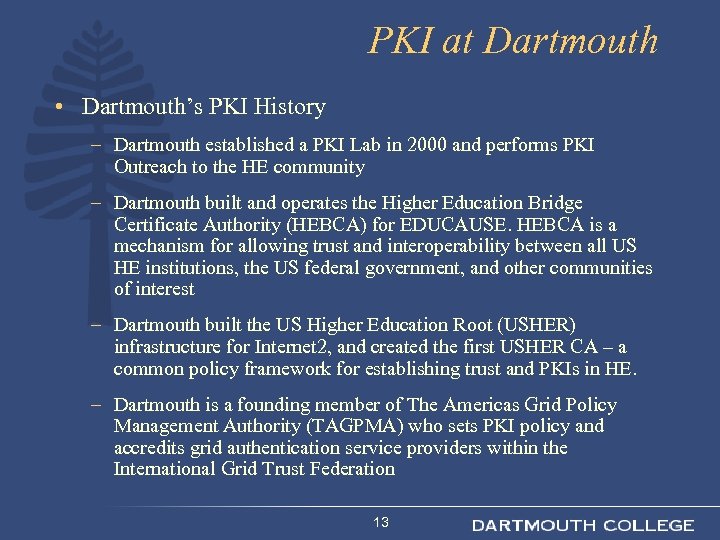

PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth established a PKI Lab in PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth established a PKI Lab in 2000 and performs PKI Outreach to the HE community – Dartmouth built and operates the Higher Education Bridge Certificate Authority (HEBCA) for EDUCAUSE. HEBCA is a mechanism for allowing trust and interoperability between all US HE institutions, the US federal government, and other communities of interest – Dartmouth built the US Higher Education Root (USHER) infrastructure for Internet 2, and created the first USHER CA – a common policy framework for establishing trust and PKIs in HE. – Dartmouth is a founding member of The Americas Grid Policy Management Authority (TAGPMA) who sets PKI policy and accredits grid authentication service providers within the International Grid Trust Federation 13

PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth developed the CA-in-a-box distribution to PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth developed the CA-in-a-box distribution to reduce the set up costs and complexity for entities wanting to run their own PKI Certification Authority • This is used in Grid-related authentication services (a recent example is the Texas Advanced Computing Center) • This is also used by institutions of higher education for CA services (e. g. Cornell University) – Dartmouth developed the Air. Gap solution to securely connect offline Certification Authorities with highly available online Directories • This device was constructed for under $100 and provided the HEBCA and USHER projects with up to $200, 000 in potential savings • This solution is now used by federal agencies, commercial entities, and institutions of higher education • This solution was voted the #1 beneficial hack or inspired workaround by Info. World in its May 2006 edition 14

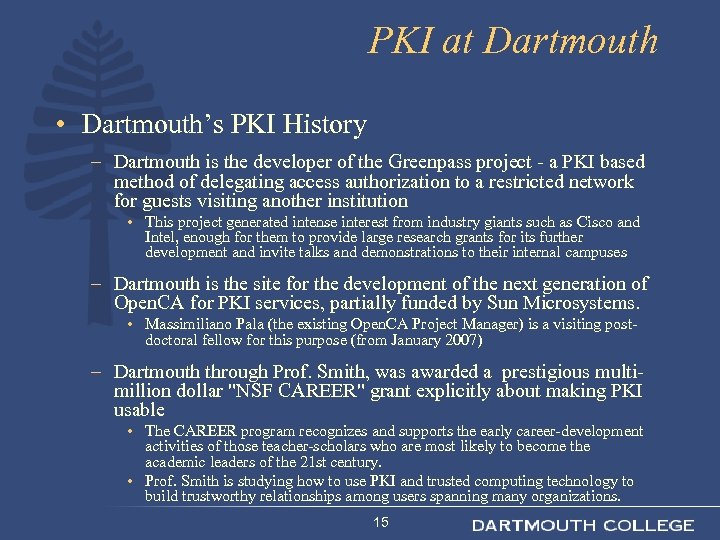

PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth is the developer of the PKI at Dartmouth • Dartmouth’s PKI History – Dartmouth is the developer of the Greenpass project - a PKI based method of delegating access authorization to a restricted network for guests visiting another institution • This project generated intense interest from industry giants such as Cisco and Intel, enough for them to provide large research grants for its further development and invite talks and demonstrations to their internal campuses – Dartmouth is the site for the development of the next generation of Open. CA for PKI services, partially funded by Sun Microsystems. • Massimiliano Pala (the existing Open. CA Project Manager) is a visiting postdoctoral fellow for this purpose (from January 2007) – Dartmouth through Prof. Smith, was awarded a prestigious multimillion dollar "NSF CAREER" grant explicitly about making PKI usable • The CAREER program recognizes and supports the early career-development activities of those teacher-scholars who are most likely to become the academic leaders of the 21 st century. • Prof. Smith is studying how to use PKI and trusted computing technology to build trustworthy relationships among users spanning many organizations. 15

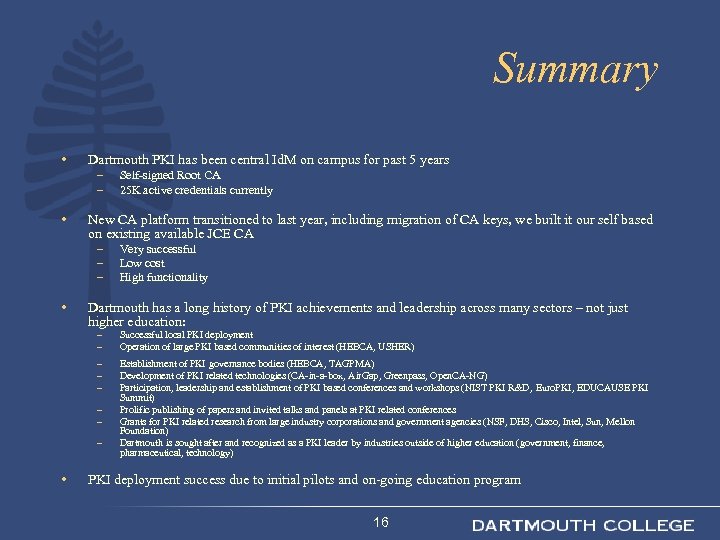

Summary • Dartmouth PKI has been central Id. M on campus for past 5 Summary • Dartmouth PKI has been central Id. M on campus for past 5 years – – • New CA platform transitioned to last year, including migration of CA keys, we built it our self based on existing available JCE CA – – – • Self-signed Root CA 25 K active credentials currently Very successful Low cost High functionality Dartmouth has a long history of PKI achievements and leadership across many sectors – not just higher education: – – Successful local PKI deployment Operation of large PKI based communities of interest (HEBCA, USHER) – – – Establishment of PKI governance bodies (HEBCA, TAGPMA) Development of PKI related technologies (CA-in-a-box, Air. Gap, Greenpass, Open. CA-NG) Participation, leadership and establishment of PKI based conferences and workshops (NIST PKI R&D, Euro. PKI, EDUCAUSE PKI Summit) Prolific publishing of papers and invited talks and panels at PKI related conferences Grants for PKI related research from large industry corporations and government agencies (NSF, DHS, Cisco, Intel, Sun, Mellon Foundation) Dartmouth is sought after and recognized as a PKI leader by industries outside of higher education (government, finance, pharmaceutical, technology) – – – • PKI deployment success due to initial pilots and on-going education program 16

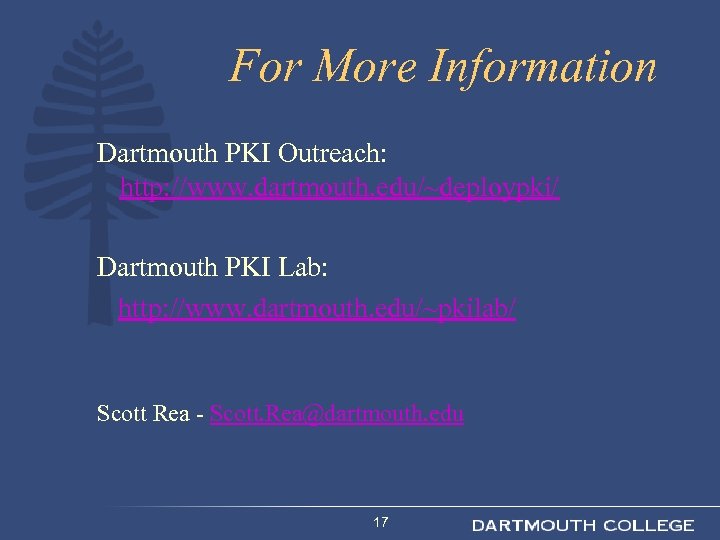

For More Information Dartmouth PKI Outreach: http: //www. dartmouth. edu/~deploypki/ Dartmouth PKI Lab: http: For More Information Dartmouth PKI Outreach: http: //www. dartmouth. edu/~deploypki/ Dartmouth PKI Lab: http: //www. dartmouth. edu/~pkilab/ Scott Rea - Scott. [email protected] edu 17
