Cyber. Route Solution Provider Force P 2 P 3 -Screen Media Streaming System @ Pioneer and technical leader in commercial P 2 P 3 -screen Media streaming market

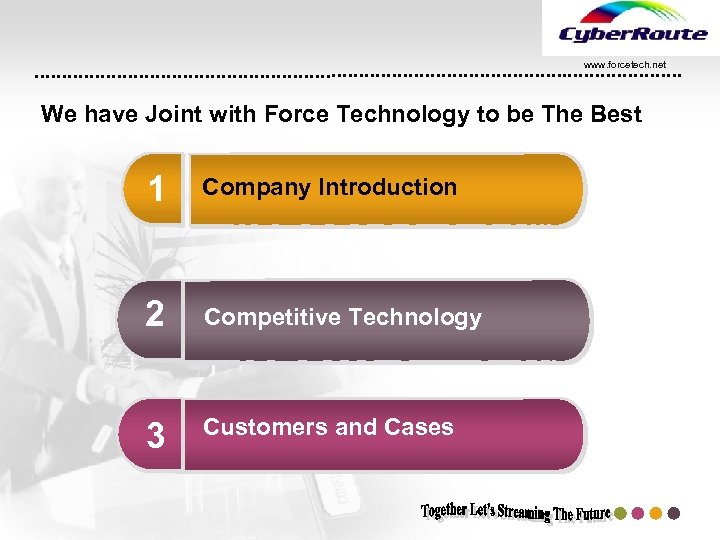

www. forcetech. net We have Joint with Force Technology to be The Best 1 Company Introduction 2 Competitive Technology 3 Customers and Cases
Company overview www. forcetech. net • Cyber. Route founded in 1998 is a Technology Pioneering Company in the field of Hosted Services and Application Services. • Founded in March, 2004, Force Innovation Technology Co. , Ltd. holds its headquarter in Beijing (Zhongguancun Software Park), oversea offices distributors worldwide. • As an international solution provider for video streaming, Force. Tech is an expert and technical leader in providing a complete suite of solutions for 3 SCREEN (PC, TV, mobile) media streaming system with Peer-to-Peer(P 2 P) technology. • Force. Tech offers complete solutions for the whole lifecycle of providing Internet video services, including live video/VOD P 2 P media server, cross-region transmission, CMS management & billing system, video transcoding system, H. 264 encoder, P 2 P streaming client software, etc.

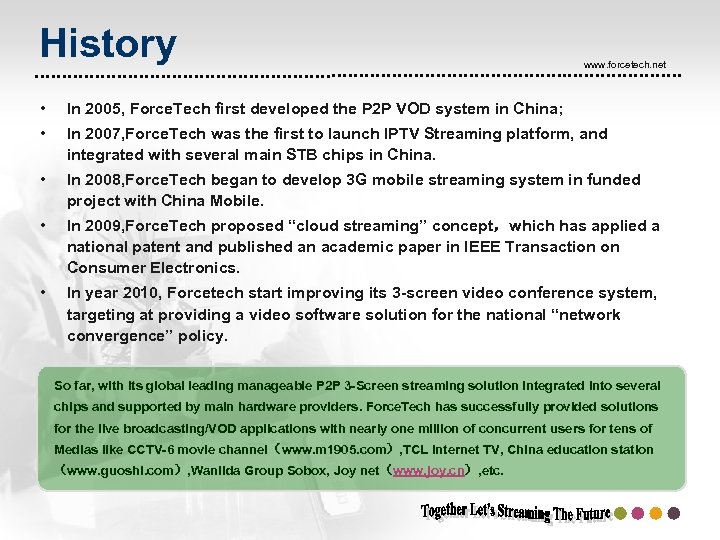

History www. forcetech. net • In 2005, Force. Tech first developed the P 2 P VOD system in China; • In 2007, Force. Tech was the first to launch IPTV Streaming platform, and integrated with several main STB chips in China. • In 2008, Force. Tech began to develop 3 G mobile streaming system in funded project with China Mobile. • In 2009, Force. Tech proposed “cloud streaming” concept，which has applied a national patent and published an academic paper in IEEE Transaction on Consumer Electronics. • In year 2010, Forcetech start improving its 3 -screen video conference system, targeting at providing a video software solution for the national “network convergence” policy. So far, with its global leading manageable P 2 P 3 -Screen streaming solution integrated into several chips and supported by main hardware providers. Force. Tech has successfully provided solutions for the live broadcasting/VOD applications with nearly one million of concurrent users for tens of Medias like CCTV-6 movie channel（www. m 1905. com）, TCL Internet TV, China education station （www. guoshi. com）, Wanlida Group Sobox, Joy net（www. joy. cn）, etc.
Intellectual properties • www. forcetech. net As a high-tech company, Force. Tech advances in technical innovations and owns full intellectual property rights of its products – Software copyright – Patent 1. “cloud streaming service platform”, State Intellectual Property Bureau（ NO. 20091537. 2）； 2. “multi-terminal Internet video system”, State Intellectual Property Bureau(authorized) （NO. ZL 2009 2 0173166. 8） – Publication “Enabling on-demand Internet video streaming services to multi-terminal users in large scale", IEEE Transactions on Consumer Electronics, Nov. 2009, Volume: 55, Issue: 4, page(s): 1988 -1996(US)

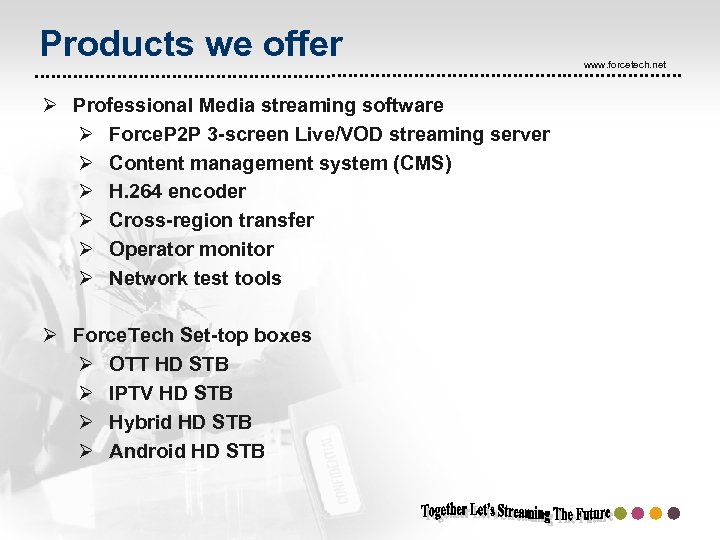

Products we offer Ø Professional Media streaming software Ø Force. P 2 P 3 -screen Live/VOD streaming server Ø Content management system (CMS) Ø H. 264 encoder Ø Cross-region transfer Ø Operator monitor Ø Network test tools Ø Force. Tech Set-top boxes Ø OTT HD STB Ø IPTV HD STB Ø Hybrid HD STB Ø Android HD STB www. forcetech. net

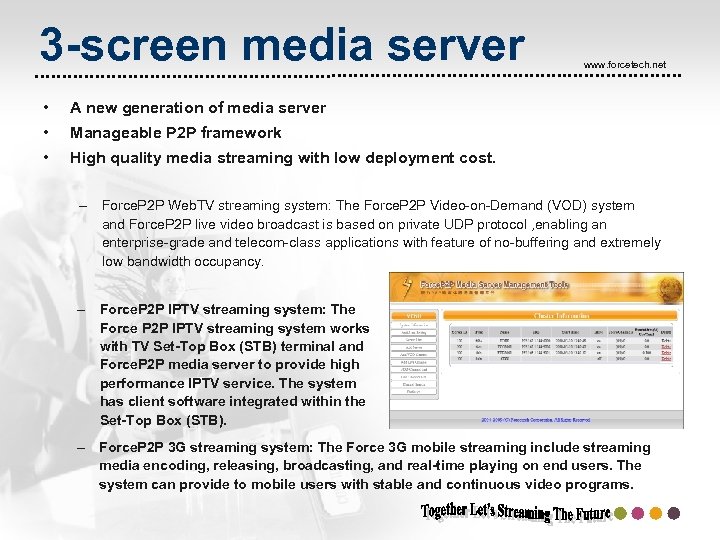

3 -screen media server • A new generation of media server • Manageable P 2 P framework • www. forcetech. net High quality media streaming with low deployment cost. – Force. P 2 P Web. TV streaming system: The Force. P 2 P Video-on-Demand (VOD) system and Force. P 2 P live video broadcast is based on private UDP protocol , enabling an enterprise-grade and telecom-class applications with feature of no-buffering and extremely low bandwidth occupancy. – Force. P 2 P IPTV streaming system: The Force P 2 P IPTV streaming system works with TV Set-Top Box (STB) terminal and Force. P 2 P media server to provide high performance IPTV service. The system has client software integrated within the Set-Top Box (STB). – Force. P 2 P 3 G streaming system: The Force 3 G mobile streaming include streaming media encoding, releasing, broadcasting, and real-time playing on end users. The system can provide to mobile users with stable and continuous video programs.

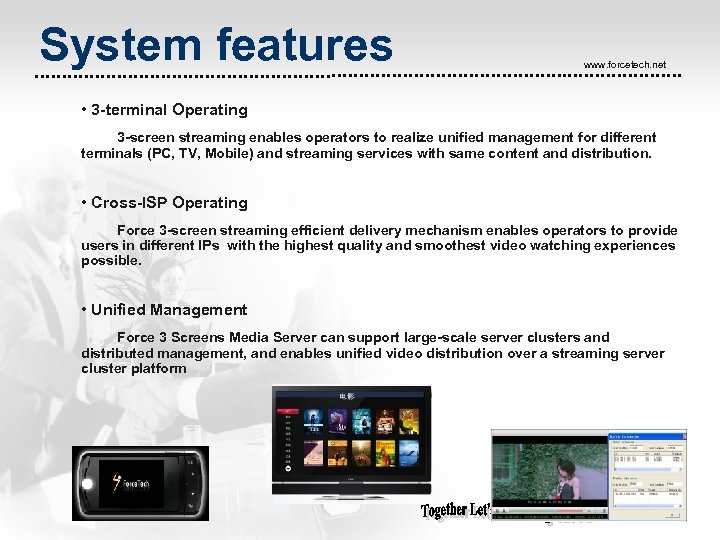

System features www. forcetech. net • 3 -terminal Operating 3 -screen streaming enables operators to realize unified management for different terminals (PC, TV, Mobile) and streaming services with same content and distribution. • Cross-ISP Operating Force 3 -screen streaming efficient delivery mechanism enables operators to provide users in different IPs with the highest quality and smoothest video watching experiences possible. • Unified Management Force 3 Screens Media Server can support large-scale server clusters and distributed management, and enables unified video distribution over a streaming server cluster platform

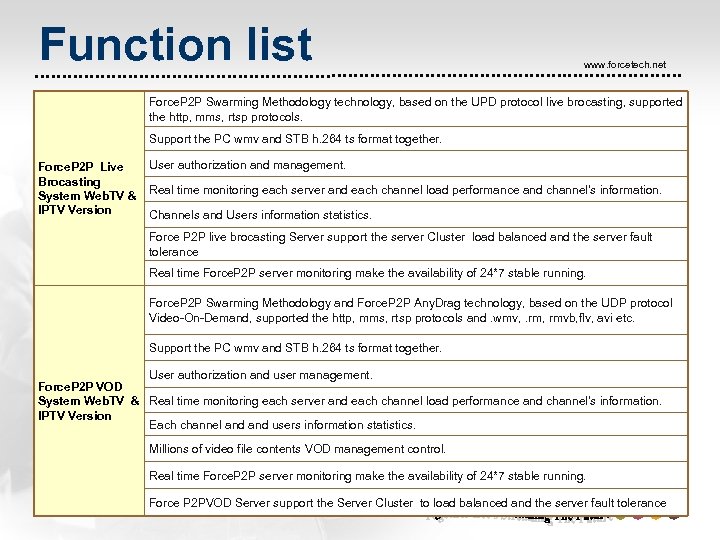

Function list www. forcetech. net Force. P 2 P Swarming Methodology technology, based on the UPD protocol live brocasting, supported the http, mms, rtsp protocols. Support the PC wmv and STB h. 264 ts format together. User authorization and management. Force. P 2 P Live Brocasting System Web. TV & Real time monitoring each server and each channel load performance and channel's information. IPTV Version Channels and Users information statistics. Force P 2 P live brocasting Server support the server Cluster load balanced and the server fault tolerance Real time Force. P 2 P server monitoring make the availability of 24*7 stable running. Force. P 2 P Swarming Methodology and Force. P 2 P Any. Drag technology, based on the UDP protocol Video-On-Demand, supported the http, mms, rtsp protocols and. wmv, . rm, rmvb, flv, avi etc. Support the PC wmv and STB h. 264 ts format together. User authorization and user management. Force. P 2 P VOD System Web. TV & Real time monitoring each server and each channel load performance and channel's information. IPTV Version Each channel and users information statistics. Millions of video file contents VOD management control. Real time Force. P 2 P server monitoring make the availability of 24*7 stable running. Force P 2 PVOD Server support the Server Cluster to load balanced and the server fault tolerance
Technical parameter 3 -Screen Player Supported Protocol Windows Media player; MMS Silverlight 3+ Microsoft Smooth Streaming Real Media Player Helix RTSP Flash player RTMP Quick. Time player Video. LAN VLC player Mobile devices (3 GPP) RTSP/RTP IPTV set-top boxes MPEG 2 Transport Protocol (MPEG-TS) i. Phone, i. Pod touch, Ophone Quick. Time player (10. 0+) Apple HTTP Streaming Protocol www. forcetech. net WMV(Wondows Media, asf, wma) FLV (Flash Video -. flv) Video and Rmvb(Real Media, rm) audio MP 4 (Quick. Time container mp 4, . f 4 v, . mov, . m 4 v, . mp, . 3 gp, and 2) MP 3 (. mp 3) Encoding WMV Video: Windows Media Encoder 9, Windows Expression Encoder Audio: MP 3, WMA RTMP Video: H. 264, VP 6, Audio: AAC, AAC-LC, MP 3, WMA RTSP/RTP Video: H. 264 Audio: AAC, AAC-LC, MP 3, WMA MPEG-TS Video: H. 264 Audio: AAC, AAC-LC, MP 3, WMA Protocol: Udp: //@, Http 3 GPP Video: H. 264, H. 263 Audio: AAC, AAC-LC, MP 3, WMA

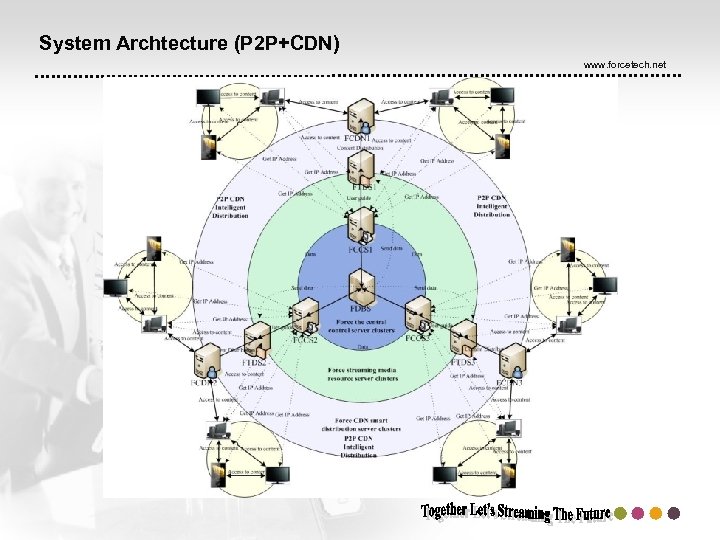

System Archtecture (P 2 P+CDN) www. forcetech. net

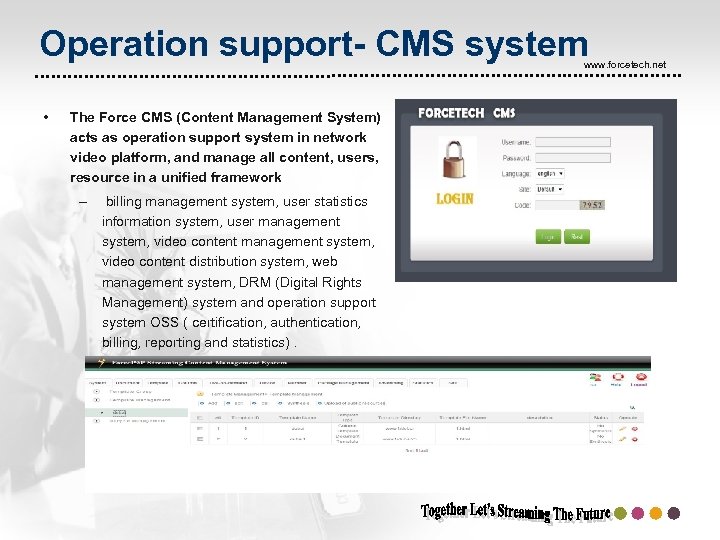

Operation support- CMS system www. forcetech. net • The Force CMS (Content Management System) acts as operation support system in network video platform, and manage all content, users, resource in a unified framework – billing management system, user statistics information system, user management system, video content distribution system, web management system, DRM (Digital Rights Management) system and operation support system OSS ( certification, authentication, billing, reporting and statistics).

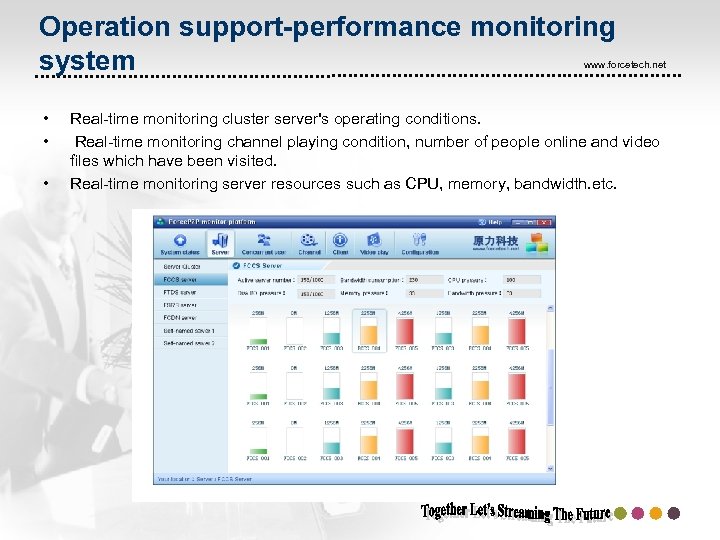

Operation support-performance monitoring system www. forcetech. net • • • Real-time monitoring cluster server's operating conditions. Real-time monitoring channel playing condition, number of people online and video files which have been visited. Real-time monitoring server resources such as CPU, memory, bandwidth. etc.

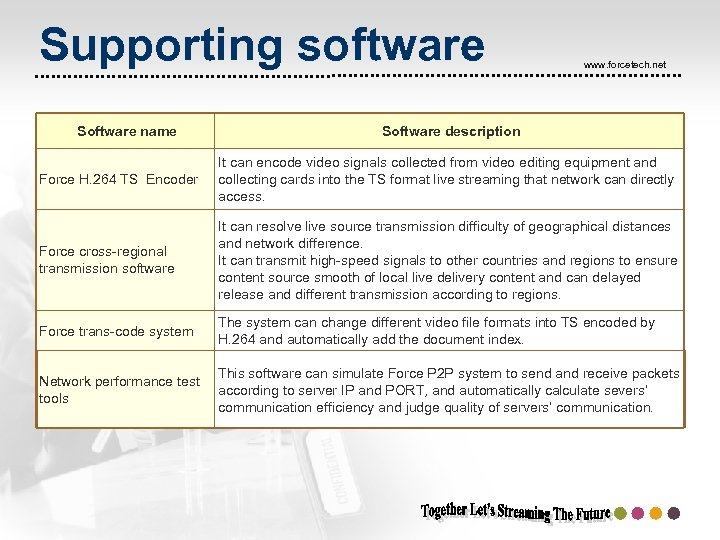

Supporting software Software name www. forcetech. net Software description Force H. 264 TS Encoder It can encode video signals collected from video editing equipment and collecting cards into the TS format live streaming that network can directly access. Force cross-regional transmission software It can resolve live source transmission difficulty of geographical distances and network difference. It can transmit high-speed signals to other countries and regions to ensure content source smooth of local live delivery content and can delayed release and different transmission according to regions. Force trans-code system The system can change different video file formats into TS encoded by H. 264 and automatically add the document index. Network performance test tools This software can simulate Force P 2 P system to send and receive packets according to server IP and PORT, and automatically calculate severs’ communication efficiency and judge quality of servers’ communication.

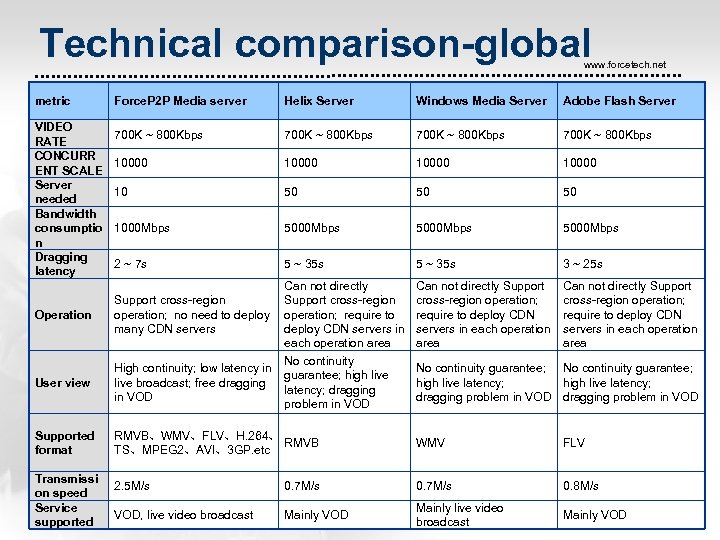

Technical comparison-global www. forcetech. net metric VIDEO RATE CONCURR ENT SCALE Server needed Bandwidth consumptio n Dragging latency Force. P 2 P Media server Helix Server Windows Media Server Adobe Flash Server 700 K ~ 800 Kbps 10000 10 50 50 50 1000 Mbps 5000 Mbps 2 ~ 7 s 5 ~ 35 s 3 ~ 25 s Can not directly Support cross-region operation; require to deploy CDN servers in each operation area No continuity guarantee; high live latency; dragging problem in VOD Can not directly Support cross-region operation; require to deploy CDN servers in each operation area Operation Support cross-region operation; no need to deploy many CDN servers User view High continuity; low latency in live broadcast; free dragging in VOD Supported format RMVB、WMV、FLV、H. 264、 RMVB TS、MPEG 2、AVI、3 GP. etc WMV FLV 2. 5 M/s 0. 7 M/s 0. 8 M/s VOD, live video broadcast Mainly VOD Mainly live video broadcast Mainly VOD Transmissi on speed Service supported No continuity guarantee; high live latency; dragging problem in VOD

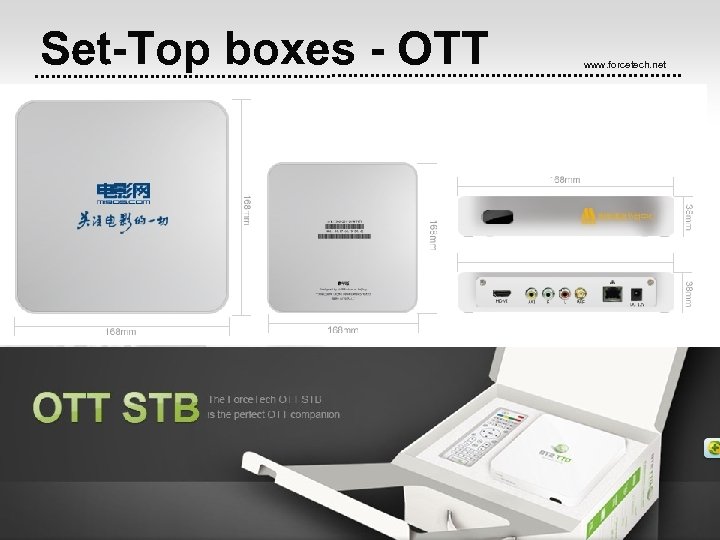

Set-Top boxes - OTT www. forcetech. net
Set-Top boxes - OTT www. forcetech. net

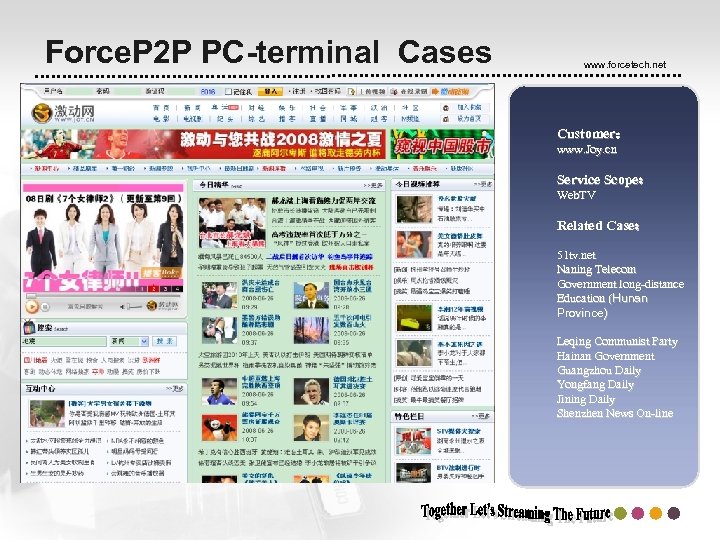

Force. P 2 P PC-terminal Cases www. forcetech. net Customer： www. Joy. cn Service Scope： Web. TV Related Case： 51 tv. net Naning Telecom Government long-distance Education (Hunan Province) Leqing Communist Party Hainan Government Guangzhou Daily Yongfang Daily Jining Daily Shenzhen News On-line

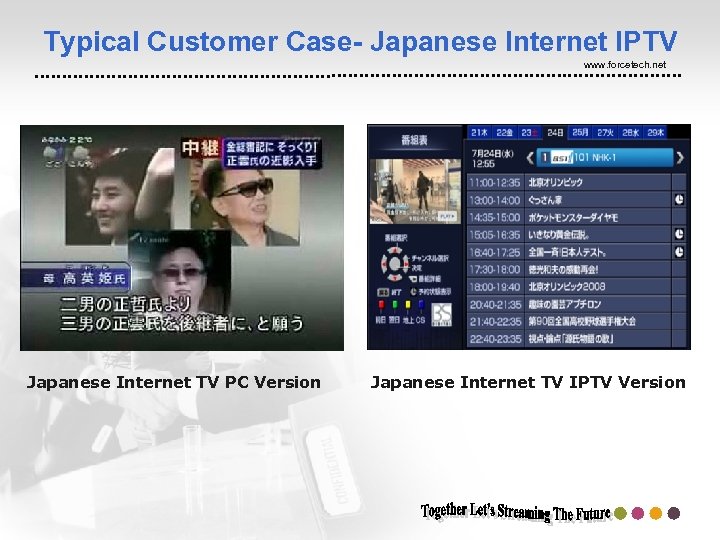

Typical Customer Case- Japanese Internet IPTV www. forcetech. net Japanese Internet TV PC Version Japanese Internet TV IPTV Version

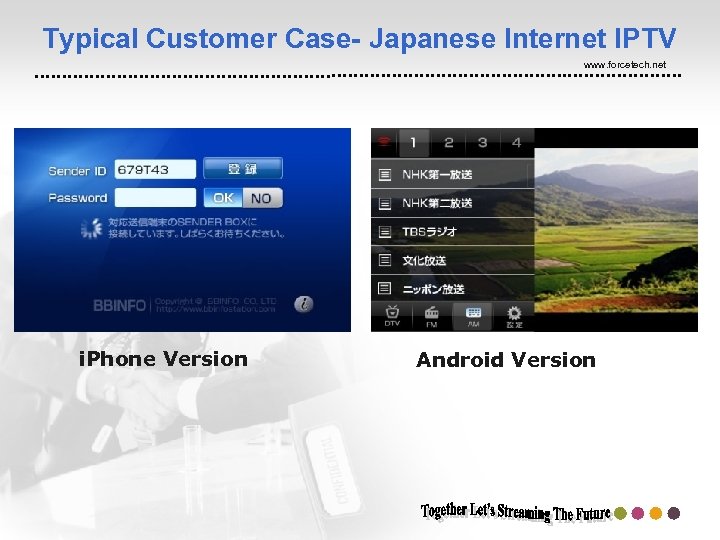

Typical Customer Case- Japanese Internet IPTV www. forcetech. net i. Phone Version Android Version

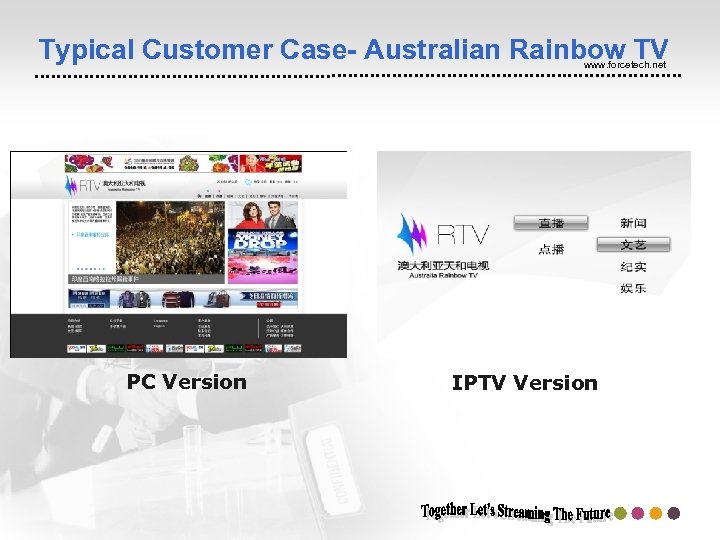

Typical Customer Case- Australian Rainbow TV www. forcetech. net PC Version IPTV Version

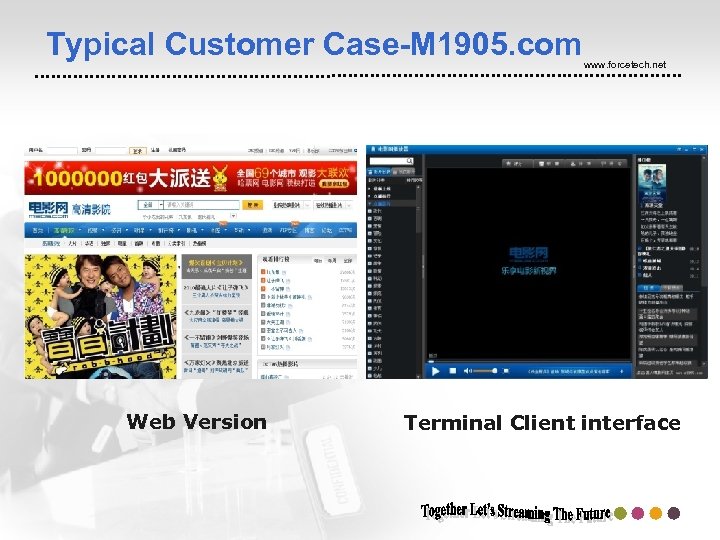

Typical Customer Case-M 1905. com Web Version www. forcetech. net Terminal Client interface

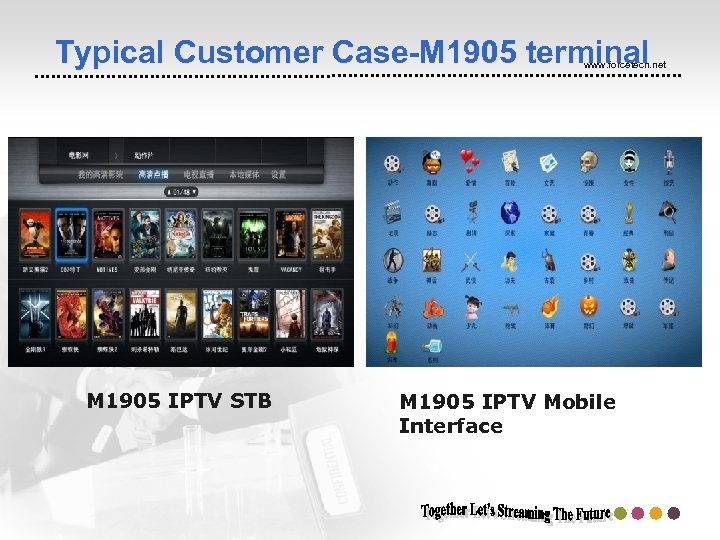

Typical Customer Case-M 1905 terminal www. forcetech. net M 1905 IPTV STB M 1905 IPTV Mobile Interface

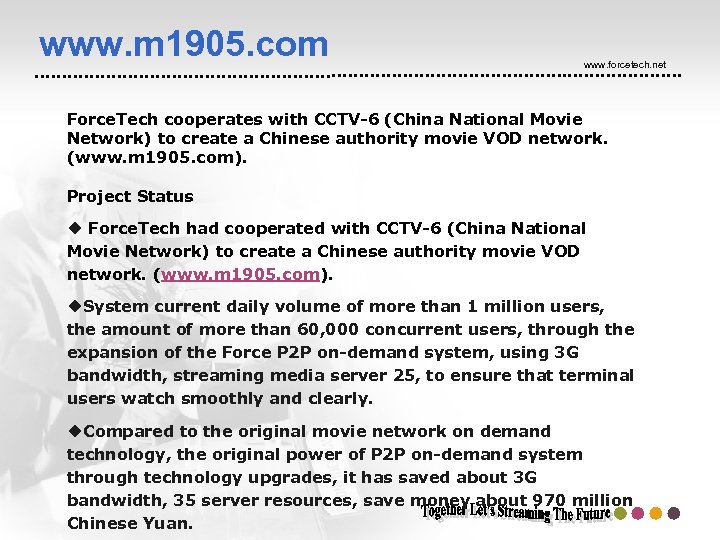

www. m 1905. com www. forcetech. net Force. Tech cooperates with CCTV-6 (China National Movie Network) to create a Chinese authority movie VOD network. (www. m 1905. com). Project Status u Force. Tech had cooperated with CCTV-6 (China National Movie Network) to create a Chinese authority movie VOD network. (www. m 1905. com). u. System current daily volume of more than 1 million users, the amount of more than 60, 000 concurrent users, through the expansion of the Force P 2 P on-demand system, using 3 G bandwidth, streaming media server 25, to ensure that terminal users watch smoothly and clearly. u. Compared to the original movie network on demand technology, the original power of P 2 P on-demand system through technology upgrades, it has saved about 3 G bandwidth, 35 server resources, save money about 970 million Chinese Yuan.
Typical Customer Case-TCL Mi. TV www. forcetech. net TCL Internet TV Platform

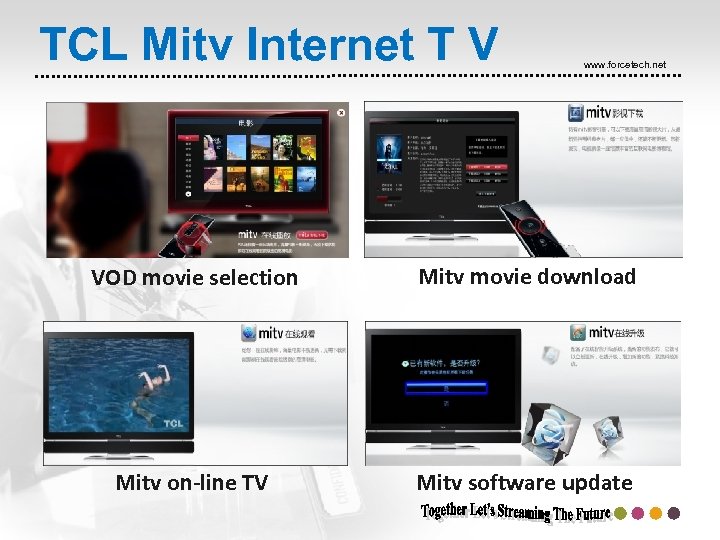

TCL Mitv Internet T V www. forcetech. net VOD movie selection Mitv movie download Mitv on-line TV Mitv software update
WASU Project www. forcetech. net Force. Tech cooperate with WAZU to create a new generation family video terminal client-IPTV Internet TV Project status (number of platforms statistics 2010) • Has supported TV manufacturers: TCL, Changhong, Hisense, Skyworth, Haier, LG, Konka, Panasonic • As of April this year, the country has sold 1, 500, 000 TV P 2 P IPTV television. • Average concurrent users: more than 100, 000 • Internet TV total sales: 200 million units • Server: 380 units • Distribution Area: 20 distribution points • Bandwidth: 40 G

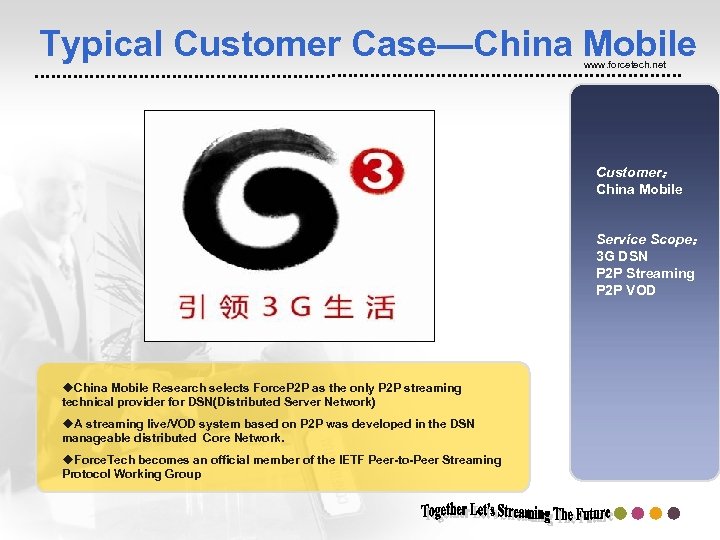

Typical Customer Case—China Mobile www. forcetech. net 应用案例： 中国移动 Customer： 业务范围： 3 G China Mobile DSN P 2 P手机 P 2 P三屏流媒体 Scope： Service 3 G DSN P 2 P Streaming P 2 P VOD u. China Mobile Research selects Force. P 2 P as the only P 2 P streaming technical provider for DSN(Distributed Server Network) u. A streaming live/VOD system based on P 2 P was developed in the DSN manageable distributed Core Network. u. Force. Tech becomes an official member of the IETF Peer-to-Peer Streaming Protocol Working Group

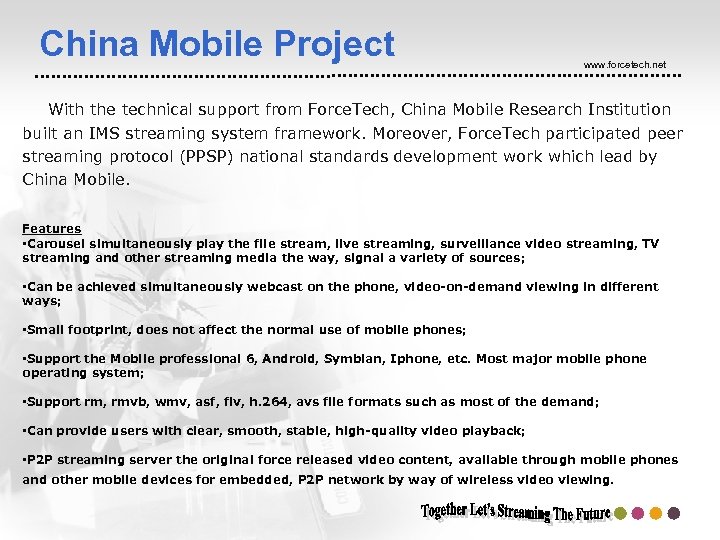

China Mobile Project www. forcetech. net With the technical support from Force. Tech, China Mobile Research Institution built an IMS streaming system framework. Moreover, Force. Tech participated peer streaming protocol (PPSP) national standards development work which lead by China Mobile. Features • Carousel simultaneously play the file stream, live streaming, surveillance video streaming, TV streaming and other streaming media the way, signal a variety of sources; • Can be achieved simultaneously webcast on the phone, video-on-demand viewing in different ways; • Small footprint, does not affect the normal use of mobile phones; • Support the Mobile professional 6, Android, Symbian, Iphone, etc. Most major mobile phone operating system; • Support rm, rmvb, wmv, asf, flv, h. 264, avs file formats such as most of the demand; • Can provide users with clear, smooth, stable, high-quality video playback; • P 2 P streaming server the original force released video content, available through mobile phones and other mobile devices for embedded, P 2 P network by way of wireless video viewing.

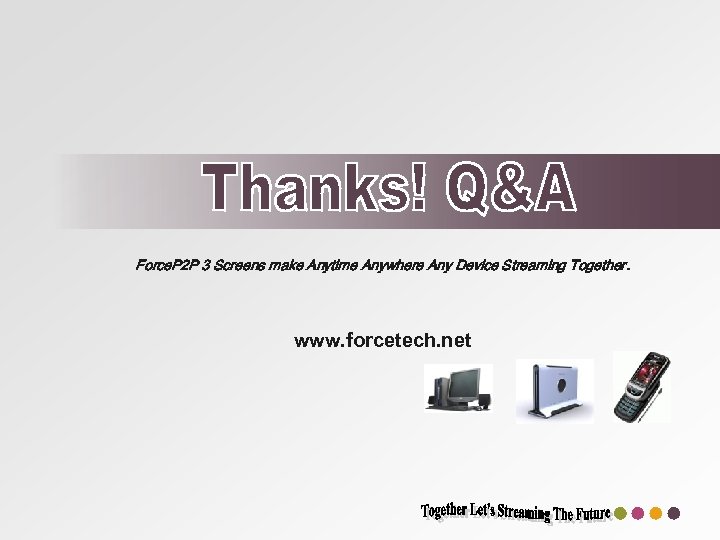

Force. P 2 P 3 Screens make Anytime Anywhere Any Device Streaming Together. www. forcetech. net
