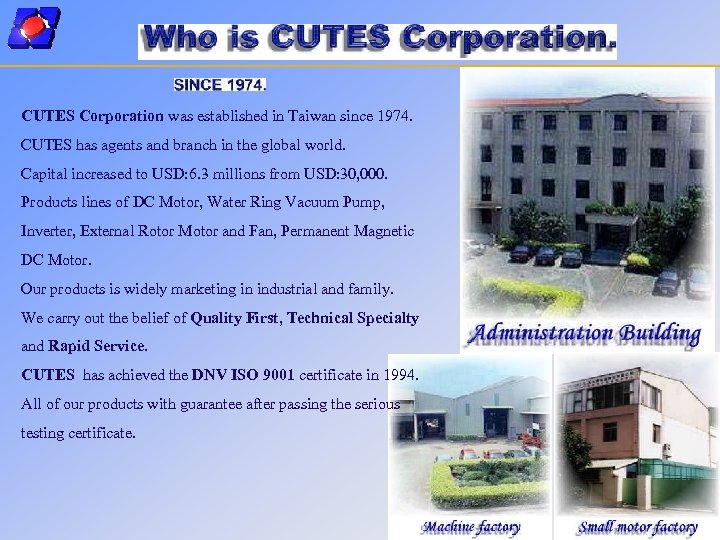

CUTES Corporation was established in Taiwan since 1974. CUTES has agents and branch in CUTES Corporation was established in Taiwan since 1974. CUTES has agents and branch in the global world. Capital increased to USD: 6. 3 millions from USD: 30, 000. Products lines of DC Motor, Water Ring Vacuum Pump, Inverter, External Rotor Motor and Fan, Permanent Magnetic DC Motor. Our products is widely marketing in industrial and family. We carry out the belief of Quality First, Technical Specialty and Rapid Service. CUTES has achieved the DNV ISO 9001 certificate in 1994. All of our products with guarantee after passing the serious testing certificate.

Products Water Ring Vacuum Pump Inverter DC Motor Mech. Booster Root’s Blower External rotor Products Water Ring Vacuum Pump Inverter DC Motor Mech. Booster Root’s Blower External rotor Magnetic motor & Fan Motor

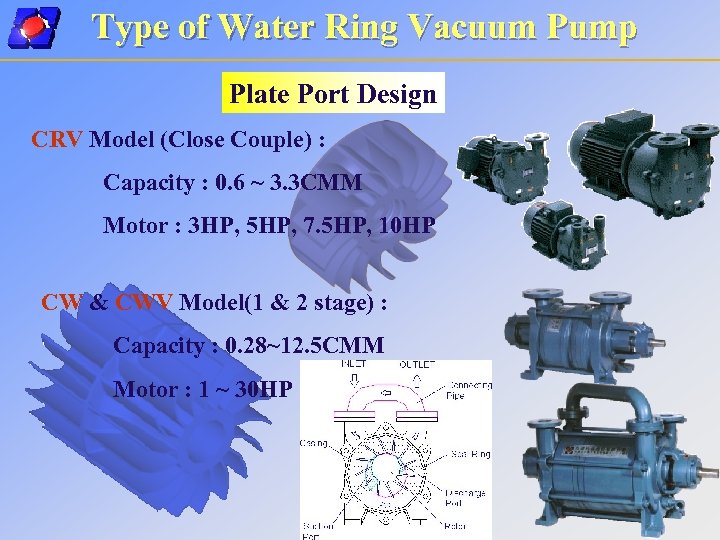

Type of Water Ring Vacuum Pump Plate Port Design CRV Model (Close Couple) : Type of Water Ring Vacuum Pump Plate Port Design CRV Model (Close Couple) : Capacity : 0. 6 ~ 3. 3 CMM Motor : 3 HP, 5 HP, 7. 5 HP, 10 HP CW & CWV Model(1 & 2 stage) : Capacity : 0. 28~12. 5 CMM Motor : 1 ~ 30 HP

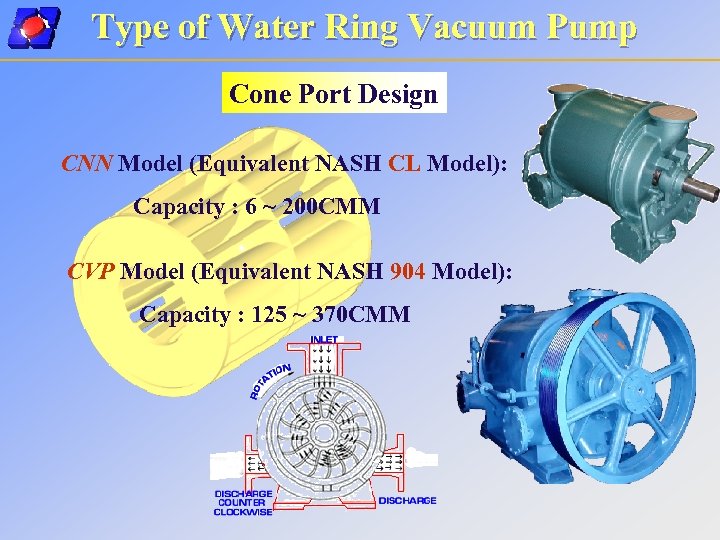

Type of Water Ring Vacuum Pump Cone Port Design CNN Model (Equivalent NASH CL Type of Water Ring Vacuum Pump Cone Port Design CNN Model (Equivalent NASH CL Model): Capacity : 6 ~ 200 CMM CVP Model (Equivalent NASH 904 Model): Capacity : 125 ~ 370 CMM

Features of CUTES Vacuum Pump Rotor Bearing Bracket • High efficiency rotor with 20 Features of CUTES Vacuum Pump Rotor Bearing Bracket • High efficiency rotor with 20 blades design. • Patent design of removable bearing bracket. • Standard material structure with cast stainless steel rotor. • Taiwan Pat. No. : 098373 Housing Packing Glands • Standard design with mid-plate. • Cast stainless steel material. • Both suction side can be operated at different vacuum services. Housing Cones • Three kinds of choose for services low, medium and high vacuum. 01 – below 16 in. Hg 02 – 14 ~ 22 in. Hg Bearing bracket 03 – 20 ~ 27 in. Hg Packing gland Rotor

How to select the Vacuum Pump? Replacement an existing Vacuum Pump • Cutes Vacuum How to select the Vacuum Pump? Replacement an existing Vacuum Pump • Cutes Vacuum Pump can totally equivalent NASH Vacuum pump. • Without change piping, base and pulley. Contrast table CUTES NASH CNN-301 CNN-302 CL-301 CL-302 CNN-401 CNN-402 CNN-403 CL-401 CL-402 CL-403 CNN-701 CNN-702 CNN-703 CL-701 CL-702 CL-703 CNN-1001 CL-1001 CNN-1002 CL-1002 CNN-1003 CL-1003 The name NASH, and relate sizes utilized above are Registered Trade Marks of Nash Eng. Co. CUTES NASH CNN-2001 CL-2001 CNN-2002 CL-2002 CNN-2003 CL-2003 CVP-80 L CVP-80 M CVP-80 H 904 P 1 904 P 2 904 P 3 CNN-3001 CL-3001 CNN-3002 CL-3002 CNN-3003 CL-3003 CVP-90 L CVP-90 M CVP-90 H 904 R 1 904 R 2 904 R 3 CNN-4001 CL-4001 CNN-4002 CL-4002 CNN-4003 CL-4003 CVP-110 L CVP-110 M CVP-110 H 904 S 1 904 S 2 904 S 3 CNN-6001 CL-6001 CNN-6002 CL-6002 CNN-6003 CL-6003 CVP-130 L CVP-130 M CVP-130 H 904 T 1 904 T 2 904 T 3
