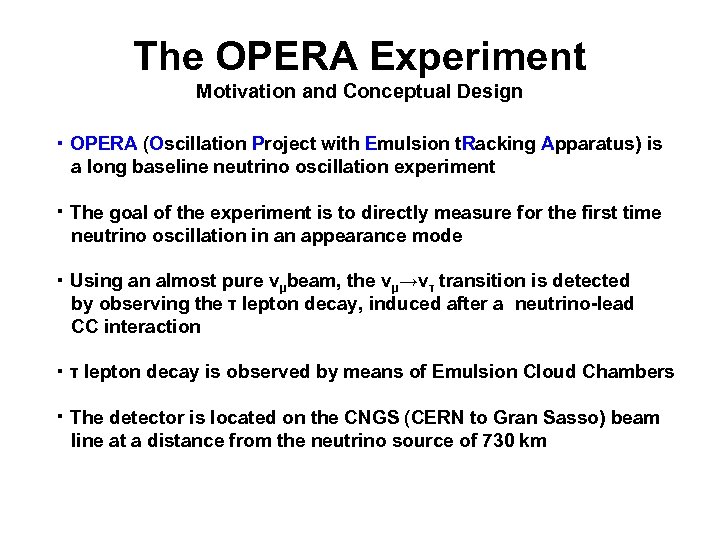

The OPERA Experiment Motivation and Conceptual Design ・ OPERA (Oscillation Project with Emulsion t. Racking Apparatus) is a long baseline neutrino oscillation experiment ・ The goal of the experiment is to directly measure for the first time neutrino oscillation in an appearance mode ・ Using an almost pure νμbeam, the νμ→ντ transition is detected by observing the τ lepton decay, induced after a neutrino-lead CC interaction ・ τ lepton decay is observed by means of Emulsion Cloud Chambers ・ The detector is located on the CNGS (CERN to Gran Sasso) beam line at a distance from the neutrino source of 730 km

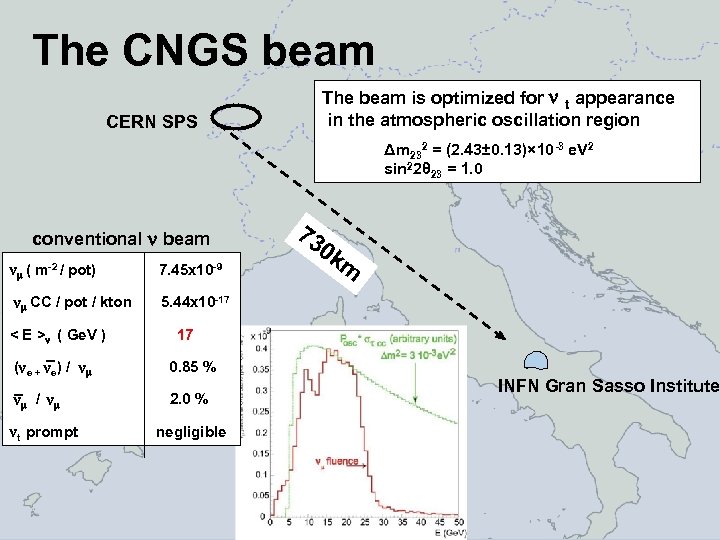

The CNGS beam The beam is optimized for t appearance in the atmospheric oscillation region CERN SPS Δm 232 = (2. 43± 0. 13)× 10 -3 e. V 2 sin 22θ 23 = 1. 0 conventional beam ( m-2 / pot) 7. 45 x 10 -9 CC / pot / kton 73 0 k m 5. 44 x 10 -17 < E > ( Ge. V ) 17 ( e + e) / 0. 85 % / 2. 0 % t prompt negligible INFN Gran Sasso Institute

Principle of detecting tau neutrino ～ s cτ = 87 micron - Topology 10 -13 - , e- , -　→　e- Trident 17. 4 ％ - 　→　h- h- 17. 8 ％ - 　→　μ- Kink 49. 5 ％ - 　→　h- h- h+ 15. 2 ％ h h Micrometric and milliradian resolution Large Mass → Emulsion → Lead Target Trigger Neutrino Interaction → Target Tracker Identify muons and charge to reduce charm backgound → Spectrometer ECC Electronic Detector Hybrid Detector (Emulsion - Electronic Detectors)

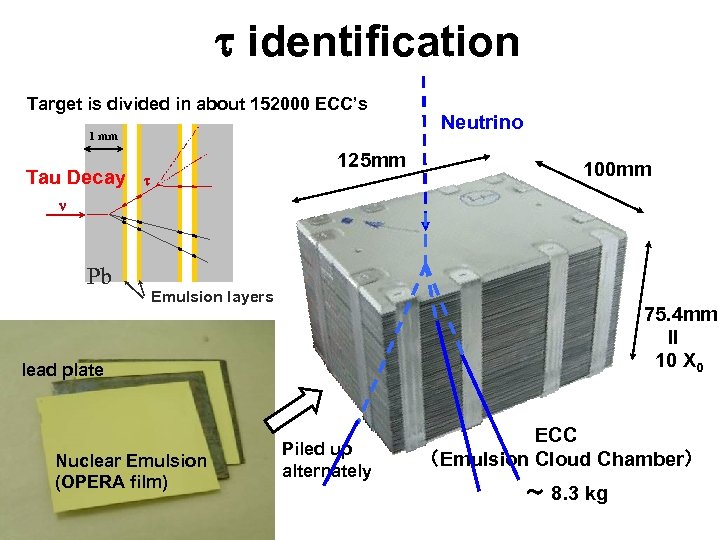

identification Target is divided in about 152000 ECC’s 1 mm Tau Decay 125 mm Neutrino 100 mm Pb Emulsion layers 75. 4 mm II 10 X 0 lead plate Nuclear Emulsion (OPERA film) Piled up alternately ECC （Emulsion Cloud Chamber） ～ 8. 3 kg

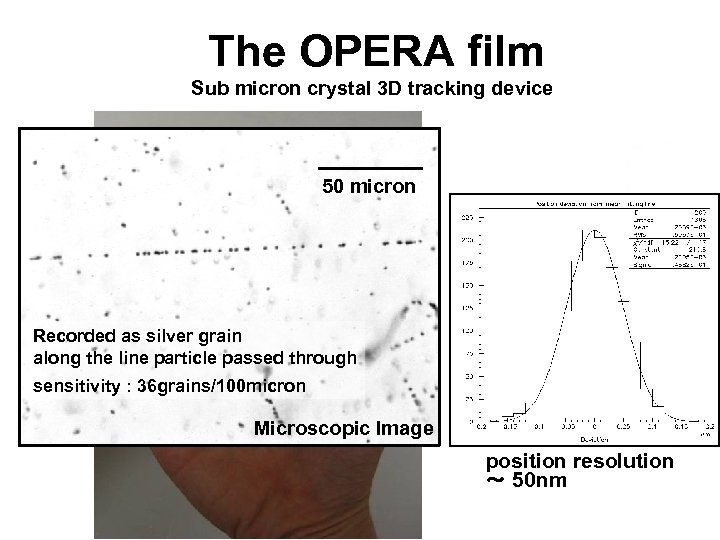

The OPERA Film The OPERA film Sub micron crystal 3 D tracking device 50 micron emulsion (44 μm) Recorded as silver grain along the line particle passed through plastic base (205 μm) sensitivity : 36 grains/100 micron Microscopic Image emulsion (44 μm) position resolution ～ 50 nm

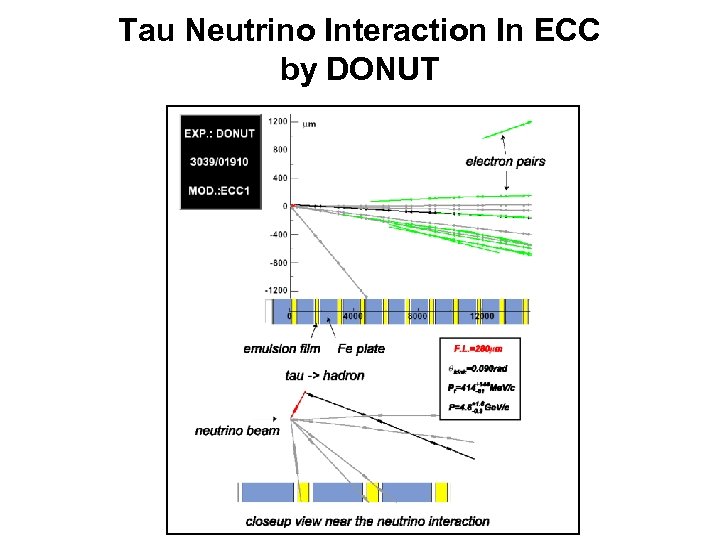

Tau Neutrino Interaction In ECC by DONUT

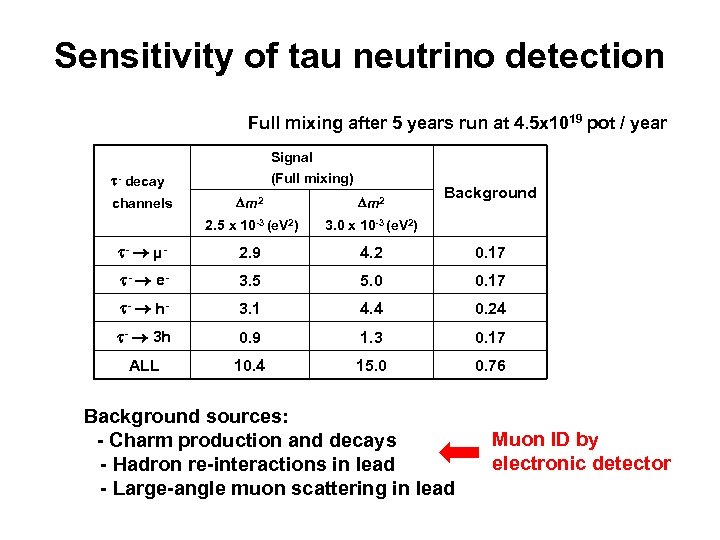

Sensitivity of tau neutrino detection Full mixing after 5 years run at 4. 5 x 1019 pot / year Signal (Full mixing) - decay Background m 2 2. 5 x 10 -3 (e. V 2) 3. 0 x 10 -3 (e. V 2) - µ- 2. 9 4. 2 0. 17 - e- 3. 5 5. 0 0. 17 - h- 3. 1 4. 4 0. 24 - 3 h 0. 9 1. 3 0. 17 ALL 10. 4 15. 0 0. 76 channels Background sources: 　- Charm production and decays - Hadron re-interactions in lead - Large-angle muon scattering in lead Muon ID by electronic detector

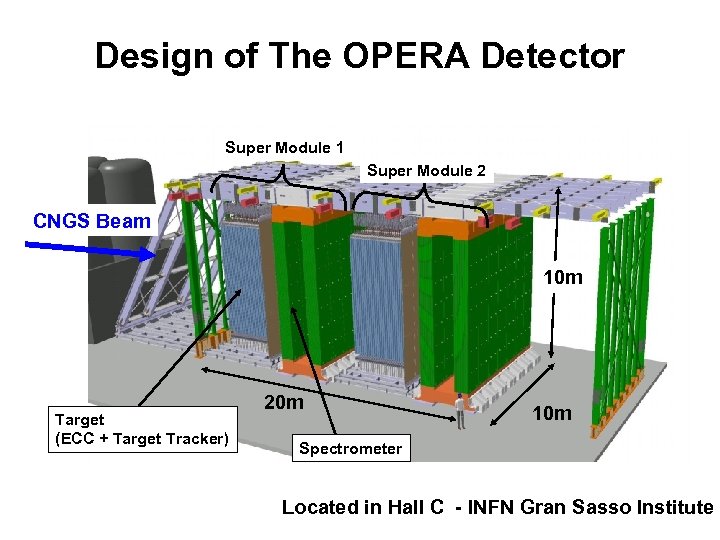

Design of The OPERA Detector Super Module 1 Super Module 2 CNGS Beam 10 m Target (ECC + Target Tracker) 20 m 10 m Spectrometer Located in Hall C - INFN Gran Sasso Institute

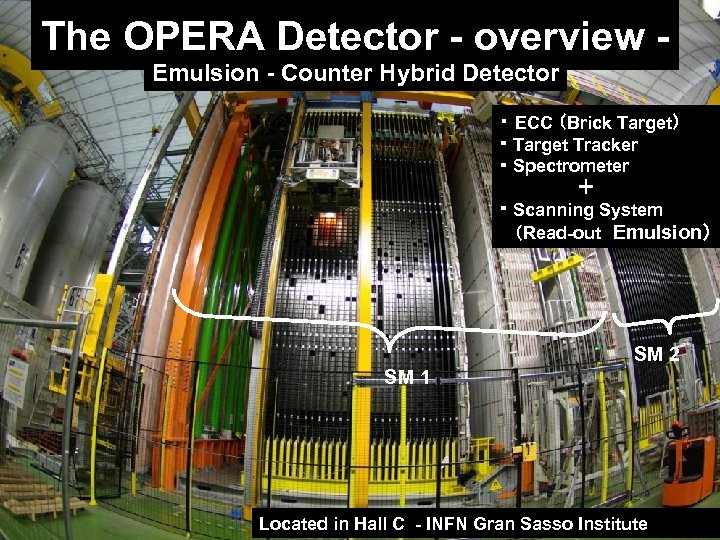

The OPERA Detector - overview Emulsion - Counter Hybrid Detector ・ ECC （Brick Target） ・ Target Tracker ・ Spectrometer 　　　　＋ ・ Scanning System （Read-out Emulsion） SM 2 SM 1 Located in Hall C - INFN Gran Sasso Institute

The OPERA detector Brick Target mass 1. 35 kt 　~　150000 Bricks 　~　8 millions of nuclear Emulsion Brick filling is finished in July 2008: 5000 bricks more will be added at the end of 2008 once additional lead will be delivered

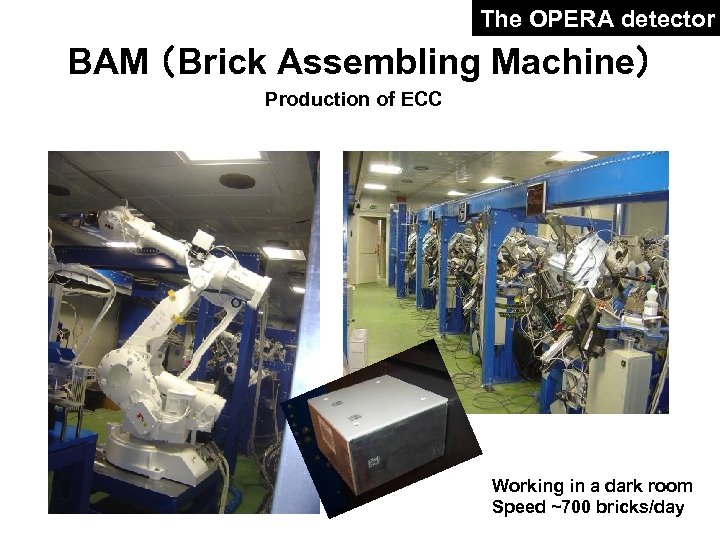

The OPERA detector BAM （Brick Assembling Machine） Production of ECC Working in a dark room Speed ~700 bricks/day

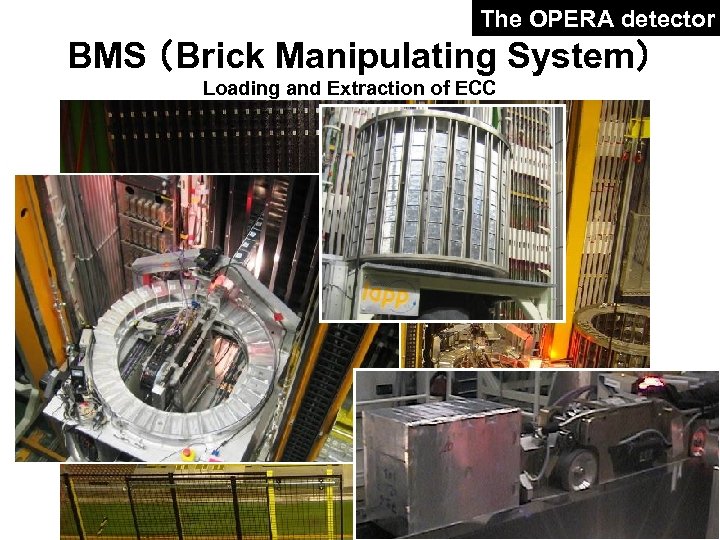

The OPERA detector BMS （Brick Manipulating System） Loading and Extraction of ECC

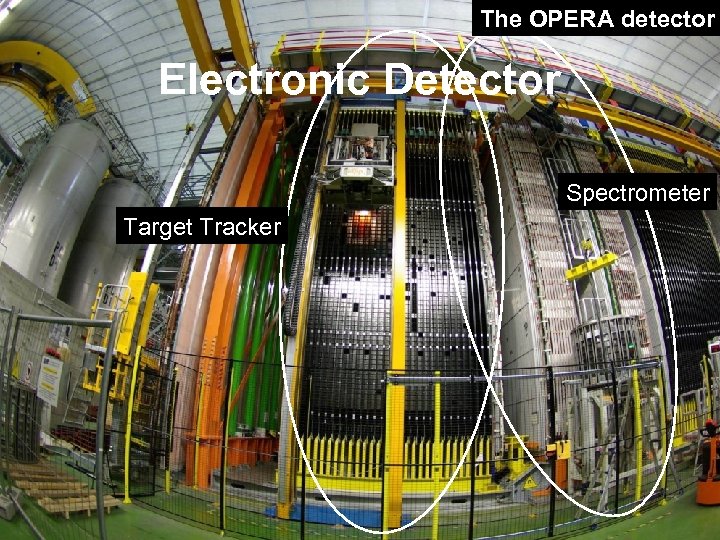

The OPERA detector Electronic Detector Spectrometer Target Tracker

The OPERA detector Target tracker ● ● ● The main goals of the target tracker are the trigger on the neutrino events and the identification of the brick to be extracted and then analysed It is made of plastic scintillator strips, each with a wavelength shifting fibre The fibres are connected in groups of 64 to multi-anode Hamamatsu PMTs at both ends Spatial resolution ~0. 8 cm (2. 6 cm pitch) L. Scotto Lavina (INFN Napoli) 16

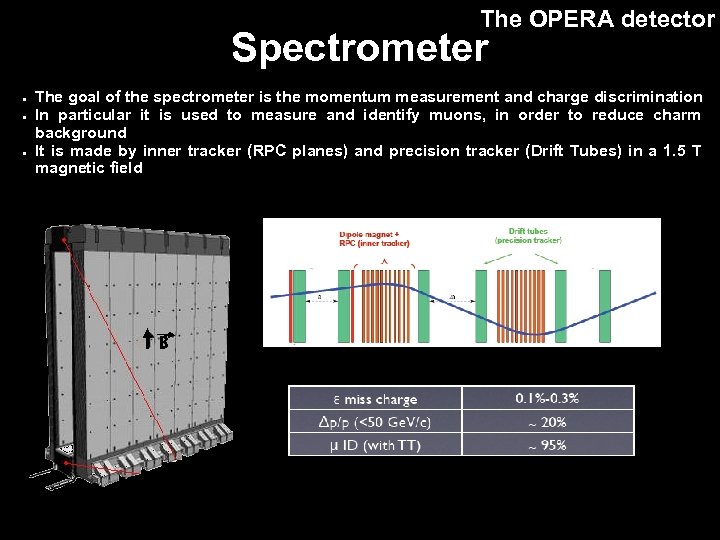

The OPERA detector Spectrometer ● ● ● B The goal of the spectrometer is the momentum measurement and charge discrimination In particular it is used to measure and identify muons, in order to reduce charm background It is made by inner tracker (RPC planes) and precision tracker (Drift Tubes) in a 1. 5 T magnetic field B L. Scotto Lavina (INFN Napoli) 17

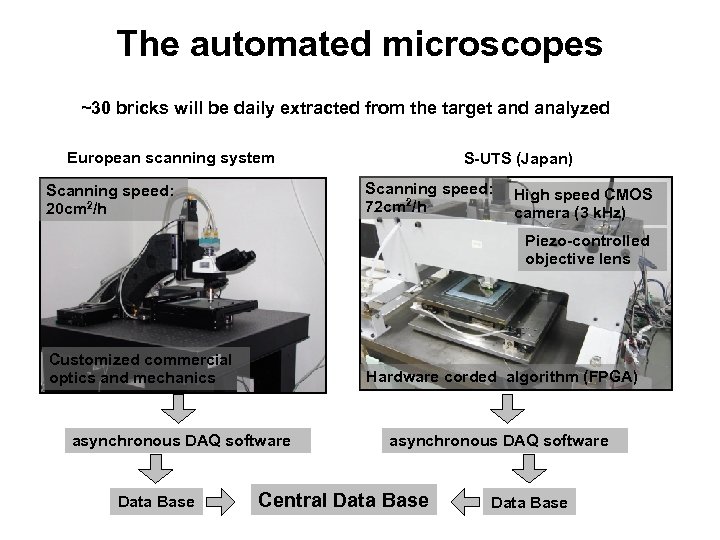

The automated microscopes ~30 bricks will be daily extracted from the target and analyzed European scanning system S-UTS (Japan) Scanning speed: 72 cm 2/h Scanning speed: 20 cm 2/h High speed CMOS camera (3 k. Hz) Piezo-controlled objective lens Customized commercial optics and mechanics Hardware corded algorithm (FPGA) asynchronous DAQ software Data Base asynchronous DAQ software Central Data Base

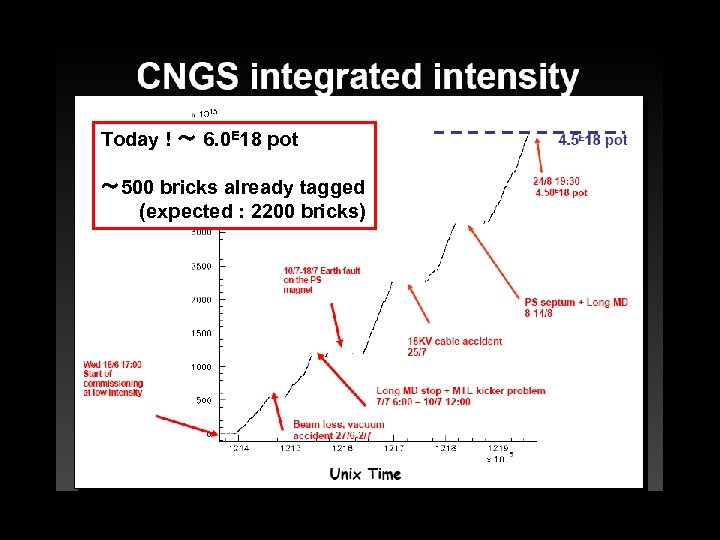

Today ! ～ 6. 0 E 18 pot ～ 500 bricks already tagged (expected : 2200 bricks)

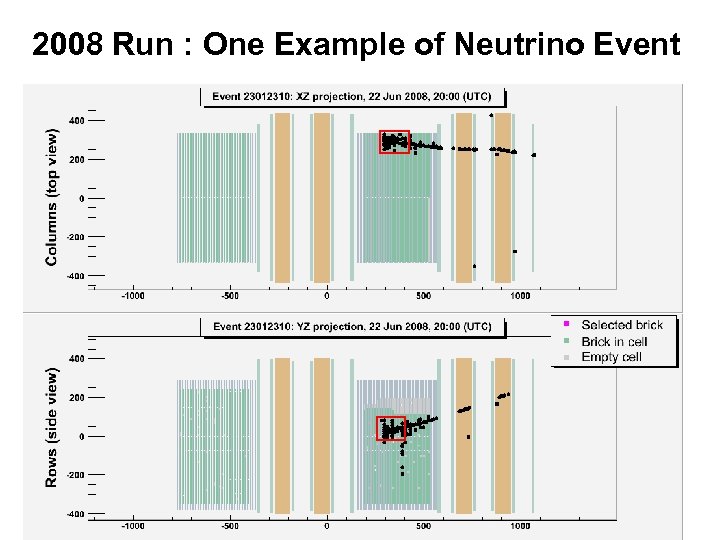

2008 Run : One Example of Neutrino Event

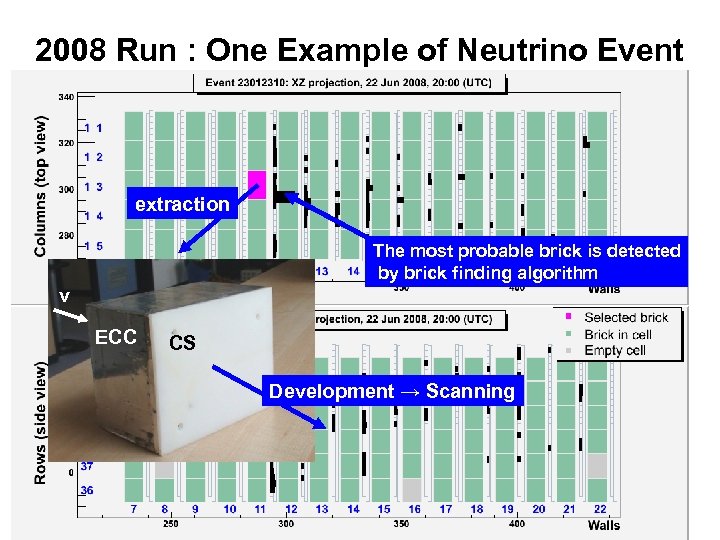

2008 Run : One Example of Neutrino Event extraction The most probable brick is detected by brick finding algorithm ν ECC CS Development → Scanning

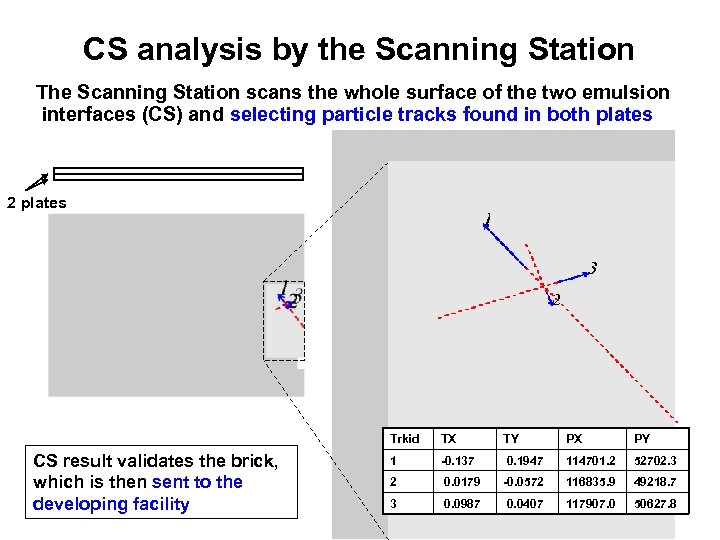

CS analysis by the Scanning Station The Scanning Station scans the whole surface of the two emulsion interfaces (CS) and selecting particle tracks found in both plates 2 plates Trkid CS result validates the brick, which is then sent to the developing facility TX TY PX PY 1 -0. 137 0. 1947 114701. 2 52702. 3 2 0. 0179 -0. 0572 116835. 9 49218. 7 3 0. 0987 0. 0407 117907. 0 50627. 8

Location of the neutrino interaction in ECC Predictions from the CS are followed back in the brick, looking for the position where the neutrino interaction occurred. Neutrino Beam ECC brick CS

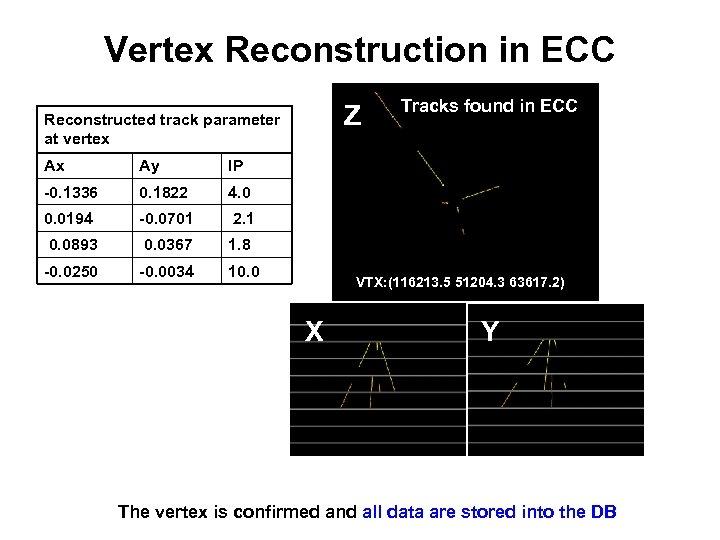

Vertex Reconstruction in ECC Z Reconstructed track parameter at vertex Ax Ay IP -0. 1336 0. 1822 4. 0 0. 0194 -0. 0701 2. 1 0. 0893 0. 0367 1. 8 -0. 0250 -0. 0034 10. 0 Tracks found in ECC VTX: (116213. 5 51204. 3 63617. 2) X Y The vertex is confirmed and all data are stored into the DB

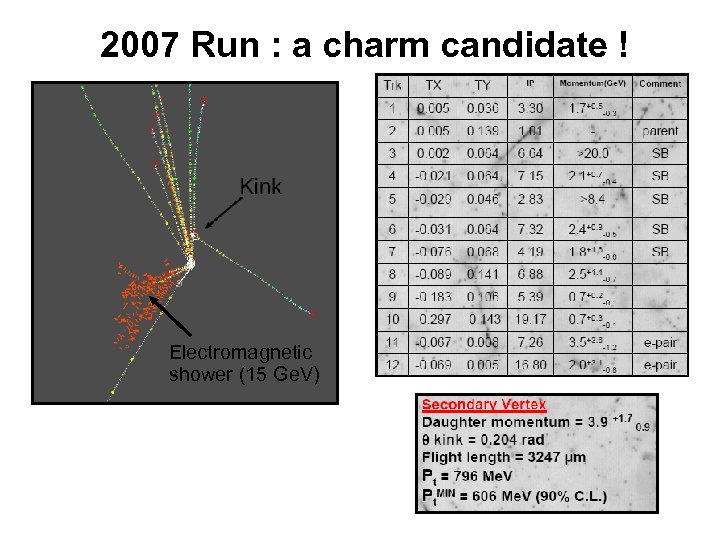

2007 Run : a charm candidate ! Electromagnetic shower (15 Ge. V)

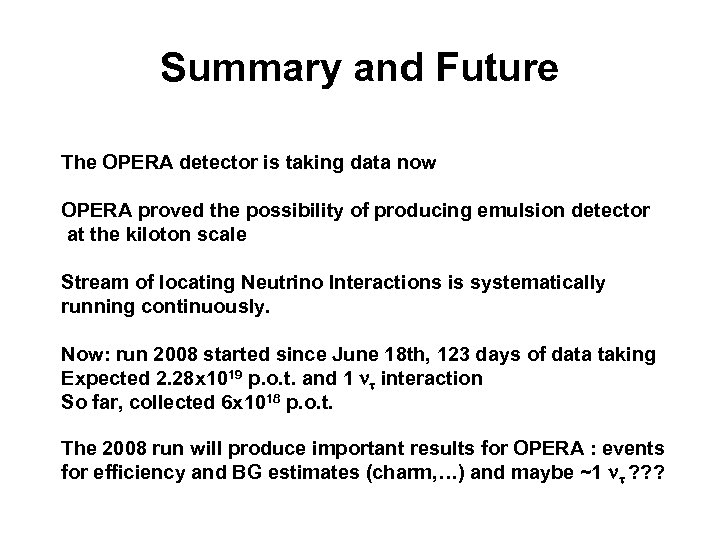

Summary and Future The OPERA detector is taking data now OPERA proved the possibility of producing emulsion detector at the kiloton scale Stream of locating Neutrino Interactions is systematically running continuously. Now: run 2008 started since June 18 th, 123 days of data taking Expected 2. 28 x 1019 p. o. t. and 1 interaction So far, collected 6 x 1018 p. o. t. The 2008 run will produce important results for OPERA : events for efficiency and BG estimates (charm, …) and maybe ~1 ? ? ?
