CSCI 467 IP and Web Security Chapter

CSCI 467 – IP and Web Security Chapter 16, 17 from Cryptography and Network Security, 4 th Edition, William Stallings Jason Detchevery With slides adapted from Lawrie Brown April 1 st 2009

IP Security Chapter 16

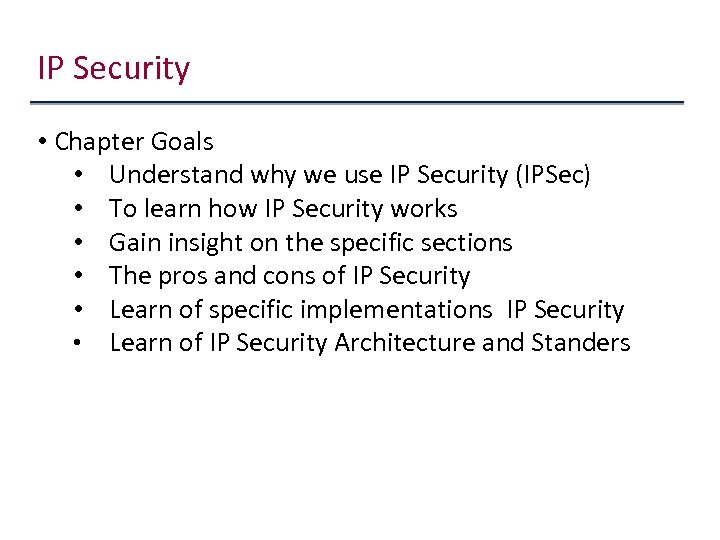

IP Security • Chapter Goals • Understand why we use IP Security (IPSec) • To learn how IP Security works • Gain insight on the specific sections • The pros and cons of IP Security • Learn of specific implementations IP Security • Learn of IP Security Architecture and Standers

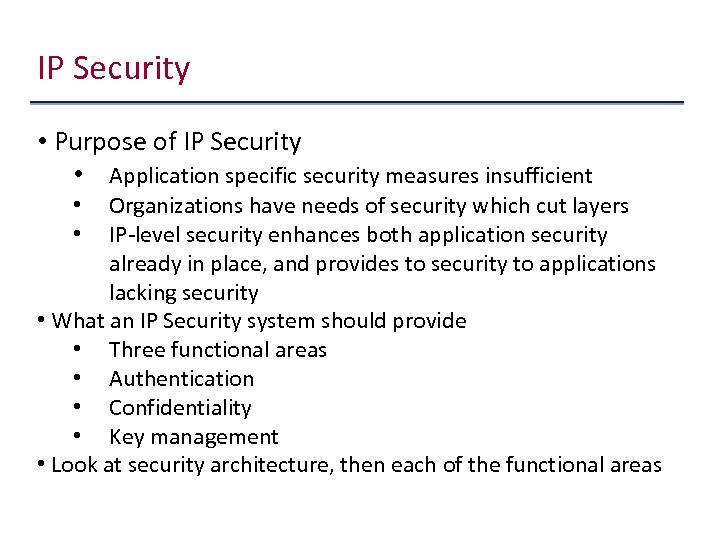

IP Security • Purpose of IP Security • Application specific security measures insufficient Organizations have needs of security which cut layers IP-level security enhances both application security already in place, and provides to security to applications lacking security • What an IP Security system should provide • Three functional areas • Authentication • Confidentiality • Key management • Look at security architecture, then each of the functional areas • •

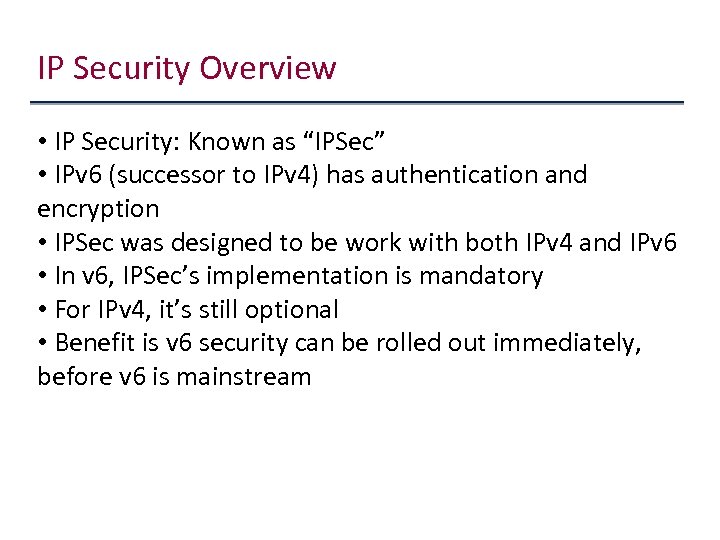

IP Security Overview • IP Security: Known as “IPSec” • IPv 6 (successor to IPv 4) has authentication and encryption • IPSec was designed to be work with both IPv 4 and IPv 6 • In v 6, IPSec’s implementation is mandatory • For IPv 4, it’s still optional • Benefit is v 6 security can be rolled out immediately, before v 6 is mainstream

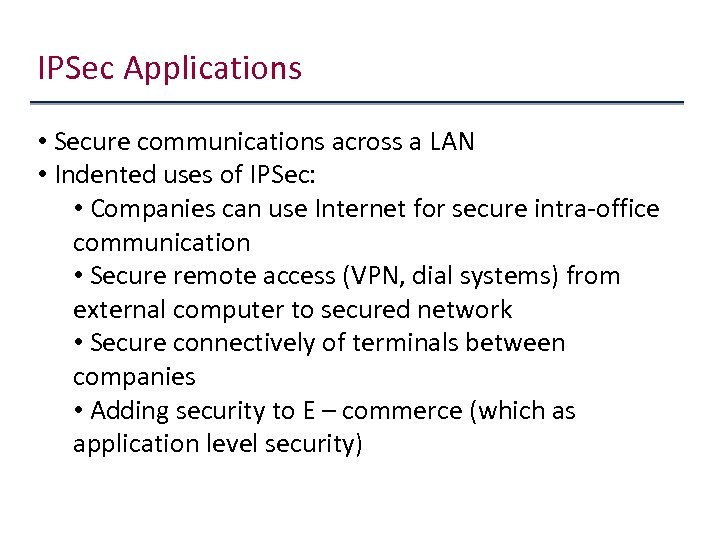

IPSec Applications • Secure communications across a LAN • Indented uses of IPSec: • Companies can use Internet for secure intra-office communication • Secure remote access (VPN, dial systems) from external computer to secured network • Secure connectively of terminals between companies • Adding security to E – commerce (which as application level security)

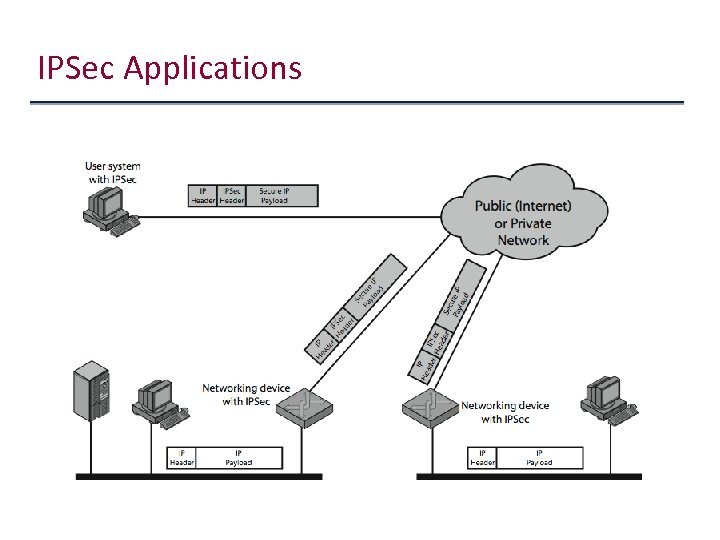

IPSec Applications

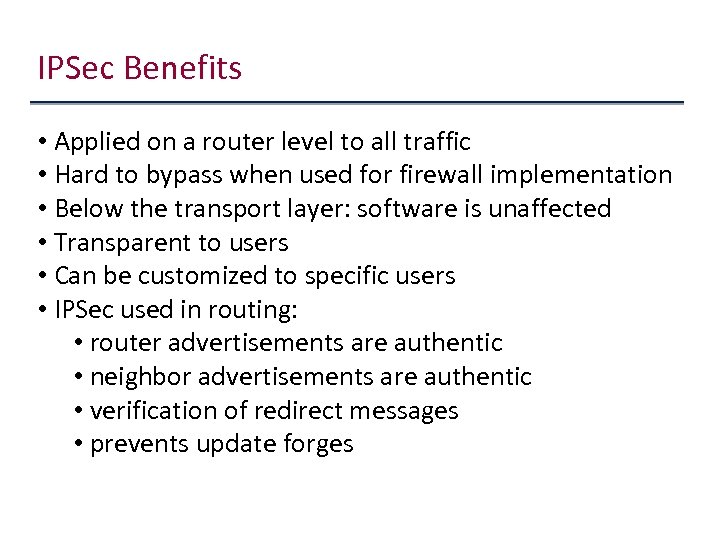

IPSec Benefits • Applied on a router level to all traffic • Hard to bypass when used for firewall implementation • Below the transport layer: software is unaffected • Transparent to users • Can be customized to specific users • IPSec used in routing: • router advertisements are authentic • neighbor advertisements are authentic • verification of redirect messages • prevents update forges

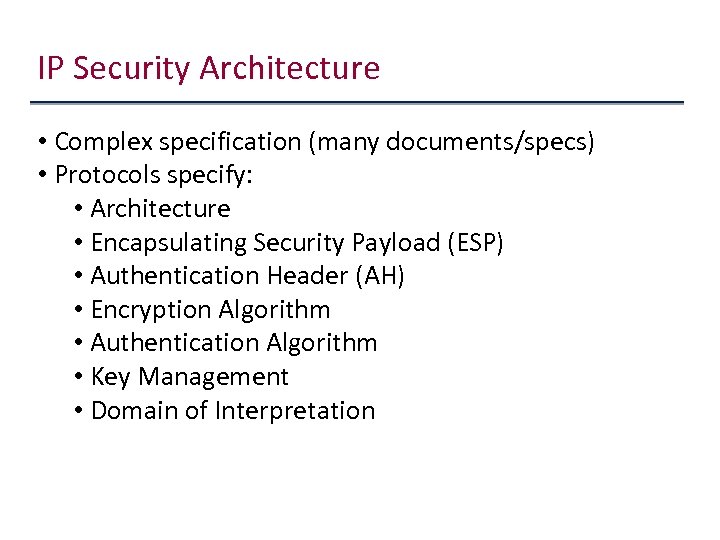

IP Security Architecture • Complex specification (many documents/specs) • Protocols specify: • Architecture • Encapsulating Security Payload (ESP) • Authentication Header (AH) • Encryption Algorithm • Authentication Algorithm • Key Management • Domain of Interpretation

IPSec Services • Services at the IP Layer • Selecting protocols, algorithms, crypto-keys • Important security protocols: ESP and AH • ESP and AH services: • Access control • Connectionless integrity • Data origin authentication • Rejection of replayed packets • Confidentiality (cipher text) • Confidentiality with limited cipher text

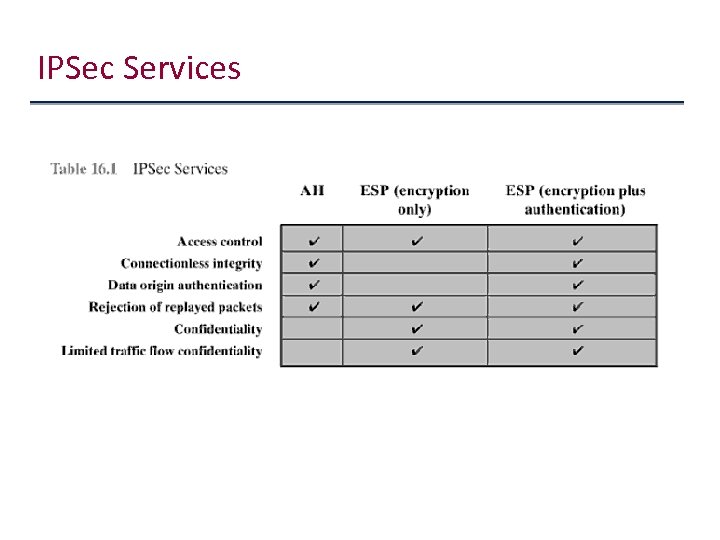

IPSec Services

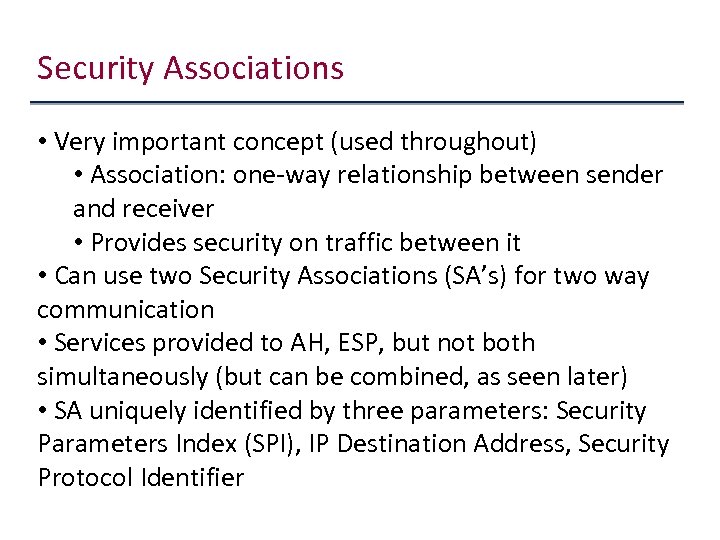

Security Associations • Very important concept (used throughout) • Association: one-way relationship between sender and receiver • Provides security on traffic between it • Can use two Security Associations (SA’s) for two way communication • Services provided to AH, ESP, but not both simultaneously (but can be combined, as seen later) • SA uniquely identified by three parameters: Security Parameters Index (SPI), IP Destination Address, Security Protocol Identifier

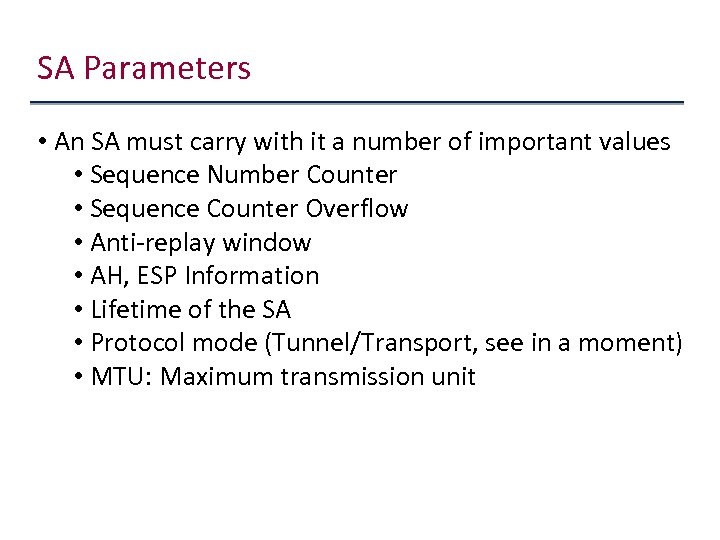

SA Parameters • An SA must carry with it a number of important values • Sequence Number Counter • Sequence Counter Overflow • Anti-replay window • AH, ESP Information • Lifetime of the SA • Protocol mode (Tunnel/Transport, see in a moment) • MTU: Maximum transmission unit

SA Selectors • IPSec: Flexibility on application of services to traffic • How to relate IP traffic to an SA? • Security Policy Database: • Simple idea: Table to relate subset of IP traffic to a specific SA • Becomes very complex (many to many relationship) • An entry: IP and upper-layer protocol field values • Known as selectors (filter outgoing traffic to SA) • Outgoing traffic: 1) compares fields of packet against SPD, finds match. 2) Determine the SA (if exists) 3) Do IPSec (AH ESP)

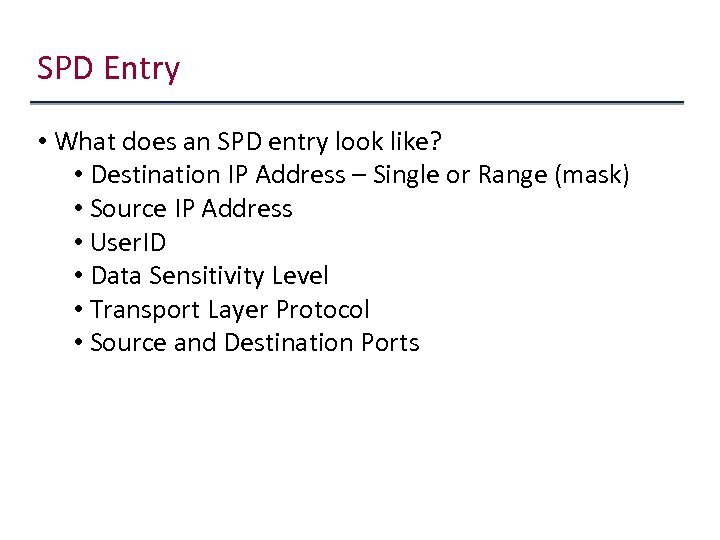

SPD Entry • What does an SPD entry look like? • Destination IP Address – Single or Range (mask) • Source IP Address • User. ID • Data Sensitivity Level • Transport Layer Protocol • Source and Destination Ports

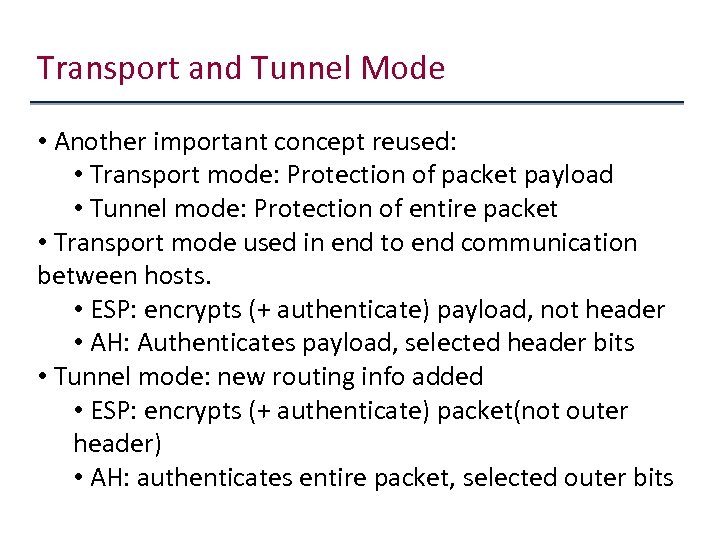

Transport and Tunnel Mode • Another important concept reused: • Transport mode: Protection of packet payload • Tunnel mode: Protection of entire packet • Transport mode used in end to end communication between hosts. • ESP: encrypts (+ authenticate) payload, not header • AH: Authenticates payload, selected header bits • Tunnel mode: new routing info added • ESP: encrypts (+ authenticate) packet(not outer header) • AH: authenticates entire packet, selected outer bits

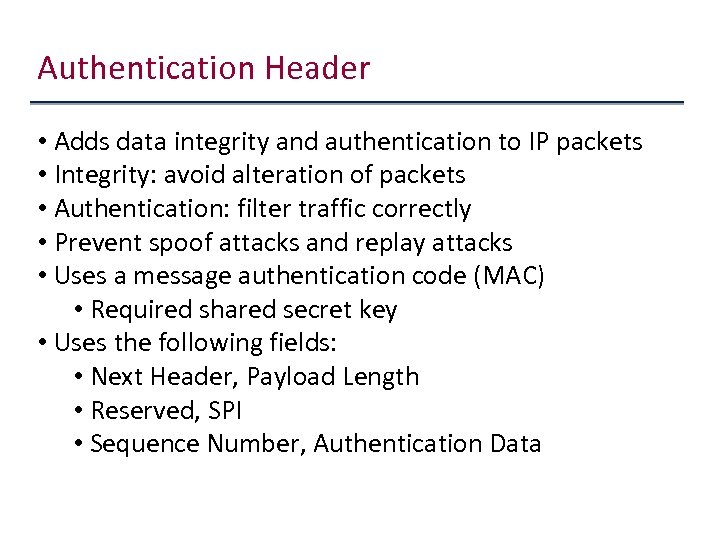

Authentication Header • Adds data integrity and authentication to IP packets • Integrity: avoid alteration of packets • Authentication: filter traffic correctly • Prevent spoof attacks and replay attacks • Uses a message authentication code (MAC) • Required shared secret key • Uses the following fields: • Next Header, Payload Length • Reserved, SPI • Sequence Number, Authentication Data

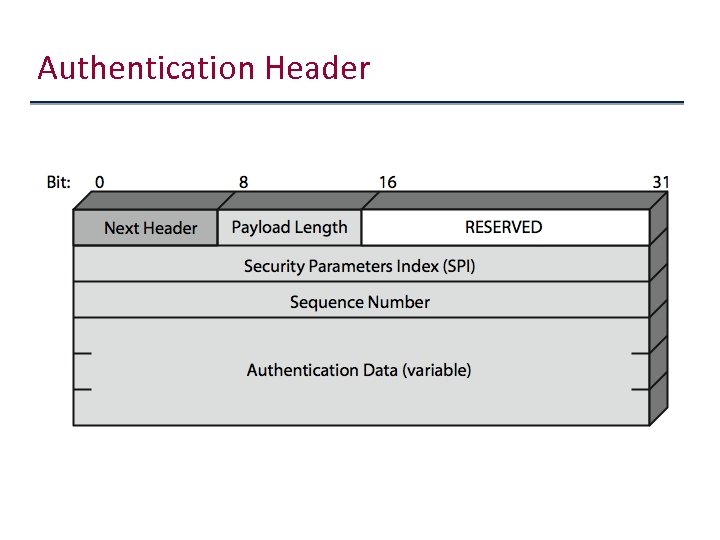

Authentication Header

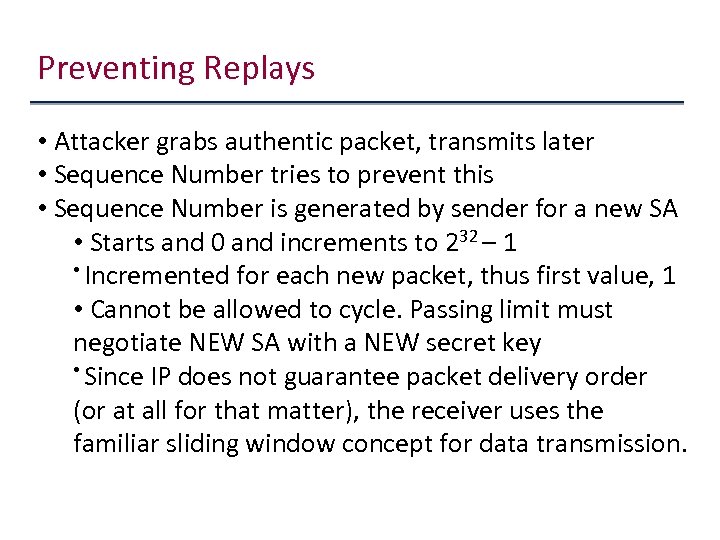

Preventing Replays • Attacker grabs authentic packet, transmits later • Sequence Number tries to prevent this • Sequence Number is generated by sender for a new SA • Starts and 0 and increments to 232 – 1 • Incremented for each new packet, thus first value, 1 • Cannot be allowed to cycle. Passing limit must negotiate NEW SA with a NEW secret key • Since IP does not guarantee packet delivery order (or at all for that matter), the receiver uses the familiar sliding window concept for data transmission.

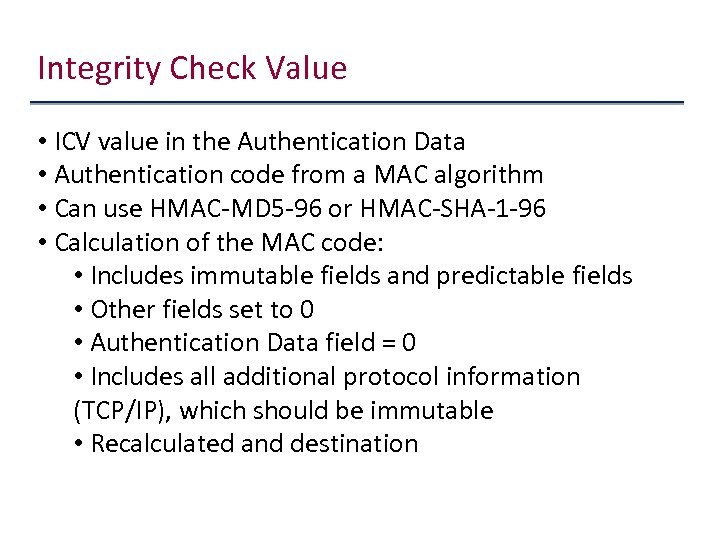

Integrity Check Value • ICV value in the Authentication Data • Authentication code from a MAC algorithm • Can use HMAC-MD 5 -96 or HMAC-SHA-1 -96 • Calculation of the MAC code: • Includes immutable fields and predictable fields • Other fields set to 0 • Authentication Data field = 0 • Includes all additional protocol information (TCP/IP), which should be immutable • Recalculated and destination

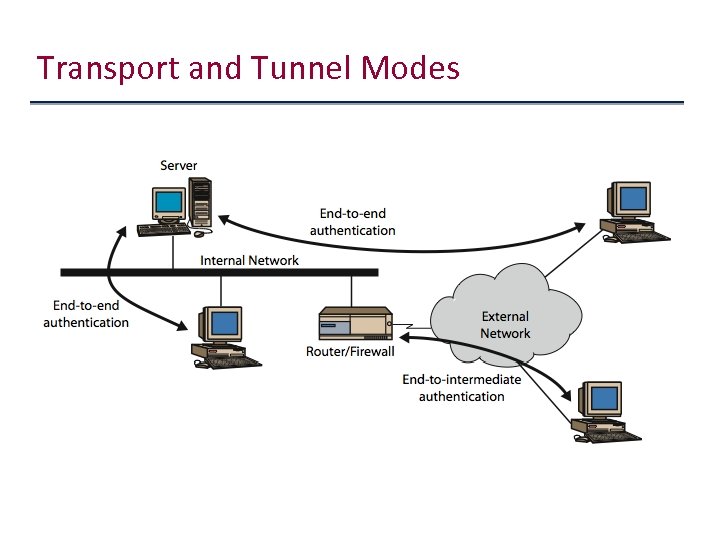

Transport and Tunnel Modes

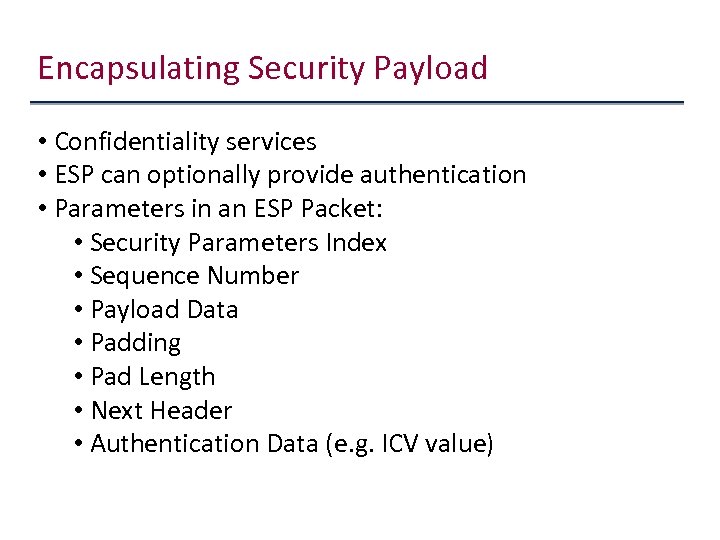

Encapsulating Security Payload • Confidentiality services • ESP can optionally provide authentication • Parameters in an ESP Packet: • Security Parameters Index • Sequence Number • Payload Data • Padding • Pad Length • Next Header • Authentication Data (e. g. ICV value)

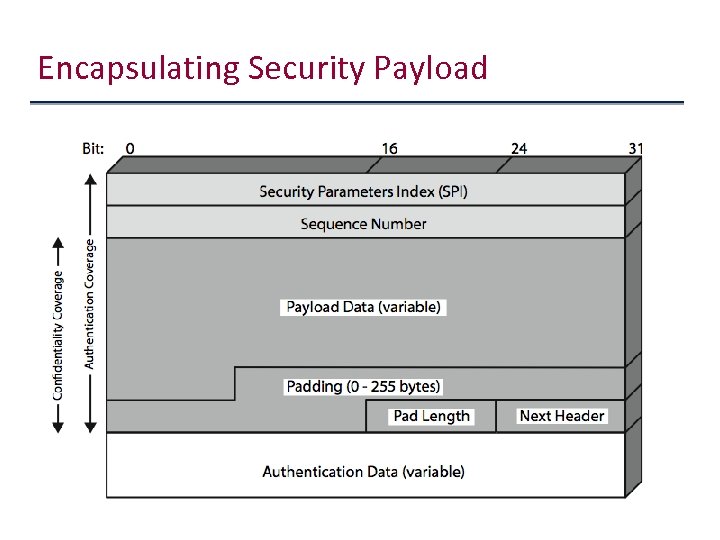

Encapsulating Security Payload

Encryption and Decryption • Uses any number symmetric encryption algorithms • Three-key DES • RC 5 • Blowfish • More • Specified by the DOI • Padding: • Padding can indicate cipher text length, make plain text long enough • Used to align fields • Conceal actual payload length

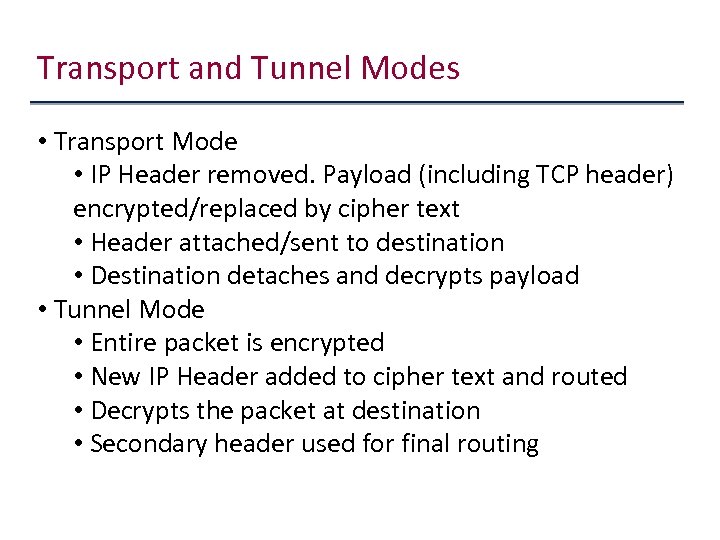

Transport and Tunnel Modes • Transport Mode • IP Header removed. Payload (including TCP header) encrypted/replaced by cipher text • Header attached/sent to destination • Destination detaches and decrypts payload • Tunnel Mode • Entire packet is encrypted • New IP Header added to cipher text and routed • Decrypts the packet at destination • Secondary header used for final routing

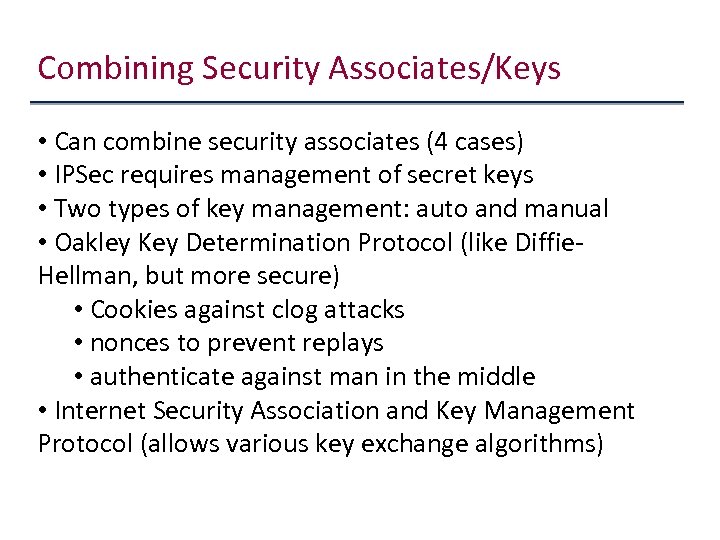

Combining Security Associates/Keys • Can combine security associates (4 cases) • IPSec requires management of secret keys • Two types of key management: auto and manual • Oakley Key Determination Protocol (like Diffie. Hellman, but more secure) • Cookies against clog attacks • nonces to prevent replays • authenticate against man in the middle • Internet Security Association and Key Management Protocol (allows various key exchange algorithms)

Web Security Chapter 17

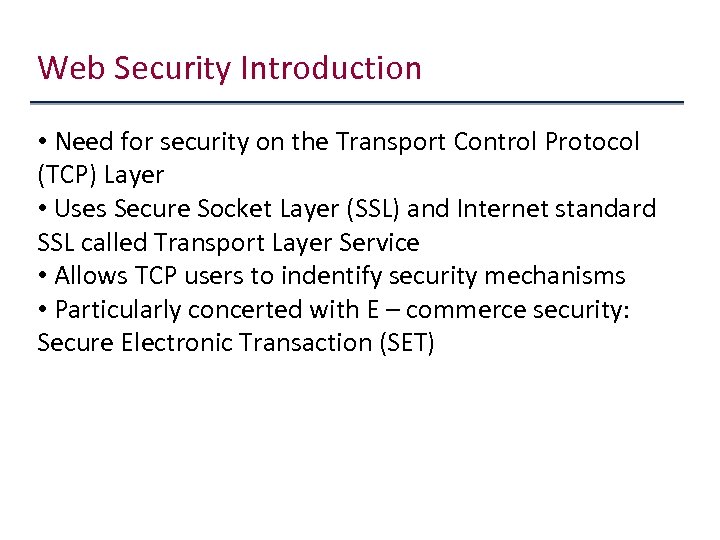

Web Security Introduction • Need for security on the Transport Control Protocol (TCP) Layer • Uses Secure Socket Layer (SSL) and Internet standard SSL called Transport Layer Service • Allows TCP users to indentify security mechanisms • Particularly concerted with E – commerce security: Secure Electronic Transaction (SET)

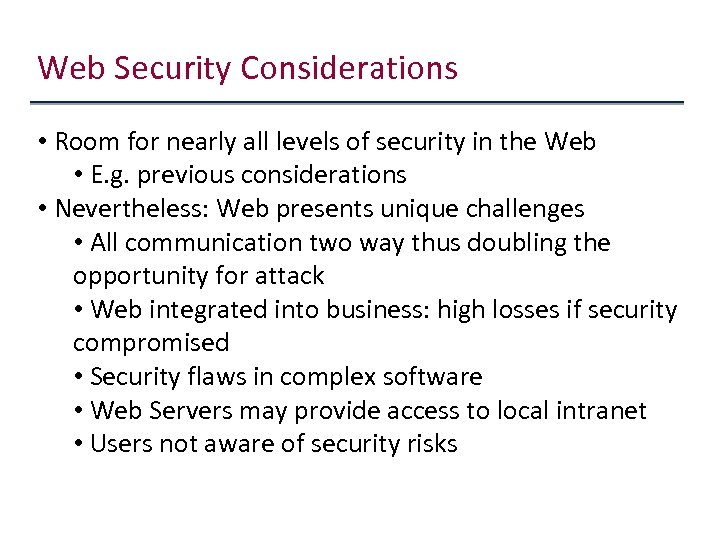

Web Security Considerations • Room for nearly all levels of security in the Web • E. g. previous considerations • Nevertheless: Web presents unique challenges • All communication two way thus doubling the opportunity for attack • Web integrated into business: high losses if security compromised • Security flaws in complex software • Web Servers may provide access to local intranet • Users not aware of security risks

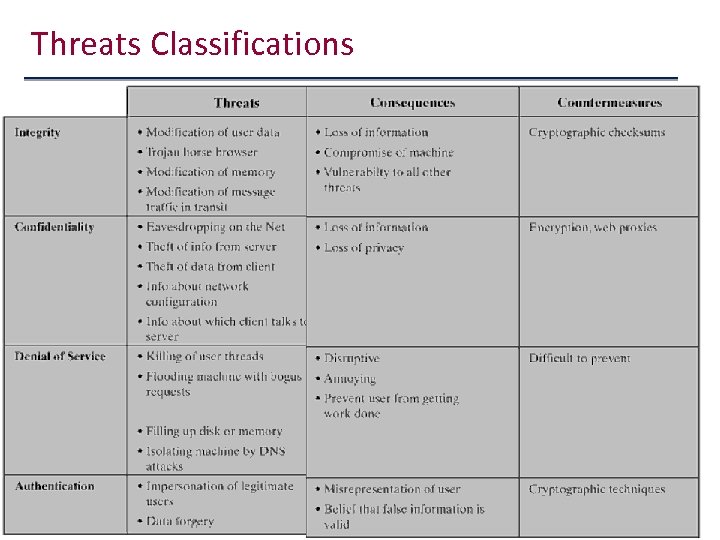

Threats Classifications

Web Security Approaches • Different ways of implementing security • Similar in services and (to an extent) mechanisms • Differ with respect to scope and location with TCP/IP stack • Simple security: Use IP Security! IPSec runs over TCP • Another solution: Run security just above TCP, below IP • Basis of SSL and TLS • Choice: Make SSL/TLS transparent or integrate into applications? (advantage: tailored to needs, disadvantage: complexity)

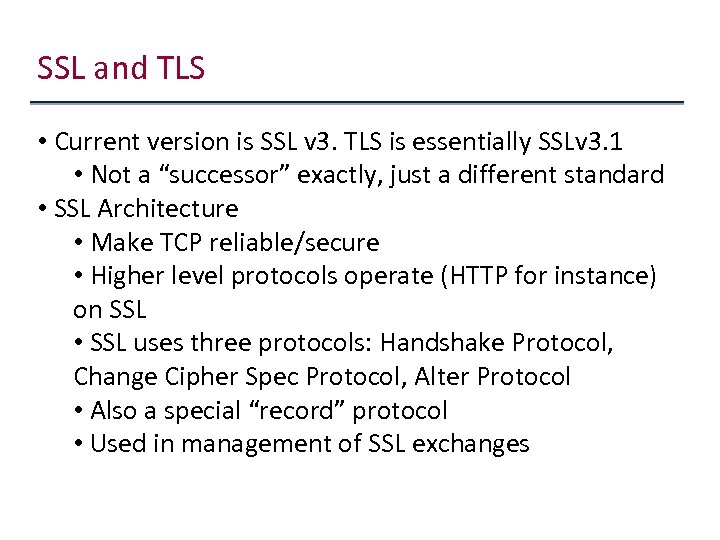

SSL and TLS • Current version is SSL v 3. TLS is essentially SSLv 3. 1 • Not a “successor” exactly, just a different standard • SSL Architecture • Make TCP reliable/secure • Higher level protocols operate (HTTP for instance) on SSL • SSL uses three protocols: Handshake Protocol, Change Cipher Spec Protocol, Alter Protocol • Also a special “record” protocol • Used in management of SSL exchanges

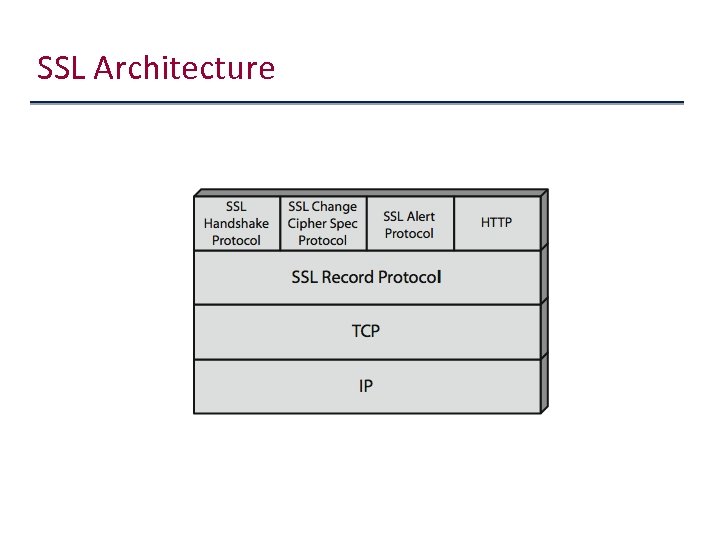

SSL Architecture

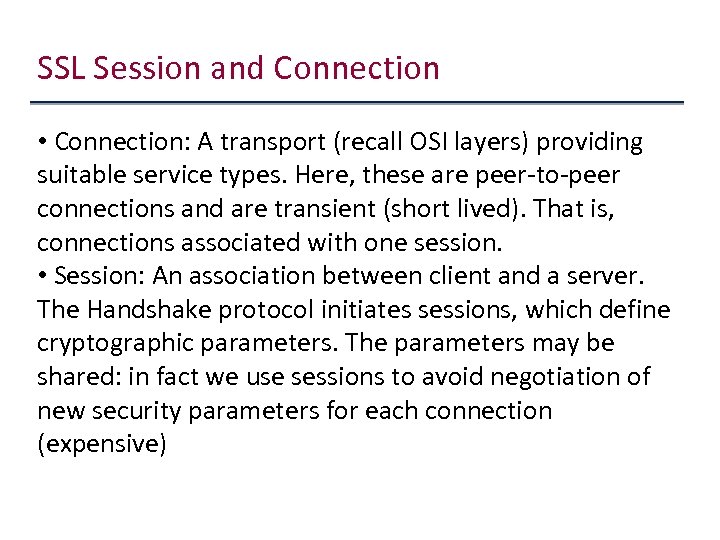

SSL Session and Connection • Connection: A transport (recall OSI layers) providing suitable service types. Here, these are peer-to-peer connections and are transient (short lived). That is, connections associated with one session. • Session: An association between client and a server. The Handshake protocol initiates sessions, which define cryptographic parameters. The parameters may be shared: in fact we use sessions to avoid negotiation of new security parameters for each connection (expensive)

Session and Connection States • Session state has following parameters • Session Identifier, Peer certificate (X 509, etc) • Compression Method • Cipher spec (data encryption) and hash • Master secret • Is resumable? • Connection state: • Server and client randomness • Keys: Server/Client MAC, Server/Client Write • Initialization vectors • Sequence numbers

SSL Record Protocol • SSL Record protocol provides two services: • Confidentiality • Using symmetric encryption with a shared secret key defined by Handshake Protocol • AES, IDEA, RC 2 -40, DES, 3 DES, Fortezza, RC 440, RC 4 -128 • Message is compressed before encryption • Message integrity • Using a MAC with shared secret key • Similar to HMAC but with different padding • Concerns itself with: fragmentation, compression, authentication (MAC), encryption, header

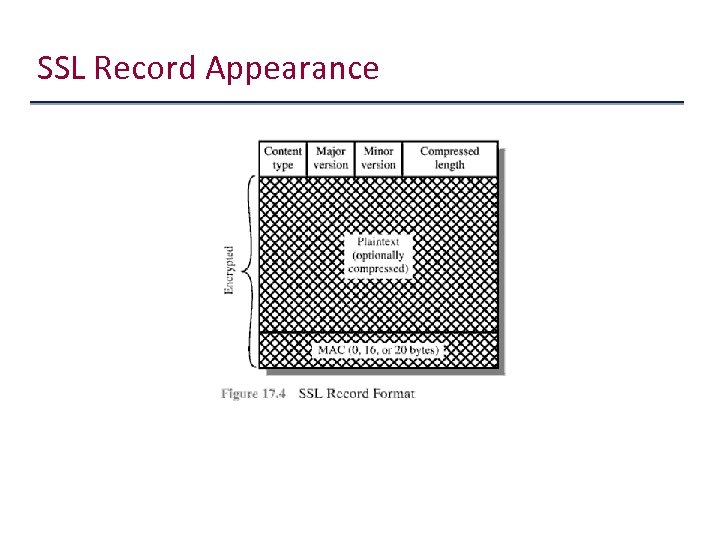

SSL Record Appearance

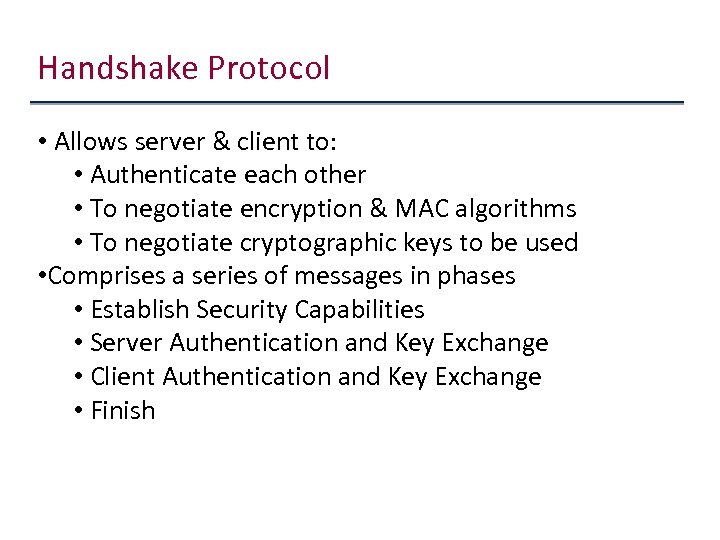

Handshake Protocol • Allows server & client to: • Authenticate each other • To negotiate encryption & MAC algorithms • To negotiate cryptographic keys to be used • Comprises a series of messages in phases • Establish Security Capabilities • Server Authentication and Key Exchange • Client Authentication and Key Exchange • Finish

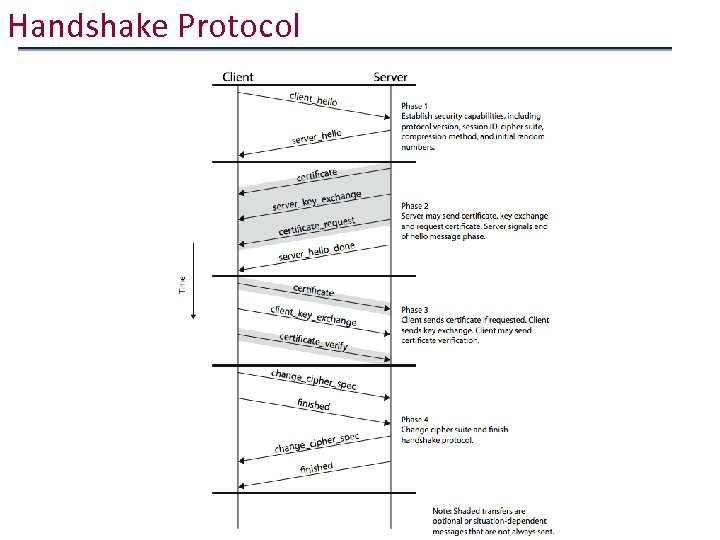

Handshake Protocol

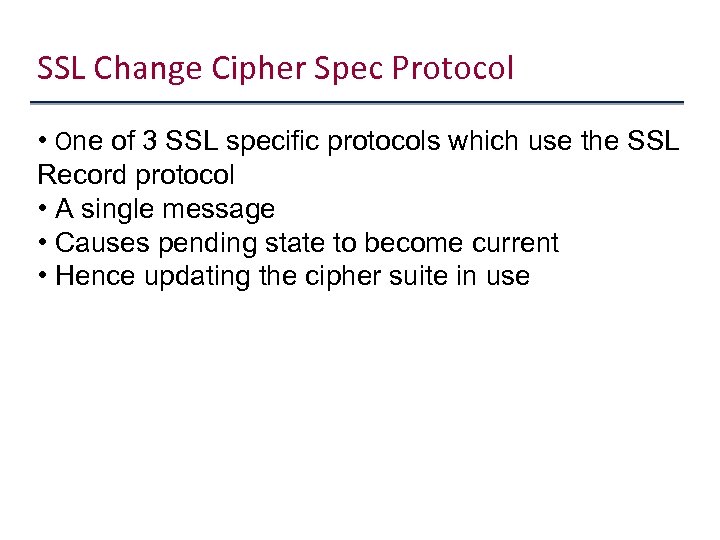

SSL Change Cipher Spec Protocol • One of 3 SSL specific protocols which use the SSL Record protocol • A single message • Causes pending state to become current • Hence updating the cipher suite in use

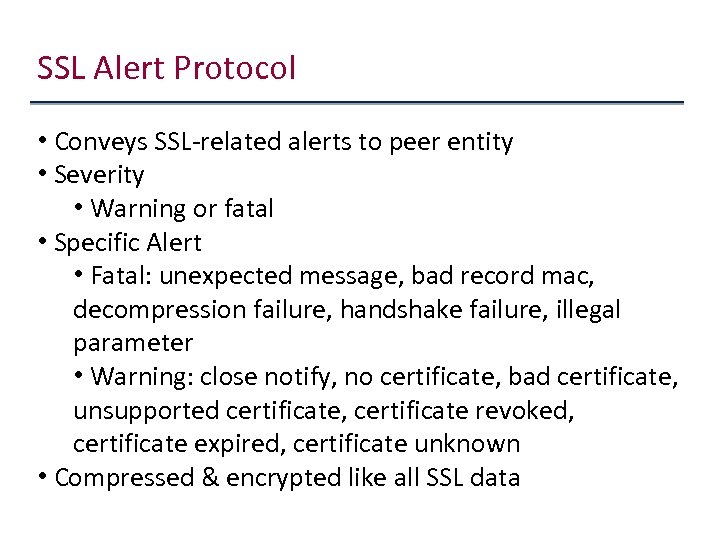

SSL Alert Protocol • Conveys SSL-related alerts to peer entity • Severity • Warning or fatal • Specific Alert • Fatal: unexpected message, bad record mac, decompression failure, handshake failure, illegal parameter • Warning: close notify, no certificate, bad certificate, unsupported certificate, certificate revoked, certificate expired, certificate unknown • Compressed & encrypted like all SSL data

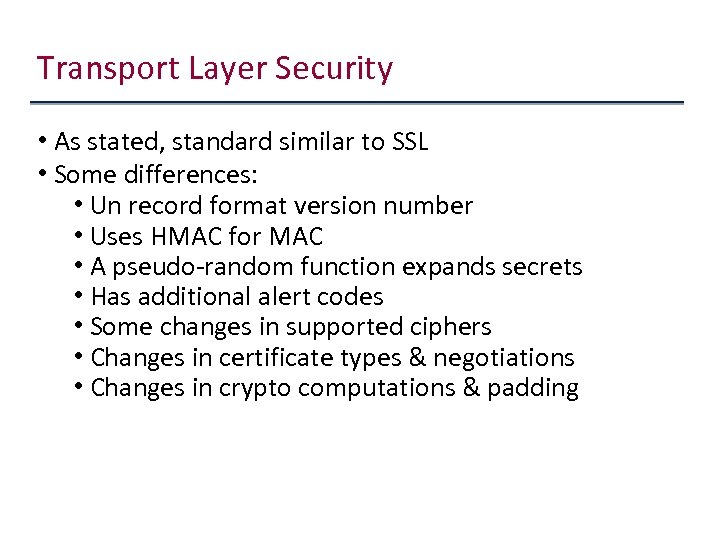

Transport Layer Security • As stated, standard similar to SSL • Some differences: • Un record format version number • Uses HMAC for MAC • A pseudo-random function expands secrets • Has additional alert codes • Some changes in supported ciphers • Changes in certificate types & negotiations • Changes in crypto computations & padding

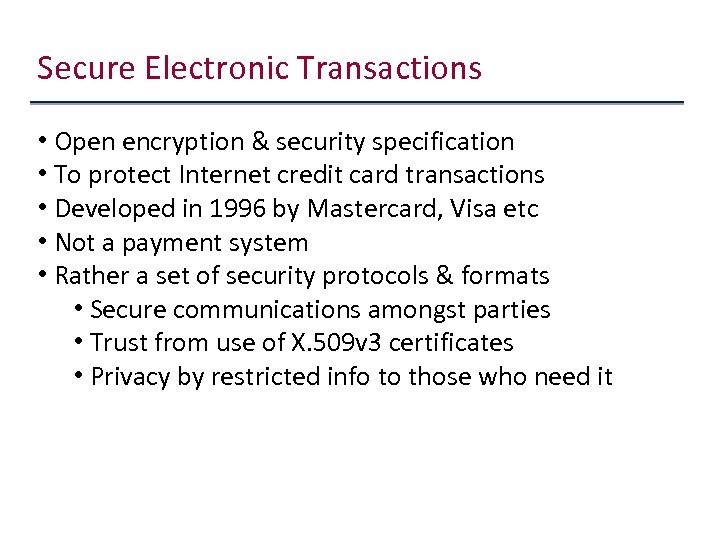

Secure Electronic Transactions • Open encryption & security specification • To protect Internet credit card transactions • Developed in 1996 by Mastercard, Visa etc • Not a payment system • Rather a set of security protocols & formats • Secure communications amongst parties • Trust from use of X. 509 v 3 certificates • Privacy by restricted info to those who need it

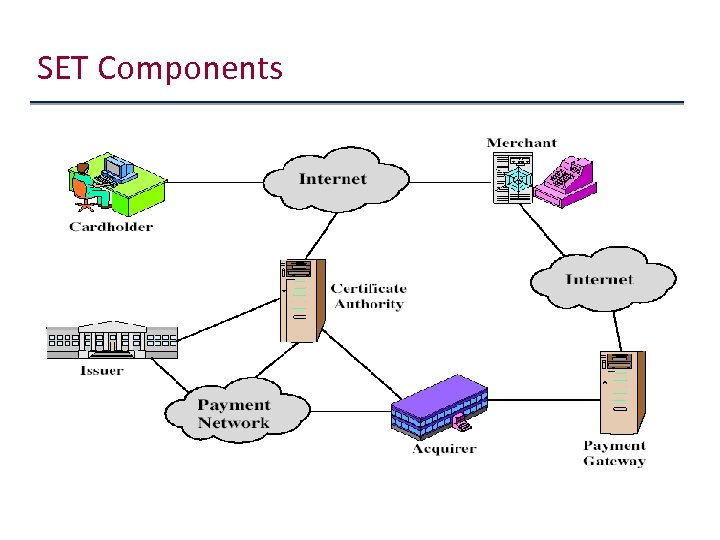

SET Components

SET Transaction • Customer opens account • Customer receives a certificate • Merchants have their own certificates • Customer places an order • Merchant is verified • Order and payment are sent • Merchant requests payment authorization • Merchant confirms order • Merchant provides goods or service • Merchant requests payment

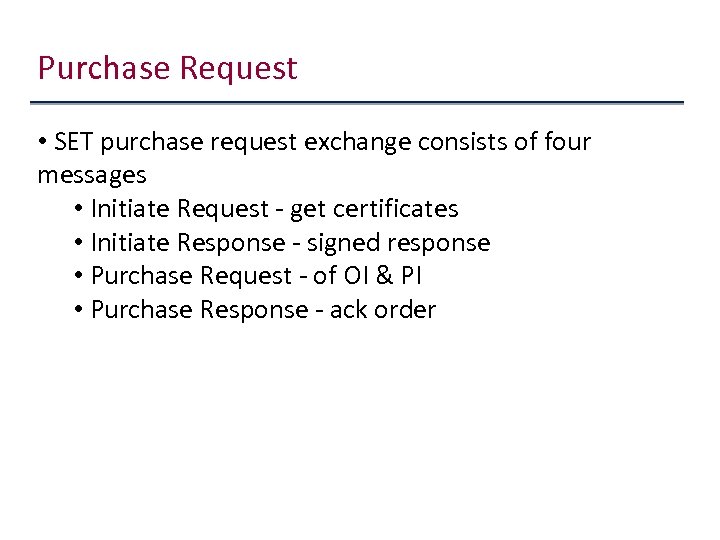

Purchase Request • SET purchase request exchange consists of four messages • Initiate Request - get certificates • Initiate Response - signed response • Purchase Request - of OI & PI • Purchase Response - ack order

Payment Gateway Authorization • Verifies all certificates • Decrypts digital envelope of authorization block to obtain symmetric key & then decrypts authorization block • Verifies merchant's signature on authorization block • Decrypts digital envelope of payment block to obtain symmetric key & then decrypts payment block • Verifies dual signature on payment block • Verifies that transaction ID received from merchant matches that in PI received (indirectly) from customer • Requests & receives an authorization from issuer • Sends authorization response back to merchant

Payment Capture • Merchant sends payment gateway a payment capture request • Gateway checks request • Then causes funds to be transferred to merchants account • Notifies merchant using capture response
