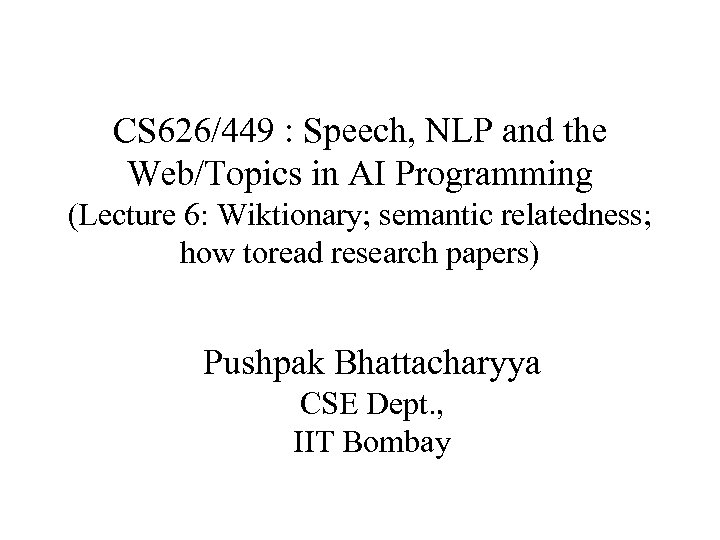

CS 626/449 : Speech, NLP and the Web/Topics in AI Programming (Lecture 6: Wiktionary; semantic relatedness; how toread research papers) Pushpak Bhattacharyya CSE Dept. , IIT Bombay

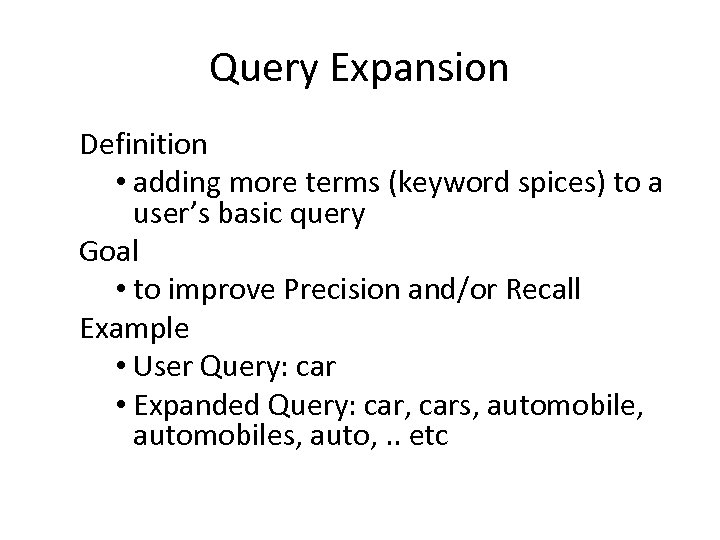

Query Expansion Definition • adding more terms (keyword spices) to a user’s basic query Goal • to improve Precision and/or Recall Example • User Query: car • Expanded Query: car, cars, automobiles, auto, . . etc

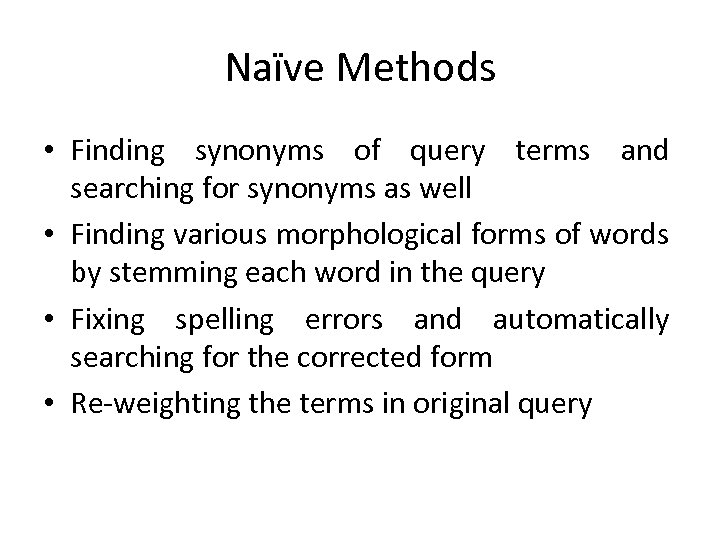

Naïve Methods • Finding synonyms of query terms and searching for synonyms as well • Finding various morphological forms of words by stemming each word in the query • Fixing spelling errors and automatically searching for the corrected form • Re-weighting the terms in original query

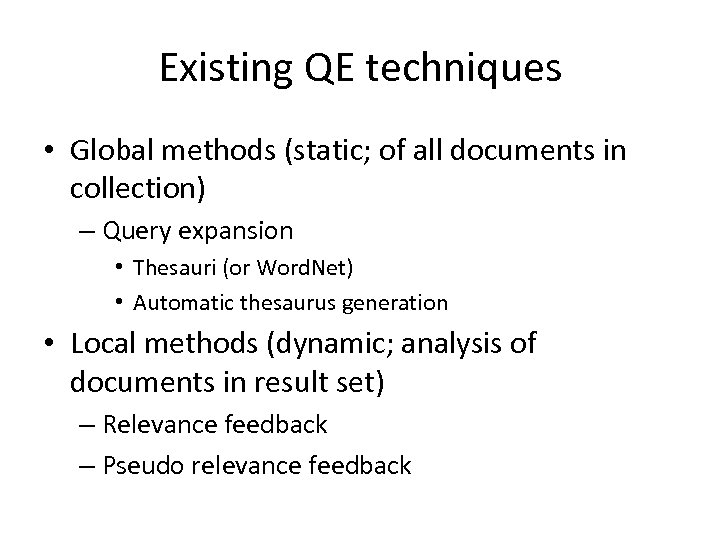

Existing QE techniques • Global methods (static; of all documents in collection) – Query expansion • Thesauri (or Word. Net) • Automatic thesaurus generation • Local methods (dynamic; analysis of documents in result set) – Relevance feedback – Pseudo relevance feedback

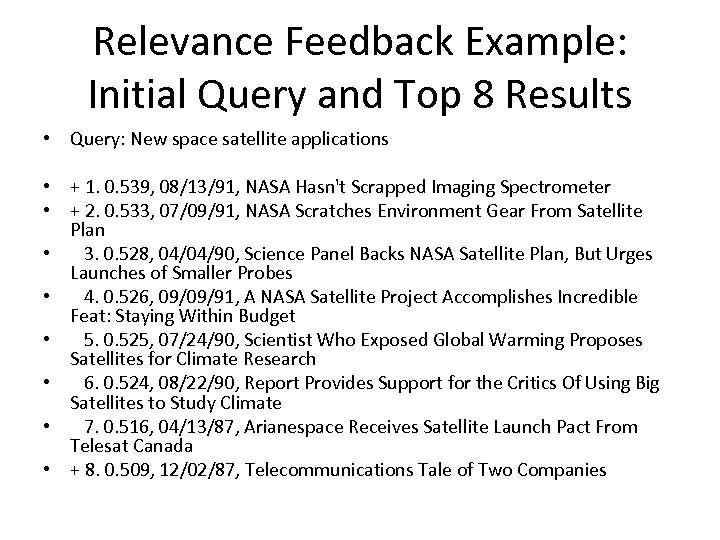

Relevance Feedback Example: Initial Query and Top 8 Results • Query: New space satellite applications • + 1. 0. 539, 08/13/91, NASA Hasn't Scrapped Imaging Spectrometer • + 2. 0. 533, 07/09/91, NASA Scratches Environment Gear From Satellite Plan • 3. 0. 528, 04/04/90, Science Panel Backs NASA Satellite Plan, But Urges Launches of Smaller Probes • 4. 0. 526, 09/09/91, A NASA Satellite Project Accomplishes Incredible Feat: Staying Within Budget • 5. 0. 525, 07/24/90, Scientist Who Exposed Global Warming Proposes Satellites for Climate Research • 6. 0. 524, 08/22/90, Report Provides Support for the Critics Of Using Big Satellites to Study Climate • 7. 0. 516, 04/13/87, Arianespace Receives Satellite Launch Pact From Telesat Canada • + 8. 0. 509, 12/02/87, Telecommunications Tale of Two Companies

Relevance Feedback Example: Expanded Query • • • 2. 074 new 30. 816 satellite 5. 991 nasa 4. 196 launch 3. 516 instrument 3. 004 bundespost 2. 790 rocket 2. 003 broadcast 0. 836 oil 15. 106 space 5. 660 application 5. 196 eos 3. 972 aster 3. 446 arianespace 2. 806 ss 2. 053 scientist 1. 172 earth 0. 646 measure

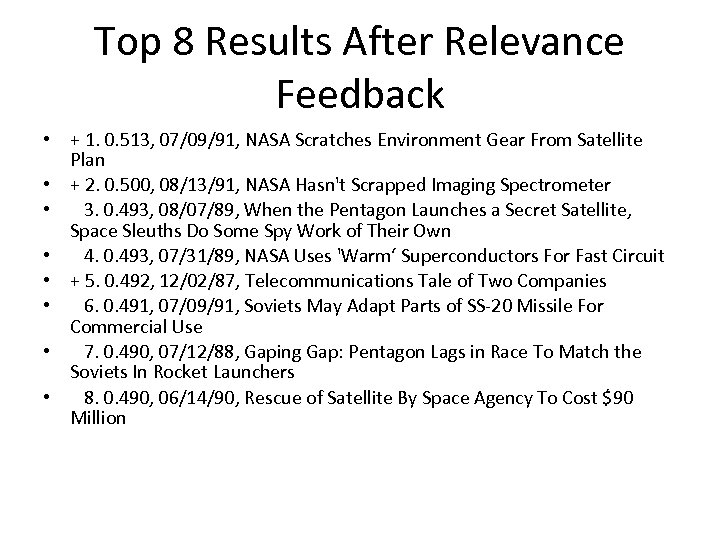

Top 8 Results After Relevance Feedback • + 1. 0. 513, 07/09/91, NASA Scratches Environment Gear From Satellite Plan • + 2. 0. 500, 08/13/91, NASA Hasn't Scrapped Imaging Spectrometer • 3. 0. 493, 08/07/89, When the Pentagon Launches a Secret Satellite, Space Sleuths Do Some Spy Work of Their Own • 4. 0. 493, 07/31/89, NASA Uses 'Warm‘ Superconductors For Fast Circuit • + 5. 0. 492, 12/02/87, Telecommunications Tale of Two Companies • 6. 0. 491, 07/09/91, Soviets May Adapt Parts of SS-20 Missile For Commercial Use • 7. 0. 490, 07/12/88, Gaping Gap: Pentagon Lags in Race To Match the Soviets In Rocket Launchers • 8. 0. 490, 06/14/90, Rescue of Satellite By Space Agency To Cost $90 Million

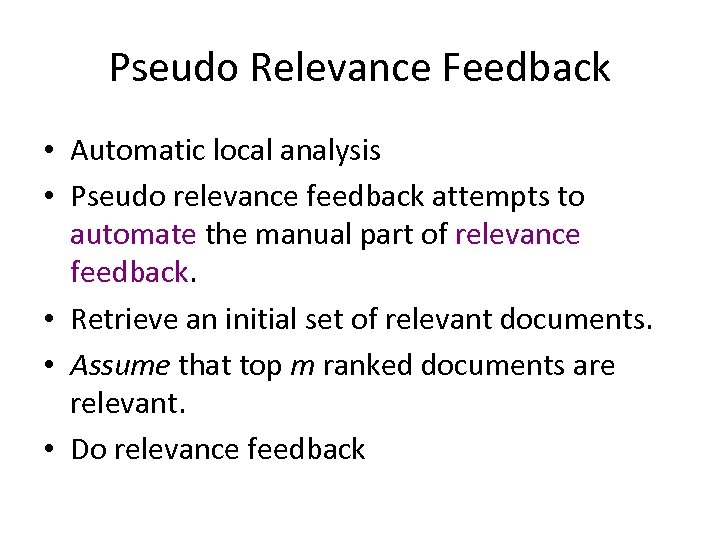

Pseudo Relevance Feedback • Automatic local analysis • Pseudo relevance feedback attempts to automate the manual part of relevance feedback. • Retrieve an initial set of relevant documents. • Assume that top m ranked documents are relevant. • Do relevance feedback

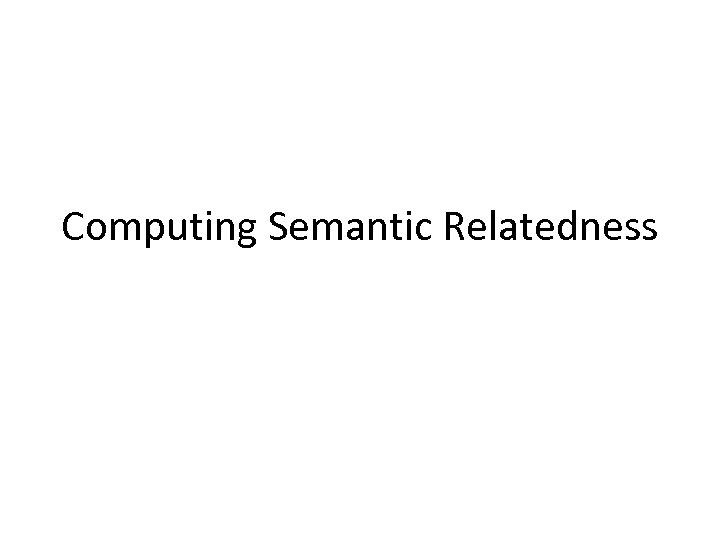

Computing Semantic Relatedness

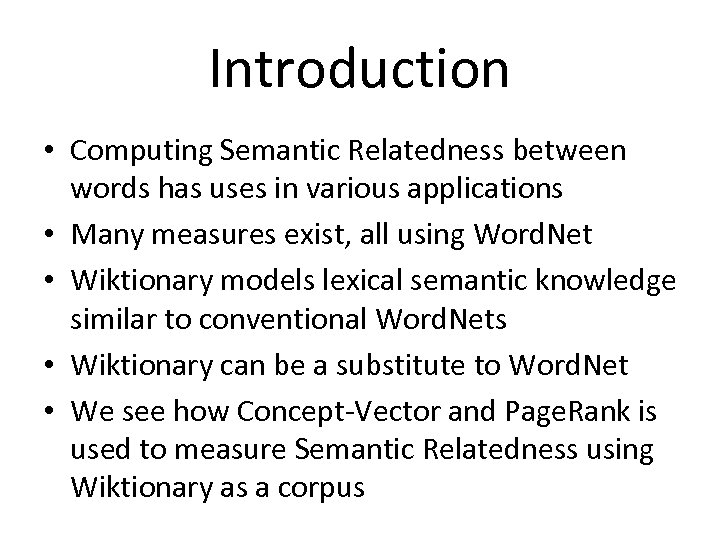

Introduction • Computing Semantic Relatedness between words has uses in various applications • Many measures exist, all using Word. Net • Wiktionary models lexical semantic knowledge similar to conventional Word. Nets • Wiktionary can be a substitute to Word. Net • We see how Concept-Vector and Page. Rank is used to measure Semantic Relatedness using Wiktionary as a corpus

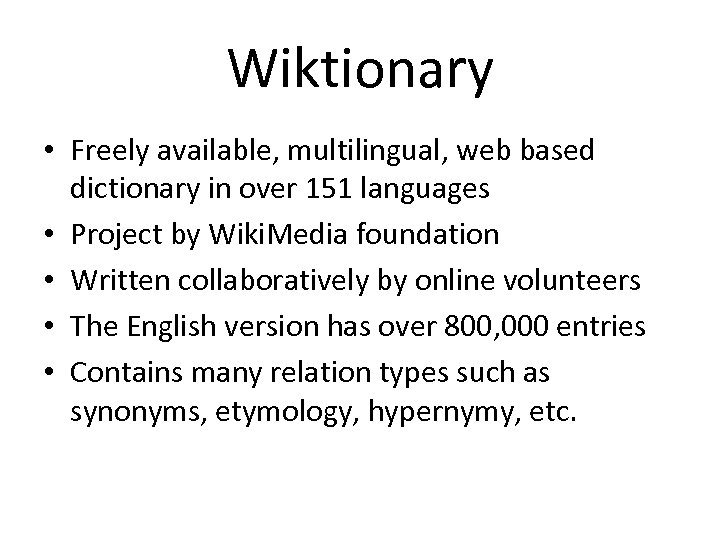

Wiktionary • Freely available, multilingual, web based dictionary in over 151 languages • Project by Wiki. Media foundation • Written collaboratively by online volunteers • The English version has over 800, 000 entries • Contains many relation types such as synonyms, etymology, hypernymy, etc.

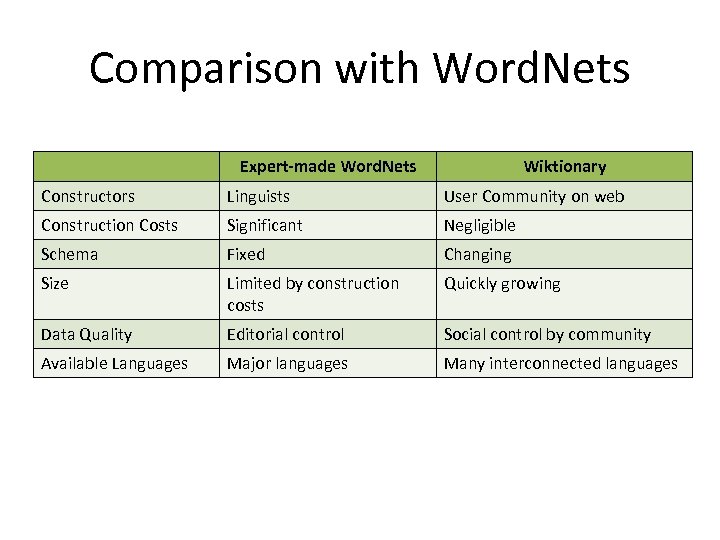

Comparison with Word. Nets Expert-made Word. Nets Wiktionary Constructors Linguists User Community on web Construction Costs Significant Negligible Schema Fixed Changing Size Limited by construction costs Quickly growing Data Quality Editorial control Social control by community Available Languages Major languages Many interconnected languages

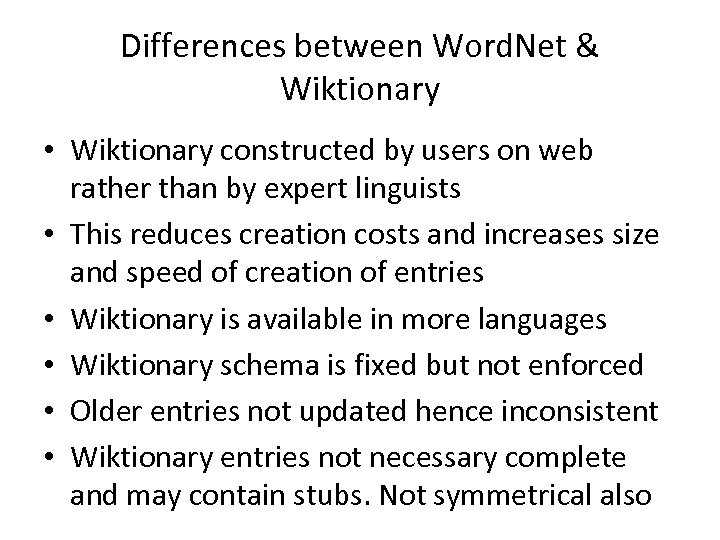

Differences between Word. Net & Wiktionary • Wiktionary constructed by users on web rather than by expert linguists • This reduces creation costs and increases size and speed of creation of entries • Wiktionary is available in more languages • Wiktionary schema is fixed but not enforced • Older entries not updated hence inconsistent • Wiktionary entries not necessary complete and may contain stubs. Not symmetrical also

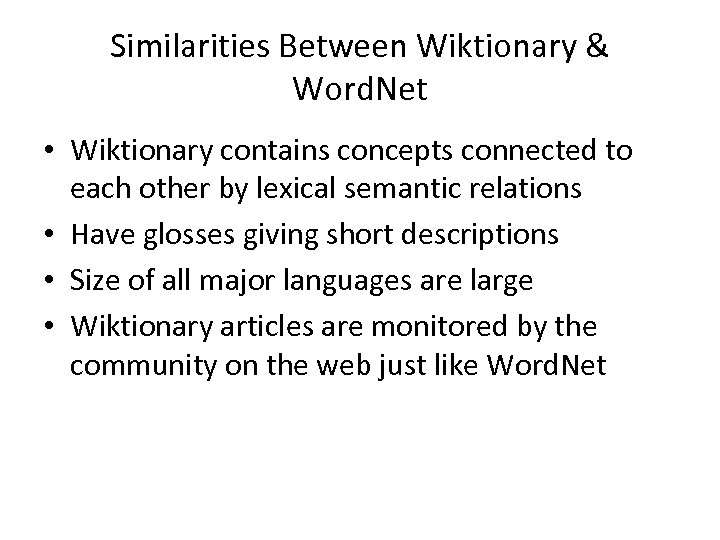

Similarities Between Wiktionary & Word. Net • Wiktionary contains concepts connected to each other by lexical semantic relations • Have glosses giving short descriptions • Size of all major languages are large • Wiktionary articles are monitored by the community on the web just like Word. Net

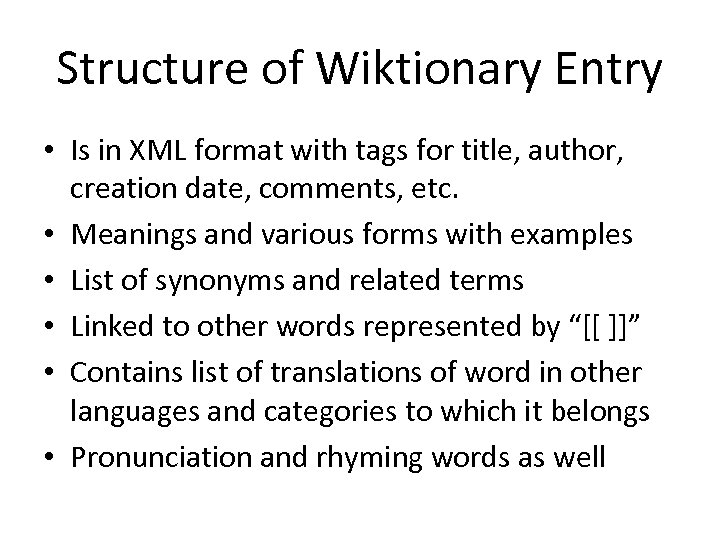

Structure of Wiktionary Entry • Is in XML format with tags for title, author, creation date, comments, etc. • Meanings and various forms with examples • List of synonyms and related terms • Linked to other words represented by “[[ ]]” • Contains list of translations of word in other languages and categories to which it belongs • Pronunciation and rhyming words as well

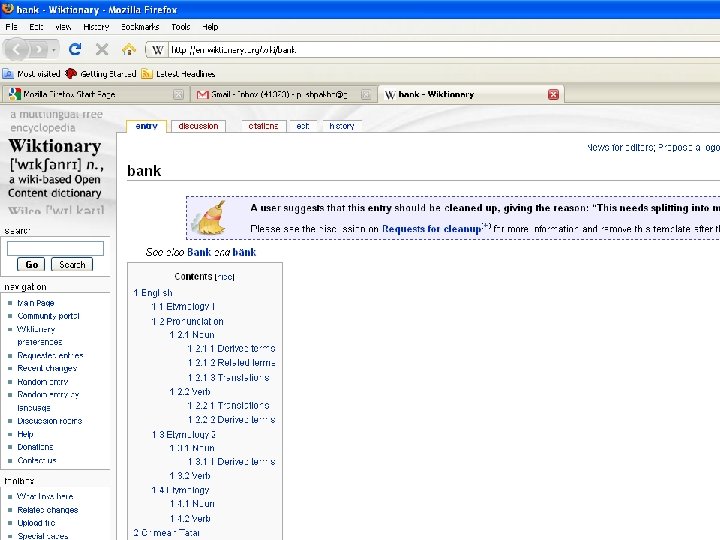

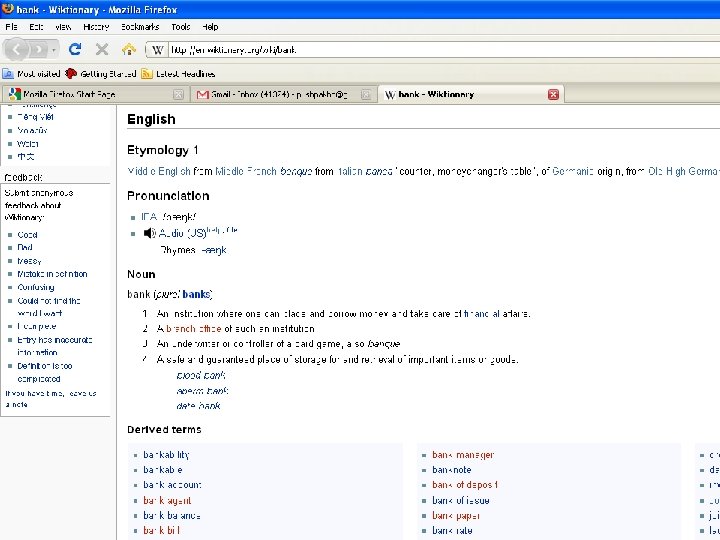

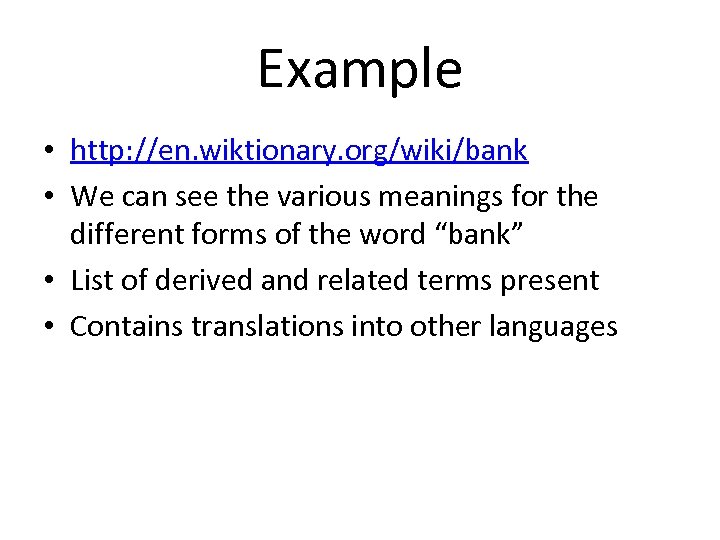

Example • http: //en. wiktionary. org/wiki/bank • We can see the various meanings for the different forms of the word “bank” • List of derived and related terms present • Contains translations into other languages

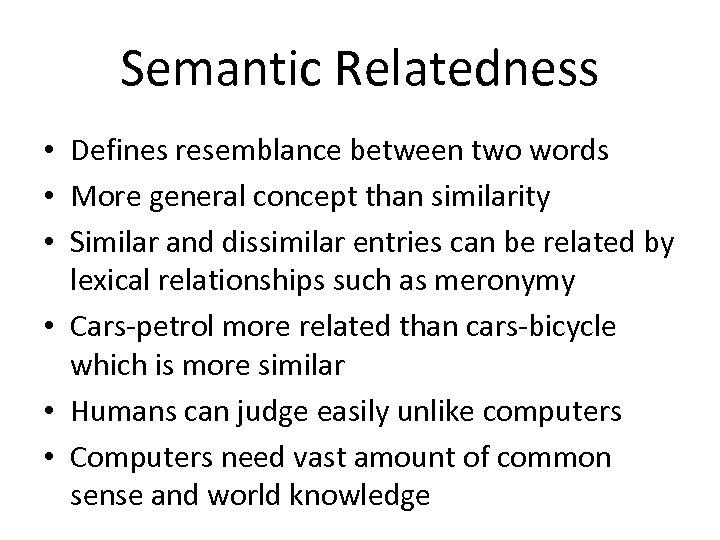

Semantic Relatedness • Defines resemblance between two words • More general concept than similarity • Similar and dissimilar entries can be related by lexical relationships such as meronymy • Cars-petrol more related than cars-bicycle which is more similar • Humans can judge easily unlike computers • Computers need vast amount of common sense and world knowledge

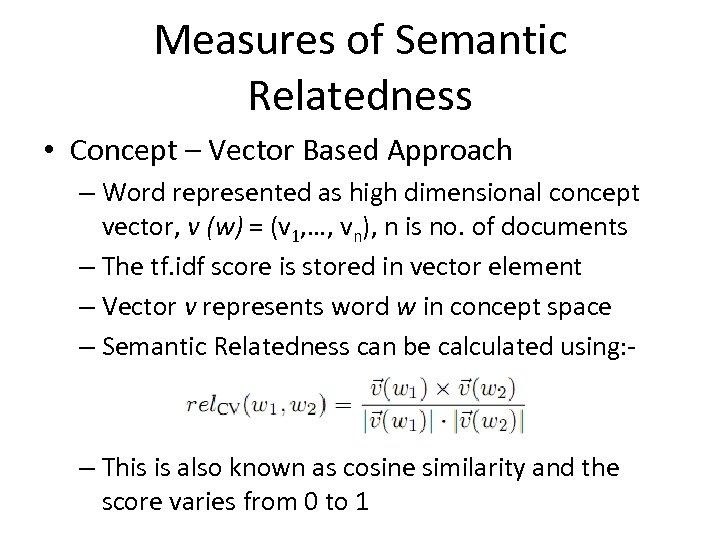

Measures of Semantic Relatedness • Concept – Vector Based Approach – Word represented as high dimensional concept vector, v (w) = (v 1, …, vn), n is no. of documents – The tf. idf score is stored in vector element – Vector v represents word w in concept space – Semantic Relatedness can be calculated using: - – This is also known as cosine similarity and the score varies from 0 to 1

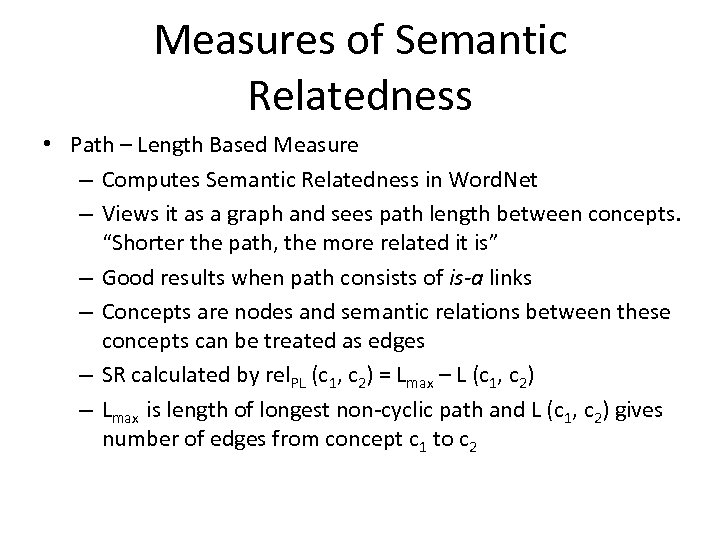

Measures of Semantic Relatedness • Path – Length Based Measure – Computes Semantic Relatedness in Word. Net – Views it as a graph and sees path length between concepts. “Shorter the path, the more related it is” – Good results when path consists of is-a links – Concepts are nodes and semantic relations between these concepts can be treated as edges – SR calculated by rel. PL (c 1, c 2) = Lmax – L (c 1, c 2) – Lmax is length of longest non-cyclic path and L (c 1, c 2) gives number of edges from concept c 1 to c 2

Measures of Semantic Relatedness – Problem is that is considers all links to be uniform in distance which may not be the case always – Many improvements using Information Content • The Resnik Measure – Information content based relatedness measure – Higher information content specific to particular topics, lower ones specific to more general topics – Carving fork – HIGH, entity – LOW – Idea is that two concepts are semantically related proportional to the amount of information shared

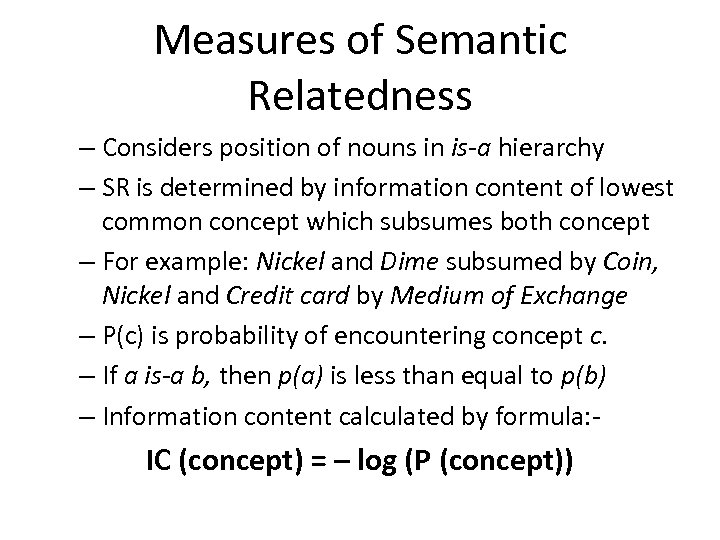

Measures of Semantic Relatedness – Considers position of nouns in is-a hierarchy – SR is determined by information content of lowest common concept which subsumes both concept – For example: Nickel and Dime subsumed by Coin, Nickel and Credit card by Medium of Exchange – P(c) is probability of encountering concept c. – If a is-a b, then p(a) is less than equal to p(b) – Information content calculated by formula: - IC (concept) = – log (P (concept))

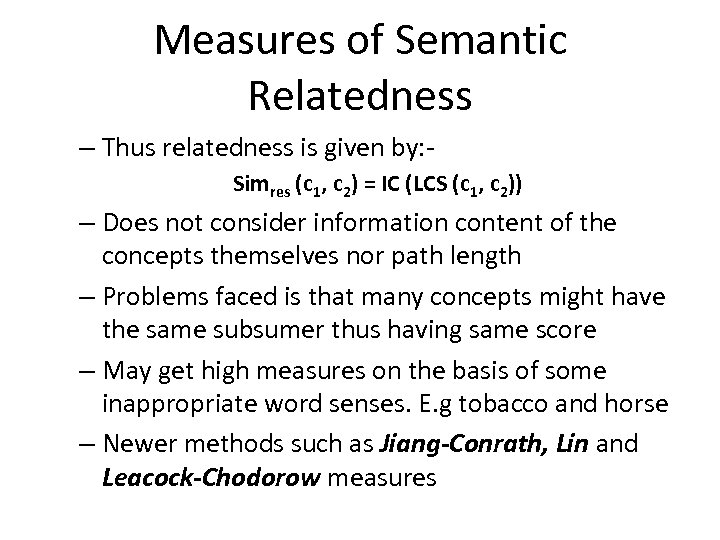

Measures of Semantic Relatedness – Thus relatedness is given by: Simres (c 1, c 2) = IC (LCS (c 1, c 2)) – Does not consider information content of the concepts themselves nor path length – Problems faced is that many concepts might have the same subsumer thus having same score – May get high measures on the basis of some inappropriate word senses. E. g tobacco and horse – Newer methods such as Jiang-Conrath, Lin and Leacock-Chodorow measures

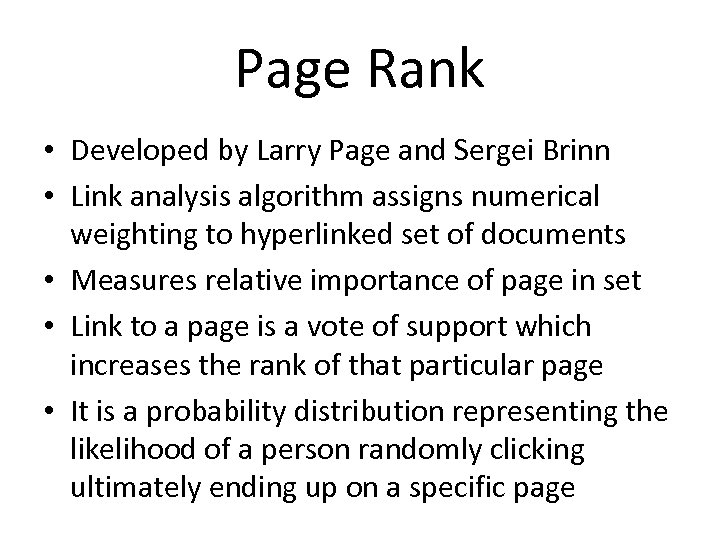

Page Rank • Developed by Larry Page and Sergei Brinn • Link analysis algorithm assigns numerical weighting to hyperlinked set of documents • Measures relative importance of page in set • Link to a page is a vote of support which increases the rank of that particular page • It is a probability distribution representing the likelihood of a person randomly clicking ultimately ending up on a specific page

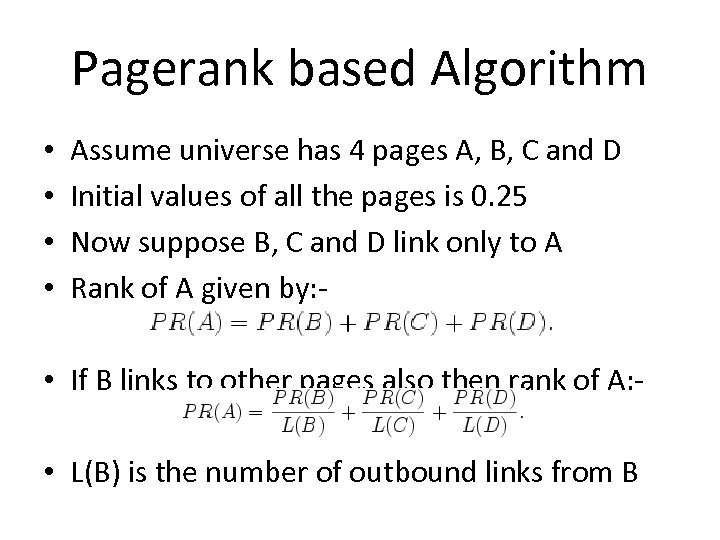

Pagerank based Algorithm • • Assume universe has 4 pages A, B, C and D Initial values of all the pages is 0. 25 Now suppose B, C and D link only to A Rank of A given by: - • If B links to other pages also then rank of A: • L(B) is the number of outbound links from B

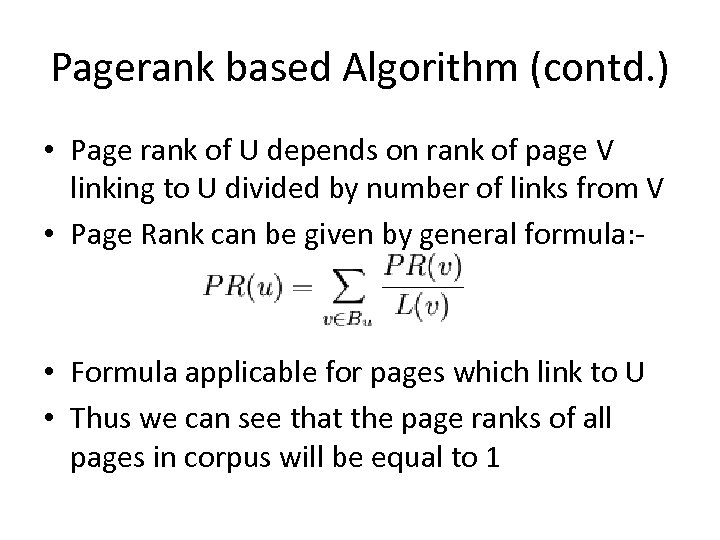

Pagerank based Algorithm (contd. ) • Page rank of U depends on rank of page V linking to U divided by number of links from V • Page Rank can be given by general formula: - • Formula applicable for pages which link to U • Thus we can see that the page ranks of all pages in corpus will be equal to 1

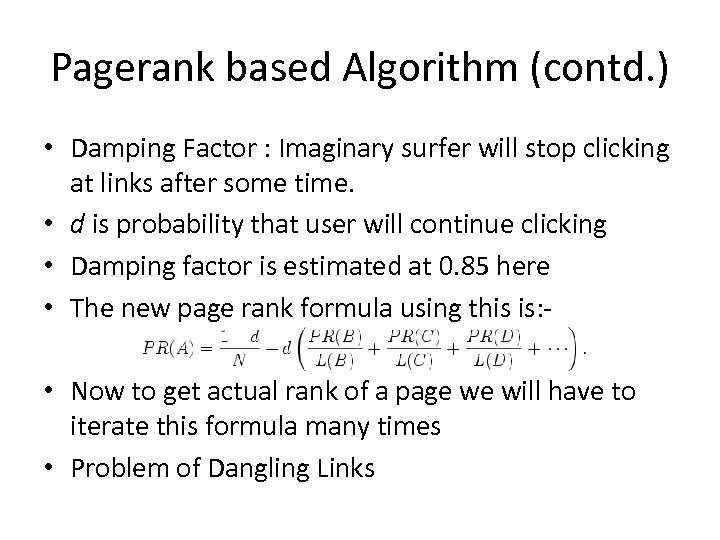

Pagerank based Algorithm (contd. ) • Damping Factor : Imaginary surfer will stop clicking at links after some time. • d is probability that user will continue clicking • Damping factor is estimated at 0. 85 here • The new page rank formula using this is: • Now to get actual rank of a page we will have to iterate this formula many times • Problem of Dangling Links

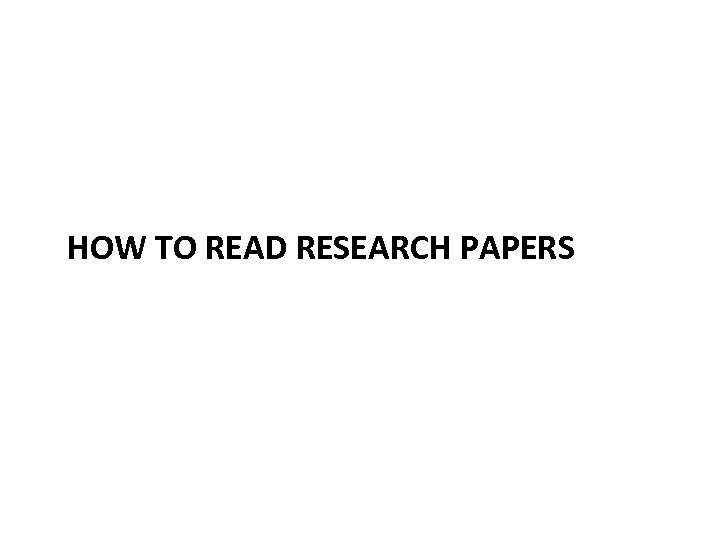

HOW TO READ RESEARCH PAPERS

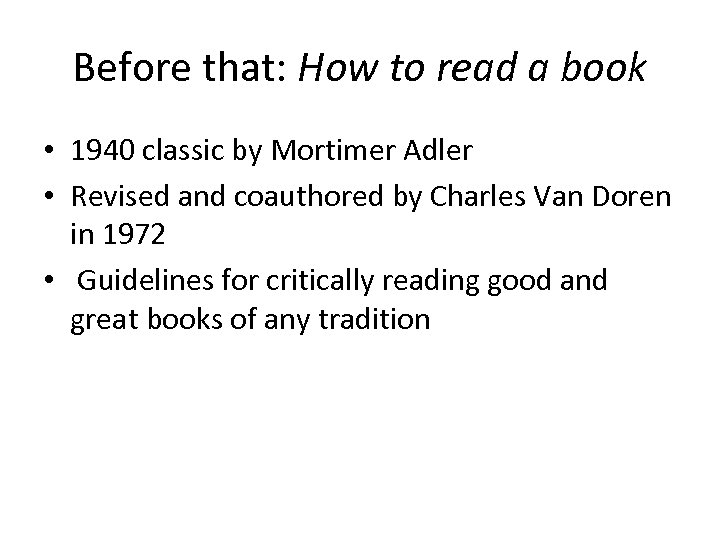

Before that: How to read a book • 1940 classic by Mortimer Adler • Revised and coauthored by Charles Van Doren in 1972 • Guidelines for critically reading good and great books of any tradition

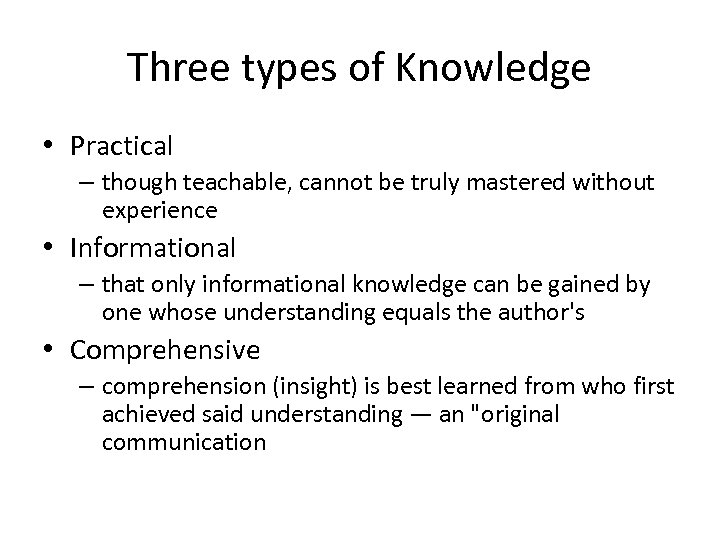

Three types of Knowledge • Practical – though teachable, cannot be truly mastered without experience • Informational – that only informational knowledge can be gained by one whose understanding equals the author's • Comprehensive – comprehension (insight) is best learned from who first achieved said understanding — an "original communication

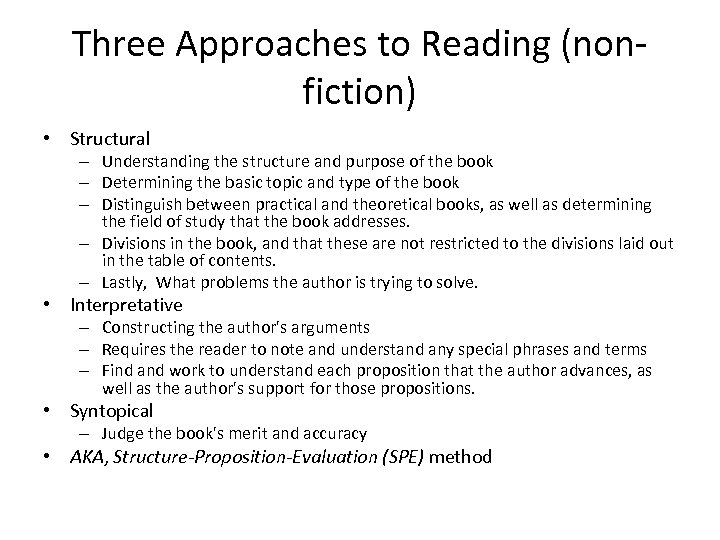

Three Approaches to Reading (nonfiction) • Structural – Understanding the structure and purpose of the book – Determining the basic topic and type of the book – Distinguish between practical and theoretical books, as well as determining the field of study that the book addresses. – Divisions in the book, and that these are not restricted to the divisions laid out in the table of contents. – Lastly, What problems the author is trying to solve. • Interpretative – Constructing the author's arguments – Requires the reader to note and understand any special phrases and terms – Find and work to understand each proposition that the author advances, as well as the author's support for those propositions. • Syntopical – Judge the book's merit and accuracy • AKA, Structure-Proposition-Evaluation (SPE) method

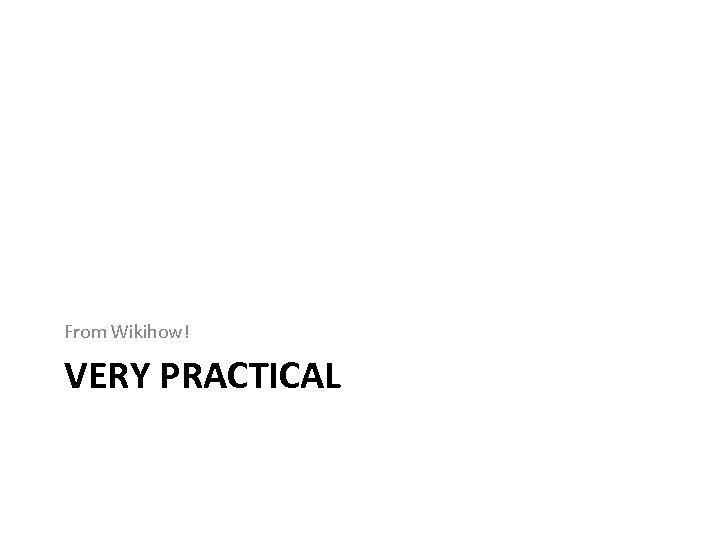

From Wikihow! VERY PRACTICAL

Steps • Find a book • Buy/rent it and take it home • Settle into a comfortable chair or get comfortable on the couch • Be calm and alert • Start the book by turning the pages • Read and enjoy it • Close book

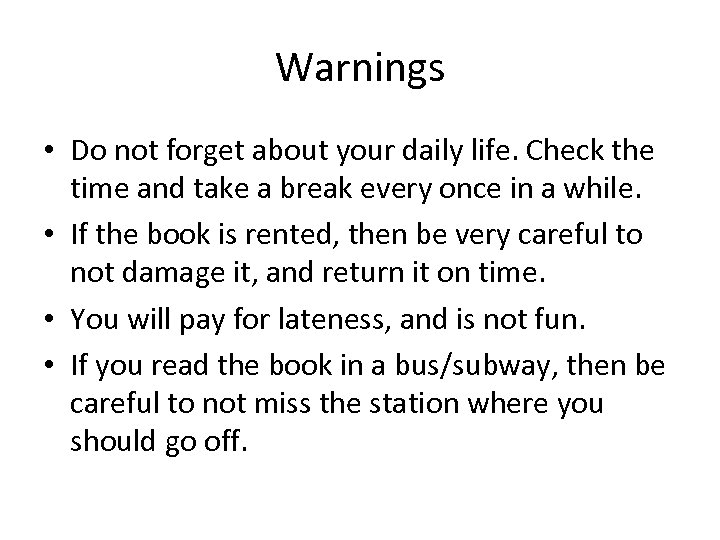

Warnings • Do not forget about your daily life. Check the time and take a break every once in a while. • If the book is rented, then be very careful to not damage it, and return it on time. • You will pay for lateness, and is not fun. • If you read the book in a bus/subway, then be careful to not miss the station where you should go off.

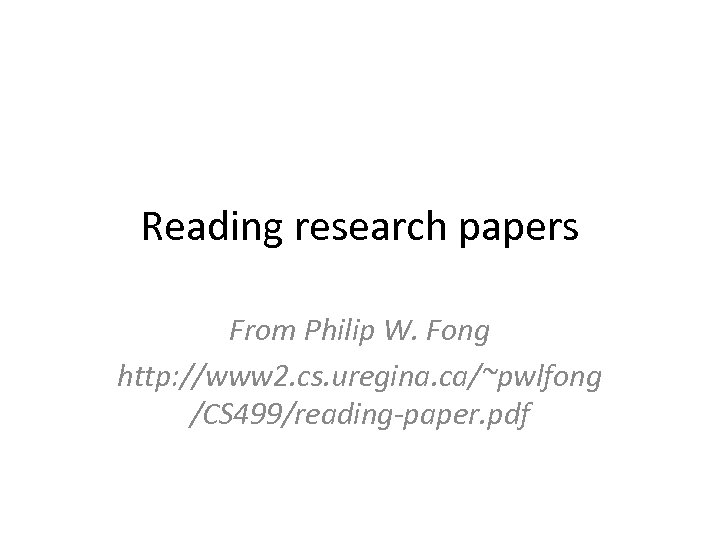

Reading research papers From Philip W. Fong http: //www 2. cs. uregina. ca/~pwlfong /CS 499/reading-paper. pdf

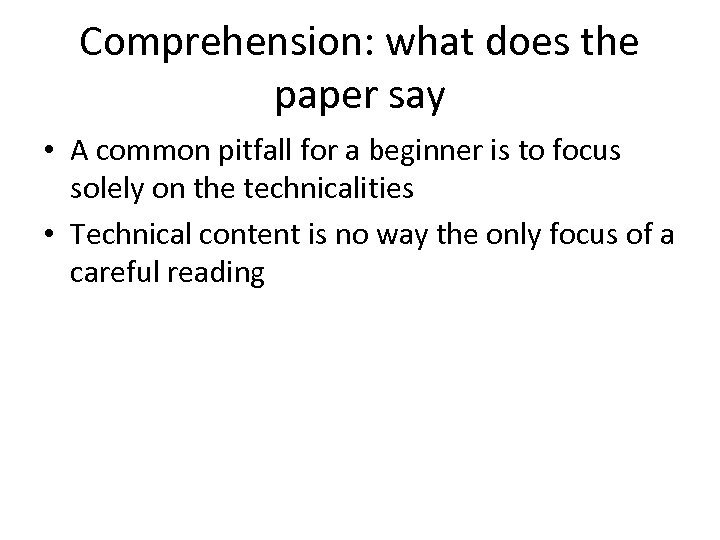

Comprehension: what does the paper say • A common pitfall for a beginner is to focus solely on the technicalities • Technical content is no way the only focus of a careful reading

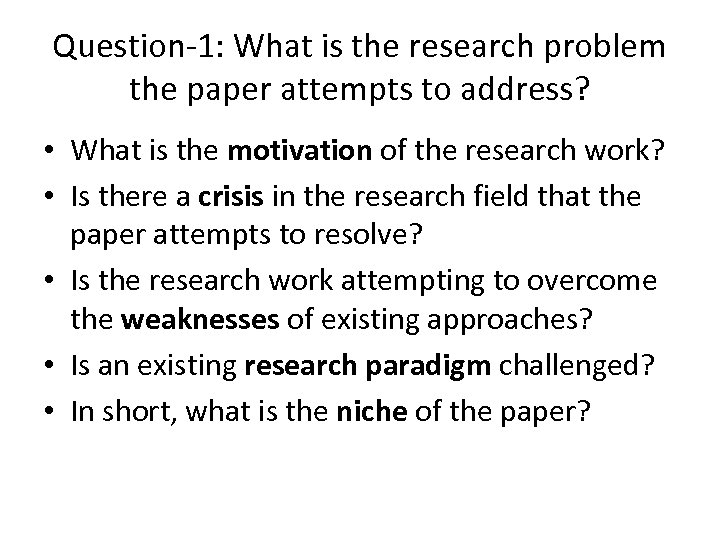

Question-1: What is the research problem the paper attempts to address? • What is the motivation of the research work? • Is there a crisis in the research field that the paper attempts to resolve? • Is the research work attempting to overcome the weaknesses of existing approaches? • Is an existing research paradigm challenged? • In short, what is the niche of the paper?

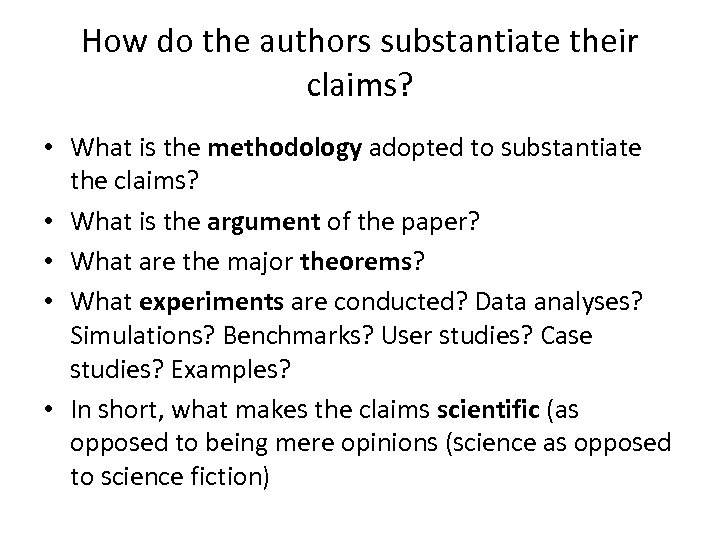

How do the authors substantiate their claims? • What is the methodology adopted to substantiate the claims? • What is the argument of the paper? • What are the major theorems? • What experiments are conducted? Data analyses? Simulations? Benchmarks? User studies? Case studies? Examples? • In short, what makes the claims scientific (as opposed to being mere opinions (science as opposed to science fiction)

What are the conclusions? • What have we learned from the paper? • Shall the standard practice of the field be changed as a result of the new findings? • Is the result generalizable? • Can the result be applied to other areas of the field? • What are the open problems? • In short, what are the lessons one can learn from the paper?

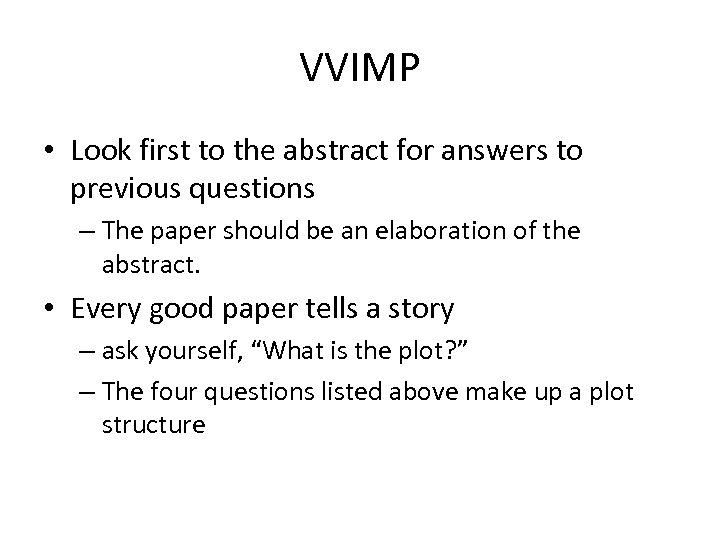

VVIMP • Look first to the abstract for answers to previous questions – The paper should be an elaboration of the abstract. • Every good paper tells a story – ask yourself, “What is the plot? ” – The four questions listed above make up a plot structure

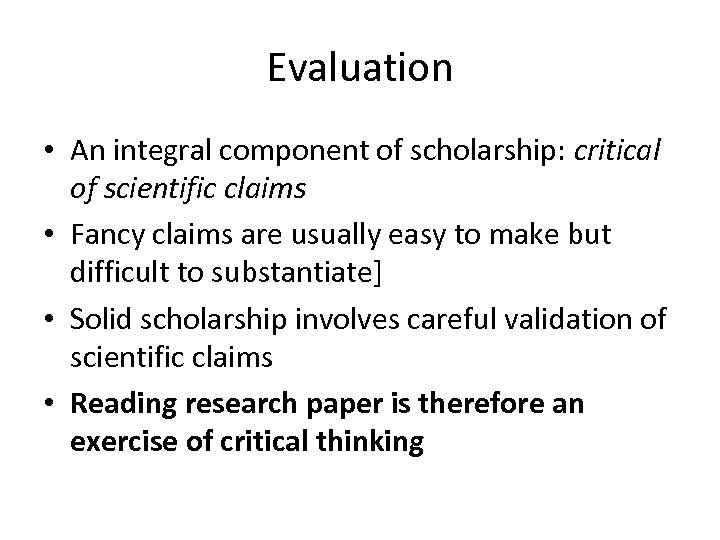

Evaluation • An integral component of scholarship: critical of scientific claims • Fancy claims are usually easy to make but difficult to substantiate] • Solid scholarship involves careful validation of scientific claims • Reading research paper is therefore an exercise of critical thinking

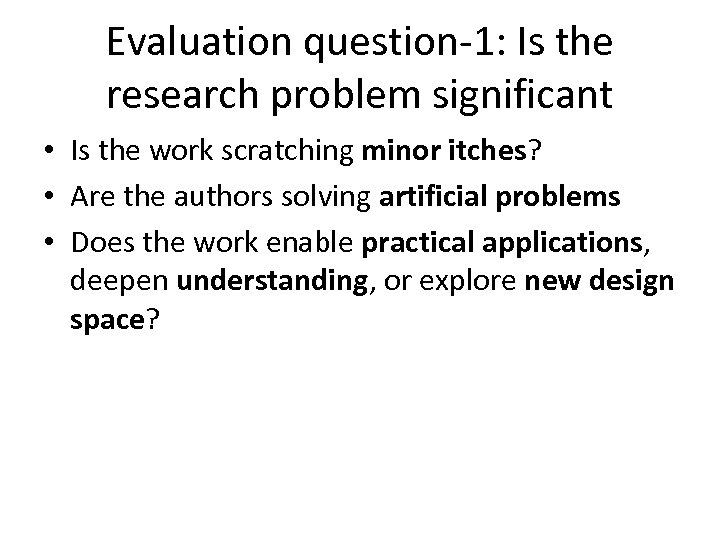

Evaluation question-1: Is the research problem significant • Is the work scratching minor itches? • Are the authors solving artificial problems • Does the work enable practical applications, deepen understanding, or explore new design space?

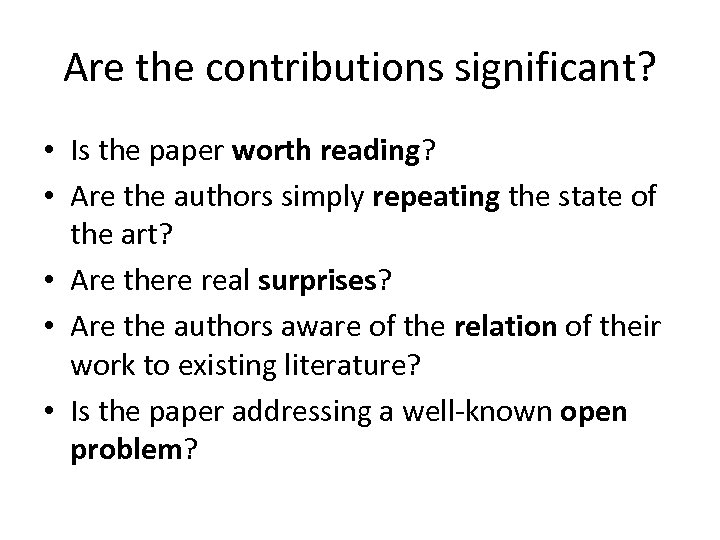

Are the contributions significant? • Is the paper worth reading? • Are the authors simply repeating the state of the art? • Are there real surprises? • Are the authors aware of the relation of their work to existing literature? • Is the paper addressing a well-known open problem?

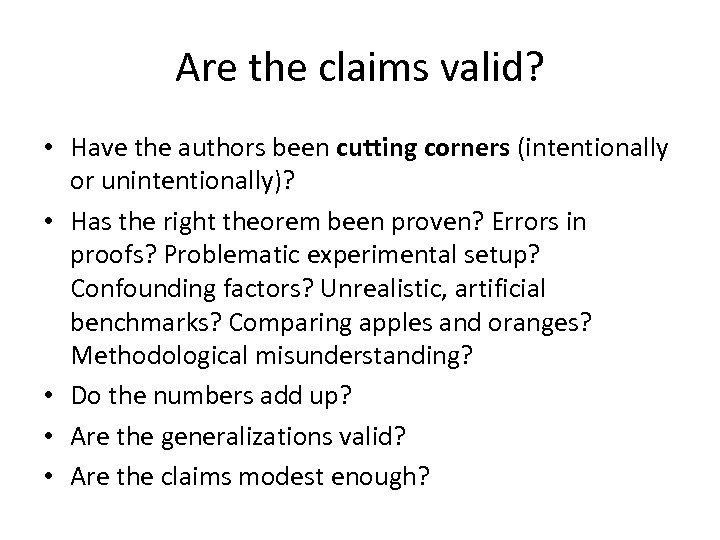

Are the claims valid? • Have the authors been cutting corners (intentionally or unintentionally)? • Has the right theorem been proven? Errors in proofs? Problematic experimental setup? Confounding factors? Unrealistic, artificial benchmarks? Comparing apples and oranges? Methodological misunderstanding? • Do the numbers add up? • Are the generalizations valid? • Are the claims modest enough?

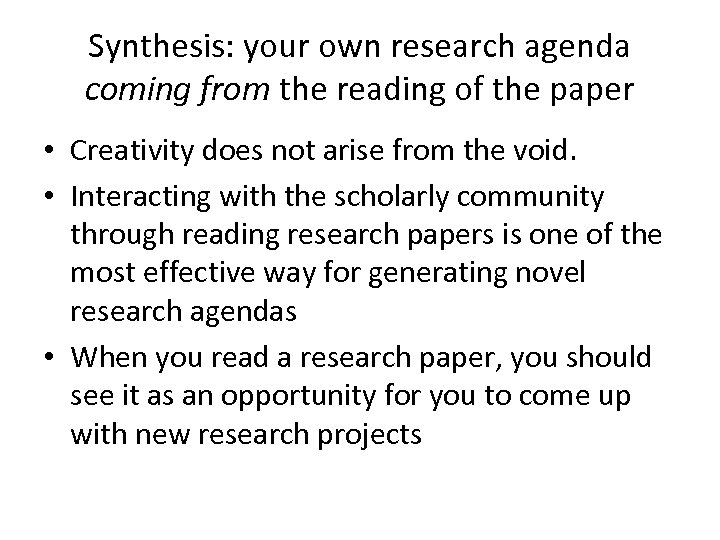

Synthesis: your own research agenda coming from the reading of the paper • Creativity does not arise from the void. • Interacting with the scholarly community through reading research papers is one of the most effective way for generating novel research agendas • When you read a research paper, you should see it as an opportunity for you to come up with new research projects

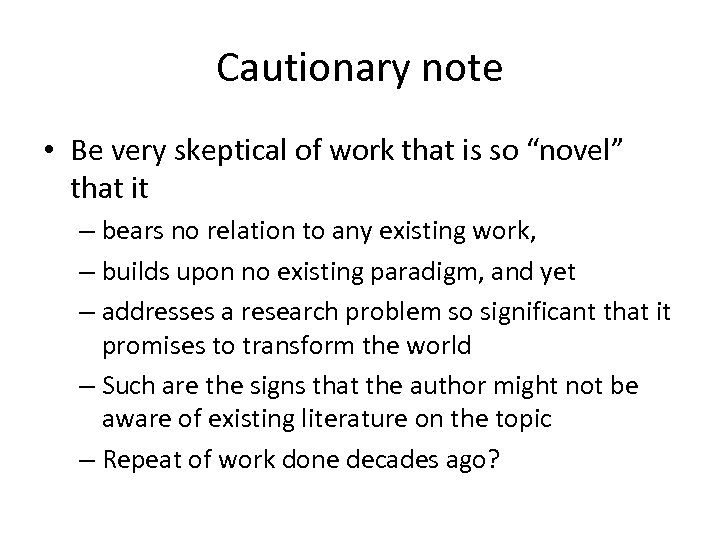

Cautionary note • Be very skeptical of work that is so “novel” that it – bears no relation to any existing work, – builds upon no existing paradigm, and yet – addresses a research problem so significant that it promises to transform the world – Such are the signs that the author might not be aware of existing literature on the topic – Repeat of work done decades ago?

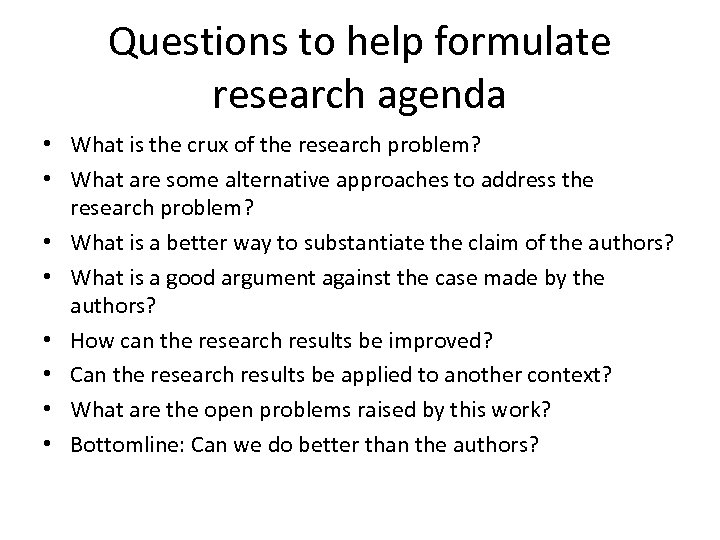

Questions to help formulate research agenda • What is the crux of the research problem? • What are some alternative approaches to address the research problem? • What is a better way to substantiate the claim of the authors? • What is a good argument against the case made by the authors? • How can the research results be improved? • Can the research results be applied to another context? • What are the open problems raised by this work? • Bottomline: Can we do better than the authors?
