CS 352 Internet Technology Prof Danfeng Daphne Yao

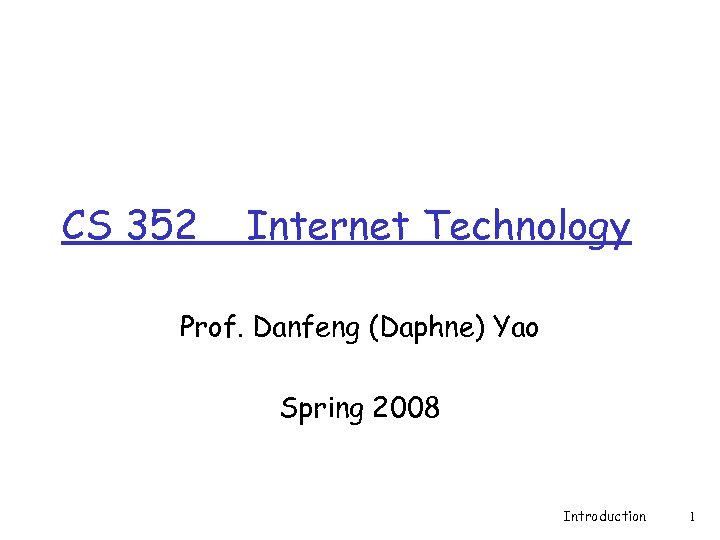

CS 352 Internet Technology Prof. Danfeng (Daphne) Yao Spring 2008 Introduction 1

General Information q www. cs. rutgers. edu/~danfeng/courses/cs 352 - 08. html q TA: Begumhan Turgut v Email: bturgut at cs q Recitation: M 1: 55 -2: 50 pm ARC-204 Busch Campus Introduction 2

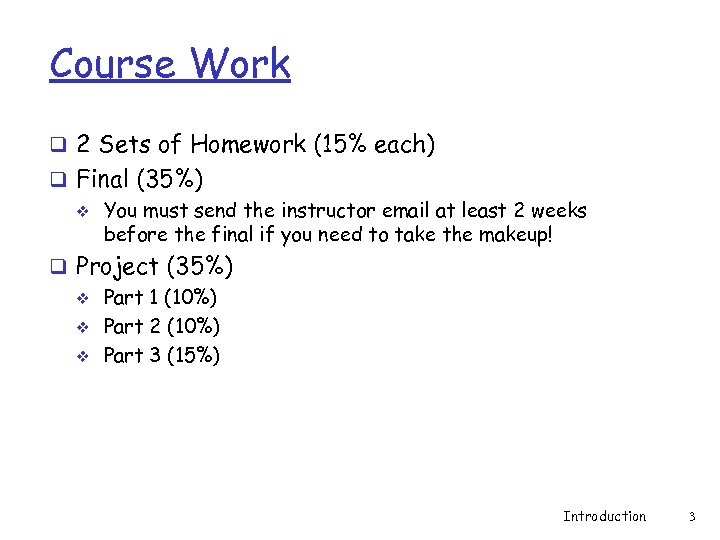

Course Work q 2 Sets of Homework (15% each) q Final (35%) v You must send the instructor email at least 2 weeks before the final if you need to take the makeup! q Project (35%) v Part 1 (10%) v Part 2 (10%) v Part 3 (15%) Introduction 3

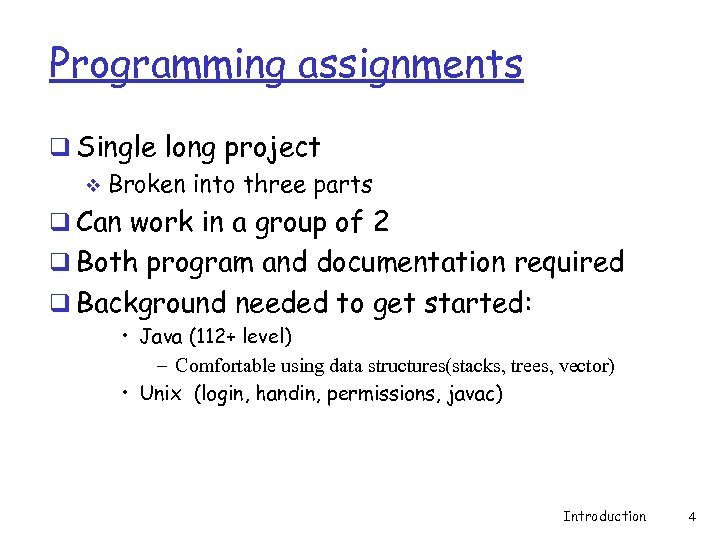

Programming assignments q Single long project v Broken into three parts q Can work in a group of 2 q Both program and documentation required q Background needed to get started: • Java (112+ level) – Comfortable using data structures(stacks, trees, vector) • Unix (login, handin, permissions, javac) Introduction 4

Programming Assignment q 1 or 2 Code reviews v 10 -15 minute oral question and answer period. v TA will critically review your assignment. v program design q Make improvements for next level of the assignment. v Grade depends on level of improvement in code quality as well as functionality. q No late handin v Failure to meet the deadline will result in a zero for all team members. Introduction 5

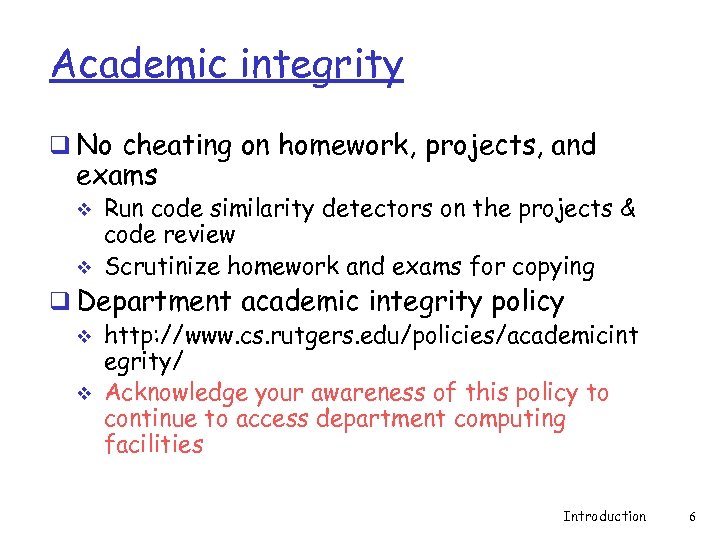

Academic integrity q No cheating on homework, projects, and exams v v Run code similarity detectors on the projects & code review Scrutinize homework and exams for copying q Department academic integrity policy v http: //www. cs. rutgers. edu/policies/academicint egrity/ v Acknowledge your awareness of this policy to continue to access department computing facilities Introduction 6

Facilities q “Cereal” machines and lab v ~20 Ultra. Sparc machines v ~30+ Linux machines v Cardkey Access: student ID card q Romulus and remus for general use v Create your accounts now! v http: //remus. rutgers. edu/newaccount. html q Ask the TA for help if you have problems getting an account Introduction 7

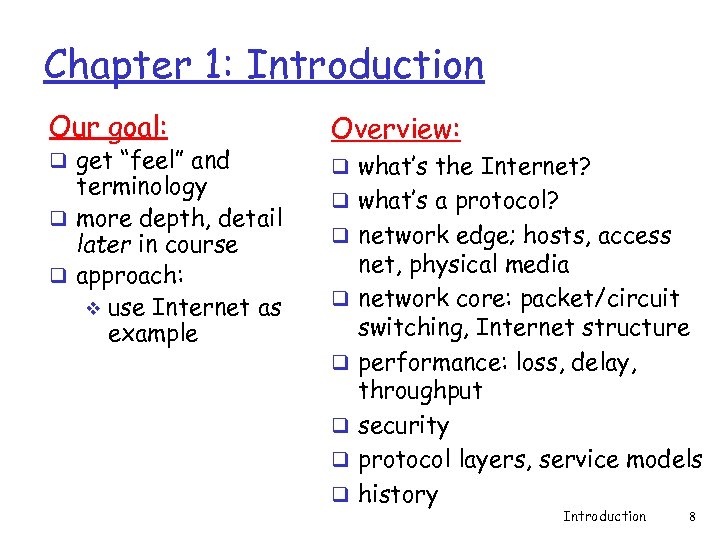

Chapter 1: Introduction Our goal: q get “feel” and terminology q more depth, detail later in course q approach: v use Internet as example Overview: q what’s the Internet? q what’s a protocol? q network edge; hosts, access q q q net, physical media network core: packet/circuit switching, Internet structure performance: loss, delay, throughput security protocol layers, service models history Introduction 8

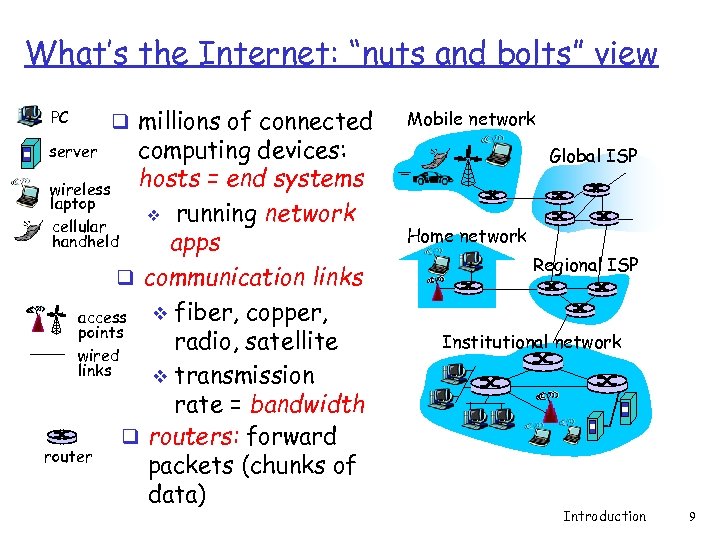

What’s the Internet: “nuts and bolts” view PC q millions of connected computing devices: hosts = end systems wireless laptop v running network cellular handheld apps q communication links v fiber, copper, access points radio, satellite wired links v transmission rate = bandwidth q routers: forward router packets (chunks of data) Mobile network server Global ISP Home network Regional ISP Institutional network Introduction 9

“Cool” internet appliances Web-enabled toaster + weather forecaster IP picture frame http: //www. ceiva. com/ World’s smallest web server http: //www-ccs. umass. edu/~shri/i. Pic. html Internet phones Introduction 10

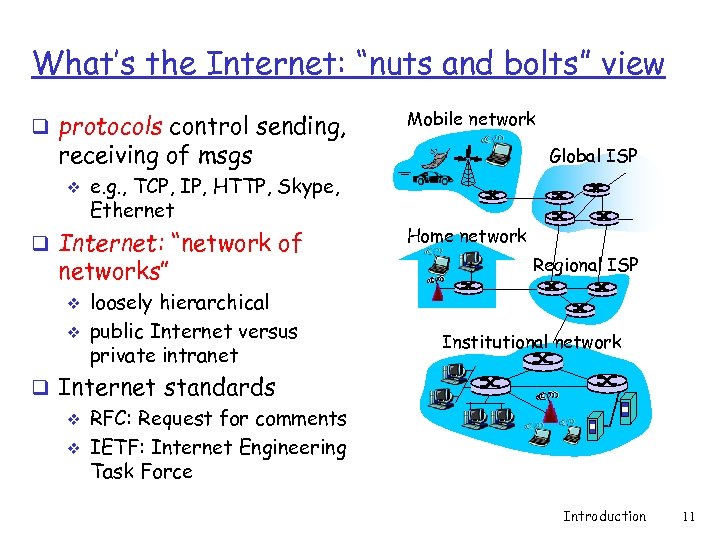

What’s the Internet: “nuts and bolts” view q protocols control sending, Mobile network receiving of msgs v e. g. , TCP, IP, HTTP, Skype, Ethernet q Internet: “network of networks” v v loosely hierarchical public Internet versus private intranet Global ISP Home network Regional ISP Institutional network q Internet standards v RFC: Request for comments v IETF: Internet Engineering Task Force Introduction 11

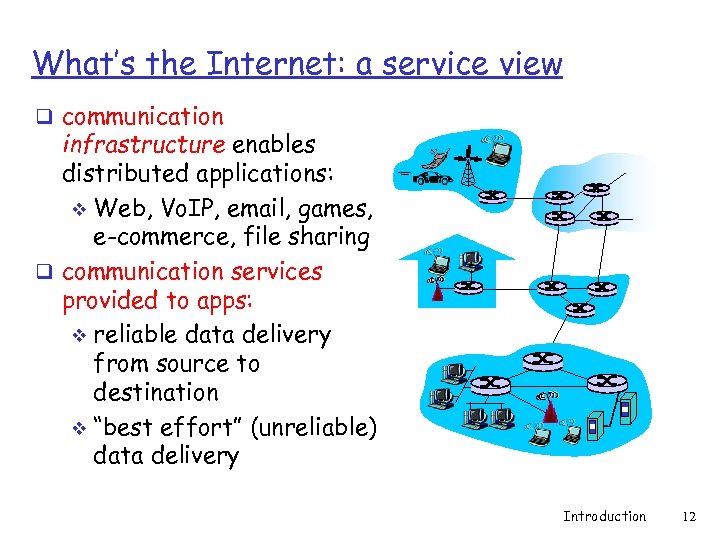

What’s the Internet: a service view q communication infrastructure enables distributed applications: v Web, Vo. IP, email, games, e-commerce, file sharing q communication services provided to apps: v reliable data delivery from source to destination v “best effort” (unreliable) data delivery Introduction 12

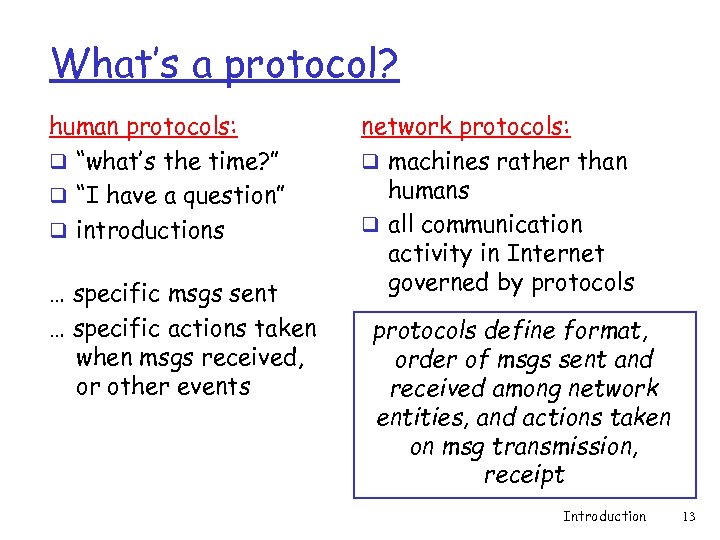

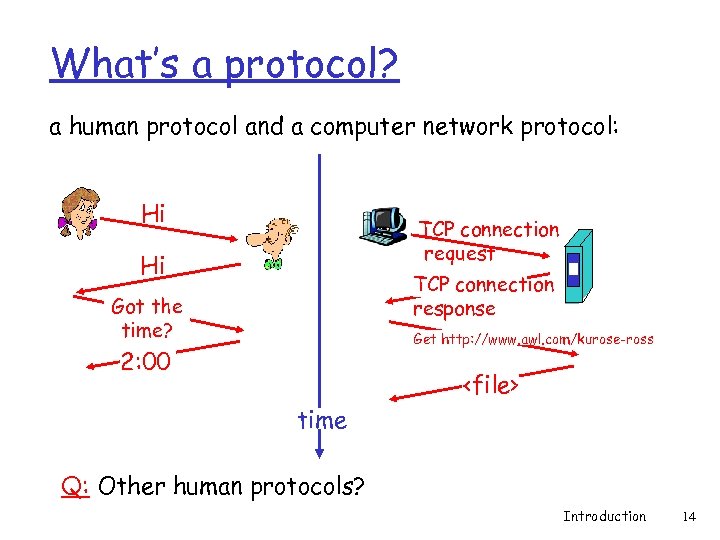

What’s a protocol? human protocols: q “what’s the time? ” q “I have a question” q introductions … specific msgs sent … specific actions taken when msgs received, or other events network protocols: q machines rather than humans q all communication activity in Internet governed by protocols define format, order of msgs sent and received among network entities, and actions taken on msg transmission, receipt Introduction 13

What’s a protocol? a human protocol and a computer network protocol: Hi TCP connection request Hi TCP connection response Got the time? Get http: //www. awl. com/kurose-ross 2: 00 time Q: Other human protocols? Introduction 14

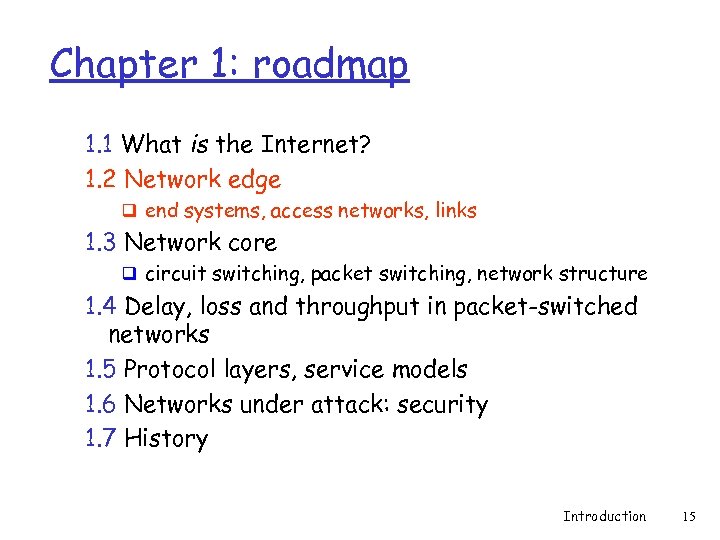

Chapter 1: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems, access networks, links 1. 3 Network core q circuit switching, packet switching, network structure 1. 4 Delay, loss and throughput in packet-switched networks 1. 5 Protocol layers, service models 1. 6 Networks under attack: security 1. 7 History Introduction 15

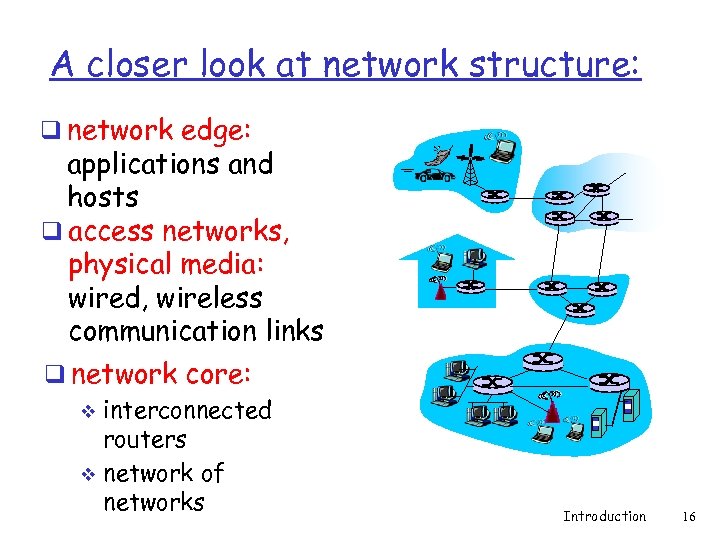

A closer look at network structure: q network edge: applications and hosts q access networks, physical media: wired, wireless communication links q network core: v interconnected routers v network of networks Introduction 16

The network edge: q end systems (hosts): v v v run application programs e. g. Web, email at “edge of network” peer-peer q client/server model v v client host requests, receives service from always-on server client/server e. g. Web browser/server; email client/server q peer-peer model: v v minimal (or no) use of dedicated servers e. g. Skype, Bit. Torrent Introduction 17

Access networks and physical media Q: How to connect end systems to edge router? q residential access nets q institutional access networks (school, company) q mobile access networks Keep in mind: q bandwidth (bits per second) of access network? q shared or dedicated? Introduction 18

Residential access: point to point access q Dialup via modem up to 56 Kbps direct access to router (often less) v Can’t surf and phone at same time: can’t be “always on” v q DSL: digital subscriber line deployment: telephone company (typically) v up to 1 Mbps upstream (today typically < 256 kbps) v up to 8 Mbps downstream (today typically < 1 Mbps) v dedicated physical line to telephone central office v Introduction 19

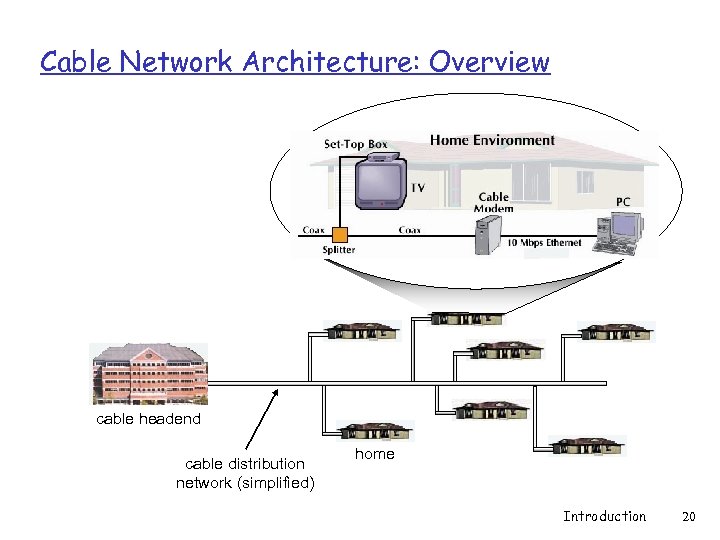

Cable Network Architecture: Overview cable headend cable distribution network (simplified) home Introduction 20

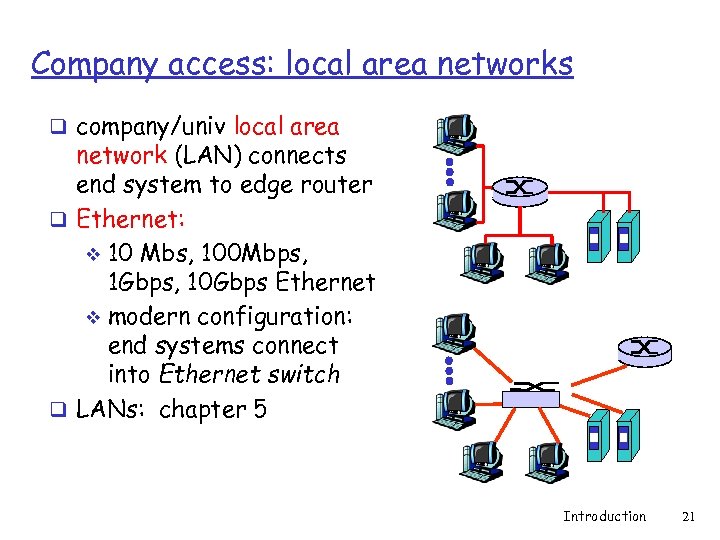

Company access: local area networks q company/univ local area network (LAN) connects end system to edge router q Ethernet: v 10 Mbs, 100 Mbps, 1 Gbps, 10 Gbps Ethernet v modern configuration: end systems connect into Ethernet switch q LANs: chapter 5 Introduction 21

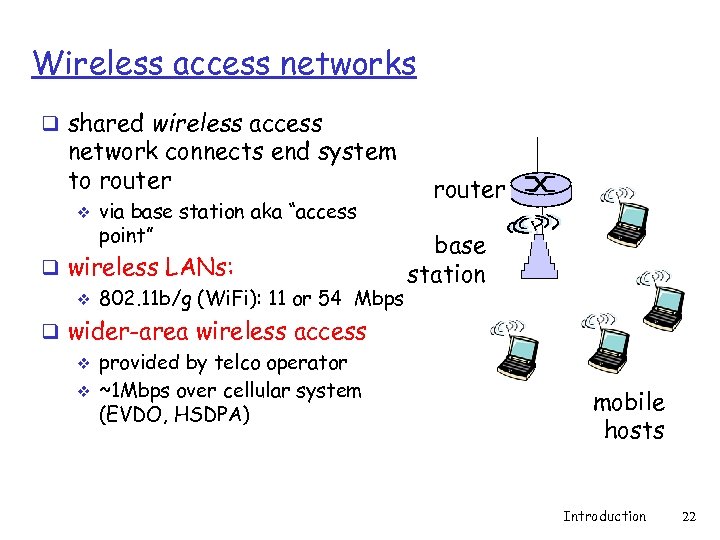

Wireless access networks q shared wireless access network connects end system to router v via base station aka “access point” q wireless LANs: v 802. 11 b/g (Wi. Fi): 11 or 54 Mbps q wider-area wireless access v provided by telco operator v ~1 Mbps over cellular system (EVDO, HSDPA) router base station mobile hosts Introduction 22

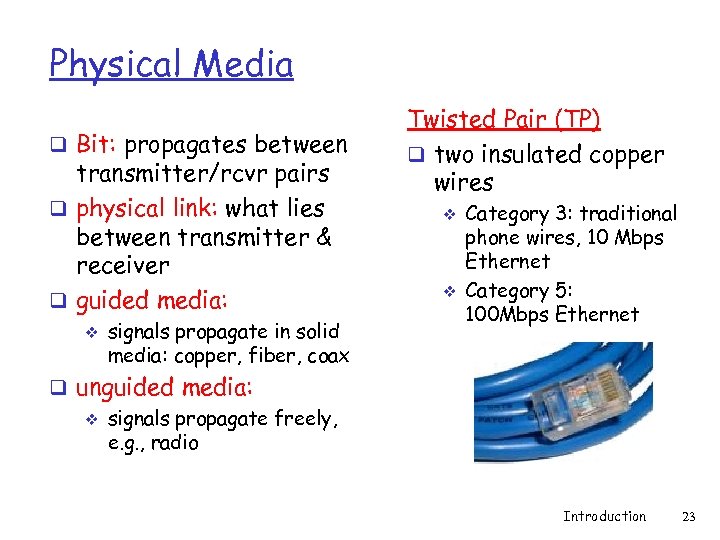

Physical Media q Bit: propagates between transmitter/rcvr pairs q physical link: what lies between transmitter & receiver q guided media: v signals propagate in solid media: copper, fiber, coax Twisted Pair (TP) q two insulated copper wires v v Category 3: traditional phone wires, 10 Mbps Ethernet Category 5: 100 Mbps Ethernet q unguided media: v signals propagate freely, e. g. , radio Introduction 23

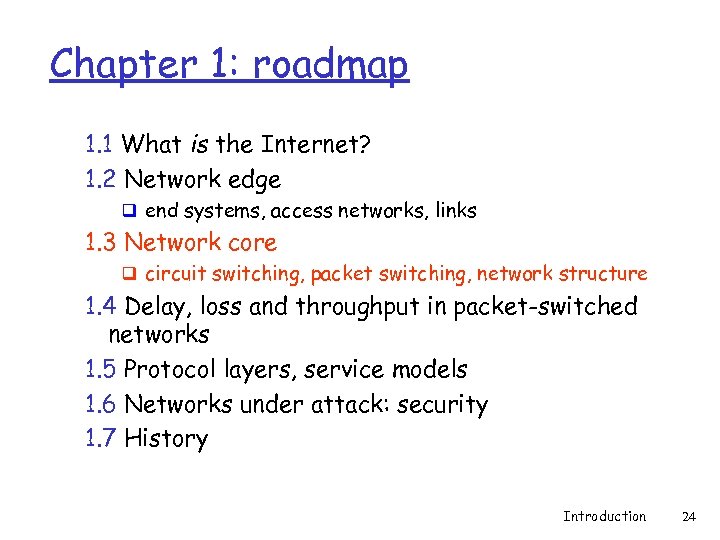

Chapter 1: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems, access networks, links 1. 3 Network core q circuit switching, packet switching, network structure 1. 4 Delay, loss and throughput in packet-switched networks 1. 5 Protocol layers, service models 1. 6 Networks under attack: security 1. 7 History Introduction 24

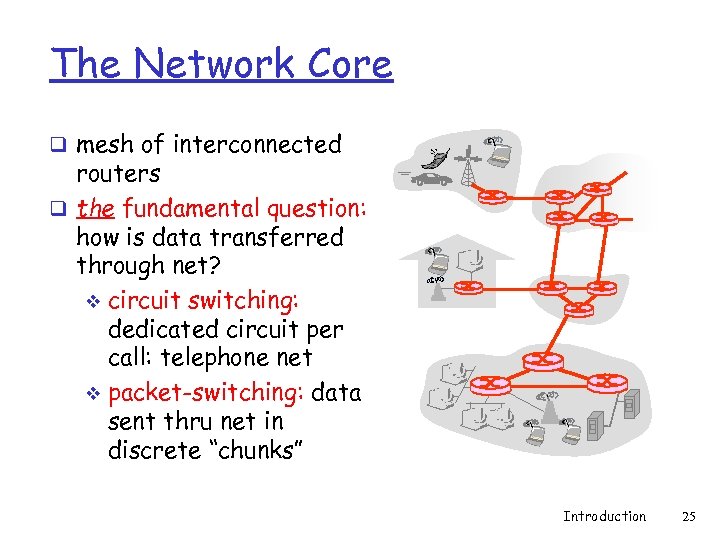

The Network Core q mesh of interconnected routers q the fundamental question: how is data transferred through net? v circuit switching: dedicated circuit per call: telephone net v packet-switching: data sent thru net in discrete “chunks” Introduction 25

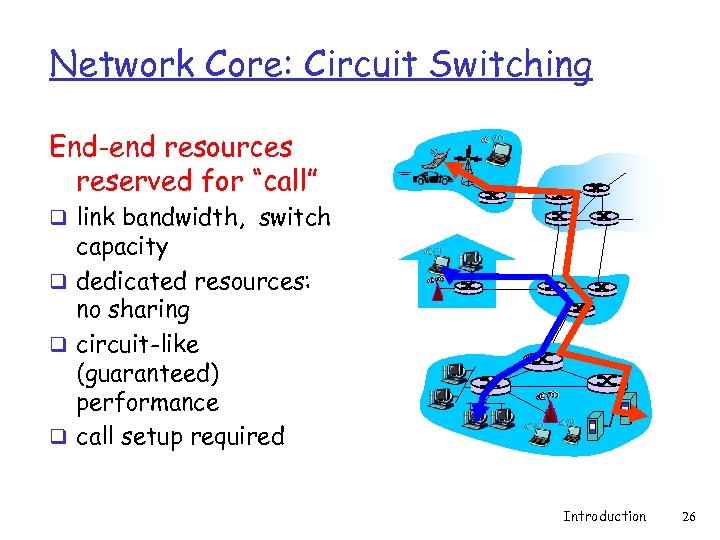

Network Core: Circuit Switching End-end resources reserved for “call” q link bandwidth, switch capacity q dedicated resources: no sharing q circuit-like (guaranteed) performance q call setup required Introduction 26

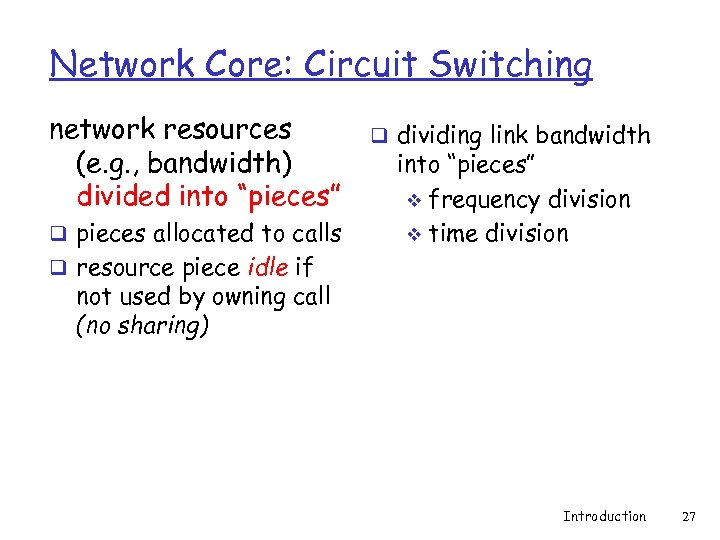

Network Core: Circuit Switching network resources (e. g. , bandwidth) divided into “pieces” q pieces allocated to calls q dividing link bandwidth into “pieces” v frequency division v time division q resource piece idle if not used by owning call (no sharing) Introduction 27

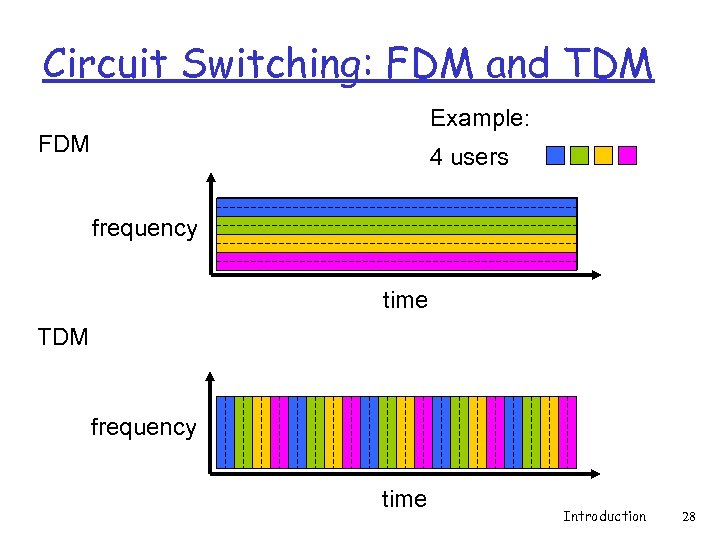

Circuit Switching: FDM and TDM Example: FDM 4 users frequency time TDM frequency time Introduction 28

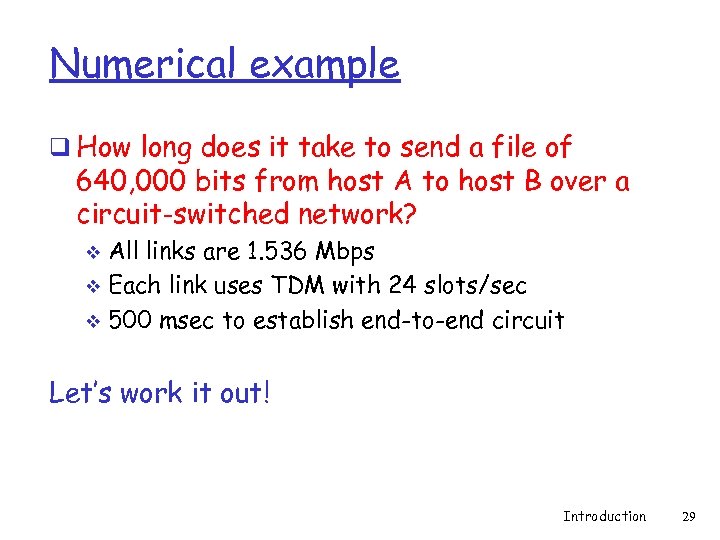

Numerical example q How long does it take to send a file of 640, 000 bits from host A to host B over a circuit-switched network? All links are 1. 536 Mbps v Each link uses TDM with 24 slots/sec v 500 msec to establish end-to-end circuit v Let’s work it out! Introduction 29

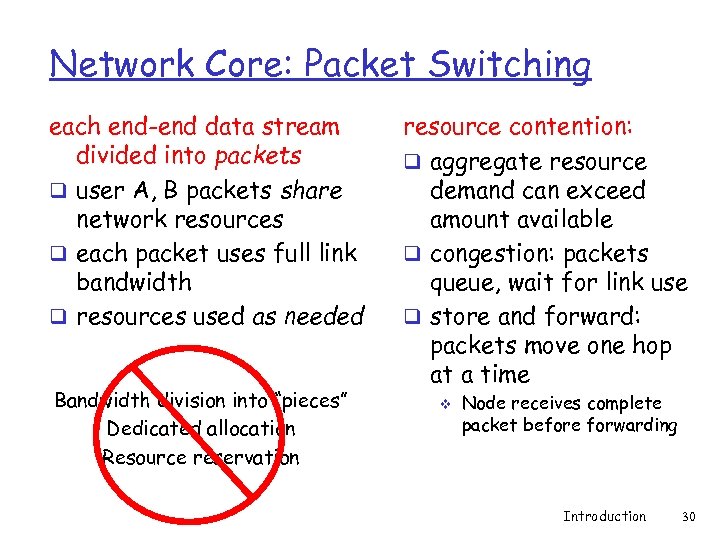

Network Core: Packet Switching each end-end data stream divided into packets q user A, B packets share network resources q each packet uses full link bandwidth q resources used as needed Bandwidth division into “pieces” Dedicated allocation Resource reservation resource contention: q aggregate resource demand can exceed amount available q congestion: packets queue, wait for link use q store and forward: packets move one hop at a time v Node receives complete packet before forwarding Introduction 30

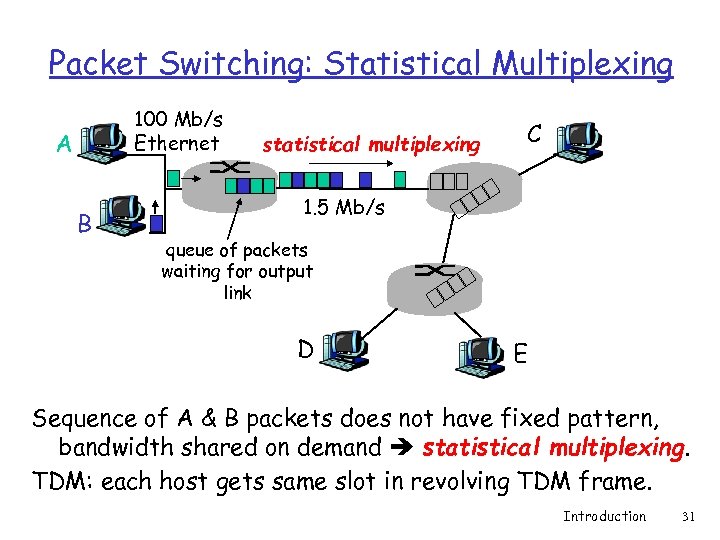

Packet Switching: Statistical Multiplexing 100 Mb/s Ethernet A B statistical multiplexing C 1. 5 Mb/s queue of packets waiting for output link D E Sequence of A & B packets does not have fixed pattern, bandwidth shared on demand statistical multiplexing. TDM: each host gets same slot in revolving TDM frame. Introduction 31

Packet-switching: store-and-forward L R q takes L/R seconds to R transmit (push out) packet of L bits on to link at R bps q store and forward: entire packet must arrive at router before it can be transmitted on next link q delay = 3 L/R (assuming zero propagation delay) R Example: q L = 7. 5 Mbits q R = 1. 5 Mbps q transmission delay = 15 sec more on delay shortly … Introduction 32

Packet switching versus circuit switching Packet switching allows more users to use network! q 1 Mb/s link q each user: v 100 kb/s when “active” v active 10% of time q circuit-switching: v 10 users q packet switching: v with 35 users, probability > 10 active at same time is less than. 0004 N users 1 Mbps link Q: how did we get value 0. 0004? Introduction 33

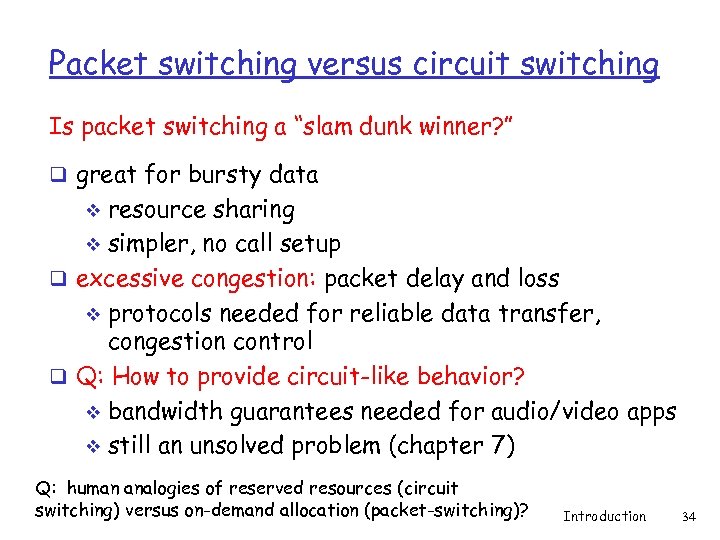

Packet switching versus circuit switching Is packet switching a “slam dunk winner? ” q great for bursty data resource sharing v simpler, no call setup q excessive congestion: packet delay and loss v protocols needed for reliable data transfer, congestion control q Q: How to provide circuit-like behavior? v bandwidth guarantees needed for audio/video apps v still an unsolved problem (chapter 7) v Q: human analogies of reserved resources (circuit switching) versus on-demand allocation (packet-switching)? Introduction 34

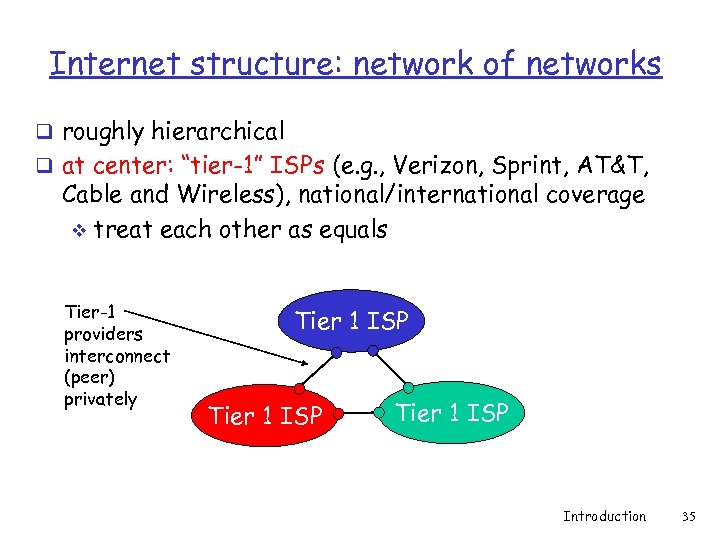

Internet structure: network of networks q roughly hierarchical q at center: “tier-1” ISPs (e. g. , Verizon, Sprint, AT&T, Cable and Wireless), national/international coverage v treat each other as equals Tier-1 providers interconnect (peer) privately Tier 1 ISP Introduction 35

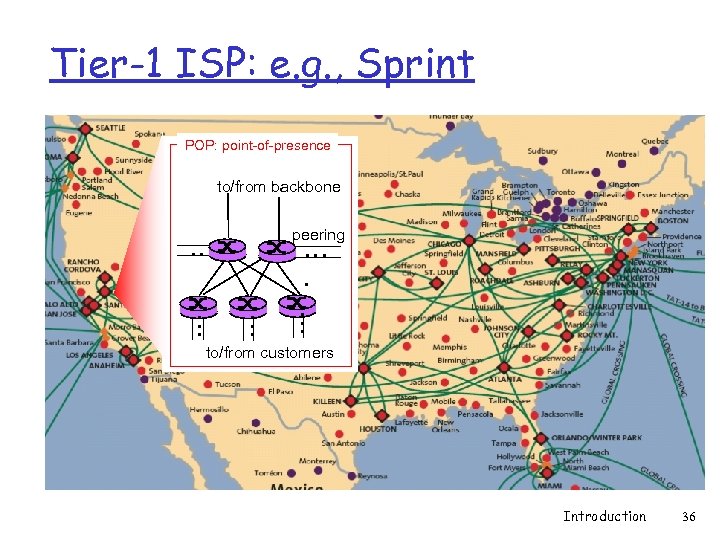

Tier-1 ISP: e. g. , Sprint POP: point-of-presence to/from backbone peering … … … to/from customers Introduction 36

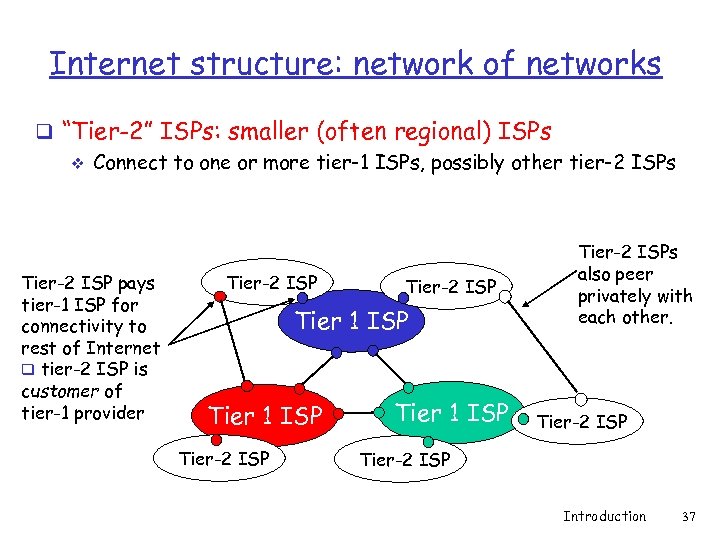

Internet structure: network of networks q “Tier-2” ISPs: smaller (often regional) ISPs v Connect to one or more tier-1 ISPs, possibly other tier-2 ISPs Tier-2 ISP pays tier-1 ISP for connectivity to rest of Internet q tier-2 ISP is customer of tier-1 provider Tier-2 ISP Tier 1 ISP Tier-2 ISPs also peer privately with each other. Tier-2 ISP Introduction 37

Internet structure: network of networks q “Tier-3” ISPs and local ISPs v last hop (“access”) network (closest to end systems) local ISP Local and tier 3 ISPs are customers of higher tier ISPs connecting them to rest of Internet Tier 3 ISP Tier-2 ISP local ISP Tier-2 ISP Tier 1 ISP Tier-2 ISP local ISP Introduction 38

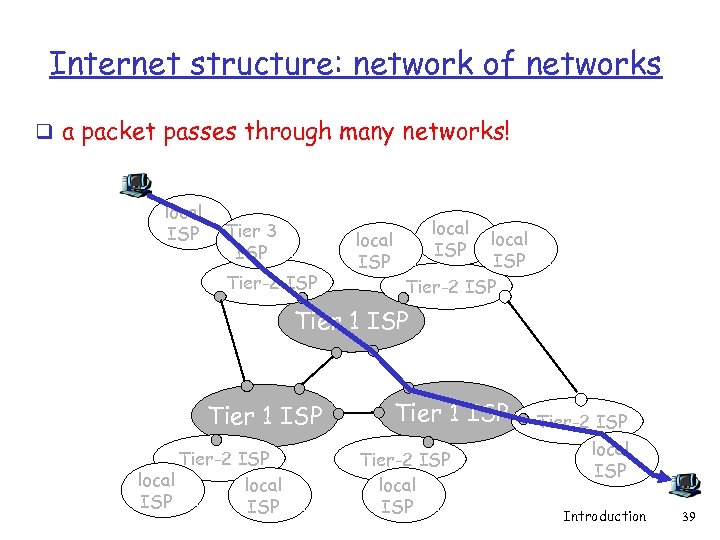

Internet structure: network of networks q a packet passes through many networks! local ISP Tier 3 ISP Tier-2 ISP local ISP Tier-2 ISP Tier 1 ISP Tier-2 ISP local ISP Introduction 39

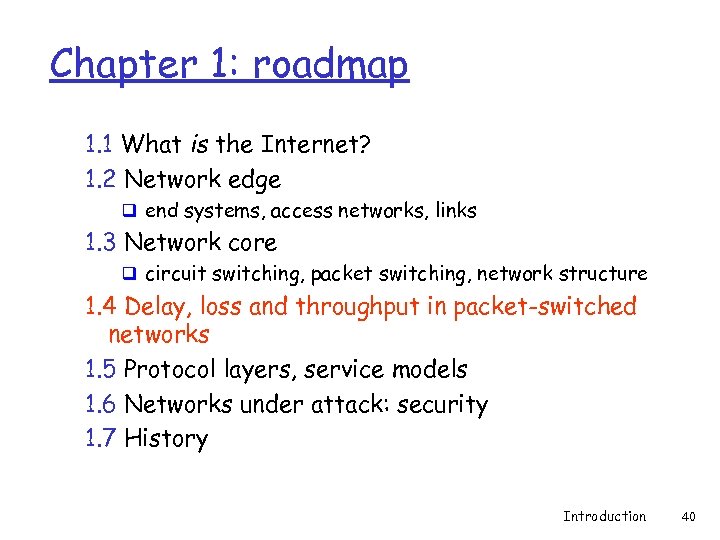

Chapter 1: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems, access networks, links 1. 3 Network core q circuit switching, packet switching, network structure 1. 4 Delay, loss and throughput in packet-switched networks 1. 5 Protocol layers, service models 1. 6 Networks under attack: security 1. 7 History Introduction 40

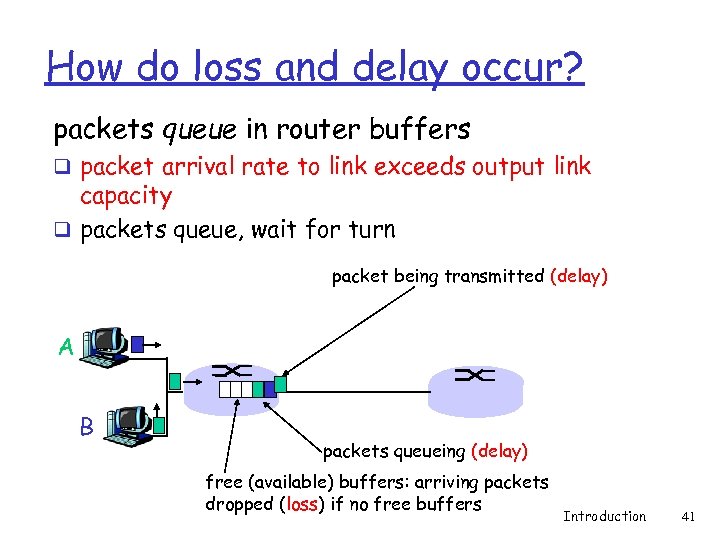

How do loss and delay occur? packets queue in router buffers q packet arrival rate to link exceeds output link capacity q packets queue, wait for turn packet being transmitted (delay) A B packets queueing (delay) free (available) buffers: arriving packets dropped (loss) if no free buffers Introduction 41

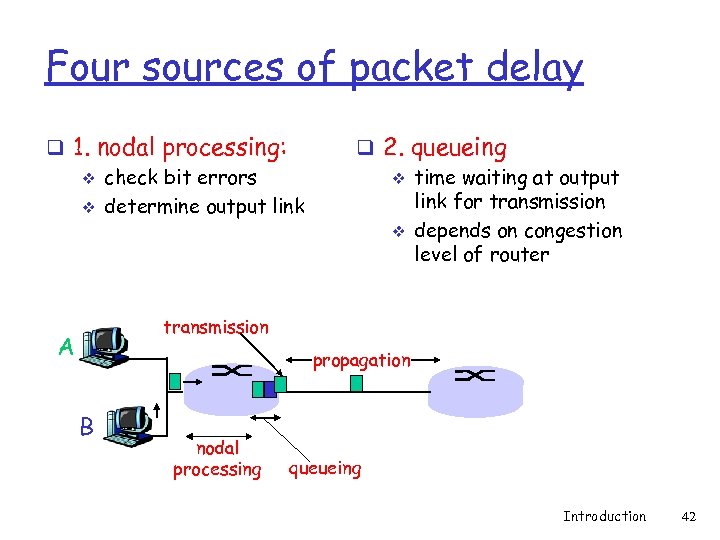

Four sources of packet delay q 1. nodal processing: v check bit errors v determine output link q 2. queueing v time waiting at output link for transmission v depends on congestion level of router transmission A propagation B nodal processing queueing Introduction 42

Delay in packet-switched networks 3. Transmission delay: q R=link bandwidth (bps) q L=packet length (bits) q time to send bits into link = L/R transmission A 4. Propagation delay: q d = length of physical link q s = propagation speed in medium (~2 x 108 m/sec) q propagation delay = d/s Note: s and R are very different quantities! propagation B nodal processing queueing Introduction 43

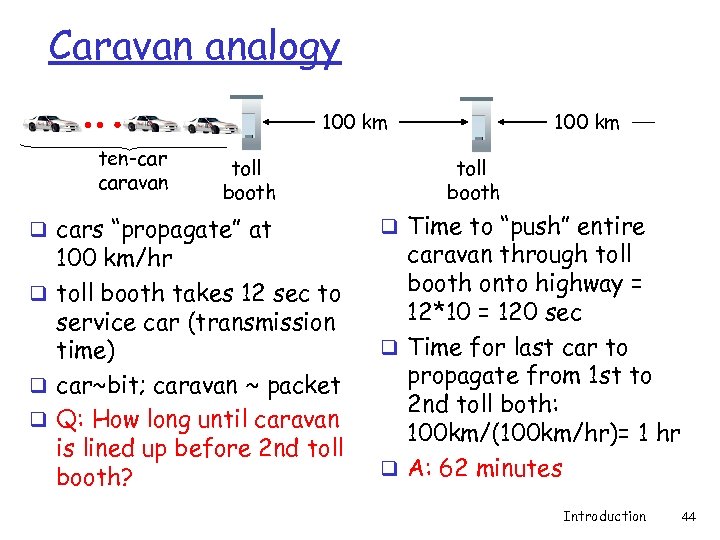

Caravan analogy 100 km ten-car caravan toll booth q cars “propagate” at 100 km/hr q toll booth takes 12 sec to service car (transmission time) q car~bit; caravan ~ packet q Q: How long until caravan is lined up before 2 nd toll booth? 100 km toll booth q Time to “push” entire caravan through toll booth onto highway = 12*10 = 120 sec q Time for last car to propagate from 1 st to 2 nd toll both: 100 km/(100 km/hr)= 1 hr q A: 62 minutes Introduction 44

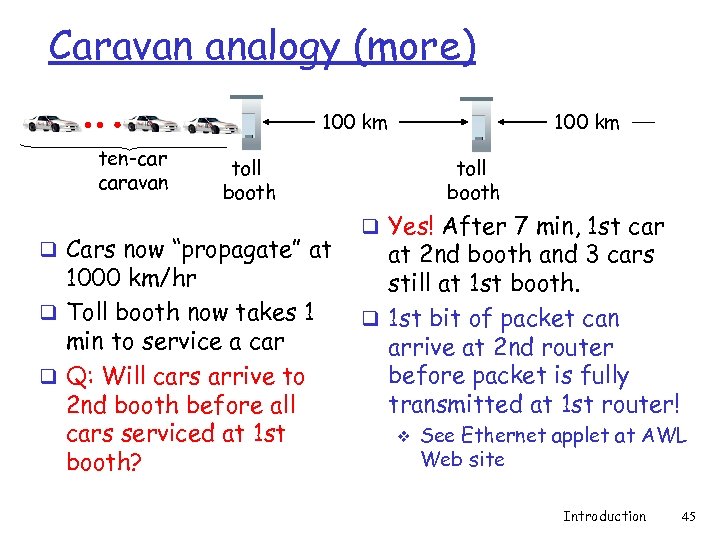

Caravan analogy (more) 100 km ten-car caravan 100 km toll booth q Cars now “propagate” at 1000 km/hr q Toll booth now takes 1 min to service a car q Q: Will cars arrive to 2 nd booth before all cars serviced at 1 st booth? toll booth q Yes! After 7 min, 1 st car at 2 nd booth and 3 cars still at 1 st booth. q 1 st bit of packet can arrive at 2 nd router before packet is fully transmitted at 1 st router! v See Ethernet applet at AWL Web site Introduction 45

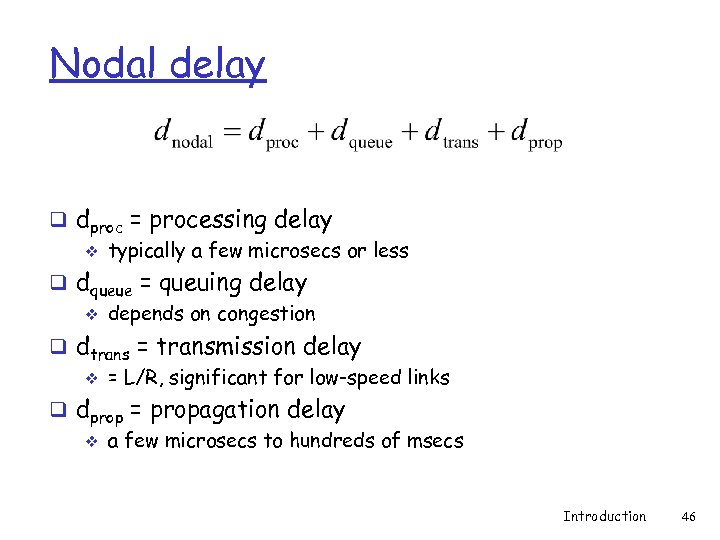

Nodal delay q dproc = processing delay v typically a few microsecs or less q dqueue = queuing delay v depends on congestion q dtrans = transmission delay v = L/R, significant for low-speed links q dprop = propagation delay v a few microsecs to hundreds of msecs Introduction 46

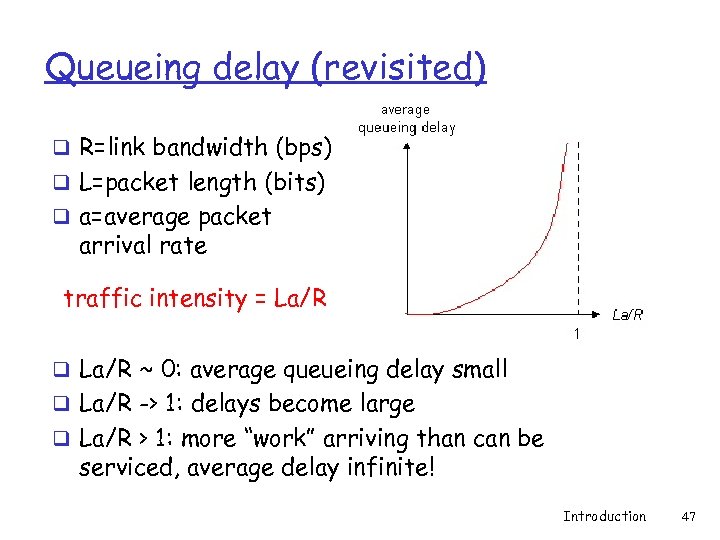

Queueing delay (revisited) q R=link bandwidth (bps) q L=packet length (bits) q a=average packet arrival rate traffic intensity = La/R q La/R ~ 0: average queueing delay small q La/R -> 1: delays become large q La/R > 1: more “work” arriving than can be serviced, average delay infinite! Introduction 47

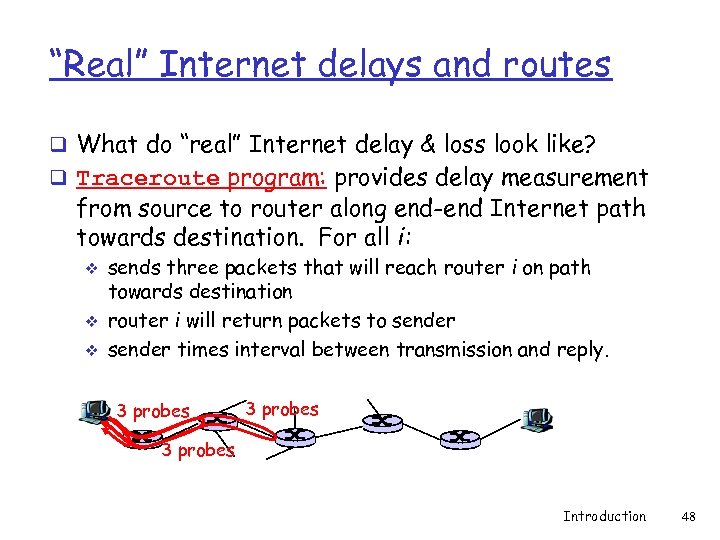

“Real” Internet delays and routes q What do “real” Internet delay & loss look like? q Traceroute program: provides delay measurement from source to router along end-end Internet path towards destination. For all i: v v v sends three packets that will reach router i on path towards destination router i will return packets to sender times interval between transmission and reply. 3 probes Introduction 48

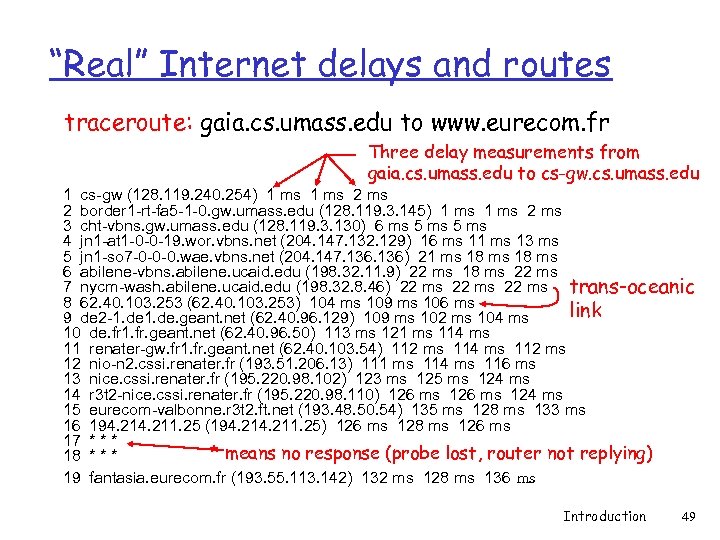

“Real” Internet delays and routes traceroute: gaia. cs. umass. edu to www. eurecom. fr Three delay measurements from gaia. cs. umass. edu to cs-gw. cs. umass. edu 1 cs-gw (128. 119. 240. 254) 1 ms 2 border 1 -rt-fa 5 -1 -0. gw. umass. edu (128. 119. 3. 145) 1 ms 2 ms 3 cht-vbns. gw. umass. edu (128. 119. 3. 130) 6 ms 5 ms 4 jn 1 -at 1 -0 -0 -19. wor. vbns. net (204. 147. 132. 129) 16 ms 11 ms 13 ms 5 jn 1 -so 7 -0 -0 -0. wae. vbns. net (204. 147. 136) 21 ms 18 ms 6 abilene-vbns. abilene. ucaid. edu (198. 32. 11. 9) 22 ms 18 ms 22 ms 7 nycm-wash. abilene. ucaid. edu (198. 32. 8. 46) 22 ms trans-oceanic 8 62. 40. 103. 253 (62. 40. 103. 253) 104 ms 109 ms 106 ms link 9 de 2 -1. de. geant. net (62. 40. 96. 129) 109 ms 102 ms 104 ms 10 de. fr 1. fr. geant. net (62. 40. 96. 50) 113 ms 121 ms 114 ms 11 renater-gw. fr 1. fr. geant. net (62. 40. 103. 54) 112 ms 114 ms 112 ms 12 nio-n 2. cssi. renater. fr (193. 51. 206. 13) 111 ms 114 ms 116 ms 13 nice. cssi. renater. fr (195. 220. 98. 102) 123 ms 125 ms 124 ms 14 r 3 t 2 -nice. cssi. renater. fr (195. 220. 98. 110) 126 ms 124 ms 15 eurecom-valbonne. r 3 t 2. ft. net (193. 48. 50. 54) 135 ms 128 ms 133 ms 16 194. 211. 25 (194. 211. 25) 126 ms 128 ms 126 ms 17 * * means no response (probe lost, router not replying) 18 * * * 19 fantasia. eurecom. fr (193. 55. 113. 142) 132 ms 128 ms 136 ms Introduction 49

Packet loss q queue (aka buffer) preceding link in buffer has finite capacity q packet arriving to full queue dropped (aka lost) q lost packet may be retransmitted by previous node, by source end system, or not at all buffer (waiting area) A B packet being transmitted packet arriving to full buffer is lost Introduction 50

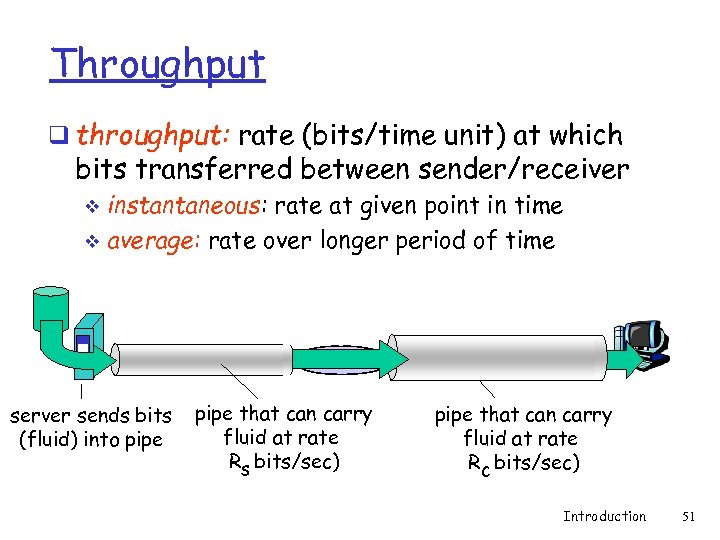

Throughput q throughput: rate (bits/time unit) at which bits transferred between sender/receiver instantaneous: rate at given point in time v average: rate over longer period of time v link capacity server, with server sends bits pipe that can carry Rs bits/sec fluid at rate file into pipe (fluid) of F bits Rs bits/sec) to send to client link capacity pipe that can carry Rfluid at rate c bits/sec Rc bits/sec) Introduction 51

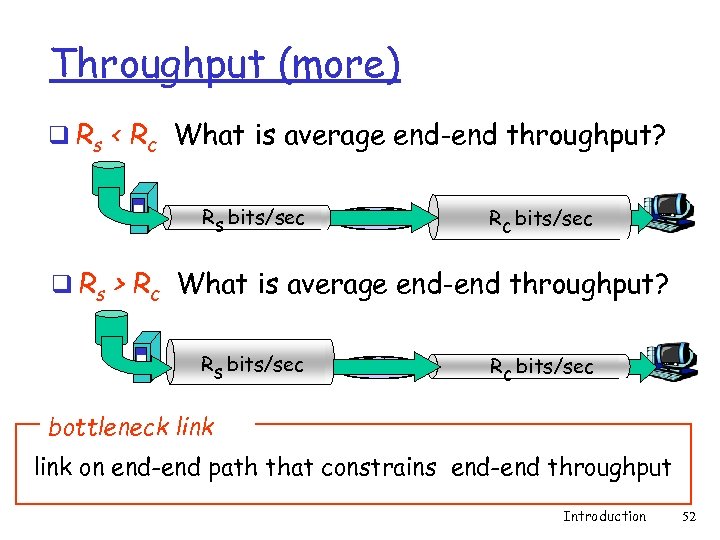

Throughput (more) q Rs < Rc What is average end-end throughput? Rs bits/sec Rc bits/sec q Rs > Rc What is average end-end throughput? Rs bits/sec Rc bits/sec bottleneck link on end-end path that constrains end-end throughput Introduction 52

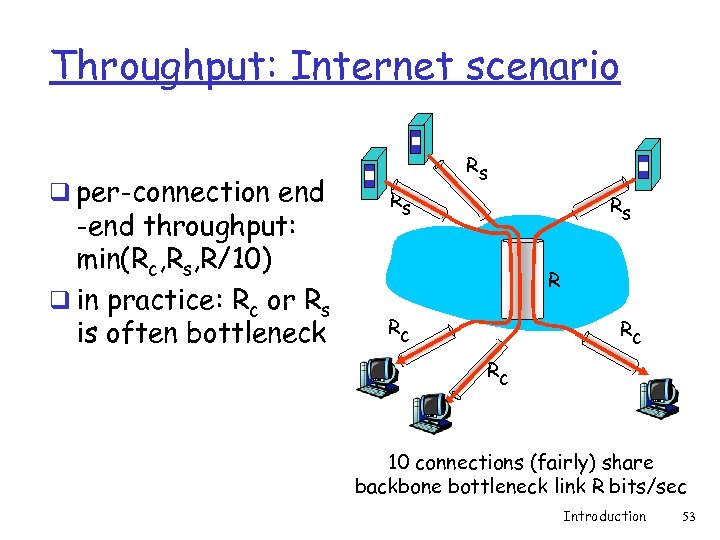

Throughput: Internet scenario q per-connection end -end throughput: min(Rc, Rs, R/10) q in practice: Rc or Rs is often bottleneck Rs Rs Rs R Rc Rc Rc 10 connections (fairly) share backbone bottleneck link R bits/sec Introduction 53

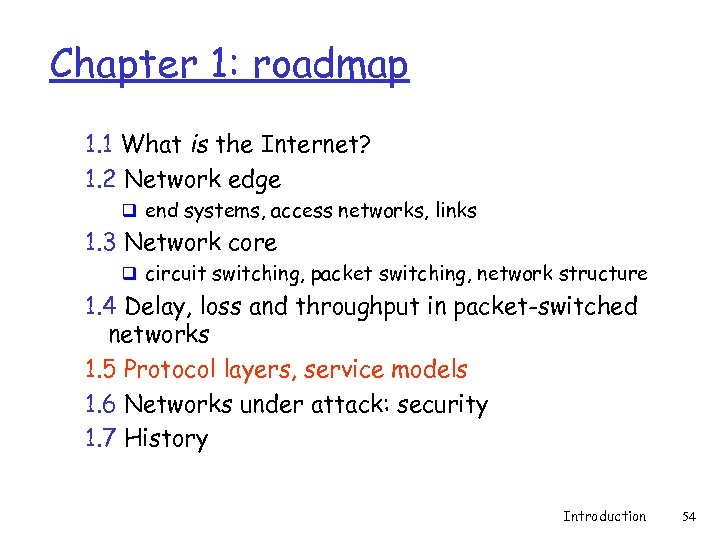

Chapter 1: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems, access networks, links 1. 3 Network core q circuit switching, packet switching, network structure 1. 4 Delay, loss and throughput in packet-switched networks 1. 5 Protocol layers, service models 1. 6 Networks under attack: security 1. 7 History Introduction 54

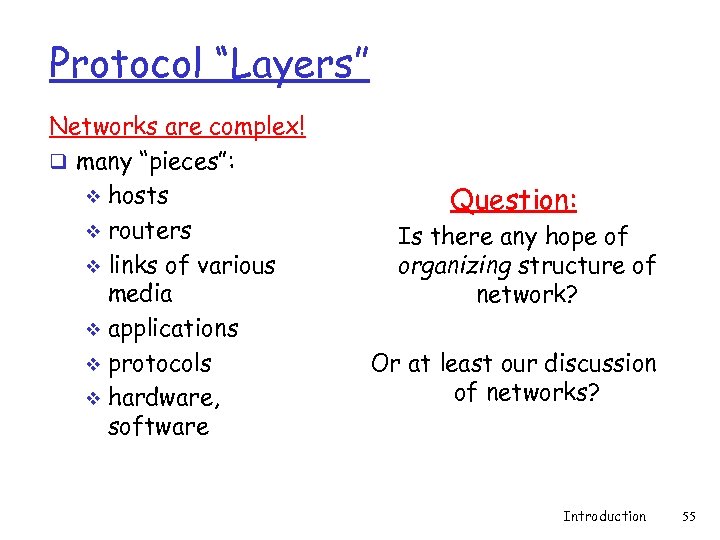

Protocol “Layers” Networks are complex! q many “pieces”: v hosts v routers v links of various media v applications v protocols v hardware, software Question: Is there any hope of organizing structure of network? Or at least our discussion of networks? Introduction 55

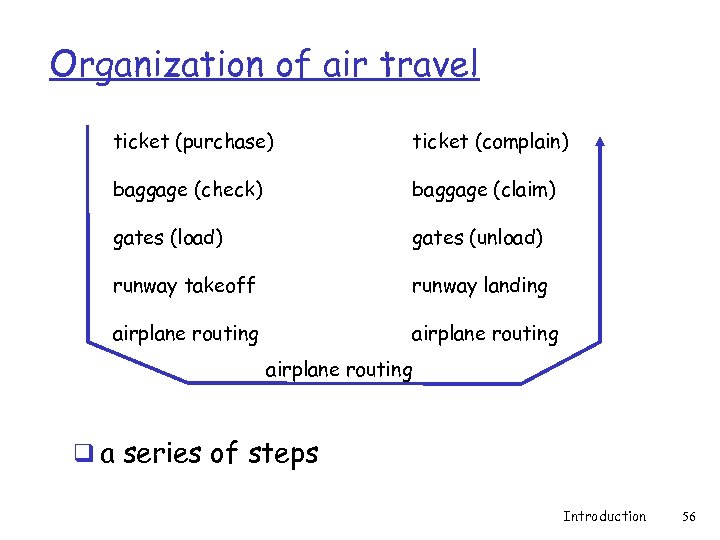

Organization of air travel ticket (purchase) ticket (complain) baggage (check) baggage (claim) gates (load) gates (unload) runway takeoff runway landing airplane routing q a series of steps Introduction 56

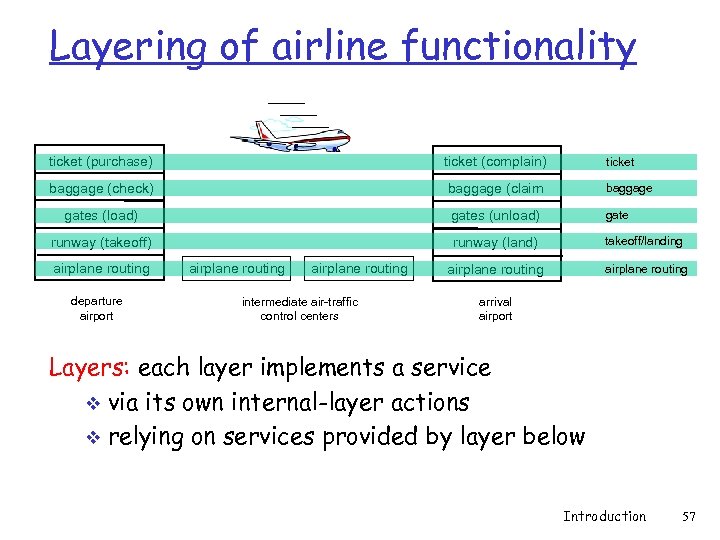

Layering of airline functionality ticket (purchase) ticket (complain) ticket baggage (check) baggage (claim baggage gates (load) gates (unload) gate runway (takeoff) runway (land) takeoff/landing airplane routing departure airport airplane routing intermediate air-traffic control centers arrival airport Layers: each layer implements a service v via its own internal-layer actions v relying on services provided by layer below Introduction 57

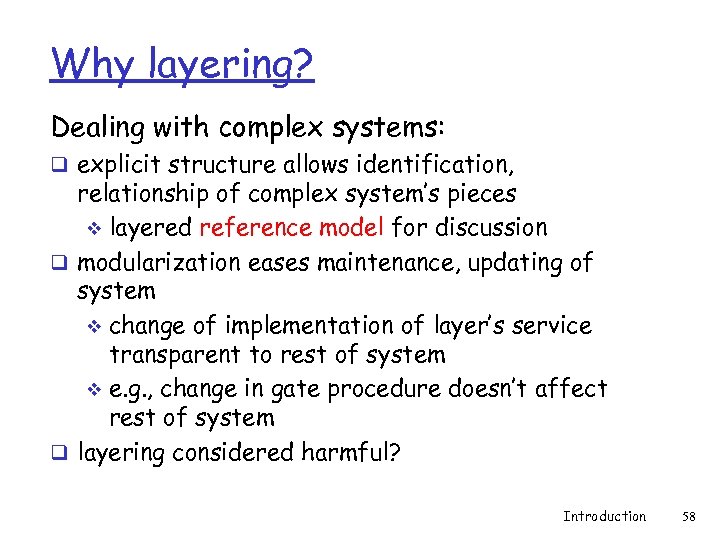

Why layering? Dealing with complex systems: q explicit structure allows identification, relationship of complex system’s pieces v layered reference model for discussion q modularization eases maintenance, updating of system v change of implementation of layer’s service transparent to rest of system v e. g. , change in gate procedure doesn’t affect rest of system q layering considered harmful? Introduction 58

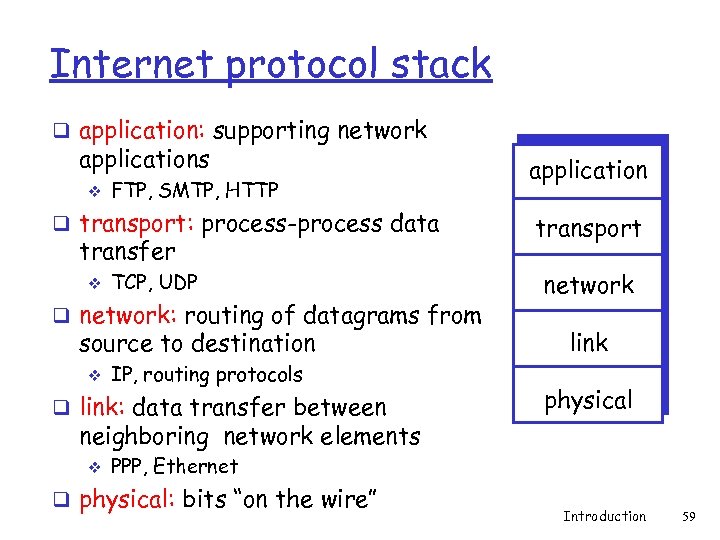

Internet protocol stack q application: supporting network applications v FTP, SMTP, HTTP q transport: process-process data transfer v TCP, UDP q network: routing of datagrams from source to destination v IP, routing protocols q link: data transfer between application transport network link physical neighboring network elements v PPP, Ethernet q physical: bits “on the wire” Introduction 59

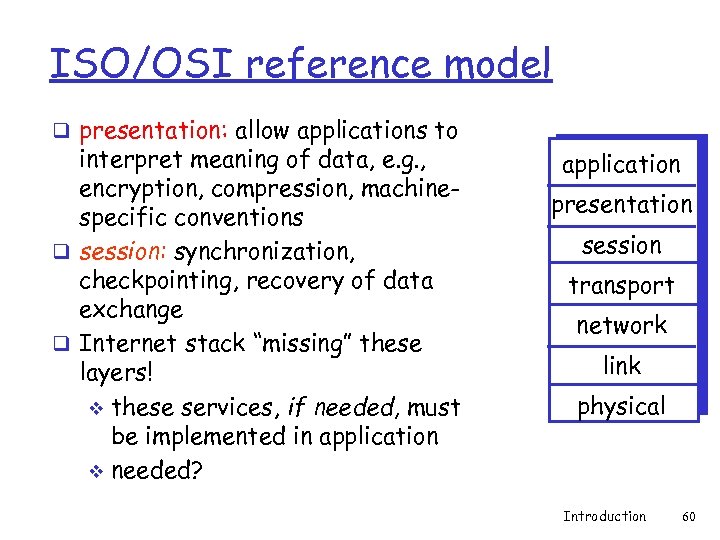

ISO/OSI reference model q presentation: allow applications to interpret meaning of data, e. g. , encryption, compression, machinespecific conventions q session: synchronization, checkpointing, recovery of data exchange q Internet stack “missing” these layers! v these services, if needed, must be implemented in application v needed? application presentation session transport network link physical Introduction 60

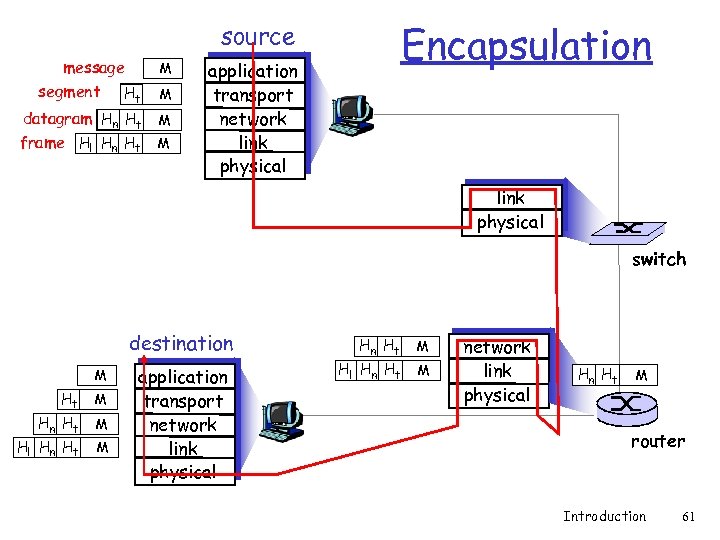

Encapsulation source message segment Ht M datagram Hn Ht M frame Hl Hn Ht M M application transport network link physical switch destination M Ht M Hn Ht Hl Hn Ht M M application transport network link physical Hn Ht Hl Hn Ht M M network link physical Hn Ht M router Introduction 61

Chapter 1: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems, access networks, links 1. 3 Network core q circuit switching, packet switching, network structure 1. 4 Delay, loss and throughput in packet-switched networks 1. 5 Protocol layers, service models 1. 6 Networks under attack: security 1. 7 History Introduction 62

Network Security q The field of network security is about: v how bad guys can attack computer networks v how we can defend networks against attacks v how to design architectures that are immune to attacks q Internet not originally designed with (much) security in mind original vision: “a group of mutually trusting users attached to a transparent network” v Internet protocol designers playing “catch-up” v Security considerations in all layers! v Introduction 63

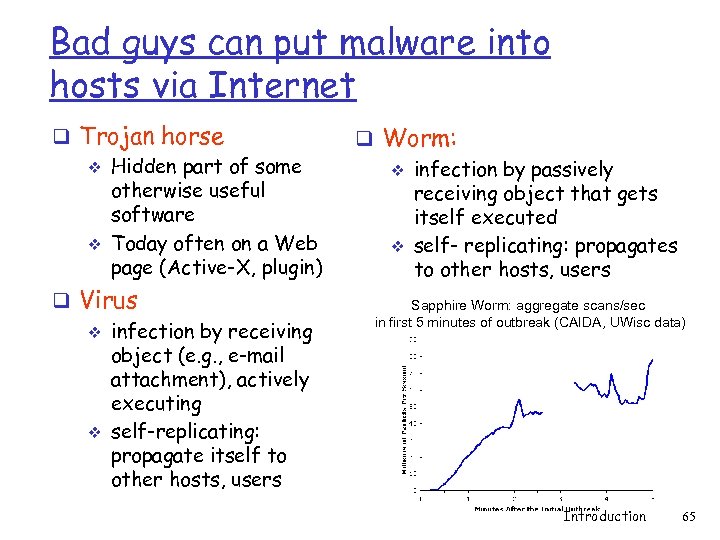

Bad guys can put malware into hosts via Internet q Malware can get in host from a virus, worm, or trojan horse. q Spyware malware can record keystrokes, web sites visited, upload info to collection site. q Infected host can be enrolled in a botnet, used for spam and DDo. S attacks. q Malware is often self-replicating: from an infected host, seeks entry into other hosts Introduction 64

Bad guys can put malware into hosts via Internet q Trojan horse v Hidden part of some otherwise useful software v Today often on a Web page (Active-X, plugin) q Virus v infection by receiving object (e. g. , e-mail attachment), actively executing v self-replicating: propagate itself to other hosts, users q Worm: v infection by passively receiving object that gets itself executed v self- replicating: propagates to other hosts, users Sapphire Worm: aggregate scans/sec in first 5 minutes of outbreak (CAIDA, UWisc data) Introduction 65

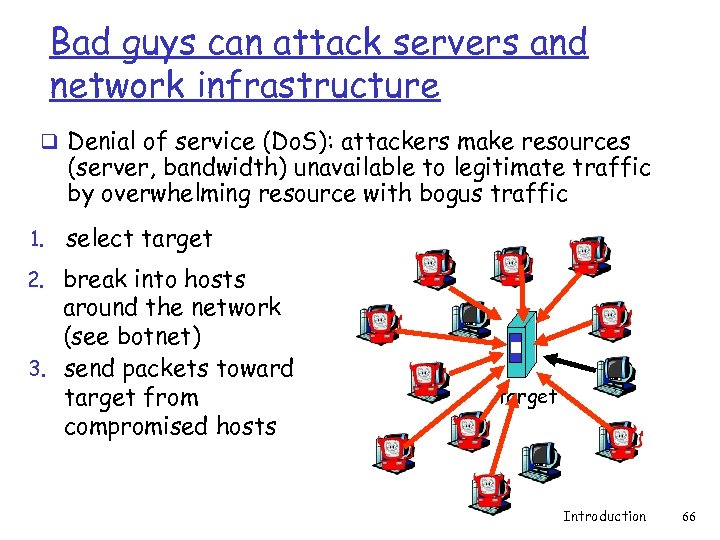

Bad guys can attack servers and network infrastructure q Denial of service (Do. S): attackers make resources (server, bandwidth) unavailable to legitimate traffic by overwhelming resource with bogus traffic 1. select target 2. break into hosts around the network (see botnet) 3. send packets toward target from compromised hosts target Introduction 66

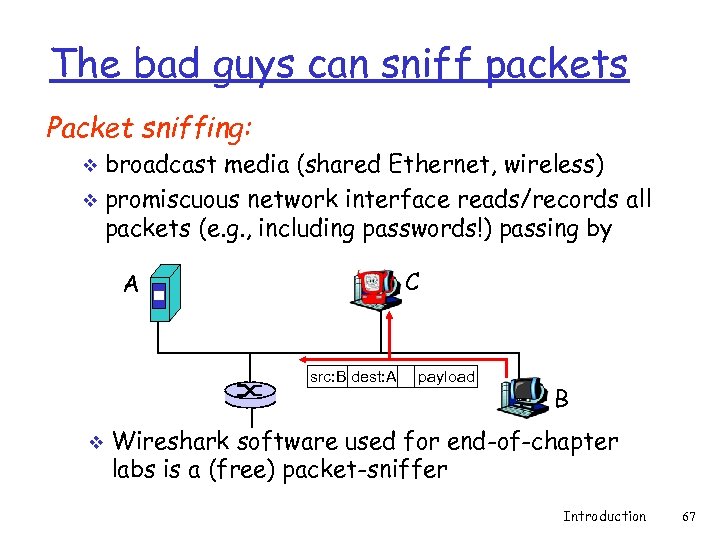

The bad guys can sniff packets Packet sniffing: broadcast media (shared Ethernet, wireless) v promiscuous network interface reads/records all packets (e. g. , including passwords!) passing by v C A src: B dest: A v payload B Wireshark software used for end-of-chapter labs is a (free) packet-sniffer Introduction 67

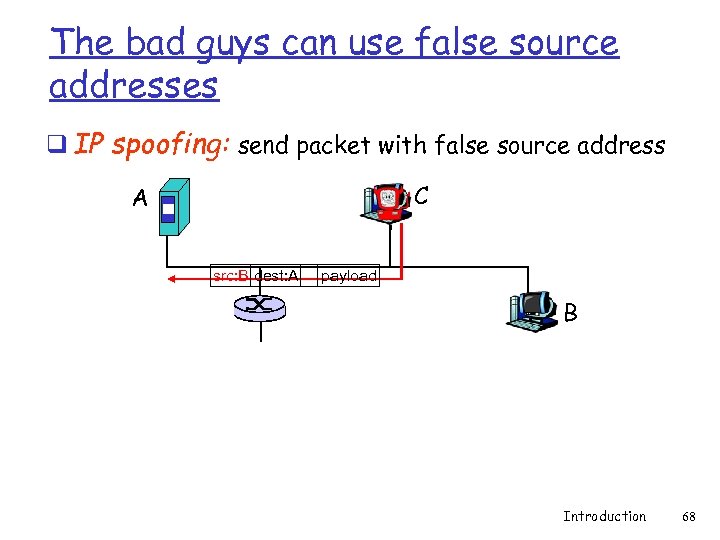

The bad guys can use false source addresses q IP spoofing: send packet with false source address C A src: B dest: A payload B Introduction 68

The bad guys can record and playback q record-and-playback: sniff sensitive info (e. g. , password), and use later v password holder is that user from system point of view A C src: B dest: A user: B; password: foo B Introduction 69

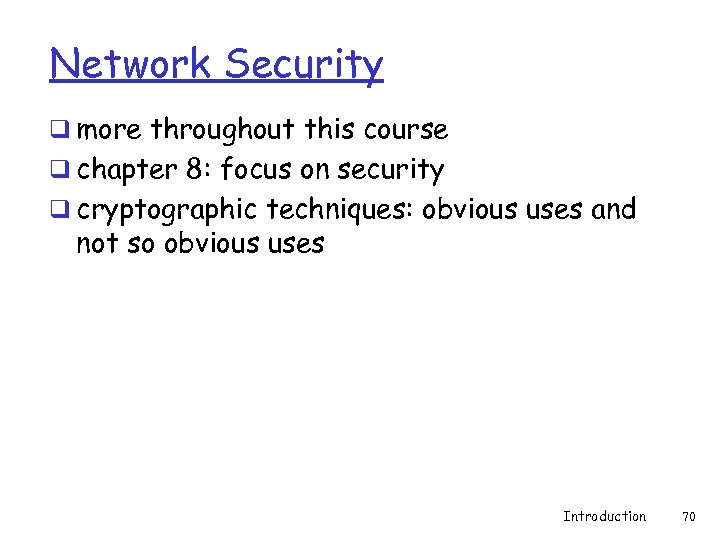

Network Security q more throughout this course q chapter 8: focus on security q cryptographic techniques: obvious uses and not so obvious uses Introduction 70

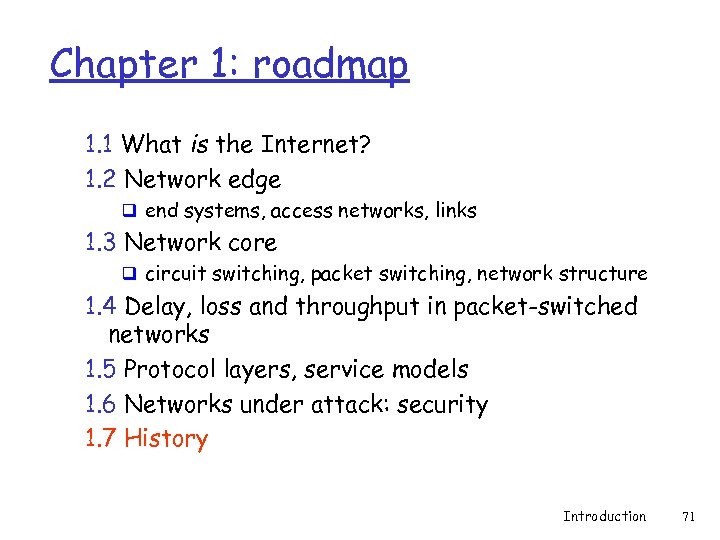

Chapter 1: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems, access networks, links 1. 3 Network core q circuit switching, packet switching, network structure 1. 4 Delay, loss and throughput in packet-switched networks 1. 5 Protocol layers, service models 1. 6 Networks under attack: security 1. 7 History Introduction 71

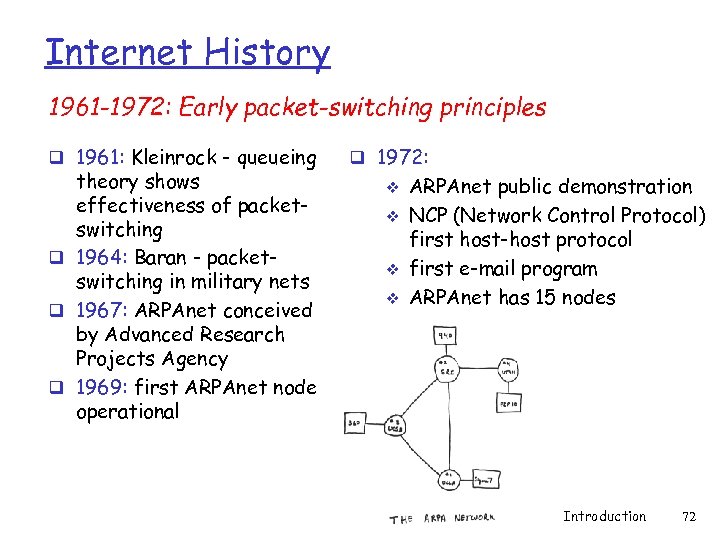

Internet History 1961 -1972: Early packet-switching principles q 1961: Kleinrock - queueing theory shows effectiveness of packetswitching q 1964: Baran - packetswitching in military nets q 1967: ARPAnet conceived by Advanced Research Projects Agency q 1969: first ARPAnet node operational q 1972: v v ARPAnet public demonstration NCP (Network Control Protocol) first host-host protocol first e-mail program ARPAnet has 15 nodes Introduction 72

Internet History 1972 -1980: Internetworking, new and proprietary nets q 1970: ALOHAnet satellite q q q network in Hawaii 1974: Cerf and Kahn architecture for interconnecting networks 1976: Ethernet at Xerox PARC late 70’s: proprietary architectures: DECnet, SNA, XNA late 70’s: switching fixed length packets (ATM precursor) 1979: ARPAnet has 200 nodes Cerf and Kahn’s internetworking principles: v minimalism, autonomy - no internal changes required to interconnect networks v best effort service model v stateless routers v decentralized control define today’s Internet architecture Introduction 73

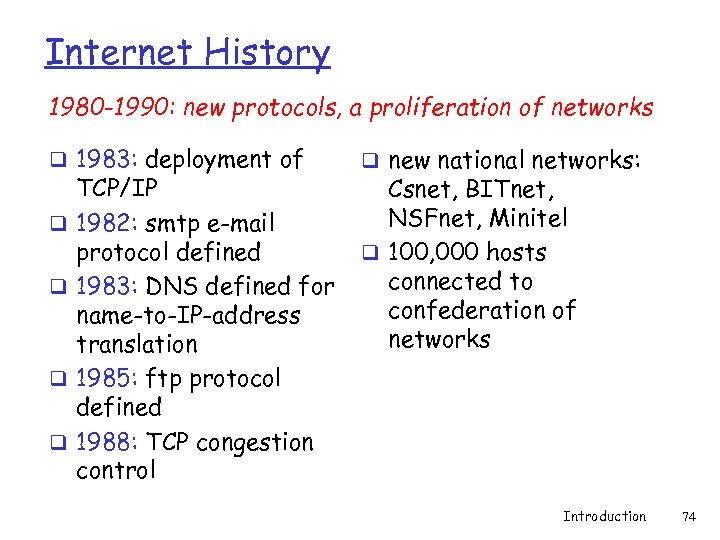

Internet History 1980 -1990: new protocols, a proliferation of networks q 1983: deployment of q q TCP/IP 1982: smtp e-mail protocol defined 1983: DNS defined for name-to-IP-address translation 1985: ftp protocol defined 1988: TCP congestion control q new national networks: Csnet, BITnet, NSFnet, Minitel q 100, 000 hosts connected to confederation of networks Introduction 74

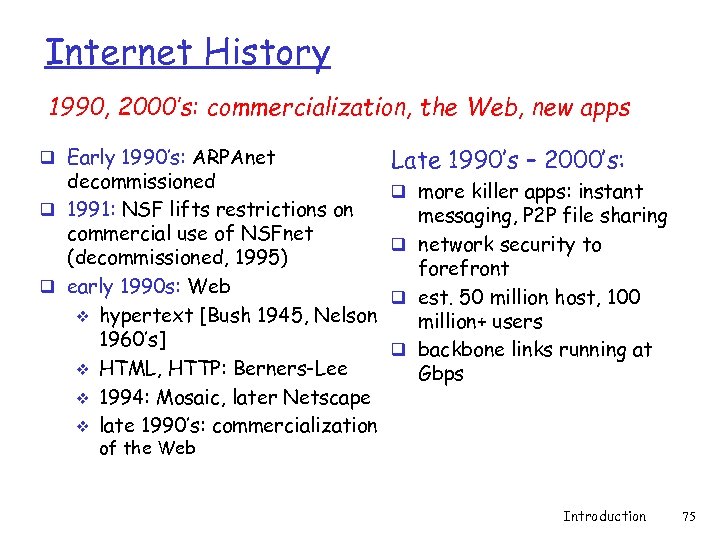

Internet History 1990, 2000’s: commercialization, the Web, new apps q Early 1990’s: ARPAnet decommissioned q 1991: NSF lifts restrictions on commercial use of NSFnet (decommissioned, 1995) q early 1990 s: Web v hypertext [Bush 1945, Nelson 1960’s] v HTML, HTTP: Berners-Lee v 1994: Mosaic, later Netscape v late 1990’s: commercialization Late 1990’s – 2000’s: q more killer apps: instant messaging, P 2 P file sharing q network security to forefront q est. 50 million host, 100 million+ users q backbone links running at Gbps of the Web Introduction 75

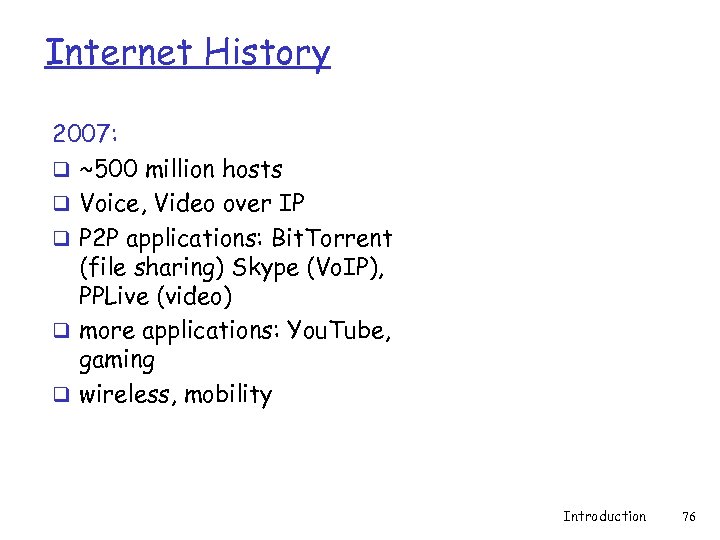

Internet History 2007: q ~500 million hosts q Voice, Video over IP q P 2 P applications: Bit. Torrent (file sharing) Skype (Vo. IP), PPLive (video) q more applications: You. Tube, gaming q wireless, mobility Introduction 76

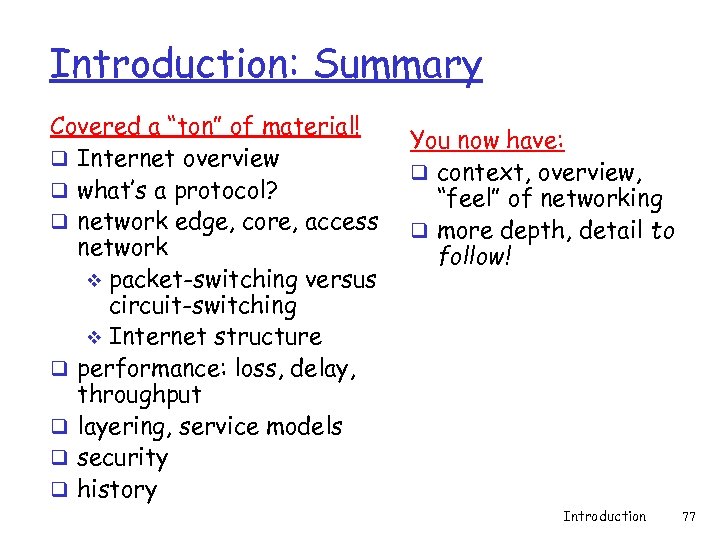

Introduction: Summary Covered a “ton” of material! q Internet overview q what’s a protocol? q network edge, core, access network v packet-switching versus circuit-switching v Internet structure q performance: loss, delay, throughput q layering, service models q security q history You now have: q context, overview, “feel” of networking q more depth, detail to follow! Introduction 77

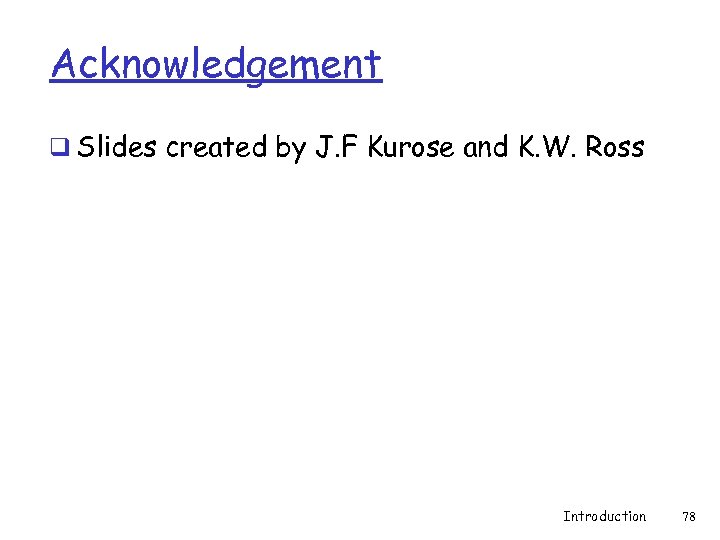

Acknowledgement q Slides created by J. F Kurose and K. W. Ross Introduction 78
