CRT / Test area @ KEK Fuji Tomokatsu Hayakawa Nagoya University 12 th B 2 GM 2012/7/23 1

TOP assembly room & TOP preparation/test area 12 th B 2 GM 2012/7/23 2

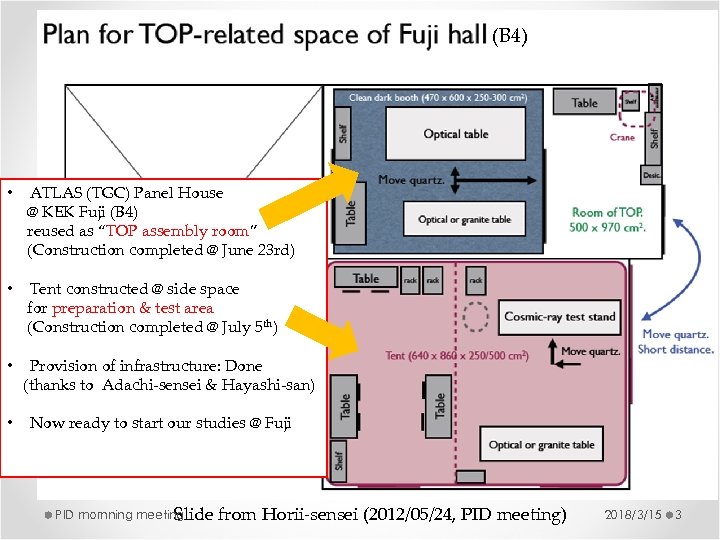

(B 4) • ATLAS (TGC) Panel House @ KEK Fuji (B 4) reused as “TOP assembly room” (Construction completed @ June 23 rd) • Tent constructed @ side space for preparation & test area (Construction completed @ July 5 th) • Provision of infrastructure: Done (thanks to Adachi-sensei & Hayashi-san) • Now ready to start our studies @ Fuji PID mornning meeting Slide from Horii-sensei (2012/05/24, PID meeting) 2018/3/15 3

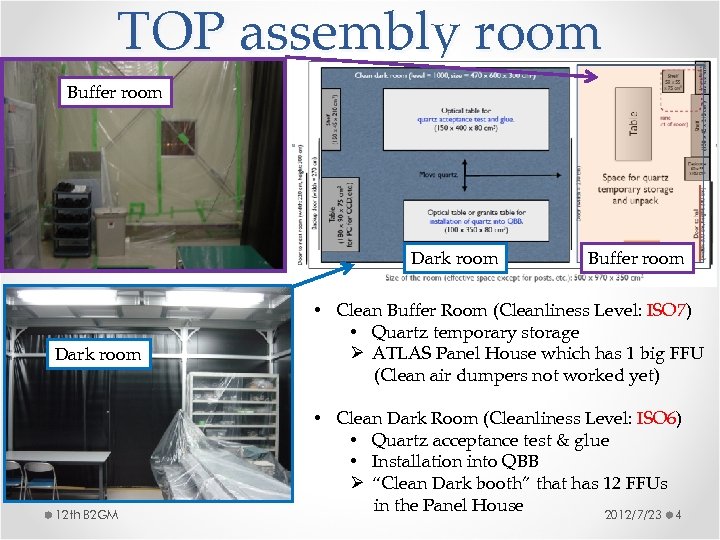

TOP assembly room Buffer room Dark room 12 th B 2 GM Buffer room • Clean Buffer Room (Cleanliness Level: ISO 7) • Quartz temporary storage Ø ATLAS Panel House which has 1 big FFU 　　(Clean air dumpers not worked yet) • Clean Dark Room (Cleanliness Level: ISO 6) • Quartz acceptance test & glue • Installation into QBB Ø “Clean Dark booth” that has 12 FFUs 　　in the Panel House 2012/7/23 4

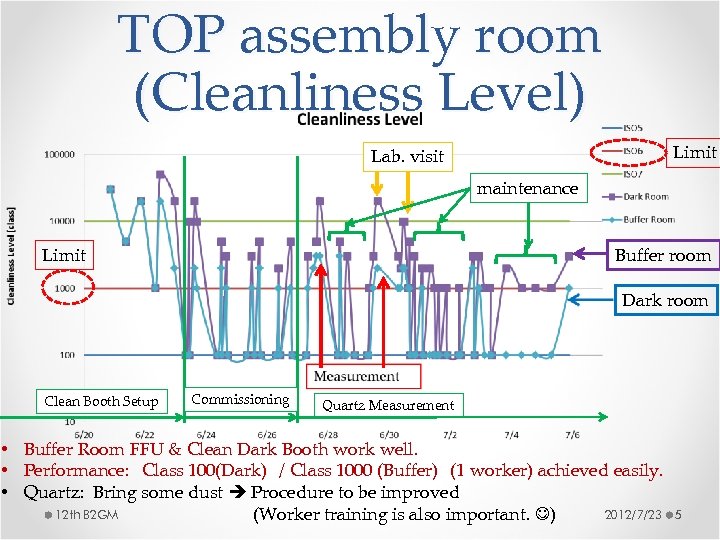

TOP assembly room (Cleanliness Level) Limit Lab. visit maintenance Buffer room Limit Dark room Clean Booth Setup Commissioning Quartz Measurement • Buffer Room FFU & Clean Dark Booth work well. • Performance: 　Class 100(Dark)　/ Class 1000 (Buffer)　(1 worker) achieved easily. • Quartz: Bring some dust Procedure to be improved 12 th B 2 GM 2012/7/23 (Worker training is also important. ) 5

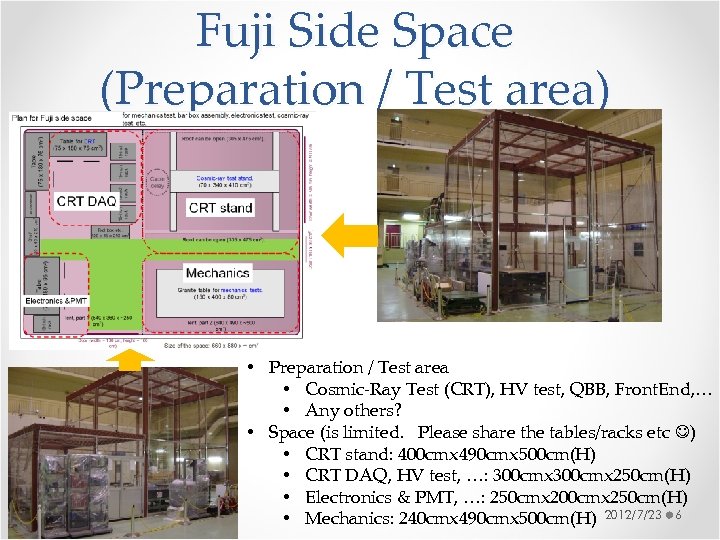

Fuji Side Space (Preparation / Test area) 12 th B 2 GM • Preparation / Test area • Cosmic-Ray Test (CRT), HV test, QBB, Front. End, … • Any others? • Space (is limited. Please share the tables/racks etc ) • CRT stand: 400 cmx 490 cmx 500 cm(H) • CRT DAQ, HV test, …: 300 cmx 250 cm(H) • Electronics & PMT, …: 250 cmx 200 cmx 250 cm(H) • Mechanics: 240 cmx 490 cmx 500 cm(H) 2012/7/23 6

CRT preparation 12 th B 2 GM 2012/7/23 7

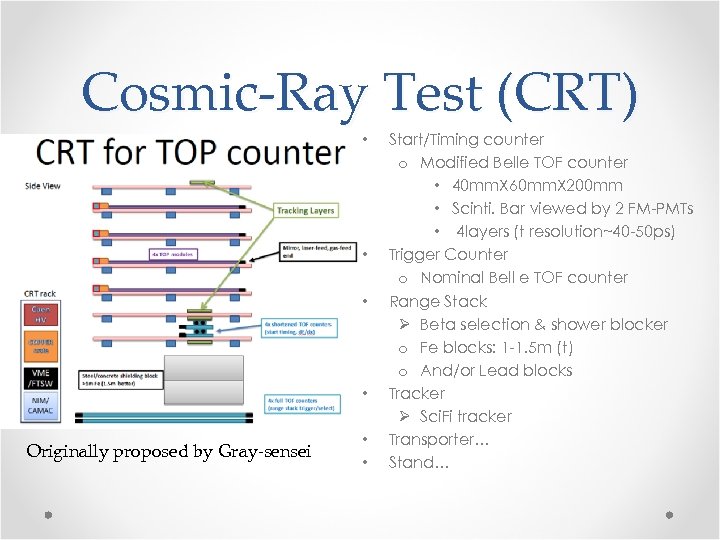

Cosmic-Ray Test (CRT) • • Originally proposed by Gray-sensei • • Start/Timing counter o Modified Belle TOF counter • 40 mm. X 60 mm. X 200 mm • Scinti. Bar viewed by 2 FM-PMTs • 4 layers (t resolution~40 -50 ps) Trigger Counter o Nominal Bell e TOF counter Range Stack Ø Beta selection & shower blocker o Fe blocks: 1 -1. 5 m (t) o And/or Lead blocks Tracker Ø Sci. Fi tracker Transporter… Stand…

CRT preparation • Counter o o o 5 Shortened TOF counters (20 cm) tested in May Read out: CAMAC ADC + TDC Intrinsic time resolution: 80 -100 ps (w/o position correction) • ΔTOF (4 layers) ~ 80 -100/ sqrt(4) = 40 -50 ps (to be refined) • Tracker o o o Nagoya Sci. Fi Tracker under preparation @ Nagoya U. • Sci. Fi planes already prepared by Matsuoka-san • Front-end Board mass(? ) production ASAP Read out: CAMAC TDC (3377) Expected position resolution: 0. 3 -0. 6 mm • Block o o 12 th B 2 GM Iron: 1 m X 0. 5 m X 0. 25 m iron block x 6 Concrete: 1 m. X 2 m. X 0. 5 mx 8 • Stand o …. 2012/7/23 9

CRT preparation Schedule Deadline (CRT) Jul Aug Counter Deadline (LEPS) Sept Oct Nov Dec Test (t resolution etc. ) Production Tracker Assembly (~80 ch) Production HV CAEN HV module test Repair @ CAEN Shipping for LEPS beam test Stand Design & construction by ? ? Final CRT stand Construction(? ) Backup option Blocks / parts etc. LEPS beam test preparation LEPS beam test Nagoya TOP meeting 2012/7/18 10

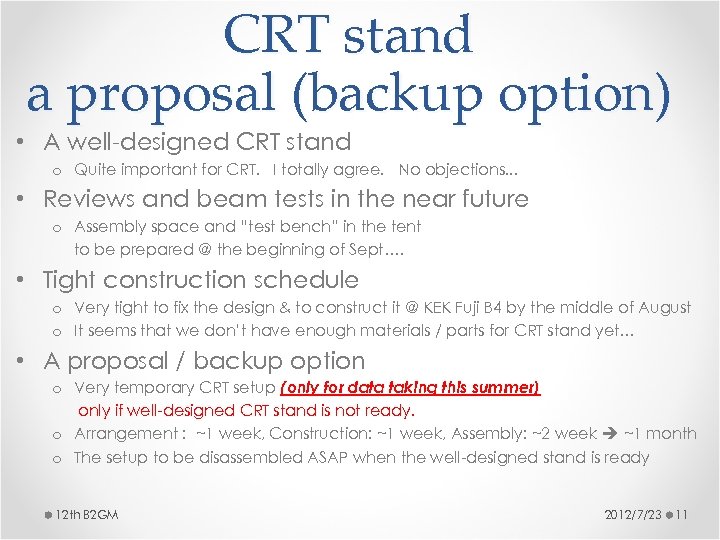

CRT stand a proposal (backup option) • A well-designed CRT stand o Quite important for CRT. I totally agree. No objections. . . • Reviews and beam tests in the near future o Assembly space and “test bench” in the tent to be prepared @ the beginning of Sept…. • Tight construction schedule o Very tight to fix the design & to construct it @ KEK Fuji B 4 by the middle of August o It seems that we don’t have enough materials / parts for CRT stand yet… • A proposal / backup option o Very temporary CRT setup (only for data taking this summer) only if well-designed CRT stand is not ready. o Arrangement : ~1 week, Construction: ~1 week, Assembly: ~2 week ~1 month o The setup to be disassembled ASAP when the well-designed stand is ready 12 th B 2 GM 2012/7/23 11

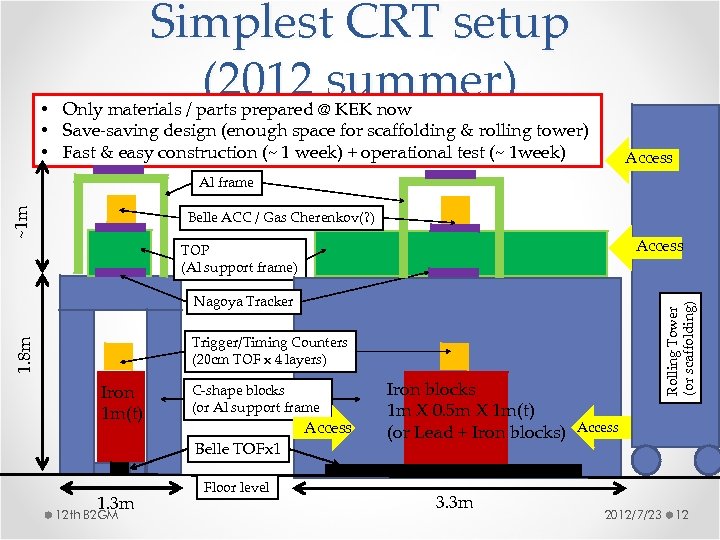

Simplest CRT setup (2012 summer) • Only materials / parts prepared @ KEK now • Save-saving design (enough space for scaffolding & rolling tower) • Fast & easy construction (~ 1 week) + operational test (~ 1 week) Access ~1 m Al frame Belle ACC / Gas Cherenkov(? ) Access TOP (Al support frame) Rolling Tower (or scaffolding) Nagoya Tracker 1. 8 m Trigger/Timing Counters (20 cm TOF x 4 layers) Iron 1 m(t) C-shape blocks (or Al support frame Belle TOFx 1 1. 3 m 12 th B 2 GM Floor level Access Iron blocks 1 m X 0. 5 m X 1 m(t) (or Lead + Iron blocks) 3. 3 m Access 2012/7/23 12

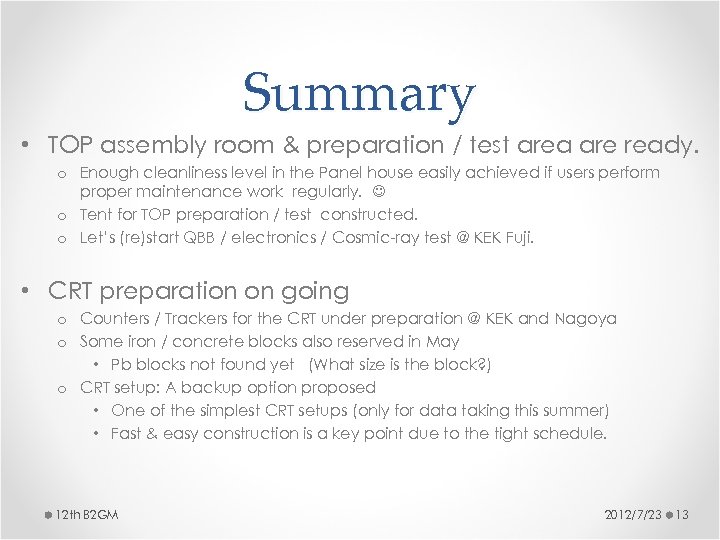

Summary • TOP assembly room & preparation / test area are ready. o Enough cleanliness level in the Panel house easily achieved if users perform proper maintenance work regularly. o Tent for TOP preparation / test constructed. o Let’s (re)start QBB / electronics / Cosmic-ray test @ KEK Fuji. • CRT preparation on going o Counters / Trackers for the CRT under preparation @ KEK and Nagoya o Some iron / concrete blocks also reserved in May • Pb blocks not found yet (What size is the block? ) o CRT setup: A backup option proposed • One of the simplest CRT setups (only for data taking this summer) • Fast & easy construction is a key point due to the tight schedule. 12 th B 2 GM 2012/7/23 13

backup 12 th B 2 GM 2012/7/23 14

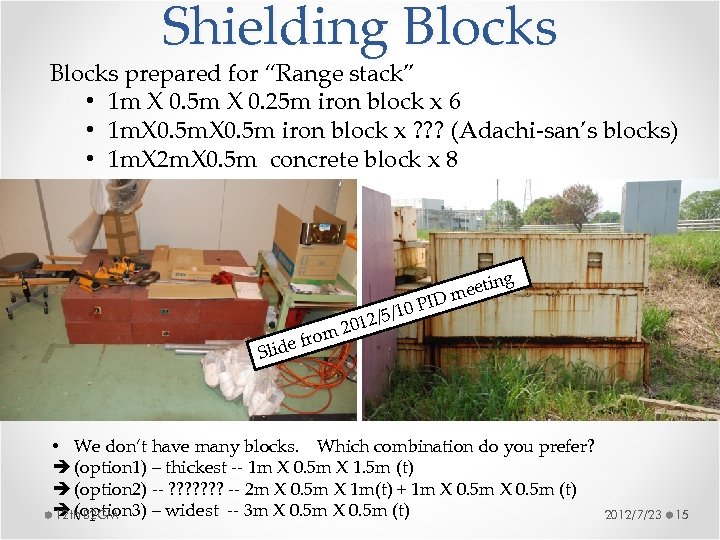

Shielding Blocks prepared for “Range stack” • 1 m X 0. 5 m X 0. 25 m iron block x 6 • 1 m. X 0. 5 m iron block x ? ? ? (Adachi-san’s blocks) • 1 m. X 2 m. X 0. 5 m concrete block x 8 01 2 from e Slid ID P /5/10 2 g eetin m • We don’t have many blocks. Which combination do you prefer? (option 1) – thickest -- 1 m X 0. 5 m X 1. 5 m (t) (option 2) -- ? ? ? ? -- 2 m X 0. 5 m X 1 m(t) + 1 m X 0. 5 m (t) (option 3) – widest -- 3 m X 0. 5 m (t) 12 th B 2 GM 2012/7/23 15

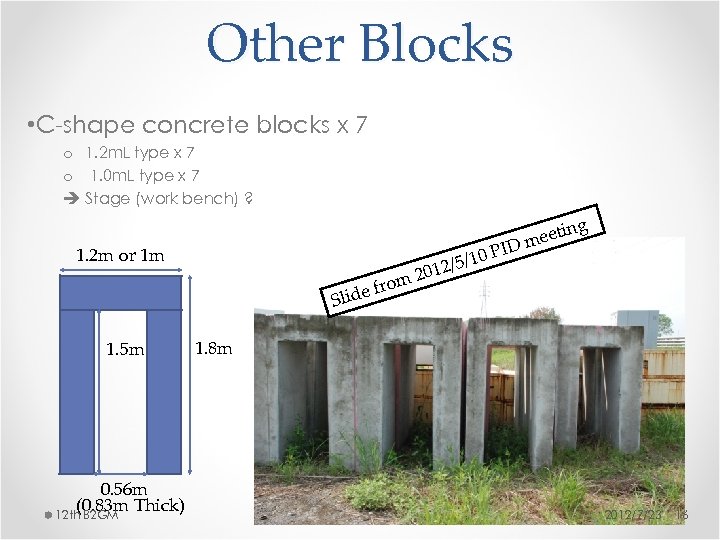

Other Blocks • C-shape concrete blocks x 7 o 1. 2 m. L type x 7 o 1. 0 m. L type x 7 Stage (work bench) ? g 1. 2 m or 1 m m e fro id Sl 1. 5 m 0. 56 m (0. 83 m Thick) 12 th B 2 GM 2 /10 12/5 0 tin mee ID P 1. 8 m 2012/7/23 16

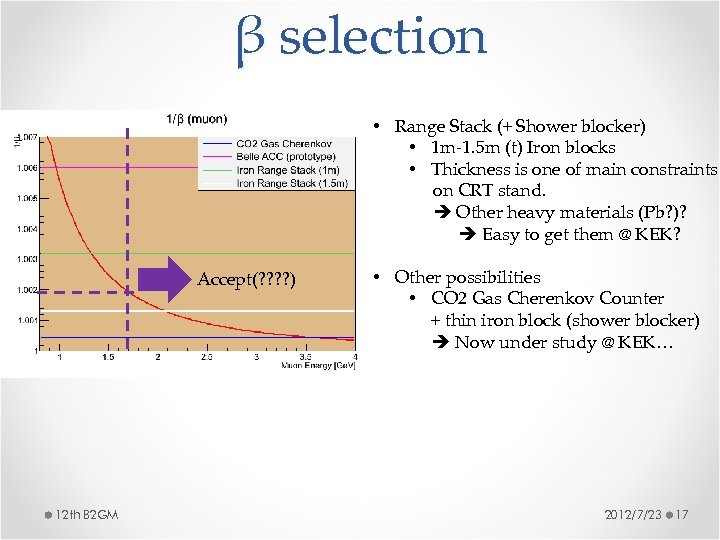

β selection • Range Stack (+ Shower blocker) • 1 m-1. 5 m (t) Iron blocks • Thickness is one of main constraints 　　on CRT stand. 　　 Other heavy materials (Pb? )? Easy to get them @ KEK? Accept(? ? ) 12 th B 2 GM • Other possibilities • CO 2 Gas Cherenkov Counter + thin iron block (shower blocker) Now under study @ KEK… 2012/7/23 17

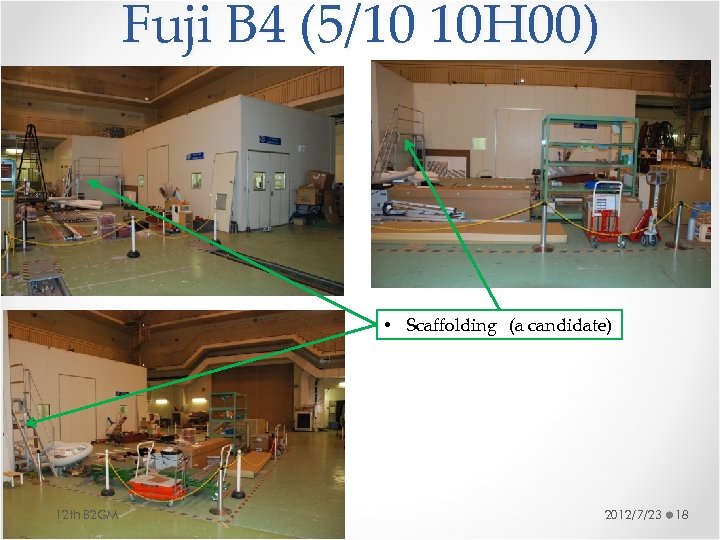

Fuji B 4 (5/10 10 H 00) • Scaffolding　(a candidate) 12 th B 2 GM 2012/7/23 18

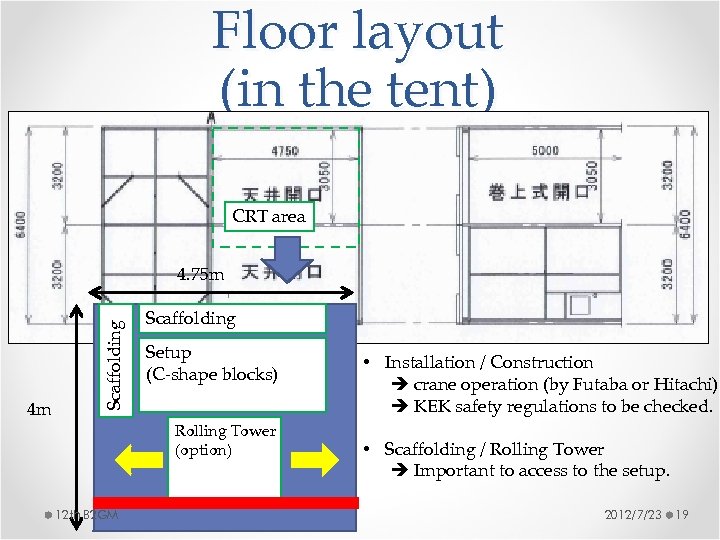

Floor layout (in the tent) CRT area 4 m Scaffolding 4. 75 m Scaffolding Setup (C-shape blocks) Rolling Tower (option) 12 th B 2 GM • Installation / Construction crane operation (by Futaba or Hitachi) KEK safety regulations to be checked. • Scaffolding / Rolling Tower Important to access to the setup. 2012/7/23 19

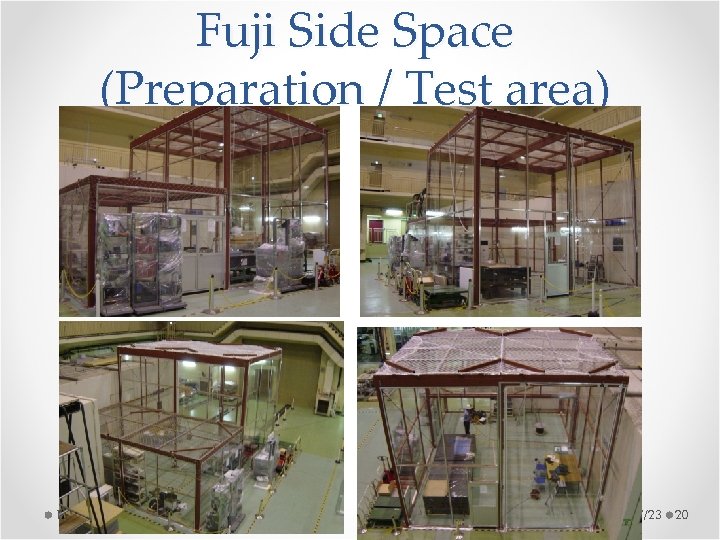

Fuji Side Space (Preparation / Test area) 12 th B 2 GM 2012/7/23 20

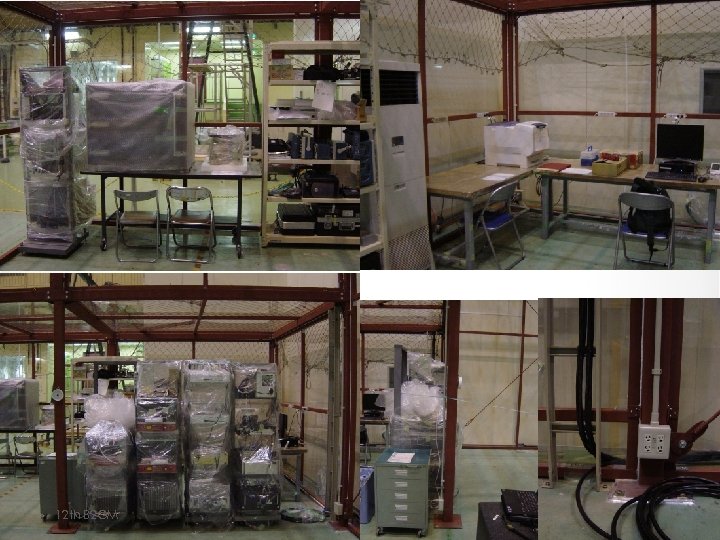

12 th B 2 GM 2012/7/23 21
