Creating PDF documents including hyper-links bookmarks and a

Creating PDF documents including hyper-links, bookmarks and a table of contents with the SAS software. Lex Jansen NV Organon Oss, The Netherlands abcd

Contents • • • Data flow Why PDF ? Types of appendices From SAS to Postscript to PDF SAS output conventions Postscript PDF mark operator %_SAS 2 PS Demo abcd

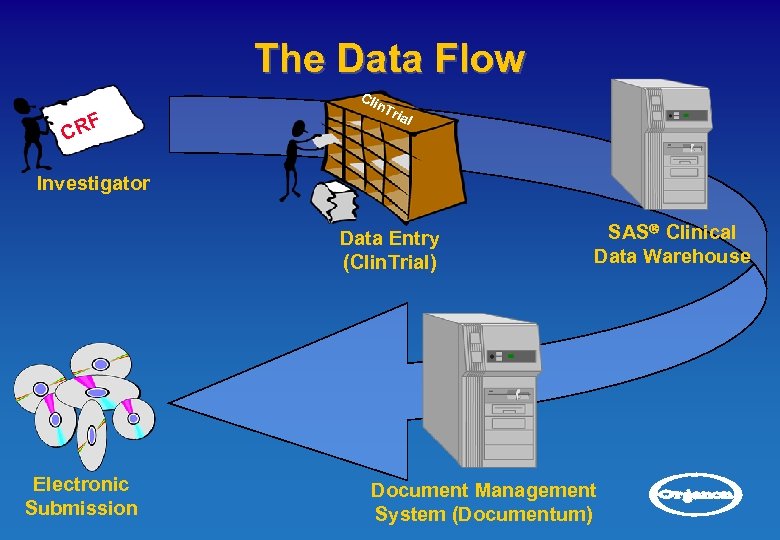

The Data Flow Cli F CR n. T ria l Investigator Data Entry (Clin. Trial) Electronic Submission SAS Clinical Data Warehouse Document Management System (Documentum) abcd

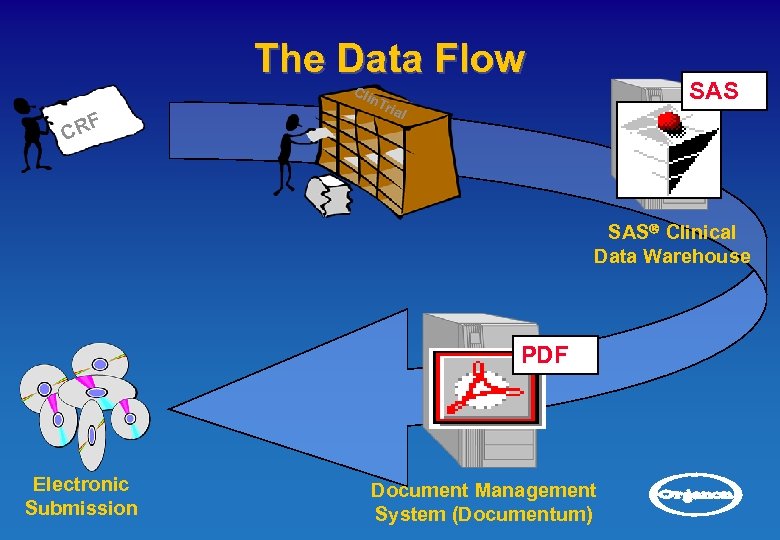

The Data Flow Cli SAS n. T CR F ria l SAS Clinical Data Warehouse PDF Electronic Submission Document Management System (Documentum) abcd

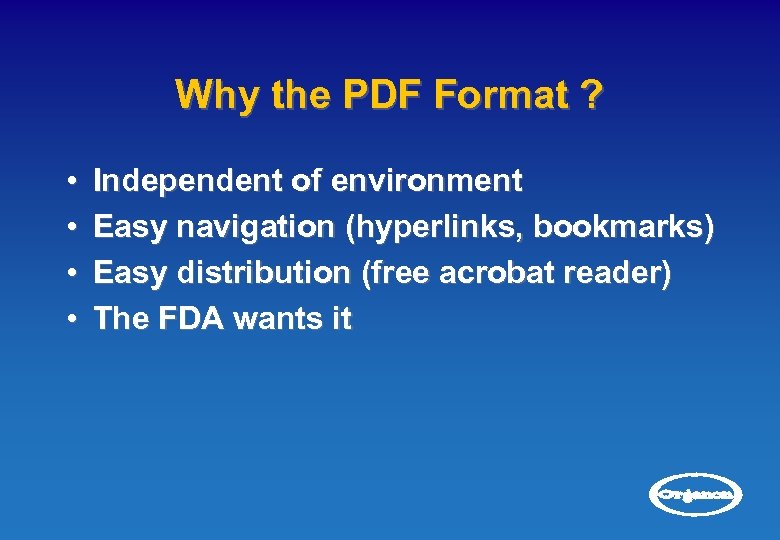

Why the PDF Format ? • • Independent of environment Easy navigation (hyperlinks, bookmarks) Easy distribution (free acrobat reader) The FDA wants it abcd

Types of Appendices • Statistical analyses (STAT) (different sections with: tables, analyses, graphics, listings) • Individual data listings (IDL) • Case report form tabulations (CRF) abcd

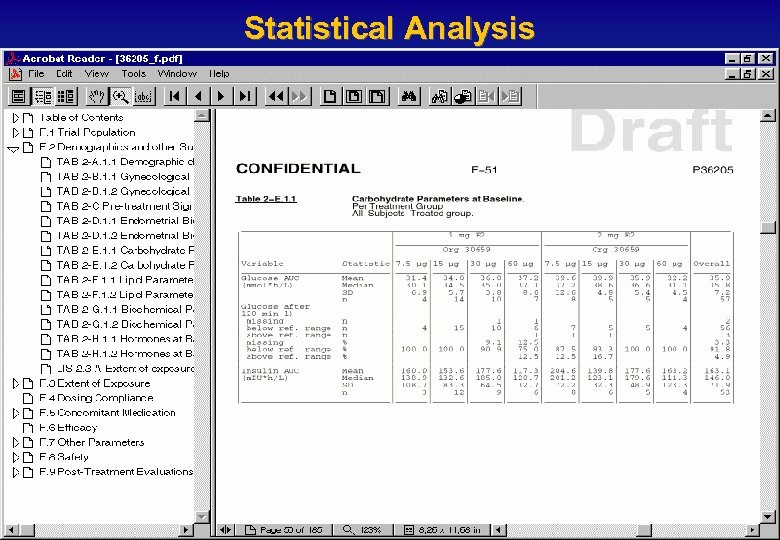

Statistical Analysis abcd

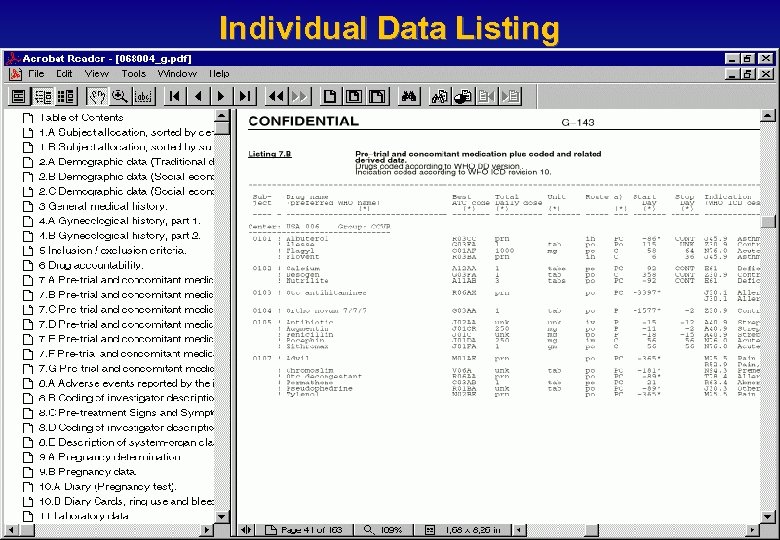

Individual Data Listing abcd

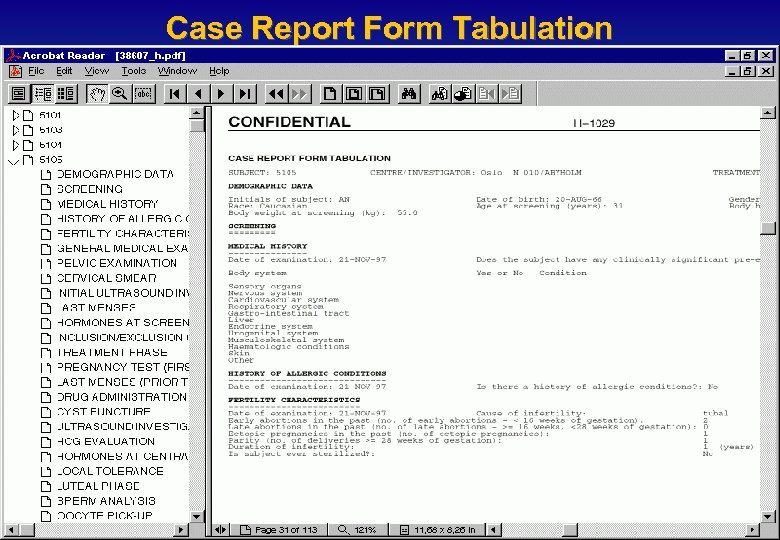

Case Report Form Tabulation abcd

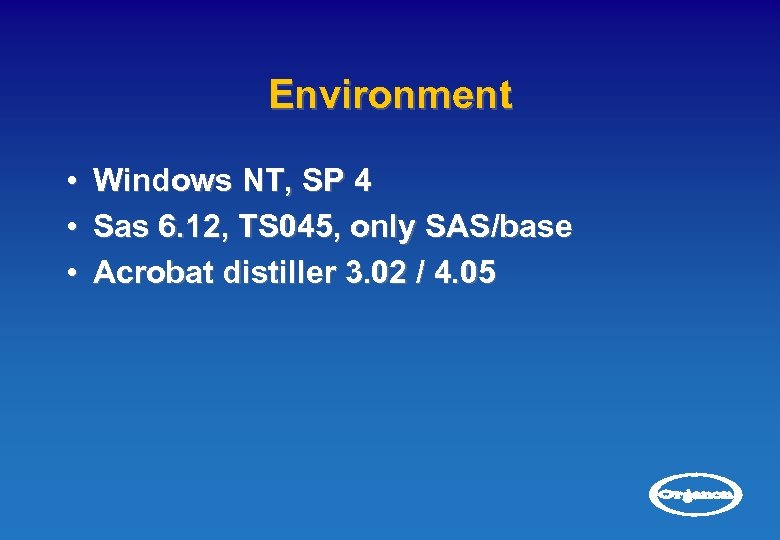

Environment • • • Windows NT, SP 4 Sas 6. 12, TS 045, only SAS/base Acrobat distiller 3. 02 / 4. 05 abcd

How Do We Get From SAS to PDF? • Install complete acrobat package and use the acrobat pdfwriter printerdriver But, no bookmarks and hyperlinks • SAS version 8 can generate PDF output for graphics output • The future might bring PDF output with the output delivery system (ODS) Bookmarks and hyperlinks ? ? ? • Solution: create postscript with SAS and use acrobat distiller and the pdfmark operator!! abcd

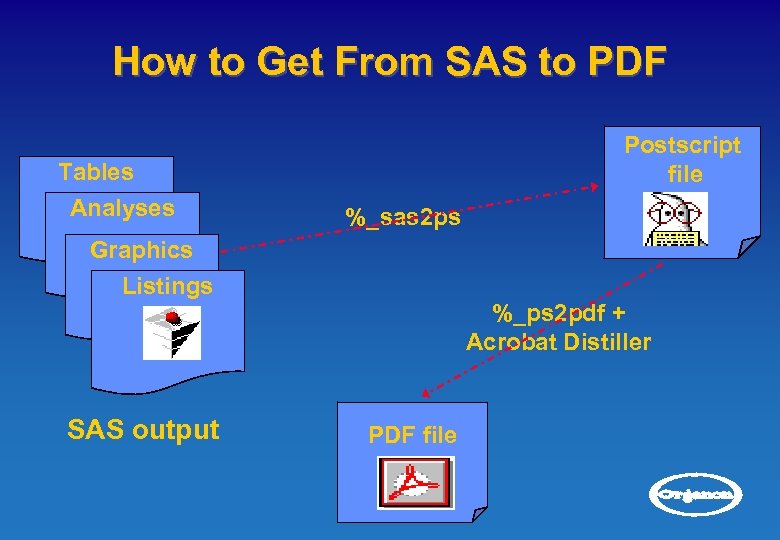

How to Get From SAS to PDF Tables Analyses Postscript file %_sas 2 ps Graphics Listings SAS output %_ps 2 pdf + Acrobat Distiller PDF file abcd

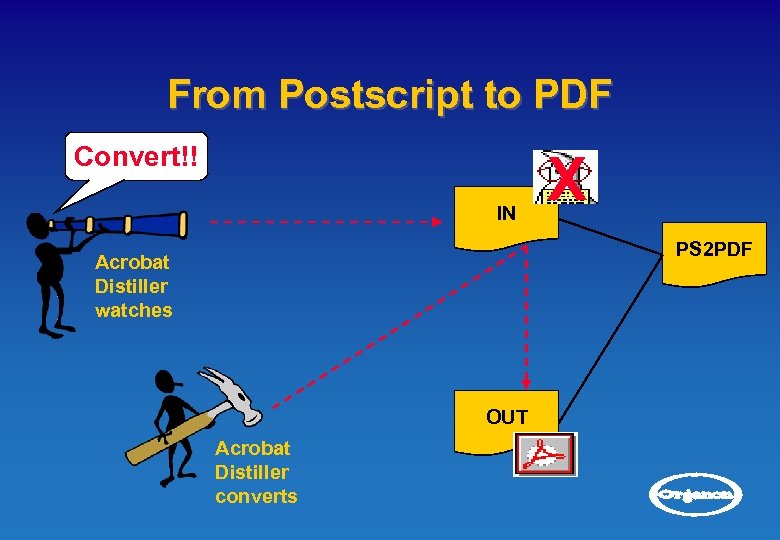

From Postscript to PDF Convert!! IN X PS 2 PDF Acrobat Distiller watches OUT Acrobat Distiller converts abcd

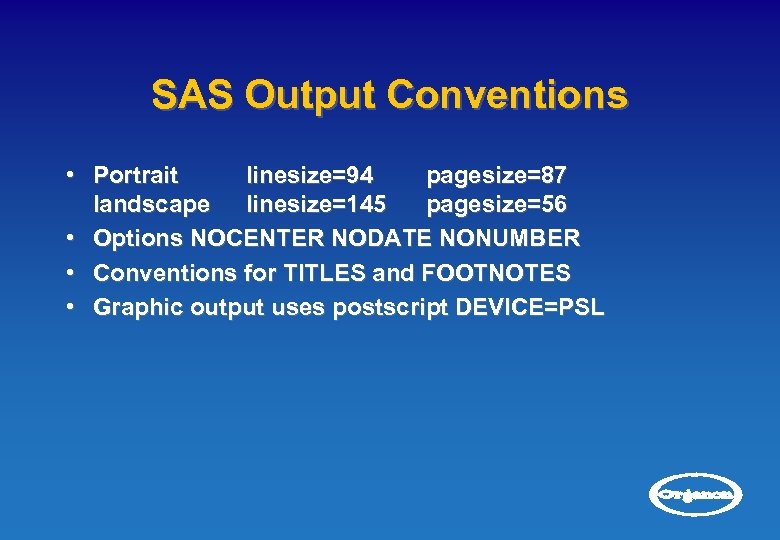

SAS Output Conventions • Portrait linesize=94 pagesize=87 landscape linesize=145 pagesize=56 • Options NOCENTER NODATE NONUMBER • Conventions for TITLES and FOOTNOTES • Graphic output uses postscript DEVICE=PSL abcd

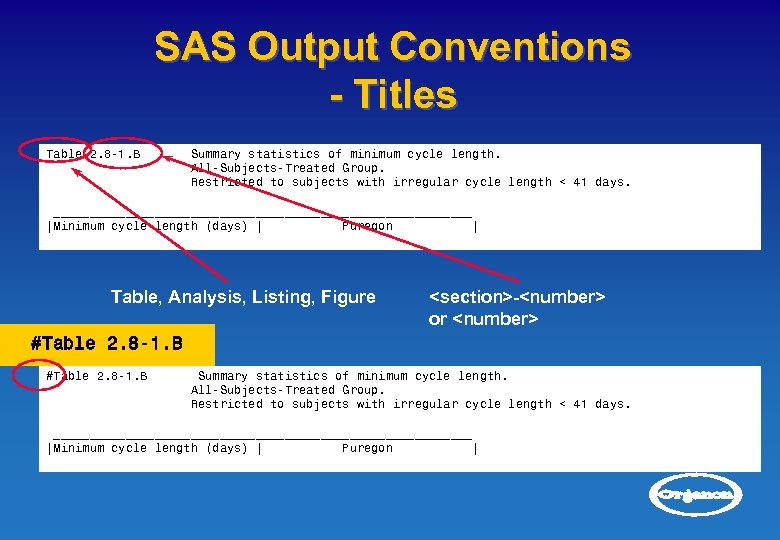

SAS Output Conventions - Titles Table 2. 8 -1. B Summary statistics of minimum cycle length. All-Subjects-Treated Group. Restricted to subjects with irregular cycle length < 41 days. _____________________________ |Minimum cycle length (days) | Puregon | Table, Analysis, Listing, Figure <section>-<number> or <number> #Table 2. 8 -1. B Summary statistics of minimum cycle length. All-Subjects-Treated Group. Restricted to subjects with irregular cycle length < 41 days. _____________________________ |Minimum cycle length (days) | Puregon | abcd

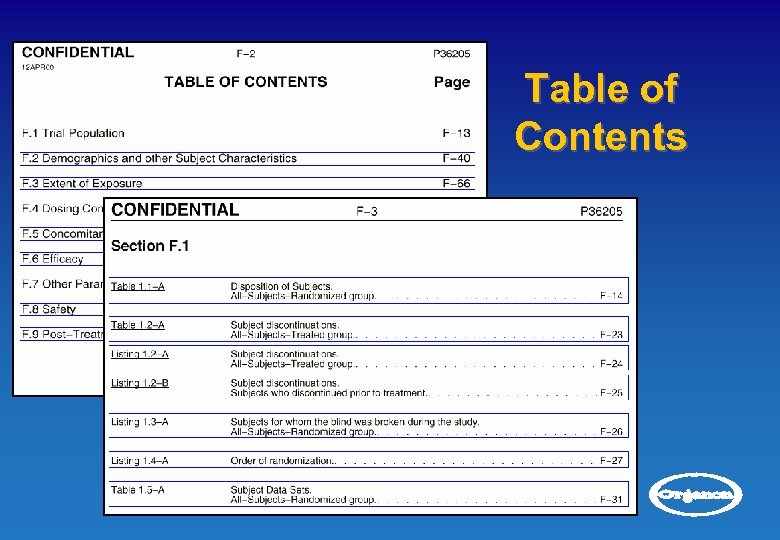

Table of Contents abcd

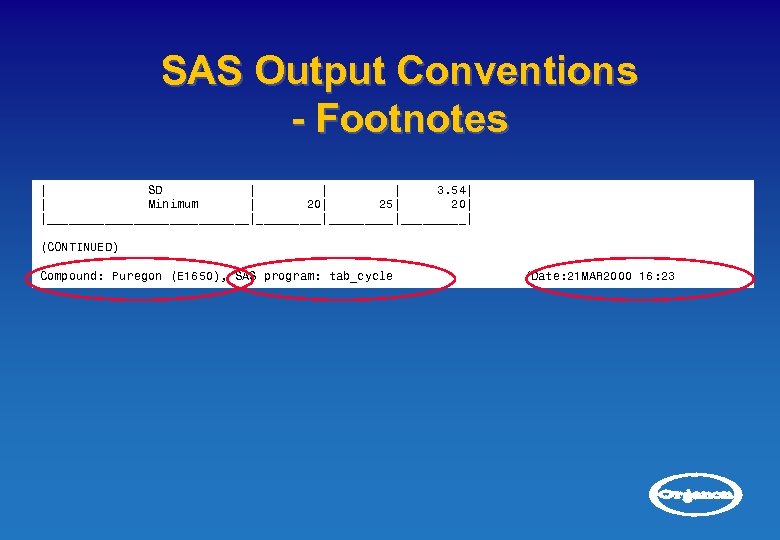

SAS Output Conventions - Footnotes | SD | | | 3. 54| | Minimum | 20| 25| 20| |______________|_________|_____| (CONTINUED) Compound: Puregon (E 1650), SAS program: tab_cycle /Date: 21 MAR 2000 16: 23 abcd

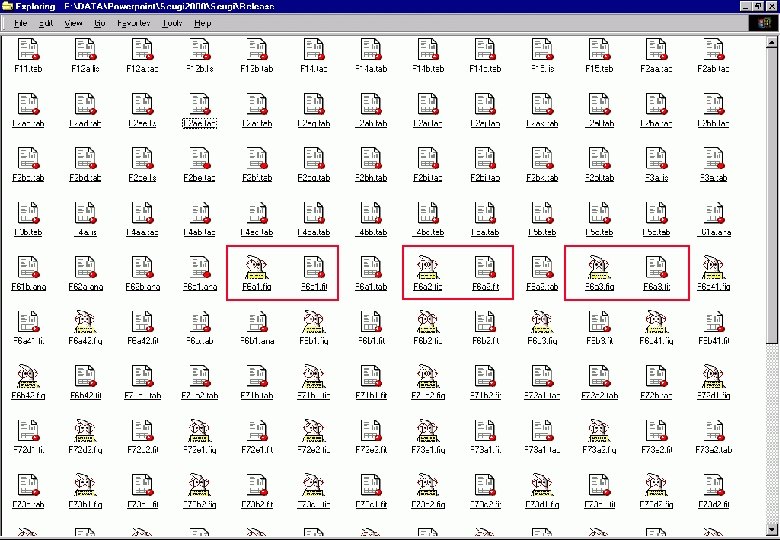

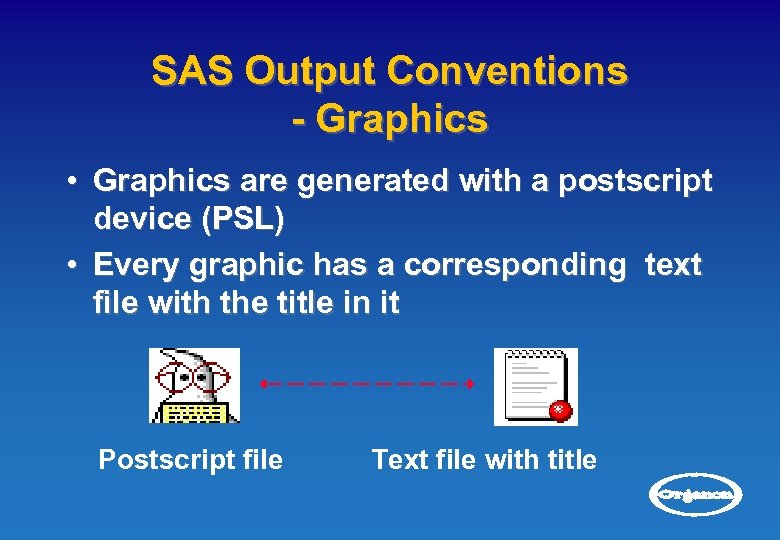

SAS Output Conventions - Graphics • Graphics are generated with a postscript device (PSL) • Every graphic has a corresponding text file with the title in it Postscript file Text file with title abcd

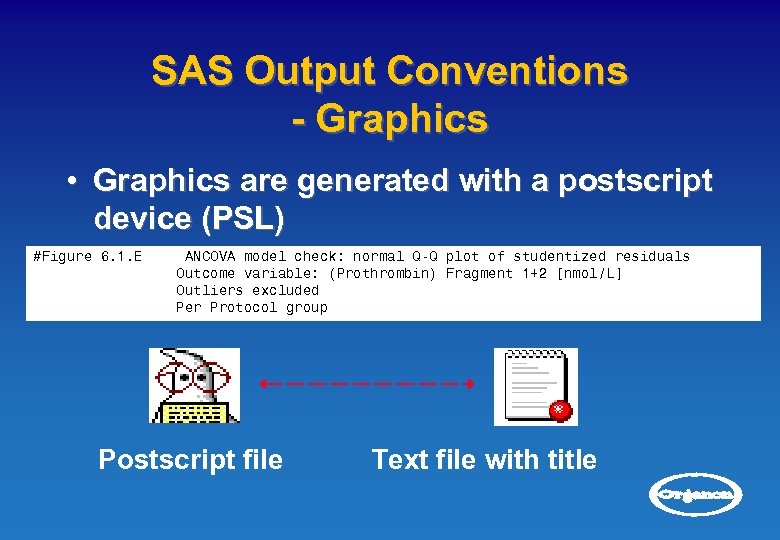

SAS Output Conventions - Graphics • Graphics are generated with a postscript device (PSL) #Figure 6. 1. E ANCOVA • Every. Outcome model check: normalcorresponding text graphic has a Q-Q plot of studentized residuals variable: (Prothrombin) Fragment 1+2 [nmol/L] Outliers excluded Per the group file with. Protocoltitle in it Postscript file Text file with title abcd

abcd

What Is Postscript? • Page description language • A page is a graphic that can contain: Lines, rectangles, curves Text in various typefaces of any size and orientation • Device independent • Closely related to PDF (both adobe) abcd

Postscript - Coordinate System 1 inch (595, 842) = = 72 points A 4 8, 3 inch x 11, 7 inch (0, 0) abcd

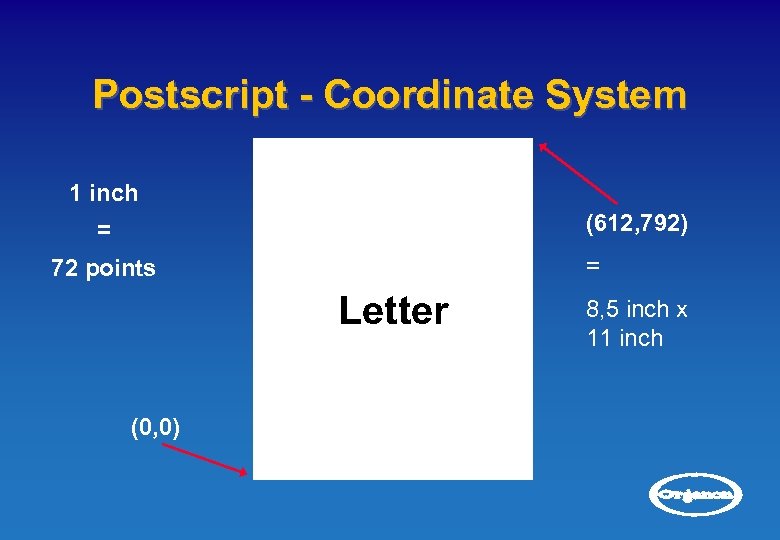

Postscript - Coordinate System 1 inch (612, 792) = = 72 points Letter 8, 5 inch x 11 inch (0, 0) abcd

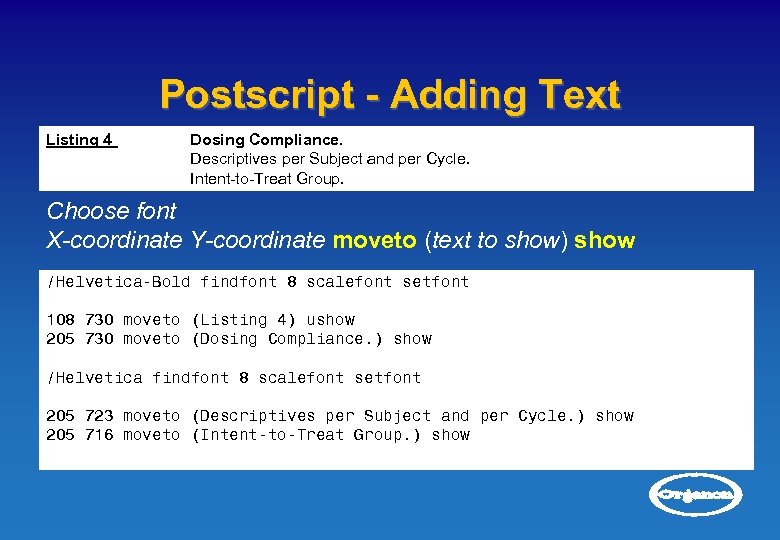

Postscript - Adding Text Listing 4 Dosing Compliance. Descriptives per Subject and per Cycle. Intent-to-Treat Group. Choose font X-coordinate Y-coordinate moveto (text to show) show /Helvetica-Bold findfont 8 scalefont setfont 108 730 moveto (Listing 4) ushow 205 730 moveto (Dosing Compliance. ) show /Helvetica findfont 8 scalefont setfont 205 723 moveto (Descriptives per Subject and per Cycle. ) show 205 716 moveto (Intent-to-Treat Group. ) show abcd

Postscript - Document Structuring Conventions %!PS-Adobe-3. 0 %%Title: Protocol 068004 Appendix F %%Creation. Date: 29 MAR 2000 18: 31 %%Generated by: _SAS 2 PS 1. 0 May 1999 ((c) NV Organon, SAS 6. 12, WIN_NT). . . %%End. Comments %%Begin. Prolog … Define procedures and fonts %%End. Prolog %%Begin. Setup. . . Define Hyperlinks and Bookmarks %%End. Setup %%Page: 1 Describe page 1 … %%Page: 2 … Describe page 2 %%Trailer %%Document. Fonts: Courier Helvetica-Bold Helvetica %%Pages: 474 %%EOF abcd

How to Use the Pdfmark Operator ? • Used in postscript files to represent PDF features. • General syntax: [ …. Various key-value pairs… kind pdfmark abcd

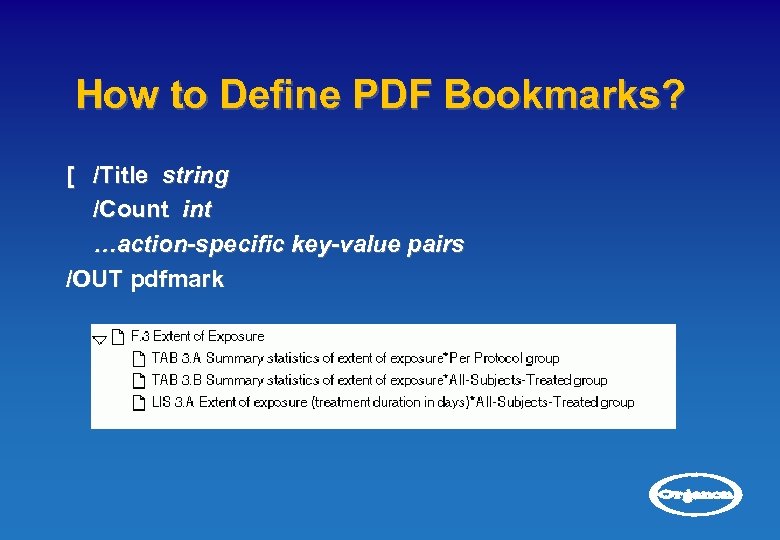

How to Define PDF Bookmarks? [ /Title string /Count int …action-specific key-value pairs /OUT pdfmark abcd

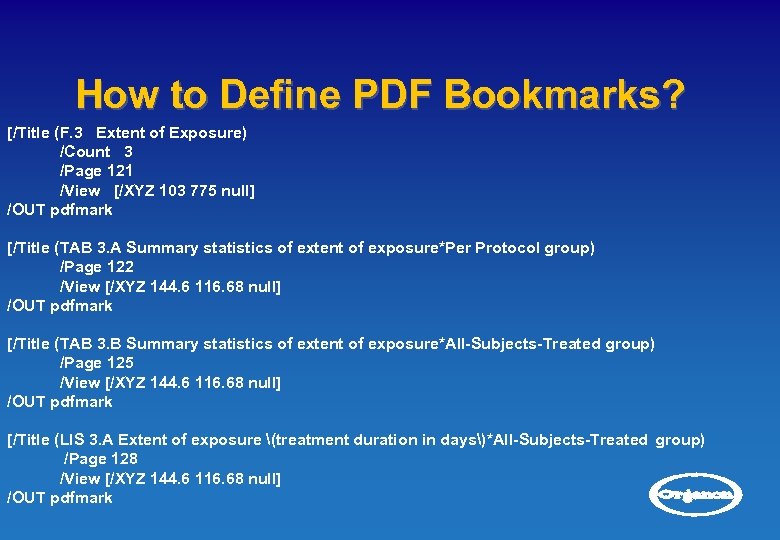

How to Define PDF Bookmarks? [/Title (F. 3 Extent of Exposure) /Count 3 /Page 121 /View [/XYZ 103 775 null] /OUT pdfmark [/Title (TAB 3. A Summary statistics of extent of exposure*Per Protocol group) /Page 122 /View [/XYZ 144. 6 116. 68 null] /OUT pdfmark [/Title (TAB 3. B Summary statistics of extent of exposure*All-Subjects-Treated group) /Page 125 /View [/XYZ 144. 6 116. 68 null] /OUT pdfmark [/Title (LIS 3. A Extent of exposure (treatment duration in days)*All-Subjects-Treated group) /Page 128 /View [/XYZ 144. 6 116. 68 null] /OUT pdfmark abcd

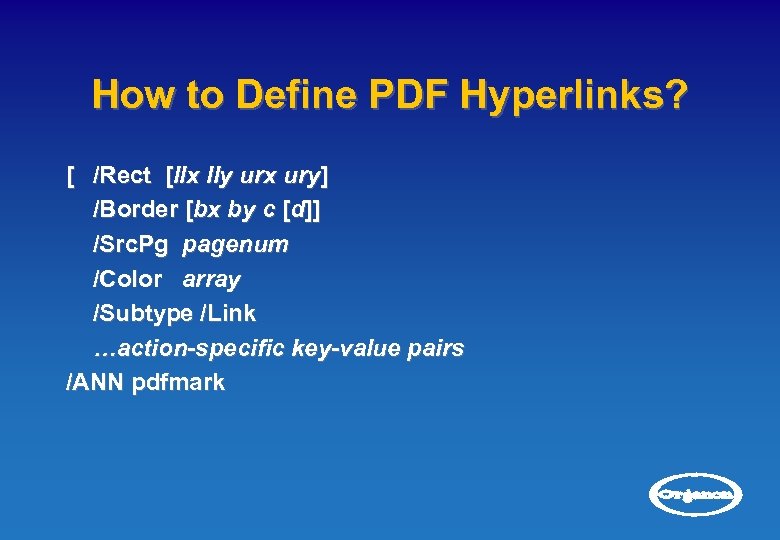

How to Define PDF Hyperlinks? [ /Rect [llx lly urx ury] /Border [bx by c [d]] /Src. Pg pagenum /Color array /Subtype /Link …action-specific key-value pairs /ANN pdfmark abcd

How to Define PDF Hyperlinks? 108 291 moveto (Listing 1. 3 -A) ushow 205 291 moveto (Subjects for whom the blind was broken during the study) show 205 283 moveto (All-Subjects-Randomized group) show (F-26) Calc Dots [ /Rect [ 106 581 528 601 ] /Color [0 0 1] /Page 25 /View [/XYZ 144 117 null] /Subtype /Link /ANN pdfmark abcd

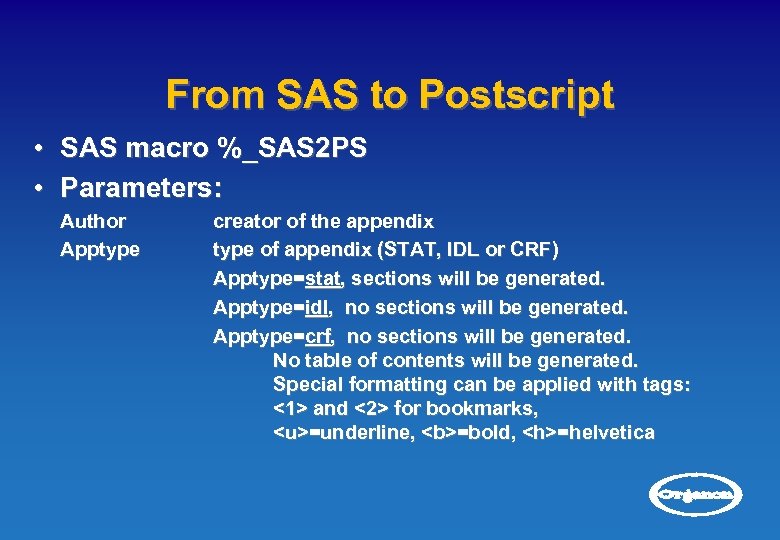

From SAS to Postscript • SAS macro %_SAS 2 PS • Parameters: Author Apptype creator of the appendix type of appendix (STAT, IDL or CRF) Apptype=stat, sections will be generated. Apptype=idl, no sections will be generated. Apptype=crf, no sections will be generated. No table of contents will be generated. Special formatting can be applied with tags: <1> and <2> for bookmarks, <u>=underline, <b>=bold, <h>=helvetica abcd

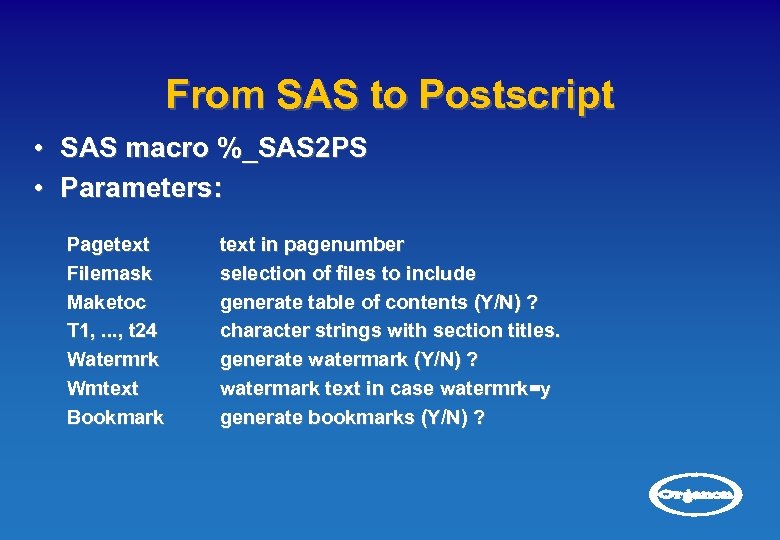

From SAS to Postscript • SAS macro %_SAS 2 PS • Parameters: Pagetext Filemask Maketoc T 1, . . . , t 24 Watermrk Wmtext Bookmark text in pagenumber selection of files to include generate table of contents (Y/N) ? character strings with section titles. generate watermark (Y/N) ? watermark text in case watermrk=y generate bookmarks (Y/N) ? abcd

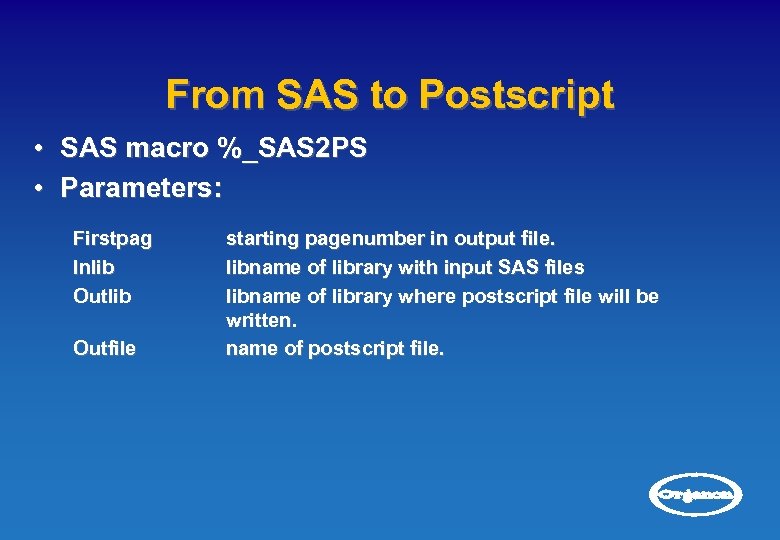

From SAS to Postscript • SAS macro %_SAS 2 PS • Parameters: Firstpag Inlib Outfile starting pagenumber in output file. libname of library with input SAS files libname of library where postscript file will be written. name of postscript file. abcd

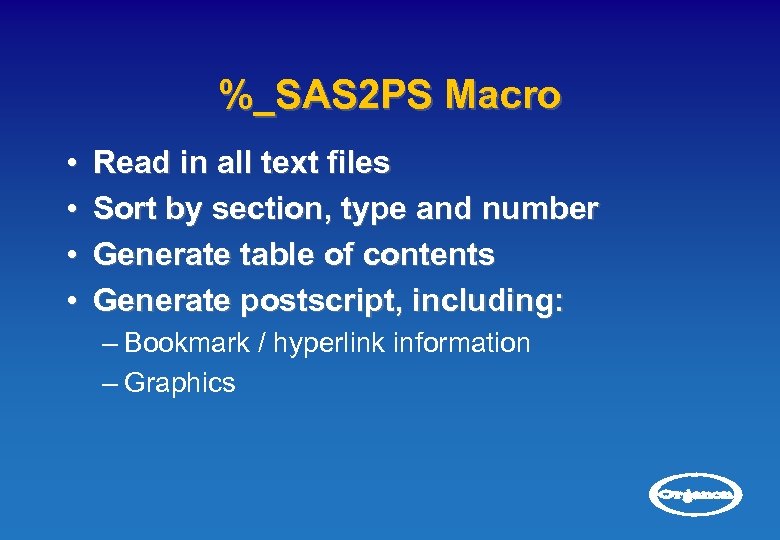

%_SAS 2 PS Macro • • Read in all text files Sort by section, type and number Generate table of contents Generate postscript, including: – Bookmark / hyperlink information – Graphics abcd

Conclusion • With SAS/Base and Acrobat Distiller it is possible to create PDF documents from SAS output. • This process is completely automated abcd

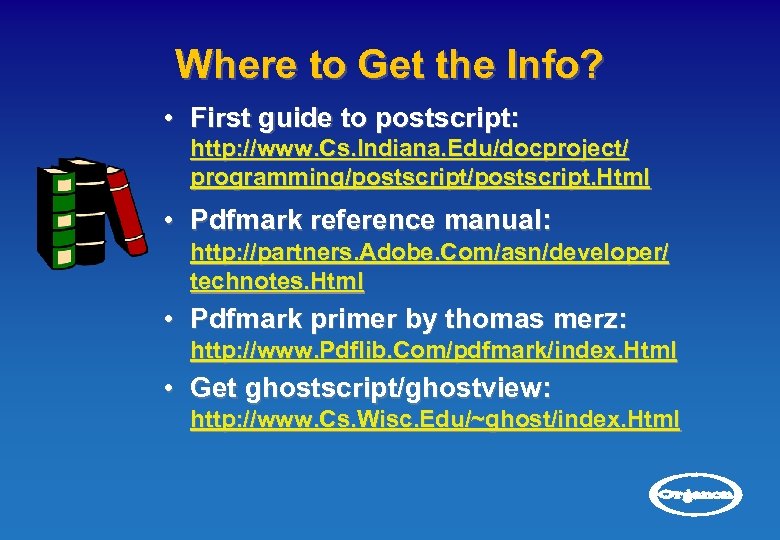

Where to Get the Info? • First guide to postscript: http: //www. Cs. Indiana. Edu/docproject/ programming/postscript. Html • Pdfmark reference manual: http: //partners. Adobe. Com/asn/developer/ technotes. Html • Pdfmark primer by thomas merz: http: //www. Pdflib. Com/pdfmark/index. Html • Get ghostscript/ghostview: http: //www. Cs. Wisc. Edu/~ghost/index. Html abcd

abcd

Questions ? PDF ? ? Postscript ? ? PDFMark ? ? SAS ? ? abcd

Thank You !! Contact: lex. jansen@organon. com abcd
