Creating a Online Music Store using Amazon Web Services Final Project CS 633: 851 NJIT Joe Dos. Anjos ~ Puneet Kaur Deepti Madiraju ~ Slavica Pepovska Prem Saggar ~ Nashid Salahuddin Arun Sharma ~ Glenn Pozo

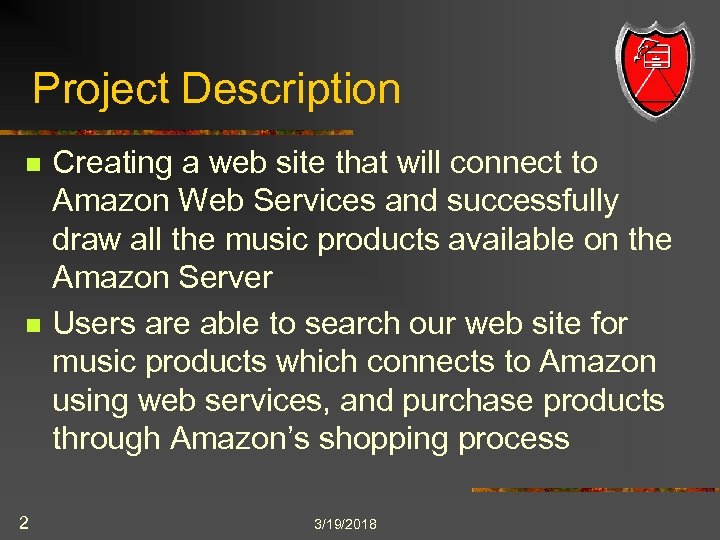

Project Description n n 2 Creating a web site that will connect to Amazon Web Services and successfully draw all the music products available on the Amazon Server Users are able to search our web site for music products which connects to Amazon using web services, and purchase products through Amazon’s shopping process 3/19/2018

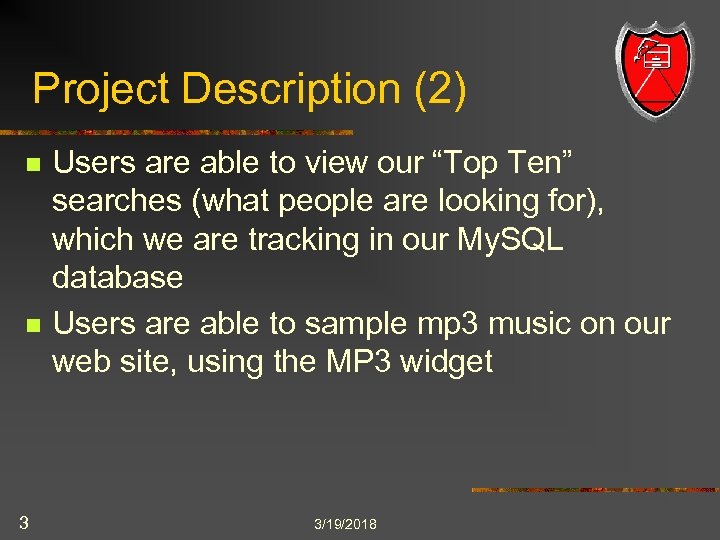

Project Description (2) n n 3 Users are able to view our “Top Ten” searches (what people are looking for), which we are tracking in our My. SQL database Users are able to sample mp 3 music on our web site, using the MP 3 widget 3/19/2018

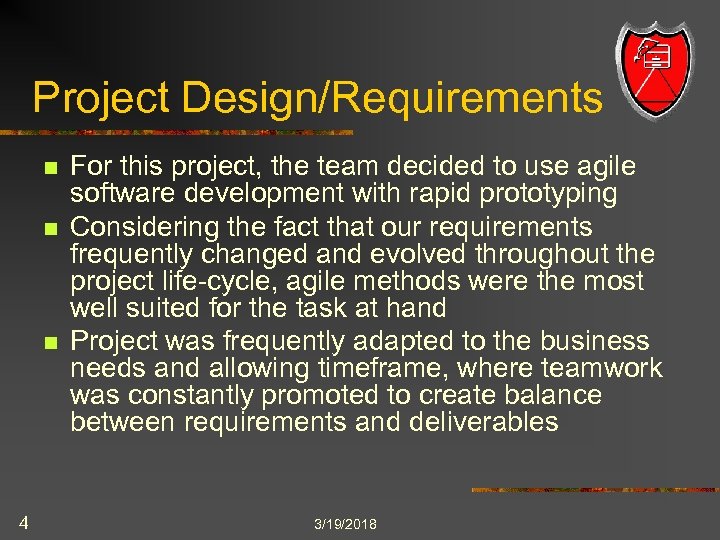

Project Design/Requirements n n n 4 For this project, the team decided to use agile software development with rapid prototyping Considering the fact that our requirements frequently changed and evolved throughout the project life-cycle, agile methods were the most well suited for the task at hand Project was frequently adapted to the business needs and allowing timeframe, where teamwork was constantly promoted to create balance between requirements and deliverables 3/19/2018

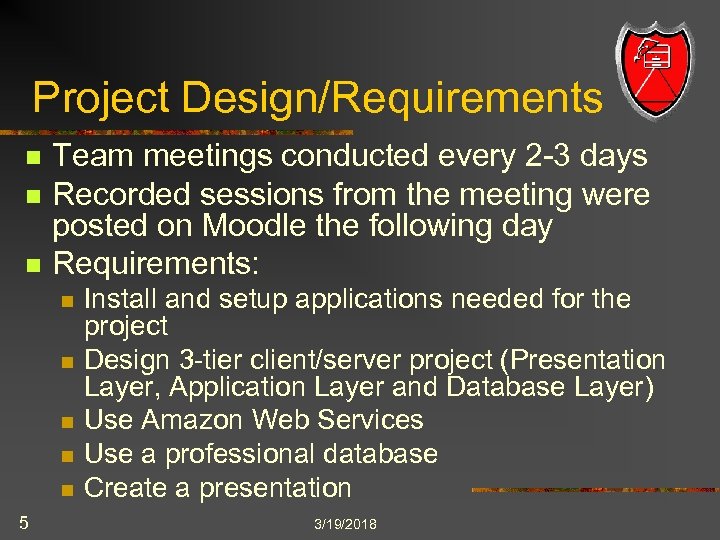

Project Design/Requirements n n n Team meetings conducted every 2 -3 days Recorded sessions from the meeting were posted on Moodle the following day Requirements: n n n 5 Install and setup applications needed for the project Design 3 -tier client/server project (Presentation Layer, Application Layer and Database Layer) Use Amazon Web Services Use a professional database Create a presentation 3/19/2018

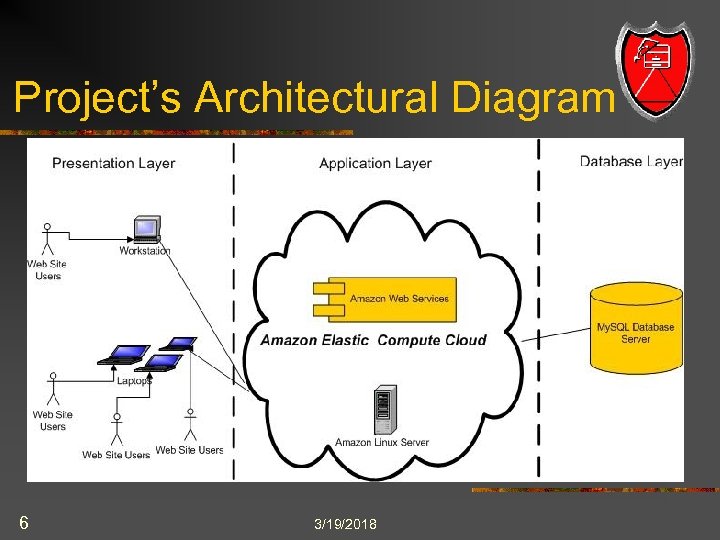

Project’s Architectural Diagram 6 3/19/2018

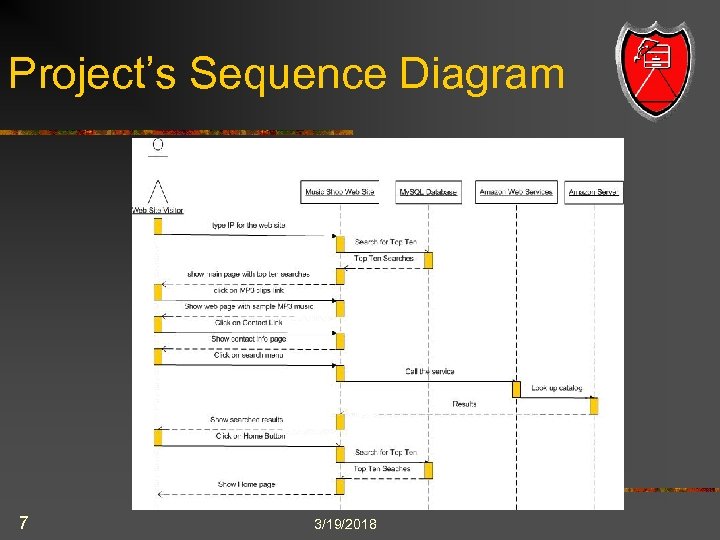

Project’s Sequence Diagram 7 3/19/2018

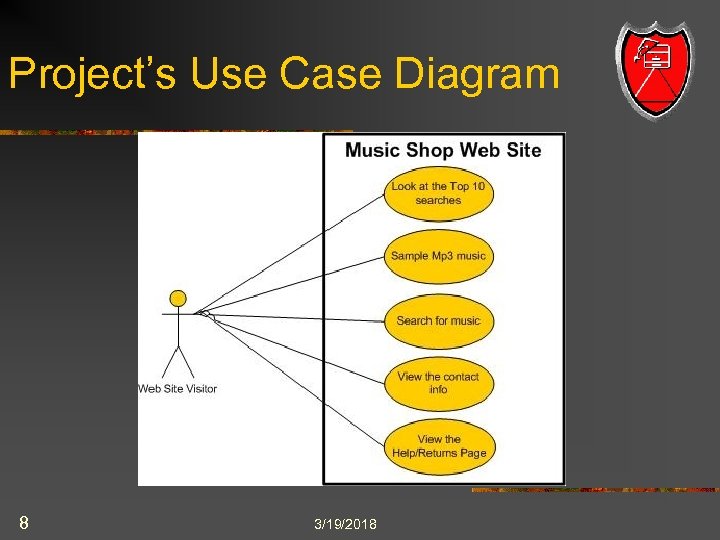

Project’s Use Case Diagram 8 3/19/2018

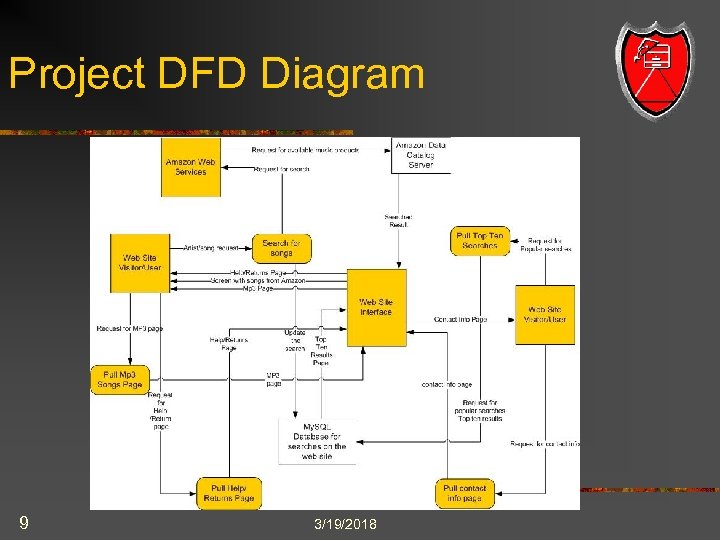

Project DFD Diagram 9 3/19/2018
The Purpose of the Project n n 10 To show Development of a 3 -tier client server project To demonstrate Amazon Web Services concepts To illustrate connectivity to a professional My. SQL database To implement a distributed system using J 2 EE technologies 3/19/2018

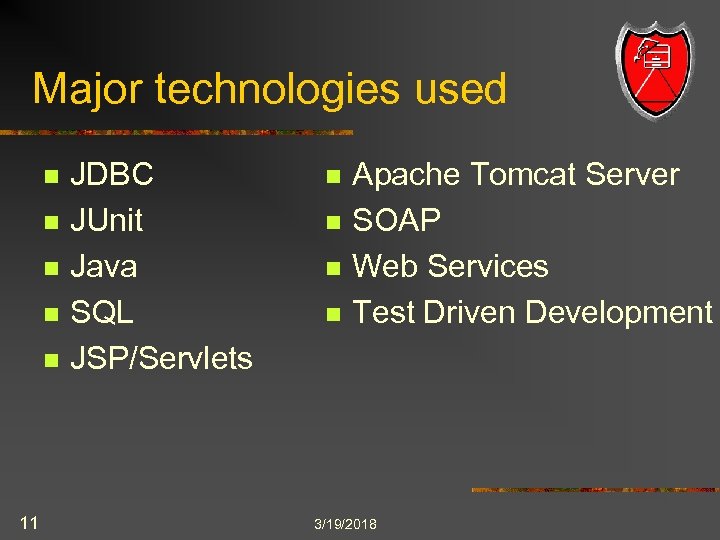

Major technologies used n n n 11 JDBC JUnit Java SQL JSP/Servlets n n Apache Tomcat Server SOAP Web Services Test Driven Development 3/19/2018

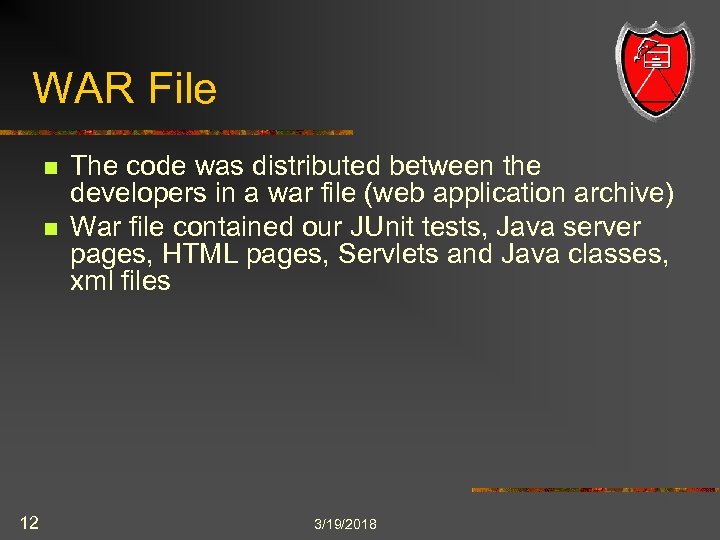

WAR File n n 12 The code was distributed between the developers in a war file (web application archive) War file contained our JUnit tests, Java server pages, HTML pages, Servlets and Java classes, xml files 3/19/2018

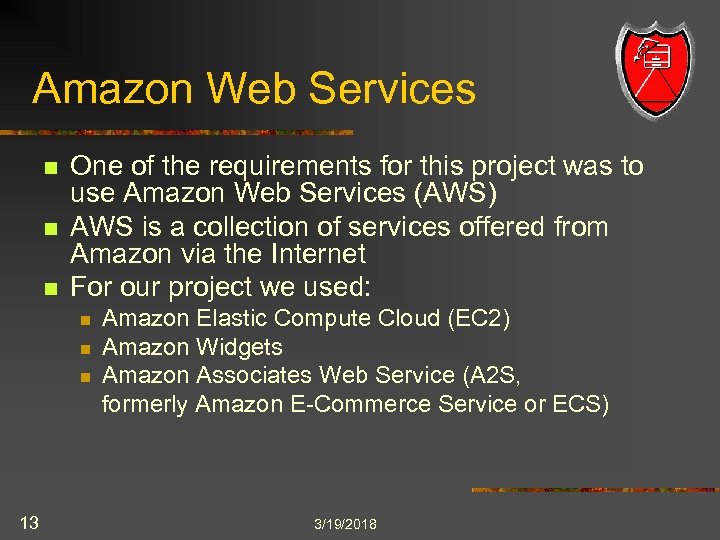

Amazon Web Services n n n One of the requirements for this project was to use Amazon Web Services (AWS) AWS is a collection of services offered from Amazon via the Internet For our project we used: n n n 13 Amazon Elastic Compute Cloud (EC 2) Amazon Widgets Amazon Associates Web Service (A 2 S, formerly Amazon E-Commerce Service or ECS) 3/19/2018

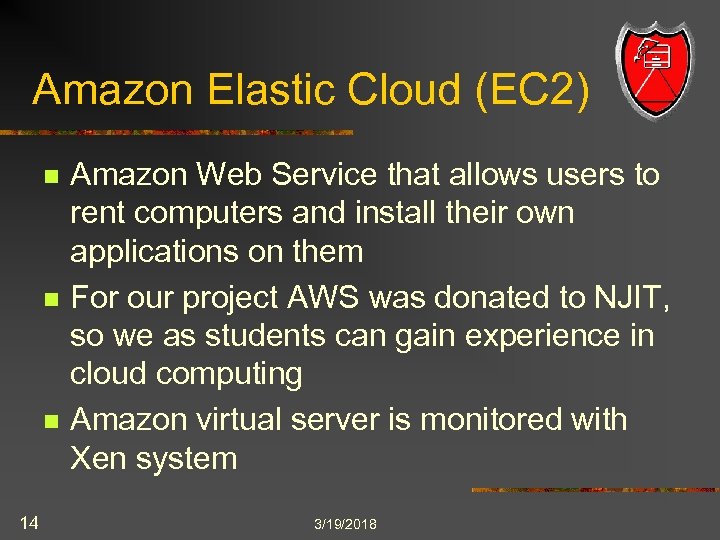

Amazon Elastic Cloud (EC 2) n n n 14 Amazon Web Service that allows users to rent computers and install their own applications on them For our project AWS was donated to NJIT, so we as students can gain experience in cloud computing Amazon virtual server is monitored with Xen system 3/19/2018
EC 2 continued n n n 15 XEN system is virtual monitor that allows for several operating systems to be installed on the same computer hardware XEN is structured with hypervisor, which lies in the most privileged layer Hypervisor monitors the operating systems installed in the upper layers across the physical CPUs 3/19/2018
EC 2 continued n n 16 Currently supported operating systems are Solaris, Linux and Net. BSD (Unix derivative OS) For our project we used a Linux operating system 3/19/2018

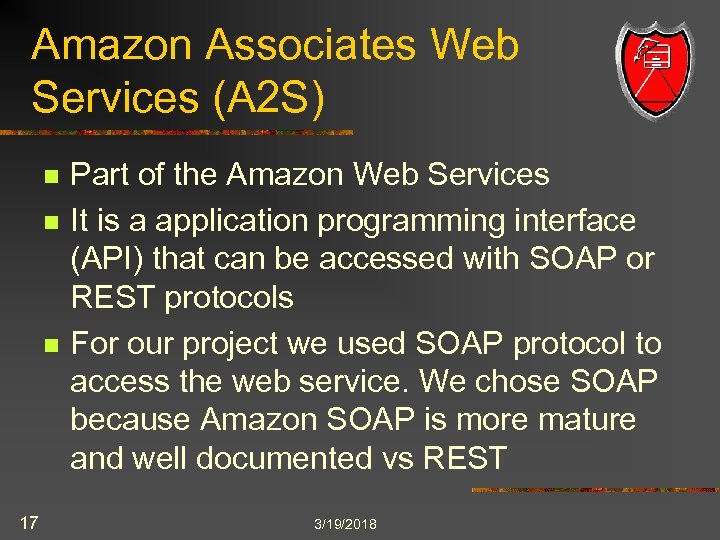

Amazon Associates Web Services (A 2 S) n n n 17 Part of the Amazon Web Services It is a application programming interface (API) that can be accessed with SOAP or REST protocols For our project we used SOAP protocol to access the web service. We chose SOAP because Amazon SOAP is more mature and well documented vs REST 3/19/2018

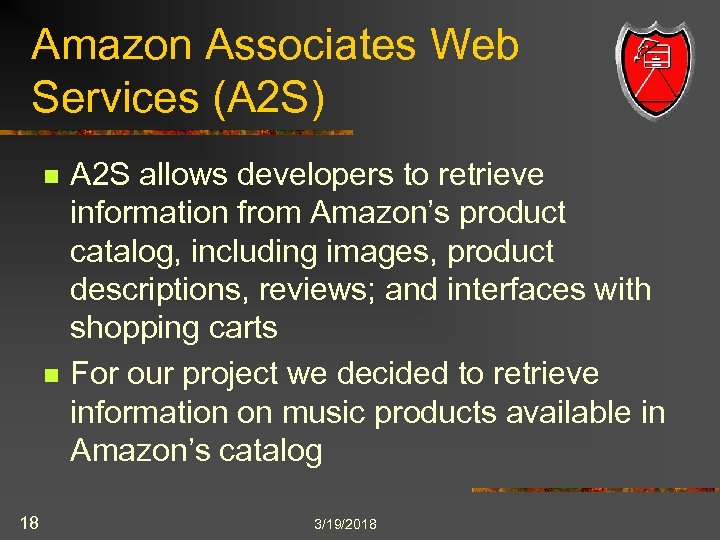

Amazon Associates Web Services (A 2 S) n n 18 A 2 S allows developers to retrieve information from Amazon’s product catalog, including images, product descriptions, reviews; and interfaces with shopping carts For our project we decided to retrieve information on music products available in Amazon’s catalog 3/19/2018

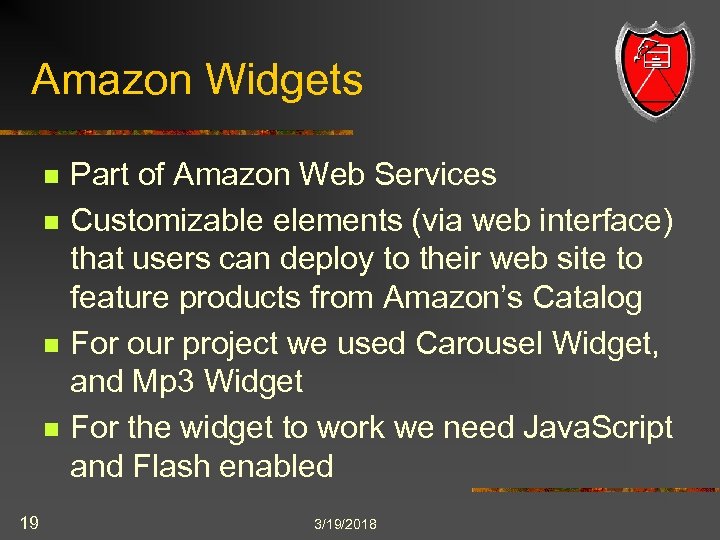

Amazon Widgets n n 19 Part of Amazon Web Services Customizable elements (via web interface) that users can deploy to their web site to feature products from Amazon’s Catalog For our project we used Carousel Widget, and Mp 3 Widget For the widget to work we need Java. Script and Flash enabled 3/19/2018

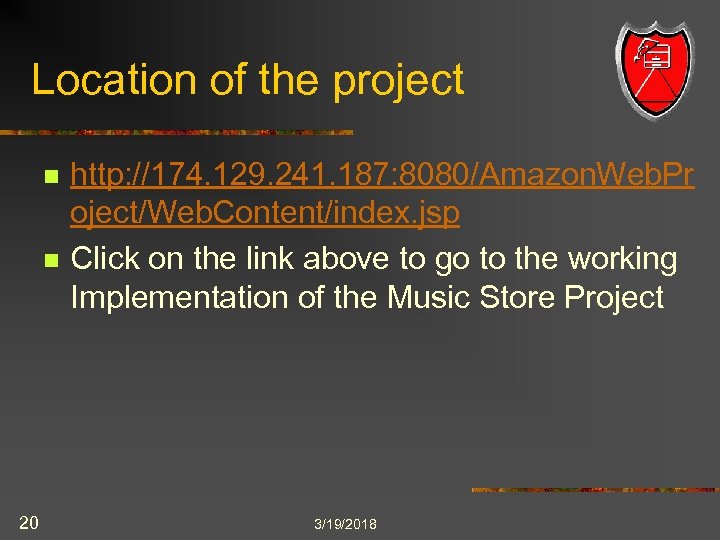

Location of the project n n 20 http: //174. 129. 241. 187: 8080/Amazon. Web. Pr oject/Web. Content/index. jsp Click on the link above to go to the working Implementation of the Music Store Project 3/19/2018

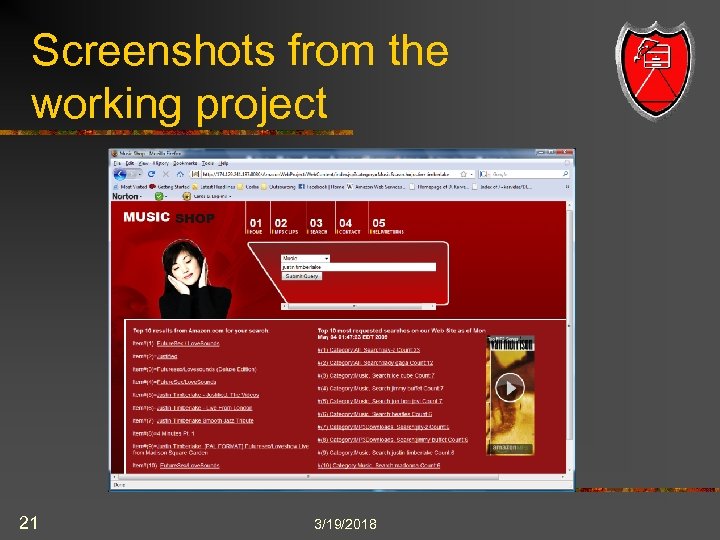

Screenshots from the working project 21 3/19/2018
Screenshots from the working project cont. n n 22 Previous slide provides a view of the searched results from the Amazon’s product catalog in the left column when the user on the web site typed justin timberlake in the search box Note that on the right column justin timberlake is displaying a count of 6 searches in the music category. This shows that justin timberlake was searched 6 times on our web site in the music category 3/19/2018

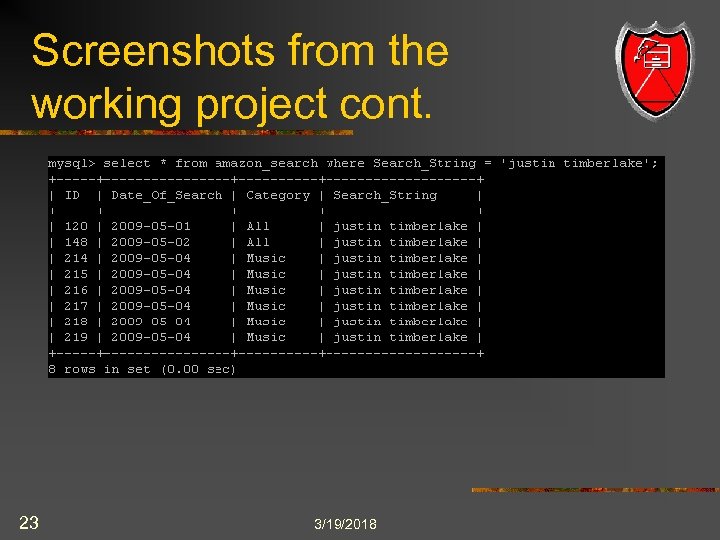

Screenshots from the working project cont. 23 3/19/2018
Screenshots from the working project cont. n 24 The previous screenshot provides a view from our My. SQL database, showing the count of searches for a Search_String ‘justin timberlake’. Please note that the 2 instances for category All, were from the early stages of our development stage, after which we decided to delete this category 3/19/2018
Screenshots from the working project 25 3/19/2018

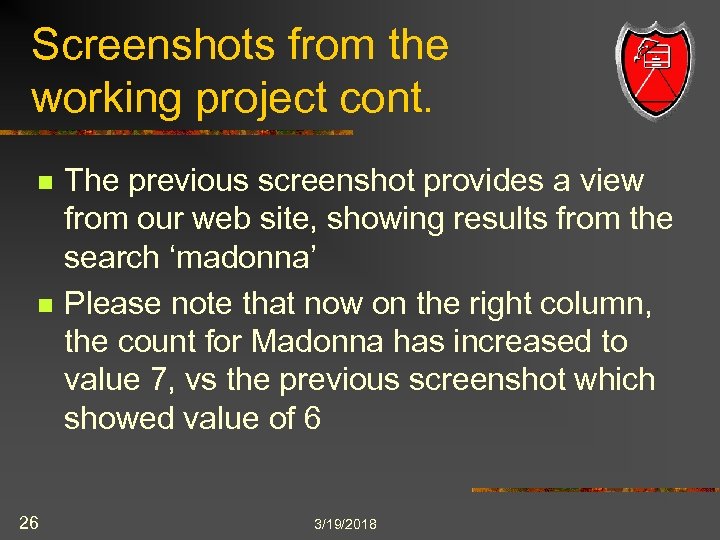

Screenshots from the working project cont. n n 26 The previous screenshot provides a view from our web site, showing results from the search ‘madonna’ Please note that now on the right column, the count for Madonna has increased to value 7, vs the previous screenshot which showed value of 6 3/19/2018
Screenshots from the working project cont. 27 3/19/2018

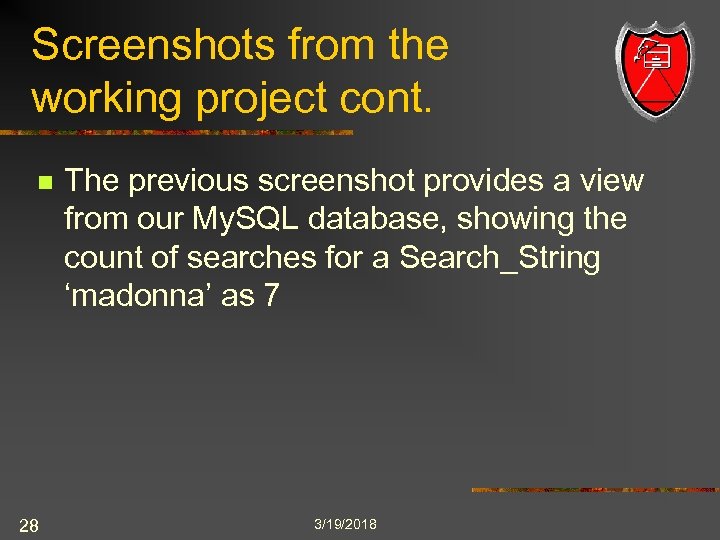

Screenshots from the working project cont. n 28 The previous screenshot provides a view from our My. SQL database, showing the count of searches for a Search_String ‘madonna’ as 7 3/19/2018

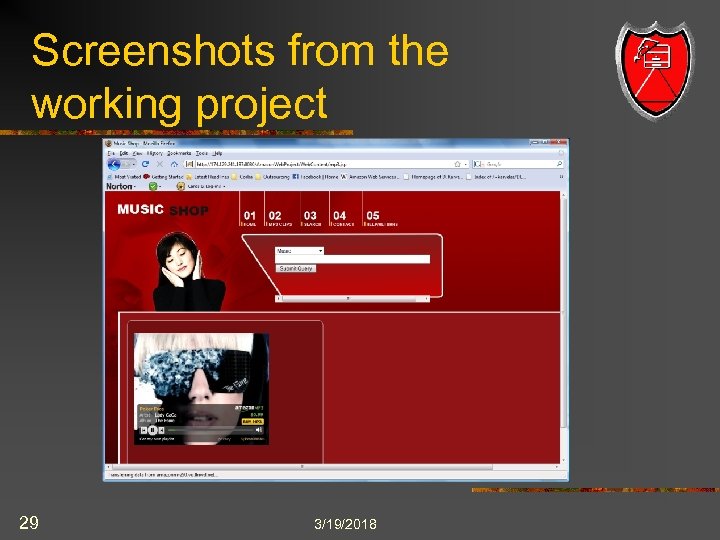

Screenshots from the working project 29 3/19/2018

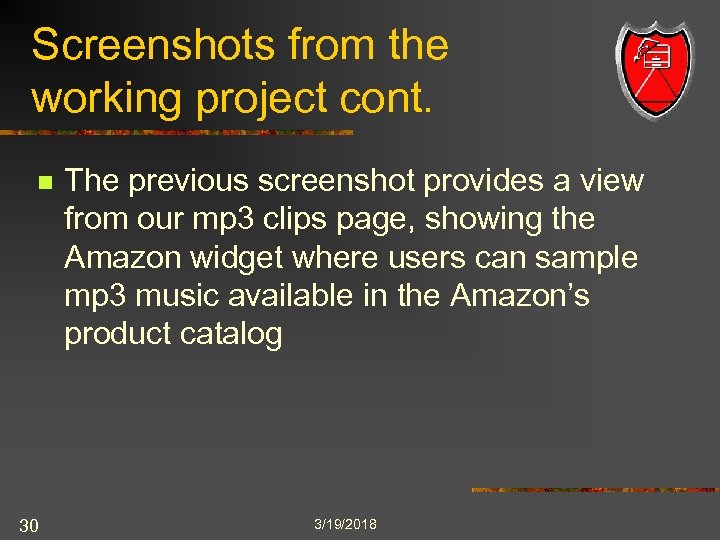

Screenshots from the working project cont. n 30 The previous screenshot provides a view from our mp 3 clips page, showing the Amazon widget where users can sample mp 3 music available in the Amazon’s product catalog 3/19/2018

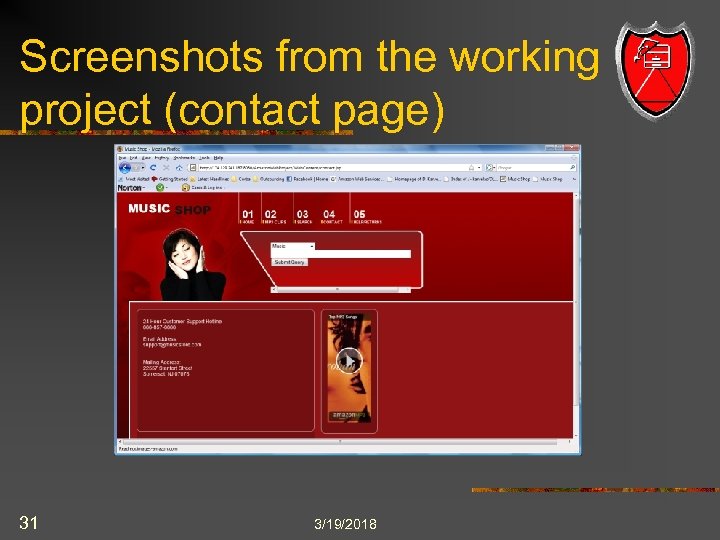

Screenshots from the working project (contact page) 31 3/19/2018

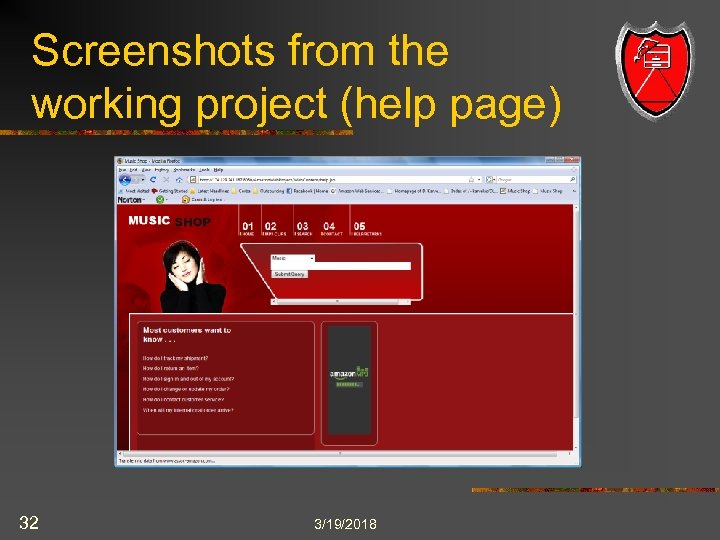

Screenshots from the working project (help page) 32 3/19/2018

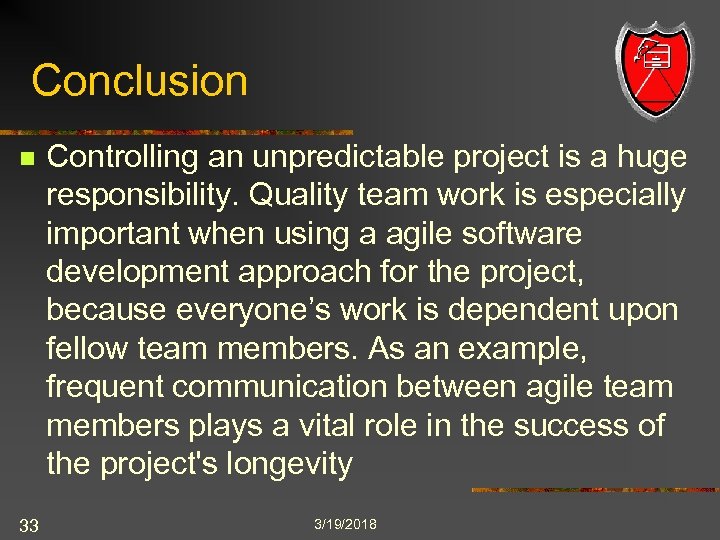

Conclusion n 33 Controlling an unpredictable project is a huge responsibility. Quality team work is especially important when using a agile software development approach for the project, because everyone’s work is dependent upon fellow team members. As an example, frequent communication between agile team members plays a vital role in the success of the project's longevity 3/19/2018

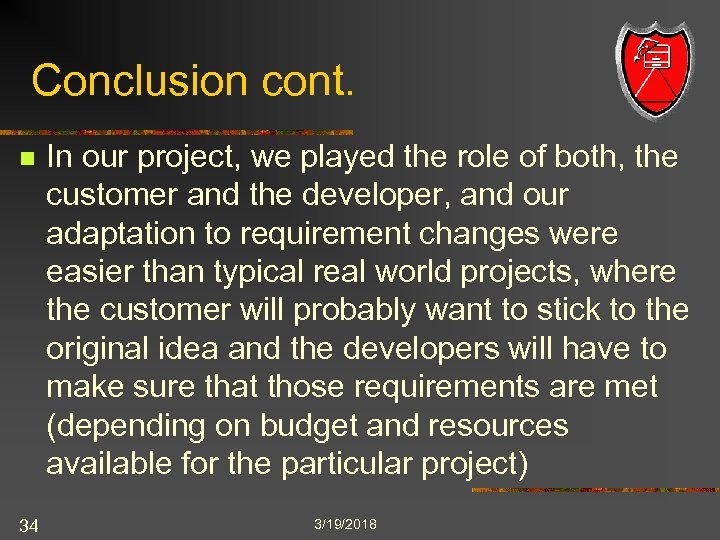

Conclusion cont. n 34 In our project, we played the role of both, the customer and the developer, and our adaptation to requirement changes were easier than typical real world projects, where the customer will probably want to stick to the original idea and the developers will have to make sure that those requirements are met (depending on budget and resources available for the particular project) 3/19/2018

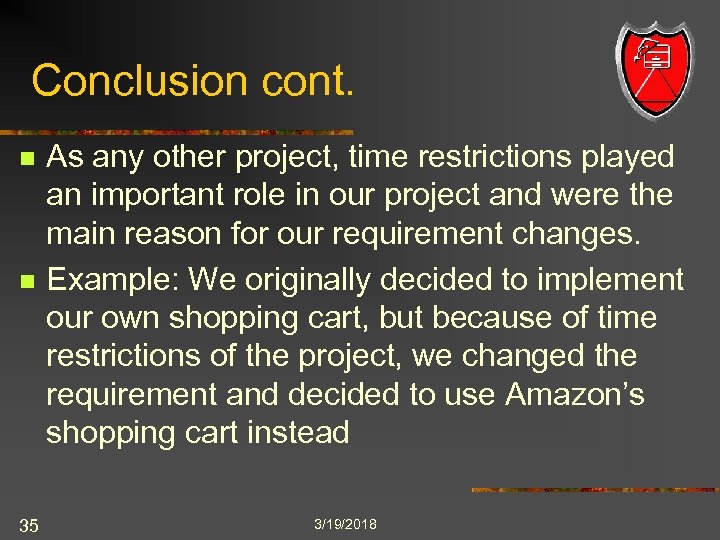

Conclusion cont. n n 35 As any other project, time restrictions played an important role in our project and were the main reason for our requirement changes. Example: We originally decided to implement our own shopping cart, but because of time restrictions of the project, we changed the requirement and decided to use Amazon’s shopping cart instead 3/19/2018

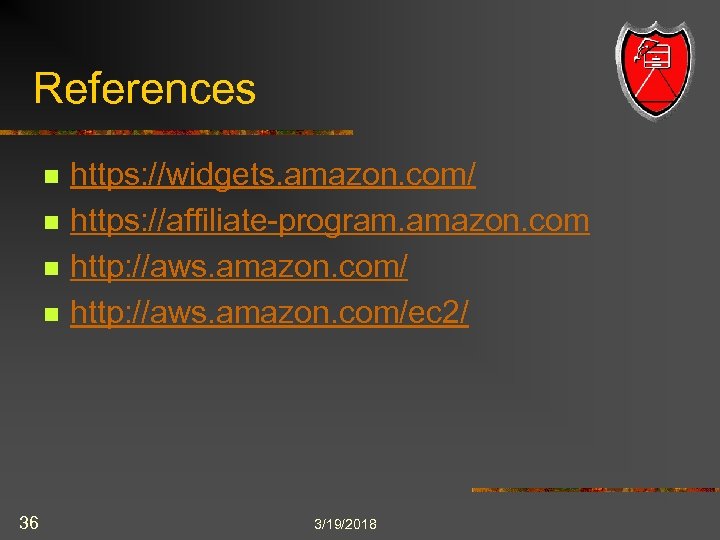

References n n 36 https: //widgets. amazon. com/ https: //affiliate-program. amazon. com http: //aws. amazon. com/ec 2/ 3/19/2018
