Cranial Anatomy Calvaria Frontal Occipital Left Parietal Right Parietal Floor Ethmoid Sphenoid Left Temporal Right Temporal

The regions of the Cranial Floor Anterior: extends form anterior frontal bone to the lesser wings of the sphenoid It is associated with frontal lobes of cerebellum Middle: Extends from lesser wings to the apices of petrous ridges of temporal bone Accommodates temporal lobes and associated neurovascular structures Posterior: deep depression posterior to petrous ridge which protects cerebellum, pons and medulla oblongata

Frontal Bone Has a vertical and horizontal portion Vertical portion- forms the forehead and anterior part of the vault Horizontal portion- forms roof of orbits, part of the roof of nasal cavity, and greater part of anterior cranial fossa.

Parietal Bone Forms large part of sides of the cranium Forms posterior portion of the cranial floor Parietal eminence is used to measure width of head

Occipital Bone Inferosuperior portion of calvaria Squamous portion is superior to inion Ext. occipital protuberance – prominent bulge Contains foramen magnum and articulates with atlas (C1)

Ethmoid Bone Horizontal portion is called cribiform plate Vertical portion is called perpendicular plate 2 light spongy labyrinths

Sphenoid Bone Resembles shape of a bat Consists of a body, 2 lesser wings, 2 greater wings, 2 pterygoid processes Contains Sella turcica- important for positioning errors

Sella Turcica Lies in the MSP ¾” anterior & superior to EAM Deformity of the sella is often the only clue that a lesion exists intracranially

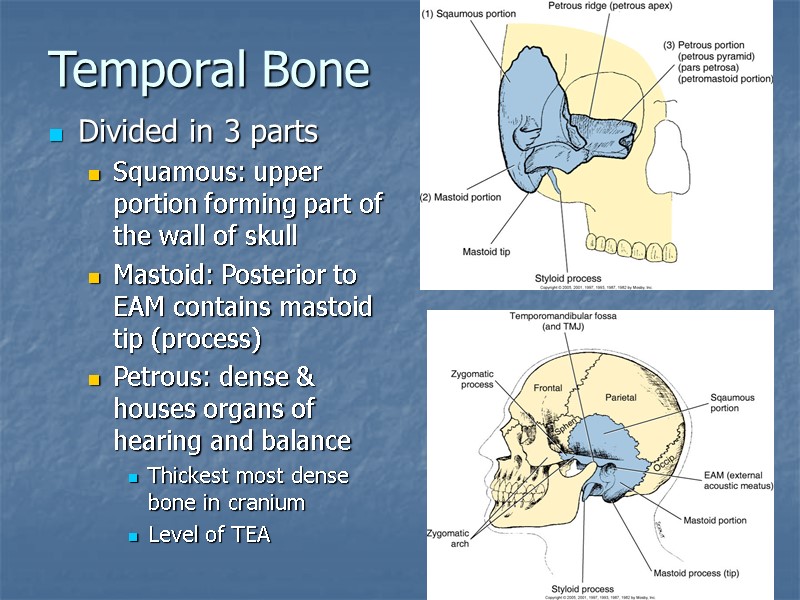

Temporal Bone Divided in 3 parts Squamous: upper portion forming part of the wall of skull Mastoid: Posterior to EAM contains mastoid tip (process) Petrous: dense & houses organs of hearing and balance Thickest most dense bone in cranium Level of TEA

Superior Cranium Visualized more clearly: Sphenoid Temporals Occipital Frontal Not well visualized: Ethmoid Parietals Copyright © 2003, Mosby, Inc.

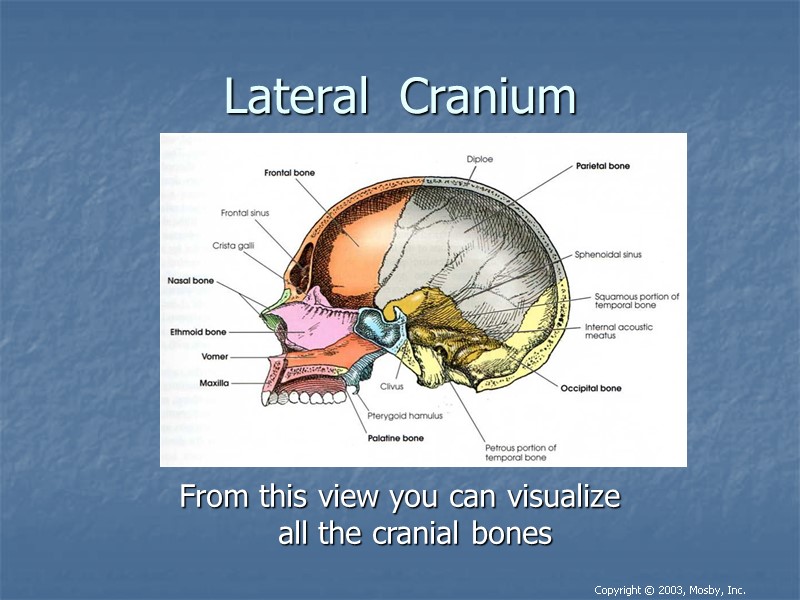

Lateral Cranium From this view you can visualize all the cranial bones Copyright © 2003, Mosby, Inc.

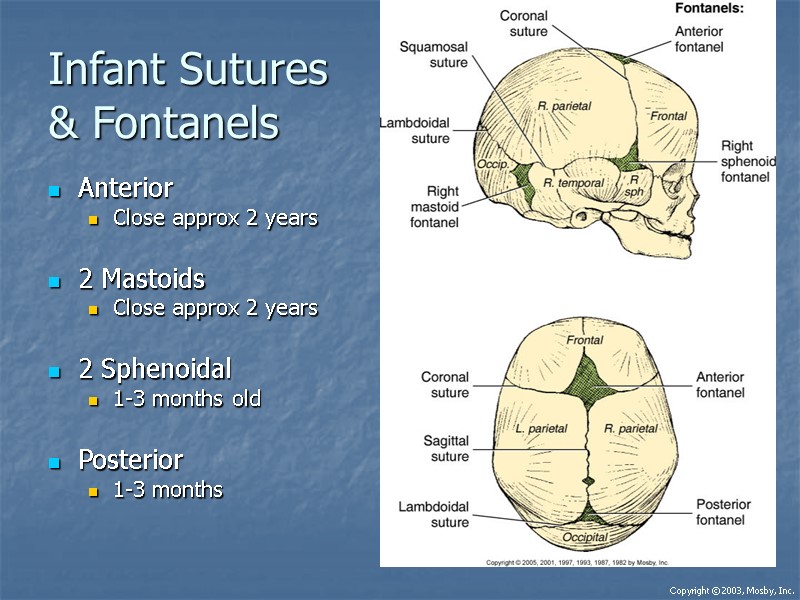

Infant Sutures & Fontanels Anterior Close approx 2 years 2 Mastoids Close approx 2 years 2 Sphenoidal 1-3 months old Posterior 1-3 months Copyright © 2003, Mosby, Inc.

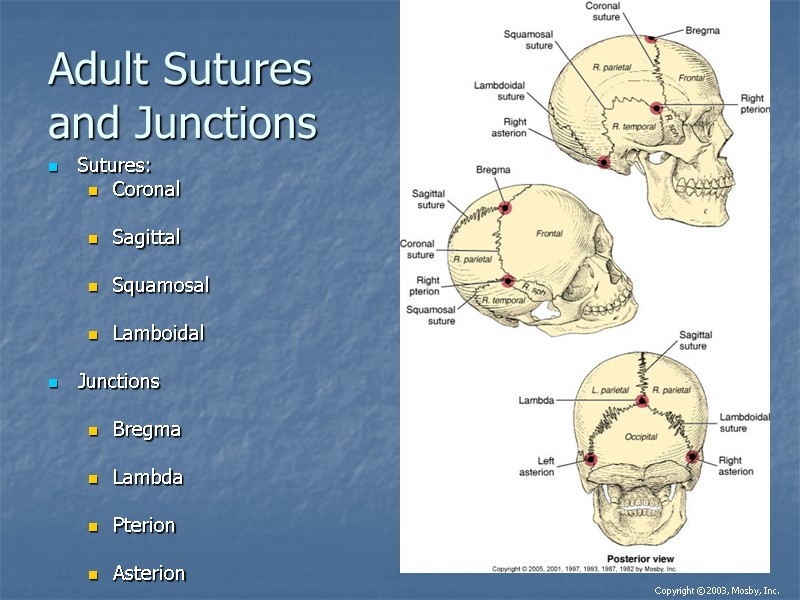

Adult Sutures and Junctions Sutures: Coronal Sagittal Squamosal Lamboidal Junctions Bregma Lambda Pterion Asterion Copyright © 2003, Mosby, Inc.

Lets compare Infant Anterior fontanel Posterior fontanel Sphenoidal fontanels Mastoidal fontanels Adult Bregma Lambda Pterions Asterions

Anterior Cranium Not able to visualize: Occipital Ethmoid Able to visualize: Parietals Frontal Sphenoid Temporals Copyright © 2003, Mosby, Inc.

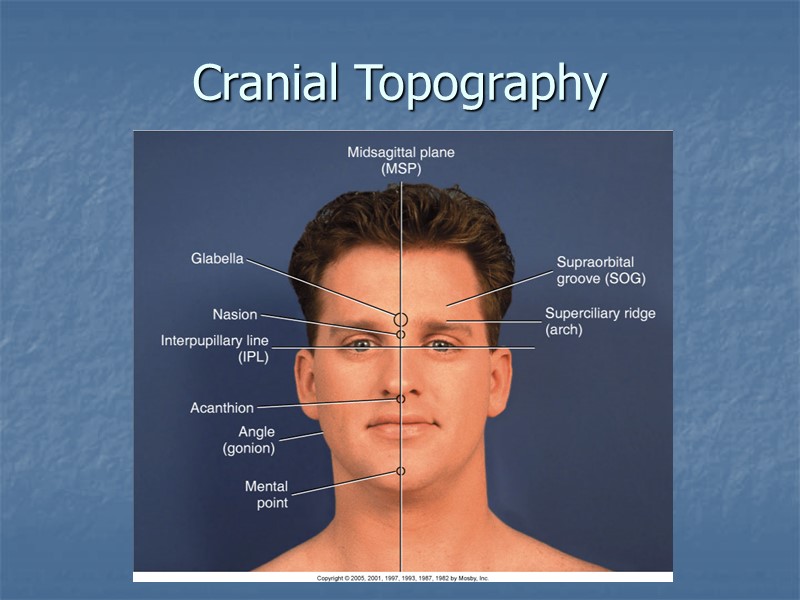

Cranial Topography

Surface Landmarks

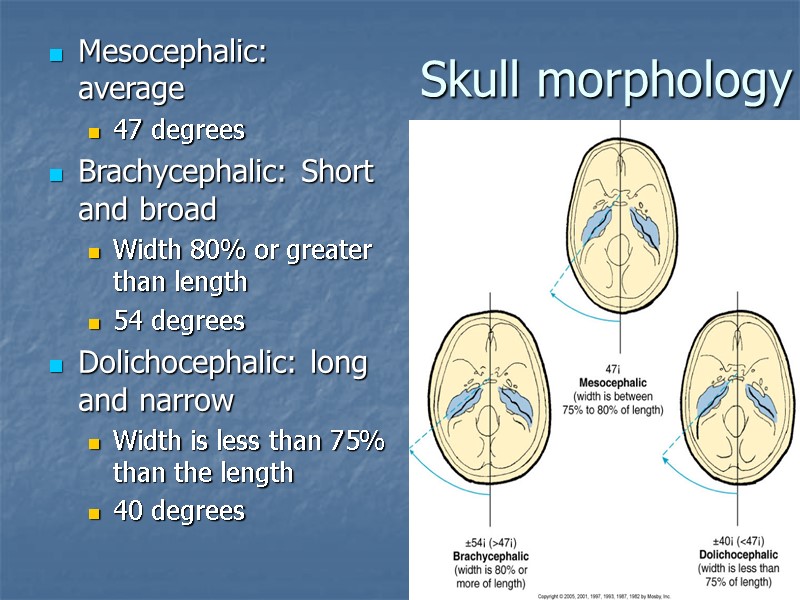

Skull morphology Mesocephalic: average 47 degrees Brachycephalic: Short and broad Width 80% or greater than length 54 degrees Dolichocephalic: long and narrow Width is less than 75% than the length 40 degrees

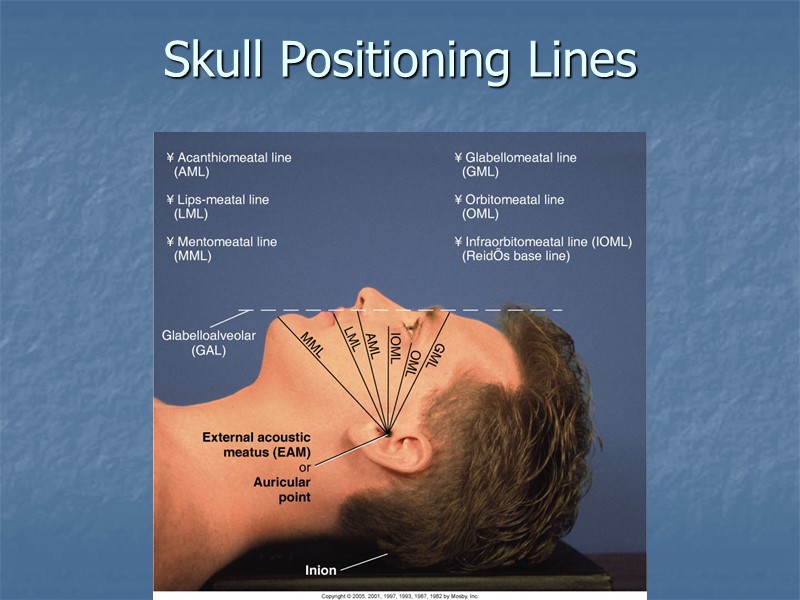

Skull Positioning Lines

Skull Topography Glabella Inner canthus Outer canthus Nasion Infraorbital margin Acanthion Gonion Mental point External auditory meatus (EAM) Auricular point Top of ear attachment (TEA) Be able to locate the following landmarks:

Radiographic Landmarks Interpupillary line (IPL) Perpendicular line between pupils of eyes Acanthiomeatal line (AML) From acanthion to EAM Mentomeatal line (MML) From mental point (center of chin) to EAM

Radiographic Landmarks Orbitomeatal line (OML) From outer canthus to EAM Infraorbitomeatal line (IOML) From infraorbital margin to EAM Glabellomeatal line (GML) From glabella to EAM

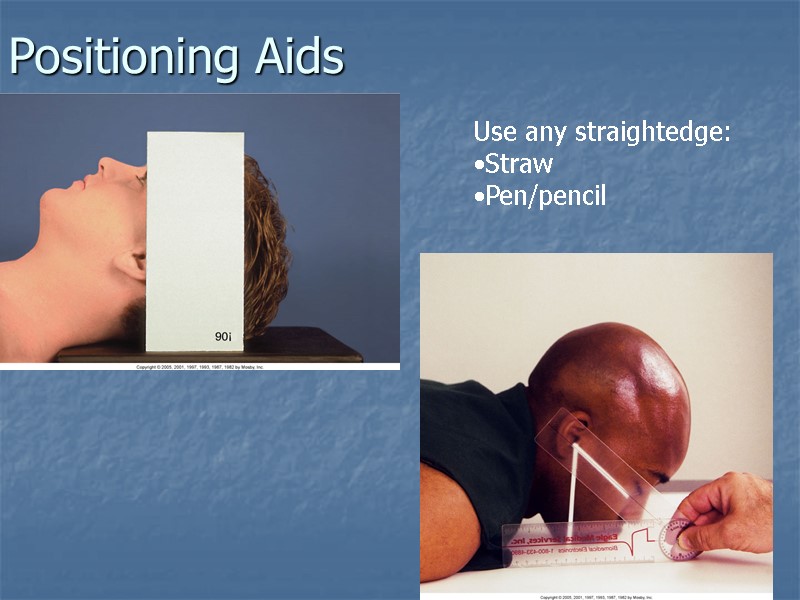

Positioning Aids Use any straightedge: Straw Pen/pencil

Most Common Positioning Errors Rotation Tilt Excessive Flexion Excessive Extension Incorrect CR angle Rotation Tilt Copyright © 2005, Mosby, Inc.

Indications for Cranial Radiography Skull fractures Linear Depressed Basal skull Gunshot wounds Pituitary Adenomas Subdural hematoma Neoplasms Metastases Osteolytic Osteoblastic Combo of both Multiple myeloma Paget’s Disease Acoustic neuroma

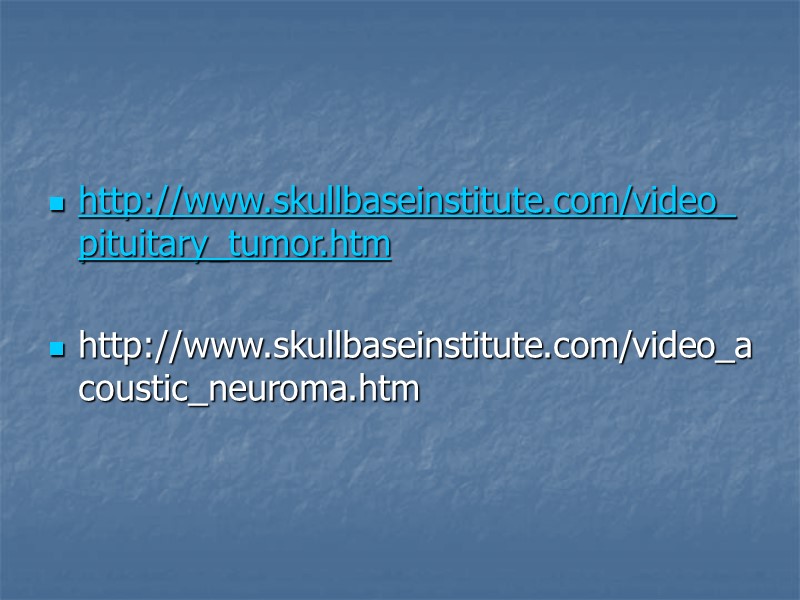

http://www.skullbaseinstitute.com/video_pituitary_tumor.htm http://www.skullbaseinstitute.com/video_acoustic_neuroma.htm

Disinfect the Table or Bucky!!

Cleanliness Hair and skin of face are naturally oily; illness often increases oiliness Cranial procedures require direct contact of patient’s face with VBS Clean device after each patient Wash your hands!!!

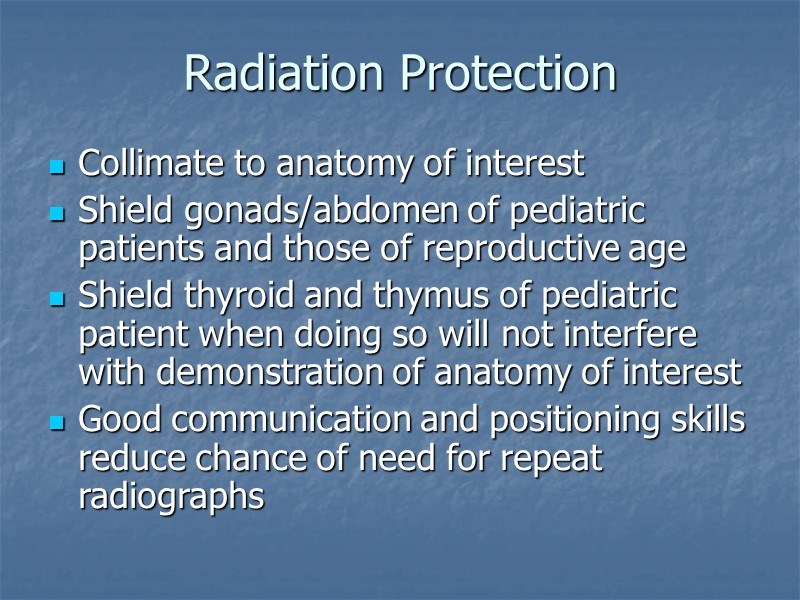

Radiation Protection Collimate to anatomy of interest Shield gonads/abdomen of pediatric patients and those of reproductive age Shield thyroid and thymus of pediatric patient when doing so will not interfere with demonstration of anatomy of interest Good communication and positioning skills reduce chance of need for repeat radiographs

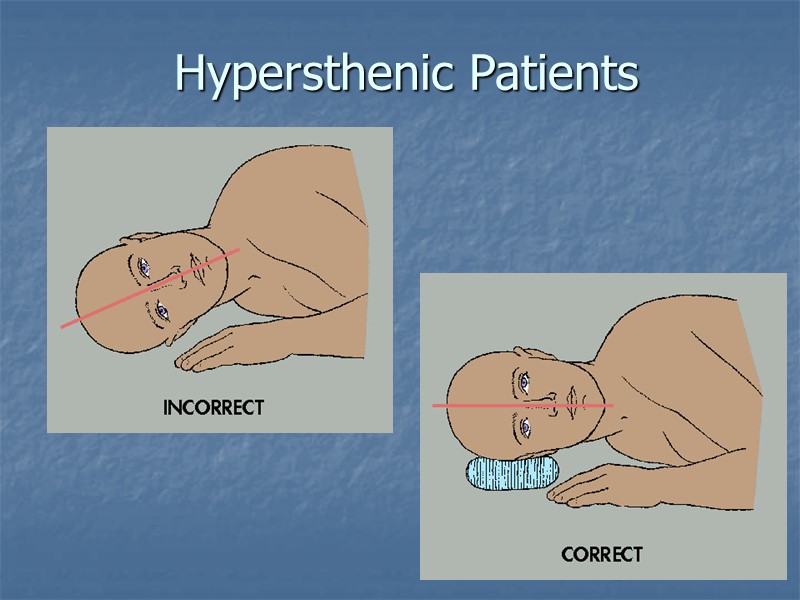

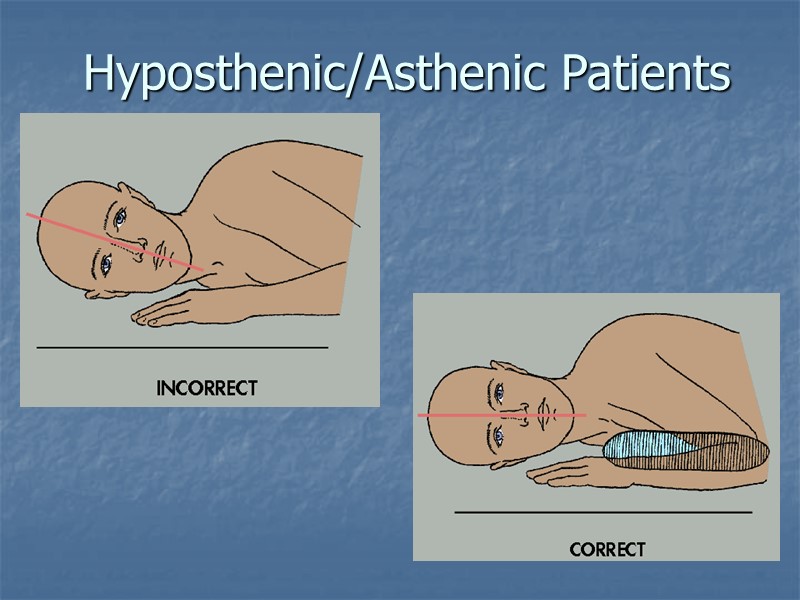

General Body Position Hyposthenic/asthenic patients usually need support at chest to elevate C-spine Helps prevent downward tilt of MSP Hypersthenic patients require radiolucent support at head Helps prevent upward tilt of MSP

Hyposthenic/Asthenic Patients

Hypersthenic Patients
