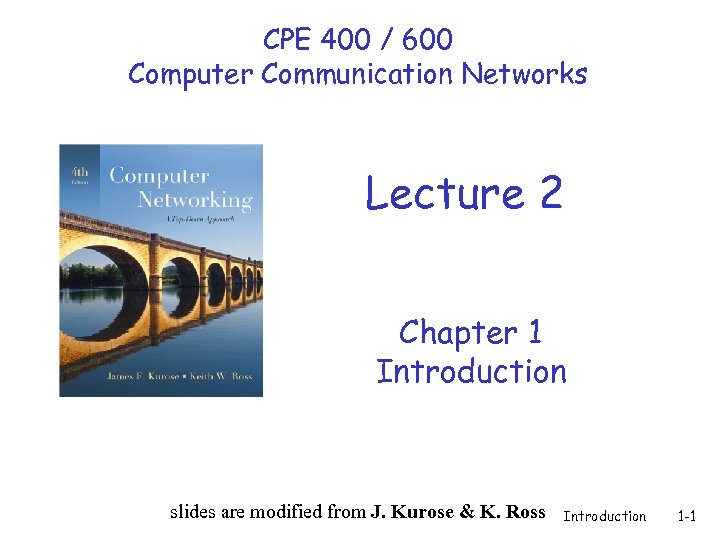

CPE 400 / 600 Computer Communication Networks Lecture 2 Chapter 1 Introduction slides are CPE 400 / 600 Computer Communication Networks Lecture 2 Chapter 1 Introduction slides are modified from J. Kurose & K. Ross Introduction 1 -1

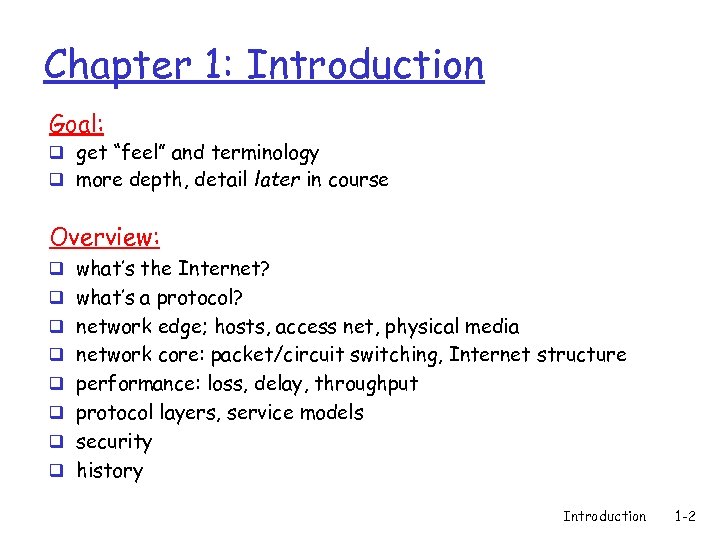

Chapter 1: Introduction Goal: q get “feel” and terminology q more depth, detail later Chapter 1: Introduction Goal: q get “feel” and terminology q more depth, detail later in course Overview: q what’s the Internet? q what’s a protocol? q network edge; hosts, access net, physical media q network core: packet/circuit switching, Internet structure q performance: loss, delay, throughput q protocol layers, service models q security q history Introduction 1 -2

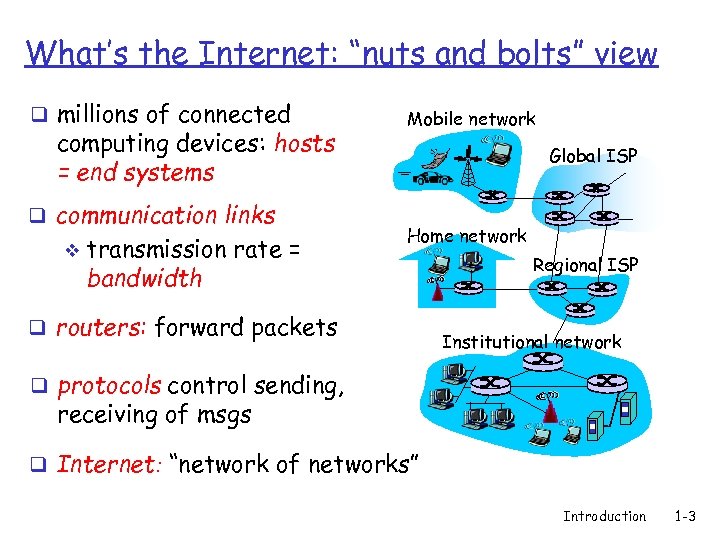

What’s the Internet: “nuts and bolts” view q millions of connected computing devices: hosts What’s the Internet: “nuts and bolts” view q millions of connected computing devices: hosts = end systems q communication links v transmission rate = bandwidth Mobile network Global ISP Home network q routers: forward packets Regional ISP Institutional network q protocols control sending, receiving of msgs q Internet: “network of networks” Introduction 1 -3

What’s the Internet: a service view q communication infrastructure enables distributed applications: v Web, What’s the Internet: a service view q communication infrastructure enables distributed applications: v Web, Vo. IP, email, games, e -commerce, file sharing q communication services provided to apps: v reliable data delivery from source to destination v “best effort” (unreliable) data delivery Introduction 1 -4

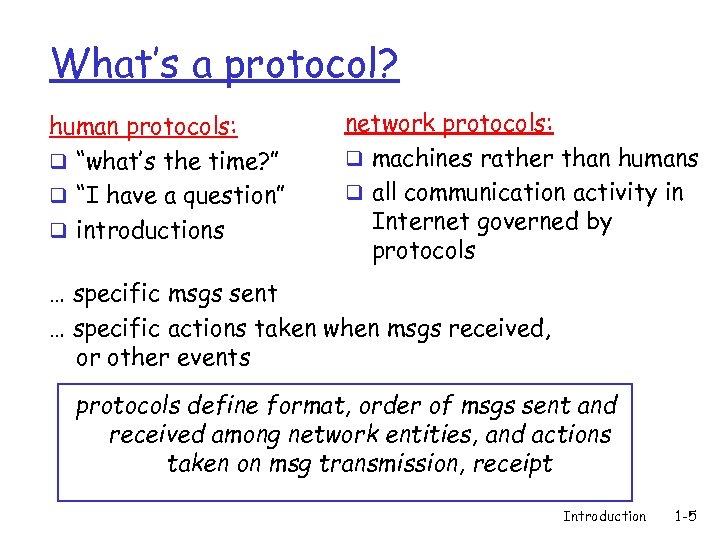

What’s a protocol? human protocols: q “what’s the time? ” q “I have a What’s a protocol? human protocols: q “what’s the time? ” q “I have a question” q introductions network protocols: q machines rather than humans q all communication activity in Internet governed by protocols … specific msgs sent … specific actions taken when msgs received, or other events protocols define format, order of msgs sent and received among network entities, and actions taken on msg transmission, receipt Introduction 1 -5

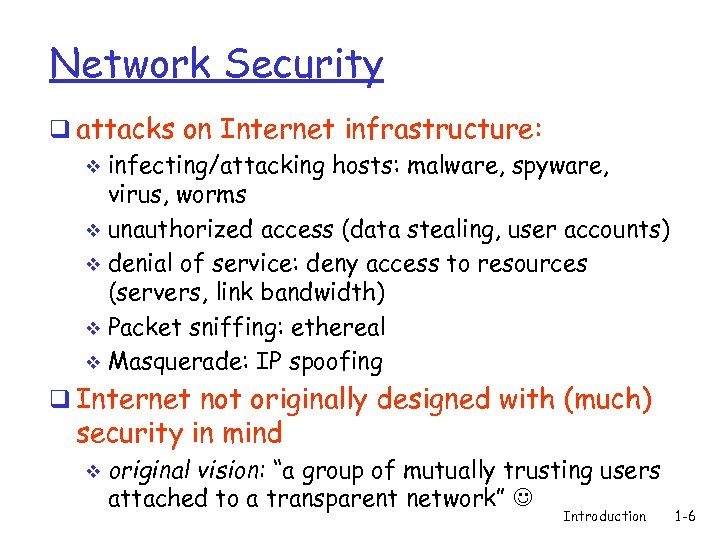

Network Security q attacks on Internet infrastructure: v infecting/attacking hosts: malware, spyware, virus, worms Network Security q attacks on Internet infrastructure: v infecting/attacking hosts: malware, spyware, virus, worms v unauthorized access (data stealing, user accounts) v denial of service: deny access to resources (servers, link bandwidth) v Packet sniffing: ethereal v Masquerade: IP spoofing q Internet not originally designed with (much) security in mind v original vision: “a group of mutually trusting users attached to a transparent network” Introduction 1 -6

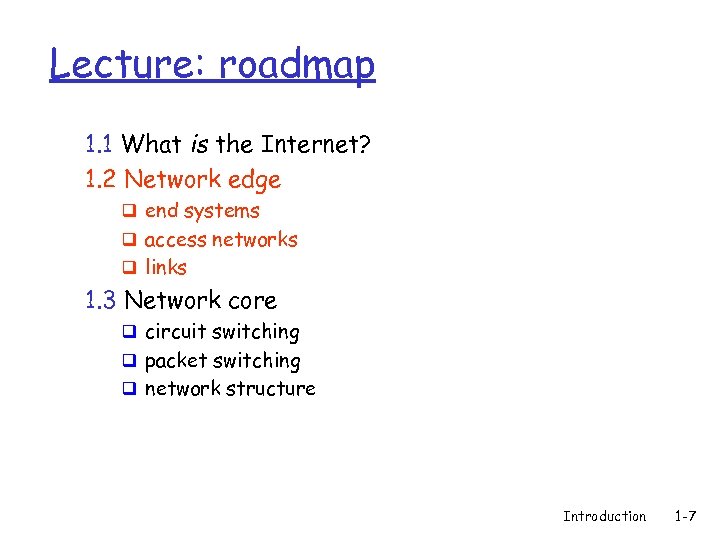

Lecture: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end Lecture: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems q access networks q links 1. 3 Network core q circuit switching q packet switching q network structure Introduction 1 -7

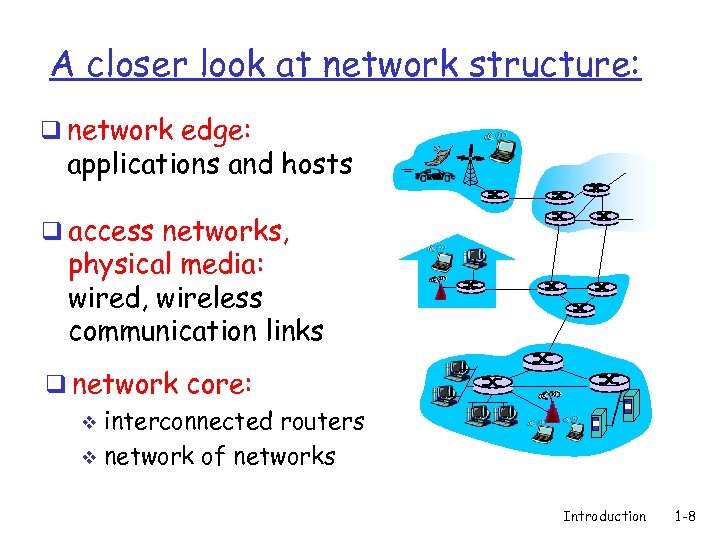

A closer look at network structure: q network edge: applications and hosts q access A closer look at network structure: q network edge: applications and hosts q access networks, physical media: wired, wireless communication links q network core: v interconnected routers v network of networks Introduction 1 -8

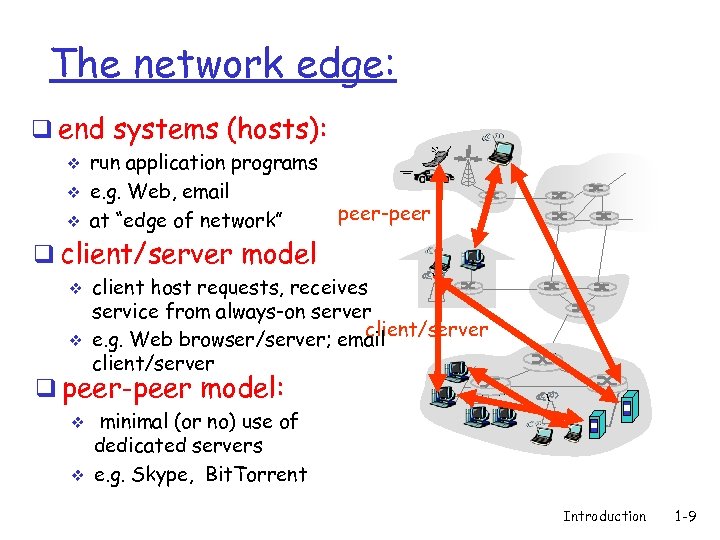

The network edge: q end systems (hosts): v v v run application programs e. The network edge: q end systems (hosts): v v v run application programs e. g. Web, email at “edge of network” peer-peer q client/server model v v client host requests, receives service from always-on server client/server e. g. Web browser/server; email client/server q peer-peer model: v v minimal (or no) use of dedicated servers e. g. Skype, Bit. Torrent Introduction 1 -9

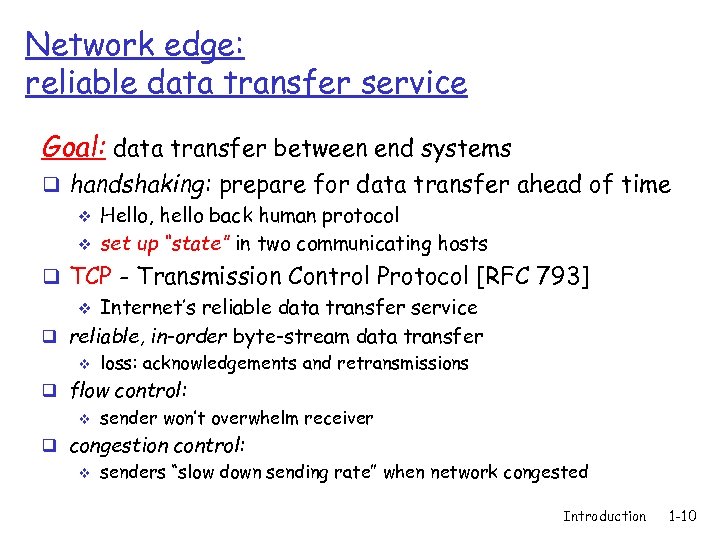

Network edge: reliable data transfer service Goal: data transfer between end systems q handshaking: Network edge: reliable data transfer service Goal: data transfer between end systems q handshaking: prepare for data transfer ahead of time v Hello, hello back human protocol v set up “state” in two communicating hosts q TCP - Transmission Control Protocol [RFC 793] v Internet’s reliable data transfer service q reliable, in-order byte-stream data transfer v loss: acknowledgements and retransmissions q flow control: v sender won’t overwhelm receiver q congestion control: v senders “slow down sending rate” when network congested Introduction 1 -10

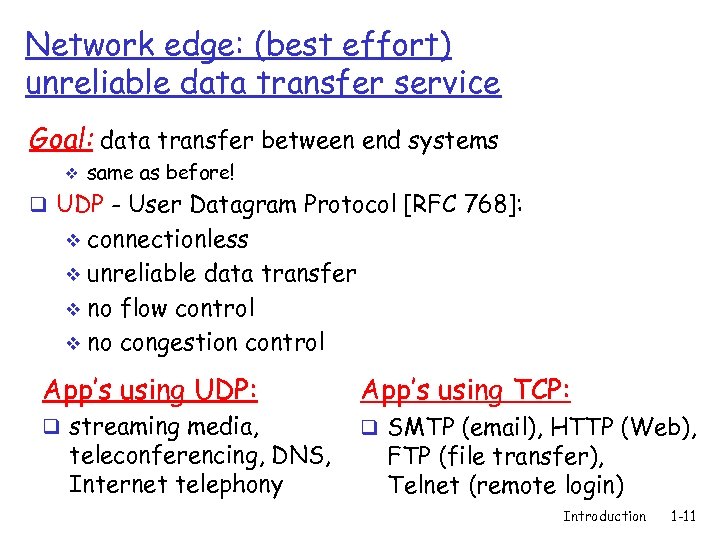

Network edge: (best effort) unreliable data transfer service Goal: data transfer between end systems Network edge: (best effort) unreliable data transfer service Goal: data transfer between end systems v same as before! q UDP - User Datagram Protocol [RFC 768]: connectionless v unreliable data transfer v no flow control v no congestion control v App’s using UDP: App’s using TCP: q streaming media, q SMTP (email), HTTP (Web), teleconferencing, DNS, Internet telephony FTP (file transfer), Telnet (remote login) Introduction 1 -11

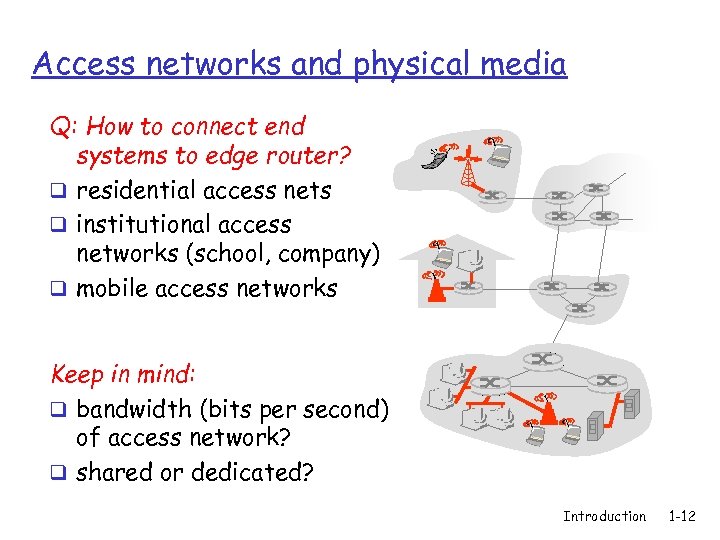

Access networks and physical media Q: How to connect end systems to edge router? Access networks and physical media Q: How to connect end systems to edge router? q residential access nets q institutional access networks (school, company) q mobile access networks Keep in mind: q bandwidth (bits per second) of access network? q shared or dedicated? Introduction 1 -12

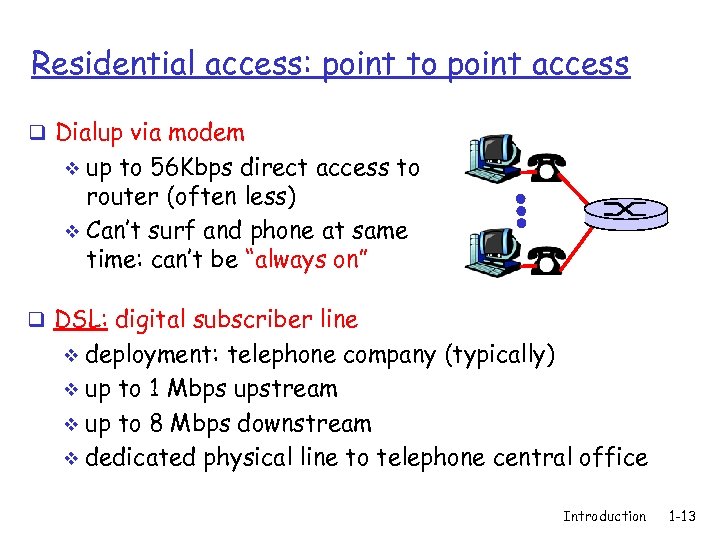

Residential access: point to point access q Dialup via modem up to 56 Kbps Residential access: point to point access q Dialup via modem up to 56 Kbps direct access to router (often less) v Can’t surf and phone at same time: can’t be “always on” v q DSL: digital subscriber line deployment: telephone company (typically) v up to 1 Mbps upstream v up to 8 Mbps downstream v dedicated physical line to telephone central office v Introduction 1 -13

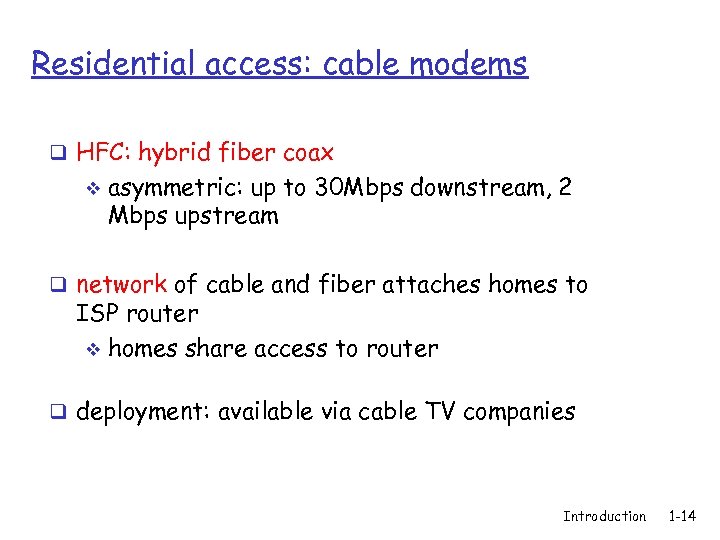

Residential access: cable modems q HFC: hybrid fiber coax v asymmetric: up to 30 Residential access: cable modems q HFC: hybrid fiber coax v asymmetric: up to 30 Mbps downstream, 2 Mbps upstream q network of cable and fiber attaches homes to ISP router v homes share access to router q deployment: available via cable TV companies Introduction 1 -14

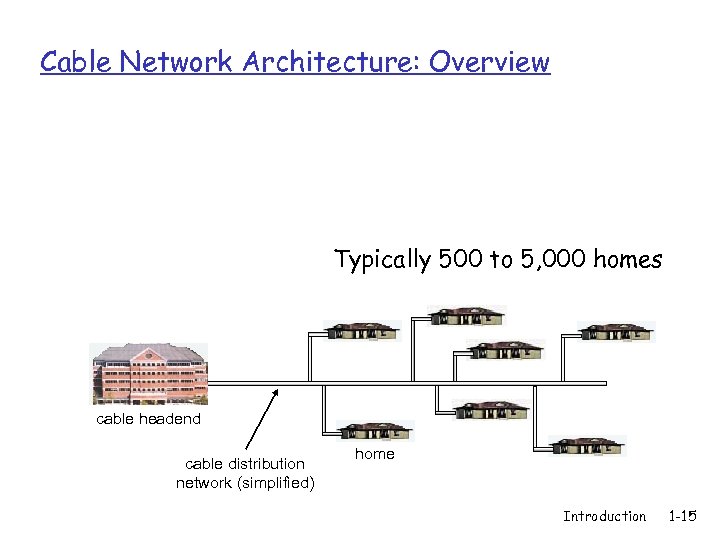

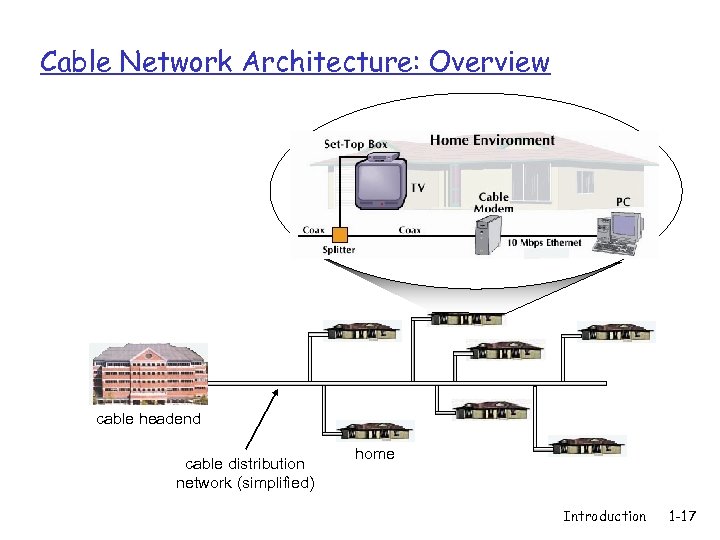

Cable Network Architecture: Overview Typically 500 to 5, 000 homes cable headend cable distribution Cable Network Architecture: Overview Typically 500 to 5, 000 homes cable headend cable distribution network (simplified) home Introduction 1 -15

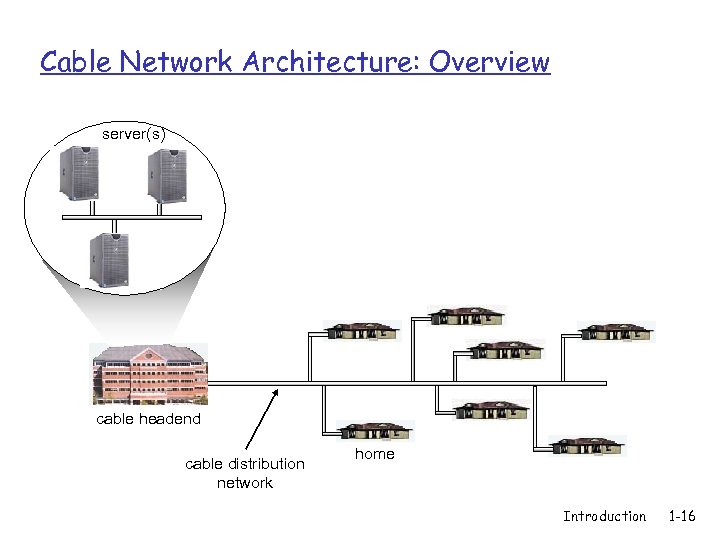

Cable Network Architecture: Overview server(s) cable headend cable distribution network home Introduction 1 -16 Cable Network Architecture: Overview server(s) cable headend cable distribution network home Introduction 1 -16

Cable Network Architecture: Overview cable headend cable distribution network (simplified) home Introduction 1 -17 Cable Network Architecture: Overview cable headend cable distribution network (simplified) home Introduction 1 -17

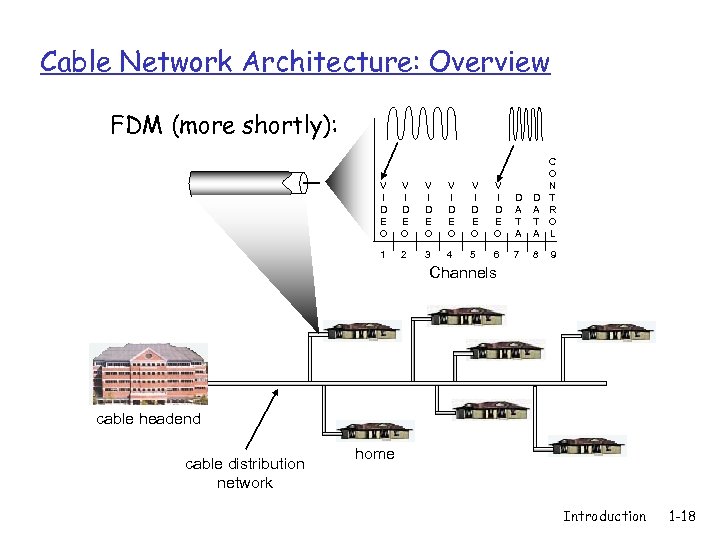

Cable Network Architecture: Overview FDM (more shortly): V I D E O V I Cable Network Architecture: Overview FDM (more shortly): V I D E O V I D E O D A T A C O N T R O L 1 2 3 4 5 6 7 8 9 Channels cable headend cable distribution network home Introduction 1 -18

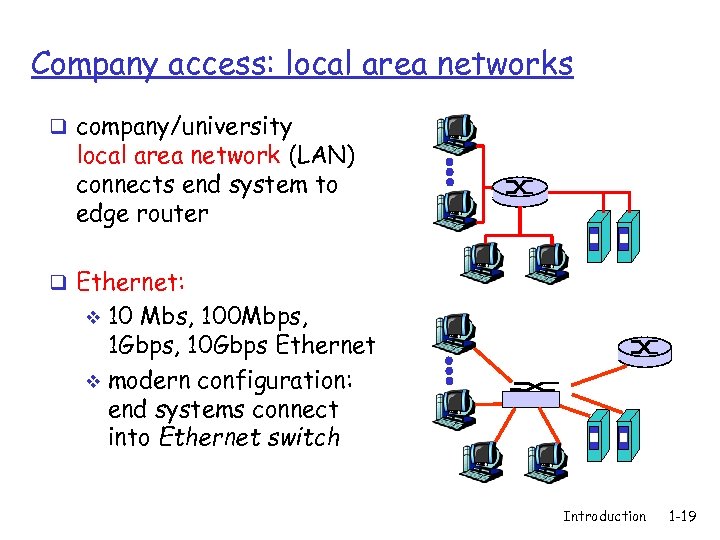

Company access: local area networks q company/university local area network (LAN) connects end system Company access: local area networks q company/university local area network (LAN) connects end system to edge router q Ethernet: 10 Mbs, 100 Mbps, 1 Gbps, 10 Gbps Ethernet v modern configuration: end systems connect into Ethernet switch v Introduction 1 -19

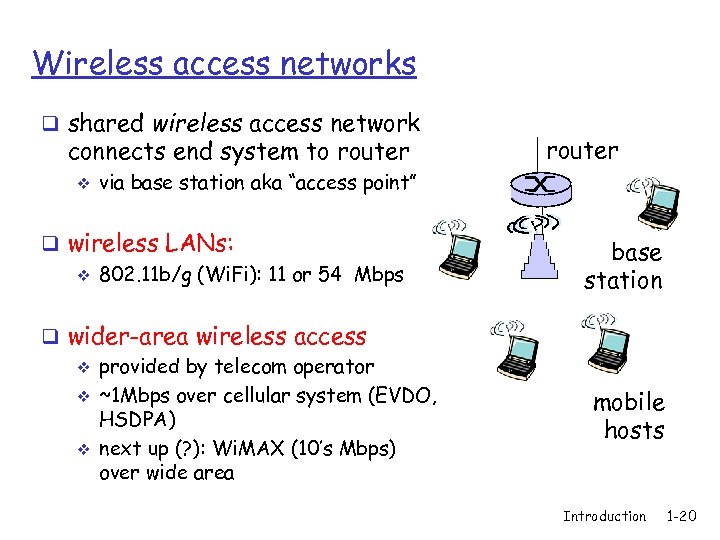

Wireless access networks q shared wireless access network connects end system to router via Wireless access networks q shared wireless access network connects end system to router via base station aka “access point” q wireless LANs: v 802. 11 b/g (Wi. Fi): 11 or 54 Mbps q wider-area wireless access v provided by telecom operator v ~1 Mbps over cellular system (EVDO, HSDPA) v next up (? ): Wi. MAX (10’s Mbps) over wide area base station mobile hosts Introduction 1 -20

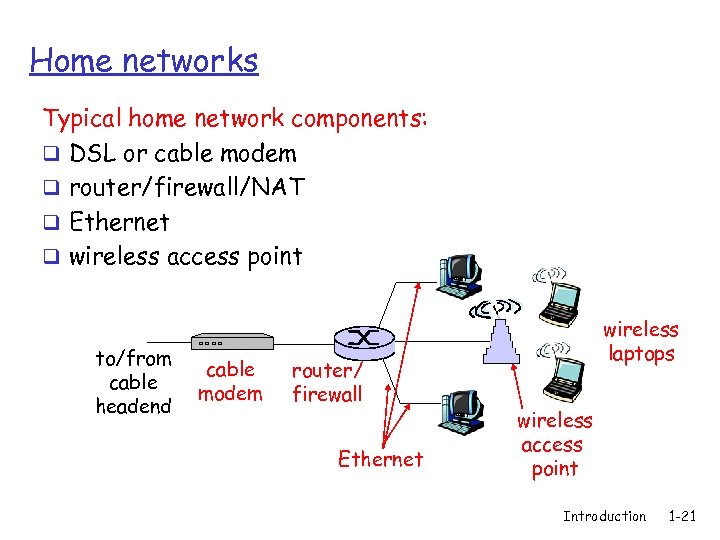

Home networks Typical home network components: q DSL or cable modem q router/firewall/NAT q Home networks Typical home network components: q DSL or cable modem q router/firewall/NAT q Ethernet q wireless access point to/from cable headend cable modem router/ firewall Ethernet wireless laptops wireless access point Introduction 1 -21

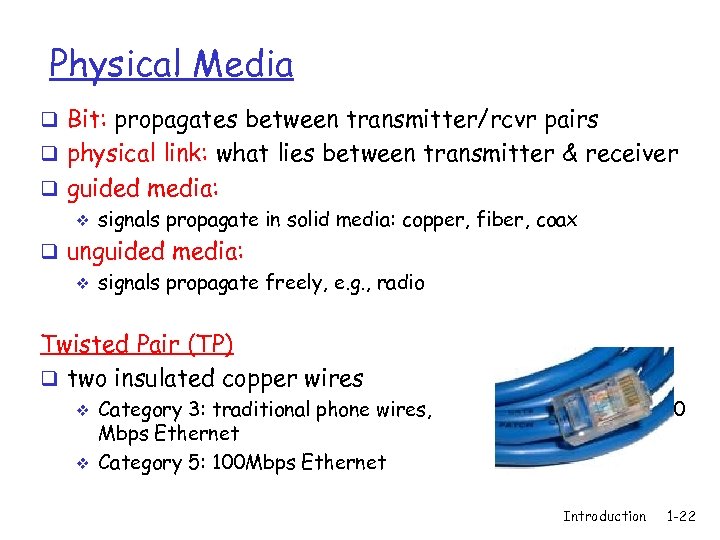

Physical Media q Bit: propagates between transmitter/rcvr pairs q physical link: what lies between Physical Media q Bit: propagates between transmitter/rcvr pairs q physical link: what lies between transmitter & receiver q guided media: v signals propagate in solid media: copper, fiber, coax q unguided media: v signals propagate freely, e. g. , radio Twisted Pair (TP) q two insulated copper wires v v Category 3: traditional phone wires, Mbps Ethernet Category 5: 100 Mbps Ethernet 10 Introduction 1 -22

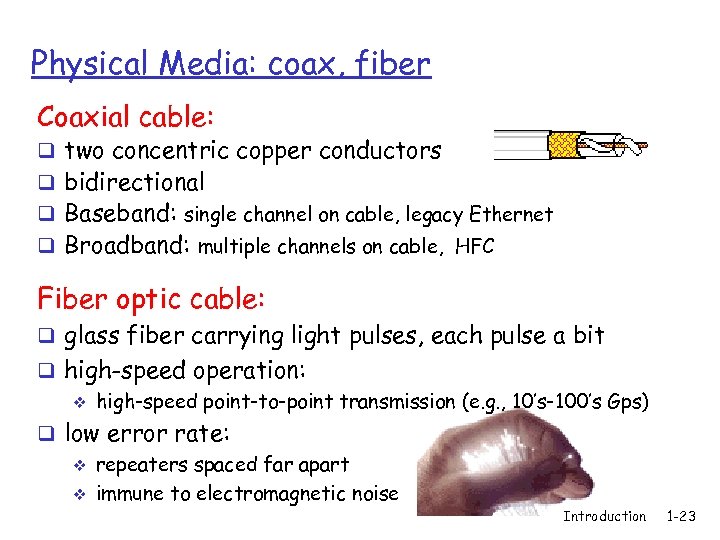

Physical Media: coax, fiber Coaxial cable: q two concentric copper conductors q bidirectional q Physical Media: coax, fiber Coaxial cable: q two concentric copper conductors q bidirectional q Baseband: single channel on cable, legacy Ethernet q Broadband: multiple channels on cable, HFC Fiber optic cable: q glass fiber carrying light pulses, each pulse a bit q high-speed operation: v high-speed point-to-point transmission (e. g. , 10’s-100’s Gps) q low error rate: v repeaters spaced far apart v immune to electromagnetic noise Introduction 1 -23

Physical media: radio q signal carried in electromagnetic spectrum q no physical “wire” q Physical media: radio q signal carried in electromagnetic spectrum q no physical “wire” q bidirectional q propagation environment effects: reflection, obstruction, interference Radio link types: q terrestrial microwave: e. g. up to 45 Mbps channels q LAN (e. g. , Wifi): 11 Mbps, 54 Mbps q wide-area (e. g. , cellular): 3 G cellular: ~ 1 Mbps q satellite v v v Kbps to 45 Mbps channel (or multiple smaller channels) 270 msec end-end delay geosynchronous versus low altitude Introduction 1 -24

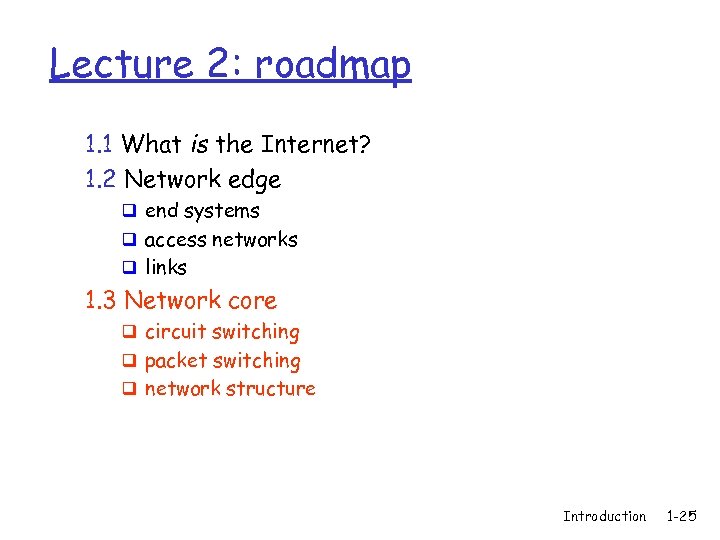

Lecture 2: roadmap 1. 1 What is the Internet? 1. 2 Network edge q Lecture 2: roadmap 1. 1 What is the Internet? 1. 2 Network edge q end systems q access networks q links 1. 3 Network core q circuit switching q packet switching q network structure Introduction 1 -25

The Network Core q mesh of interconnected routers q the fundamental question: how is The Network Core q mesh of interconnected routers q the fundamental question: how is data transferred through network? v v circuit switching: dedicated circuit per call: telephone network packet-switching: data sent thru network in discrete “chunks” Introduction 1 -26

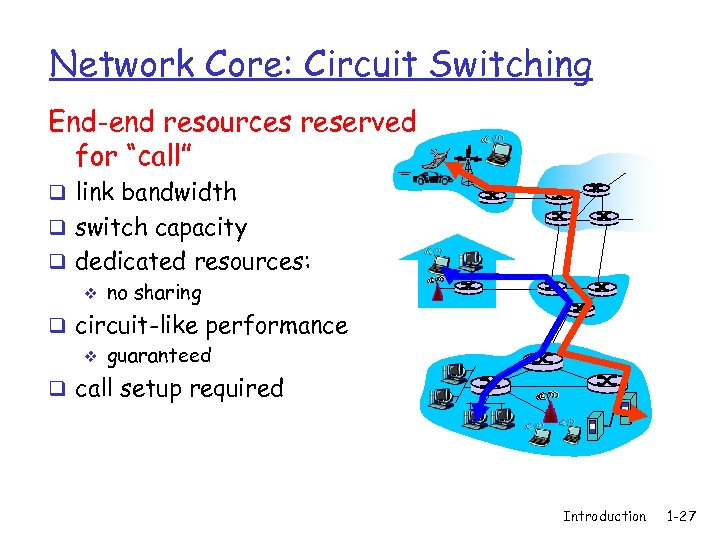

Network Core: Circuit Switching End-end resources reserved for “call” q link bandwidth q switch Network Core: Circuit Switching End-end resources reserved for “call” q link bandwidth q switch capacity q dedicated resources: v no sharing q circuit-like performance v guaranteed q call setup required Introduction 1 -27

Network Core: Circuit Switching q network resources (e. g. , bandwidth) divided into “pieces” Network Core: Circuit Switching q network resources (e. g. , bandwidth) divided into “pieces” pieces allocated to calls v resource piece idle if not used by owning call (no sharing) v q dividing link bandwidth into “pieces” v frequency division v time division Introduction 1 -28

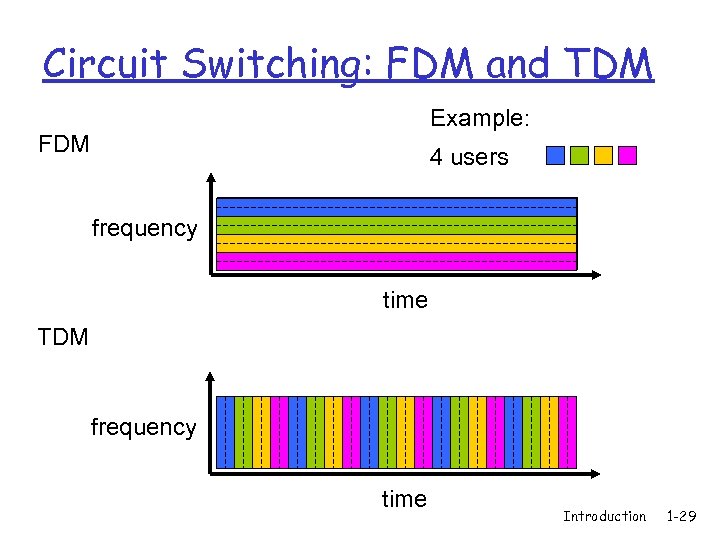

Circuit Switching: FDM and TDM Example: FDM 4 users frequency time TDM frequency time Circuit Switching: FDM and TDM Example: FDM 4 users frequency time TDM frequency time Introduction 1 -29

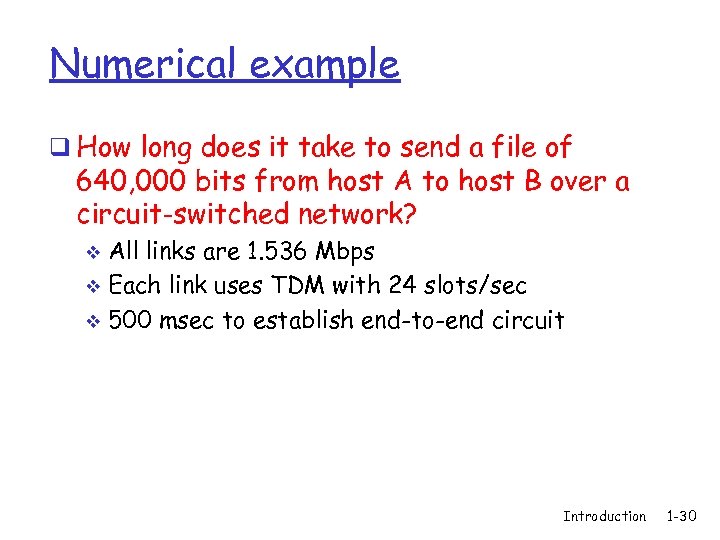

Numerical example q How long does it take to send a file of 640, Numerical example q How long does it take to send a file of 640, 000 bits from host A to host B over a circuit-switched network? All links are 1. 536 Mbps v Each link uses TDM with 24 slots/sec v 500 msec to establish end-to-end circuit v Introduction 1 -30

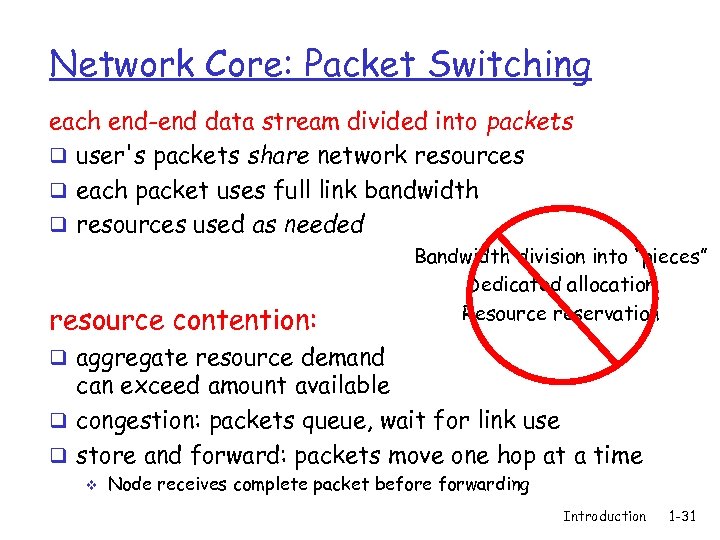

Network Core: Packet Switching each end-end data stream divided into packets q user's packets Network Core: Packet Switching each end-end data stream divided into packets q user's packets share network resources q each packet uses full link bandwidth q resources used as needed resource contention: Bandwidth division into “pieces” Dedicated allocation Resource reservation q aggregate resource demand can exceed amount available q congestion: packets queue, wait for link use q store and forward: packets move one hop at a time v Node receives complete packet before forwarding Introduction 1 -31

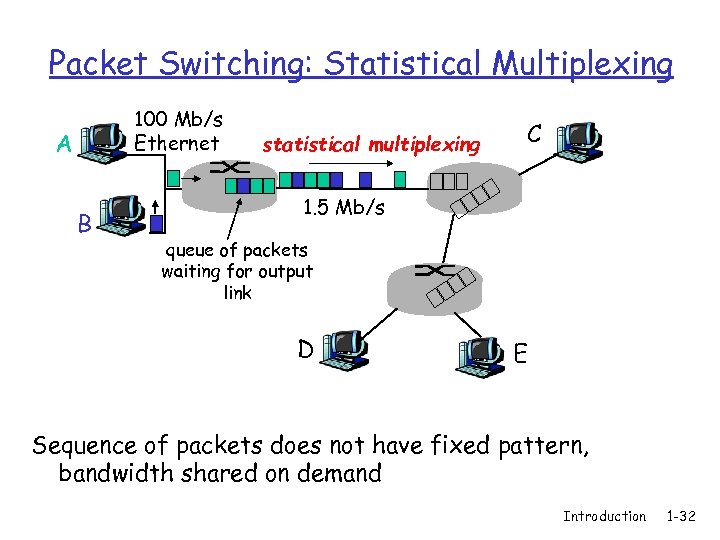

Packet Switching: Statistical Multiplexing 100 Mb/s Ethernet A B statistical multiplexing C 1. 5 Packet Switching: Statistical Multiplexing 100 Mb/s Ethernet A B statistical multiplexing C 1. 5 Mb/s queue of packets waiting for output link D E Sequence of packets does not have fixed pattern, bandwidth shared on demand Introduction 1 -32

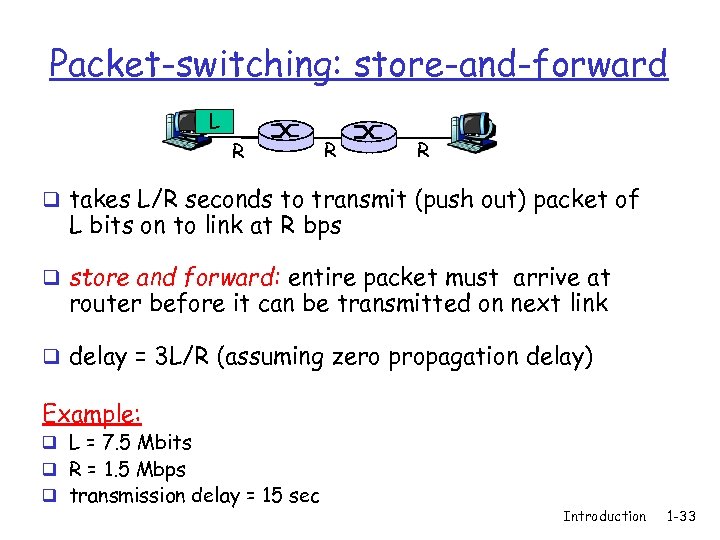

Packet-switching: store-and-forward L R R R q takes L/R seconds to transmit (push out) Packet-switching: store-and-forward L R R R q takes L/R seconds to transmit (push out) packet of L bits on to link at R bps q store and forward: entire packet must arrive at router before it can be transmitted on next link q delay = 3 L/R (assuming zero propagation delay) Example: q L = 7. 5 Mbits q R = 1. 5 Mbps q transmission delay = 15 sec Introduction 1 -33

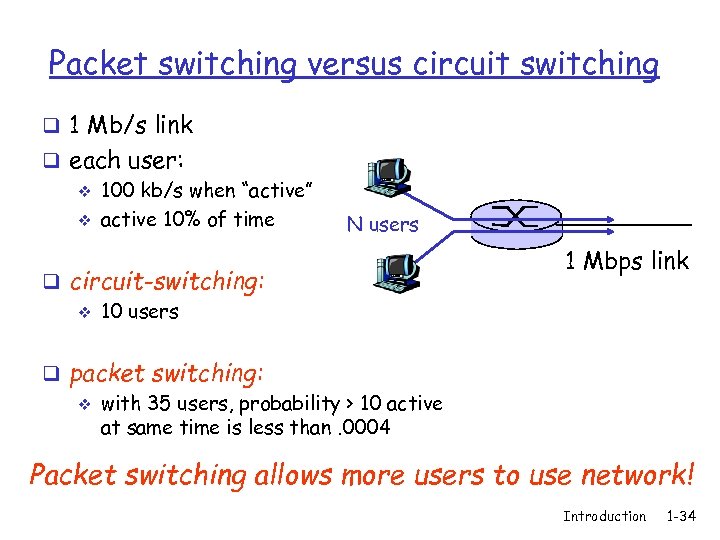

Packet switching versus circuit switching q 1 Mb/s link q each user: v 100 Packet switching versus circuit switching q 1 Mb/s link q each user: v 100 kb/s when “active” v active 10% of time N users q circuit-switching: v 10 users 1 Mbps link q packet switching: v with 35 users, probability > 10 active at same time is less than. 0004 Packet switching allows more users to use network! Introduction 1 -34

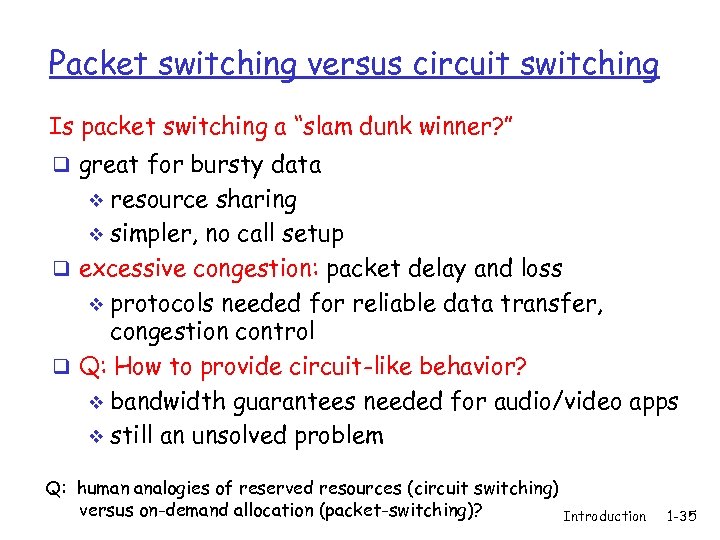

Packet switching versus circuit switching Is packet switching a “slam dunk winner? ” q Packet switching versus circuit switching Is packet switching a “slam dunk winner? ” q great for bursty data resource sharing v simpler, no call setup q excessive congestion: packet delay and loss v protocols needed for reliable data transfer, congestion control q Q: How to provide circuit-like behavior? v bandwidth guarantees needed for audio/video apps v still an unsolved problem v Q: human analogies of reserved resources (circuit switching) versus on-demand allocation (packet-switching)? Introduction 1 -35

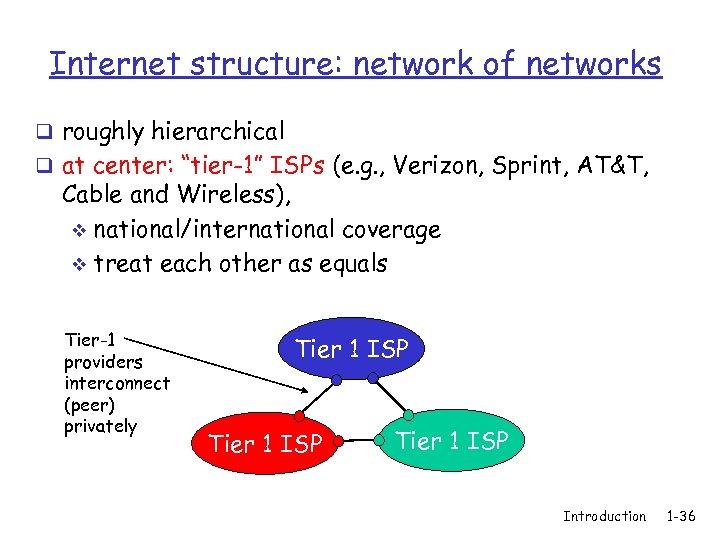

Internet structure: network of networks q roughly hierarchical q at center: “tier-1” ISPs (e. Internet structure: network of networks q roughly hierarchical q at center: “tier-1” ISPs (e. g. , Verizon, Sprint, AT&T, Cable and Wireless), v national/international coverage v treat each other as equals Tier-1 providers interconnect (peer) privately Tier 1 ISP Introduction 1 -36

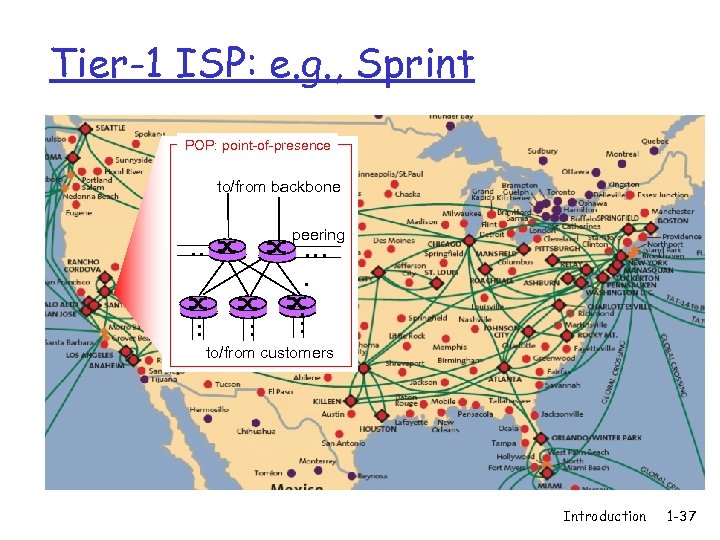

Tier-1 ISP: e. g. , Sprint POP: point-of-presence to/from backbone peering … … … Tier-1 ISP: e. g. , Sprint POP: point-of-presence to/from backbone peering … … … to/from customers Introduction 1 -37

Internet structure: network of networks q “Tier-2” ISPs: smaller (often regional) ISPs v Connect Internet structure: network of networks q “Tier-2” ISPs: smaller (often regional) ISPs v Connect to one or more tier-1 ISPs, possibly other tier-2 ISPs Tier-2 ISP pays tier-1 ISP for connectivity to rest of Internet tier-2 ISP is customer of tier-1 provider Tier-2 ISP Tier 1 ISP Tier-2 ISPs also peer privately with each other Tier-2 ISP Introduction 1 -38

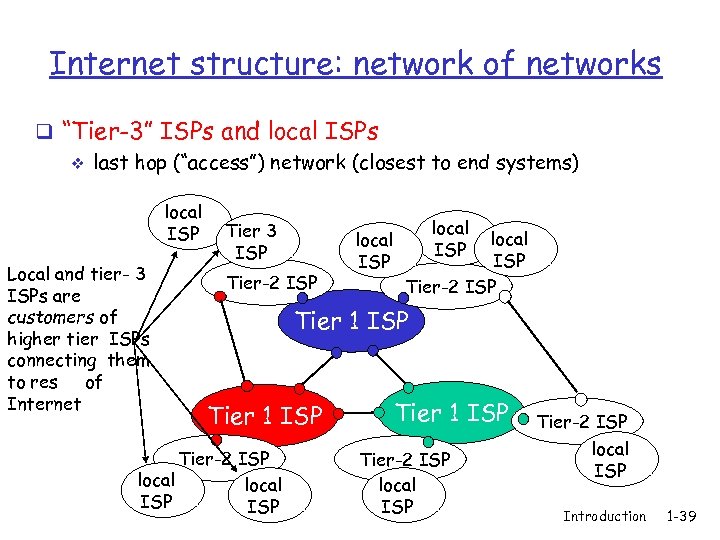

Internet structure: network of networks q “Tier-3” ISPs and local ISPs v last hop Internet structure: network of networks q “Tier-3” ISPs and local ISPs v last hop (“access”) network (closest to end systems) local ISP Local and tier- 3 ISPs are customers of higher tier ISPs connecting them to res of Internet Tier 3 ISP Tier-2 ISP local ISP Tier-2 ISP Tier 1 ISP Tier-2 ISP local ISP Introduction 1 -39

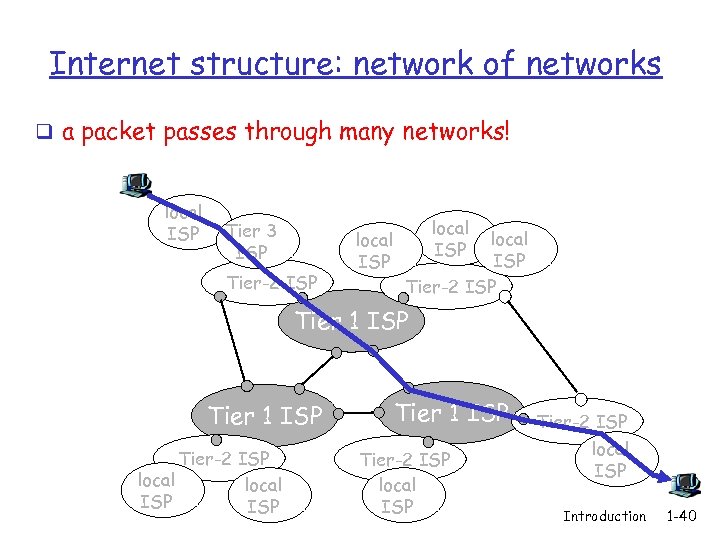

Internet structure: network of networks q a packet passes through many networks! local ISP Internet structure: network of networks q a packet passes through many networks! local ISP Tier 3 ISP Tier-2 ISP local ISP Tier-2 ISP Tier 1 ISP Tier-2 ISP local ISP Introduction 1 -40

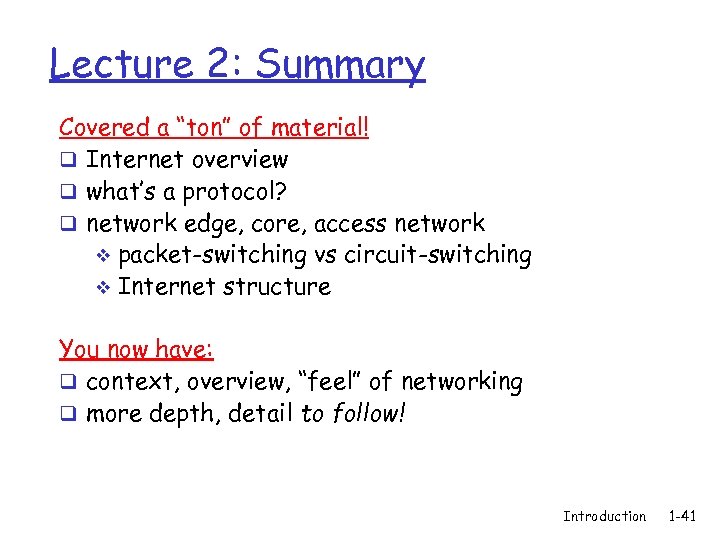

Lecture 2: Summary Covered a “ton” of material! q Internet overview q what’s a Lecture 2: Summary Covered a “ton” of material! q Internet overview q what’s a protocol? q network edge, core, access network v packet-switching vs circuit-switching v Internet structure You now have: q context, overview, “feel” of networking q more depth, detail to follow! Introduction 1 -41
