Cosc 4750 Electronic Mail

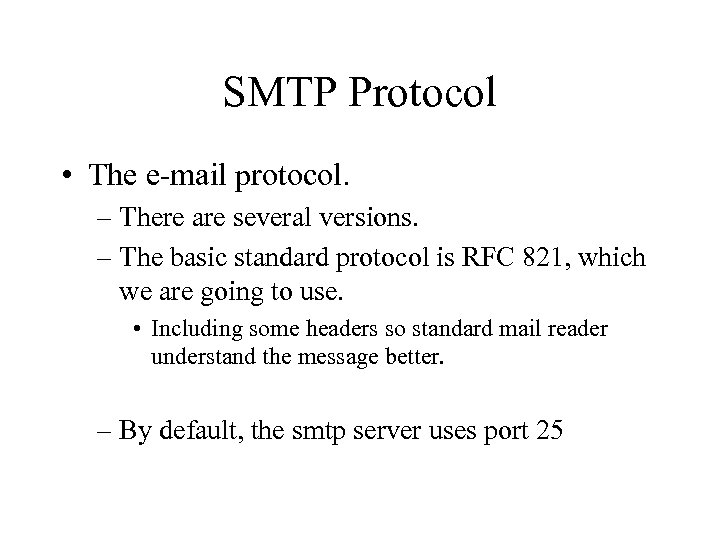

SMTP Protocol • The e-mail protocol. – There are several versions. – The basic standard protocol is RFC 821, which we are going to use. • Including some headers so standard mail reader understand the message better. – By default, the smtp server uses port 25

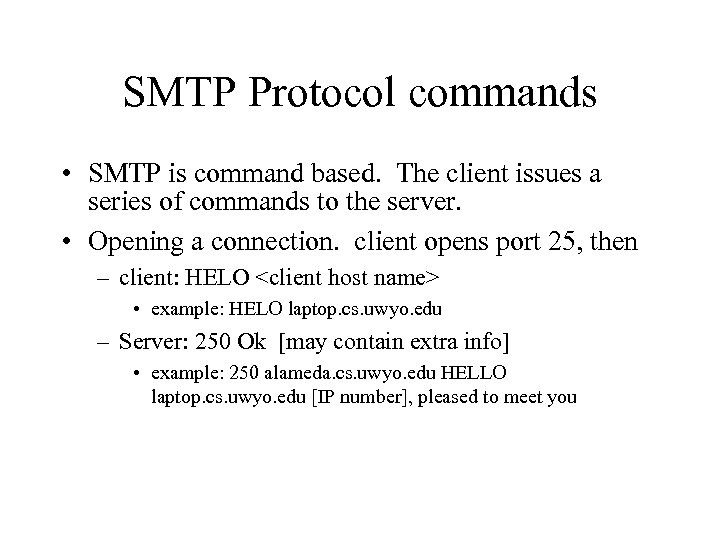

SMTP Protocol commands • SMTP is command based. The client issues a series of commands to the server. • Opening a connection. client opens port 25, then – client: HELO

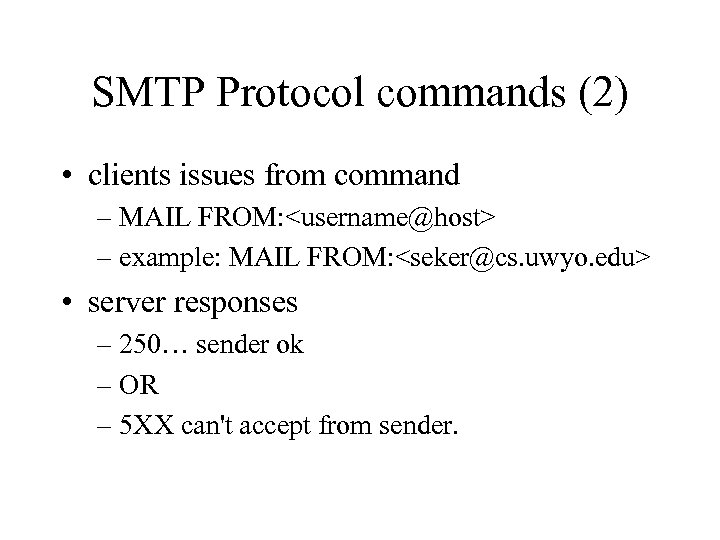

SMTP Protocol commands (2) • clients issues from command – MAIL FROM:

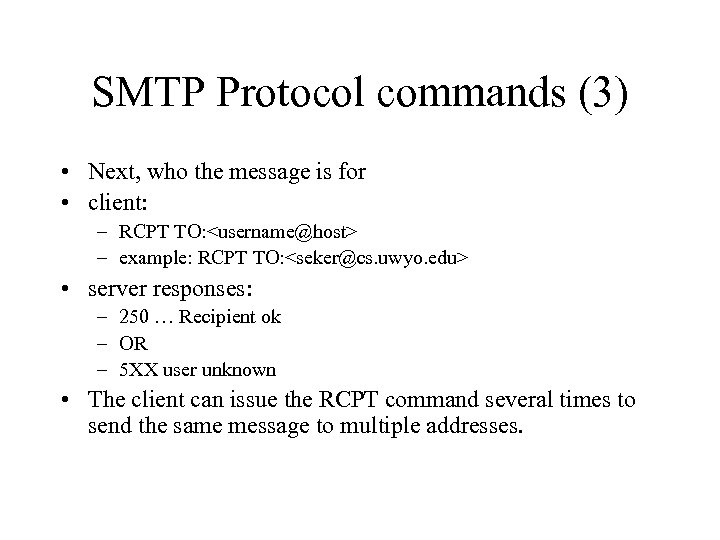

SMTP Protocol commands (3) • Next, who the message is for • client: – RCPT TO:

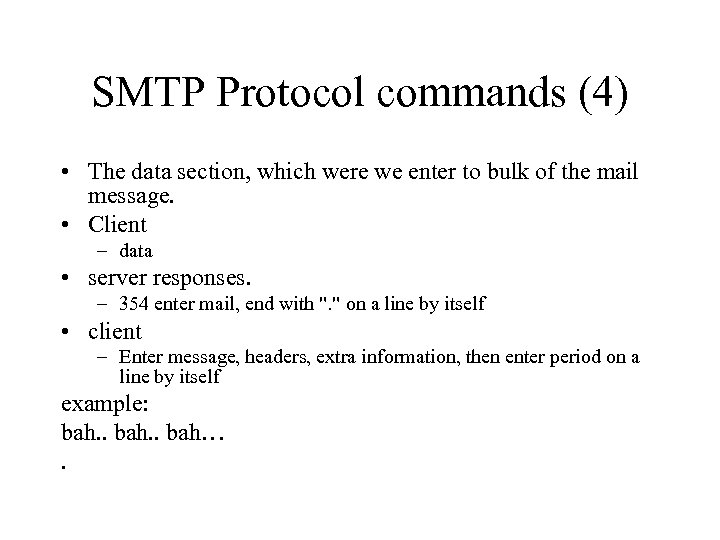

SMTP Protocol commands (4) • The data section, which were we enter to bulk of the mail message. • Client – data • server responses. – 354 enter mail, end with ". " on a line by itself • client – Enter message, headers, extra information, then enter period on a line by itself example: bah. . bah….

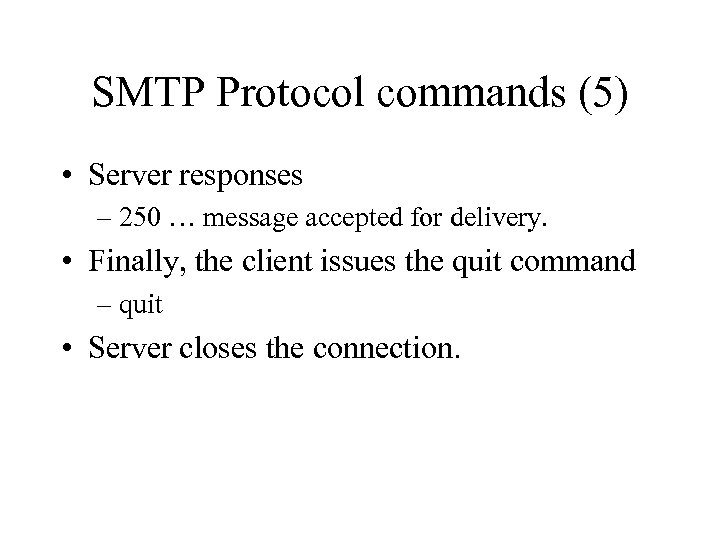

SMTP Protocol commands (5) • Server responses – 250 … message accepted for delivery. • Finally, the client issues the quit command – quit • Server closes the connection.

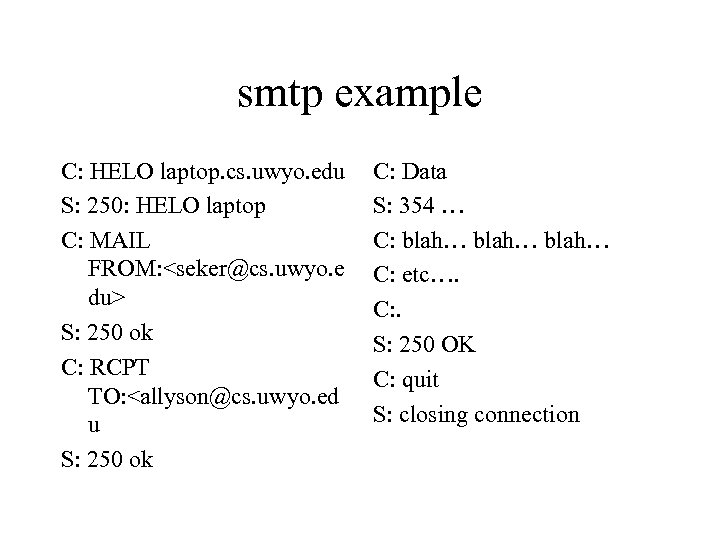

smtp example C: HELO laptop. cs. uwyo. edu S: 250: HELO laptop C: MAIL FROM:

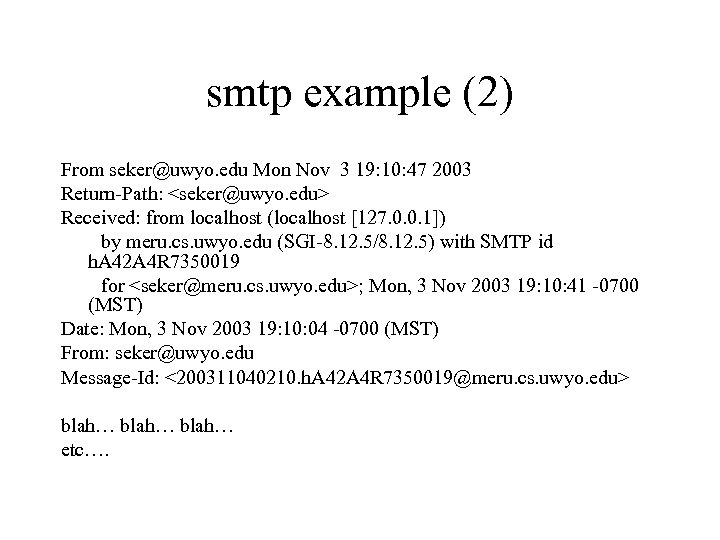

smtp example (2) From seker@uwyo. edu Mon Nov 3 19: 10: 47 2003 Return-Path:

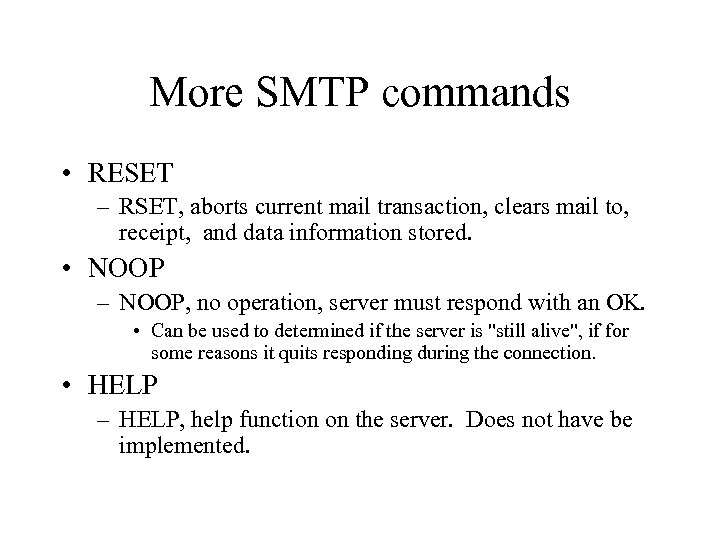

More SMTP commands • RESET – RSET, aborts current mail transaction, clears mail to, receipt, and data information stored. • NOOP – NOOP, no operation, server must respond with an OK. • Can be used to determined if the server is "still alive", if for some reasons it quits responding during the connection. • HELP – HELP, help function on the server. Does not have be implemented.

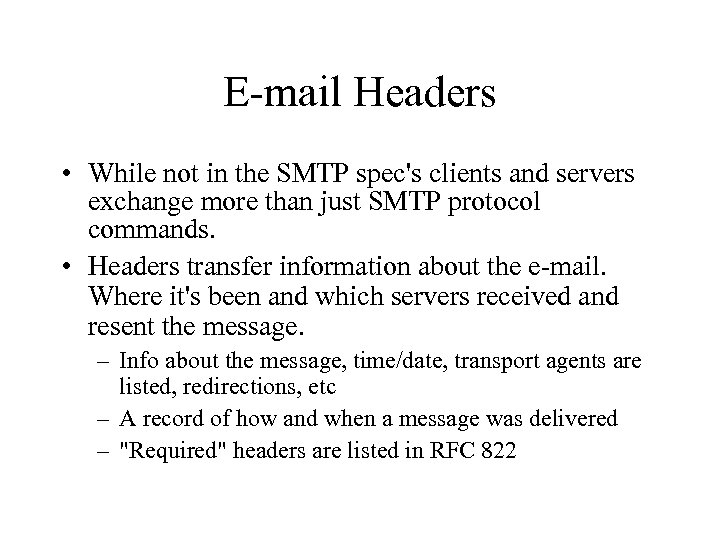

E-mail Headers • While not in the SMTP spec's clients and servers exchange more than just SMTP protocol commands. • Headers transfer information about the e-mail. Where it's been and which servers received and resent the message. – Info about the message, time/date, transport agents are listed, redirections, etc – A record of how and when a message was delivered – "Required" headers are listed in RFC 822

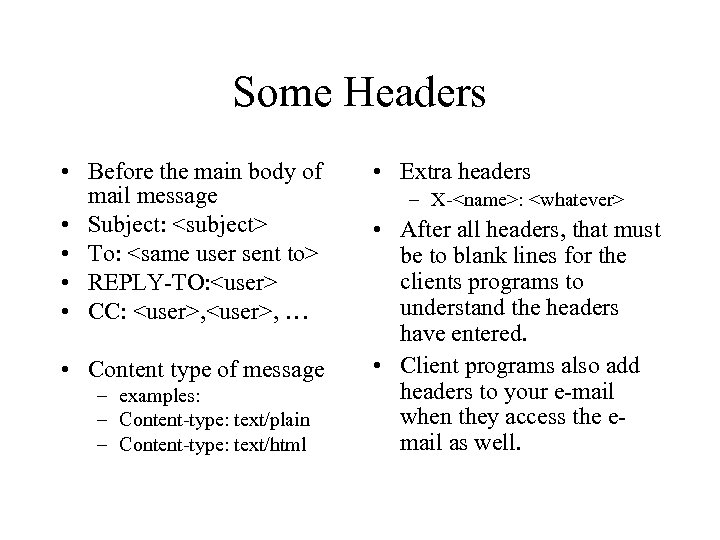

Some Headers • Before the main body of mail message • Subject:

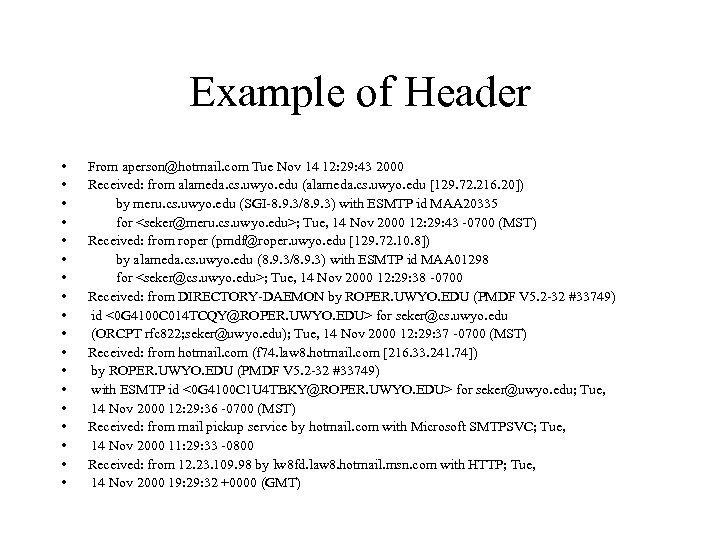

Example of Header • • • • • From aperson@hotmail. com Tue Nov 14 12: 29: 43 2000 Received: from alameda. cs. uwyo. edu (alameda. cs. uwyo. edu [129. 72. 216. 20]) by meru. cs. uwyo. edu (SGI-8. 9. 3/8. 9. 3) with ESMTP id MAA 20335 for

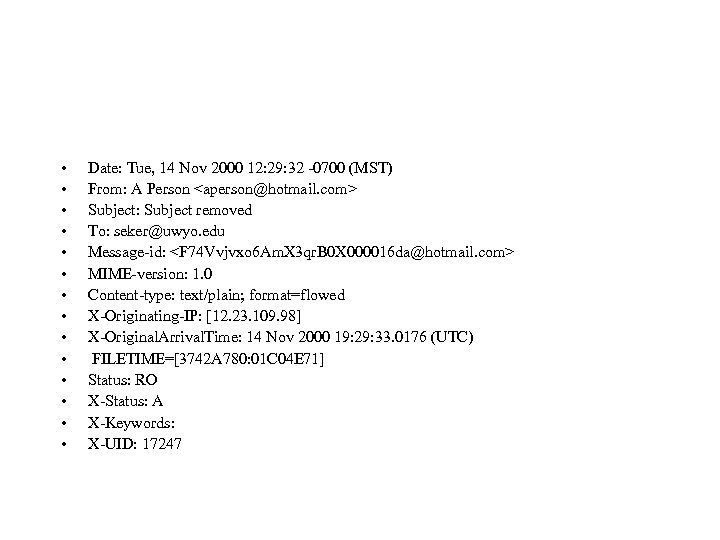

• • • • Date: Tue, 14 Nov 2000 12: 29: 32 -0700 (MST) From: A Person

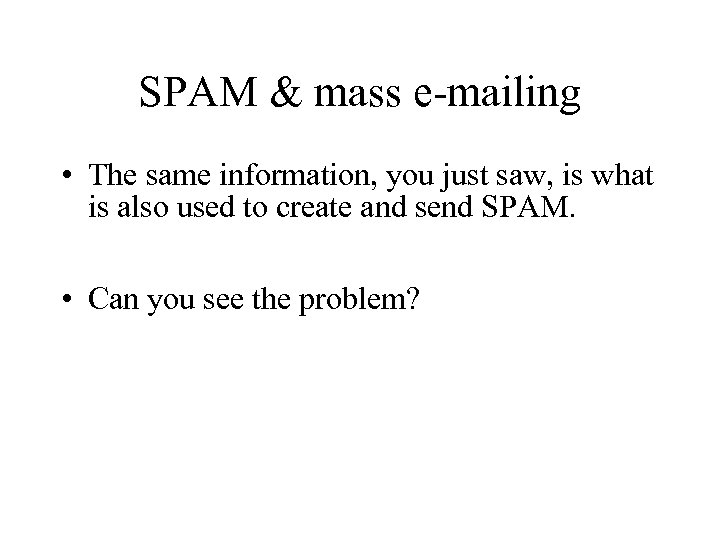

SPAM & mass e-mailing • The same information, you just saw, is what is also used to create and send SPAM. • Can you see the problem?

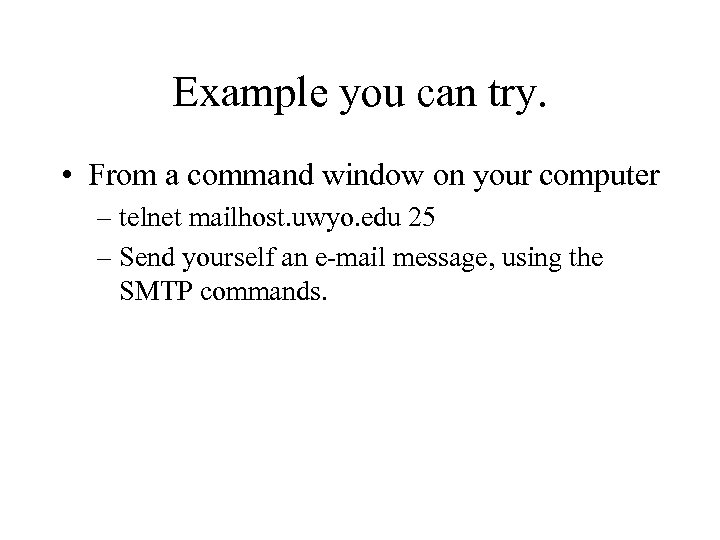

Example you can try. • From a command window on your computer – telnet mailhost. uwyo. edu 25 – Send yourself an e-mail message, using the SMTP commands.

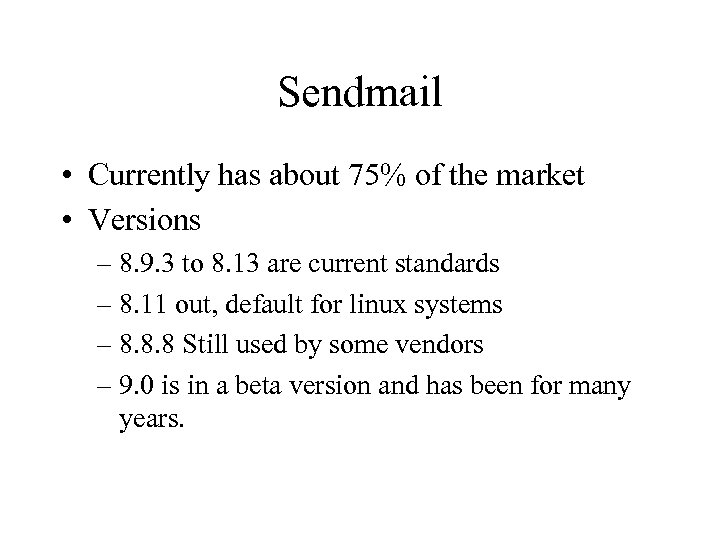

Sendmail • Currently has about 75% of the market • Versions – 8. 9. 3 to 8. 13 are current standards – 8. 11 out, default for linux systems – 8. 8. 8 Still used by some vendors – 9. 0 is in a beta version and has been for many years.

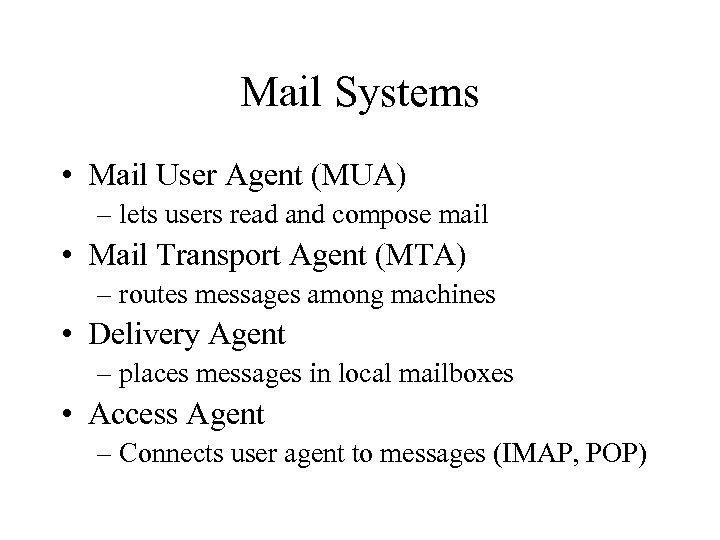

Mail Systems • Mail User Agent (MUA) – lets users read and compose mail • Mail Transport Agent (MTA) – routes messages among machines • Delivery Agent – places messages in local mailboxes • Access Agent – Connects user agent to messages (IMAP, POP)

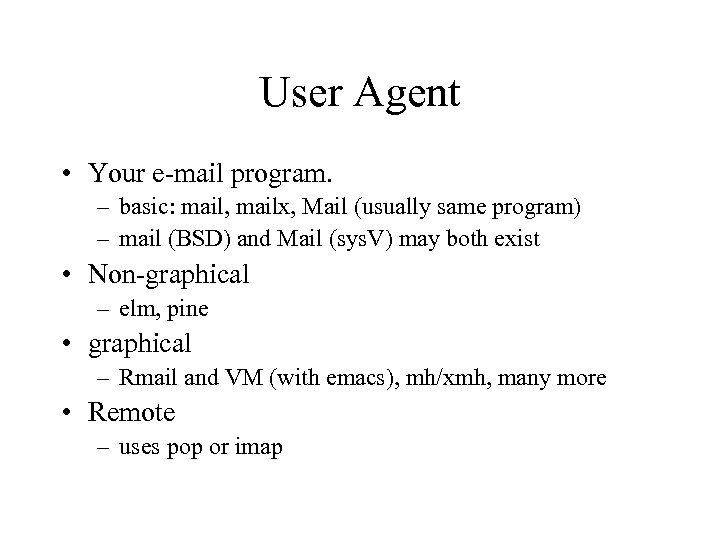

User Agent • Your e-mail program. – basic: mail, mailx, Mail (usually same program) – mail (BSD) and Mail (sys. V) may both exist • Non-graphical – elm, pine • graphical – Rmail and VM (with emacs), mh/xmh, many more • Remote – uses pop or imap

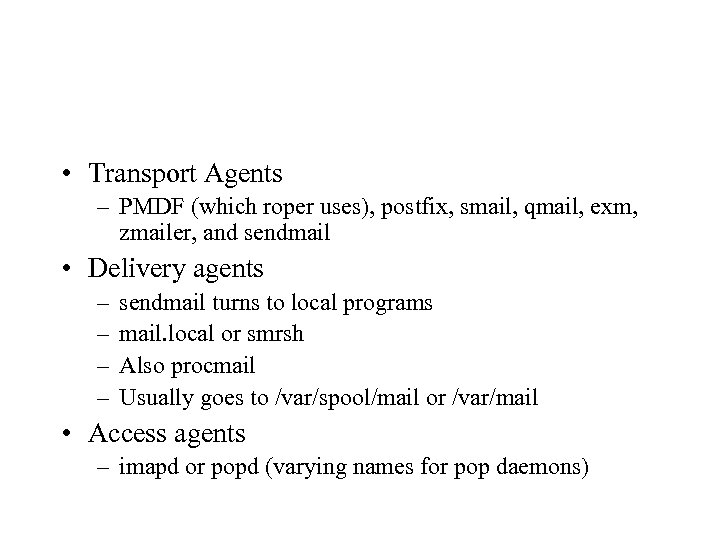

• Transport Agents – PMDF (which roper uses), postfix, smail, qmail, exm, zmailer, and sendmail • Delivery agents – – sendmail turns to local programs mail. local or smrsh Also procmail Usually goes to /var/spool/mail or /var/mail • Access agents – imapd or popd (varying names for pop daemons)

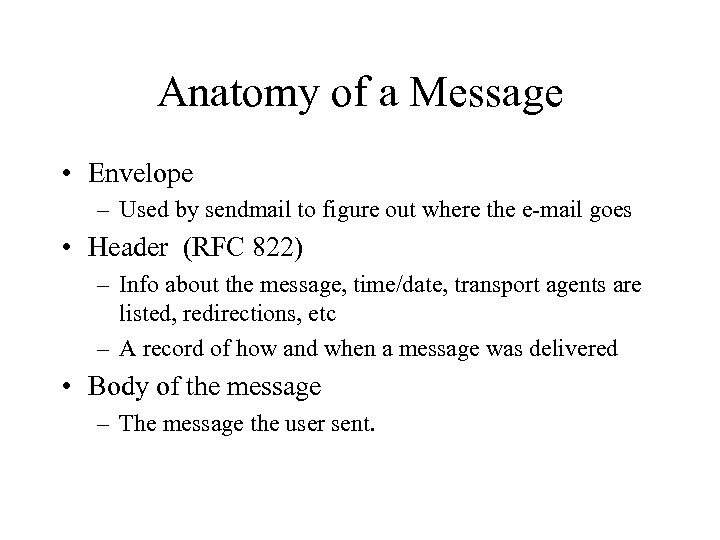

Anatomy of a Message • Envelope – Used by sendmail to figure out where the e-mail goes • Header (RFC 822) – Info about the message, time/date, transport agents are listed, redirections, etc – A record of how and when a message was delivered • Body of the message – The message the user sent.

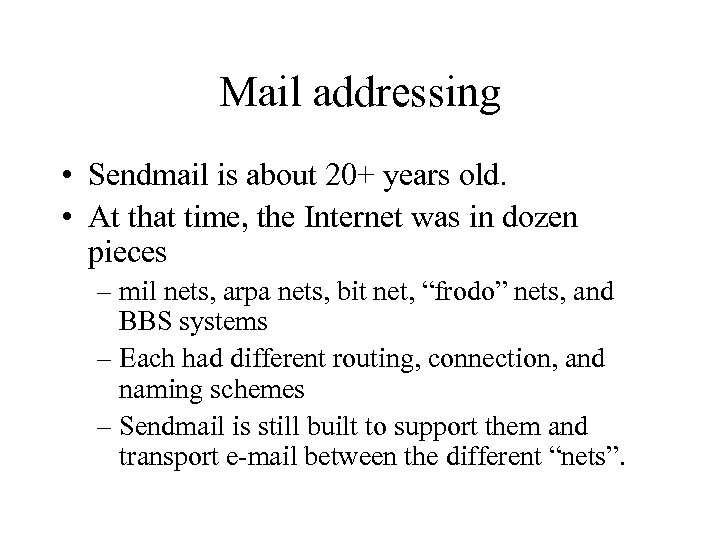

Mail addressing • Sendmail is about 20+ years old. • At that time, the Internet was in dozen pieces – mil nets, arpa nets, bit net, “frodo” nets, and BBS systems – Each had different routing, connection, and naming schemes – Sendmail is still built to support them and transport e-mail between the different “nets”.

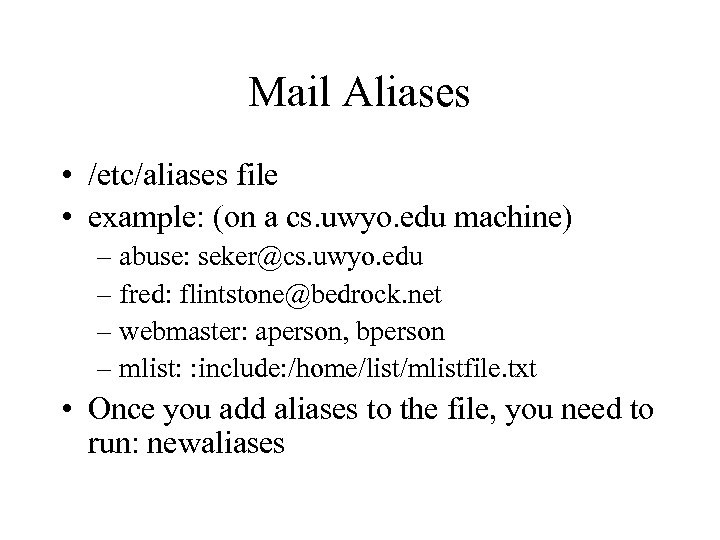

Mail Aliases • /etc/aliases file • example: (on a cs. uwyo. edu machine) – abuse: seker@cs. uwyo. edu – fred: flintstone@bedrock. net – webmaster: aperson, bperson – mlist: : include: /home/list/mlistfile. txt • Once you add aliases to the file, you need to run: newaliases

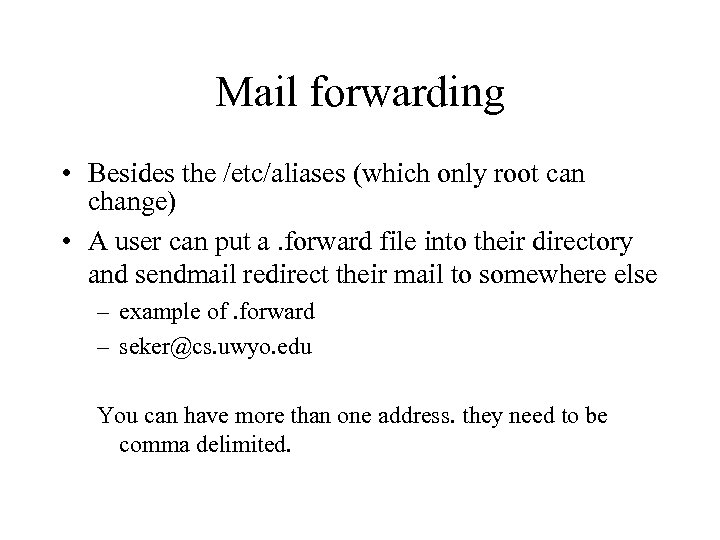

Mail forwarding • Besides the /etc/aliases (which only root can change) • A user can put a. forward file into their directory and sendmail redirect their mail to somewhere else – example of. forward – seker@cs. uwyo. edu You can have more than one address. they need to be comma delimited.

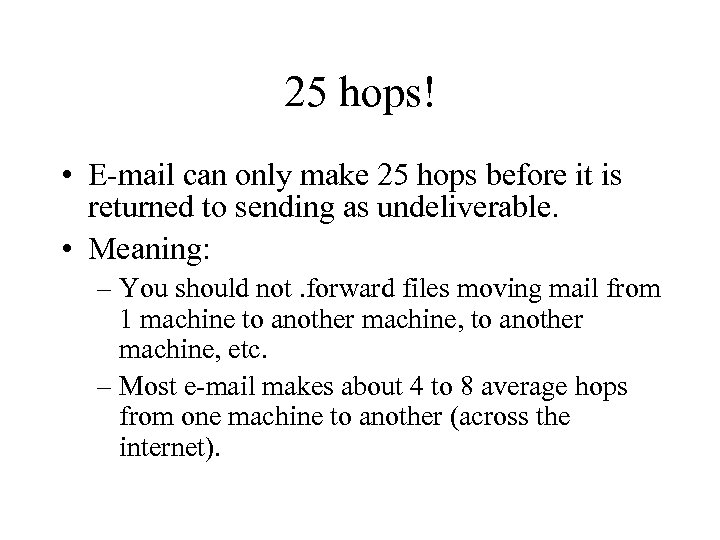

25 hops! • E-mail can only make 25 hops before it is returned to sending as undeliverable. • Meaning: – You should not. forward files moving mail from 1 machine to another machine, etc. – Most e-mail makes about 4 to 8 average hops from one machine to another (across the internet).
List servers • Sendmail can function as a list server with the include command, but you should use another product, like – mailman, majordomo, listproc, smartlist, listserv lite.

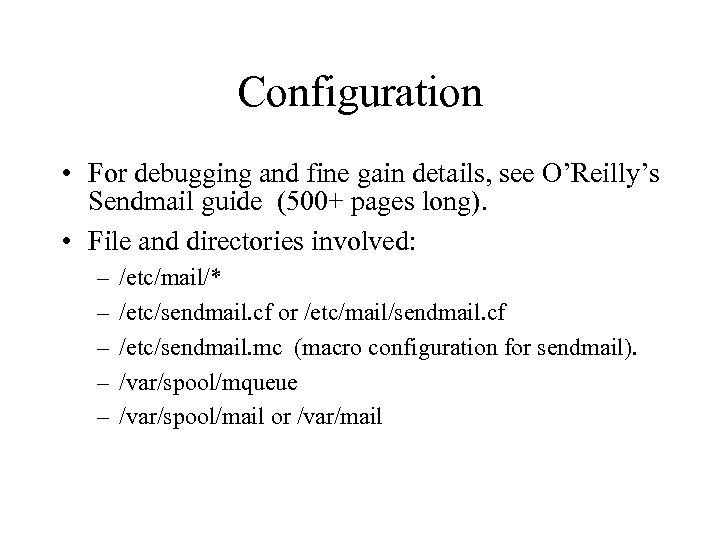

Configuration • For debugging and fine gain details, see O’Reilly’s Sendmail guide (500+ pages long). • File and directories involved: – – – /etc/mail/* /etc/sendmail. cf or /etc/mail/sendmail. cf /etc/sendmail. mc (macro configuration for sendmail). /var/spool/mqueue /var/spool/mail or /var/mail

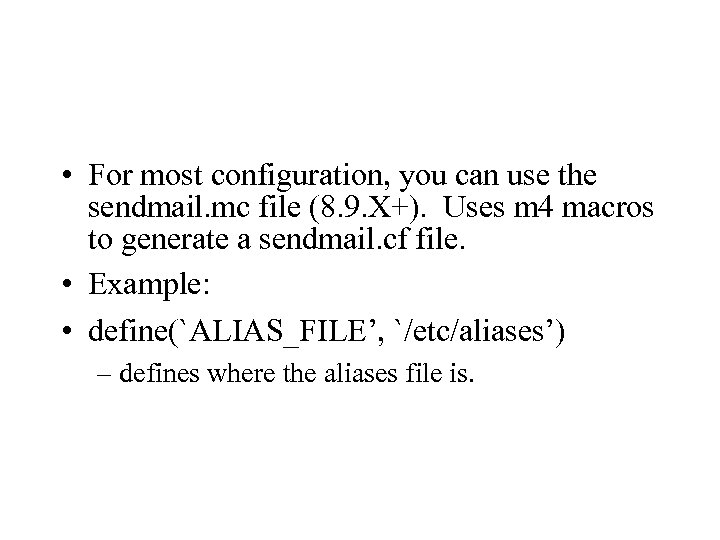

• For most configuration, you can use the sendmail. mc file (8. 9. X+). Uses m 4 macros to generate a sendmail. cf file. • Example: • define(`ALIAS_FILE’, `/etc/aliases’) – defines where the aliases file is.

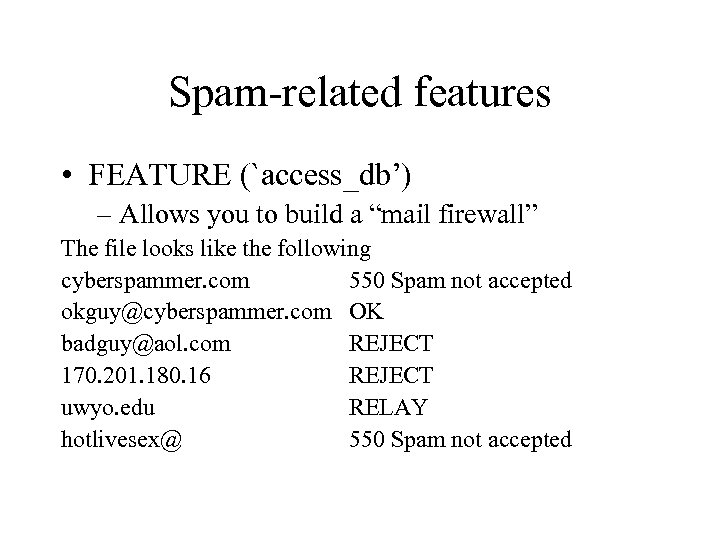

Spam-related features • FEATURE (`access_db’) – Allows you to build a “mail firewall” The file looks like the following cyberspammer. com 550 Spam not accepted okguy@cyberspammer. com OK badguy@aol. com REJECT 170. 201. 180. 16 REJECT uwyo. edu RELAY hotlivesex@ 550 Spam not accepted

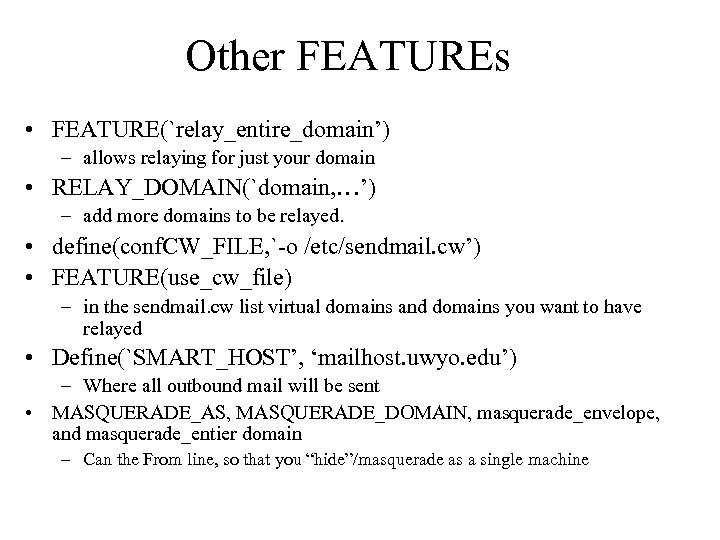

Other FEATUREs • FEATURE(`relay_entire_domain’) – allows relaying for just your domain • RELAY_DOMAIN(`domain, …’) – add more domains to be relayed. • define(conf. CW_FILE, `-o /etc/sendmail. cw’) • FEATURE(use_cw_file) – in the sendmail. cw list virtual domains and domains you want to have relayed • Define(`SMART_HOST’, ‘mailhost. uwyo. edu’) – Where all outbound mail will be sent • MASQUERADE_AS, MASQUERADE_DOMAIN, masquerade_envelope, and masquerade_entier domain – Can the From line, so that you “hide”/masquerade as a single machine

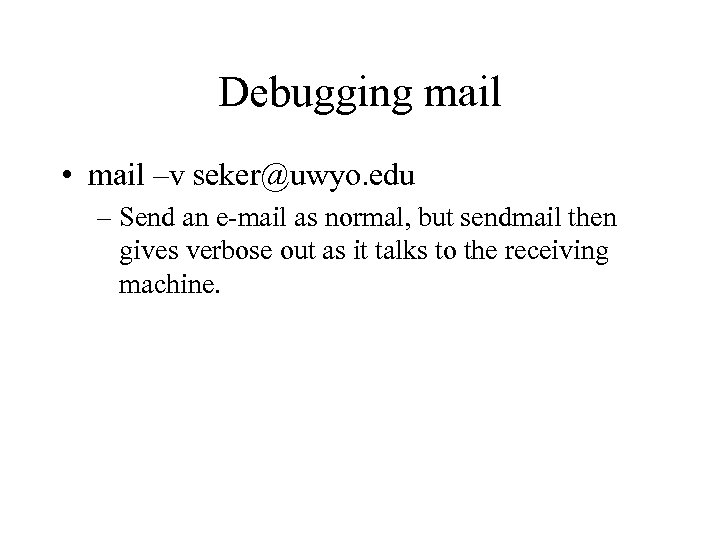

Debugging mail • mail –v seker@uwyo. edu – Send an e-mail as normal, but sendmail then gives verbose out as it talks to the receiving machine.

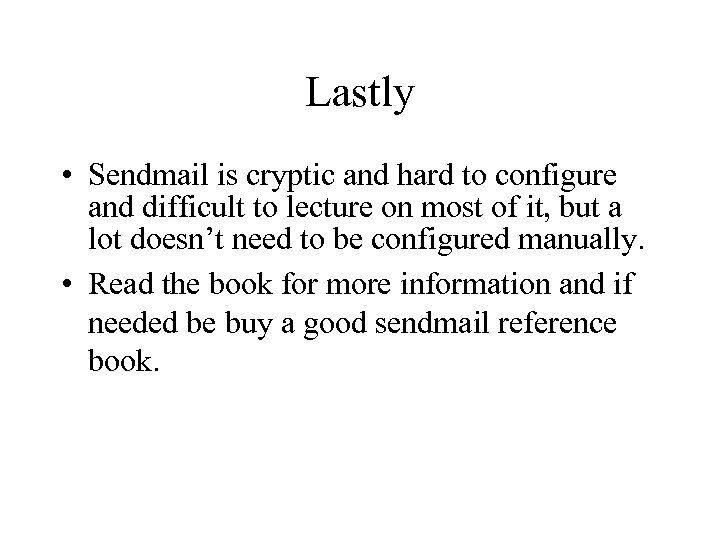

Lastly • Sendmail is cryptic and hard to configure and difficult to lecture on most of it, but a lot doesn’t need to be configured manually. • Read the book for more information and if needed be buy a good sendmail reference book.

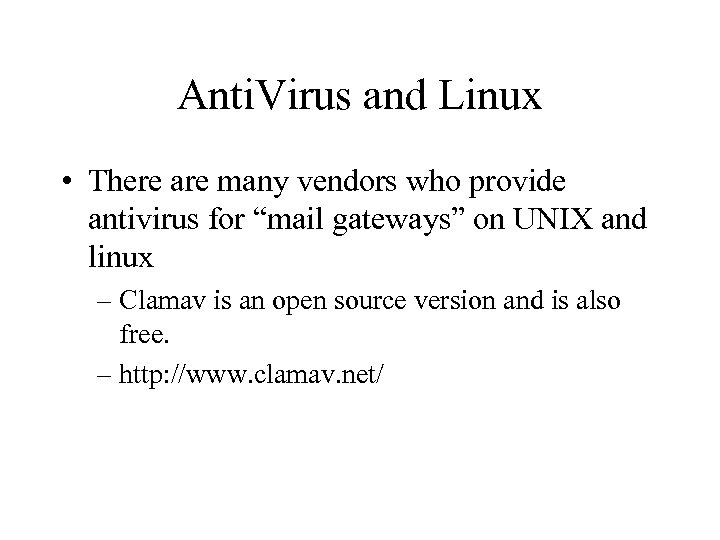

Anti. Virus and Linux • There are many vendors who provide antivirus for “mail gateways” on UNIX and linux – Clamav is an open source version and is also free. – http: //www. clamav. net/

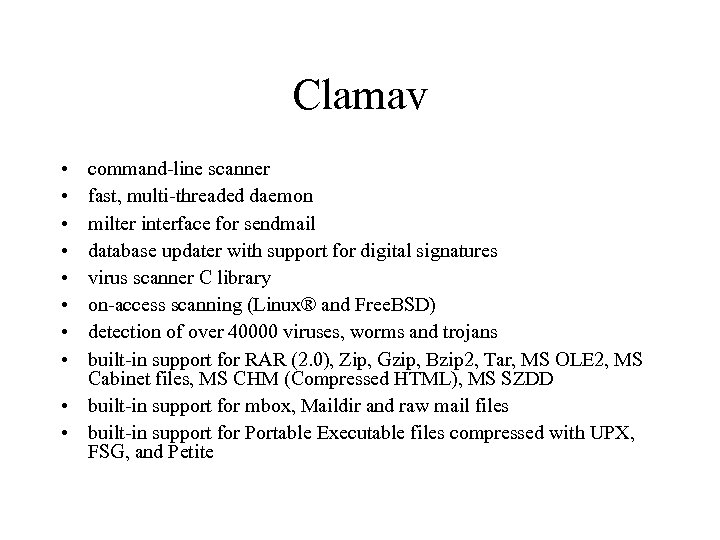

Clamav • • command-line scanner fast, multi-threaded daemon milter interface for sendmail database updater with support for digital signatures virus scanner C library on-access scanning (Linux® and Free. BSD) detection of over 40000 viruses, worms and trojans built-in support for RAR (2. 0), Zip, Gzip, Bzip 2, Tar, MS OLE 2, MS Cabinet files, MS CHM (Compressed HTML), MS SZDD • built-in support for mbox, Maildir and raw mail files • built-in support for Portable Executable files compressed with UPX, FSG, and Petite

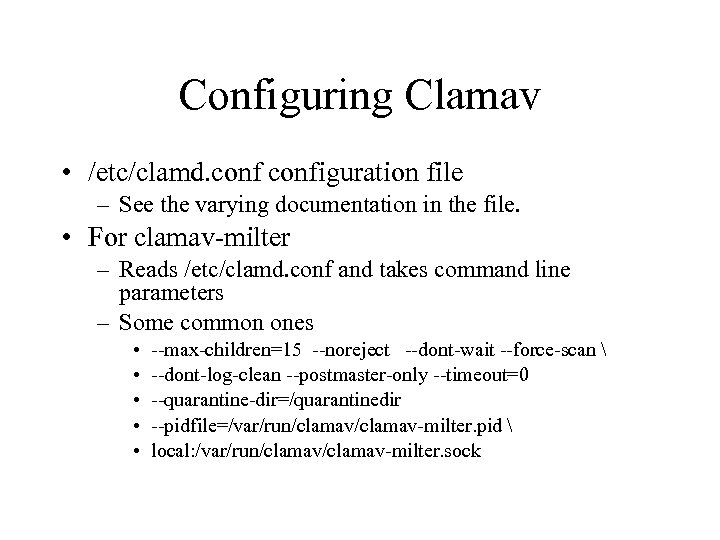

Configuring Clamav • /etc/clamd. configuration file – See the varying documentation in the file. • For clamav-milter – Reads /etc/clamd. conf and takes command line parameters – Some common ones • • • --max-children=15 --noreject --dont-wait --force-scan --dont-log-clean --postmaster-only --timeout=0 --quarantine-dir=/quarantinedir --pidfile=/var/run/clamav-milter. pid local: /var/run/clamav-milter. sock

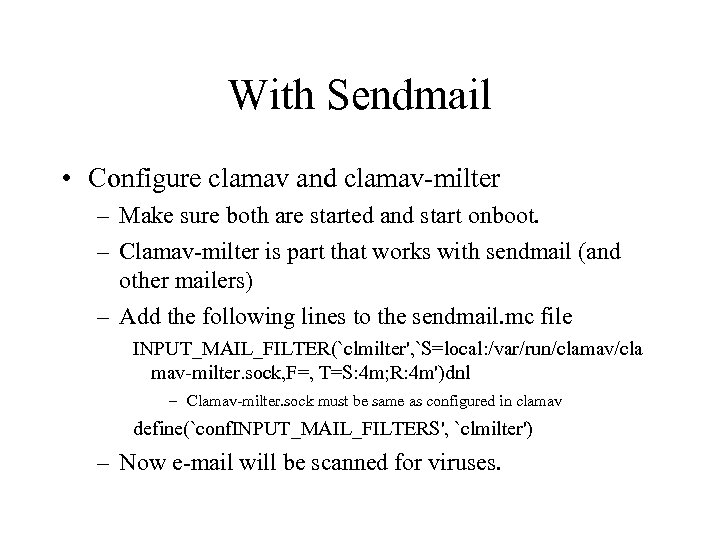

With Sendmail • Configure clamav and clamav-milter – Make sure both are started and start onboot. – Clamav-milter is part that works with sendmail (and other mailers) – Add the following lines to the sendmail. mc file INPUT_MAIL_FILTER(`clmilter', `S=local: /var/run/clamav/cla mav-milter. sock, F=, T=S: 4 m; R: 4 m')dnl – Clamav-milter. sock must be same as configured in clamav define(`conf. INPUT_MAIL_FILTERS', `clmilter') – Now e-mail will be scanned for viruses.

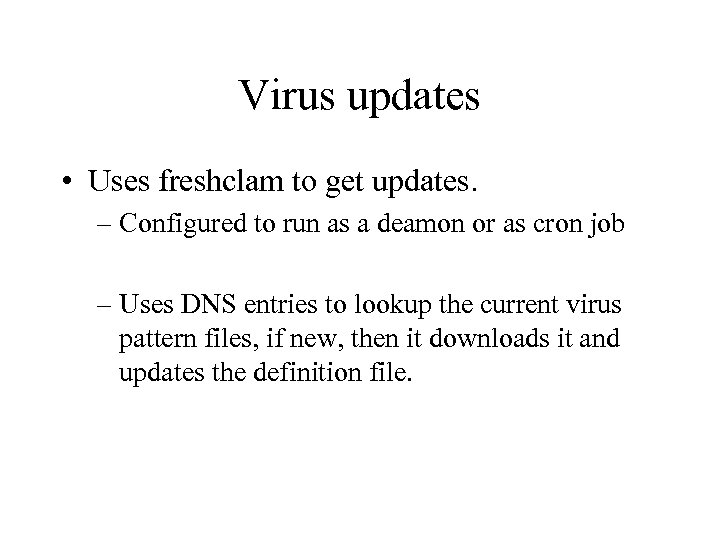

Virus updates • Uses freshclam to get updates. – Configured to run as a deamon or as cron job – Uses DNS entries to lookup the current virus pattern files, if new, then it downloads it and updates the definition file.

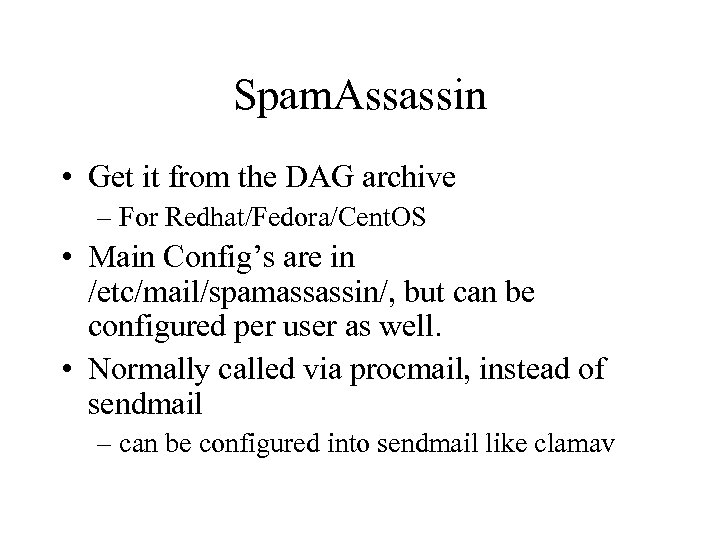

Spam. Assassin • Get it from the DAG archive – For Redhat/Fedora/Cent. OS • Main Config’s are in /etc/mail/spamassassin/, but can be configured per user as well. • Normally called via procmail, instead of sendmail – can be configured into sendmail like clamav

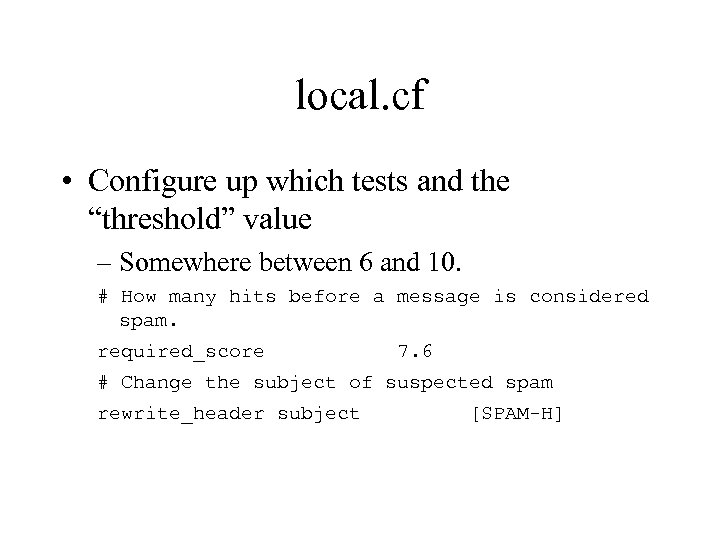

local. cf • Configure up which tests and the “threshold” value – Somewhere between 6 and 10. # How many hits before a message is considered spam. required_score 7. 6 # Change the subject of suspected spam rewrite_header subject [SPAM-H]

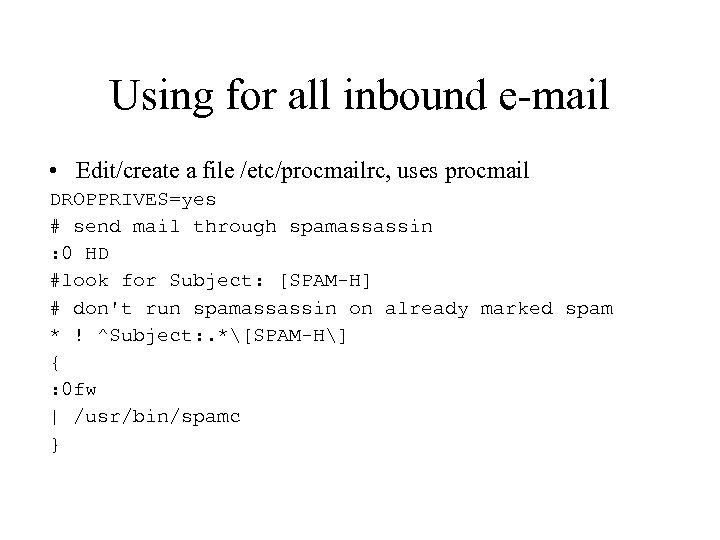

Using for all inbound e-mail • Edit/create a file /etc/procmailrc, uses procmail DROPPRIVES=yes # send mail through spamassassin : 0 HD #look for Subject: [SPAM-H] # don't run spamassassin on already marked spam * ! ^Subject: . *[SPAM-H] { : 0 fw | /usr/bin/spamc }

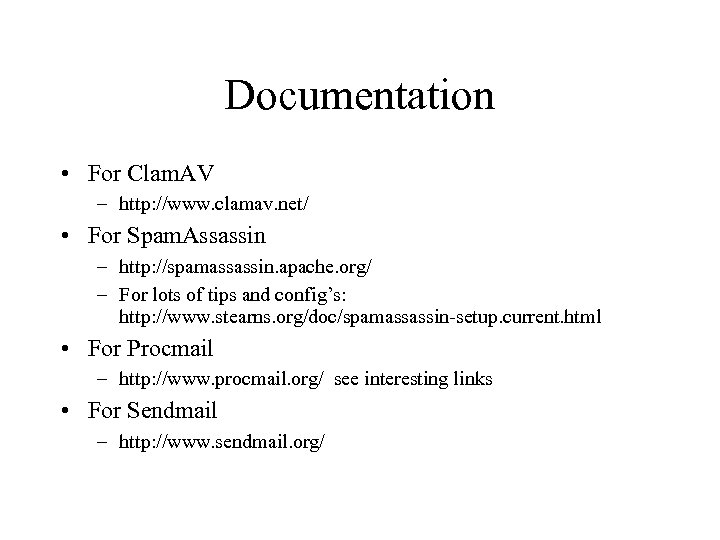

Documentation • For Clam. AV – http: //www. clamav. net/ • For Spam. Assassin – http: //spamassassin. apache. org/ – For lots of tips and config’s: http: //www. stearns. org/doc/spamassassin-setup. current. html • For Procmail – http: //www. procmail. org/ see interesting links • For Sendmail – http: //www. sendmail. org/
