CORAL Zephyr GSM/CDMA GATEWAY

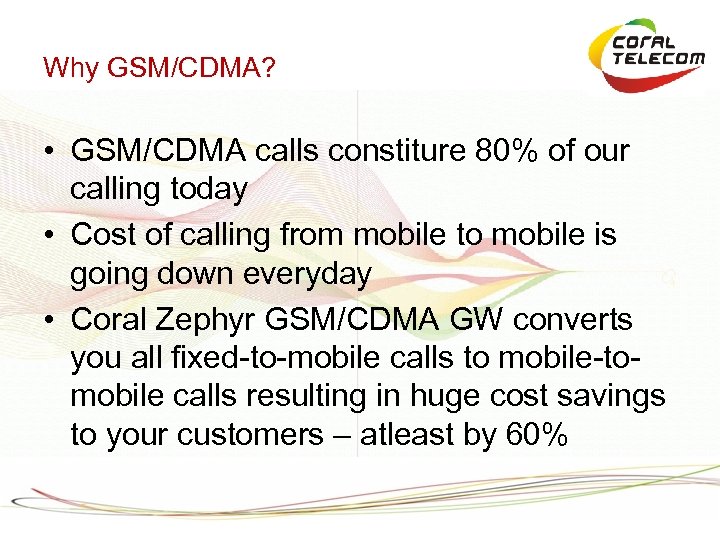

Why GSM/CDMA? • GSM/CDMA calls constiture 80% of our calling today • Cost of calling from mobile to mobile is going down everyday • Coral Zephyr GSM/CDMA GW converts you all fixed-to-mobile calls to mobile-tomobile calls resulting in huge cost savings to your customers – atleast by 60%

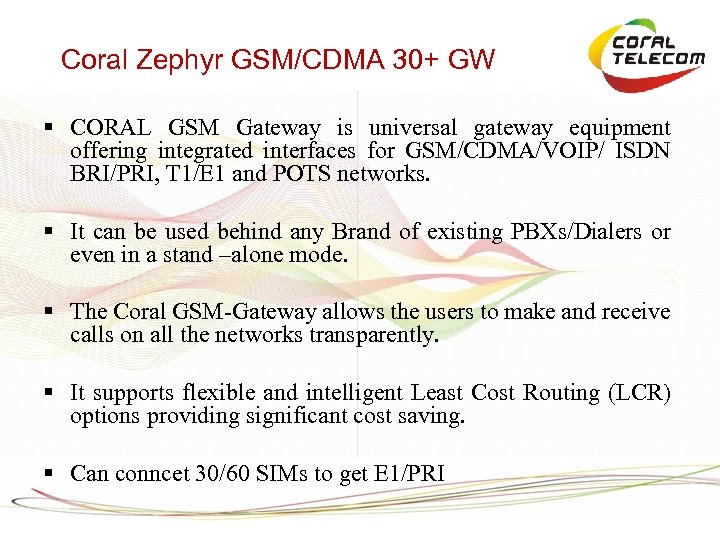

Coral Zephyr GSM/CDMA 30+ GW § CORAL GSM Gateway is universal gateway equipment offering integrated interfaces for GSM/CDMA/VOIP/ ISDN BRI/PRI, T 1/E 1 and POTS networks. § It can be used behind any Brand of existing PBXs/Dialers or even in a stand –alone mode. § The Coral GSM-Gateway allows the users to make and receive calls on all the networks transparently. § It supports flexible and intelligent Least Cost Routing (LCR) options providing significant cost saving. § Can conncet 30/60 SIMs to get E 1/PRI

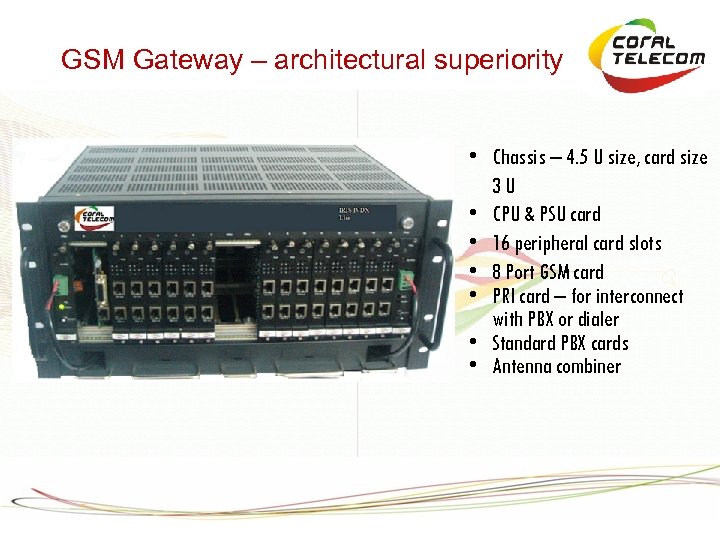

GSM Gateway – architectural superiority • Chassis – 4. 5 U size, card size 3 U • CPU & PSU card • 16 peripheral card slots • 8 Port GSM card • PRI card – for interconnect with PBX or dialer • Standard PBX cards • Antenna combiner

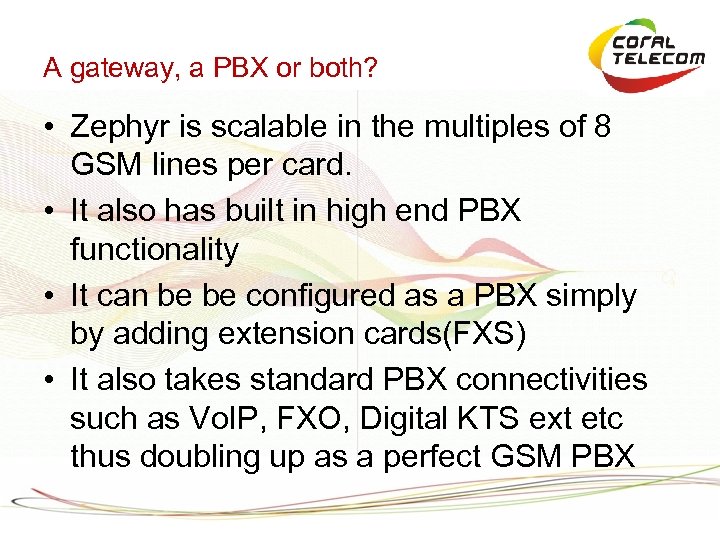

A gateway, a PBX or both? • Zephyr is scalable in the multiples of 8 GSM lines per card. • It also has built in high end PBX functionality • It can be be configured as a PBX simply by adding extension cards(FXS) • It also takes standard PBX connectivities such as Vo. IP, FXO, Digital KTS ext etc thus doubling up as a perfect GSM PBX

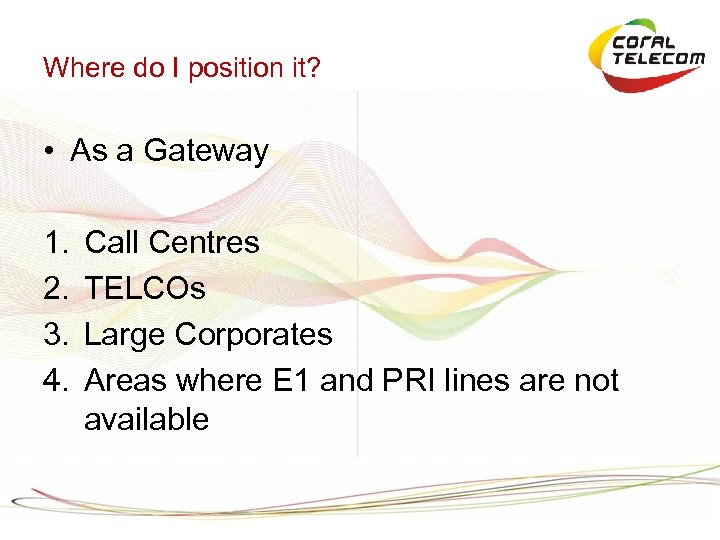

Where do I position it? • As a Gateway 1. 2. 3. 4. Call Centres TELCOs Large Corporates Areas where E 1 and PRI lines are not available

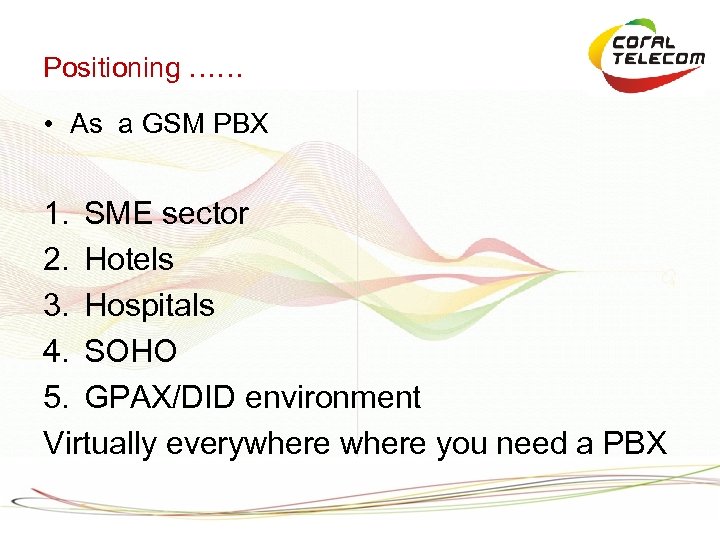

Positioning …… • As a GSM PBX 1. SME sector 2. Hotels 3. Hospitals 4. SOHO 5. GPAX/DID environment Virtually everywhere you need a PBX

Our USP’s Features Benefits Comapct Size 3 U with 19” rack mountable Saves space and is stacable on data racks Antenna combiners with pigtails Antennae can be position to get the best signal 30 SIMS with 1 PRI Space saver PBX functionality Doubles up as a GSM PBX for SME segment Call back feature Missed call land on the extension where dialled NMS functionality Multiple GWs can be programmed throgh single interface – less downtime Powerful LCR Cost Saving from mobile-to mobile calling

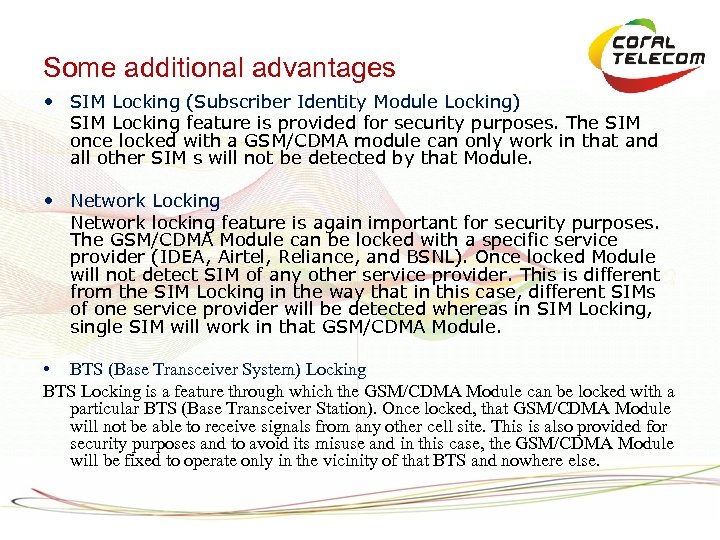

Some additional advantages • SIM Locking (Subscriber Identity Module Locking) SIM Locking feature is provided for security purposes. The SIM once locked with a GSM/CDMA module can only work in that and all other SIM s will not be detected by that Module. • Network Locking Network locking feature is again important for security purposes. The GSM/CDMA Module can be locked with a specific service provider (IDEA, Airtel, Reliance, and BSNL). Once locked Module will not detect SIM of any other service provider. This is different from the SIM Locking in the way that in this case, different SIMs of one service provider will be detected whereas in SIM Locking, single SIM will work in that GSM/CDMA Module. • BTS (Base Transceiver System) Locking BTS Locking is a feature through which the GSM/CDMA Module can be locked with a particular BTS (Base Transceiver Station). Once locked, that GSM/CDMA Module will not be able to receive signals from any other cell site. This is also provided for security purposes and to avoid its misuse and in this case, the GSM/CDMA Module will be fixed to operate only in the vicinity of that BTS and nowhere else.
