Developing and Deploying a PKI for Academia Robert Brentrup Sean Smith Educause Conference October 2002

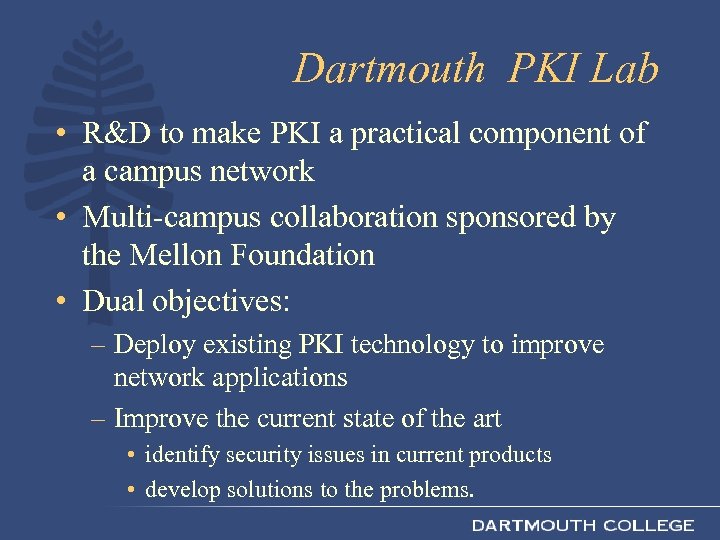

Dartmouth PKI Lab • R&D to make PKI a practical component of a campus network • Multi-campus collaboration sponsored by the Mellon Foundation • Dual objectives: – Deploy existing PKI technology to improve network applications – Improve the current state of the art • identify security issues in current products • develop solutions to the problems.

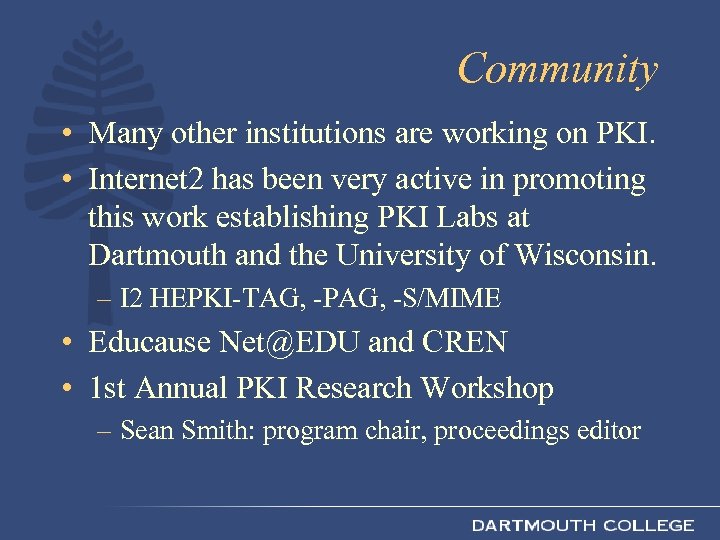

Community • Many other institutions are working on PKI. • Internet 2 has been very active in promoting this work establishing PKI Labs at Dartmouth and the University of Wisconsin. – I 2 HEPKI-TAG, -PAG, -S/MIME • Educause Net@EDU and CREN • 1 st Annual PKI Research Workshop – Sean Smith: program chair, proceedings editor
What is PKI? • PKI is Public Key Infrastructure • A pair of keys is used, one to encrypt, the other to decrypt
Public and Private Keys • You publish the "public" key, You keep the "private" key a secret • You don't need to exchange a secret "key" by some other channel • Invented in 1976 by Whit Diffie and Martin Hellman • Commercialized by RSA Security
Basic applications of PKI • Authentication and Authorization of Web users and servers – It is the basis for the SSL protocol used to secure web connections • • Secure e-mail (signed and encrypted) Electronic document signatures Network link data protection (VPN, wireless) Signing Program Code

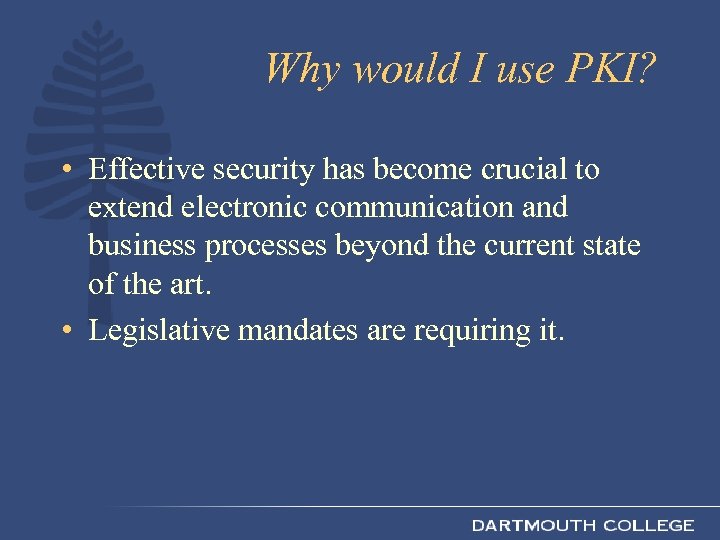

Why would I use PKI? • Effective security has become crucial to extend electronic communication and business processes beyond the current state of the art. • Legislative mandates are requiring it.

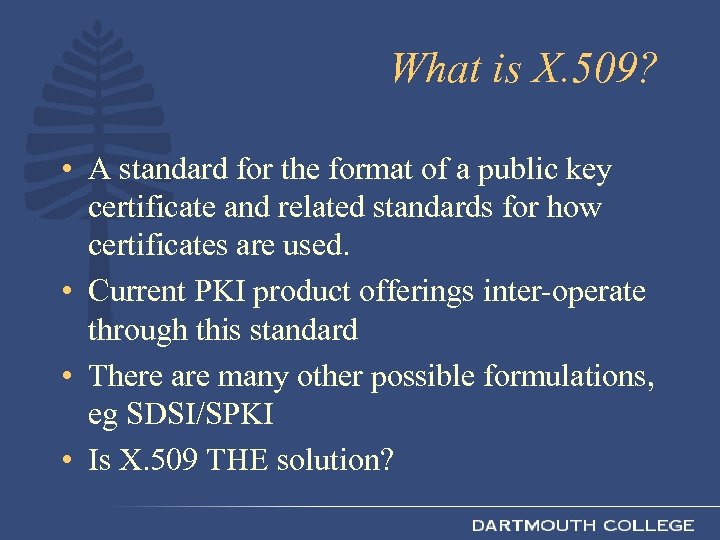

What is X. 509? • A standard for the format of a public key certificate and related standards for how certificates are used. • Current PKI product offerings inter-operate through this standard • There are many other possible formulations, eg SDSI/SPKI • Is X. 509 THE solution?

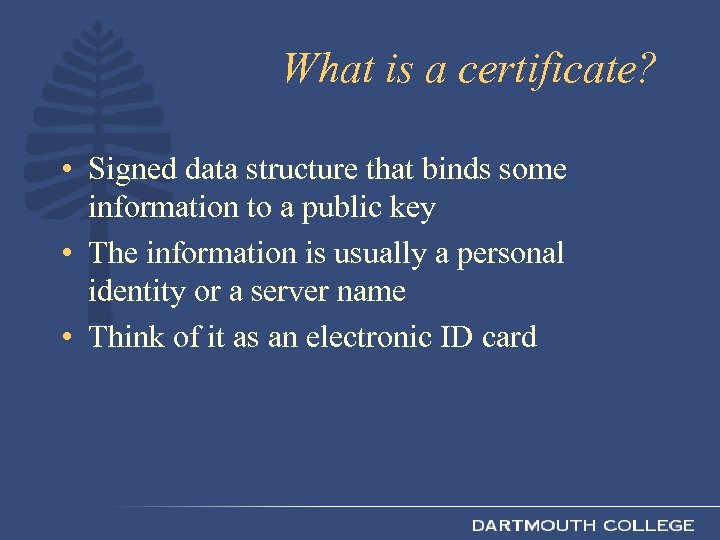

What is a certificate? • Signed data structure that binds some information to a public key • The information is usually a personal identity or a server name • Think of it as an electronic ID card

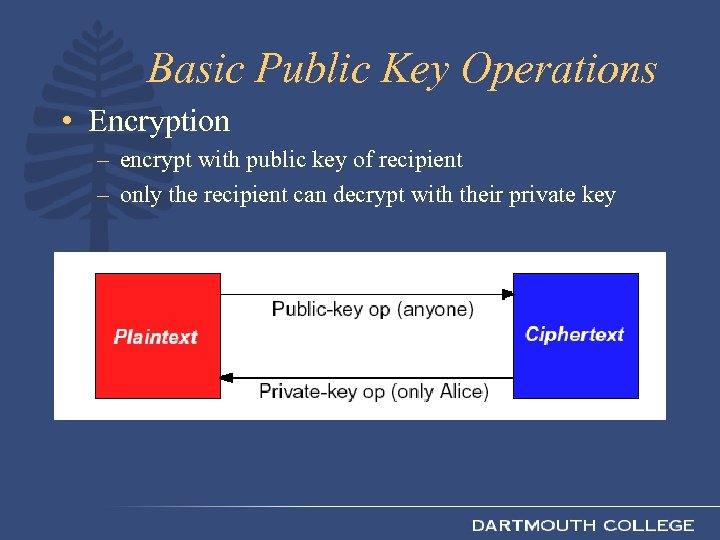

Basic Public Key Operations • Encryption – encrypt with public key of recipient – only the recipient can decrypt with their private key

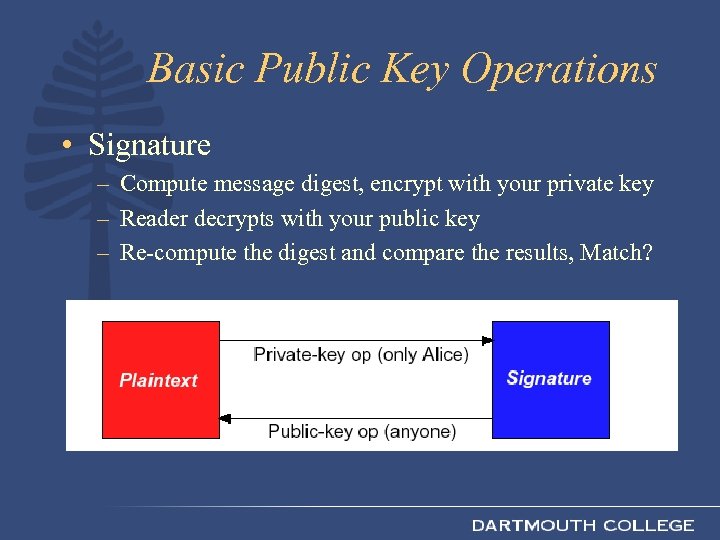

Basic Public Key Operations • Signature – Compute message digest, encrypt with your private key – Reader decrypts with your public key – Re-compute the digest and compare the results, Match?

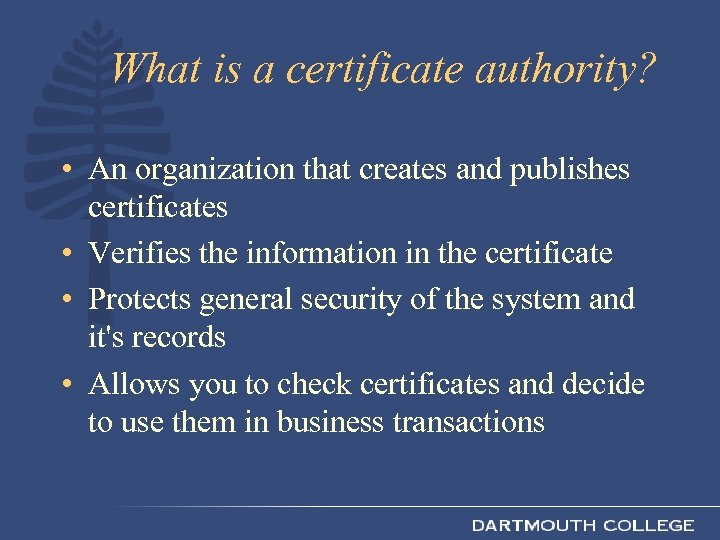

What is a certificate authority? • An organization that creates and publishes certificates • Verifies the information in the certificate • Protects general security of the system and it's records • Allows you to check certificates and decide to use them in business transactions
What is a CA certificate? • A certificate authority generates a key pair used to sign the certificates it issues • For multiple institutions to collaborate: – Hierachical structure is setup among their CAs – Bridge Certification Authorities • "peer to peer" approach

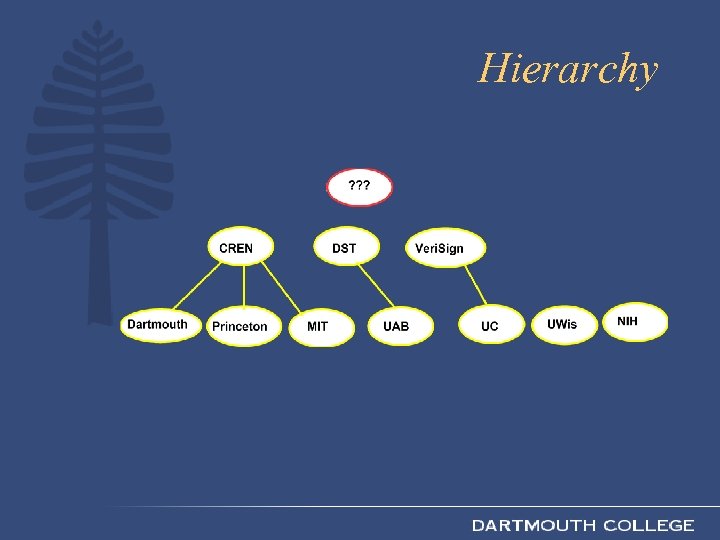

Hierarchy

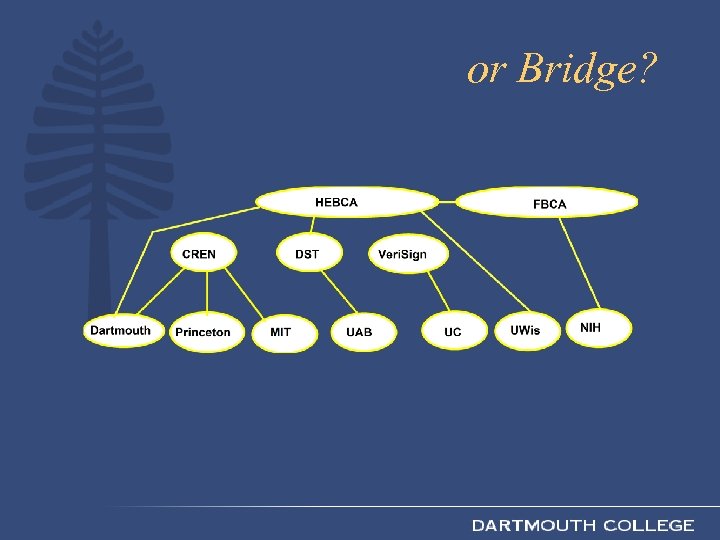

or Bridge?

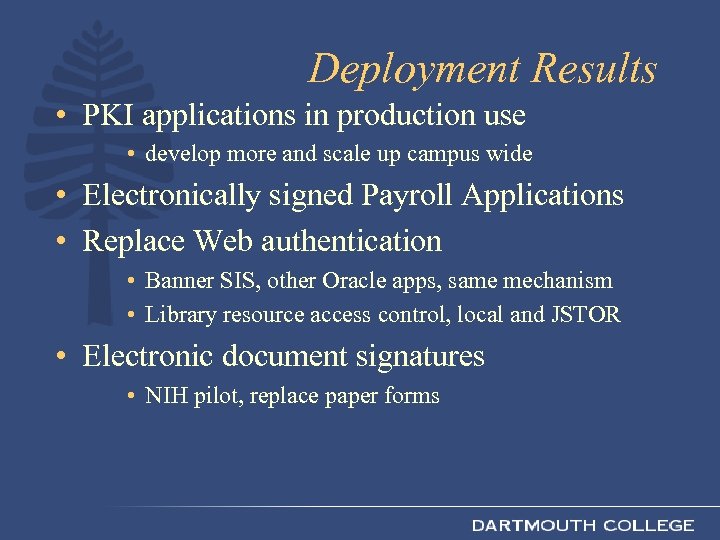

Deployment Results • PKI applications in production use • develop more and scale up campus wide • Electronically signed Payroll Applications • Replace Web authentication • Banner SIS, other Oracle apps, same mechanism • Library resource access control, local and JSTOR • Electronic document signatures • NIH pilot, replace paper forms
Deployment issues? • Learning curve for planning a PKI is steep • PKI is as much about Policy as Technology • Commercial products have shortcomings: – Many are expensive – Some are hard to install and operate – Many compatibility issues and user constraints • Many applications only interesting if available to the entire "community" • Many products have serious security issues

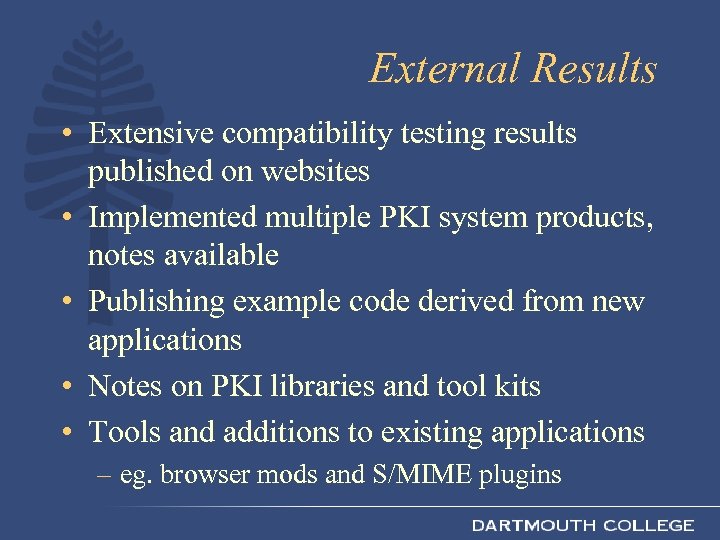

External Results • Extensive compatibility testing results published on websites • Implemented multiple PKI system products, notes available • Publishing example code derived from new applications • Notes on PKI libraries and tool kits • Tools and additions to existing applications – eg. browser mods and S/MIME plugins
• Applications – – – Next Steps Workflow, signatures Secure mail for Student health Services -HIPAA PKI enhanced List-servers Wireless network data protection Databases and E-commerce • Improvements in Infrastructure – Key storage hardening • Tokens, smartcards, coprocessors – Enrollment improvements – Trusted Third Party Services
Research Agenda • Expression of Trust – PKI system that can be managed and issued by different authorities, but from which many parties can draw judgments. • Trust Attributes for Machines – machines throughout network to actually have the right certs. . . • Using Trust at Clients – client tools that can reliably recognize and react to these properties… • Using Trust in Applications – applications to obtain, react, and respond to this information • Foundations of Trust – techniques to establish a basis for trust in computation in hostile places.

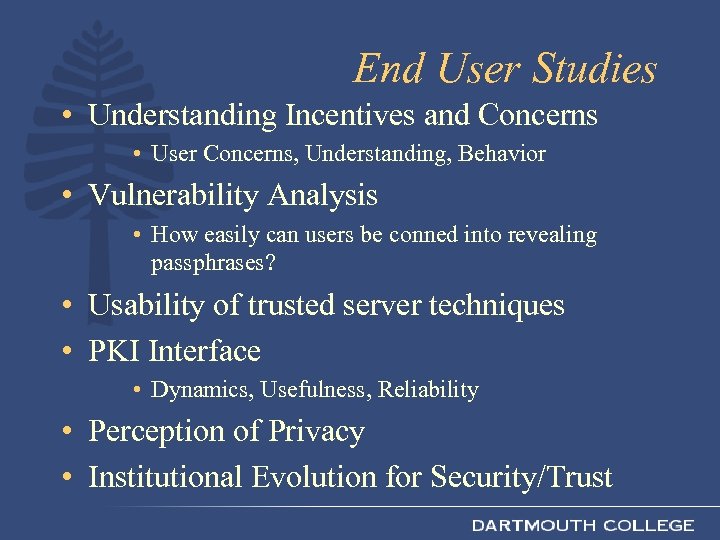

End User Studies • Understanding Incentives and Concerns • User Concerns, Understanding, Behavior • Vulnerability Analysis • How easily can users be conned into revealing passphrases? • Usability of trusted server techniques • PKI Interface • Dynamics, Usefulness, Reliability • Perception of Privacy • Institutional Evolution for Security/Trust

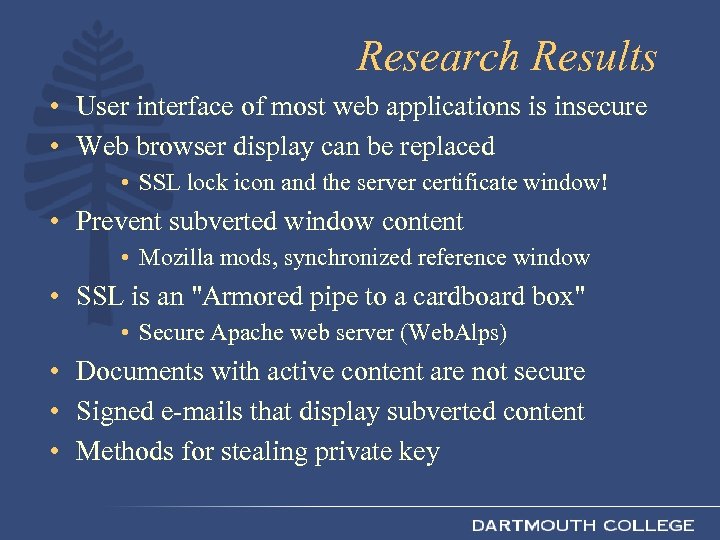

Research Results • User interface of most web applications is insecure • Web browser display can be replaced • SSL lock icon and the server certificate window! • Prevent subverted window content • Mozilla mods, synchronized reference window • SSL is an "Armored pipe to a cardboard box" • Secure Apache web server (Web. Alps) • Documents with active content are not secure • Signed e-mails that display subverted content • Methods for stealing private key

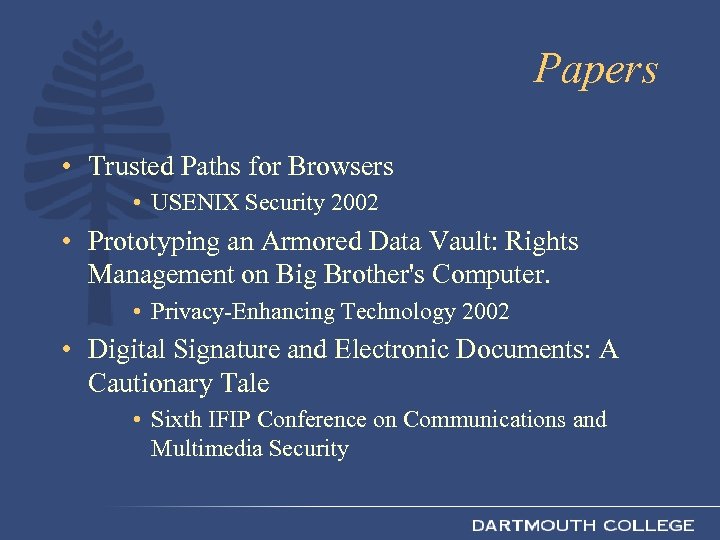

Papers • Trusted Paths for Browsers • USENIX Security 2002 • Prototyping an Armored Data Vault: Rights Management on Big Brother's Computer. • Privacy-Enhancing Technology 2002 • Digital Signature and Electronic Documents: A Cautionary Tale • Sixth IFIP Conference on Communications and Multimedia Security
Papers • Virtual Hierarchies: An Architecture for Building and Maintaining Efficient and Resilient Trust Chains • NORDSEC 2002 • Web Spoofing Revisited: SSL and Beyond • Outbound Authentication for Programmable Secure Coprocessors • 7 th European Symposium on Research in Computer Science

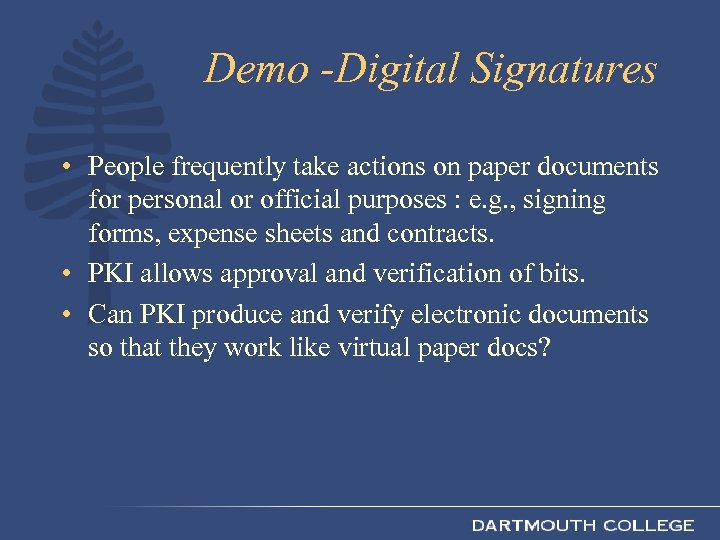

Demo -Digital Signatures • People frequently take actions on paper documents for personal or official purposes : e. g. , signing forms, expense sheets and contracts. • PKI allows approval and verification of bits. • Can PKI produce and verify electronic documents so that they work like virtual paper docs?

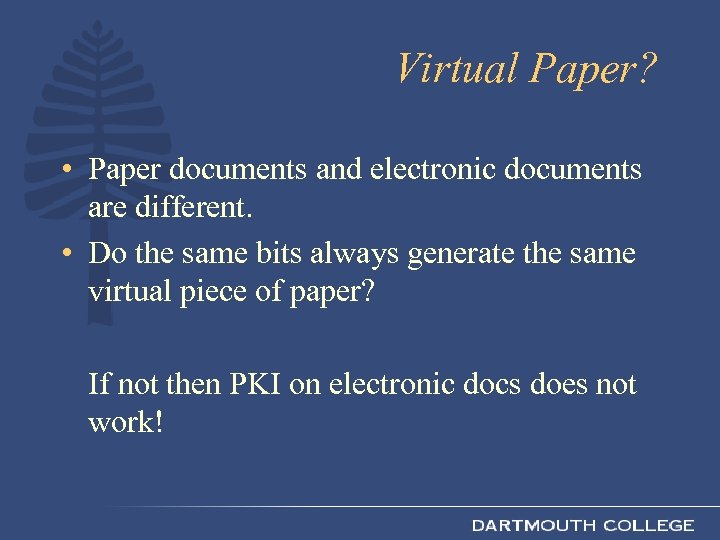

Virtual Paper? • Paper documents and electronic documents are different. • Do the same bits always generate the same virtual piece of paper? If not then PKI on electronic docs does not work!
When viewed on 09/16/02

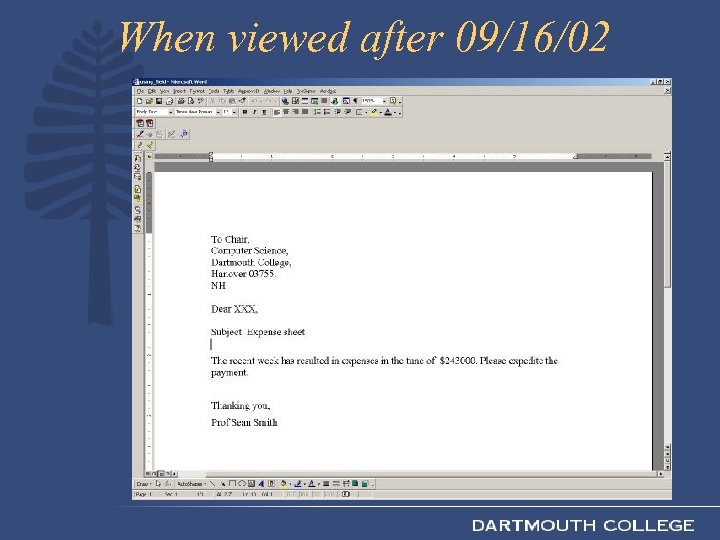

When viewed after 09/16/02

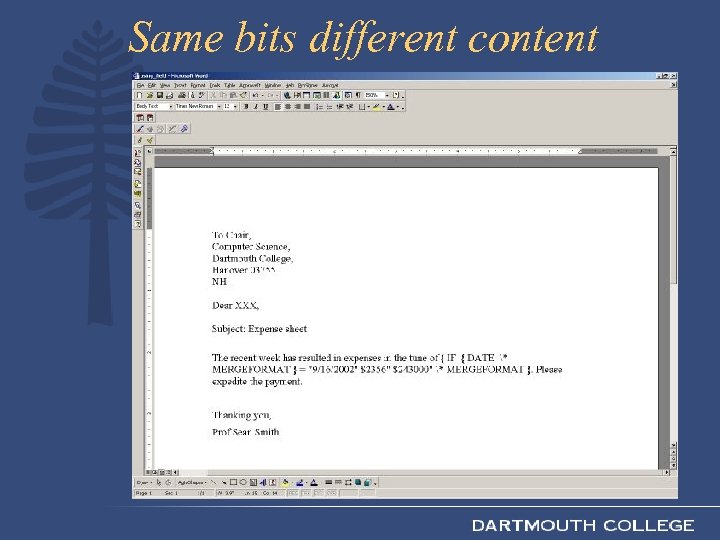

Same bits different content

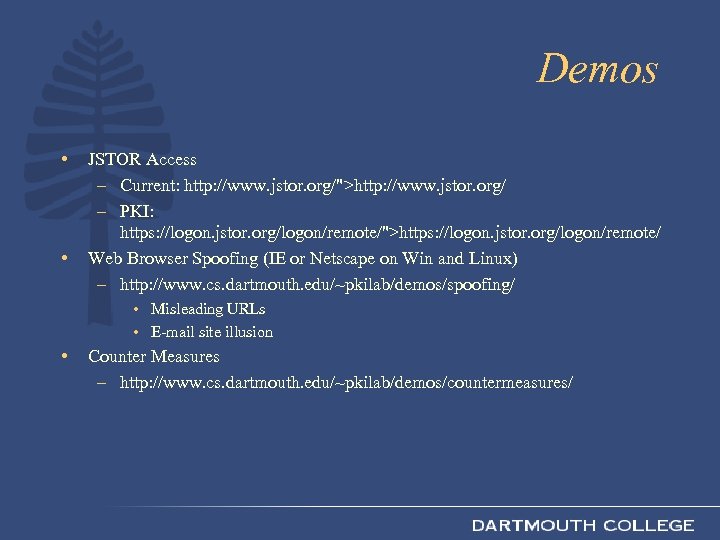

Demos • • JSTOR Access – Current: http: //www. jstor. org/">http: //www. jstor. org/ – PKI: https: //logon. jstor. org/logon/remote/">https: //logon. jstor. org/logon/remote/ Web Browser Spoofing (IE or Netscape on Win and Linux) – http: //www. cs. dartmouth. edu/~pkilab/demos/spoofing/ • Misleading URLs • E-mail site illusion • Counter Measures – http: //www. cs. dartmouth. edu/~pkilab/demos/countermeasures/

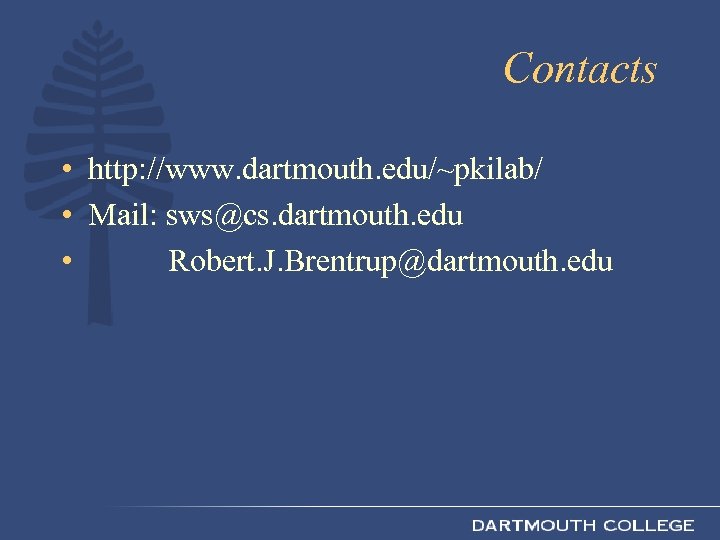

Contacts • http: //www. dartmouth. edu/~pkilab/ • Mail: sws@cs. dartmouth. edu • Robert. J. Brentrup@dartmouth. edu
