Contract 14 -3 Sanitary Sewer Project Pequannock Township

Contract 14 -3 Sanitary Sewer Project Pequannock Township, NJ Michael Simone, Jr. PE Alec Mittiga Crew Engineers, Inc. Butler, NJ

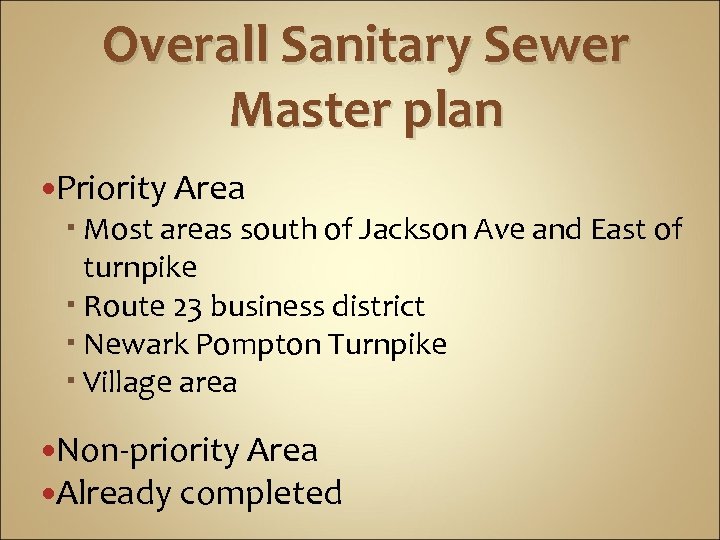

Overall Sanitary Sewer Master plan Priority Area Most areas south of Jackson Ave and East of turnpike Route 23 business district Newark Pompton Turnpike Village area Non-priority Area Already completed

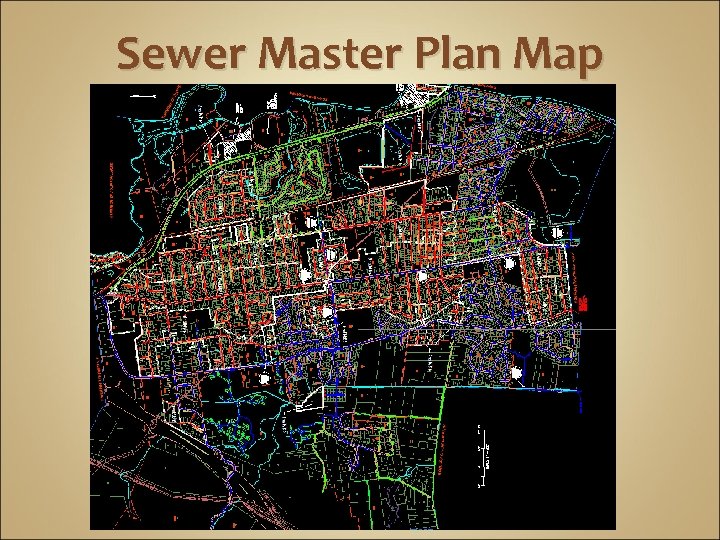

Sewer Master Plan Map

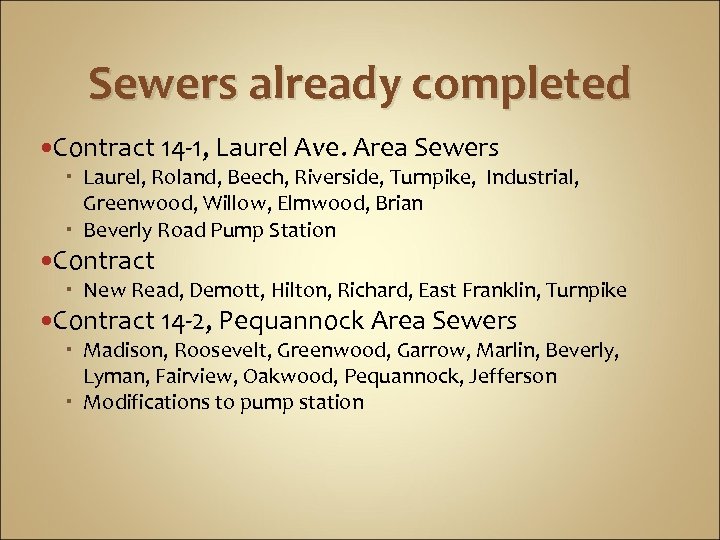

Sewers already completed Contract 14 -1, Laurel Ave. Area Sewers Laurel, Roland, Beech, Riverside, Turnpike, Industrial, Greenwood, Willow, Elmwood, Brian Beverly Road Pump Station Contract New Read, Demott, Hilton, Richard, East Franklin, Turnpike Contract 14 -2, Pequannock Area Sewers Madison, Roosevelt, Greenwood, Garrow, Marlin, Beverly, Lyman, Fairview, Oakwood, Pequannock, Jefferson Modifications to pump station

Sewers already completed

Current Sewer Project Entire village area Sunset Ave - Boulevard to Turnpike - Sunset to Evans Place, including Evans Place, Central Business District, Municipal Building, 1 st Reformed Church of Pompton Plains, Post Office and First Aid Squad Jackson Ave. - Turnpike to Route 23 S - Jackson Ave. to Spa 23

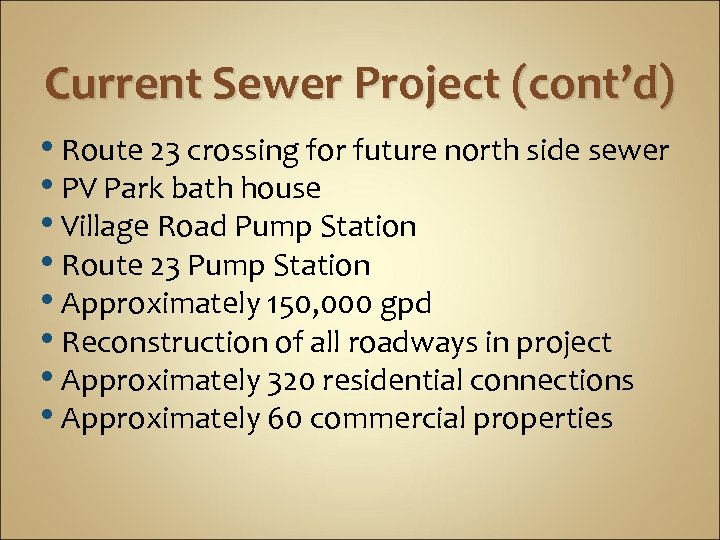

Current Sewer Project (cont’d) • Route 23 crossing for future north side sewer • PV Park bath house • Village Road Pump Station • Route 23 Pump Station • Approximately 150, 000 gpd • Reconstruction of all roadways in project • Approximately 320 residential connections • Approximately 60 commercial properties

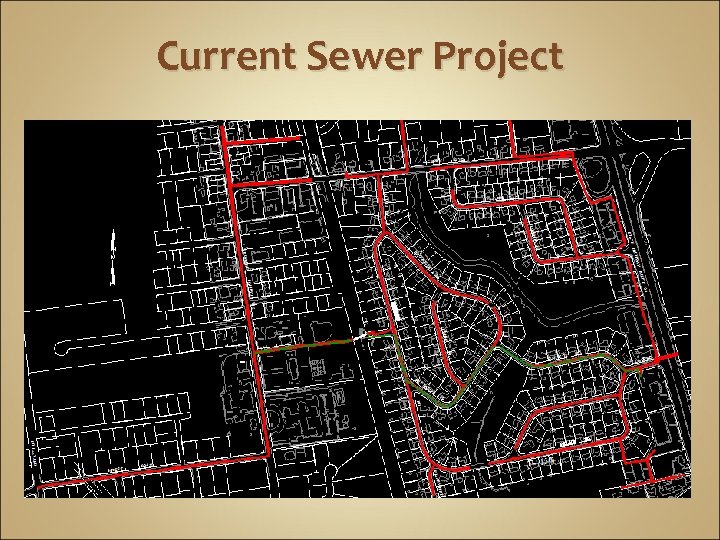

Current Sewer Project

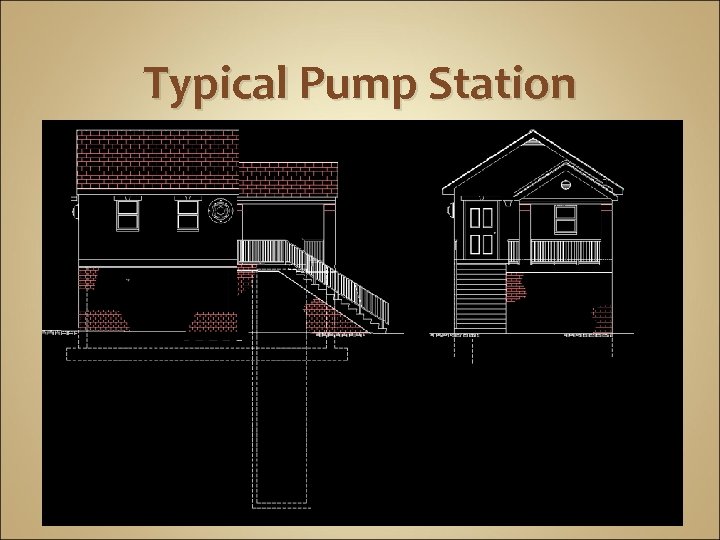

Typical Pump Station

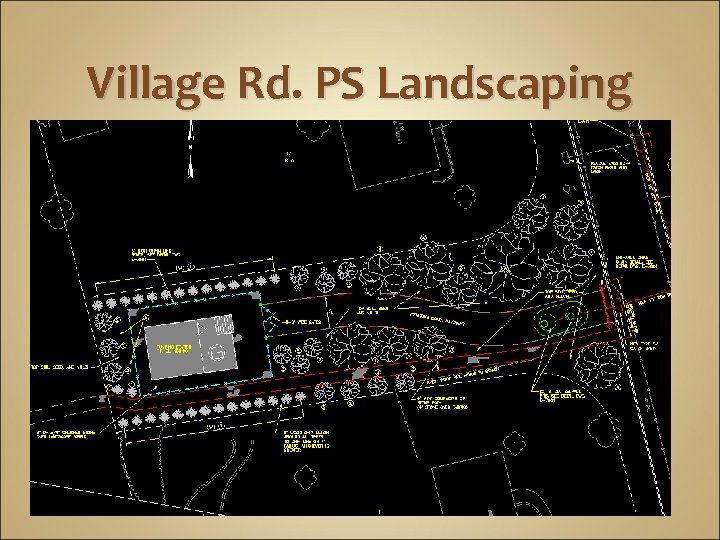

Village Rd. PS Landscaping

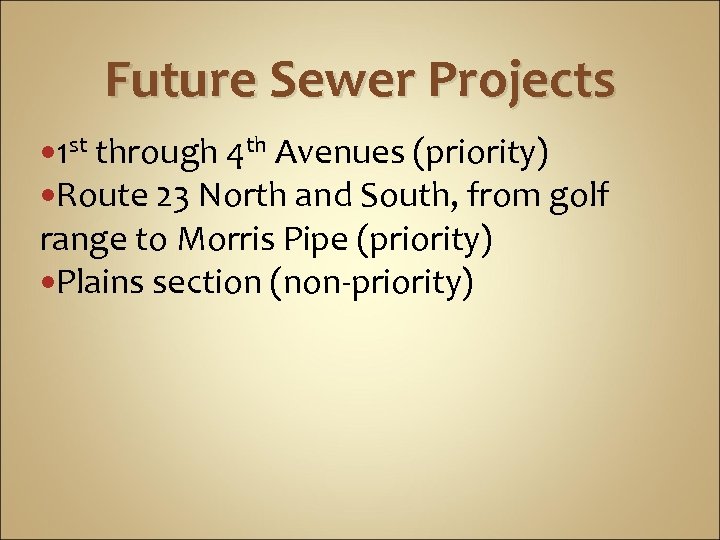

Future Sewer Projects 1 st through 4 th Avenues (priority) Route 23 North and South, from golf range to Morris Pipe (priority) Plains section (non-priority)

Sewer Master Plan Map
