Continuity - Fixed Mobile Convergence FIXED / WIRELINE NETWORK • CS (Call Server) • SG (Signaling Gateway) • SLR (Subs Location Regiser) • PSC (Processing Server for CDR) HLR /VLR EXISTING SOFTSWITCH MAP over SS 7 EXISTING MEDIA GATEWAY MOBILE NETWORK SS 7 NETWORK MSC PSTN/PLMN NETWORK Wi. Fi/GSM Dual Mode Handset Colombo, Sri Lanka, 7 -10 April 2009 Inter-Roaming between Wi. Fi domain and mobile network Wi. Fi/GSM Dual Mode Handset 1

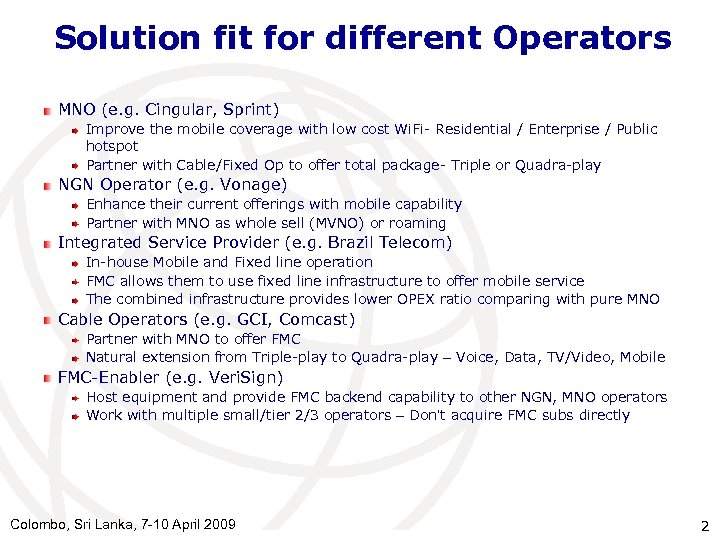

Solution fit for different Operators MNO (e. g. Cingular, Sprint) Improve the mobile coverage with low cost Wi. Fi- Residential / Enterprise / Public hotspot Partner with Cable/Fixed Op to offer total package- Triple or Quadra-play NGN Operator (e. g. Vonage) Enhance their current offerings with mobile capability Partner with MNO as whole sell (MVNO) or roaming Integrated Service Provider (e. g. Brazil Telecom) In-house Mobile and Fixed line operation FMC allows them to use fixed line infrastructure to offer mobile service The combined infrastructure provides lower OPEX ratio comparing with pure MNO Cable Operators (e. g. GCI, Comcast) Partner with MNO to offer FMC Natural extension from Triple-play to Quadra-play – Voice, Data, TV/Video, Mobile FMC-Enabler (e. g. Veri. Sign) Host equipment and provide FMC backend capability to other NGN, MNO operators Work with multiple small/tier 2/3 operators – Don’t acquire FMC subs directly Colombo, Sri Lanka, 7 -10 April 2009 2

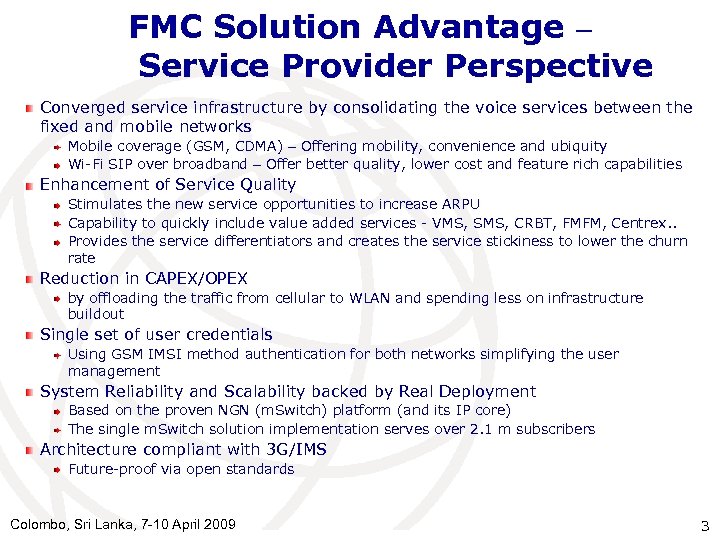

FMC Solution Advantage – Service Provider Perspective Converged service infrastructure by consolidating the voice services between the fixed and mobile networks Mobile coverage (GSM, CDMA) – Offering mobility, convenience and ubiquity Wi-Fi SIP over broadband – Offer better quality, lower cost and feature rich capabilities Enhancement of Service Quality Stimulates the new service opportunities to increase ARPU Capability to quickly include value added services - VMS, SMS, CRBT, FMFM, Centrex. . Provides the service differentiators and creates the service stickiness to lower the churn rate Reduction in CAPEX/OPEX by offloading the traffic from cellular to WLAN and spending less on infrastructure buildout Single set of user credentials Using GSM IMSI method authentication for both networks simplifying the user management System Reliability and Scalability backed by Real Deployment Based on the proven NGN (m. Switch) platform (and its IP core) The single m. Switch solution implementation serves over 2. 1 m subscribers Architecture compliant with 3 G/IMS Future-proof via open standards Colombo, Sri Lanka, 7 -10 April 2009 3

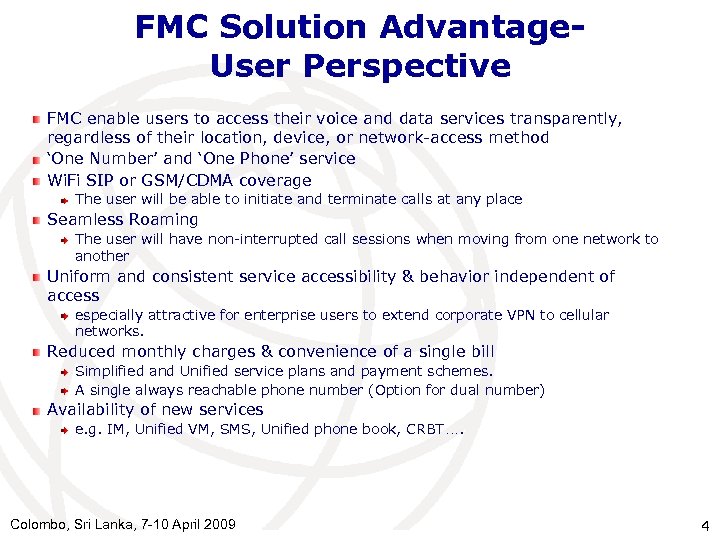

FMC Solution Advantage. User Perspective FMC enable users to access their voice and data services transparently, regardless of their location, device, or network-access method ‘One Number’ and ‘One Phone’ service Wi. Fi SIP or GSM/CDMA coverage The user will be able to initiate and terminate calls at any place Seamless Roaming The user will have non-interrupted call sessions when moving from one network to another Uniform and consistent service accessibility & behavior independent of access especially attractive for enterprise users to extend corporate VPN to cellular networks. Reduced monthly charges & convenience of a single bill Simplified and Unified service plans and payment schemes. A single always reachable phone number (Option for dual number) Availability of new services e. g. IM, Unified VM, SMS, Unified phone book, CRBT…. Colombo, Sri Lanka, 7 -10 April 2009 4

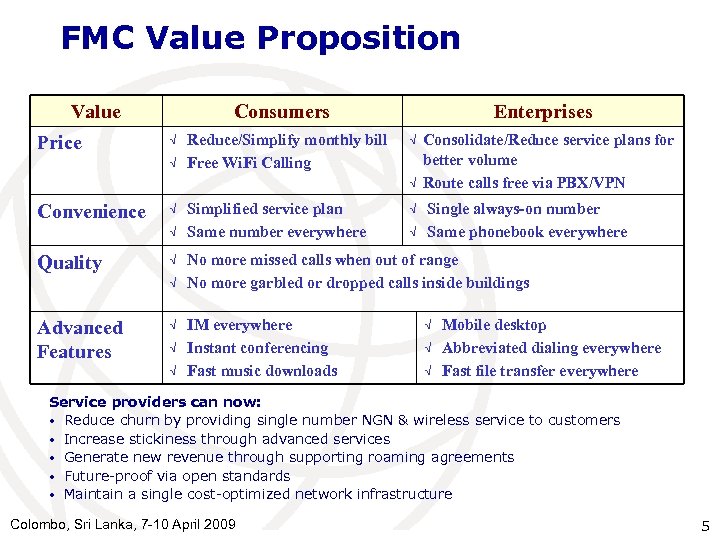

FMC Value Proposition Value Price Consumers √ √ Reduce/Simplify monthly bill Free Wi. Fi Calling Enterprises √ √ Convenience √ √ Quality √ √ Advanced Features √ √ √ Simplified service plan Same number everywhere √ √ Consolidate/Reduce service plans for better volume Route calls free via PBX/VPN Single always-on number Same phonebook everywhere No more missed calls when out of range No more garbled or dropped calls inside buildings IM everywhere Instant conferencing Fast music downloads √ √ √ Mobile desktop Abbreviated dialing everywhere Fast file transfer everywhere Service providers can now: • Reduce churn by providing single number NGN & wireless service to customers • Increase stickiness through advanced services • Generate new revenue through supporting roaming agreements • Future-proof via open standards • Maintain a single cost-optimized network infrastructure Colombo, Sri Lanka, 7 -10 April 2009 5

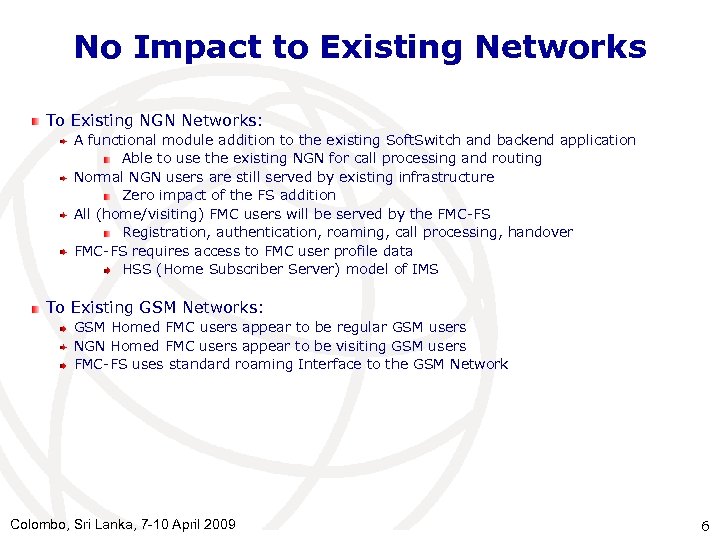

No Impact to Existing Networks To Existing NGN Networks: A functional module addition to the existing Soft. Switch and backend application Able to use the existing NGN for call processing and routing Normal NGN users are still served by existing infrastructure Zero impact of the FS addition All (home/visiting) FMC users will be served by the FMC-FS Registration, authentication, roaming, call processing, handover FMC-FS requires access to FMC user profile data HSS (Home Subscriber Server) model of IMS To Existing GSM Networks: GSM Homed FMC users appear to be regular GSM users NGN Homed FMC users appear to be visiting GSM users FMC-FS uses standard roaming Interface to the GSM Network Colombo, Sri Lanka, 7 -10 April 2009 6

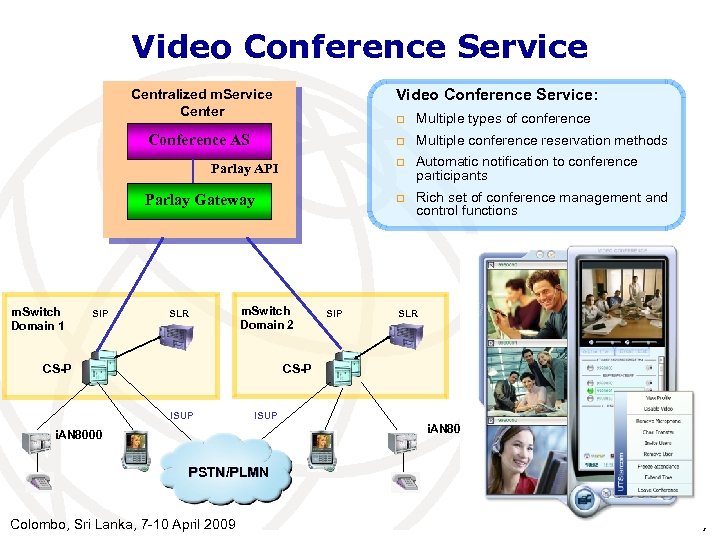

Video Conference Service: Centralized m. Service Center p p Parlay Gateway m. Switch Domain 1 SIP SLR m. Switch Domain 2 CS-P SIP Automatic notification to conference participants p Parlay API Multiple conference reservation methods p Conference AS Multiple types of conference Rich set of conference management and control functions SLR CS-P ISUP i. AN 8000 PSTN/PLMN Colombo, Sri Lanka, 7 -10 April 2009 7

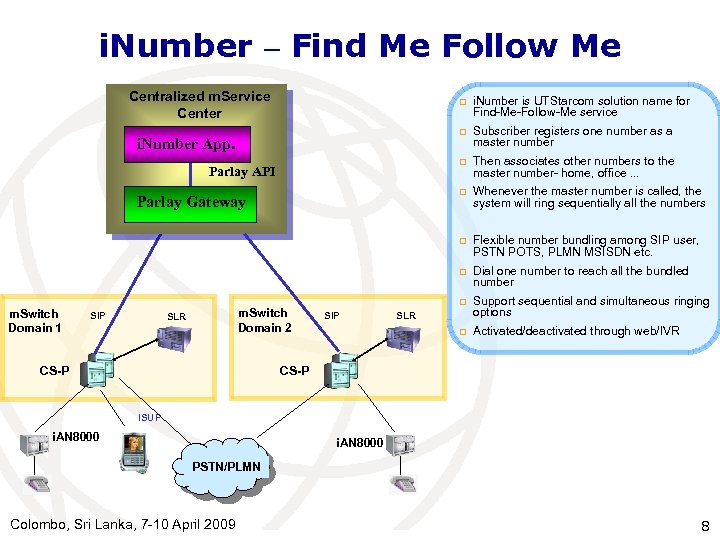

i. Number – Find Me Follow Me Centralized m. Service Center p p Whenever the master number is called, the system will ring sequentially all the numbers p Flexible number bundling among SIP user, PSTN POTS, PLMN MSISDN etc. p Dial one number to reach all the bundled number p Support sequential and simultaneous ringing options p Parlay Gateway Then associates other numbers to the master number- home, office. . . p Parlay API Subscriber registers one number as a master number p i. Number App. i. Number is UTStarcom solution name for Find-Me-Follow-Me service Activated/deactivated through web/IVR Provisoning Center m. Switch Domain 1 SIP m. Switch Domain 2 SLR CS-P SIP SLR CS-P ISUP i. AN 8000 PSTN/PLMN Colombo, Sri Lanka, 7 -10 April 2009 8

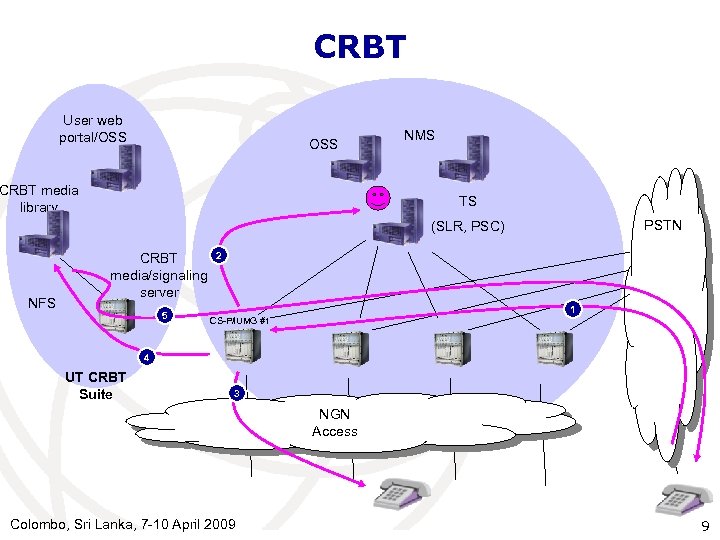

CRBT User web portal/OSS CRBT media library NMS TS PSTN (SLR, PSC) NFS CRBT media/signaling server 5 2 1 CS-P/i. UMG #1 4 UT CRBT Suite 3 NGN Access Colombo, Sri Lanka, 7 -10 April 2009 9

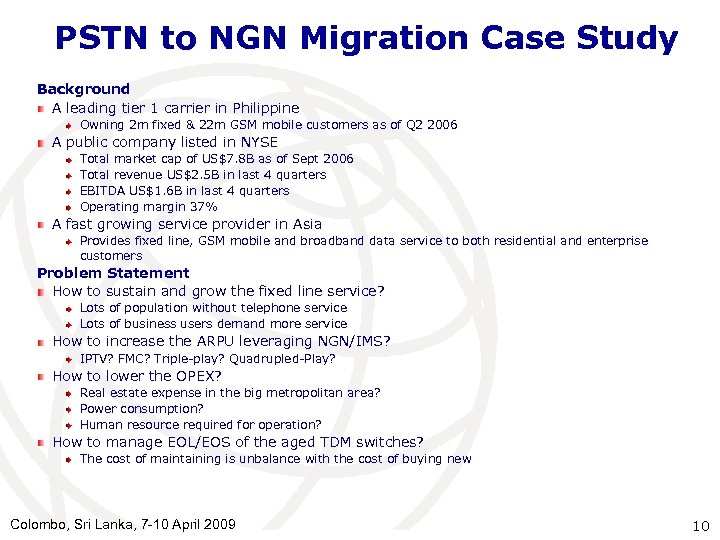

PSTN to NGN Migration Case Study Background A leading tier 1 carrier in Philippine Owning 2 m fixed & 22 m GSM mobile customers as of Q 2 2006 A public company listed in NYSE Total market cap of US$7. 8 B as of Sept 2006 Total revenue US$2. 5 B in last 4 quarters EBITDA US$1. 6 B in last 4 quarters Operating margin 37% A fast growing service provider in Asia Provides fixed line, GSM mobile and broadband data service to both residential and enterprise customers Problem Statement How to sustain and grow the fixed line service? Lots of population without telephone service Lots of business users demand more service How to increase the ARPU leveraging NGN/IMS? IPTV? FMC? Triple-play? Quadrupled-Play? How to lower the OPEX? Real estate expense in the big metropolitan area? Power consumption? Human resource required for operation? How to manage EOL/EOS of the aged TDM switches? The cost of maintaining is unbalance with the cost of buying new Colombo, Sri Lanka, 7 -10 April 2009 10

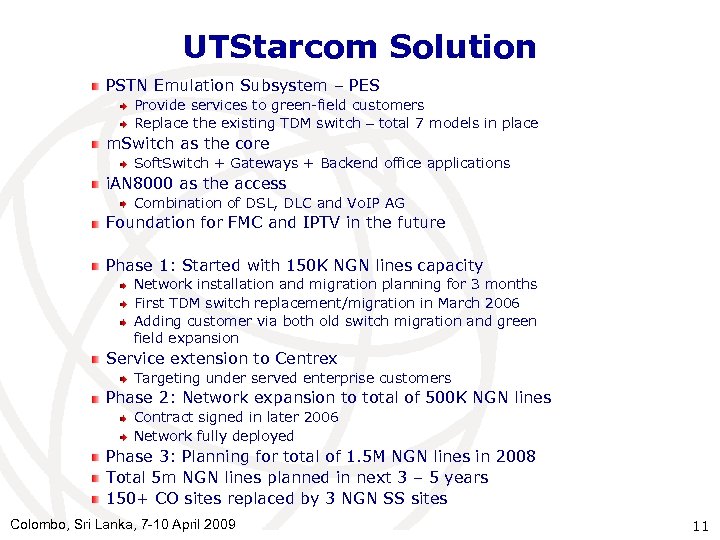

UTStarcom Solution PSTN Emulation Subsystem – PES Provide services to green-field customers Replace the existing TDM switch – total 7 models in place m. Switch as the core Soft. Switch + Gateways + Backend office applications i. AN 8000 as the access Combination of DSL, DLC and Vo. IP AG Foundation for FMC and IPTV in the future Phase 1: Started with 150 K NGN lines capacity Network installation and migration planning for 3 months First TDM switch replacement/migration in March 2006 Adding customer via both old switch migration and green field expansion Service extension to Centrex Targeting under served enterprise customers Phase 2: Network expansion to total of 500 K NGN lines Contract signed in later 2006 Network fully deployed Phase 3: Planning for total of 1. 5 M NGN lines in 2008 Total 5 m NGN lines planned in next 3 – 5 years 150+ CO sites replaced by 3 NGN SS sites Colombo, Sri Lanka, 7 -10 April 2009 11

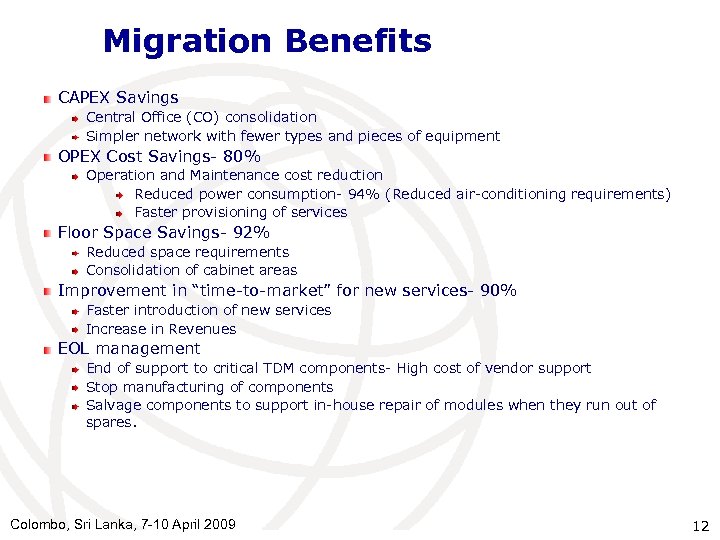

Migration Benefits CAPEX Savings Central Office (CO) consolidation Simpler network with fewer types and pieces of equipment OPEX Cost Savings- 80% Operation and Maintenance cost reduction Reduced power consumption- 94% (Reduced air-conditioning requirements) Faster provisioning of services Floor Space Savings- 92% Reduced space requirements Consolidation of cabinet areas Improvement in “time-to-market” for new services- 90% Faster introduction of new services Increase in Revenues EOL management End of support to critical TDM components- High cost of vendor support Stop manufacturing of components Salvage components to support in-house repair of modules when they run out of spares. Colombo, Sri Lanka, 7 -10 April 2009 12

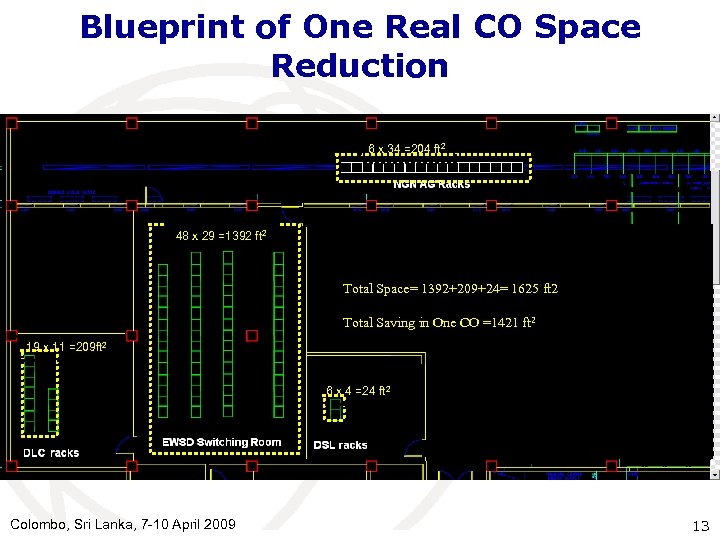

Blueprint of One Real CO Space Reduction 6 x 34 =204 ft 2 48 x 29 =1392 ft 2 Total Space= 1392+209+24= 1625 ft 2 Total Saving in One CO =1421 ft 2 19 x 11 =209 ft 2 6 x 4 =24 ft 2 Colombo, Sri Lanka, 7 -10 April 2009 13

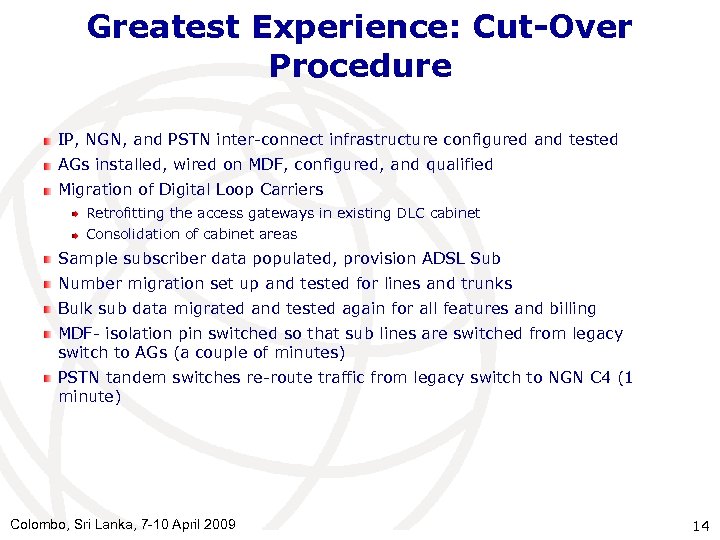

Greatest Experience: Cut-Over Procedure IP, NGN, and PSTN inter-connect infrastructure configured and tested AGs installed, wired on MDF, configured, and qualified Migration of Digital Loop Carriers Retrofitting the access gateways in existing DLC cabinet Consolidation of cabinet areas Sample subscriber data populated, provision ADSL Sub Number migration set up and tested for lines and trunks Bulk sub data migrated and tested again for all features and billing MDF- isolation pin switched so that sub lines are switched from legacy switch to AGs (a couple of minutes) PSTN tandem switches re-route traffic from legacy switch to NGN C 4 (1 minute) Colombo, Sri Lanka, 7 -10 April 2009 14

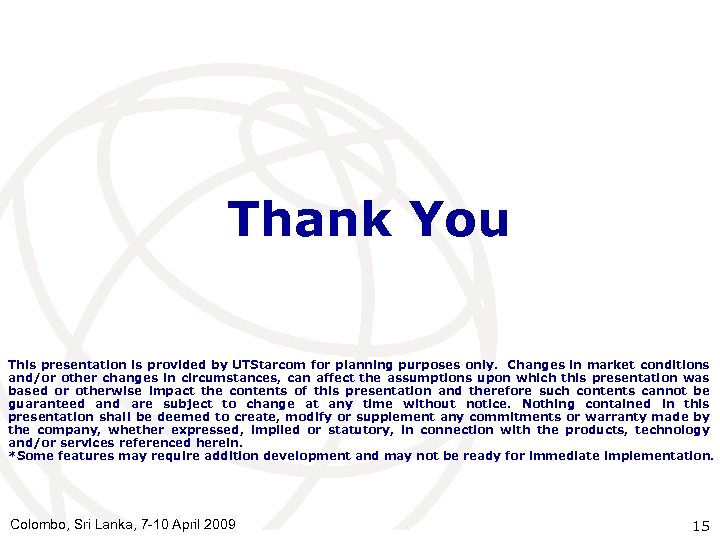

Thank You This presentation is provided by UTStarcom for planning purposes only. Changes in market conditions and/or other changes in circumstances, can affect the assumptions upon which this presentation was based or otherwise impact the contents of this presentation and therefore such contents cannot be guaranteed and are subject to change at any time without notice. Nothing contained in this presentation shall be deemed to create, modify or supplement any commitments or warranty made by the company, whether expressed, implied or statutory, in connection with the products, technology and/or services referenced herein. *Some features may require addition development and may not be ready for immediate implementation. Colombo, Sri Lanka, 7 -10 April 2009 15
