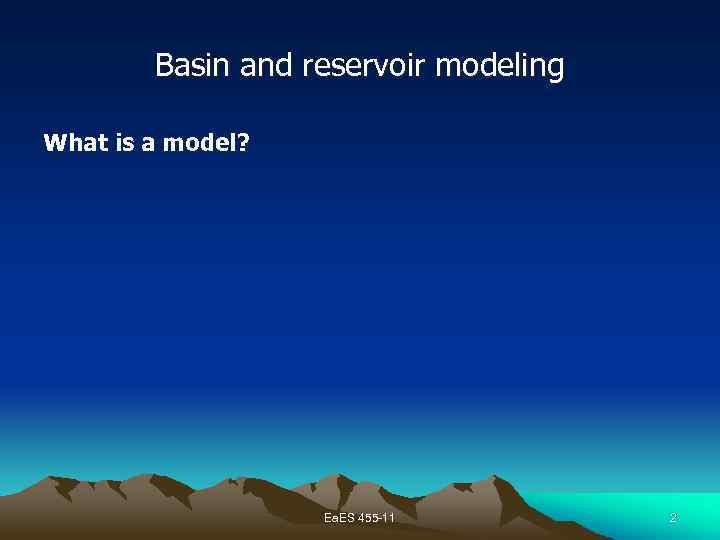

Basin and reservoir modeling What is a model? Ea. ES 455 -11 2

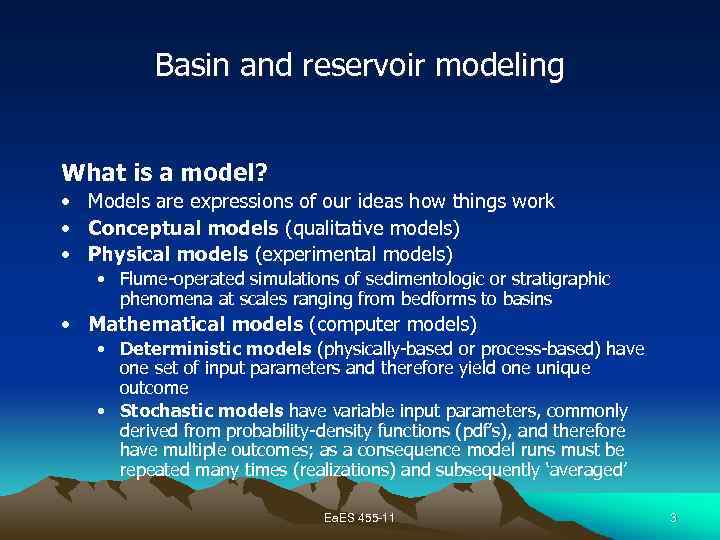

Basin and reservoir modeling What is a model? • Models are expressions of our ideas how things work • Conceptual models (qualitative models) • Physical models (experimental models) • Flume-operated simulations of sedimentologic or stratigraphic phenomena at scales ranging from bedforms to basins • Mathematical models (computer models) • Deterministic models (physically-based or process-based) have one set of input parameters and therefore yield one unique outcome • Stochastic models have variable input parameters, commonly derived from probability-density functions (pdf’s), and therefore have multiple outcomes; as a consequence model runs must be repeated many times (realizations) and subsequently ‘averaged’ Ea. ES 455 -11 3

Ea. ES 455 -11 4

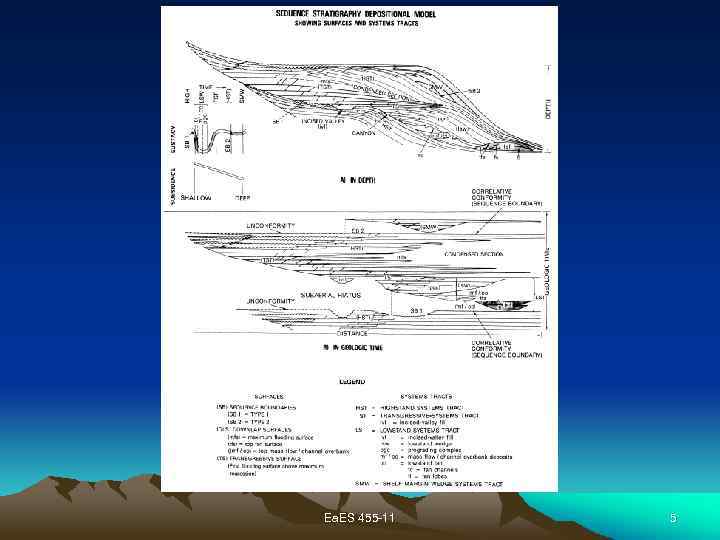

Ea. ES 455 -11 5

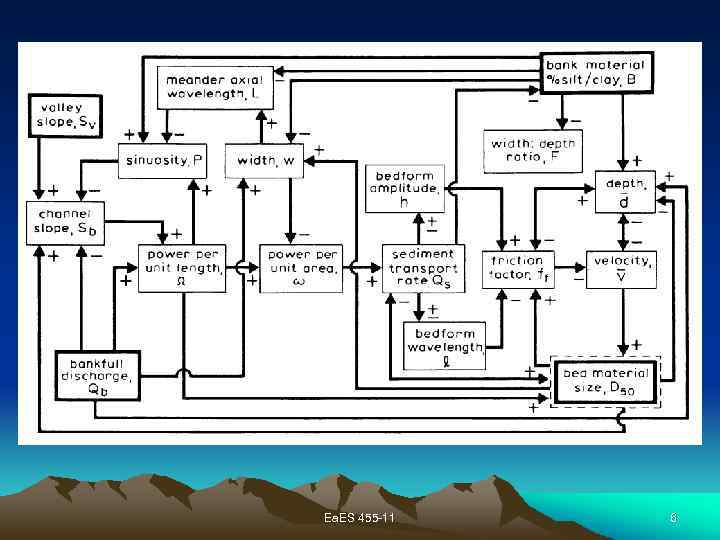

Ea. ES 455 -11 6

Ea. ES 455 -11 7

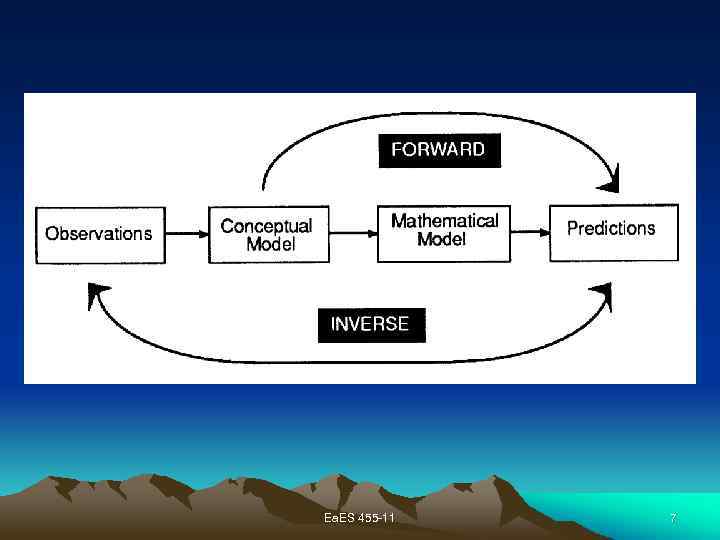

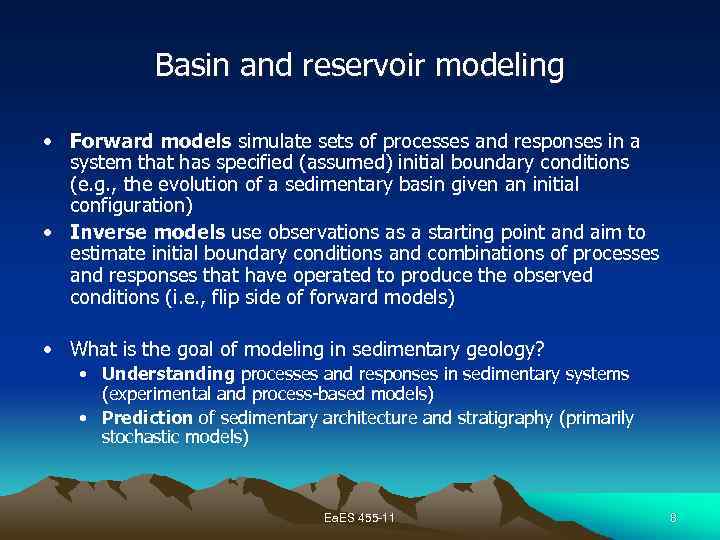

Basin and reservoir modeling • Forward models simulate sets of processes and responses in a system that has specified (assumed) initial boundary conditions (e. g. , the evolution of a sedimentary basin given an initial configuration) • Inverse models use observations as a starting point and aim to estimate initial boundary conditions and combinations of processes and responses that have operated to produce the observed conditions (i. e. , flip side of forward models) • What is the goal of modeling in sedimentary geology? • Understanding processes and responses in sedimentary systems (experimental and process-based models) • Prediction of sedimentary architecture and stratigraphy (primarily stochastic models) Ea. ES 455 -11 8

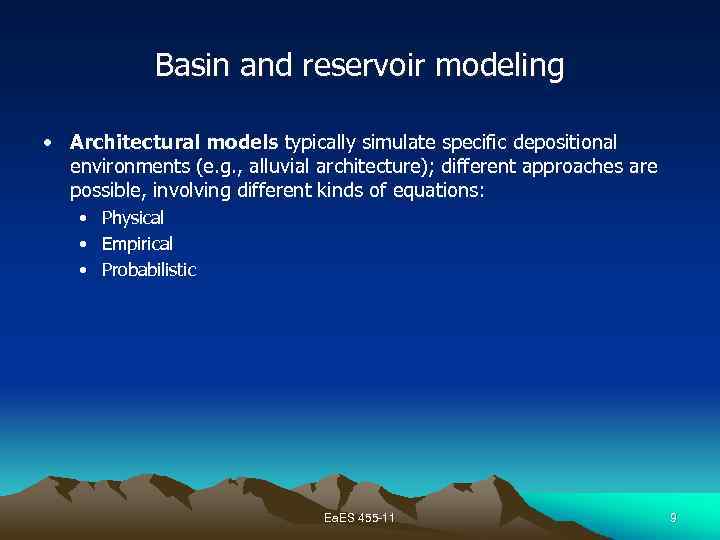

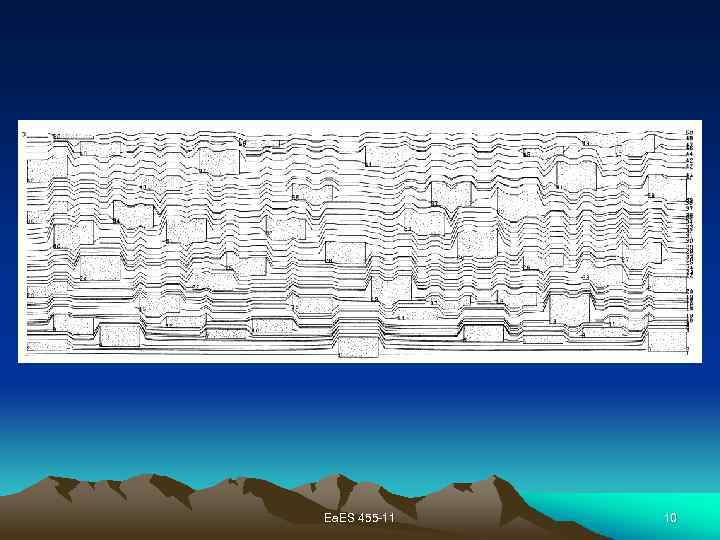

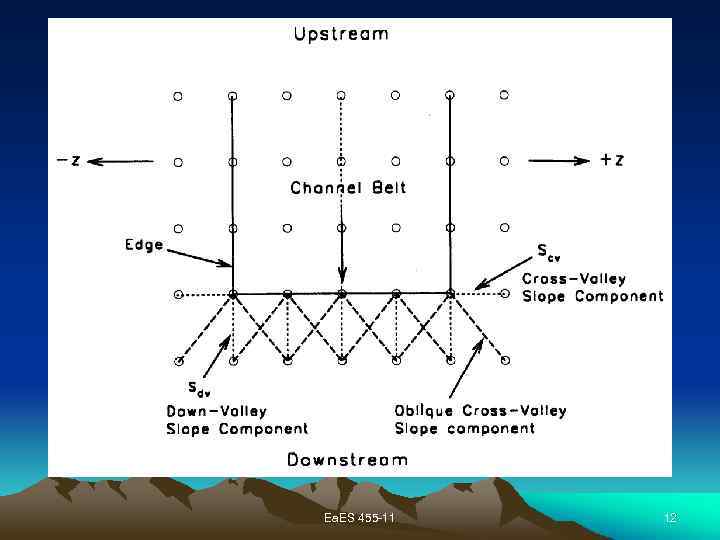

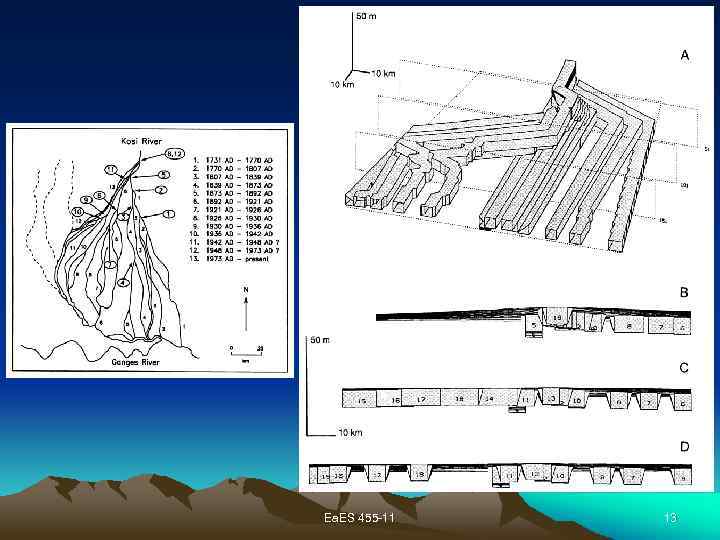

Basin and reservoir modeling • Architectural models typically simulate specific depositional environments (e. g. , alluvial architecture); different approaches are possible, involving different kinds of equations: • Physical • Empirical • Probabilistic Ea. ES 455 -11 9

Ea. ES 455 -11 10

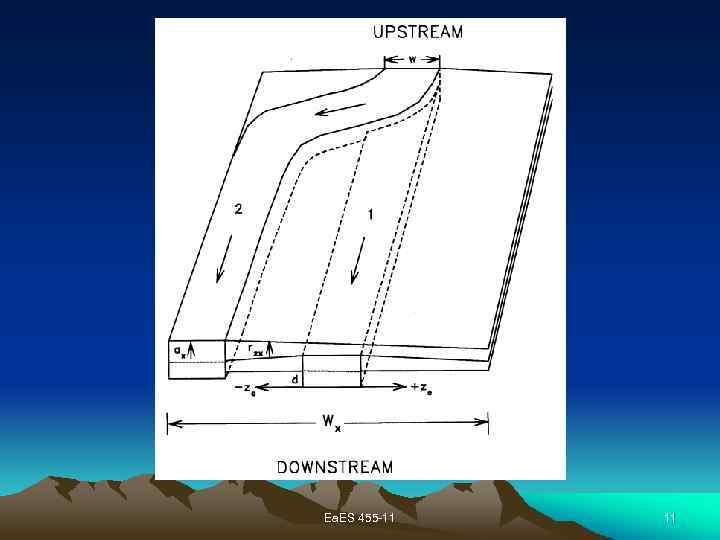

Ea. ES 455 -11 11

Ea. ES 455 -11 12

Ea. ES 455 -11 13

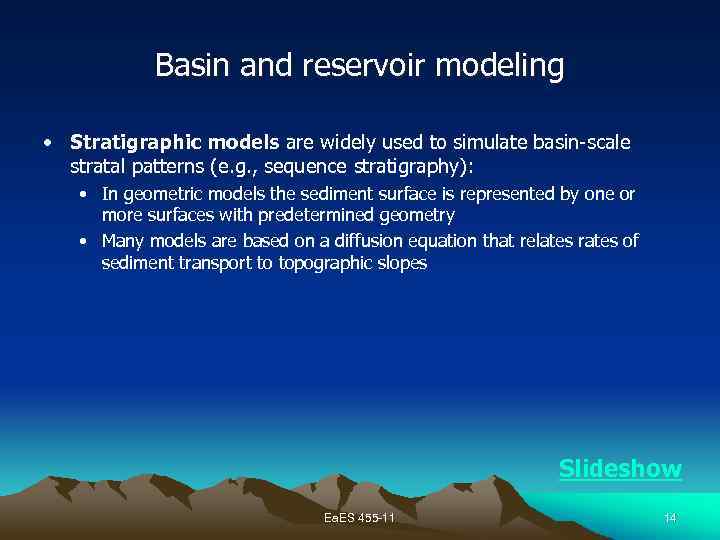

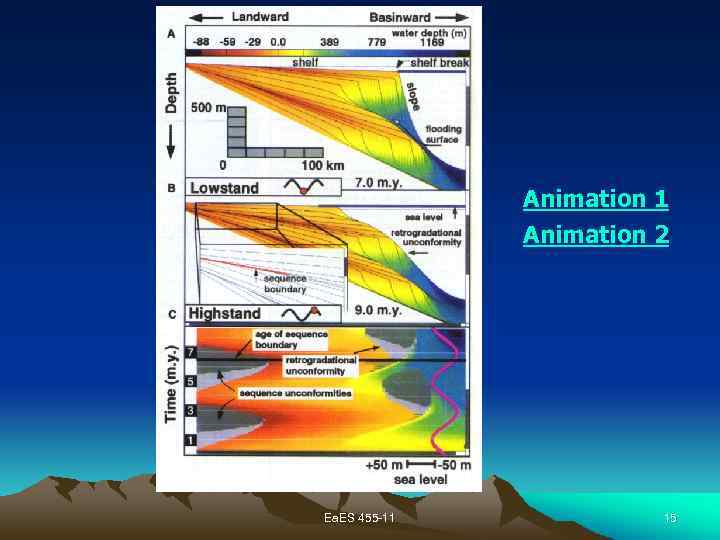

Basin and reservoir modeling • Stratigraphic models are widely used to simulate basin-scale stratal patterns (e. g. , sequence stratigraphy): • In geometric models the sediment surface is represented by one or more surfaces with predetermined geometry • Many models are based on a diffusion equation that relates rates of sediment transport to topographic slopes Slideshow Ea. ES 455 -11 14

Animation 1 Animation 2 Ea. ES 455 -11 15

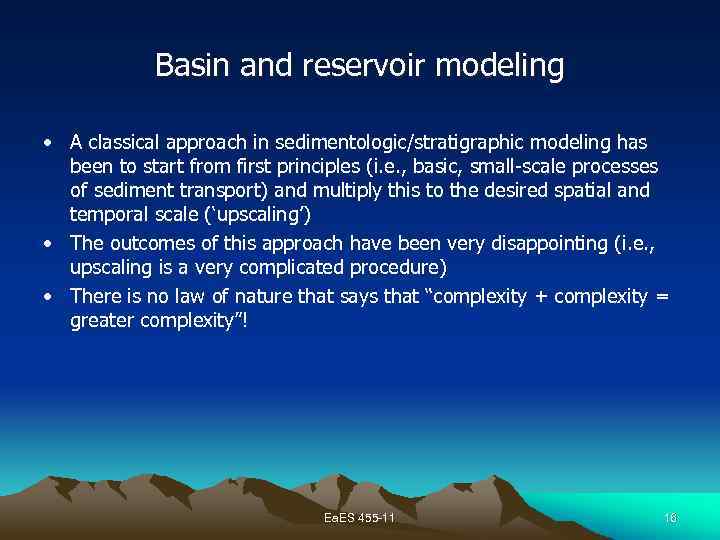

Basin and reservoir modeling • A classical approach in sedimentologic/stratigraphic modeling has been to start from first principles (i. e. , basic, small-scale processes of sediment transport) and multiply this to the desired spatial and temporal scale (‘upscaling’) • The outcomes of this approach have been very disappointing (i. e. , upscaling is a very complicated procedure) • There is no law of nature that says that “complexity + complexity = greater complexity”! Ea. ES 455 -11 16

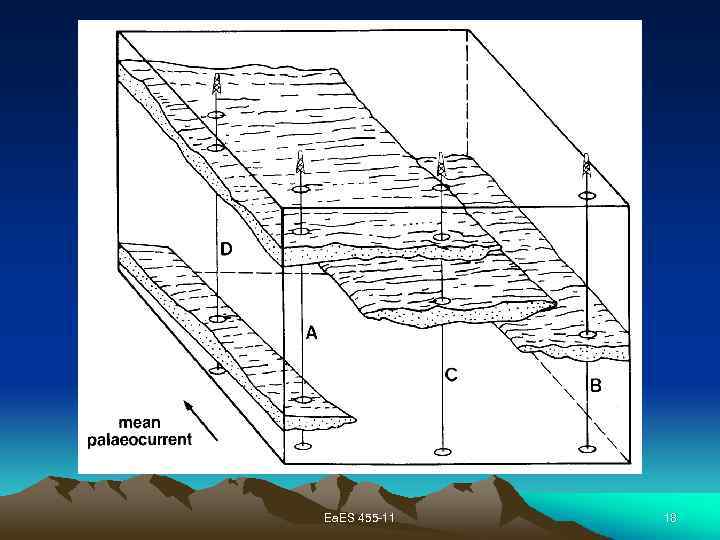

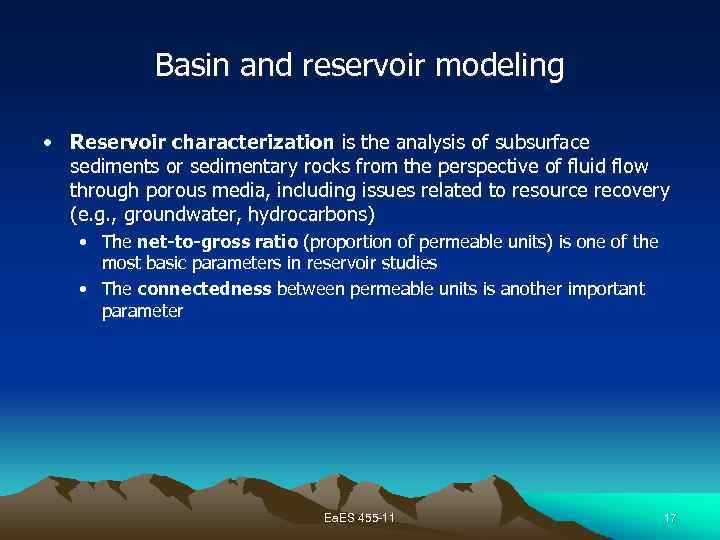

Basin and reservoir modeling • Reservoir characterization is the analysis of subsurface sediments or sedimentary rocks from the perspective of fluid flow through porous media, including issues related to resource recovery (e. g. , groundwater, hydrocarbons) • The net-to-gross ratio (proportion of permeable units) is one of the most basic parameters in reservoir studies • The connectedness between permeable units is another important parameter Ea. ES 455 -11 17

Ea. ES 455 -11 18

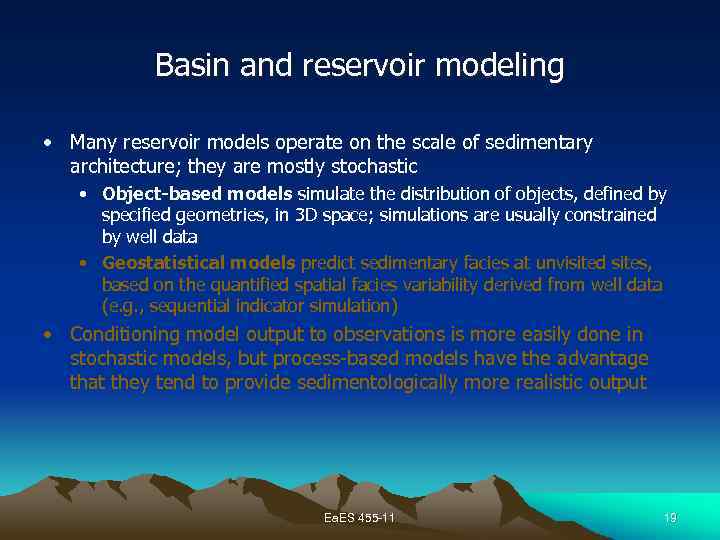

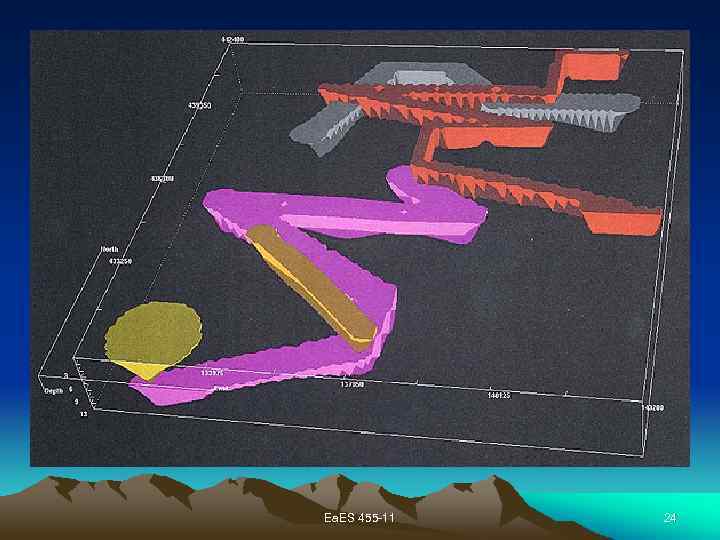

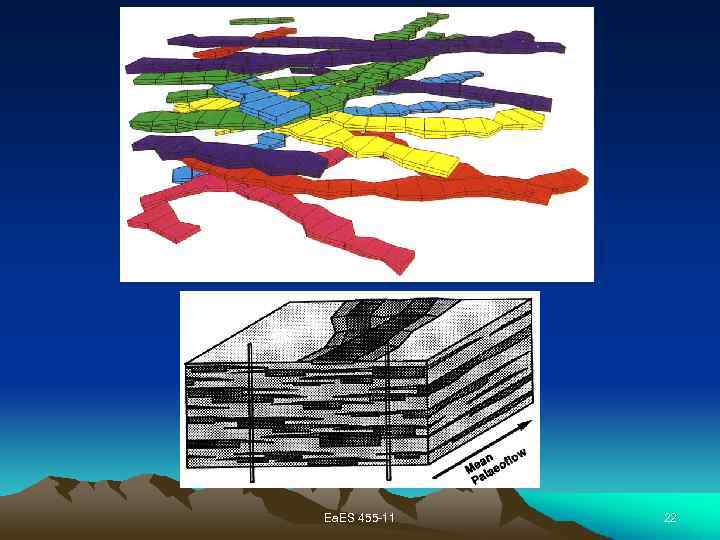

Basin and reservoir modeling • Many reservoir models operate on the scale of sedimentary architecture; they are mostly stochastic • Object-based models simulate the distribution of objects, defined by specified geometries, in 3 D space; simulations are usually constrained by well data • Geostatistical models predict sedimentary facies at unvisited sites, based on the quantified spatial facies variability derived from well data (e. g. , sequential indicator simulation) • Conditioning model output to observations is more easily done in stochastic models, but process-based models have the advantage that they tend to provide sedimentologically more realistic output Ea. ES 455 -11 19

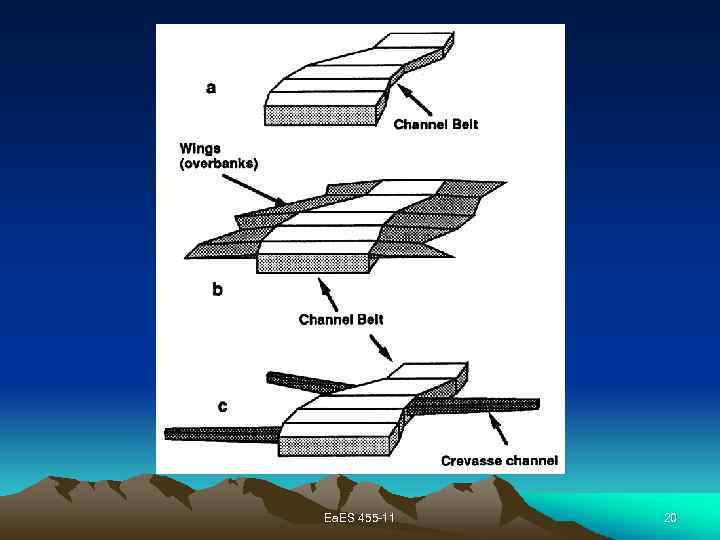

Ea. ES 455 -11 20

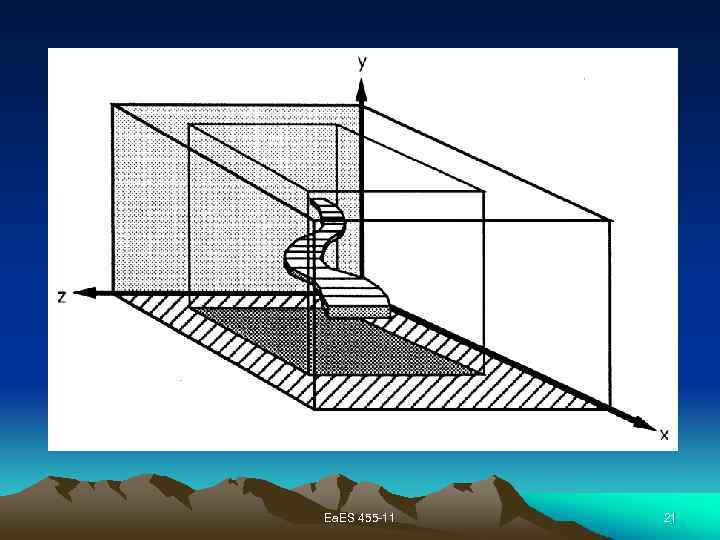

Ea. ES 455 -11 21

Ea. ES 455 -11 22

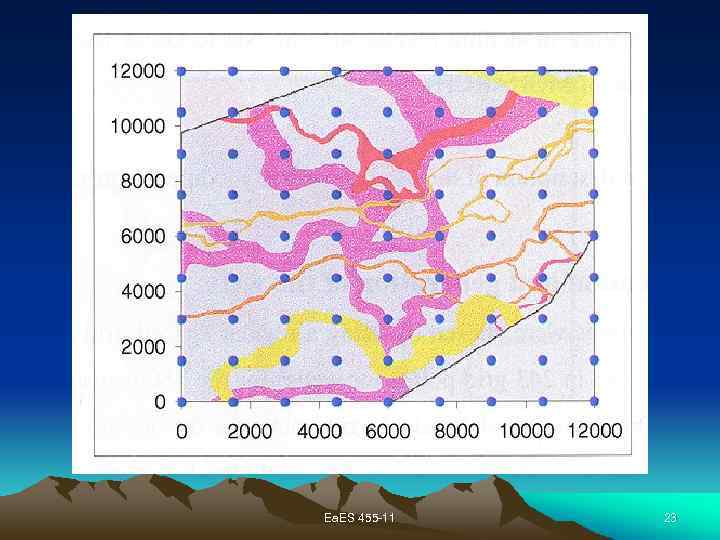

Ea. ES 455 -11 23

Ea. ES 455 -11 24

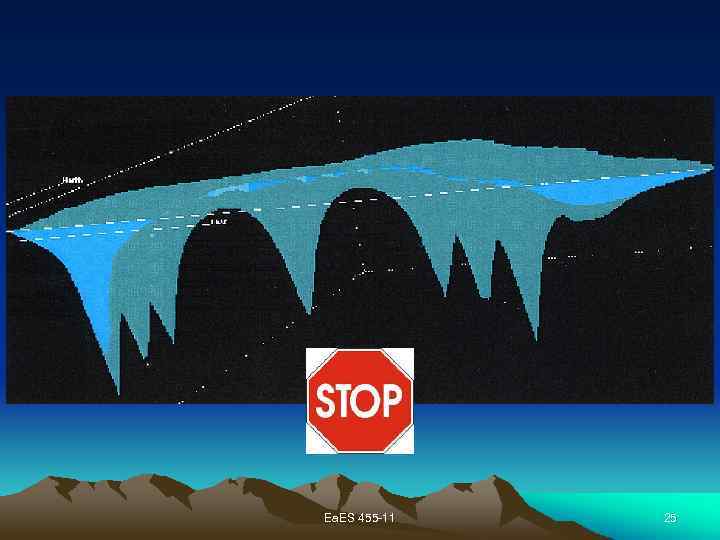

Ea. ES 455 -11 25

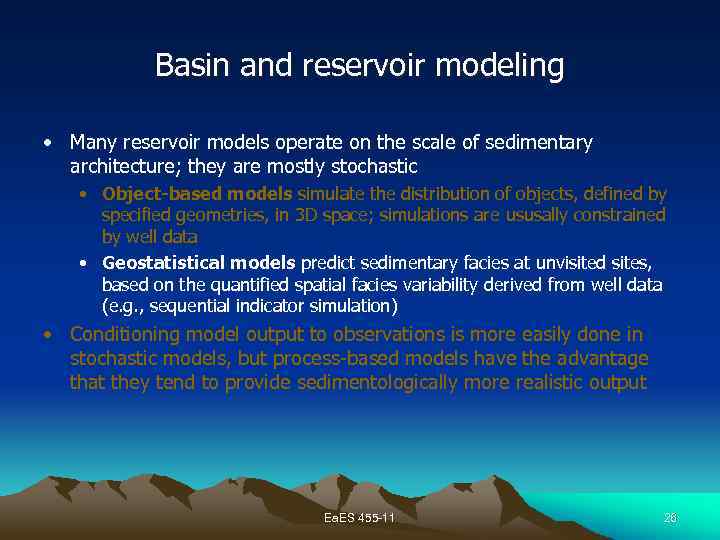

Basin and reservoir modeling • Many reservoir models operate on the scale of sedimentary architecture; they are mostly stochastic • Object-based models simulate the distribution of objects, defined by specified geometries, in 3 D space; simulations are ususally constrained by well data • Geostatistical models predict sedimentary facies at unvisited sites, based on the quantified spatial facies variability derived from well data (e. g. , sequential indicator simulation) • Conditioning model output to observations is more easily done in stochastic models, but process-based models have the advantage that they tend to provide sedimentologically more realistic output Ea. ES 455 -11 26

Ea. ES 455 -11 27

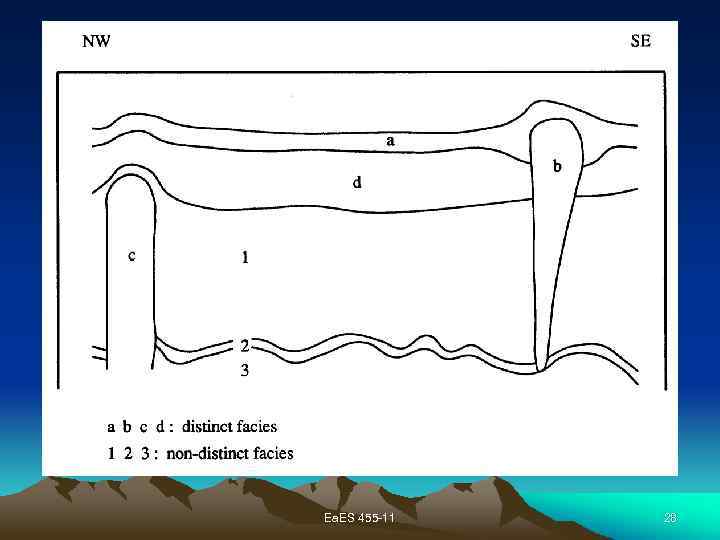

Ea. ES 455 -11 28

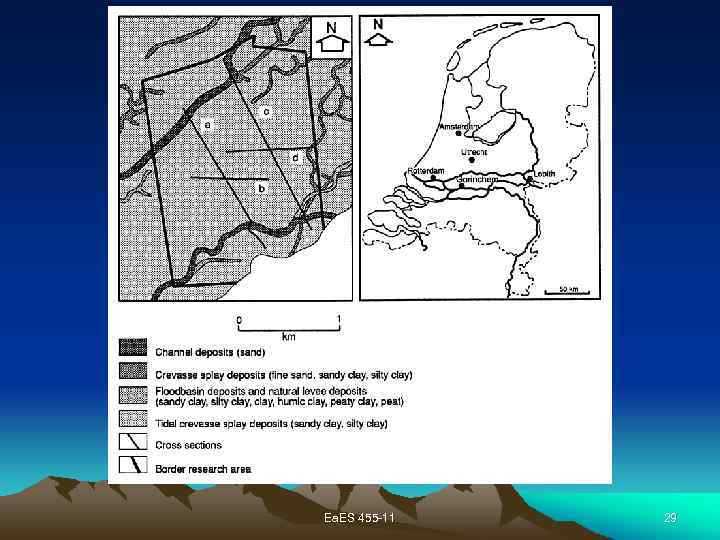

Ea. ES 455 -11 29

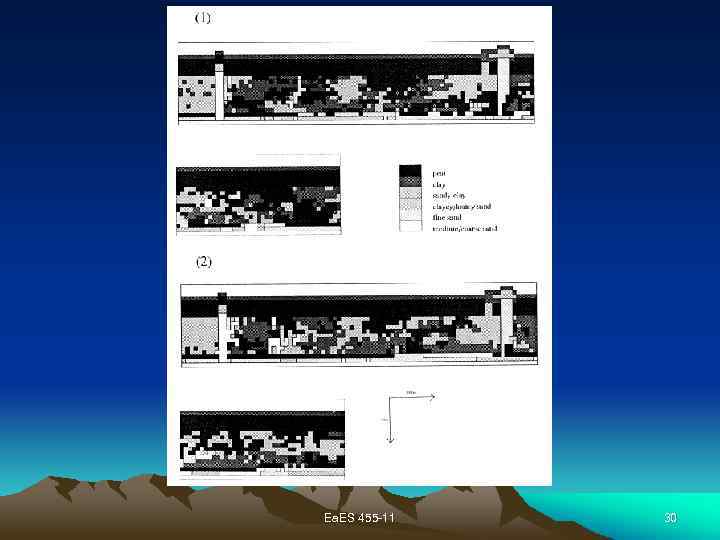

Ea. ES 455 -11 30

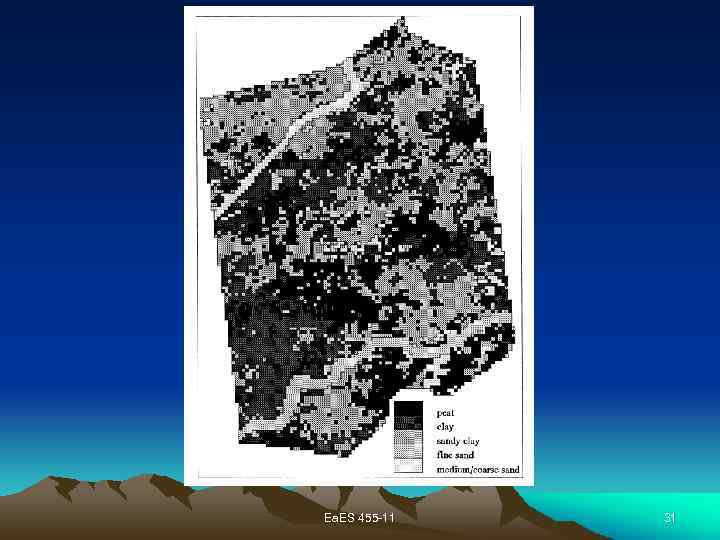

Ea. ES 455 -11 31

Basin and reservoir modeling • Many reservoir models operate on the scale of sedimentary architecture; they are mostly stochastic • Object-based models simulate the distribution of objects, defined by specified geometries, in 3 D space; simulations are usually constrained by well data • Geostatistical models predict sedimentary facies at unvisited sites, based on the quantified spatial facies variability derived from well data (e. g. , sequential indicator simulation) • Conditioning model output to observations is more easily done in stochastic models, but process-based models have the advantage that they tend to provide sedimentologically more realistic output Ea. ES 455 -11 32

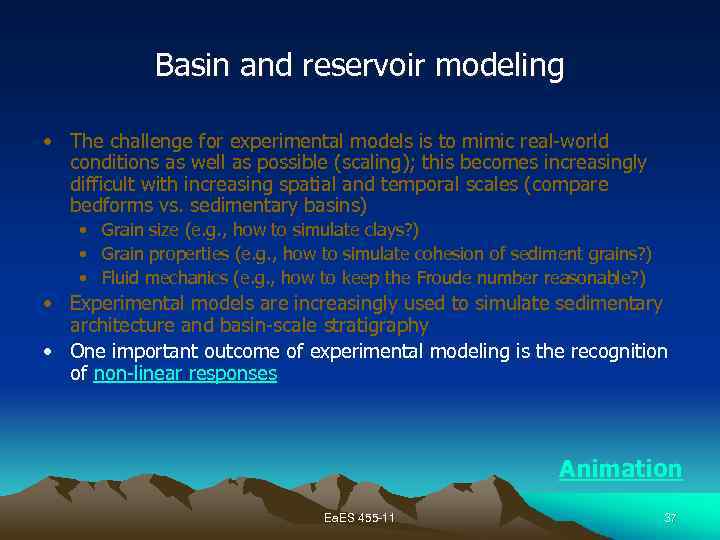

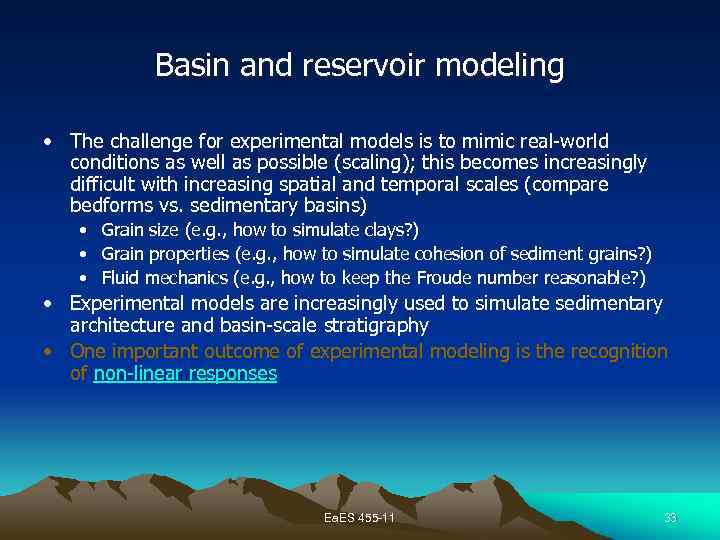

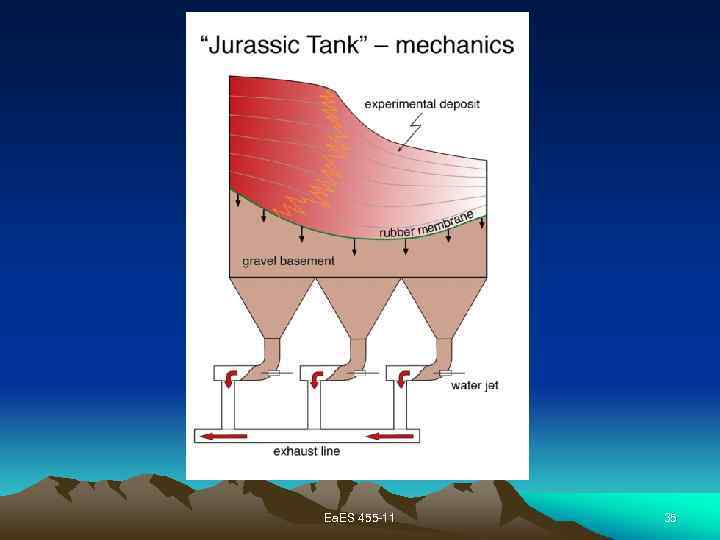

Basin and reservoir modeling • The challenge for experimental models is to mimic real-world conditions as well as possible (scaling); this becomes increasingly difficult with increasing spatial and temporal scales (compare bedforms vs. sedimentary basins) • Grain size (e. g. , how to simulate clays? ) • Grain properties (e. g. , how to simulate cohesion of sediment grains? ) • Fluid mechanics (e. g. , how to keep the Froude number reasonable? ) • Experimental models are increasingly used to simulate sedimentary architecture and basin-scale stratigraphy • One important outcome of experimental modeling is the recognition of non-linear responses Ea. ES 455 -11 33
