Constructing Accurate Application Call Graphs For Java To Model Library Callbacks Weilei Zhang, Barbara Ryder Department of Computer Science Rutgers University

Motivation ● ● Call graphs (CG) are widely used in software engineering and compiler optimisation Reference analysis is used to generate CG for object-oriented programs ● A precise reference analysis requires a whole-program analysis, e. g. NCFA, object sensitive analysis The constructed CG includes both application and library methods as its nodes (whole-program CG) In many software engineering applications, the calling relationships among library methods are NOT as interesting or important Prolangs Lab, Rutgers University 2

Application Call Graph ● ● Application CG represents calling relationships between application methods Two kinds of edges in application CG: ● direct: application method x may call y directly callback: x may call a library method that may eventually call back y through method calls in the library x→ l 1 → l 2 →. . . → ln → y (li : a library method) Comparison: whole-program CG vs. application CG Whole-program CG is inaccurate in representing callback relationship between application methods Whole-program CG may contain too much information ● Library becomes larger and larger in modern software Prolangs Lab, Rutgers University 3

“Library” in Multi-tier Software Architecture ● Application Library. Middleware can be overwhelmingly large in modern software compared to the application program under Java EE Platform investigation. Application CG is more manageable Java SE Platform than whole-program CG. Where to draw the line for java library? Narrow: java SE(EE) libraries, as used in the experimental study of this paper Broad: in a multi-tier software architecture, the subprograms in lower tiers can be considered as libraries to the upper tiers Prolangs Lab, Rutgers University 4

Whole-program CG Is Inaccurate in Representing Callback Relationship class App{ String. Buffer local; String. Buffer append. A(){ A a=new A(); return (local. append(a)); } String. Buffer append. B(){ B b=new B(); return (local. append(b)); } } class A{ String to. String(){. . . } } class B{ String to. String(){. . . } } Library Calls Prolangs Lab, Rutgers University 5

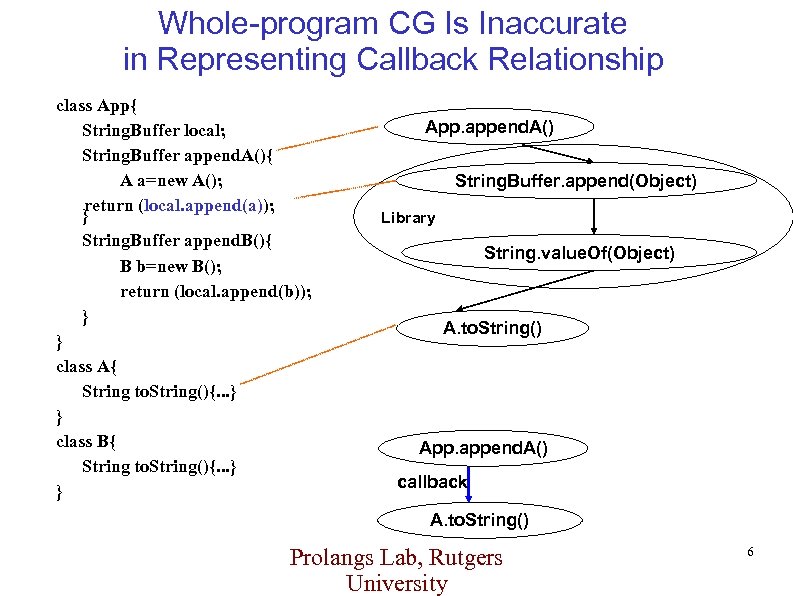

Whole-program CG Is Inaccurate in Representing Callback Relationship class App{ String. Buffer local; String. Buffer append. A(){ A a=new A(); return (local. append(a)); } String. Buffer append. B(){ B b=new B(); return (local. append(b)); } } class A{ String to. String(){. . . } } class B{ String to. String(){. . . } } App. append. A() String. Buffer. append(Object) Library String. value. Of(Object) A. to. String() App. append. A() callback A. to. String() Prolangs Lab, Rutgers University 6

Whole-program CG Is Inaccurate in Representing Callback Relationship class App{ String. Buffer local; String. Buffer append. A(){ A a=new A(); return (local. append(a)); } String. Buffer append. B(){ B b=new B(); return (local. append(b)); } } class A{ String to. String(){. . . } } class B{ String to. String(){. . . } } App. append. B( ) String. Buffer. append(Object) Library String. value. Of(Object) B. to. String() App. append. B( ) callback B. to. String() Prolangs Lab, Rutgers University 7

Whole-program CG Is Inaccurate in Representing Callback Relationship class App{ String. Buffer local; String. Buffer append. A(){ A a=new A(); return (local. append(a)); } String. Buffer append. B(){ B b=new B(); return (local. append(b)); } } class A{ String to. String(){. . . } } class B{ String to. String(){. . . } } App. append. A() App. append. B( ) String. Buffer. append(Object) Library String. value. Of(Object) A. to. String() App. append. A() callback A. to. String() Prolangs Lab, Rutgers University B. to. String() App. append. B( ) callback B. to. String() 8

Va-Data. Reachft to Resolve Callbacks Accurately and Automatically ● Data. Reach(Fu et al. TSE 2005): to resolve control-flow (call path) reachability via data reachability analysis ● Call paths requiring receiver objects of a specific type can be shown to be infeasible, if those types of objects are not reachable through dereferences at the relevant call site. Va-Data. Reachft(SCAM 2006): a call-site specific reference analysis and escape analysis are performed at the same time for each library call to derive callbacks automatically App. append. A() append(a) App. append. B( ) append(b) String. Buffer. append(Object) Library String. value. Of(Object) Object. to. String() App. append. A() callback A. to. String() SCAM’ 06 B. to. String() App. append. B( ) callback B. to. String()

Contributions ● ● A new variant of the data reachability algorithm is proposed (Va. Data. Reach) and fine tuned specifically to resolve library callbacks accurately (Va-Data. Reachft) The algorithm is implemented and experimented. The experimental study shows that the algorithm is practical and eliminates a large amount of spurious callback edges For all spec-jvm 98 benchmarks, on average, the number of callback edges is reduced from whole program call graph (generated by a pointsto analysis) by 74. 97% The algorithm finishes in reasonable time (the longest is 781 seconds, for javac, which has 2432 library calls) Prolangs Lab, Rutgers University 10
