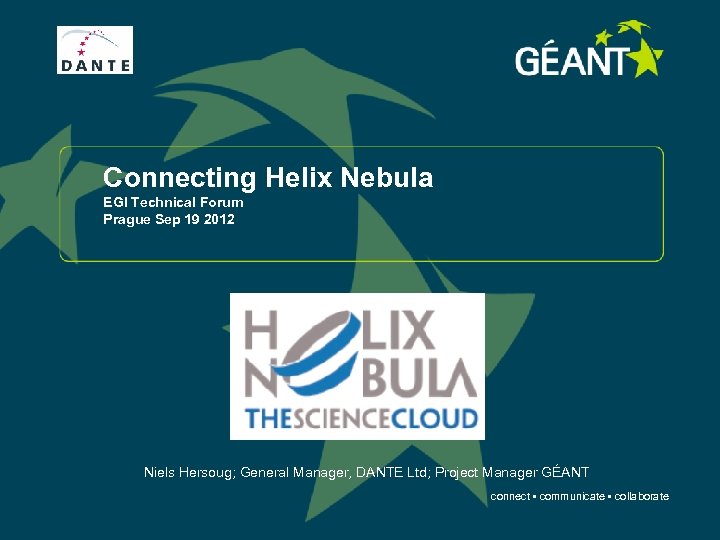

Connecting Helix Nebula EGI Technical Forum Prague Sep 19 2012 Niels Hersoug; General Manager, Connecting Helix Nebula EGI Technical Forum Prague Sep 19 2012 Niels Hersoug; General Manager, DANTE Ltd; Project Manager GÉANT connect • communicate • collaborate

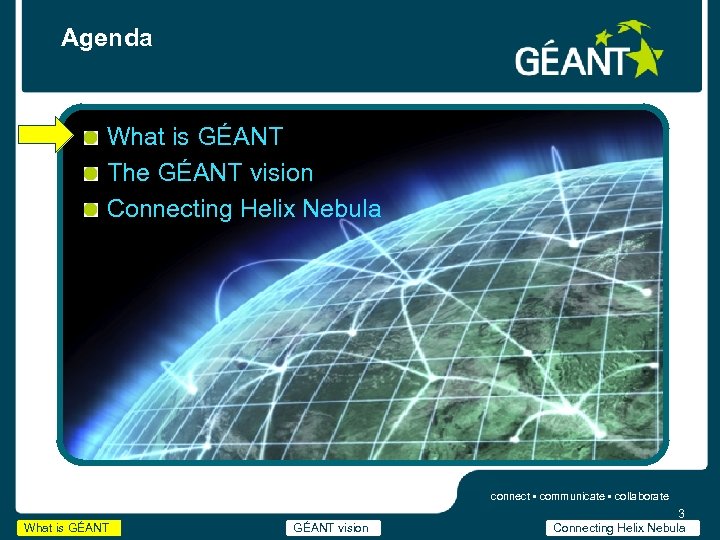

Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • collaborate What is GÉANT vision 2 Connecting Helix Nebula

Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • collaborate What is GÉANT vision 3 Connecting Helix Nebula

What is GÉANT? Network as of Today One of the world’s largest and most What is GÉANT? Network as of Today One of the world’s largest and most advanced Research and Education Network 25 European POPs 12, 000 km of dark fibre on 18 routes 50, 000 km network infrastructure on 44 routes Widely diversified footprint: – Serves 40 million users – 8, 000 institutions – Across 40 European countries Covering 32 European nations Reaches a further 50 NRENs outside Europe GÉANT is co-funded by Europe’s NRENs and the European Commission (EC) under the Seventh Framework Programme (FP 7) Project Partners are 32 European NRENs, TERENA and DANTE > 350 staff works in GÉANT across Europe connect • communicate • collaborate What is GÉANT vision 4 Connecting Helix Nebula

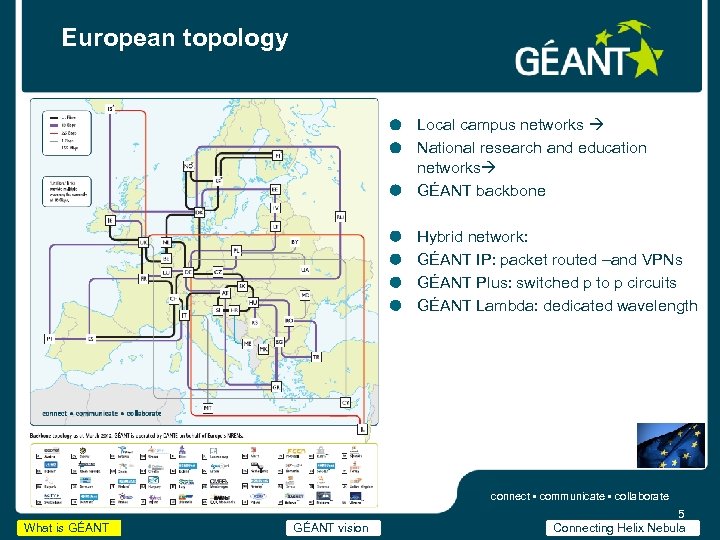

European topology Local campus networks National research and education networks GÉANT backbone Hybrid network: European topology Local campus networks National research and education networks GÉANT backbone Hybrid network: GÉANT IP: packet routed –and VPNs GÉANT Plus: switched p to p circuits GÉANT Lambda: dedicated wavelength connect • communicate • collaborate What is GÉANT vision 5 Connecting Helix Nebula

Where is GÉANT? Europe…. . and across the world! A ubiquitous European academic network: Where is GÉANT? Europe…. . and across the world! A ubiquitous European academic network: § 34 European countries §Every EU member state §An expanding consortium with most recent members from Serbia, Macedonia and Montenegro GEANT members Associate members connect • communicate • collaborate What is GÉANT vision 6 Connecting Helix Nebula

Beyond Europe The Global Research Village GÉANT connects to international networks enabling researchers and Beyond Europe The Global Research Village GÉANT connects to international networks enabling researchers and students to collaborate on a global scale. connect • communicate • collaborate What is GÉANT vision Connecting Helix Nebula

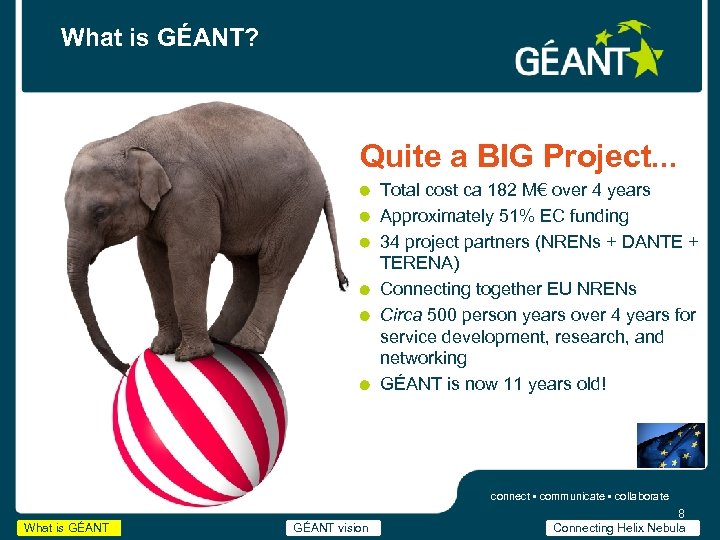

What is GÉANT? Quite a BIG Project. . . Total cost ca 182 M€ What is GÉANT? Quite a BIG Project. . . Total cost ca 182 M€ over 4 years Approximately 51% EC funding 34 project partners (NRENs + DANTE + TERENA) Connecting together EU NRENs Circa 500 person years over 4 years for service development, research, and networking GÉANT is now 11 years old! connect • communicate • collaborate What is GÉANT vision 8 Connecting Helix Nebula

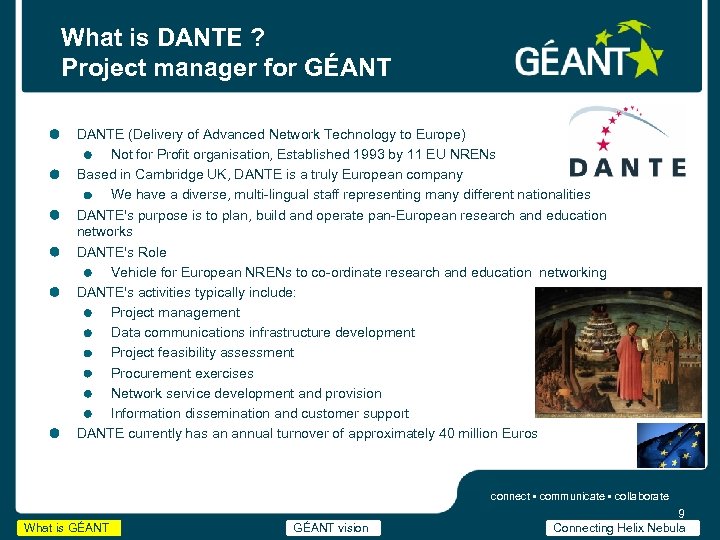

What is DANTE ? Project manager for GÉANT DANTE (Delivery of Advanced Network Technology What is DANTE ? Project manager for GÉANT DANTE (Delivery of Advanced Network Technology to Europe) Not for Profit organisation, Established 1993 by 11 EU NRENs Based in Cambridge UK, DANTE is a truly European company We have a diverse, multi-lingual staff representing many different nationalities DANTE's purpose is to plan, build and operate pan-European research and education networks DANTE's Role Vehicle for European NRENs to co-ordinate research and education networking DANTE's activities typically include: Project management Data communications infrastructure development Project feasibility assessment Procurement exercises Network service development and provision Information dissemination and customer support DANTE currently has an annual turnover of approximately 40 million Euros connect • communicate • collaborate What is GÉANT vision 9 Connecting Helix Nebula

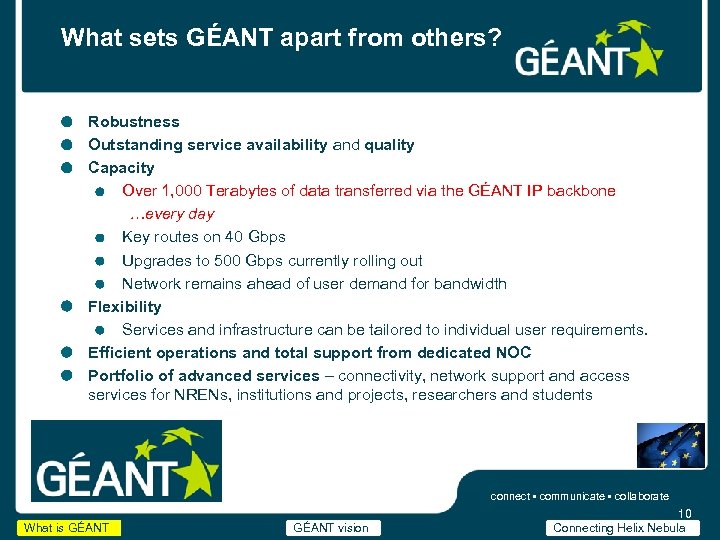

What sets GÉANT apart from others? Robustness Outstanding service availability and quality Capacity Over What sets GÉANT apart from others? Robustness Outstanding service availability and quality Capacity Over 1, 000 Terabytes of data transferred via the GÉANT IP backbone …every day Key routes on 40 Gbps Upgrades to 500 Gbps currently rolling out Network remains ahead of user demand for bandwidth Flexibility Services and infrastructure can be tailored to individual user requirements. Efficient operations and total support from dedicated NOC Portfolio of advanced services – connectivity, network support and access services for NRENs, institutions and projects, researchers and students connect • communicate • collaborate What is GÉANT vision 10 Connecting Helix Nebula

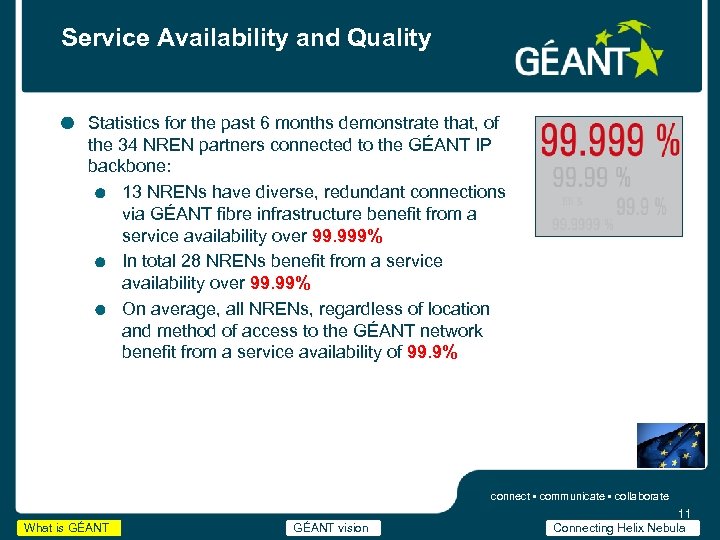

Service Availability and Quality Statistics for the past 6 months demonstrate that, of the Service Availability and Quality Statistics for the past 6 months demonstrate that, of the 34 NREN partners connected to the GÉANT IP backbone: 13 NRENs have diverse, redundant connections via GÉANT fibre infrastructure benefit from a service availability over 99. 999% In total 28 NRENs benefit from a service availability over 99. 99% On average, all NRENs, regardless of location and method of access to the GÉANT network benefit from a service availability of 99. 9% connect • communicate • collaborate What is GÉANT vision 11 Connecting Helix Nebula

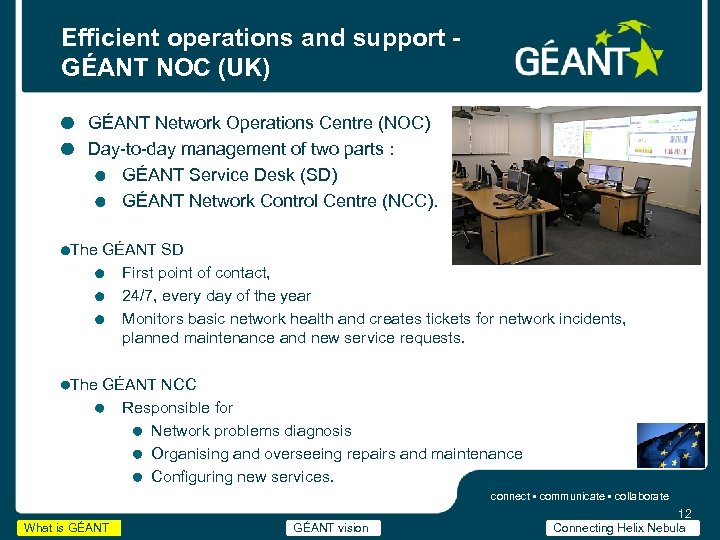

Efficient operations and support GÉANT NOC (UK) GÉANT Network Operations Centre (NOC) Day-to-day management Efficient operations and support GÉANT NOC (UK) GÉANT Network Operations Centre (NOC) Day-to-day management of two parts : GÉANT Service Desk (SD) GÉANT Network Control Centre (NCC). The GÉANT SD First point of contact, 24/7, every day of the year Monitors basic network health and creates tickets for network incidents, planned maintenance and new service requests. The GÉANT NCC Responsible for Network problems diagnosis Organising and overseeing repairs and maintenance Configuring new services. connect • communicate • collaborate What is GÉANT vision 12 Connecting Helix Nebula

Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • collaborate What is GÉANT vision 13 Connecting Helix Nebula

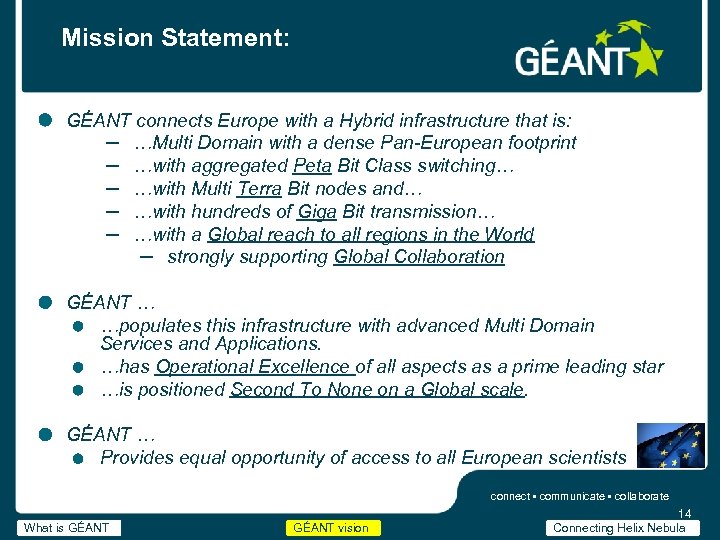

Mission Statement: GÉANT connects Europe with a Hybrid infrastructure that is: – …Multi Domain Mission Statement: GÉANT connects Europe with a Hybrid infrastructure that is: – …Multi Domain with a dense Pan-European footprint – …with aggregated Peta Bit Class switching… – …with Multi Terra Bit nodes and… – …with hundreds of Giga Bit transmission… – …with a Global reach to all regions in the World – strongly supporting Global Collaboration GÉANT … …populates this infrastructure with advanced Multi Domain Services and Applications. …has Operational Excellence of all aspects as a prime leading star …is positioned Second To None on a Global scale. GÉANT … Provides equal opportunity of access to all European scientists connect • communicate • collaborate What is GÉANT vision 14 Connecting Helix Nebula

Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula connect • communicate • collaborate What is GÉANT vision 15 Connecting Helix Nebula

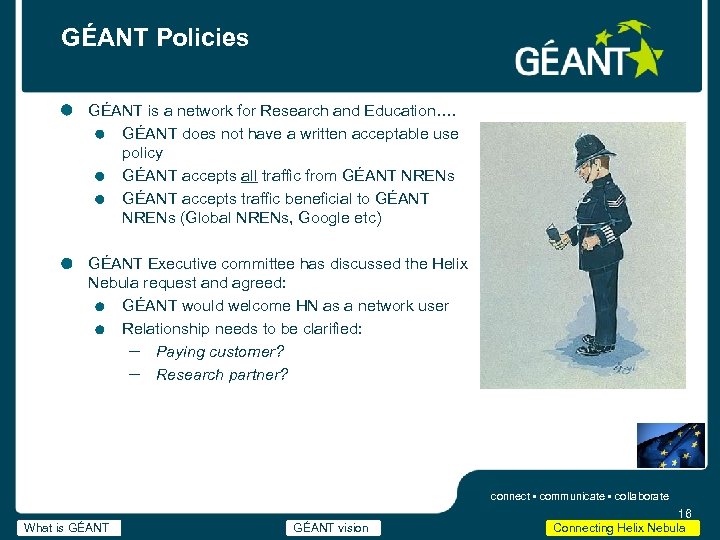

GÉANT Policies GÉANT is a network for Research and Education…. GÉANT does not have GÉANT Policies GÉANT is a network for Research and Education…. GÉANT does not have a written acceptable use policy GÉANT accepts all traffic from GÉANT NRENs GÉANT accepts traffic beneficial to GÉANT NRENs (Global NRENs, Google etc) GÉANT Executive committee has discussed the Helix Nebula request and agreed: GÉANT would welcome HN as a network user Relationship needs to be clarified: – Paying customer? – Research partner? connect • communicate • collaborate What is GÉANT vision 16 Connecting Helix Nebula

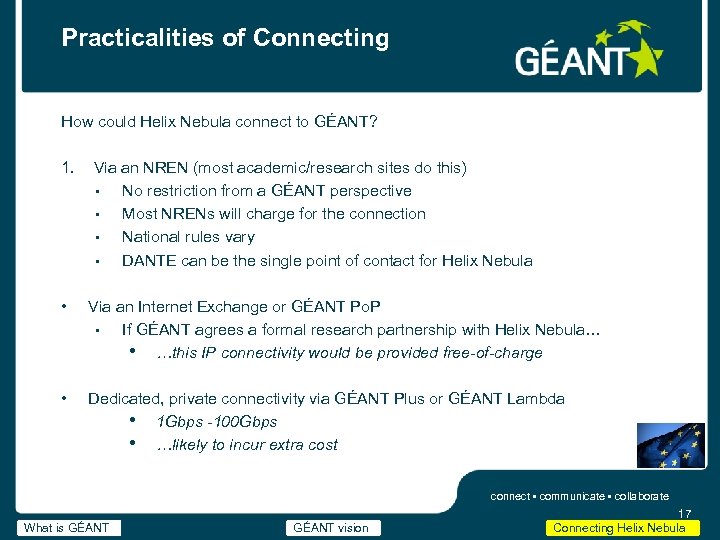

Practicalities of Connecting How could Helix Nebula connect to GÉANT? 1. Via an NREN Practicalities of Connecting How could Helix Nebula connect to GÉANT? 1. Via an NREN (most academic/research sites do this) • No restriction from a GÉANT perspective • Most NRENs will charge for the connection • National rules vary • DANTE can be the single point of contact for Helix Nebula • Via an Internet Exchange or GÉANT Po. P • If GÉANT agrees a formal research partnership with Helix Nebula… • …this IP connectivity would be provided free-of-charge • Dedicated, private connectivity via GÉANT Plus or GÉANT Lambda • 1 Gbps -100 Gbps • …likely to incur extra cost connect • communicate • collaborate What is GÉANT vision 17 Connecting Helix Nebula

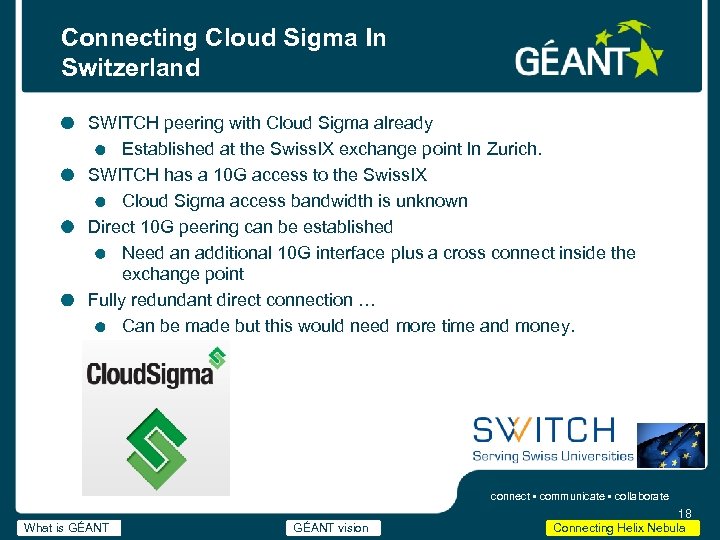

Connecting Cloud Sigma In Switzerland SWITCH peering with Cloud Sigma already Established at the Connecting Cloud Sigma In Switzerland SWITCH peering with Cloud Sigma already Established at the Swiss. IX exchange point In Zurich. SWITCH has a 10 G access to the Swiss. IX Cloud Sigma access bandwidth is unknown Direct 10 G peering can be established Need an additional 10 G interface plus a cross connect inside the exchange point Fully redundant direct connection … Can be made but this would need more time and money. connect • communicate • collaborate What is GÉANT vision 18 Connecting Helix Nebula

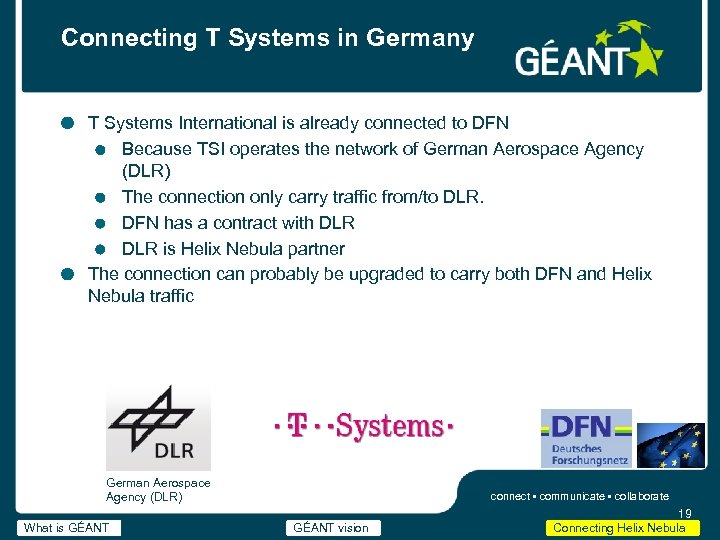

Connecting T Systems in Germany T Systems International is already connected to DFN Because Connecting T Systems in Germany T Systems International is already connected to DFN Because TSI operates the network of German Aerospace Agency (DLR) The connection only carry traffic from/to DLR. DFN has a contract with DLR is Helix Nebula partner The connection can probably be upgraded to carry both DFN and Helix Nebula traffic German Aerospace Agency (DLR) What is GÉANT connect • communicate • collaborate GÉANT vision 19 Connecting Helix Nebula

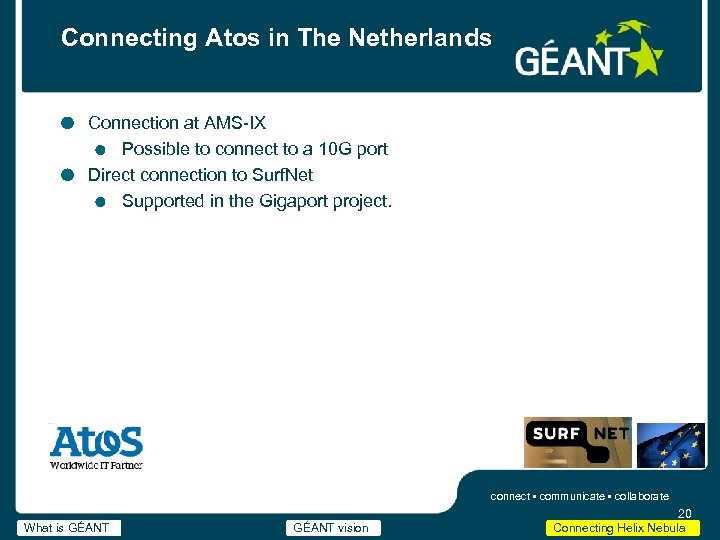

Connecting Atos in The Netherlands Connection at AMS-IX Possible to connect to a 10 Connecting Atos in The Netherlands Connection at AMS-IX Possible to connect to a 10 G port Direct connection to Surf. Net Supported in the Gigaport project. connect • communicate • collaborate What is GÉANT vision 20 Connecting Helix Nebula

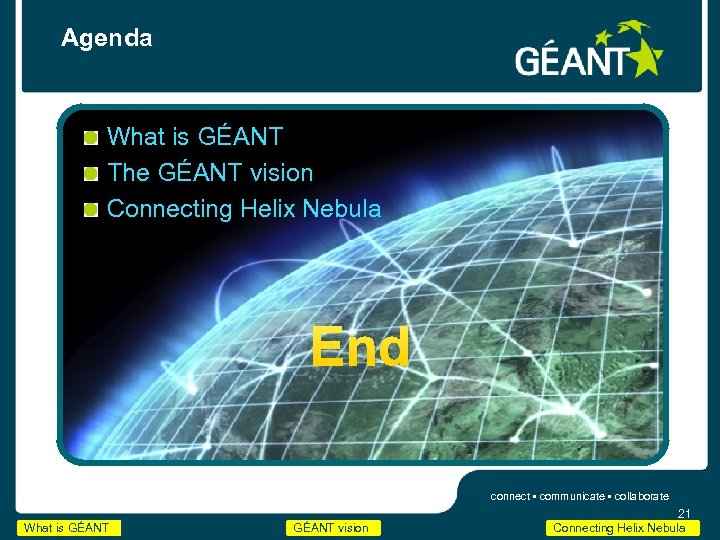

Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula End connect • communicate Agenda What is GÉANT The GÉANT vision Connecting Helix Nebula End connect • communicate • collaborate What is GÉANT vision 21 Connecting Helix Nebula
