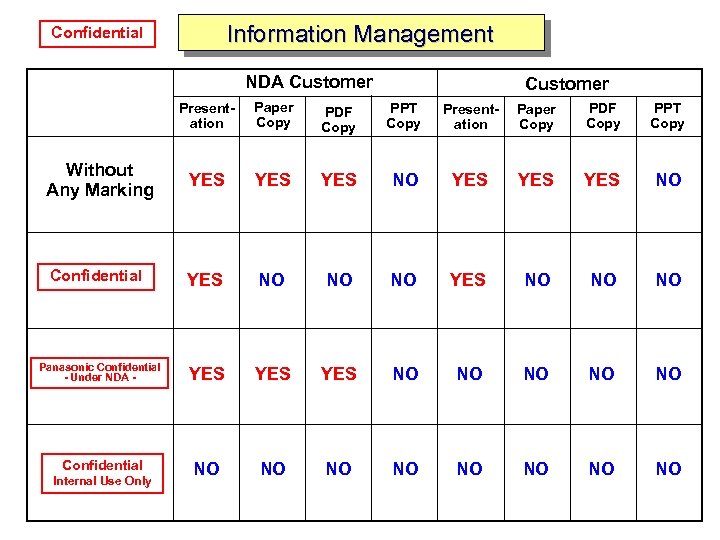

Confidential Information Management Confidential NDA Customer Presentation Without Any Marking Paper Copy PDF Copy PPT Copy Presentation Paper Copy PDF Copy PPT Copy YES YES YES NO NO NO NO Panasonic System Networks Co. , Ltd. NO NO Model Name Confidential Model. NO NO NO Number YES Panasonic Confidential - Under NDA - YES Product Information YES NO NO Rev. xx Dec. 2009 Confidential Internal Use Only

Confidential Compact Live Switcher Model Name Tentative AW-HS 50 Model Number Product Information Rev. 0. 92 Dec. 2009 Rev. xx April 2010 Panasonic System Networks Co. , Ltd.

Confidential 2007 HS Series Switcher Roadmap 2008 2009 2010 16 inputs AV-HS 450 8 inputs AV-HS 400 A Successor Model of HS 300 l. Affordable HD/SD Switcher l. Simple Operation New 6 inputs AV-HS 300 5 inputs AW-HS 50 Broadcast and Multimedia Business Unit 3

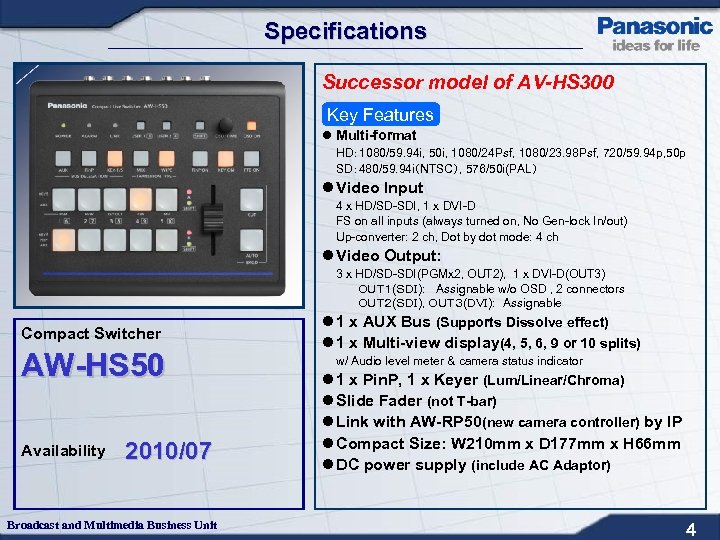

Specifications Successor model of AV-HS 300 Key Features l Multi-format HD： 1080/59. 94 i, 50 i, 1080/24 Psf, 1080/23. 98 Psf, 720/59. 94 p, 50 p SD： 480/59. 94 i（NTSC）, 576/50 i(PAL） l Video Input 4 x HD/SD-SDI, 1 x DVI-D FS on all inputs (always turned on, No Gen-lock In/out) Up-converter: 2 ch, Dot by dot mode: 4 ch l Video Output: 3 x HD/SD-SDI(PGMx 2, OUT 2), 1 x DVI-D(OUT 3) ＯＵＴ１(ＳＤＩ): 　 Assignable w/o OSD , 2 connectors ＯＵＴ２(ＳＤＩ), ＯＵＴ３(ＤＶＩ): 　Assignable Compact Switcher AW-HS 50 Availability 2010/07 Broadcast and Multimedia Business Unit l 1 x AUX Bus (Supports Dissolve effect) l 1 x Multi-view display(4, 5, 6, 9 or 10 splits) w/ Audio level meter & camera status indicator l 1 x Pin. P, 1 x Keyer (Lum/Linear/Chroma) l Slide Fader (not T-bar) l Link with AW-RP 50(new camera controller) by IP l Compact Size: W 210 mm x D 177 mm x H 66 mm l DC power supply (include AC Adaptor) 4

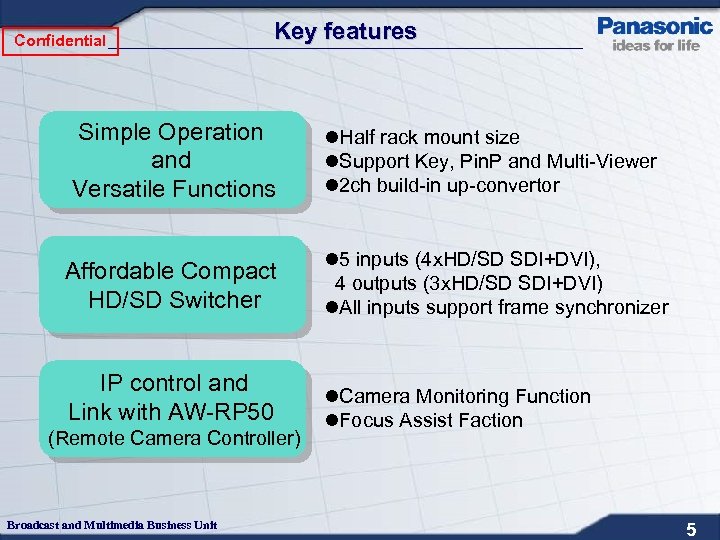

Confidential Key features Simple Operation and Versatile Functions l. Half rack mount size l. Support Key, Pin. P and Multi-Viewer l 2 ch build-in up-convertor Affordable Compact HD/SD Switcher l 5 inputs (4 x. HD/SD SDI+DVI), 4 outputs (3 x. HD/SD SDI+DVI) l. All inputs support frame synchronizer IP control and Link with AW-RP 50 l. Camera Monitoring Function l. Focus Assist Faction (Remote Camera Controller) Broadcast and Multimedia Business Unit 5

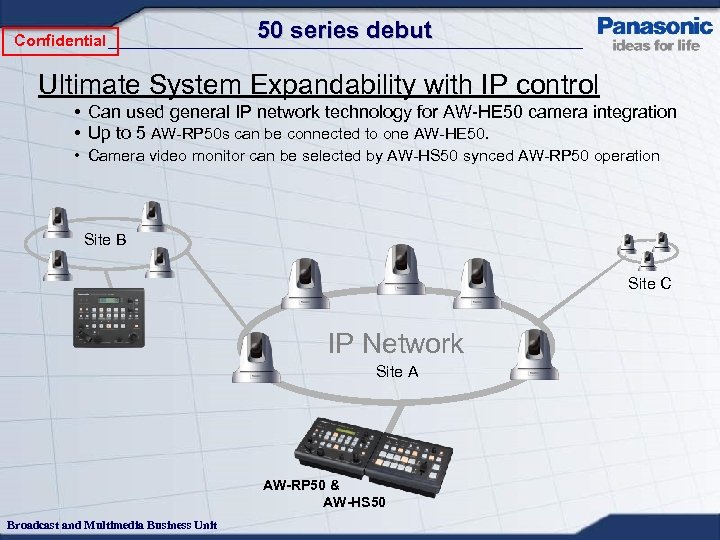

Confidential 50 series debut Ultimate System Expandability with IP control • Can used general IP network technology for AW-HE 50 camera integration • Up to 5 AW-RP 50 s can be connected to one AW-HE 50. • Camera video monitor can be selected by AW-HS 50 synced AW-RP 50 operation Site B Site C IP Network Site A AW-RP 50 & AW-HS 50 Broadcast and Multimedia Business Unit

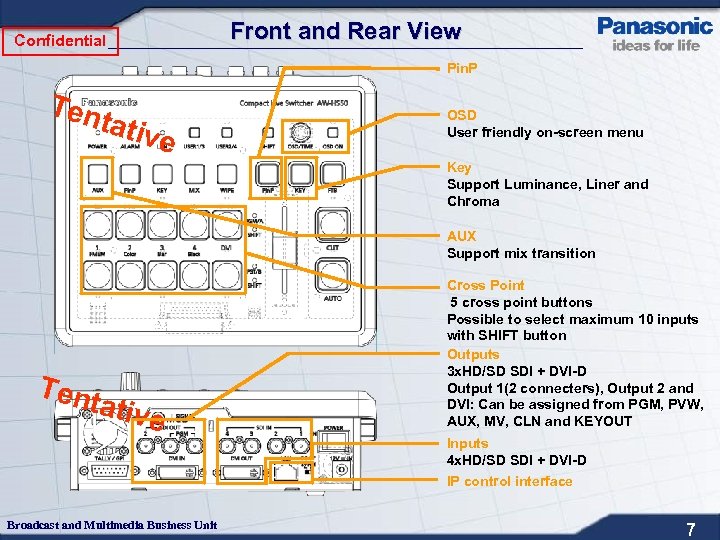

Confidential Front and Rear View Pin. P Ten tativ e OSD User friendly on-screen menu Key Support Luminance, Liner and Chroma AUX Support mix transition Tent ative Cross Point 5 cross point buttons Possible to select maximum 10 inputs with SHIFT button Outputs 3 x. HD/SD SDI + DVI-D Output 1(2 connecters), Output 2 and DVI: Can be assigned from PGM, PVW, AUX, MV, CLN and KEYOUT Inputs 4 x. HD/SD SDI + DVI-D IP control interface Broadcast and Multimedia Business Unit 7

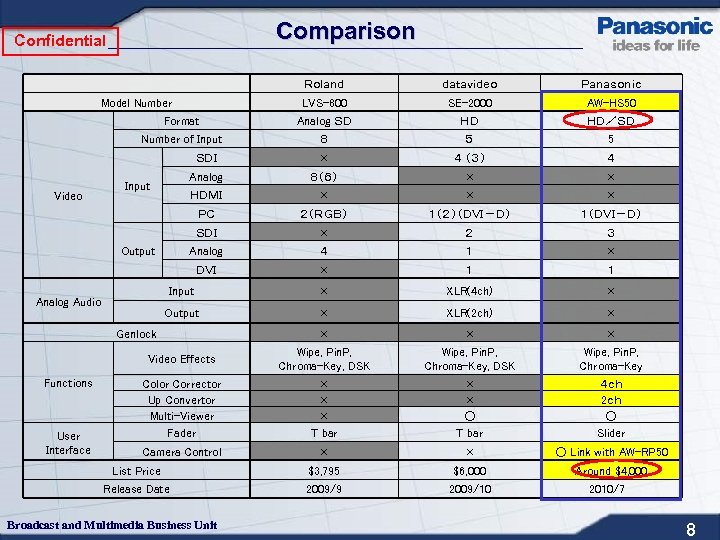

Comparison Confidential Ｒｏｌａｎｄ ｄａｔａｖｉｄｅｏ Ｐａｎａｓｏｎｉｃ LVS-800 SE-2000 AW-HS 50 Format Analog ＳＤ ＨＤ ＨＤ／ＳＤ Number of Input ８ ５ 5 ＳＤＩ × ４ （３） ４ Analog ８（６） × × ＨＤＭＩ × × × ＰＣ ２（ＲＧＢ） １（２）（ＤＶＩ－Ｄ） １（ＤＶＩ－Ｄ） ＳＤＩ × ２ ３ Analog ４ １ × ＤＶＩ × １ １ Input × XLR(4 ch) × Output × XLR(2 ch) × × Color Corrector Up Convertor Multi-Viewer Fader Wipe, Pin. P, Chroma-Key, DSK × × × T bar Wipe, Pin. P, Chroma-Key, DSK × × ○ T bar Wipe, Pin. P, Chroma-Key ４ｃｈ 2ｃｈ ○ Slider Camera Control × × ○ Link with AW-RP 50 List Price $3, 795 $6, 000 Around $4, 000 Release Date 2009/9 2009/10 2010/7　 Model Number Video Input Output Analog Audio Genlock Video Effects Functions User Interface Broadcast and Multimedia Business Unit 8

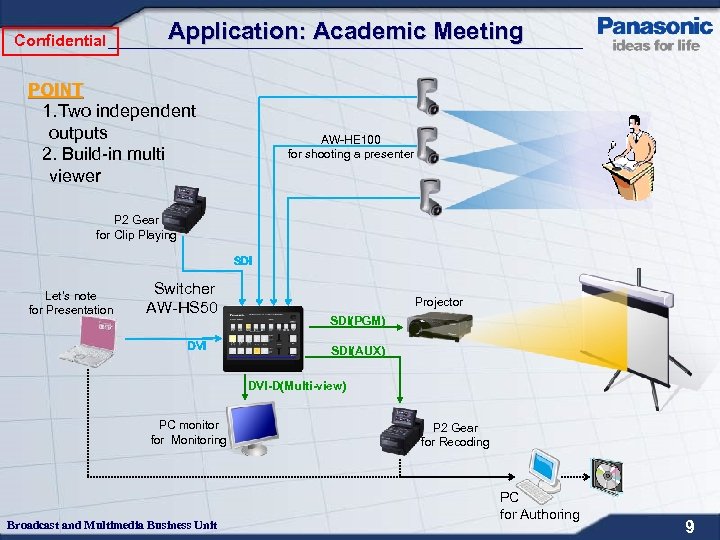

Confidential Application: Academic Meeting POINT 1. Two independent outputs 2. Build-in multi viewer AW-HE 100 for shooting a presenter P 2 Gear for Clip Playing SDI Let’s note for Presentation Switcher AW-HS 50 DVI Projector SDI(PGM) SDI(AUX) DVI-D(Multi-view) PC monitor for Monitoring Broadcast and Multimedia Business Unit P 2 Gear for Recoding PC for Authoring 9

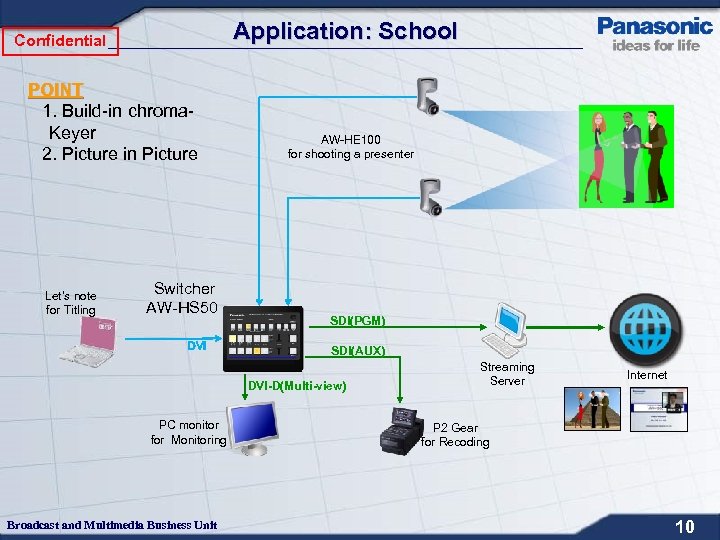

Application: School Confidential POINT 1. Build-in chroma. Keyer 2. Picture in Picture Let’s note for Titling Switcher AW-HS 50 DVI AW-HE 100 for shooting a presenter SDI(PGM) SDI(AUX) DVI-D(Multi-view) PC monitor for Monitoring Broadcast and Multimedia Business Unit Streaming Server Internet P 2 Gear for Recoding 10

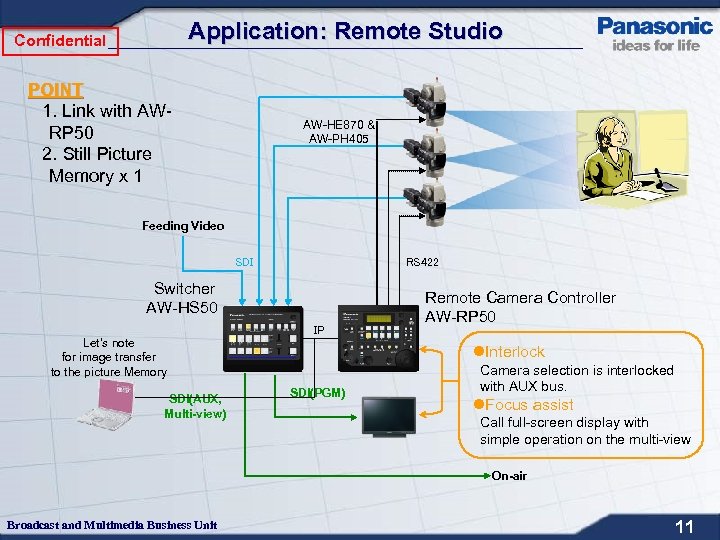

Application: Remote Studio Confidential POINT 1. Link with AWRP 50 2. Still Picture Memory x 1 AW-HE 870 & AW-PH 405 Feeding Video SDI RS 422 Switcher AW-HS 50 IP Let’s note for image transfer to the picture Memory SDI(AUX, Multi-view) Remote Camera Controller AW-RP 50 l. Interlock SDI(PGM) Camera selection is interlocked with AUX bus. l. Focus assist Call full-screen display with simple operation on the multi-view On-air Broadcast and Multimedia Business Unit 11
