Condor by Example Douglas Thain Computer Sciences Department University of Wisconsin-Madison (In Bologna for June 2000) thain@cs. wisc. edu http: //www. cs. wisc. edu/condor

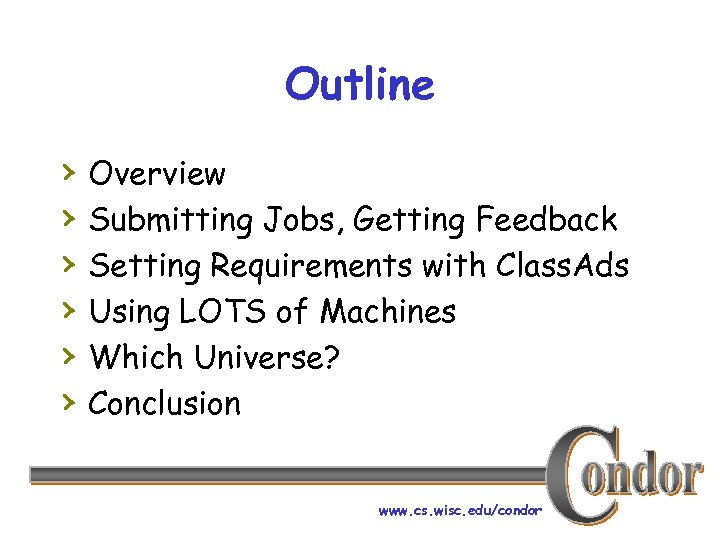

Outline › › › Overview Submitting Jobs, Getting Feedback Setting Requirements with Class. Ads Using LOTS of Machines Which Universe? Conclusion www. cs. wisc. edu/condor

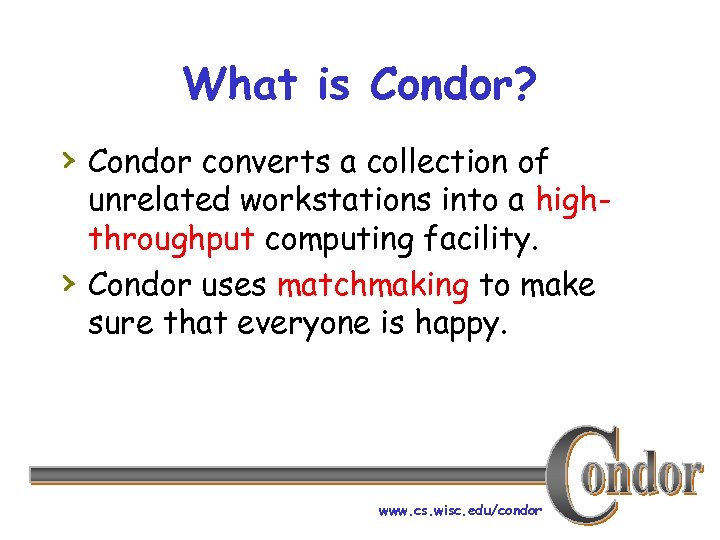

What is Condor? › Condor converts a collection of › unrelated workstations into a highthroughput computing facility. Condor uses matchmaking to make sure that everyone is happy. www. cs. wisc. edu/condor

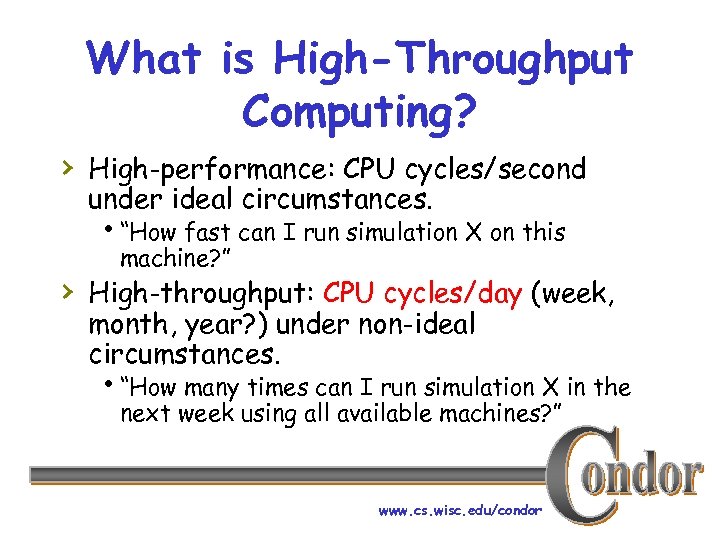

What is High-Throughput Computing? › High-performance: CPU cycles/second under ideal circumstances. h“How fast can I run simulation X on this machine? ” › High-throughput: CPU cycles/day (week, month, year? ) under non-ideal circumstances. h“How many times can I run simulation X in the next week using all available machines? ” www. cs. wisc. edu/condor

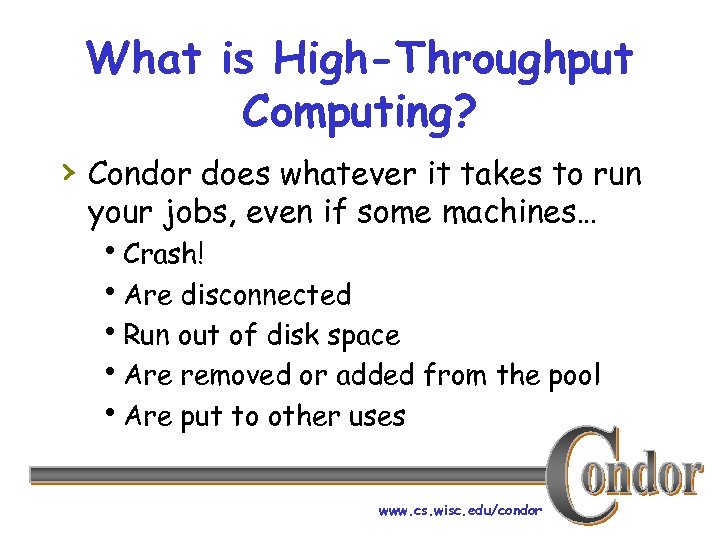

What is High-Throughput Computing? › Condor does whatever it takes to run your jobs, even if some machines… h. Crash! h. Are disconnected h. Run out of disk space h. Are removed or added from the pool h. Are put to other uses www. cs. wisc. edu/condor

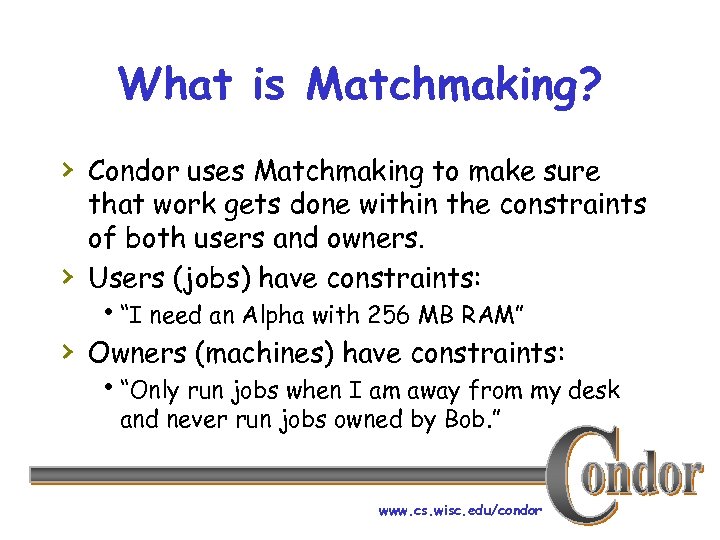

What is Matchmaking? › Condor uses Matchmaking to make sure › that work gets done within the constraints of both users and owners. Users (jobs) have constraints: h“I need an Alpha with 256 MB RAM” › Owners (machines) have constraints: h“Only run jobs when I am away from my desk and never run jobs owned by Bob. ” www. cs. wisc. edu/condor

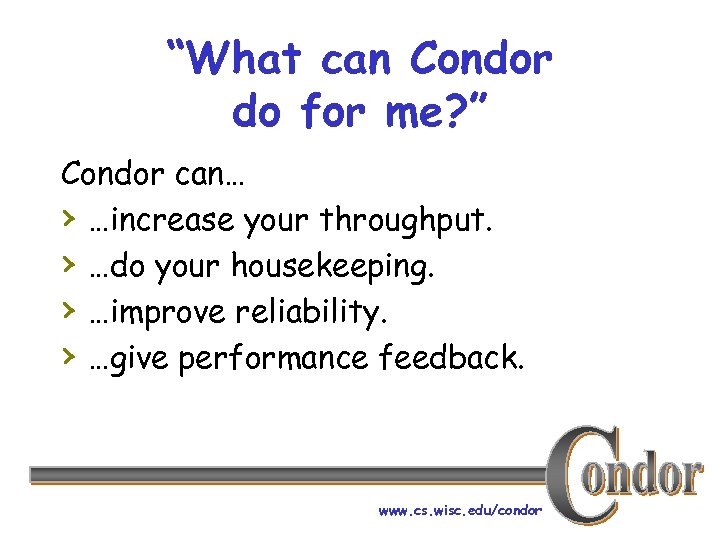

“What can Condor do for me? ” Condor can… › …increase your throughput. › …do your housekeeping. › …improve reliability. › …give performance feedback. www. cs. wisc. edu/condor

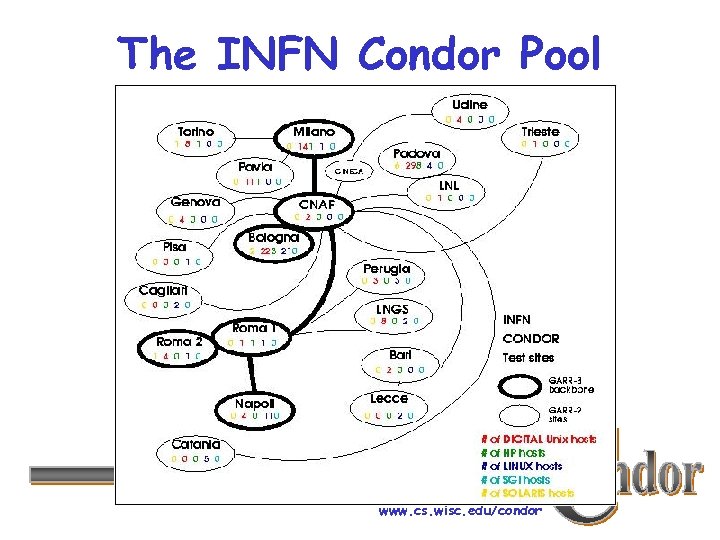

The INFN Condor Pool www. cs. wisc. edu/condor

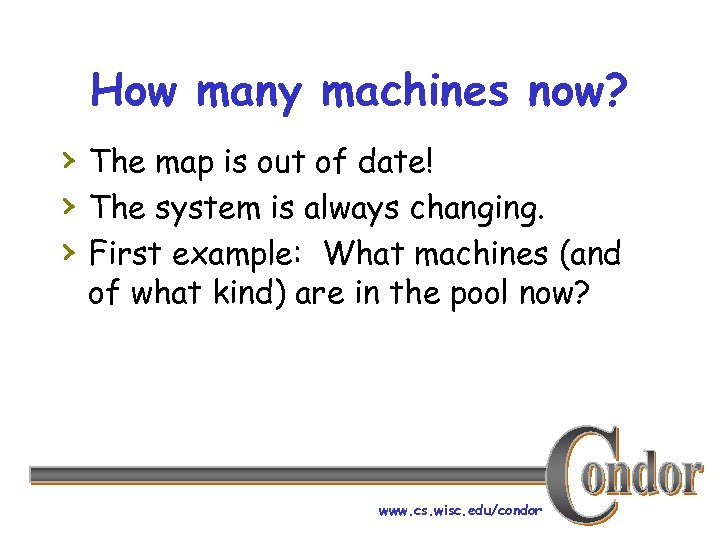

How many machines now? › The map is out of date! › The system is always changing. › First example: What machines (and of what kind) are in the pool now? www. cs. wisc. edu/condor

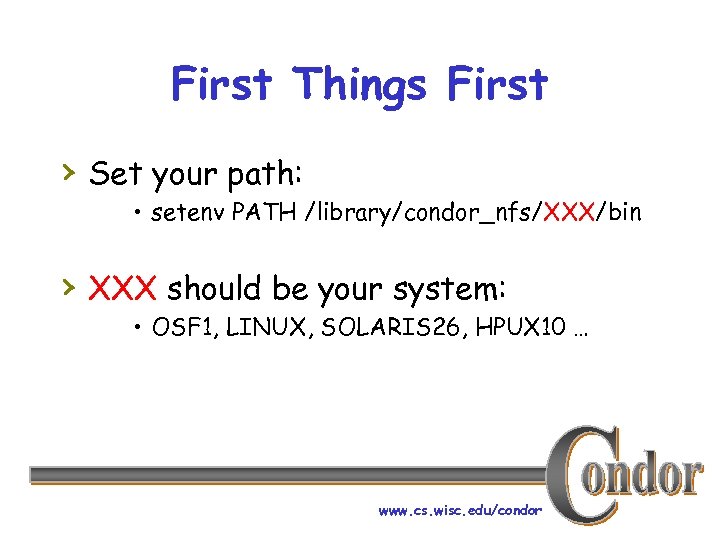

First Things First › Set your path: • setenv PATH /library/condor_nfs/XXX/bin › XXX should be your system: • OSF 1, LINUX, SOLARIS 26, HPUX 10 … www. cs. wisc. edu/condor

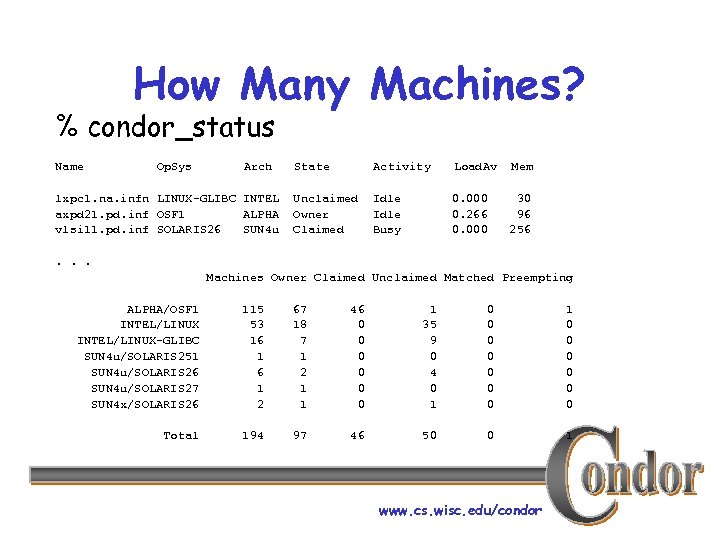

How Many Machines? % condor_status Name Op. Sys Arch lxpc 1. na. infn LINUX-GLIBC INTEL axpd 21. pd. inf OSF 1 ALPHA vlsi 11. pd. inf SOLARIS 26 SUN 4 u State Activity Load. Av Mem Unclaimed Owner Claimed Idle Busy 0. 000 0. 266 0. 000 30 96 256 . . . Machines Owner Claimed Unclaimed Matched Preempting ALPHA/OSF 1 INTEL/LINUX-GLIBC SUN 4 u/SOLARIS 251 SUN 4 u/SOLARIS 26 SUN 4 u/SOLARIS 27 SUN 4 x/SOLARIS 26 115 53 16 1 2 67 18 7 1 2 1 1 46 0 0 0 1 35 9 0 4 0 1 0 0 0 Total 194 97 46 50 0 1 www. cs. wisc. edu/condor

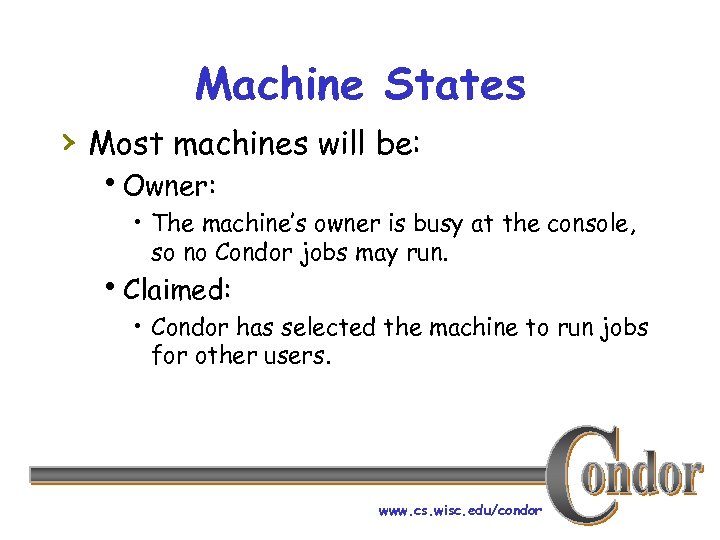

Machine States › Most machines will be: h. Owner: • The machine’s owner is busy at the console, so no Condor jobs may run. h. Claimed: • Condor has selected the machine to run jobs for other users. www. cs. wisc. edu/condor

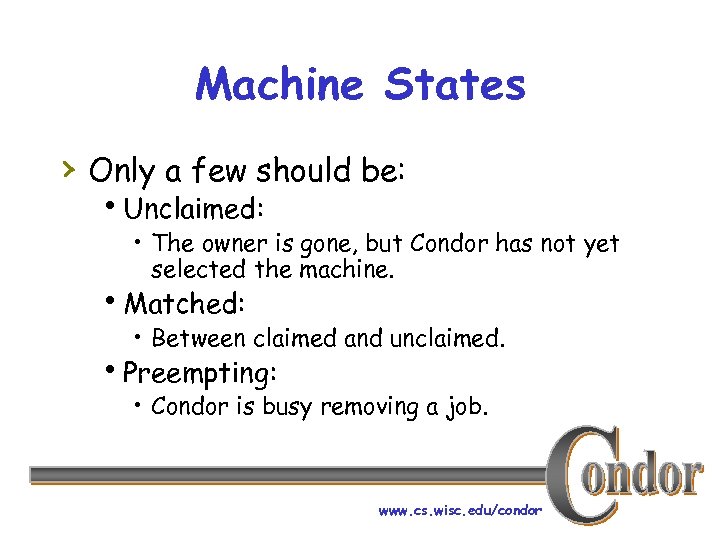

Machine States › Only a few should be: h. Unclaimed: • The owner is gone, but Condor has not yet selected the machine. h. Matched: • Between claimed and unclaimed. h. Preempting: • Condor is busy removing a job. www. cs. wisc. edu/condor
More Examples % condor_status -help % condor_status –avail % condor_status –run % condor_status –total % condor_status –pool condor. cs. wisc. edu www. cs. wisc. edu/condor

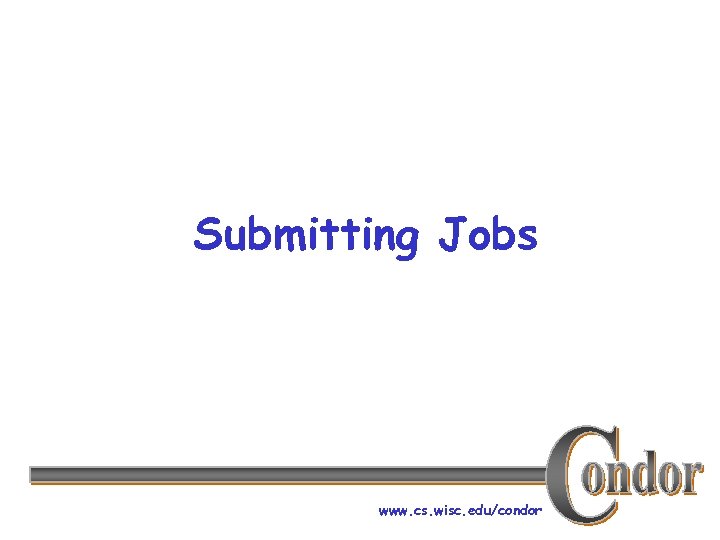

Submitting Jobs www. cs. wisc. edu/condor

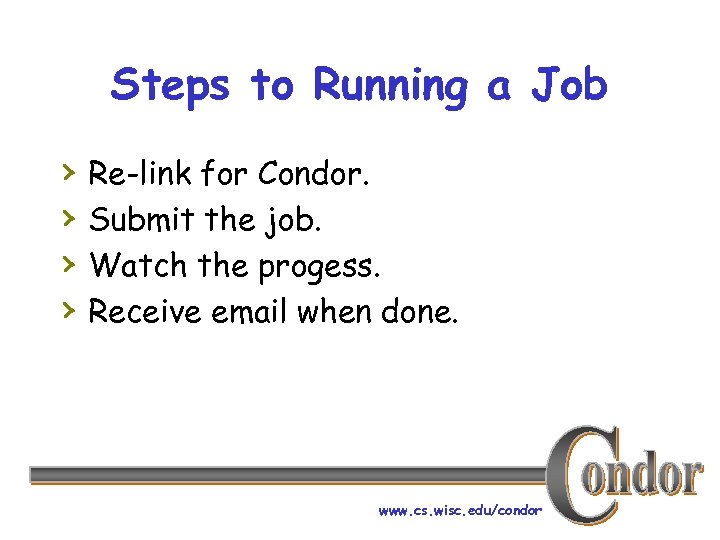

Steps to Running a Job › › Re-link for Condor. Submit the job. Watch the progess. Receive email when done. www. cs. wisc. edu/condor

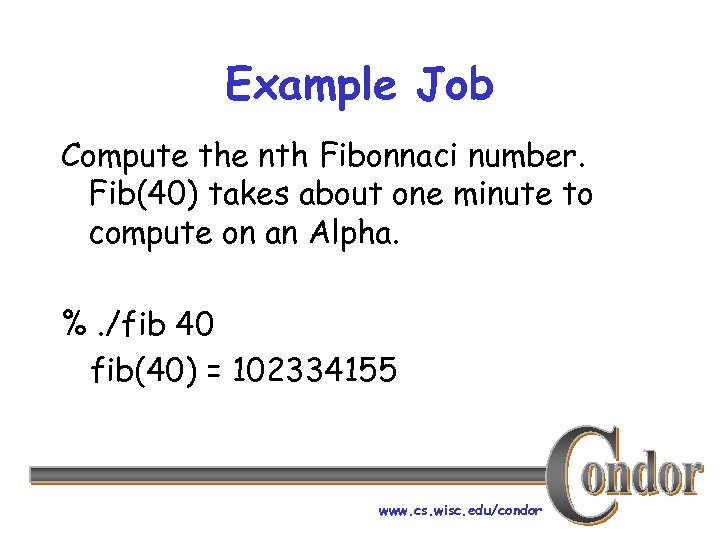

Example Job Compute the nth Fibonnaci number. Fib(40) takes about one minute to compute on an Alpha. %. /fib 40 fib(40) = 102334155 www. cs. wisc. edu/condor
#include <stdio. h> #include <stdlib. h> int fib( int x ) { if( x<=0 ) return 0; if( x==1 ) return 1; return fib(x-1) + fib(x-2); } int main(int argc, char *argv[]) { int n; n = atoi(argv[1]); printf ("fib(%d) = %dn", n, fib(n)); return 0; } www. cs. wisc. edu/condor

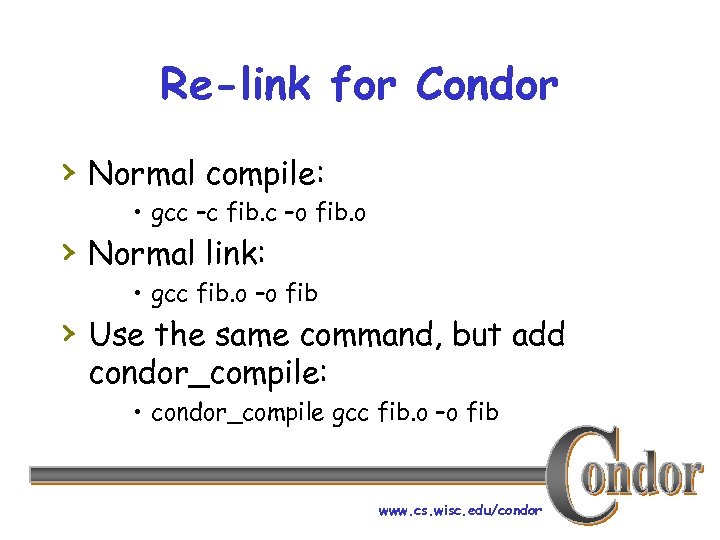

Re-link for Condor › Normal compile: • gcc –c fib. c –o fib. o › Normal link: • gcc fib. o –o fib › Use the same command, but add condor_compile: • condor_compile gcc fib. o –o fib www. cs. wisc. edu/condor
Submit the Job › Create a submit file: • vi fib. submit Executable = fib Arguments = 40 Output = fib. out Log = fib. log › Submit the job: queue • condor_submit fib. submit www. cs. wisc. edu/condor
Watch the Progress % condor_q -- Submitter: axpbo 8. bo. infn. it : <131. 154. 10. 29: 1038> : ID 5. 0 OWNER thain Each job gets a unique number. SUBMITTED 6/21 12: 40 RUN_TIME ST PRI SIZE CMD 0+00: 15 R 0 2. 5 fib 40 Status: Unexpanded, Running or Idle Size of program image (MB) www. cs. wisc. edu/condor
Receive E-mail When Done This is an automated email from the Condor system on machine "axpbo 8. bo. infn. it". Do not reply. Your condor job /tmp_mnt/usr/users/ccl/thain/test/fib 40 exited with status 0. Submitted at: Completed at: Wed Jun 21 14: 24: 42 2000 Wed Jun 21 14: 36 2000 Real Time: Run Time: Committed Time: . . . 0 00: 11: 54 0 00: 06: 52 0 00: 01: 37 www. cs. wisc. edu/condor

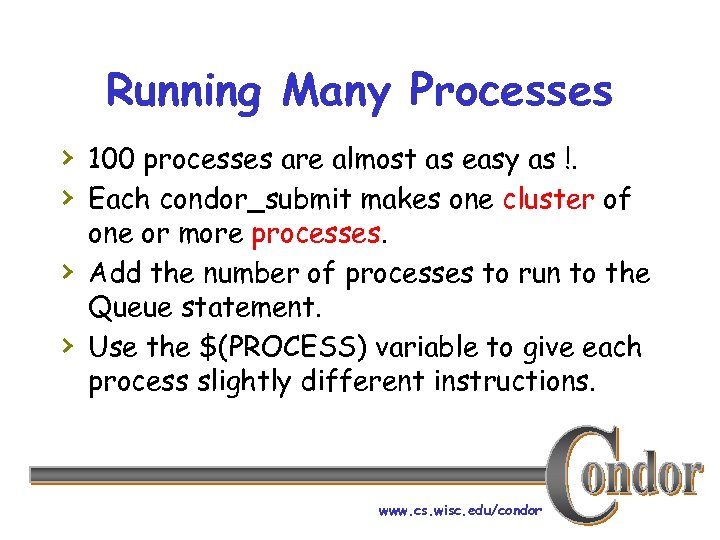

Running Many Processes › 100 processes are almost as easy as !. › Each condor_submit makes one cluster of › › one or more processes. Add the number of processes to run to the Queue statement. Use the $(PROCESS) variable to give each process slightly different instructions. www. cs. wisc. edu/condor
Running Many Processes › Compute Fib(1) through Fib(50) › Output goes in fib. out. 1, fib. out. 2, and so on… Executable = fib Arguments = $(PROCESS) Output = fib. out. $(PROCESS) Log = fib. log Queue 50 www. cs. wisc. edu/condor
Running Many Processes › Another approach: Each process gets its own directory (dir 1, dir 2, …) and sends the output to dir. X/fib. out. Executable = fib Arguments = $(PROCESS) Initial_Dir = dir$(PROCESS) Output = fib. out Log = fib. log Queue 50 www. cs. wisc. edu/condor

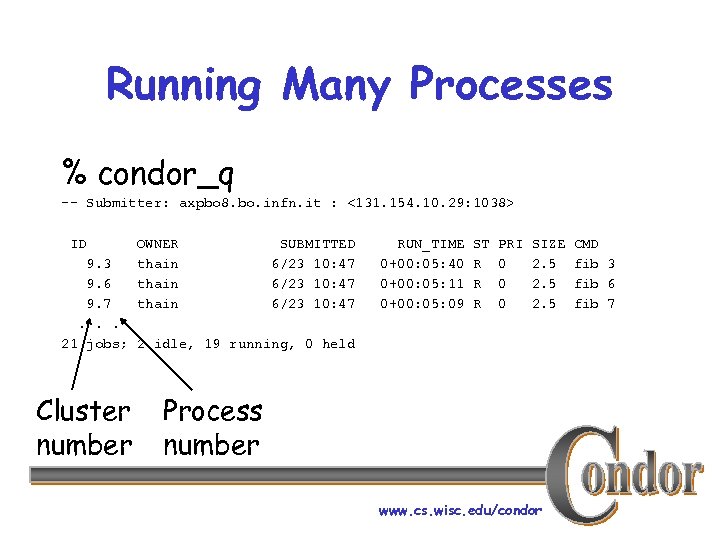

Running Many Processes % condor_q -- Submitter: axpbo 8. bo. infn. it : <131. 154. 10. 29: 1038> ID OWNER thain SUBMITTED 6/23 10: 47 9. 3 9. 6 9. 7. . . 21 jobs; 2 idle, 19 running, 0 held Cluster number RUN_TIME 0+00: 05: 40 0+00: 05: 11 0+00: 05: 09 ST R R R PRI 0 0 0 SIZE 2. 5 Process number www. cs. wisc. edu/condor CMD fib 3 fib 6 fib 7

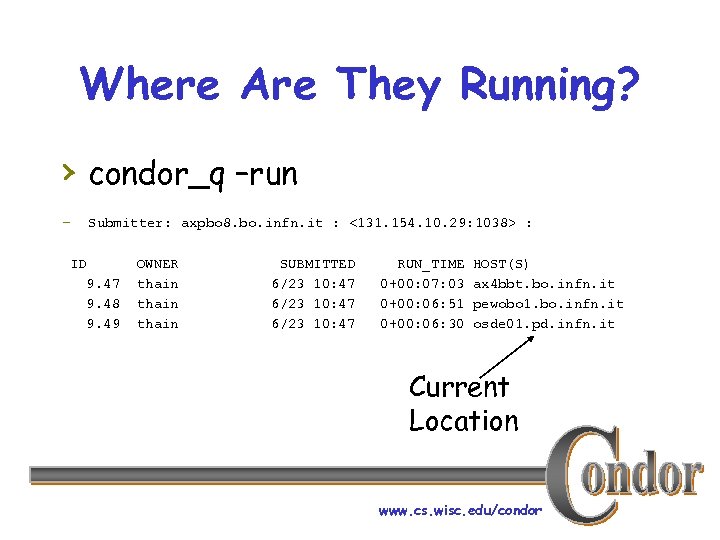

Where Are They Running? › condor_q –run - Submitter: axpbo 8. bo. infn. it : <131. 154. 10. 29: 1038> : ID 9. 47 9. 48 9. 49 OWNER thain SUBMITTED 6/23 10: 47 RUN_TIME 0+00: 07: 03 0+00: 06: 51 0+00: 06: 30 HOST(S) ax 4 bbt. bo. infn. it pewobo 1. bo. infn. it osde 01. pd. infn. it Current Location www. cs. wisc. edu/condor

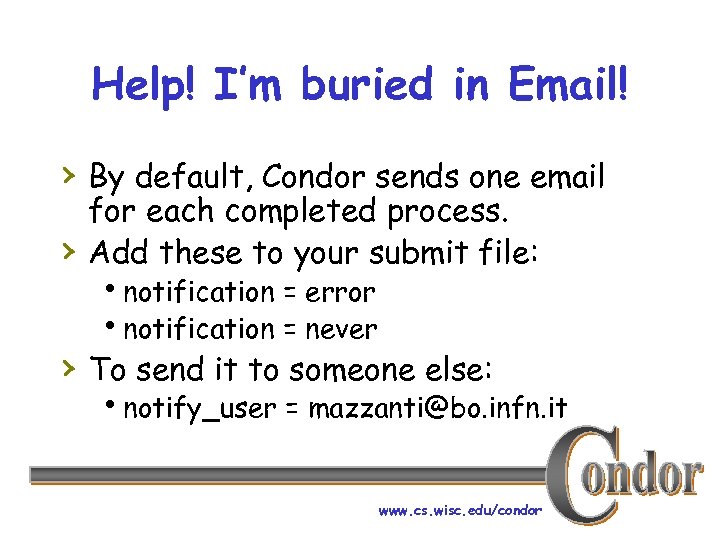

Help! I’m buried in Email! › By default, Condor sends one email › for each completed process. Add these to your submit file: hnotification = error hnotification = never › To send it to someone else: hnotify_user = mazzanti@bo. infn. it www. cs. wisc. edu/condor

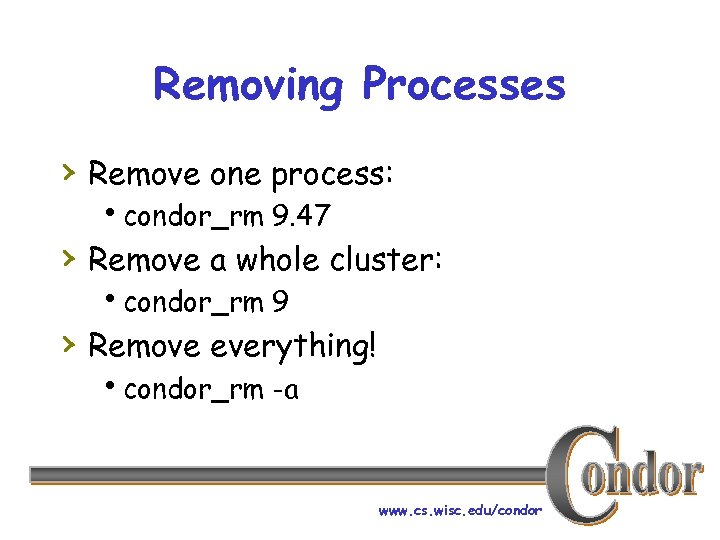

Removing Processes › Remove one process: hcondor_rm 9. 47 › Remove a whole cluster: hcondor_rm 9 › Remove everything! hcondor_rm -a www. cs. wisc. edu/condor

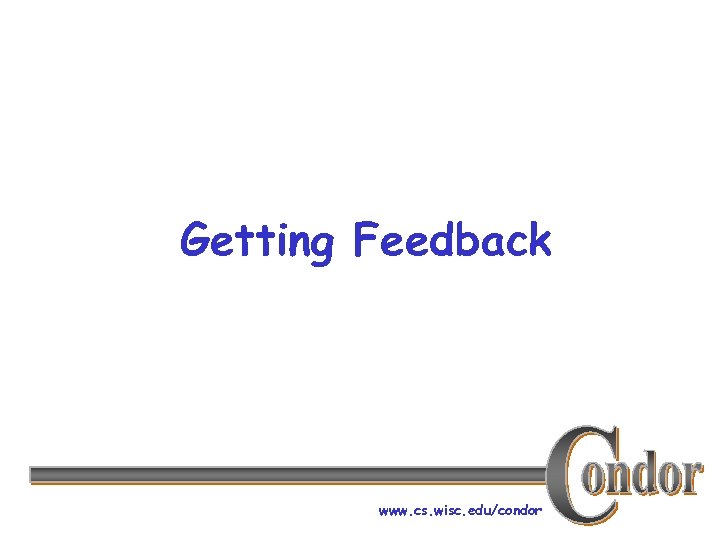

Getting Feedback www. cs. wisc. edu/condor

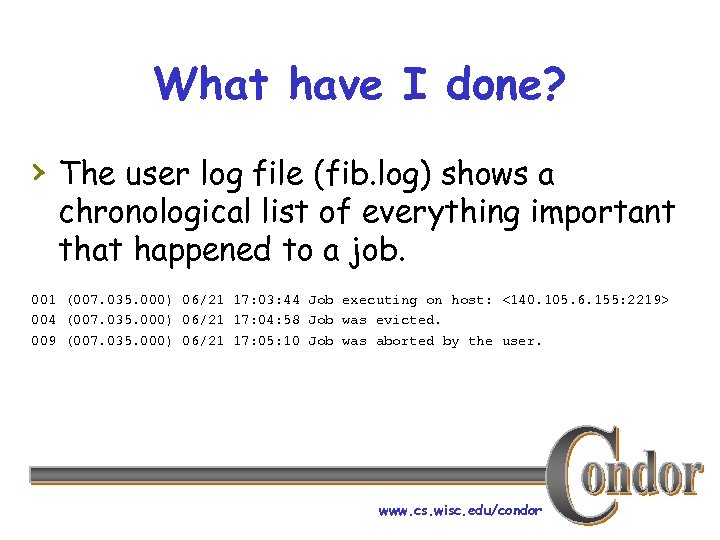

What have I done? › The user log file (fib. log) shows a chronological list of everything important that happened to a job. 001 (007. 035. 000) 06/21 17: 03: 44 Job executing on host: <140. 105. 6. 155: 2219> 004 (007. 035. 000) 06/21 17: 04: 58 Job was evicted. 009 (007. 035. 000) 06/21 17: 05: 10 Job was aborted by the user. www. cs. wisc. edu/condor
What have I done? % condor_history ID OWNER 9. 3 thain 9. 40 thain 9. 10 thain 9. 47 thain 9. 7 thain SUBMITTED 6/23 10: 47 6/23 10: 47 CPU_USAGE ST 0+00: 00 C 0+00: 24 C 0+00: 00 C 0+00: 05: 45 C 0+00: 00 C COMPLETED CMD 6/23 10: 58 fib 6/23 10: 59 fib 6/23 11: 01 fib www. cs. wisc. edu/condor 3 40 10 47 7

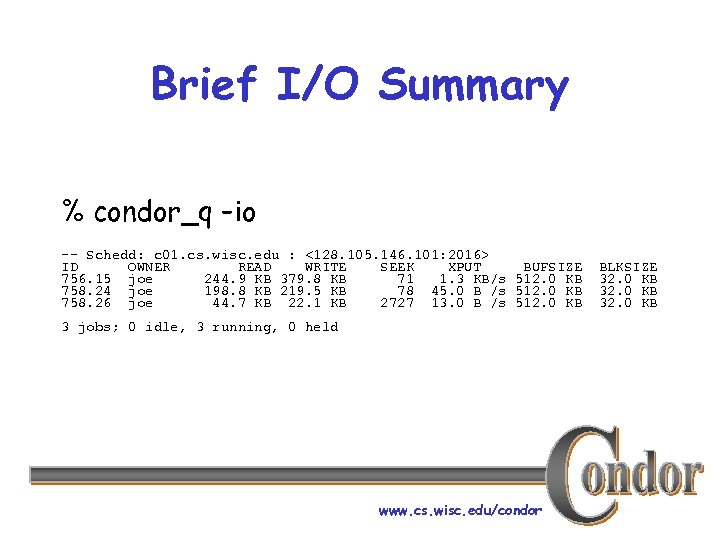

Brief I/O Summary % condor_q –io -- Schedd: c 01. cs. wisc. edu : <128. 105. 146. 101: 2016> ID OWNER READ WRITE SEEK XPUT BUFSIZE 756. 15 joe 244. 9 KB 379. 8 KB 71 1. 3 KB/s 512. 0 KB 758. 24 joe 198. 8 KB 219. 5 KB 78 45. 0 B /s 512. 0 KB 758. 26 joe 44. 7 KB 22. 1 KB 2727 13. 0 B /s 512. 0 KB 3 jobs; 0 idle, 3 running, 0 held www. cs. wisc. edu/condor BLKSIZE 32. 0 KB

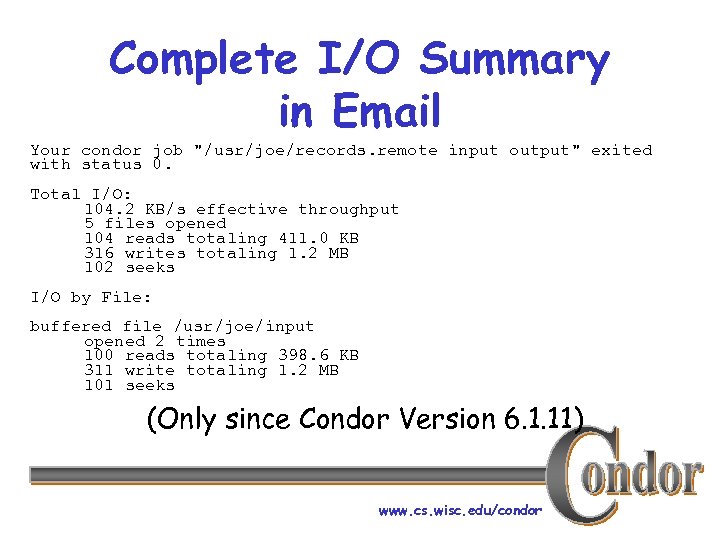

Complete I/O Summary in Email Your condor job "/usr/joe/records. remote input output" exited with status 0. Total I/O: 104. 2 KB/s effective throughput 5 files opened 104 reads totaling 411. 0 KB 316 writes totaling 1. 2 MB 102 seeks I/O by File: buffered file /usr/joe/input opened 2 times 100 reads totaling 398. 6 KB 311 write totaling 1. 2 MB 101 seeks (Only since Condor Version 6. 1. 11) www. cs. wisc. edu/condor

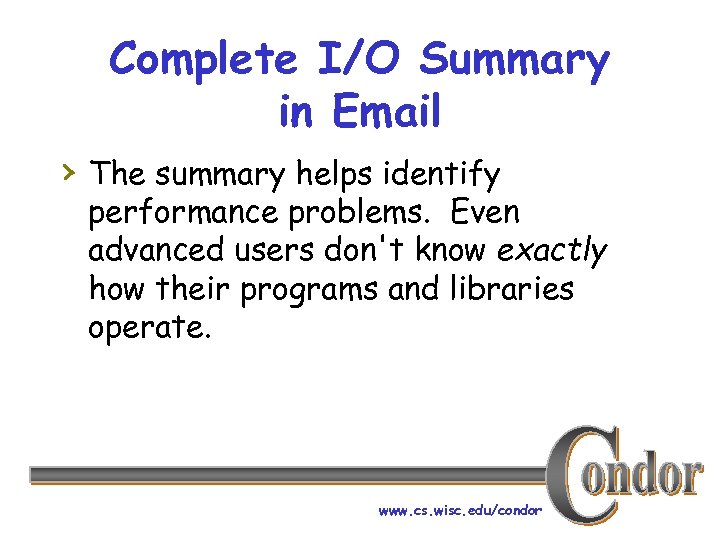

Complete I/O Summary in Email › The summary helps identify performance problems. Even advanced users don't know exactly how their programs and libraries operate. www. cs. wisc. edu/condor

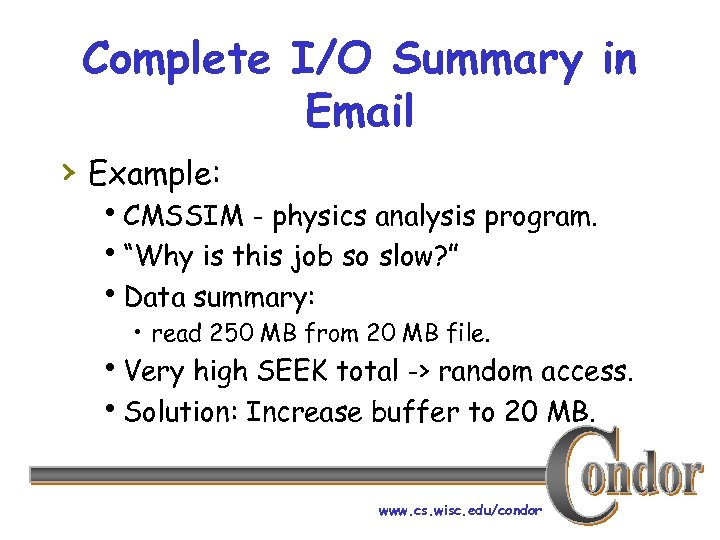

Complete I/O Summary in Email › Example: h. CMSSIM - physics analysis program. h“Why is this job so slow? ” h. Data summary: • read 250 MB from 20 MB file. h. Very high SEEK total -> random access. h. Solution: Increase buffer to 20 MB. www. cs. wisc. edu/condor
Who Uses Condor? % condor_q –global -- Schedd: to 02 xd. to. infn. it : <192. 84. 137. 2: 1030> ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 127. 0 garzelli 6/21 18: 45 1+14: 18: 16 R 0 17. 2 tosti 2 trisdn -- Schedd: quark. ts. infn. it : <140. 105. 6. 101: 3908> ID OWNER SUBMITTED RUN_TIME ST 600. 0 dellaric 4/10 14: 57 55+09: 20: 31 R 665. 0 dellaric 6/2 11: 14 20+03: 27: 30 R 788. 0 pamela 6/20 09: 27 3+04: 41: 43 R PRI 0 0 0 www. cs. wisc. edu/condor SIZE 9. 1 9. 2 15. 4 CMD john p 2. dat john p 1. dat montepamela
Who uses Condor? % condor_status –submitters Name Machine rebuzzin@pv. infn. it pamela@ts. infn. it giunti@to. infn. it. . . Running decux 1. pv. quark. ts. i to 05 xd. to. 22 6 21 Running. Jobs cattaneo@pv. infn. it pamela@ts. infn. it rebuzzin@pv. infn. it Total Idle. Jobs 34 1 49 Max. Jobs. Running 200 200 Idle. Jobs 0 6 22 1 1 34 59 86 www. cs. wisc. edu/condor

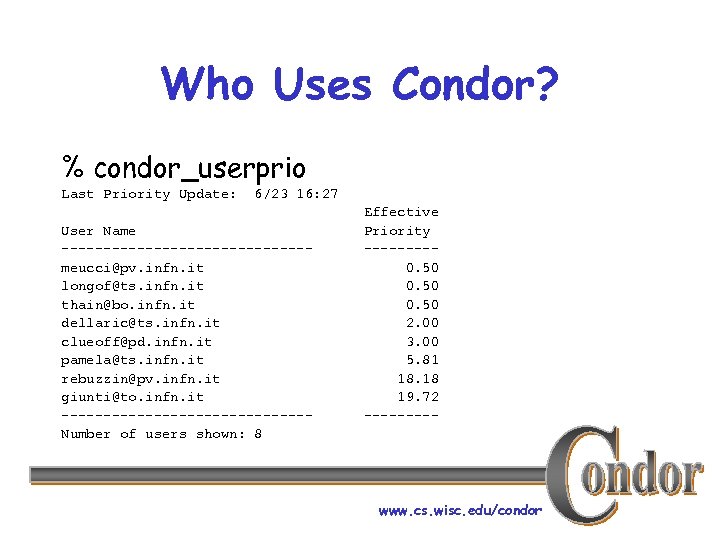

Who Uses Condor? % condor_userprio Last Priority Update: 6/23 16: 27 User Name ---------------meucci@pv. infn. it longof@ts. infn. it thain@bo. infn. it dellaric@ts. infn. it clueoff@pd. infn. it pamela@ts. infn. it rebuzzin@pv. infn. it giunti@to. infn. it ---------------Number of users shown: 8 Effective Priority ----0. 50 2. 00 3. 00 5. 81 18. 18 19. 72 ----- www. cs. wisc. edu/condor

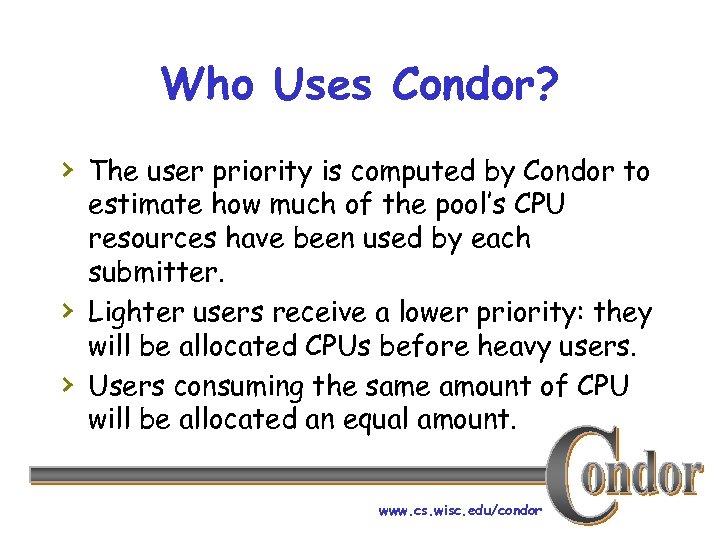

Who Uses Condor? › The user priority is computed by Condor to › › estimate how much of the pool’s CPU resources have been used by each submitter. Lighter users receive a lower priority: they will be allocated CPUs before heavy users. Users consuming the same amount of CPU will be allocated an equal amount. www. cs. wisc. edu/condor

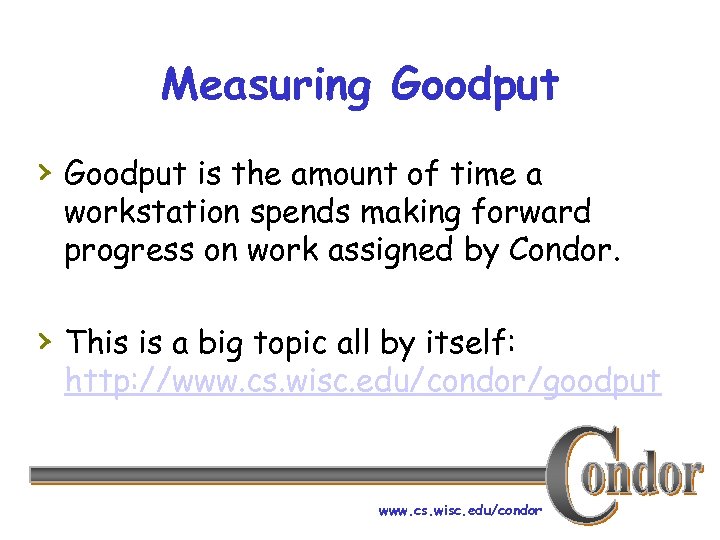

Measuring Goodput › Goodput is the amount of time a workstation spends making forward progress on work assigned by Condor. › This is a big topic all by itself: http: //www. cs. wisc. edu/condor/goodput www. cs. wisc. edu/condor

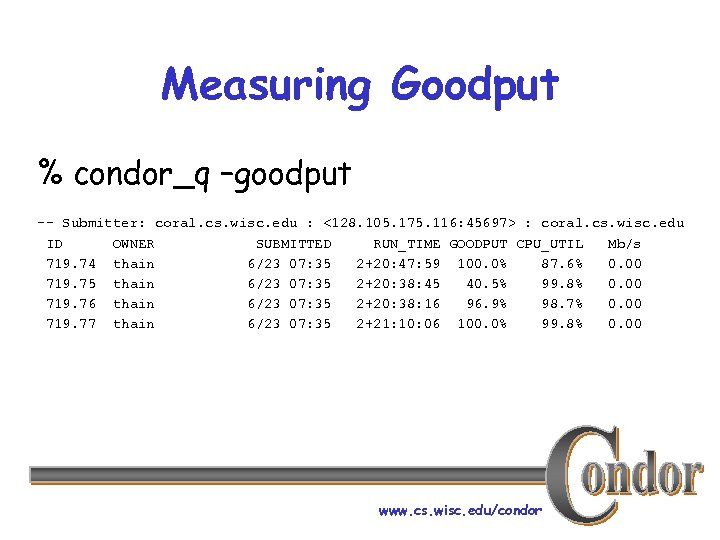

Measuring Goodput % condor_q –goodput -- Submitter: coral. cs. wisc. edu : <128. 105. 175. 116: 45697> : coral. cs. wisc. edu ID OWNER SUBMITTED RUN_TIME GOODPUT CPU_UTIL Mb/s 719. 74 thain 6/23 07: 35 2+20: 47: 59 100. 0% 87. 6% 0. 00 719. 75 thain 6/23 07: 35 2+20: 38: 45 40. 5% 99. 8% 0. 00 719. 76 thain 6/23 07: 35 2+20: 38: 16 96. 9% 98. 7% 0. 00 719. 77 thain 6/23 07: 35 2+21: 10: 06 100. 0% 99. 8% 0. 00 www. cs. wisc. edu/condor

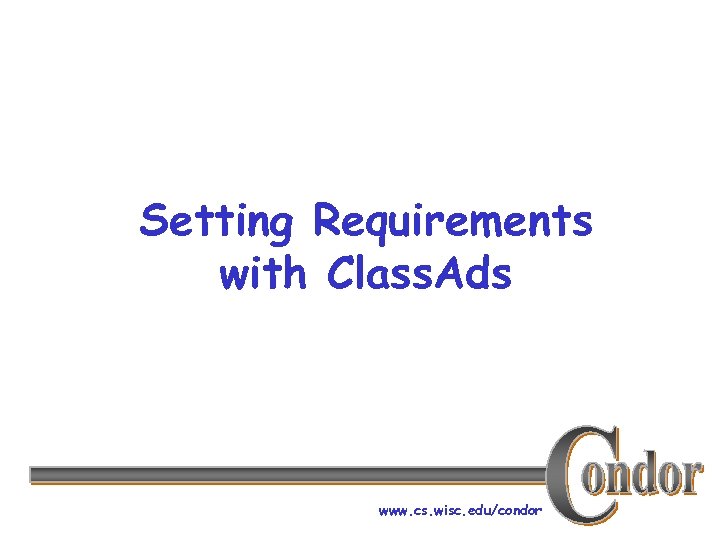

Setting Requirements with Class. Ads www. cs. wisc. edu/condor
Setting Requirements › We believe that Condor must allow › both users (jobs) and owners (machines) to set requirements. This is an absolute necessity in order to convince people to participate in the community. www. cs. wisc. edu/condor

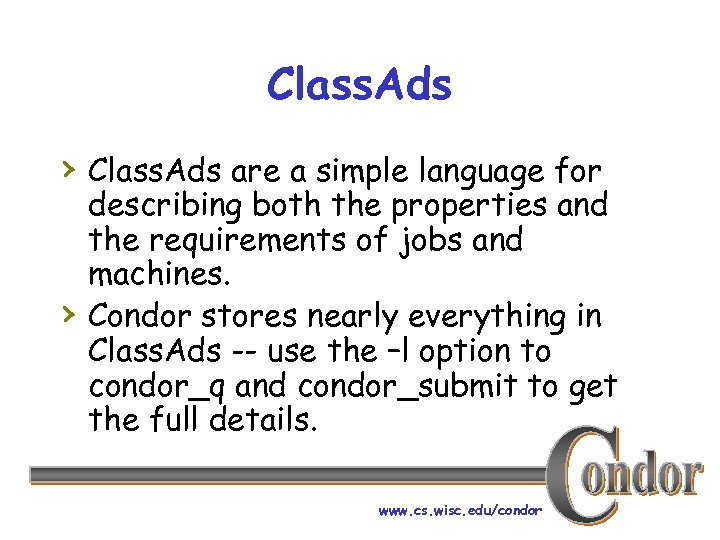

Class. Ads › Class. Ads are a simple language for › describing both the properties and the requirements of jobs and machines. Condor stores nearly everything in Class. Ads -- use the –l option to condor_q and condor_submit to get the full details. www. cs. wisc. edu/condor

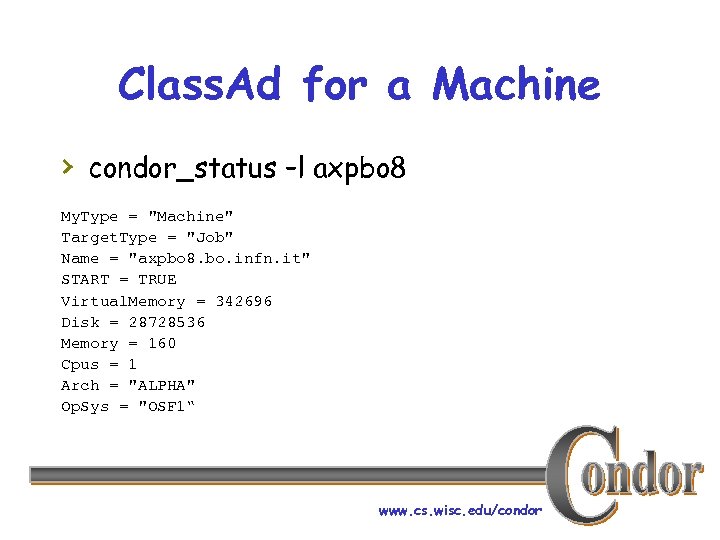

Class. Ad for a Machine › condor_status –l axpbo 8 My. Type = "Machine" Target. Type = "Job" Name = "axpbo 8. bo. infn. it" START = TRUE Virtual. Memory = 342696 Disk = 28728536 Memory = 160 Cpus = 1 Arch = "ALPHA" Op. Sys = "OSF 1“ www. cs. wisc. edu/condor

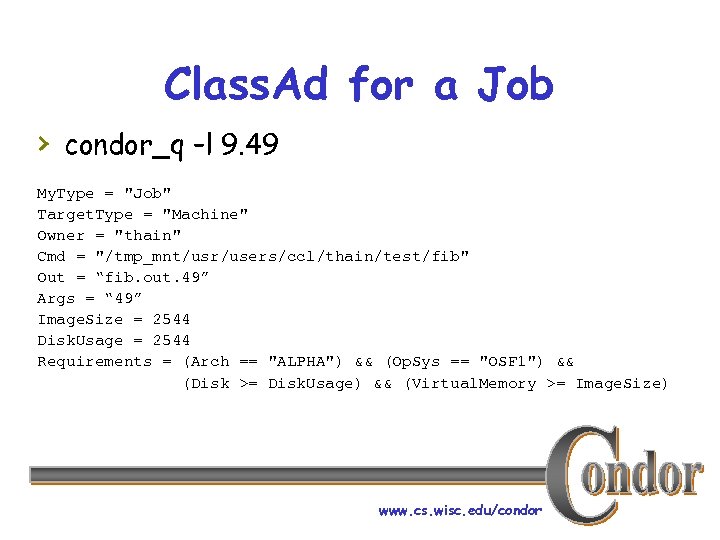

Class. Ad for a Job › condor_q –l 9. 49 My. Type = "Job" Target. Type = "Machine" Owner = "thain" Cmd = "/tmp_mnt/usr/users/ccl/thain/test/fib" Out = “fib. out. 49” Args = “ 49” Image. Size = 2544 Disk. Usage = 2544 Requirements = (Arch == "ALPHA") && (Op. Sys == "OSF 1") && (Disk >= Disk. Usage) && (Virtual. Memory >= Image. Size) www. cs. wisc. edu/condor
Default Requirements › By default, Condor assumes the requirements for your job are: “I need a machine with…” h. The same operating system and architecture as my workstation. h. Enough disk to store the program. h. Enough virtual memory to run the program. www. cs. wisc. edu/condor

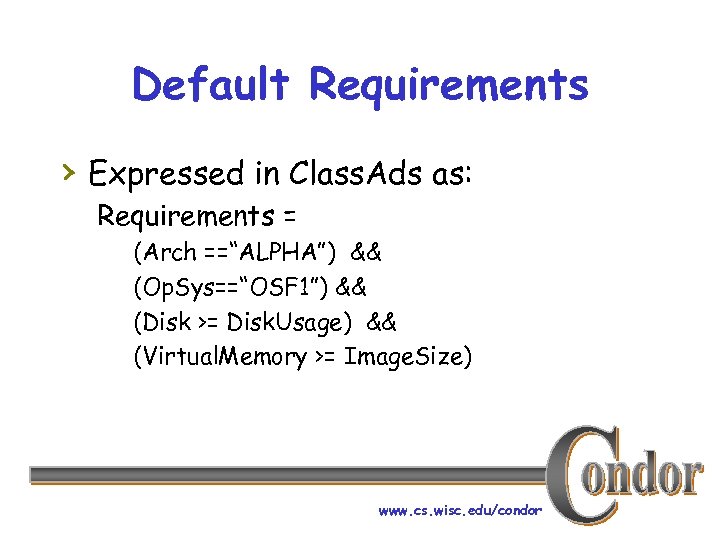

Default Requirements › Expressed in Class. Ads as: Requirements = (Arch ==“ALPHA”) && (Op. Sys==“OSF 1”) && (Disk >= Disk. Usage) && (Virtual. Memory >= Image. Size) www. cs. wisc. edu/condor
Class. Ad Requirements › Similar to C/C++/Java expressions: h. Symbols: Arch, Op. Sys, Memory, Mips h. Values: 15, 6. 5, “LINUX” h. Operators: • ==, <, >, <=, >= • &&, || • () www. cs. wisc. edu/condor

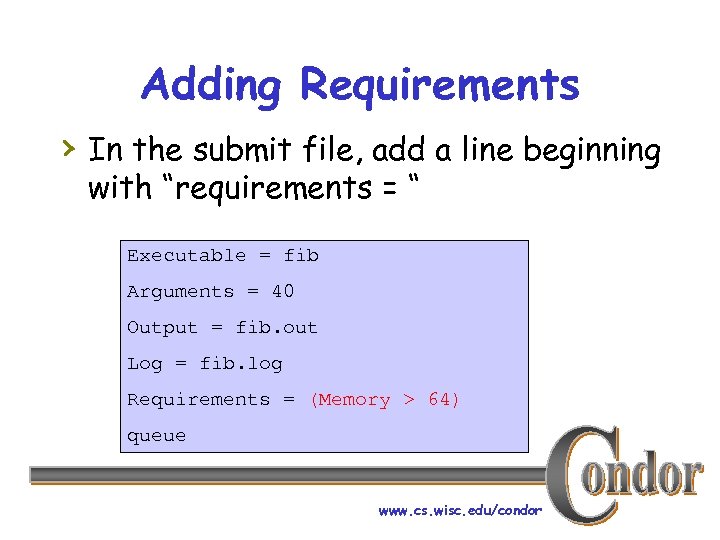

Adding Requirements › In the submit file, add a line beginning with “requirements = “ Executable = fib Arguments = 40 Output = fib. out Log = fib. log Requirements = (Memory > 64) queue www. cs. wisc. edu/condor

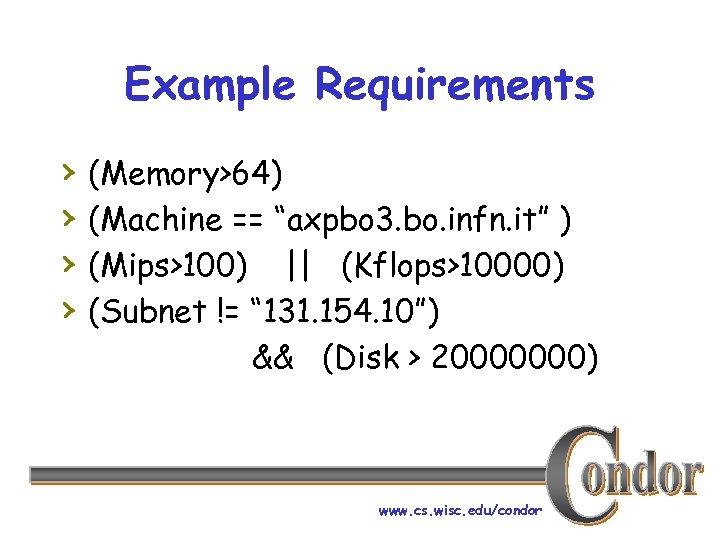

Example Requirements › › (Memory>64) (Machine == “axpbo 3. bo. infn. it” ) (Mips>100) || (Kflops>10000) (Subnet != “ 131. 154. 10”) && (Disk > 20000000) www. cs. wisc. edu/condor

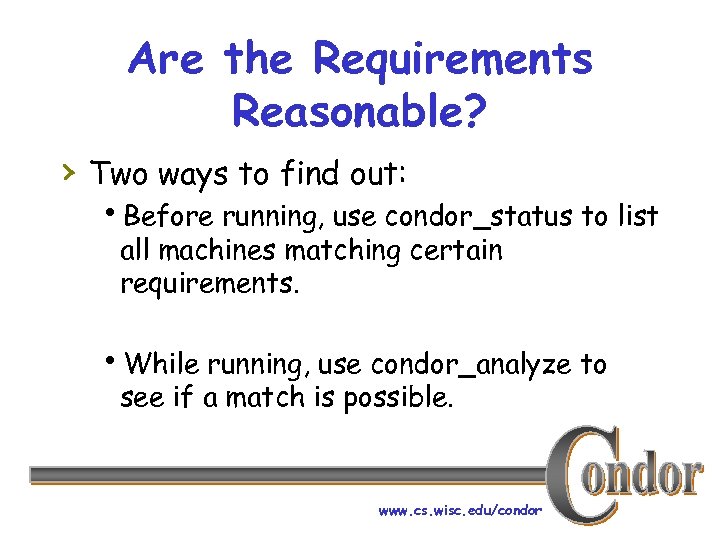

Are the Requirements Reasonable? › Two ways to find out: h. Before running, use condor_status to list all machines matching certain requirements. h. While running, use condor_analyze to see if a match is possible. www. cs. wisc. edu/condor

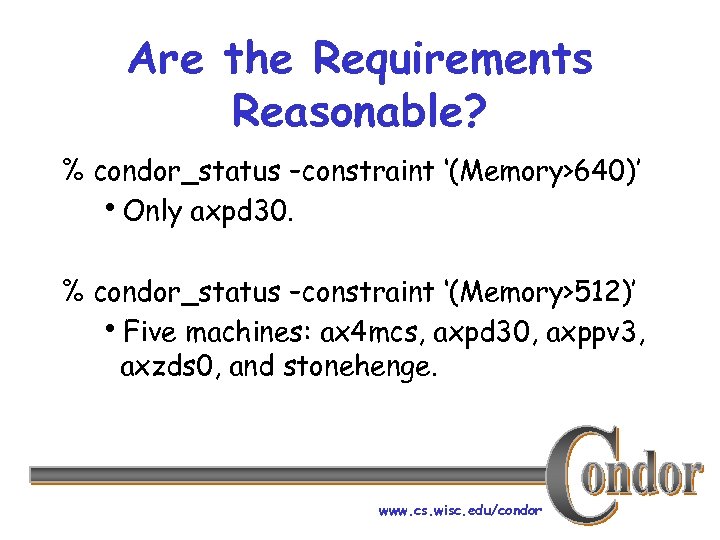

Are the Requirements Reasonable? % condor_status –constraint ‘(Memory>640)’ h. Only axpd 30. % condor_status –constraint ‘(Memory>512)’ h. Five machines: ax 4 mcs, axpd 30, axppv 3, axzds 0, and stonehenge. www. cs. wisc. edu/condor

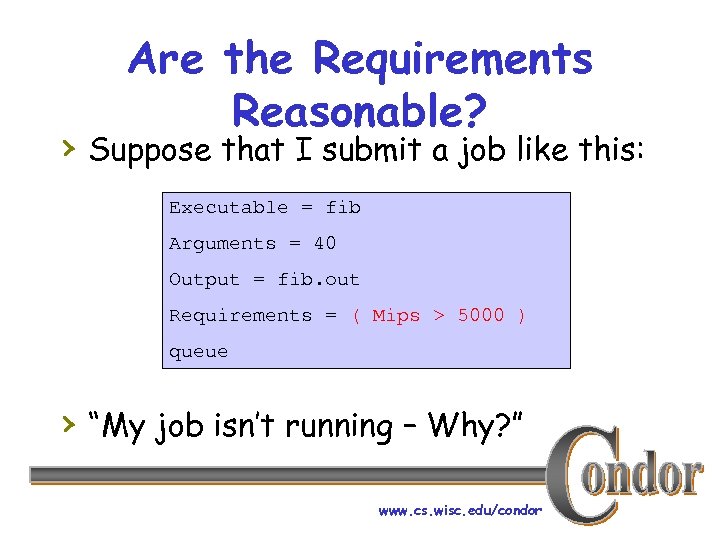

Are the Requirements Reasonable? › Suppose that I submit a job like this: Executable = fib Arguments = 40 Output = fib. out Requirements = ( Mips > 5000 ) queue › “My job isn’t running – Why? ” www. cs. wisc. edu/condor

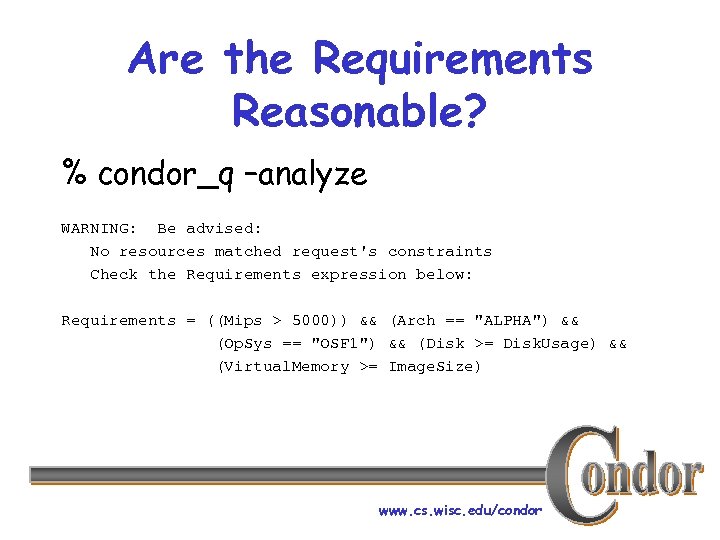

Are the Requirements Reasonable? % condor_q –analyze WARNING: Be advised: No resources matched request's constraints Check the Requirements expression below: Requirements = ((Mips > 5000)) && (Arch == "ALPHA") && (Op. Sys == "OSF 1") && (Disk >= Disk. Usage) && (Virtual. Memory >= Image. Size) www. cs. wisc. edu/condor

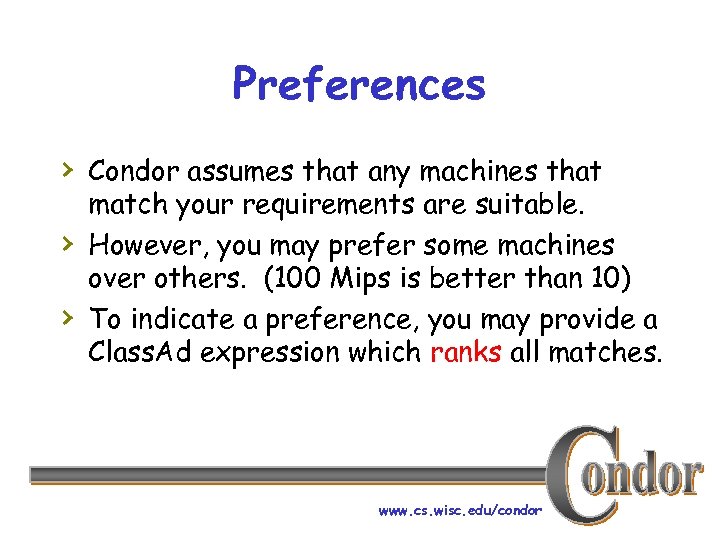

Preferences › Condor assumes that any machines that › › match your requirements are suitable. However, you may prefer some machines over others. (100 Mips is better than 10) To indicate a preference, you may provide a Class. Ad expression which ranks all matches. www. cs. wisc. edu/condor
Rank › The rank expression is evaluated into › a number for every potential matching machine. A machine with a higher number will be preferred over a machine with a lower number. www. cs. wisc. edu/condor
Rank Examples › Prefer machines with more Mips: • Rank = Mips › Prefer more memory, but add 100 to the rank if the machine is Solaris 2. 7: • Rank = Memory + 100*(Op. Sys==“SOLARIS 27)” › Prefer machines with a high ratio of memory to cpu performance: • Rank = Memory/Mips › Prefer machines that will checkpoint in Bologna: • Rank = (Ckpt. Server==“ckpt. bo. infn. it”) www. cs. wisc. edu/condor

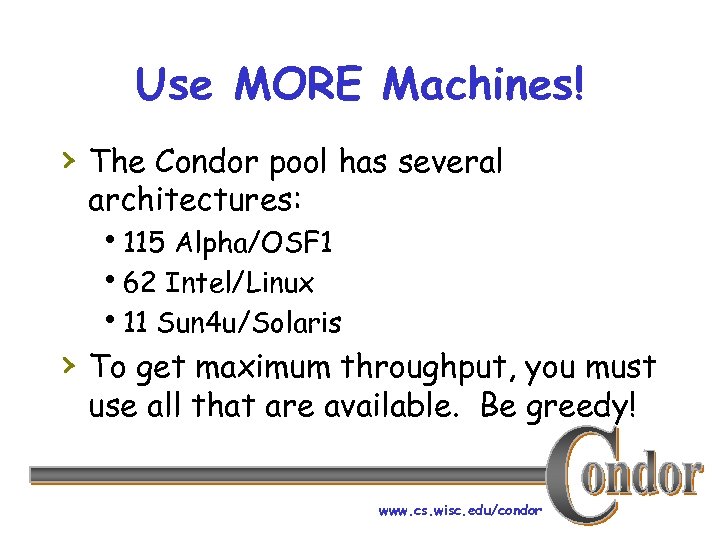

Use MORE Machines! › The Condor pool has several architectures: h 115 Alpha/OSF 1 h 62 Intel/Linux h 11 Sun 4 u/Solaris › To get maximum throughput, you must use all that are available. Be greedy! www. cs. wisc. edu/condor

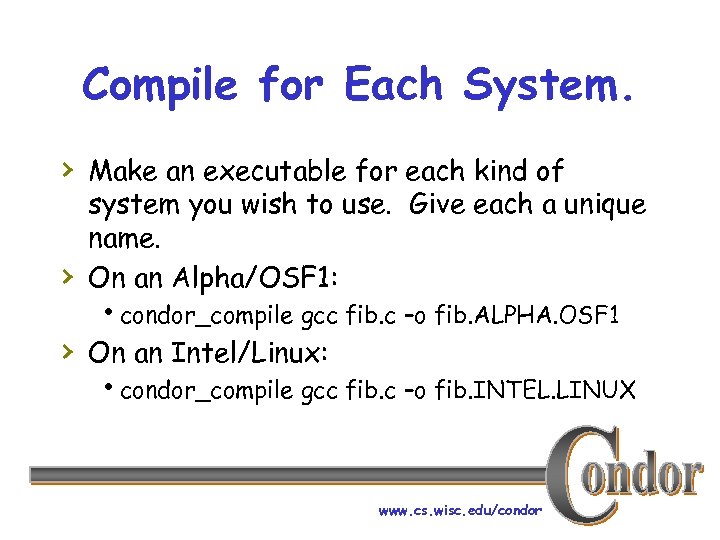

Compile for Each System. › Make an executable for each kind of › system you wish to use. Give each a unique name. On an Alpha/OSF 1: hcondor_compile gcc fib. c –o fib. ALPHA. OSF 1 › On an Intel/Linux: hcondor_compile gcc fib. c –o fib. INTEL. LINUX www. cs. wisc. edu/condor

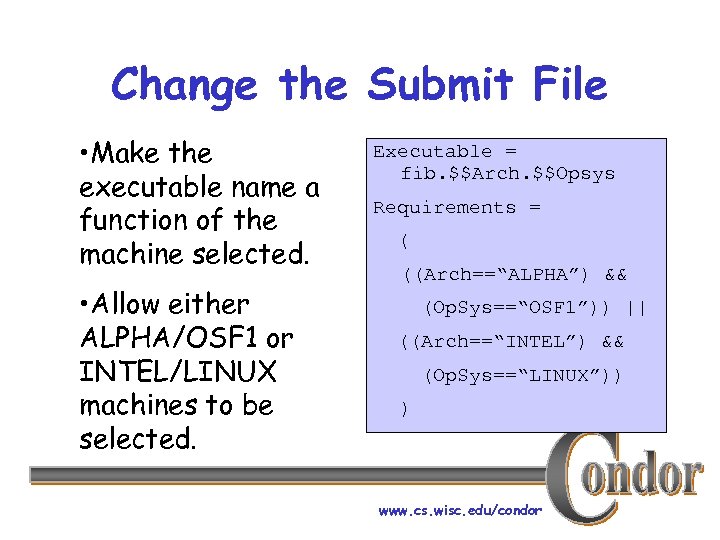

Change the Submit File • Make the executable name a function of the machine selected. • Allow either ALPHA/OSF 1 or INTEL/LINUX machines to be selected. Executable = fib. $$Arch. $$Opsys Requirements = ( ((Arch==“ALPHA”) && (Op. Sys==“OSF 1”)) || ((Arch==“INTEL”) && (Op. Sys==“LINUX”)) ) www. cs. wisc. edu/condor

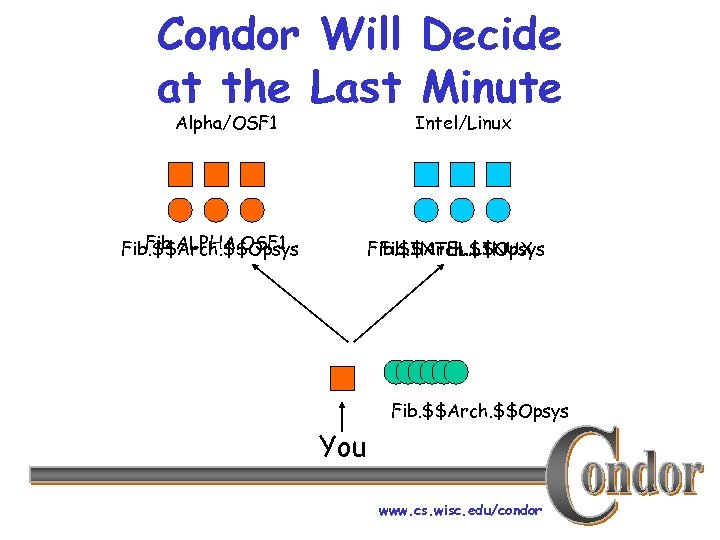

Condor Will Decide at the Last Minute Alpha/OSF 1 Intel/Linux Fib. ALPHA. OSF 1 Fib. $$Arch. $$Opsys Fib. INTEL. LINUX Fib. $$Arch. $$Opsys You www. cs. wisc. edu/condor
Standard or Vanilla? www. cs. wisc. edu/condor

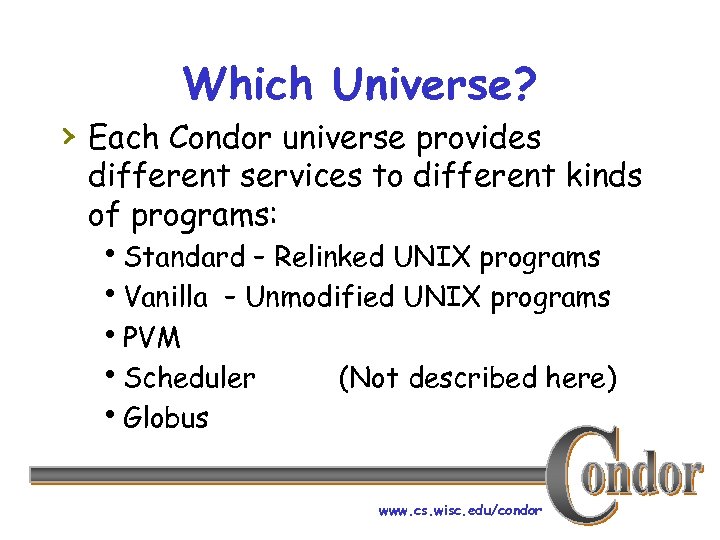

Which Universe? › Each Condor universe provides different services to different kinds of programs: h. Standard – Relinked UNIX programs h. Vanilla – Unmodified UNIX programs h. PVM h. Scheduler (Not described here) h. Globus www. cs. wisc. edu/condor

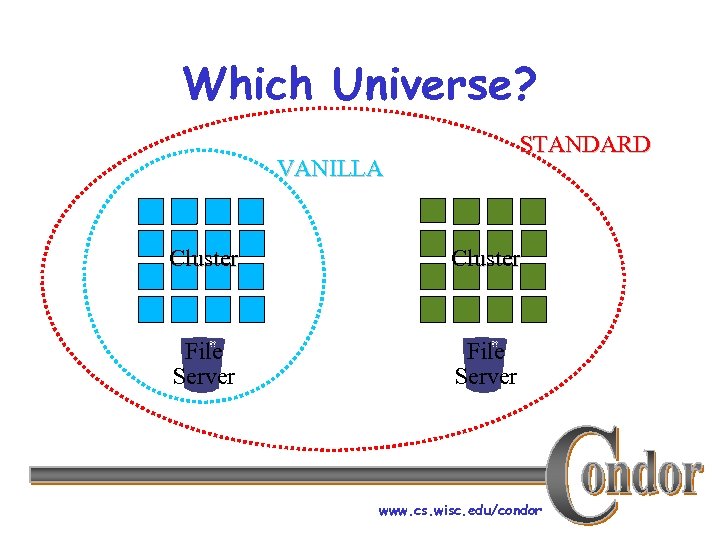

Which Universe? STANDARD VANILLA Cluster File Server www. cs. wisc. edu/condor
Standard Universe › Submit a specially-linked UNIX › application to the Condor system. Advantages: h. Checkpointing for fault tolerance. h. Remote I/O services: • • Friendly environment anywhere in the world. Data buffering and staging. I/O performance feedback. User remapping of data sources. www. cs. wisc. edu/condor

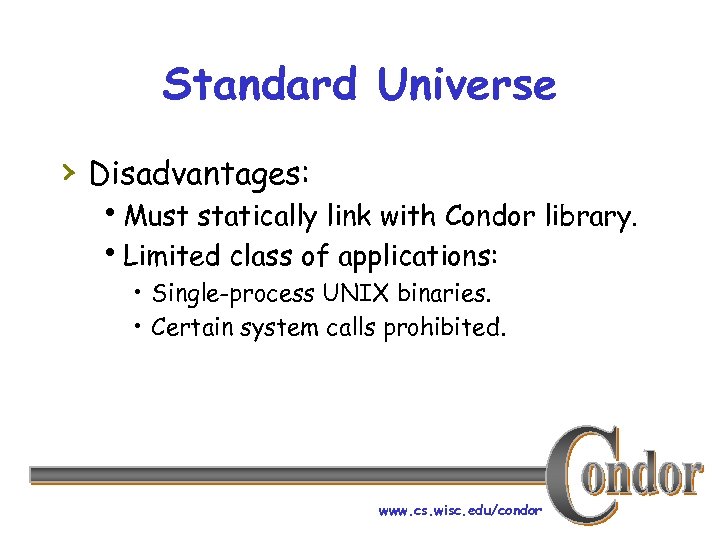

Standard Universe › Disadvantages: h. Must statically link with Condor library. h. Limited class of applications: • Single-process UNIX binaries. • Certain system calls prohibited. www. cs. wisc. edu/condor
System Call Limitations › Standard universe does not allow: h. Multiple processes: • fork(), exec(), system() h. Inter-process communication: • semaphores, messages, shared memory h. Complex I/O: • mmap(), select(), poll(), non-blocking I/O, … h. Kernel-level threads • (User level threads are OK. ) www. cs. wisc. edu/condor

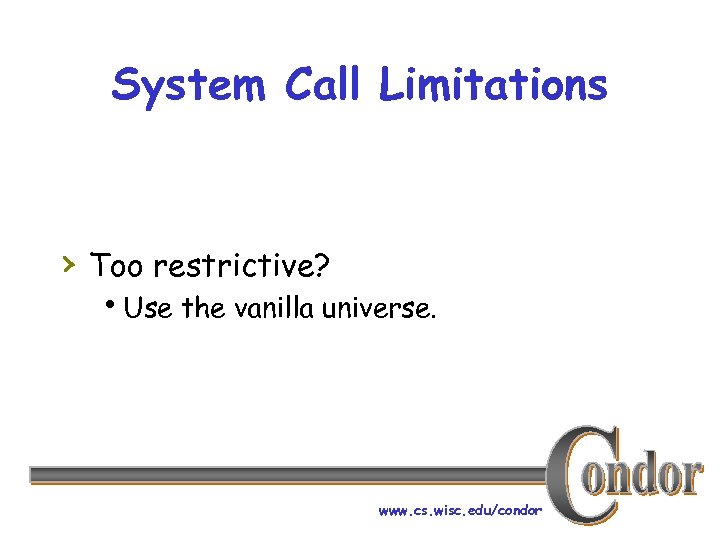

System Call Limitations › Too restrictive? h. Use the vanilla universe. www. cs. wisc. edu/condor
Vanilla Universe › Submit any sort of UNIX program to › the Condor system. Advantages: h. No relinking required. h. Any program at all, including • • Binaries Shell scripts Interpreted programs (java, perl) Multiple processes www. cs. wisc. edu/condor
Vanilla Universe › Disadvantages: h. No checkpointing. h. Very limited remote I/O services. • Specify input files explicitly. • Specify output files explicitly. h. Condor will refuse to start a vanilla job on a machine that is unfriendly. • Class. Ads: Filesystem. Domain and UIDDomain www. cs. wisc. edu/condor

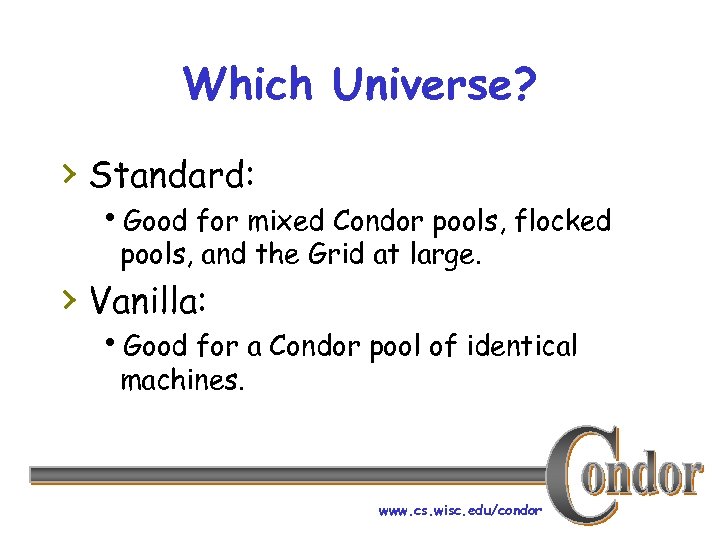

Which Universe? › Standard: h. Good for mixed Condor pools, flocked pools, and the Grid at large. › Vanilla: h. Good for a Condor pool of identical machines. www. cs. wisc. edu/condor
Conclusion www. cs. wisc. edu/condor

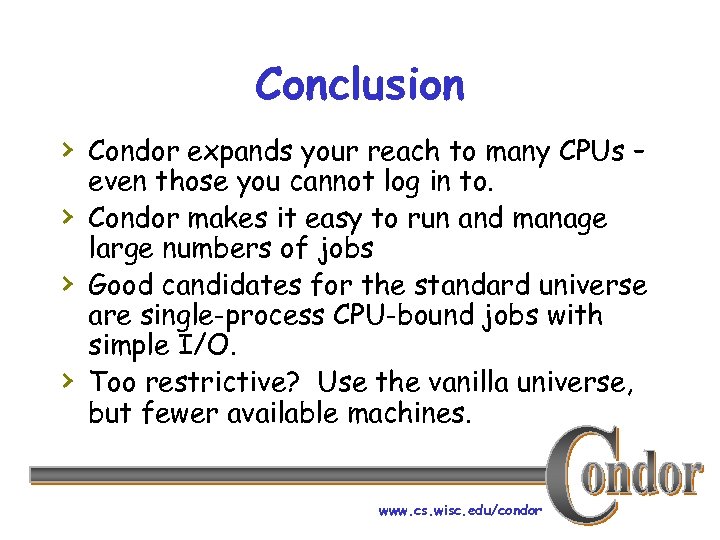

Conclusion › Condor expands your reach to many CPUs – › › › even those you cannot log in to. Condor makes it easy to run and manage large numbers of jobs Good candidates for the standard universe are single-process CPU-bound jobs with simple I/O. Too restrictive? Use the vanilla universe, but fewer available machines. www. cs. wisc. edu/condor

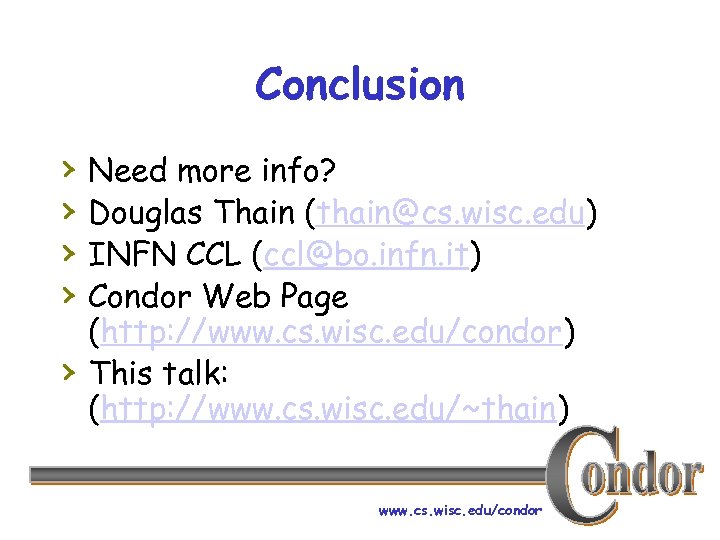

Conclusion › › › Need more info? Douglas Thain (thain@cs. wisc. edu) INFN CCL (ccl@bo. infn. it) Condor Web Page (http: //www. cs. wisc. edu/condor) This talk: (http: //www. cs. wisc. edu/~thain) www. cs. wisc. edu/condor
