Computer Security Biometric authentication Based on a talk

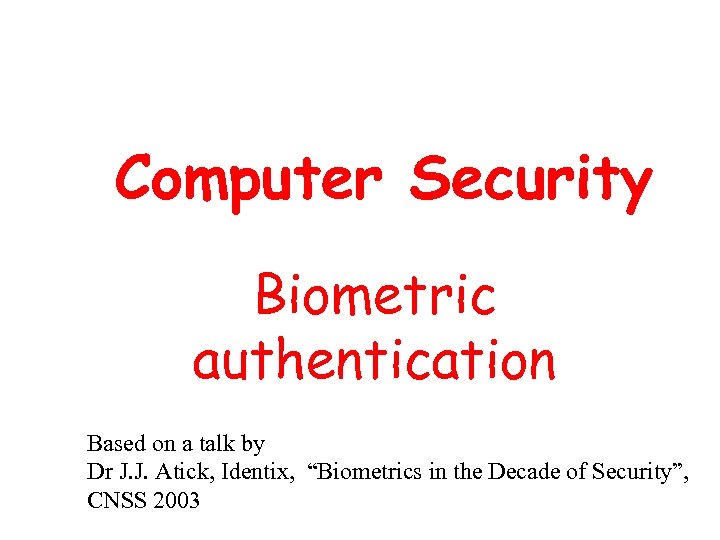

Computer Security Biometric authentication Based on a talk by Dr J. J. Atick, Identix, “Biometrics in the Decade of Security”, CNSS 2003

Biometric authentication Framework for security Trust Identification Biometrics fingerprints face iris

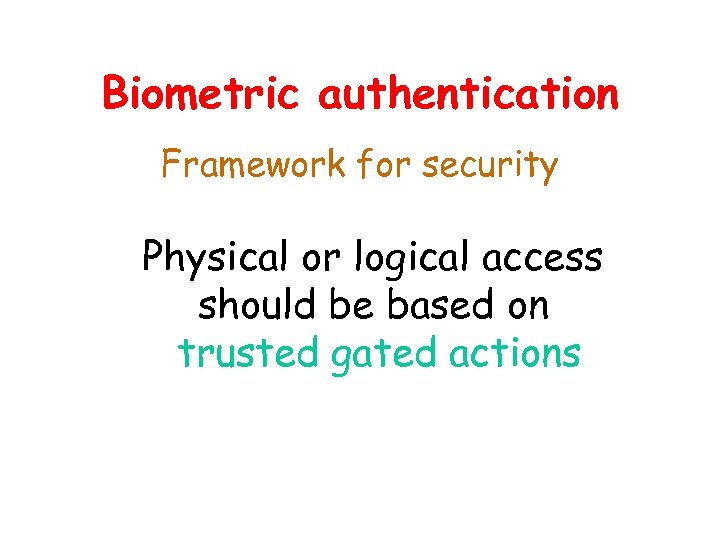

Biometric authentication Framework for security Physical or logical access should be based on trusted gated actions

Biometric authentication Biometrics are uniquely qualified for this purpose: • Individual uniqueness • universality • accuracy • easiness • permanence • non-intrusiveness • cannot be lost, forgotten, stolen

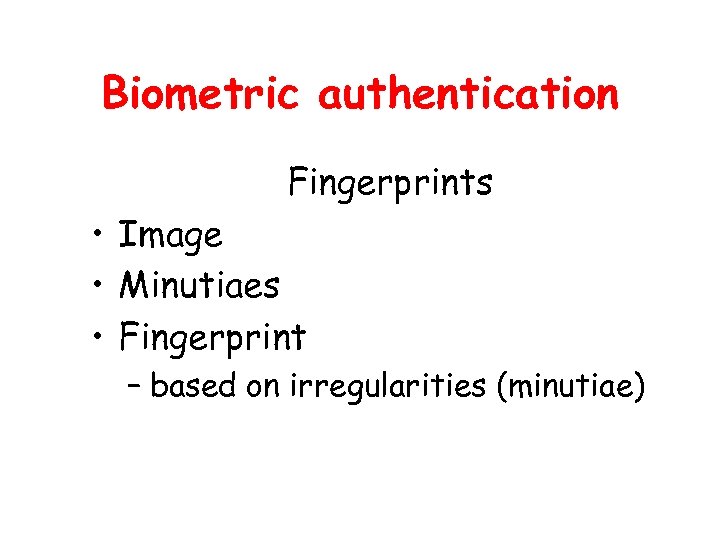

Biometric authentication Fingerprints • Image • Minutiaes • Fingerprint – based on irregularities (minutiae)

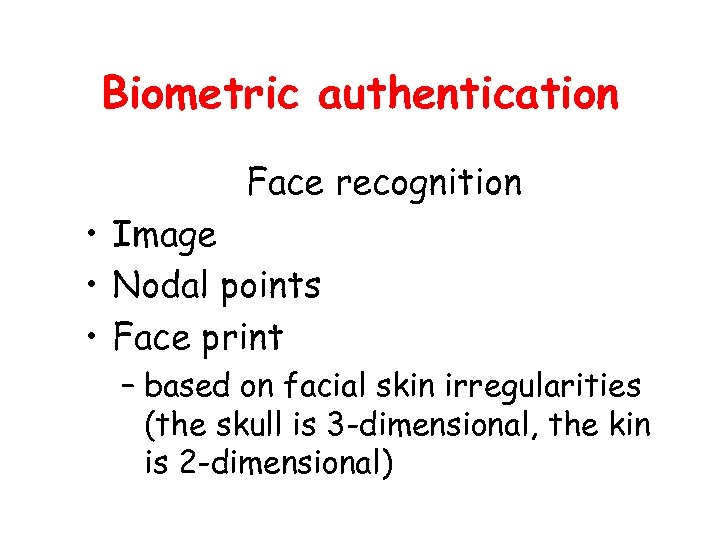

Biometric authentication Face recognition • Image • Nodal points • Face print – based on facial skin irregularities (the skull is 3 -dimensional, the kin is 2 -dimensional)

Biometric authentication Iris recognition • Image • Iris pattern • Iris-print

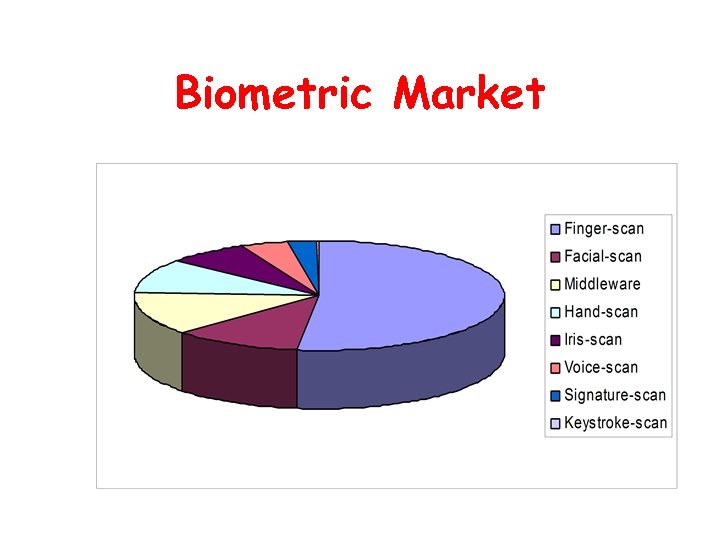

Biometric Market

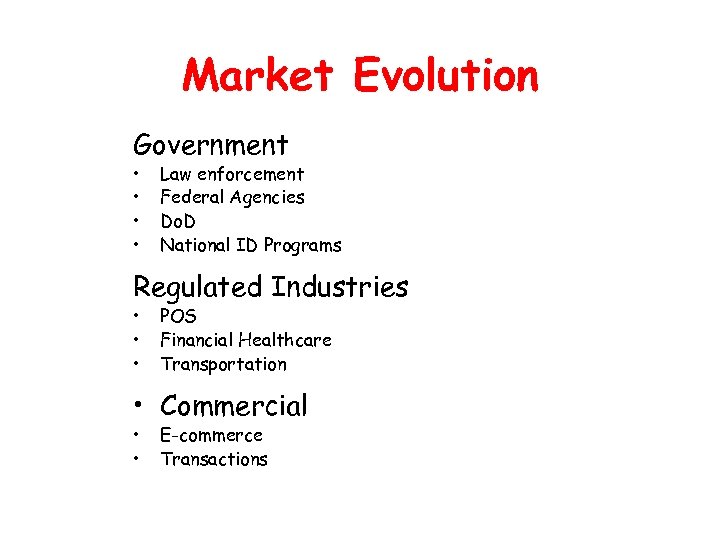

Market Evolution Government • • Law enforcement Federal Agencies Do. D National ID Programs Regulated Industries • • • POS Financial Healthcare Transportation • Commercial • • E-commerce Transactions

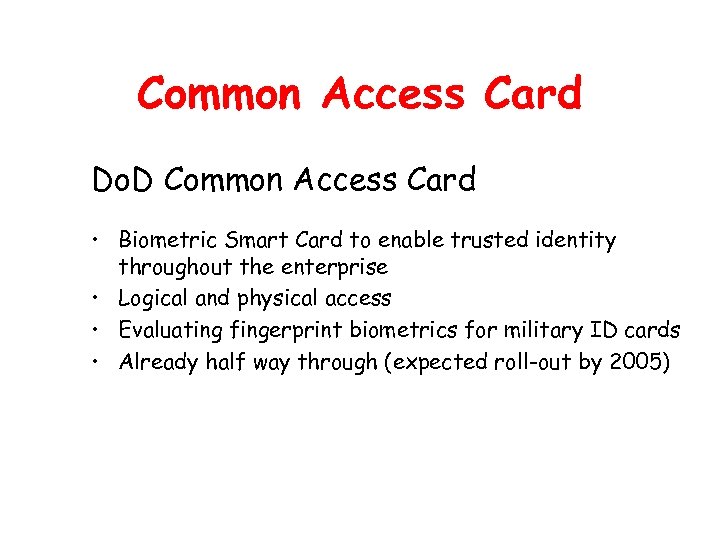

Common Access Card Do. D Common Access Card • Biometric Smart Card to enable trusted identity throughout the enterprise • Logical and physical access • Evaluating fingerprint biometrics for military ID cards • Already half way through (expected roll-out by 2005)

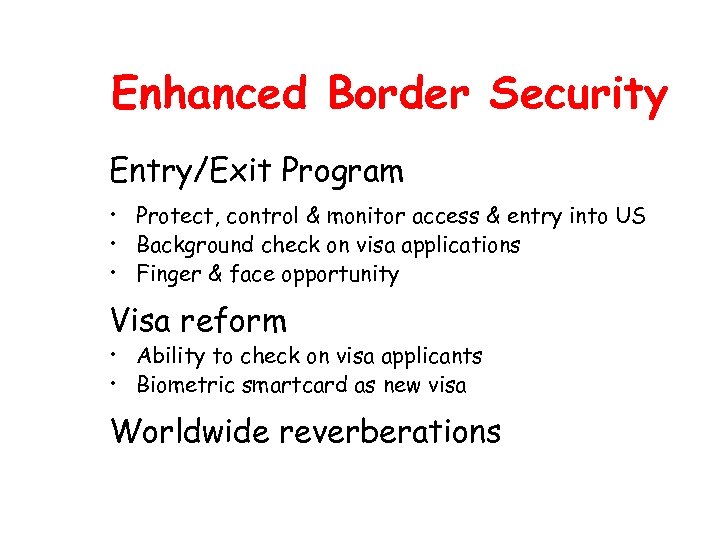

Enhanced Border Security Entry/Exit Program • Protect, control & monitor access & entry into US • Background check on visa applications • Finger & face opportunity Visa reform • Ability to check on visa applicants • Biometric smartcard as new visa Worldwide reverberations

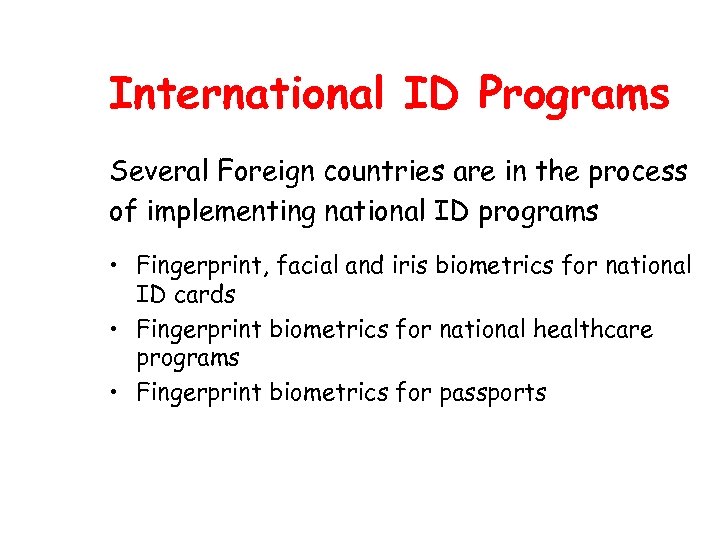

International ID Programs Several Foreign countries are in the process of implementing national ID programs • Fingerprint, facial and iris biometrics for national ID cards • Fingerprint biometrics for national healthcare programs • Fingerprint biometrics for passports

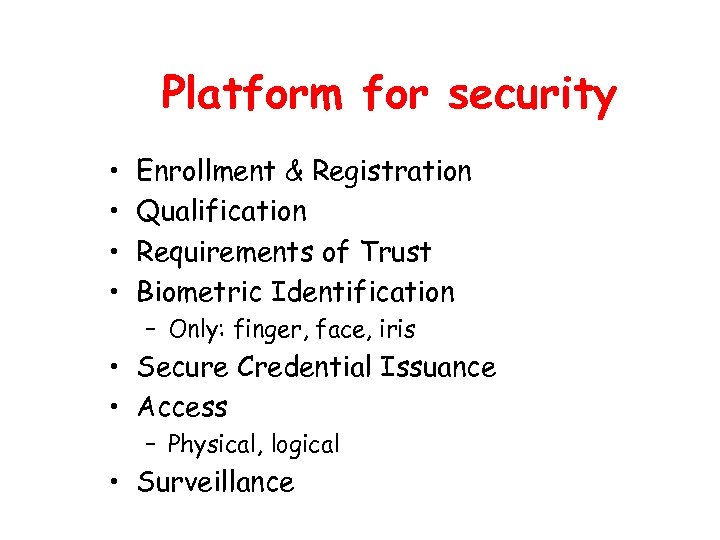

Platform for security • • Enrollment & Registration Qualification Requirements of Trust Biometric Identification – Only: finger, face, iris • Secure Credential Issuance • Access – Physical, logical • Surveillance

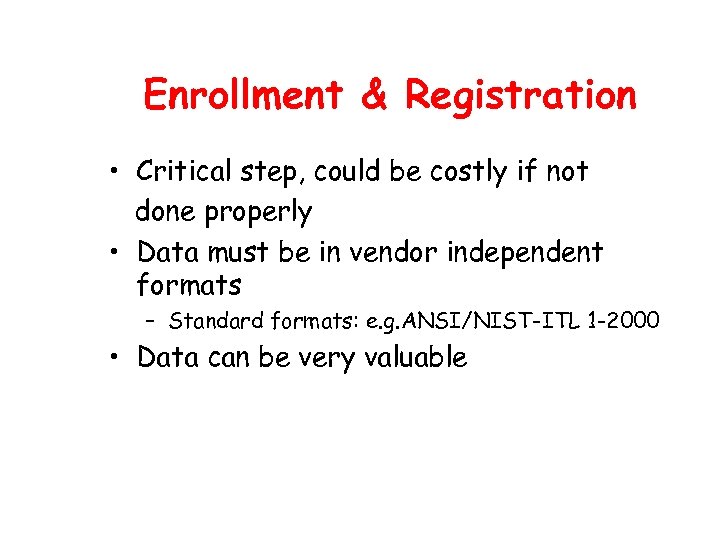

Enrollment & Registration • Critical step, could be costly if not done properly • Data must be in vendor independent formats – Standard formats: e. g. ANSI/NIST-ITL 1 -2000 • Data can be very valuable

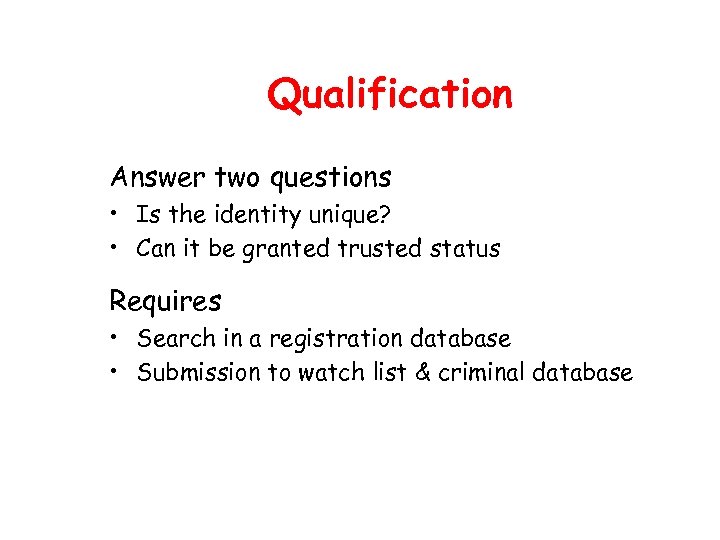

Qualification Answer two questions • Is the identity unique? • Can it be granted trusted status Requires • Search in a registration database • Submission to watch list & criminal database

Requirements of Trust • State mandates – Healthcare, school workers, banking state employees insurance • Federal Mandates – Transportation workers • Airlines, airports – Postal workers – Government employees – Visa applicants, trusted travelers • Passport and National IDs • Corporate enterprise

Biometric Identification Only finger, face, iris • Finger & face have unique position because of existing databases • Finger requires live scan 10 print rolled fingers • Major breakthroughs in imaging make it easier to capture high quality prints – Quicker turnaround – Low rejection & rechecks

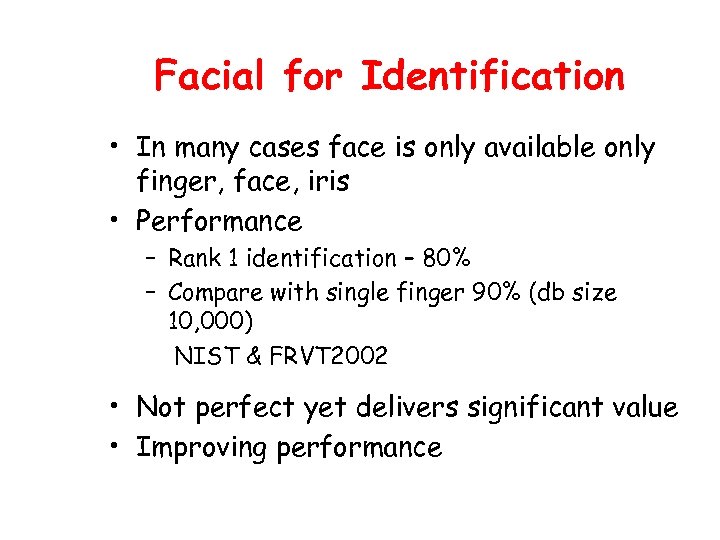

Facial for Identification • In many cases face is only available only finger, face, iris • Performance – Rank 1 identification – 80% – Compare with single finger 90% (db size 10, 000) NIST & FRVT 2002 • Not perfect yet delivers significant value • Improving performance

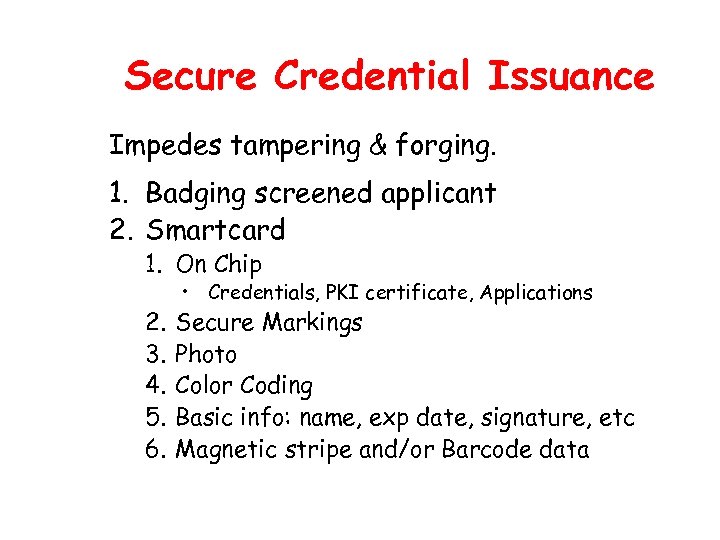

Secure Credential Issuance Impedes tampering & forging. 1. Badging screened applicant 2. Smartcard 1. On Chip 2. 3. 4. 5. 6. • Credentials, PKI certificate, Applications Secure Markings Photo Color Coding Basic info: name, exp date, signature, etc Magnetic stripe and/or Barcode data

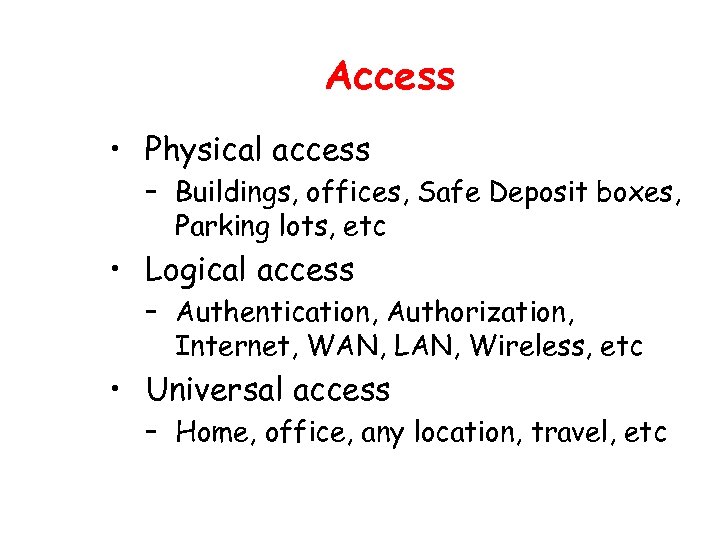

Access • Physical access – Buildings, offices, Safe Deposit boxes, Parking lots, etc • Logical access – Authentication, Authorization, Internet, WAN, LAN, Wireless, etc • Universal access – Home, office, any location, travel, etc

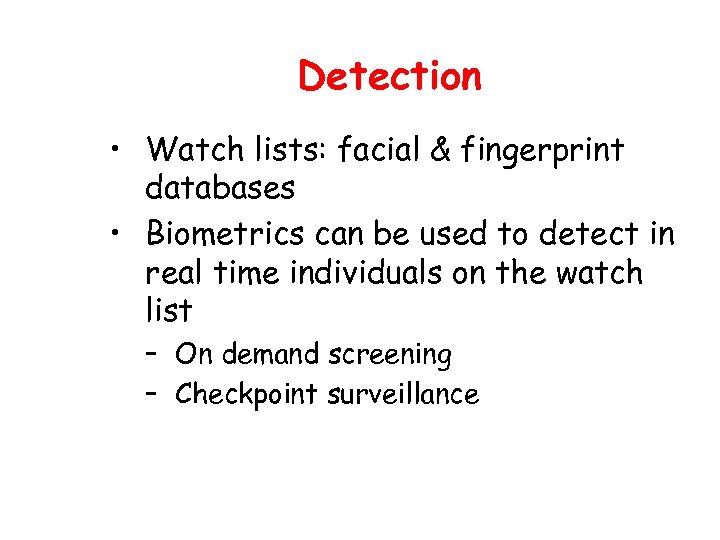

Detection • Watch lists: facial & fingerprint databases • Biometrics can be used to detect in real time individuals on the watch list – On demand screening – Checkpoint surveillance

Detection: on demand screening • Fingerprint systems for INS enforcement – border checks • Mobile identification – IBIS (Identification Based Information Systems) • Travel document screening

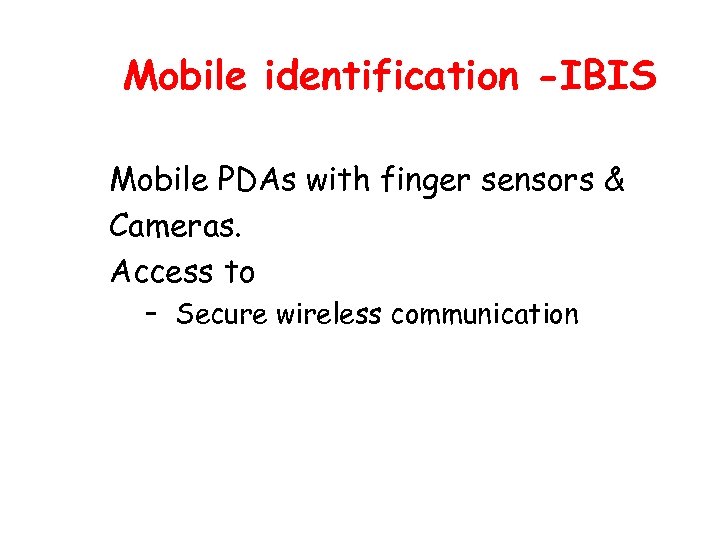

Mobile identification -IBIS Mobile PDAs with finger sensors & Cameras. Access to – Secure wireless communication

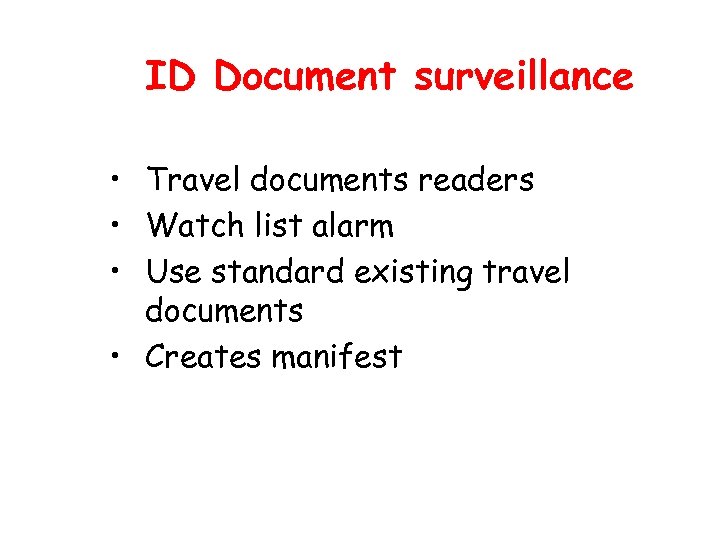

ID Document surveillance • Travel documents readers • Watch list alarm • Use standard existing travel documents • Creates manifest

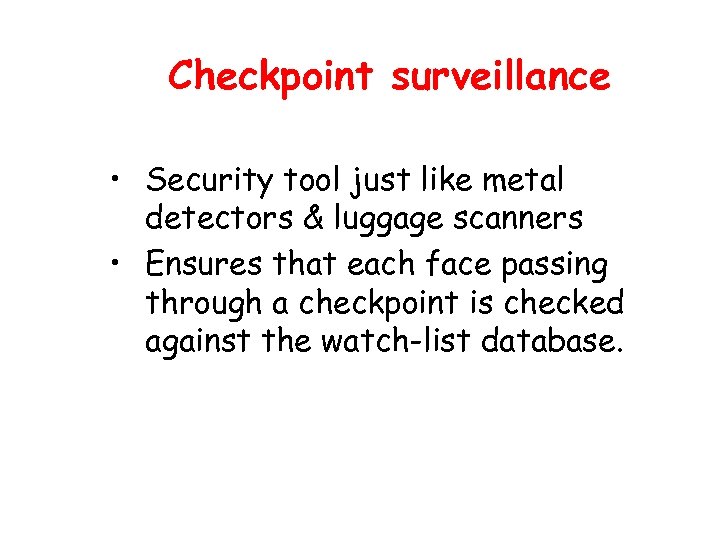

Checkpoint surveillance • Security tool just like metal detectors & luggage scanners • Ensures that each face passing through a checkpoint is checked against the watch-list database.

ID Document surveillance • Travel documents readers • Watchlist alarm • Use standard existing travel documents • Creates manifest

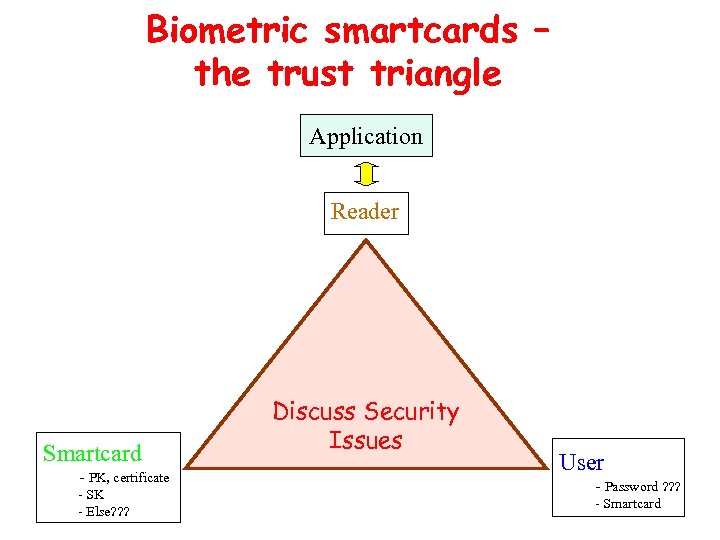

Biometric smartcards – the trust triangle Application Reader Smartcard - PK, certificate - SK - Else? ? ? Discuss Security Issues User - Password ? ? ? - Smartcard
