Composition of complex optimal multi-character motions C Karen

Composition of complex optimal multi-character motions C. Karen Liu Aaron Hertzmann Zoran Popović

Goal Monster house by Sony Pictures Madden NFL by Electronic Arts Synthesize complex and realistic interactions among multiple characters

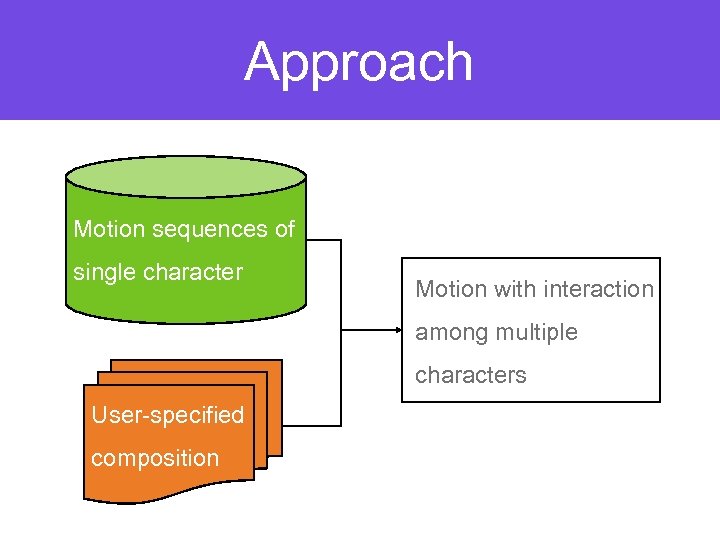

Approach Motion sequences of single character Motion with interaction among multiple characters User-specified composition

Approach

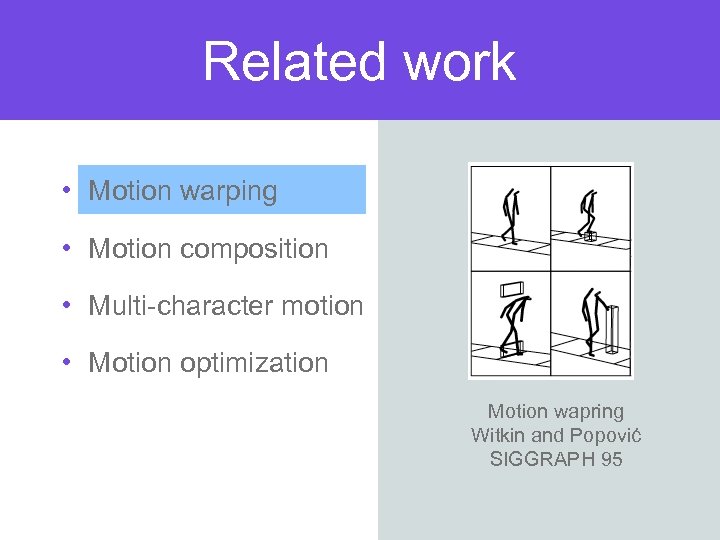

Related work • Motion warping • Motion composition • Multi-character motion • Motion optimization Motion wapring Witkin and Popović SIGGRAPH 95

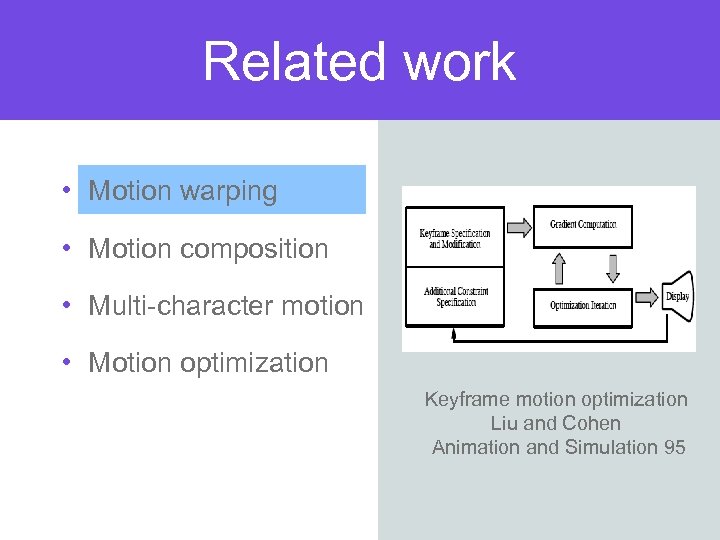

Related work • Motion warping • Motion composition • Multi-character motion • Motion optimization Keyframe motion optimization Liu and Cohen Animation and Simulation 95

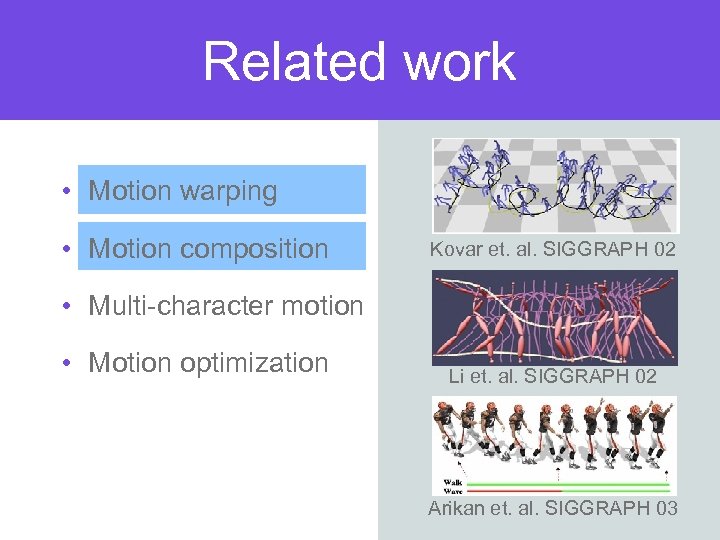

Related work • Motion warping • Motion composition Kovar et. al. SIGGRAPH 02 • Multi-character motion • Motion optimization Li et. al. SIGGRAPH 02 Arikan et. al. SIGGRAPH 03

Related work • Motion wapring • Motion composition • Multi-character motion • Motion optimization Interactive motion generation from examples Arikan and Forsyth SIGGRAPH 02

Related work • Motion warping • Motion composition • Multi-character motion • Motion optimization Dynamic response for motion capture animation Zordan et. al. SIGGRAPH 05

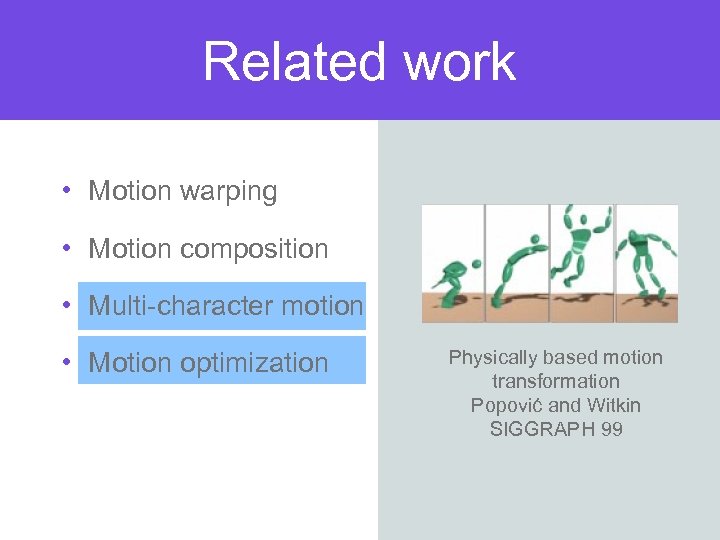

Related work • Motion warping • Motion composition • Multi-character motion • Motion optimization Physically based motion transformation Popović and Witkin SIGGRAPH 99

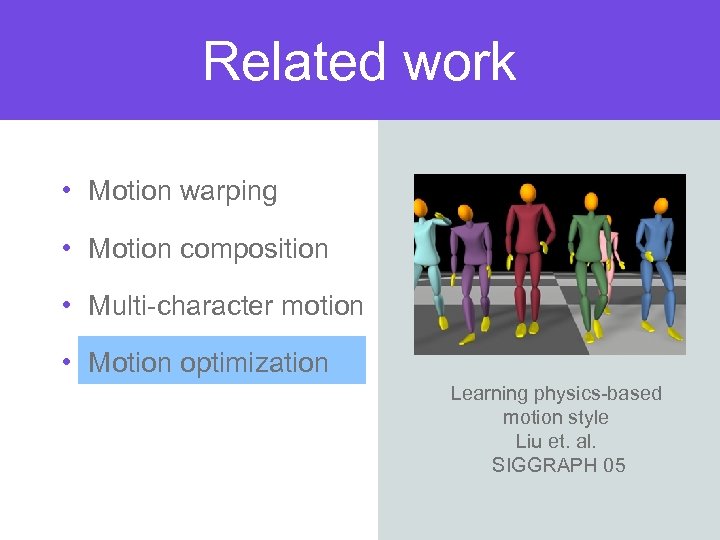

Related work • Motion warping • Motion composition • Multi-character motion • Motion optimization Learning physics-based motion style Liu et. al. SIGGRAPH 05

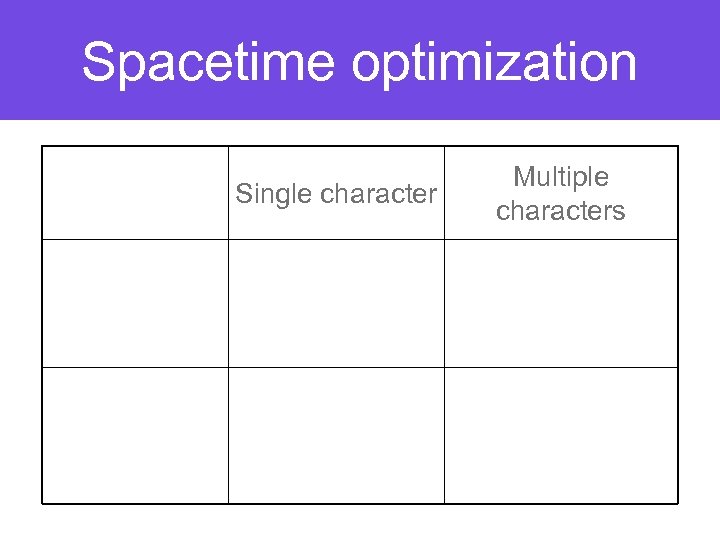

Spacetime optimization Single character Multiple characters

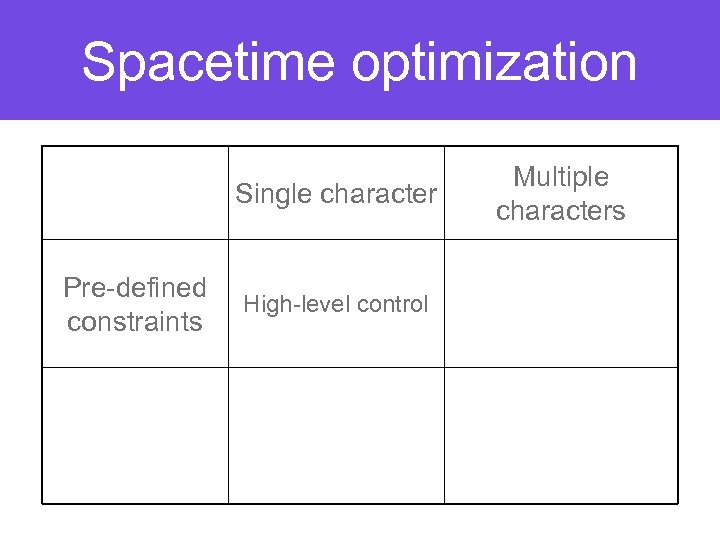

Spacetime optimization Single character Pre-defined constraints High-level control Multiple characters

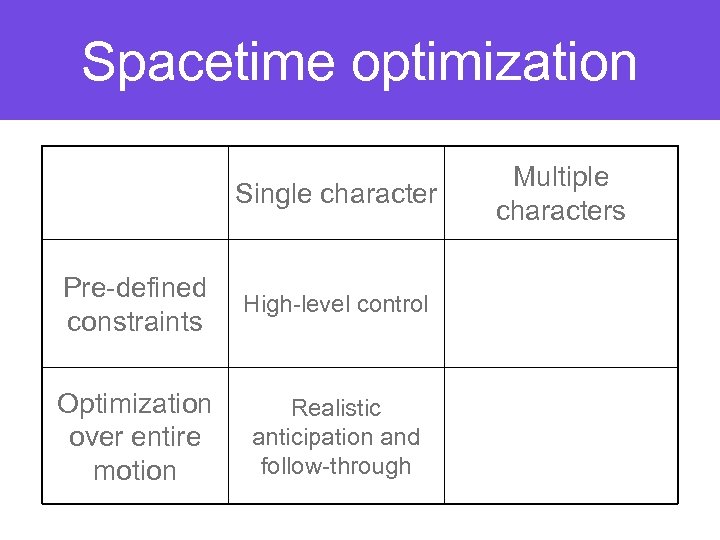

Spacetime optimization Single character Pre-defined constraints High-level control Optimization over entire motion Realistic anticipation and follow-through Multiple characters

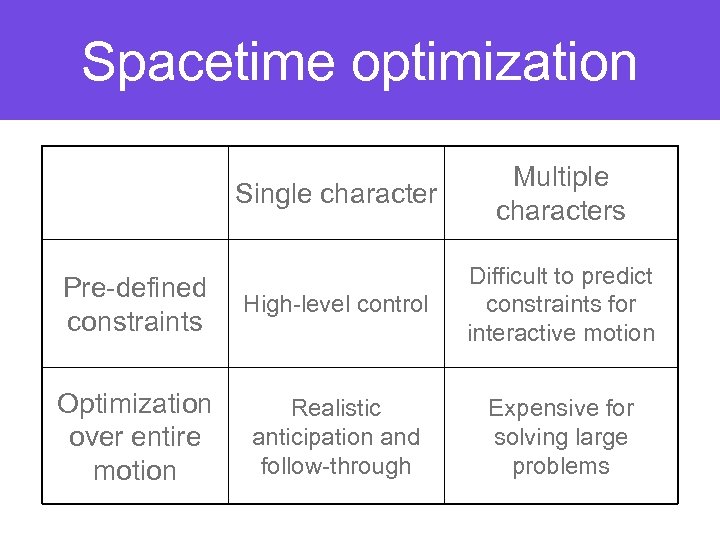

Spacetime optimization Single character Multiple characters Pre-defined constraints High-level control Difficult to predict constraints for interactive motion Optimization over entire motion Realistic anticipation and follow-through Expensive for solving large problems

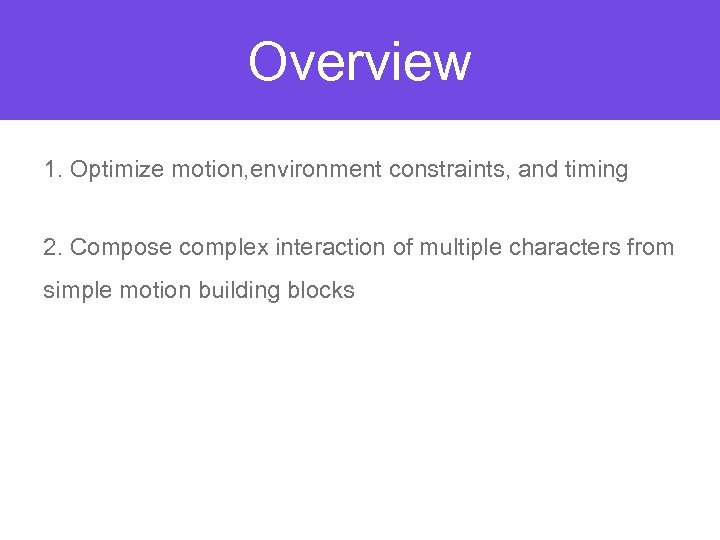

Overview 1. Optimize motion, environment constraints, and timing 2. Compose complex interaction of multiple characters from simple motion building blocks

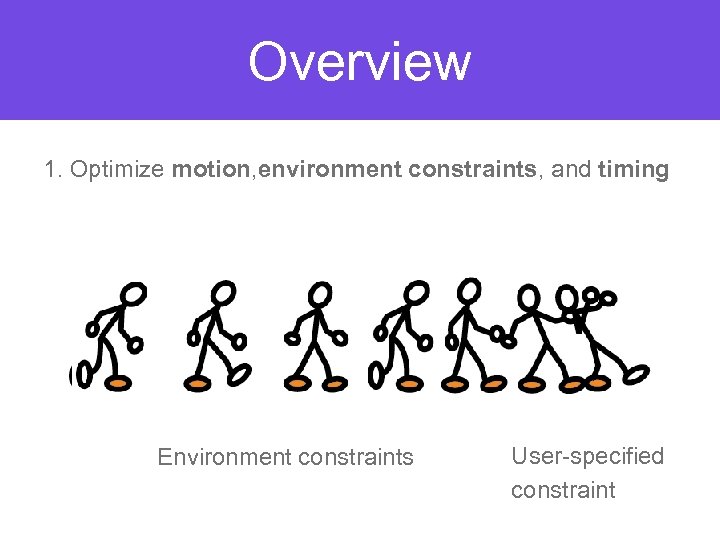

Overview 1. Optimize motion, environment constraints, and timing Environment constraints User-specified constraint

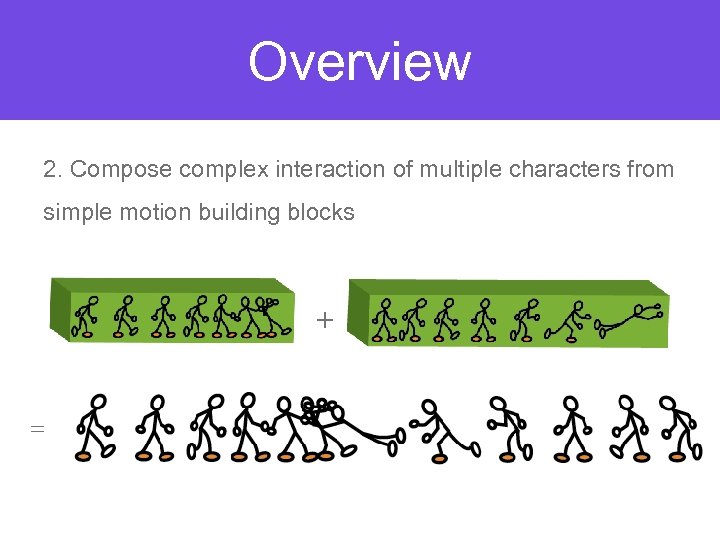

Overview 2. Compose complex interaction of multiple characters from simple motion building blocks

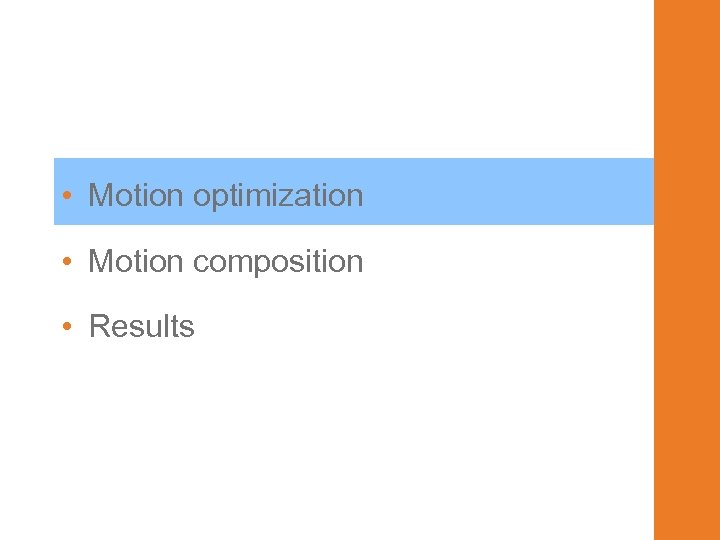

• Motion optimization • Motion composition • Results

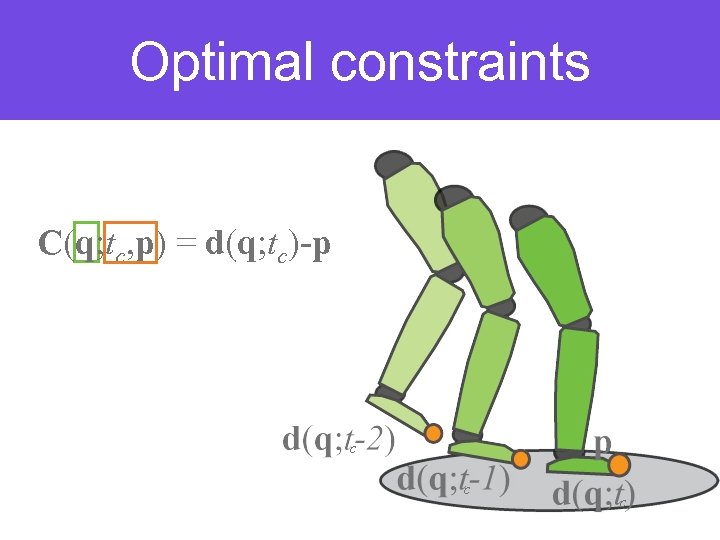

Optimal constraints C(q; tc, p) = d(q; tc)-p c c c

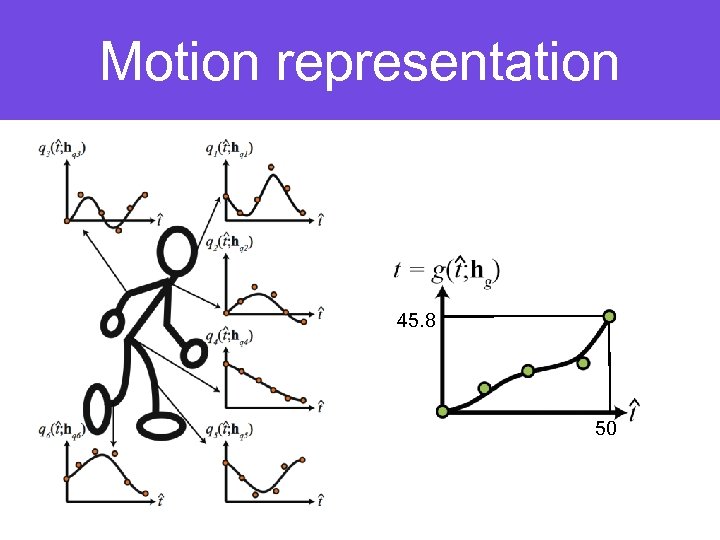

Motion representation 45. 8 50

Constraint representation

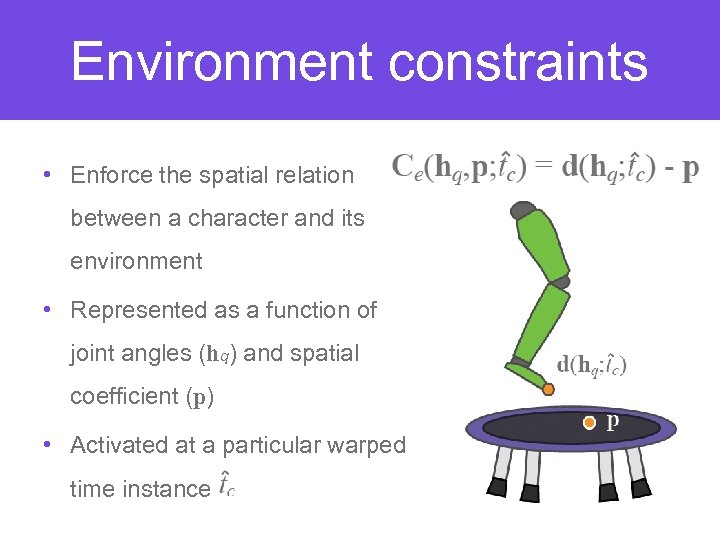

Environment constraints • Enforce the spatial relation between a character and its environment • Represented as a function of joint angles (hq) and spatial coefficient (p) • Activated at a particular warped time instance

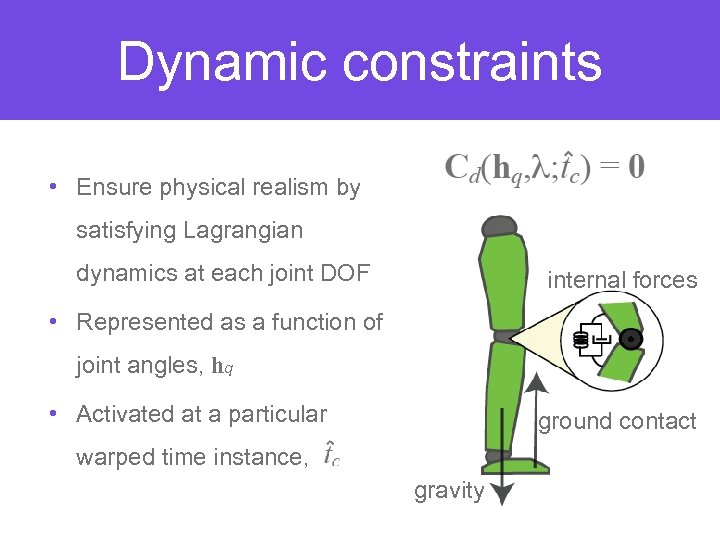

Dynamic constraints • Ensure physical realism by satisfying Lagrangian dynamics at each joint DOF internal forces • Represented as a function of joint angles, hq • Activated at a particular ground contact warped time instance, gravity

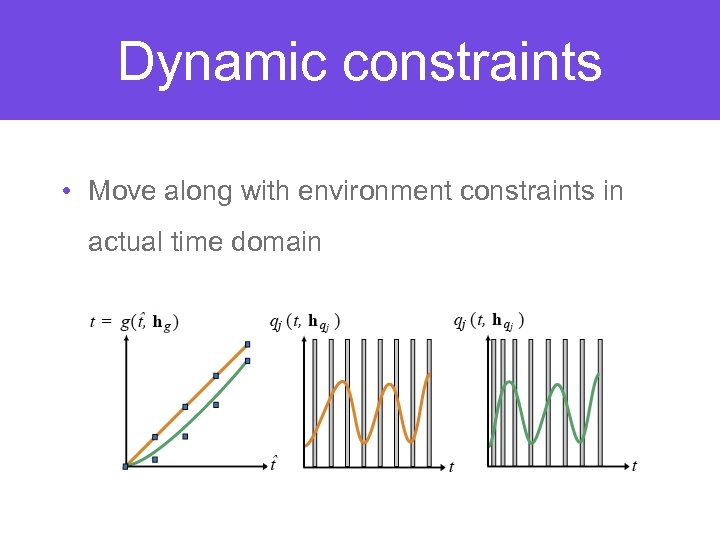

Dynamic constraints • Move along with environment constraints in actual time domain

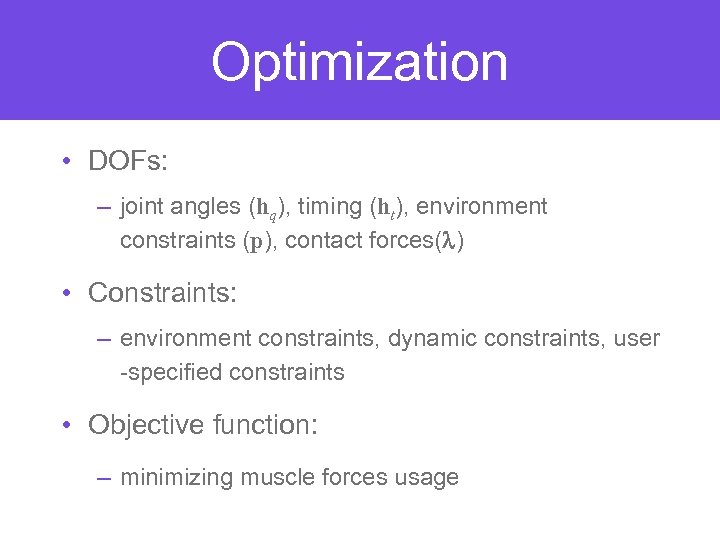

Optimization • DOFs: – joint angles (hq), timing (ht), environment constraints (p), contact forces( ) • Constraints: – environment constraints, dynamic constraints, user -specified constraints • Objective function: – minimizing muscle forces usage

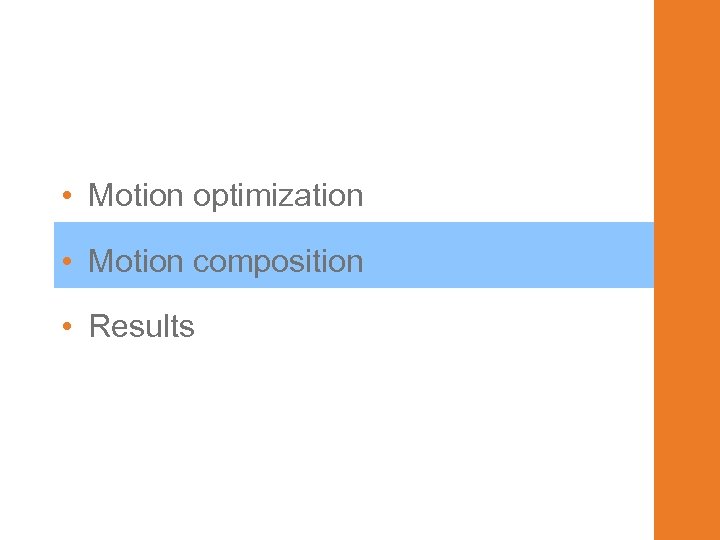

• Motion optimization • Motion composition • Results

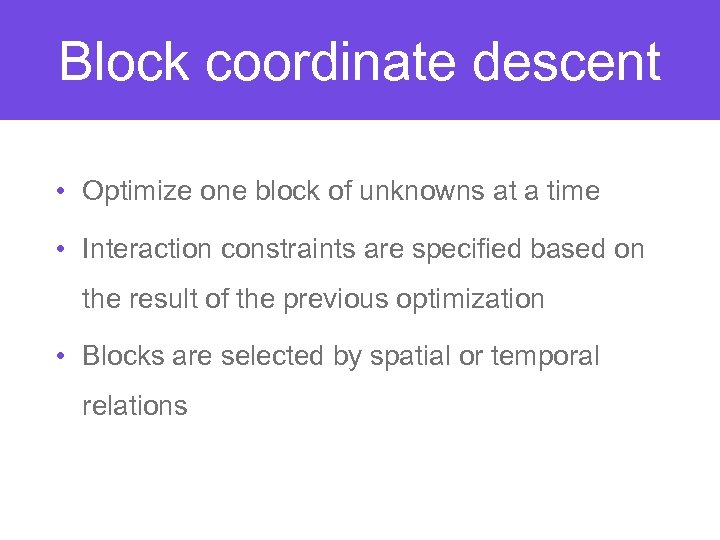

Block coordinate descent • Optimize one block of unknowns at a time • Interaction constraints are specified based on the result of the previous optimization • Blocks are selected by spatial or temporal relations

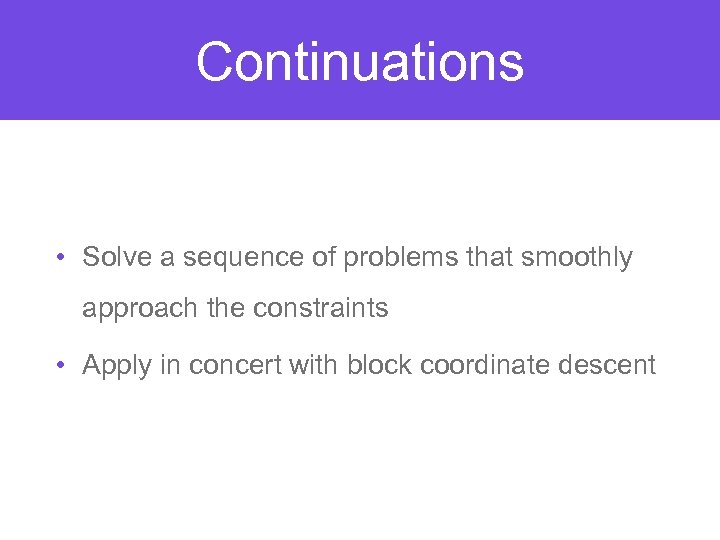

Continuations • Solve a sequence of problems that smoothly approach the constraints • Apply in concert with block coordinate descent

• Motion optimization • Motion composition • Results

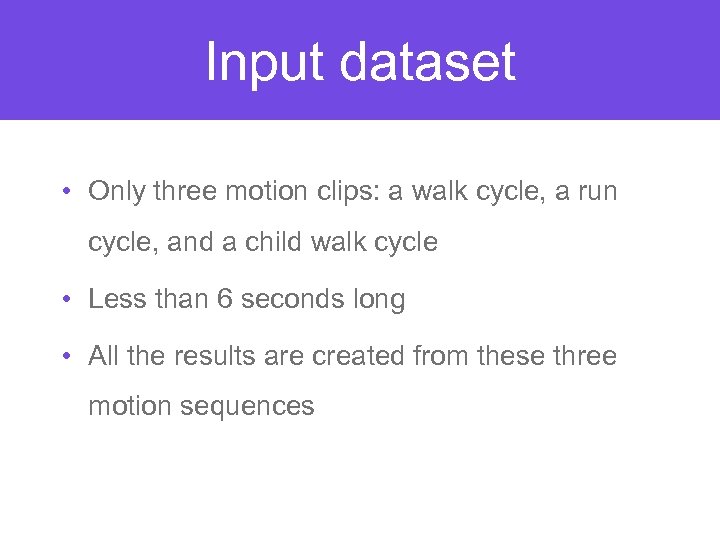

Input dataset • Only three motion clips: a walk cycle, a run cycle, and a child walk cycle • Less than 6 seconds long • All the results are created from these three motion sequences

Time-layered schedule • Synthesis of a sequence of actions: – specify common transition constraints for two problems – solve each problem separately to reach the transition constraint – remove transition constraints and solve the overlap motion A B C

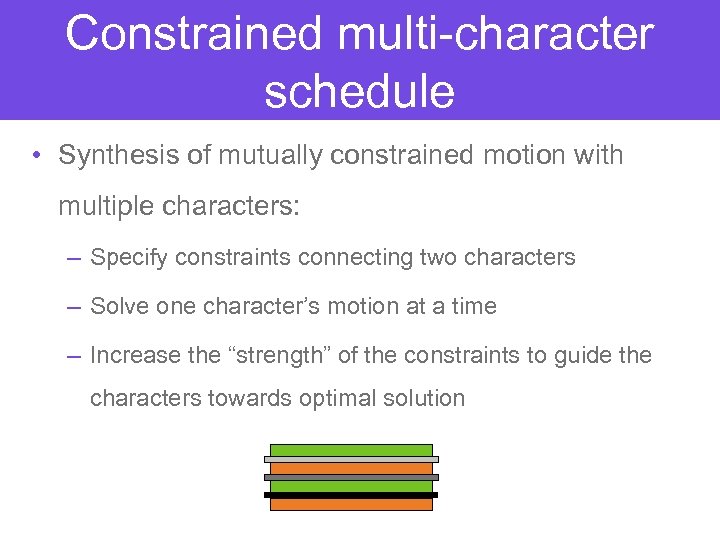

Constrained multi-character schedule • Synthesis of mutually constrained motion with multiple characters: – Specify constraints connecting two characters – Solve one character’s motion at a time – Increase the “strength” of the constraints to guide the characters towards optimal solution

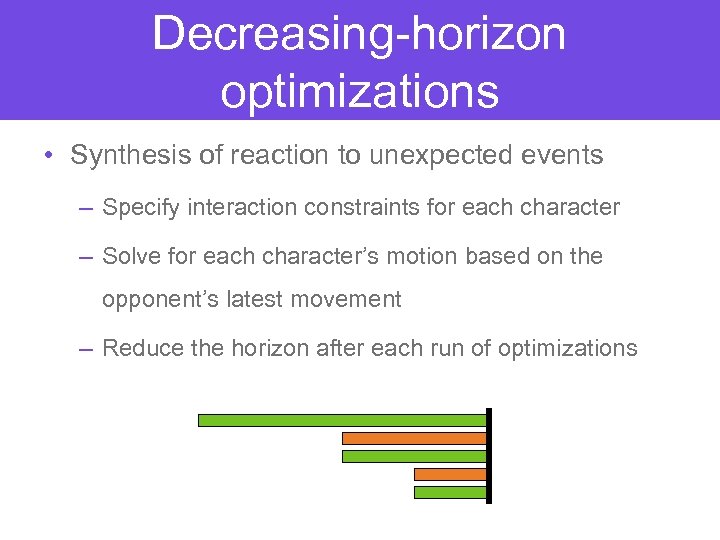

Decreasing-horizon optimizations • Synthesis of reaction to unexpected events – Specify interaction constraints for each character – Solve for each character’s motion based on the opponent’s latest movement – Reduce the horizon after each run of optimizations

Acknowledgements

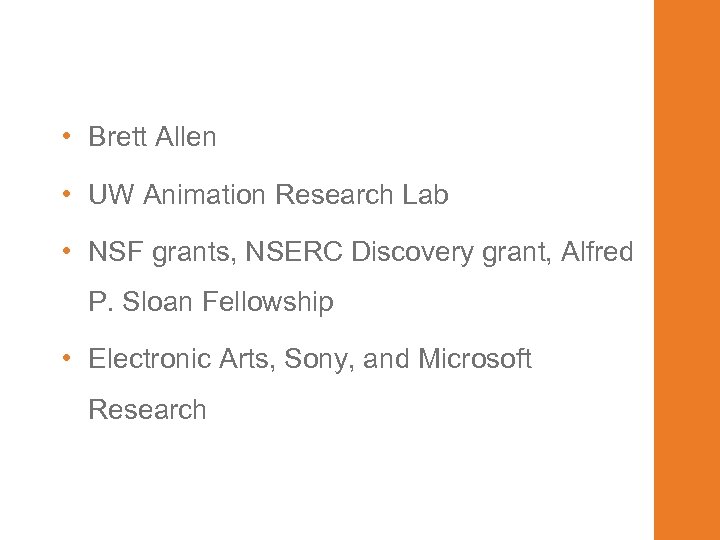

• Brett Allen • UW Animation Research Lab • NSF grants, NSERC Discovery grant, Alfred P. Sloan Fellowship • Electronic Arts, Sony, and Microsoft Research
