company protection connection air & fluid mechatronic systems GB We protect technology.

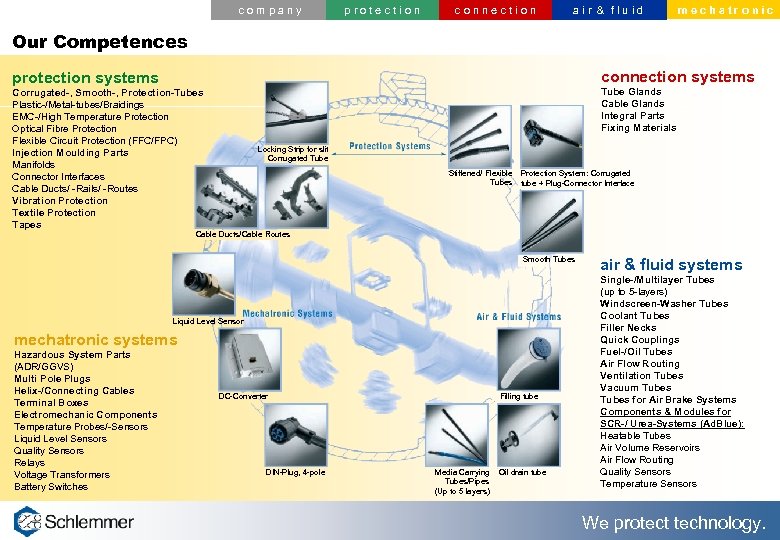

company protection connection air & fluid mechatronic Our Competences protection systems connection systems Corrugated-, Smooth-, Protection-Tubes Plastic-/Metal-tubes/Braidings EMC-/High Temperature Protection Optical Fibre Protection Flexible Circuit Protection (FFC/FPC) Injection Moulding Parts Manifolds Connector Interfaces Cable Ducts/ -Rails/ -Routes Vibration Protection Textile Protection Tapes Tube Glands Cable Glands Integral Parts Fixing Materials Locking Strip for slit Corrugated Tube Stiffened/ Flexible Tubes Protection System: Corrugated tube + Plug-Connector Interface Cable Ducts/Cable Routes Smooth Tubes Liquid Level Sensor mechatronic systems Hazardous System Parts (ADR/GGVS) Multi Pole Plugs Helix-/Connecting Cables Terminal Boxes Electromechanic Components Temperature Probes/-Sensors Liquid Level Sensors Quality Sensors Relays Voltage Transformers Battery Switches DC-Converter DIN-Plug, 4 -pole Filling tube Media Carrying Tubes/Pipes (Up to 5 layers) Oil drain tube air & fluid systems Single-/Multilayer Tubes (up to 5 -layers) Windscreen-Washer Tubes Coolant Tubes Filler Necks Quick Couplings Fuel-/Oil Tubes Air Flow Routing Ventilation Tubes Vacuum Tubes for Air Brake Systems Components & Modules for SCR-/ Urea-Systems (Ad. Blue): Heatable Tubes Air Volume Reservoirs Air Flow Routing Quality Sensors Temperature Sensors We protect technology.

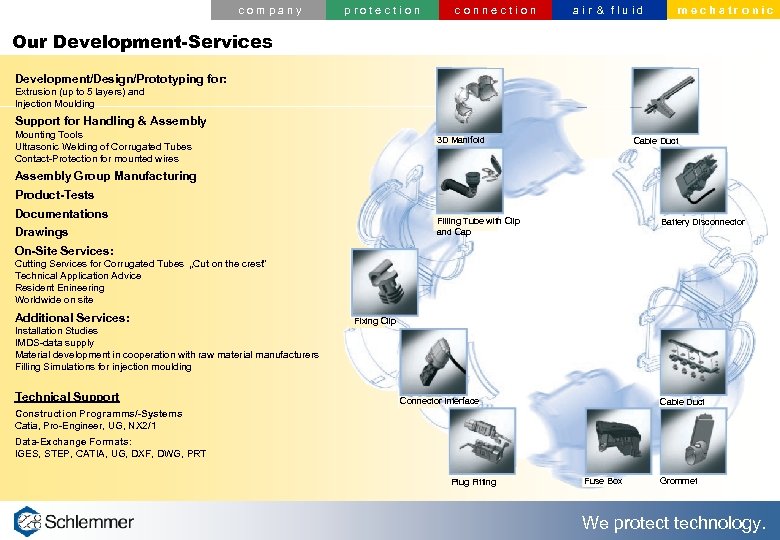

company protection connection air & fluid mechatronic Our Development-Services Development/Design/Prototyping for: Extrusion (up to 5 layers) and Injection Moulding Support for Handling & Assembly Mounting Tools Ultrasonic Welding of Corrugated Tubes Contact-Protection for mounted wires 3 D Manifold Cable Duct Assembly Group Manufacturing Product-Tests Documentations Filling Tube with Clip and Cap Drawings Battery Disconnector On-Site Services: Cutting Services for Corrugated Tubes „Cut on the crest“ Technical Application Advice Resident Enineering Worldwide on site Additional Services: Installation Studies IMDS-data supply Material development in cooperation with raw material manufacturers Filling Simulations for injection moulding Technical Support Fixing Clip Connector Interface Cable Duct Construction Programms/-Systems Catia, Pro-Engineer, UG, NX 2/1 Data-Exchange Formats: IGES, STEP, CATIA, UG, DXF, DWG, PRT Plug Fitting Fuse Box Grommet We protect technology.

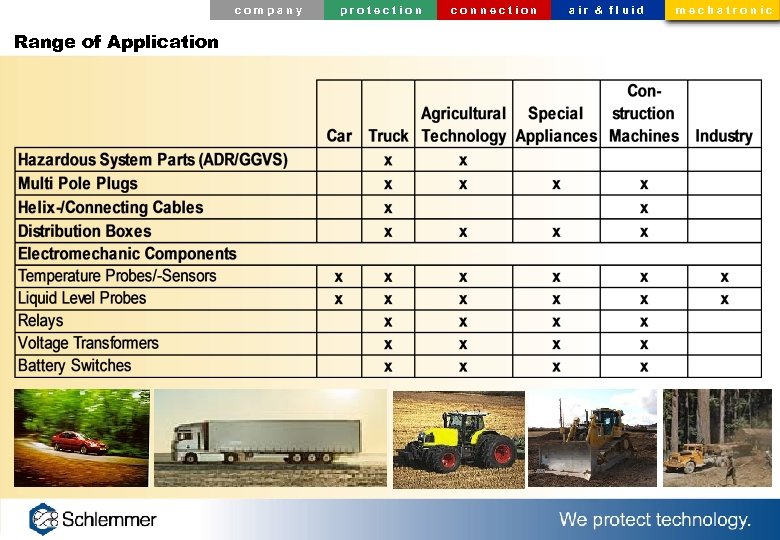

company p o ect p rro tt e c t i o n n onnect cco n n e c t i o n n a & a i irr & ff ll u i d mecha ron c m e c h a tt r o n ii c Range of Application We protect technology.

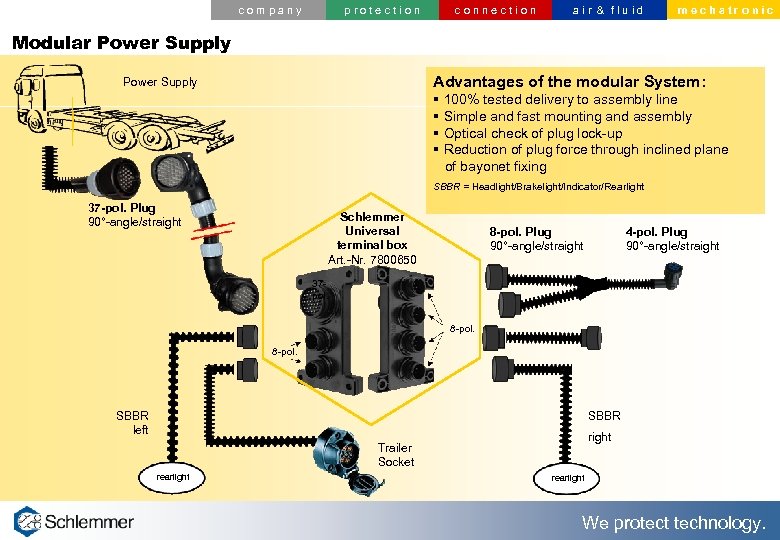

protection company connection air & fluid mechatronic Modular Power Supply Advantages of the modular System: Power Supply § 100% tested delivery to assembly line § Simple and fast mounting and assembly § Optical check of plug lock-up § Reduction of plug force through inclined plane of bayonet fixing SBBR = Headlight/Brakelight/Indicator/Rearlight 37 -pol. Plug 90°-angle/straight Schlemmer Universal terminal box Art. -Nr. 7800650 8 -pol. Plug 90°-angle/straight 4 -pol. Plug 90°-angle/straight 37 pol. 8 -pol. SBBR left SBBR right Trailer Socket rearlight We protect technology.

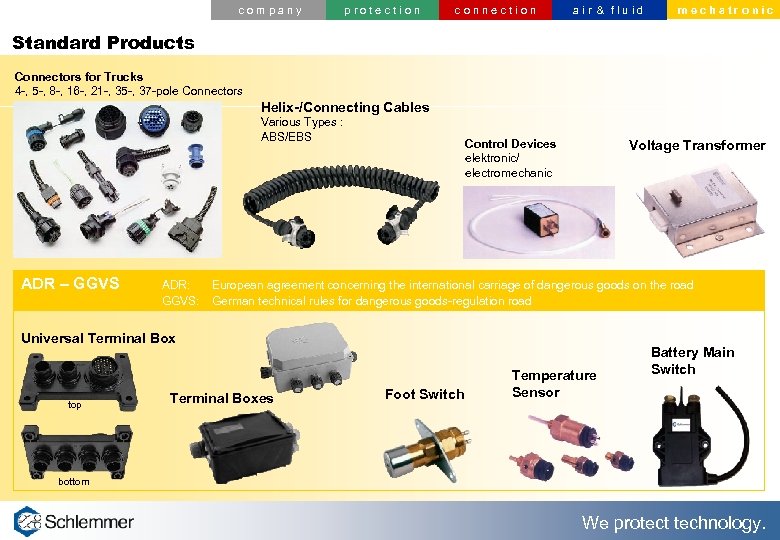

company protection connection air & fluid mechatronic Standard Products Connectors for Trucks 4 -, 5 -, 8 -, 16 -, 21 -, 35 -, 37 -pole Connectors Helix-/Connecting Cables Various Types : ABS/EBS ADR – GGVS ADR: GGVS: Control Devices elektronic/ electromechanic Voltage Transformer European agreement concerning the international carriage of dangerous goods on the road German technical rules for dangerous goods-regulation road Universal Terminal Box top Terminal Boxes Foot Switch Temperature Sensor Battery Main Switch bottom We protect technology.

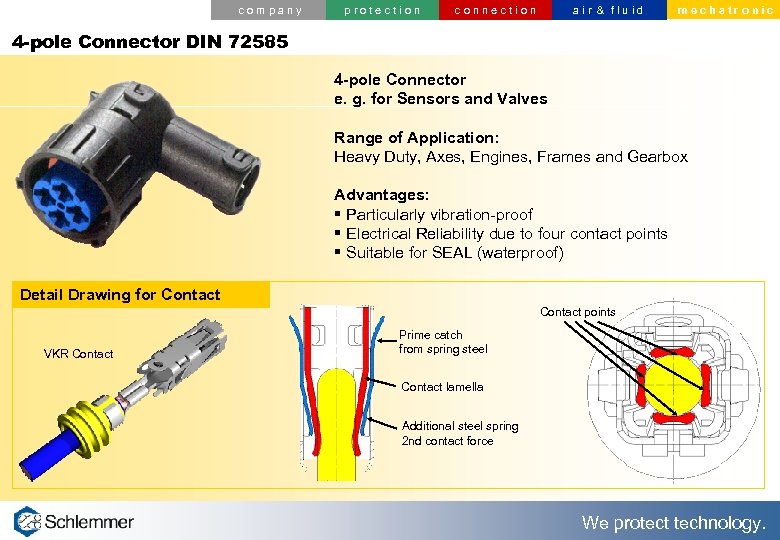

company protection connection air & fluid mechatronic 4 -pole Connector DIN 72585 4 -pole Connector e. g. for Sensors and Valves Range of Application: Heavy Duty, Axes, Engines, Frames and Gearbox Advantages: § Particularly vibration-proof § Electrical Reliability due to four contact points § Suitable for SEAL (waterproof) Detail Drawing for Contact points VKR Contact Prime catch from spring steel Contact lamella Additional steel spring 2 nd contact force We protect technology.

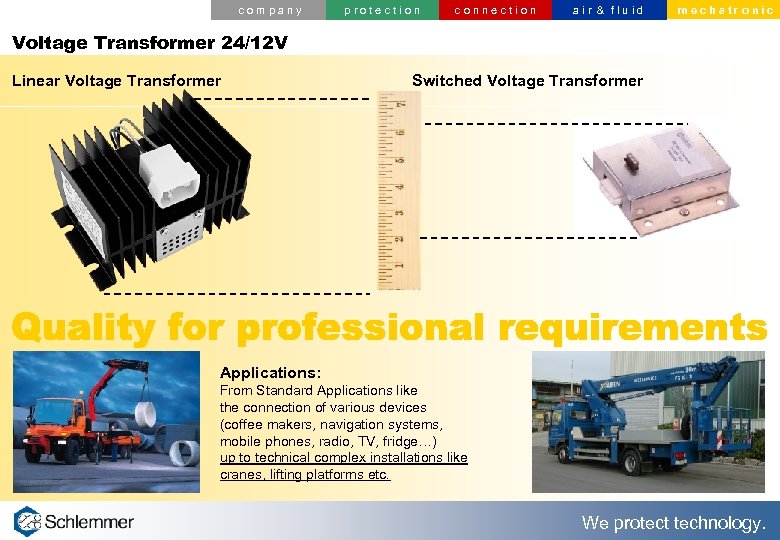

company protection connection air & fluid mechatronic Voltage Transformer 24/12 V Linear Voltage Transformer Switched Voltage Transformer Applications: From Standard Applications like the connection of various devices (coffee makers, navigation systems, mobile phones, radio, TV, fridge…) up to technical complex installations like cranes, lifting platforms etc. We protect technology.

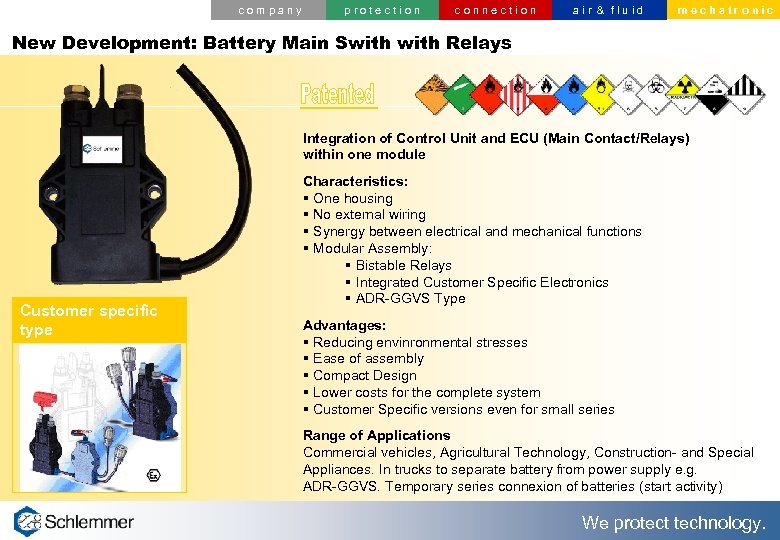

company protection connection air & fluid mechatronic New Development: Battery Main Swith Relays Integration of Control Unit and ECU (Main Contact/Relays) within one module Customer specific type Characteristics: § One housing § No external wiring § Synergy between electrical and mechanical functions § Modular Assembly: § Bistable Relays § Integrated Customer Specific Electronics § ADR-GGVS Type Advantages: § Reducing envinronmental stresses § Ease of assembly § Compact Design § Lower costs for the complete system § Customer Specific versions even for small series Range of Applications Commercial vehicles, Agricultural Technology, Construction- and Special Appliances. In trucks to separate battery from power supply e. g. ADR-GGVS. Temporary series connexion of batteries (start activity) We protect technology.

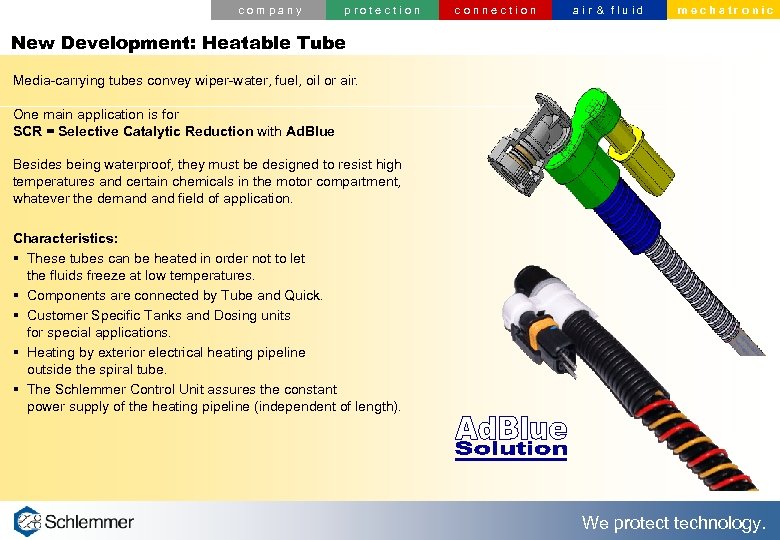

company protection connection air & fluid mechatronic New Development: Heatable Tube Media-carrying tubes convey wiper-water, fuel, oil or air. One main application is for SCR = Selective Catalytic Reduction with Ad. Blue Besides being waterproof, they must be designed to resist high temperatures and certain chemicals in the motor compartment, whatever the demand field of application. Characteristics: § These tubes can be heated in order not to let the fluids freeze at low temperatures. § Components are connected by Tube and Quick. § Customer Specific Tanks and Dosing units for special applications. § Heating by exterior electrical heating pipeline outside the spiral tube. § The Schlemmer Control Unit assures the constant power supply of the heating pipeline (independent of length). We protect technology.

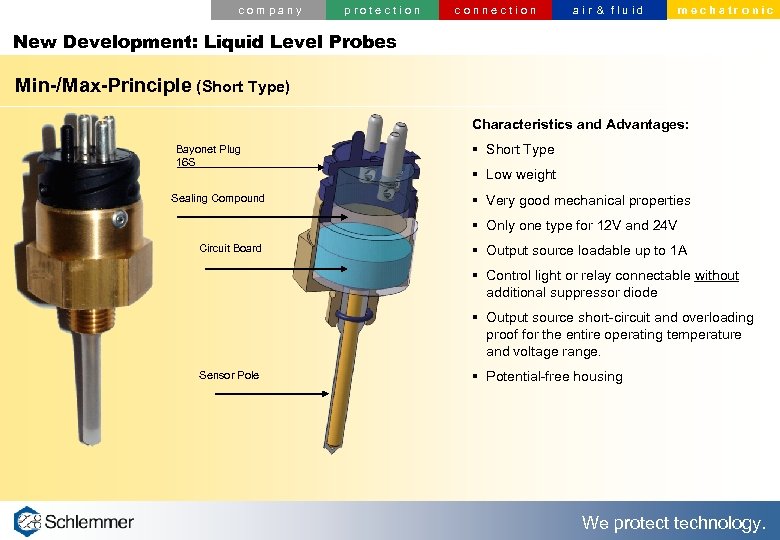

company protection connection air & fluid mechatronic New Development: Liquid Level Probes Min-/Max-Principle (Short Type) Characteristics and Advantages: Bayonet Plug 16 S Sealing Compound § Short Type § Low weight § Very good mechanical properties § Only one type for 12 V and 24 V Circuit Board § Output source loadable up to 1 A § Control light or relay connectable without additional suppressor diode § Output source short-circuit and overloading proof for the entire operating temperature and voltage range. Sensor Pole § Potential-free housing We protect technology.

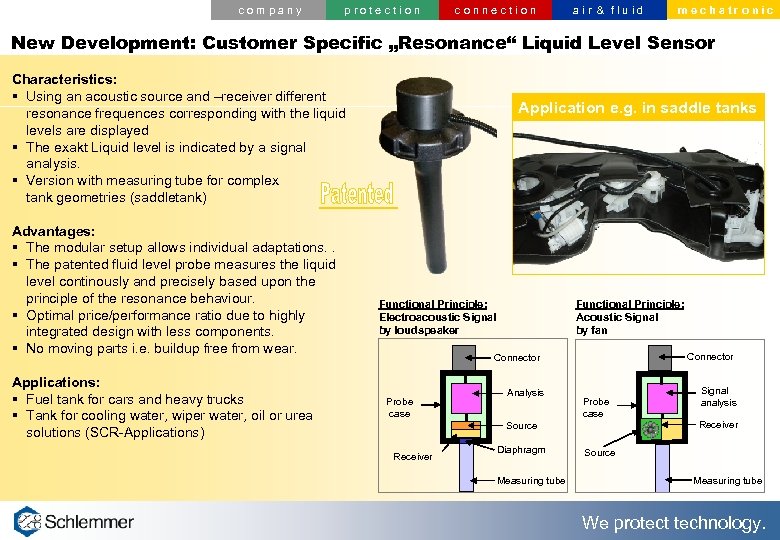

company protection connection air & fluid mechatronic New Development: Customer Specific „Resonance“ Liquid Level Sensor Characteristics: § Using an acoustic source and –receiver different resonance frequences corresponding with the liquid levels are displayed § The exakt Liquid level is indicated by a signal analysis. § Version with measuring tube for complex tank geometries (saddletank) Advantages: § The modular setup allows individual adaptations. . § The patented fluid level probe measures the liquid level continously and precisely based upon the principle of the resonance behaviour. § Optimal price/performance ratio due to highly integrated design with less components. § No moving parts i. e. buildup free from wear. Applications: § Fuel tank for cars and heavy trucks § Tank for cooling water, wiper water, oil or urea solutions (SCR-Applications) Application e. g. in saddle tanks Functional Principle: Electroacoustic Signal by loudspeaker Functional Principle: Acoustic Signal by fan Connector Probe case Analysis Probe case Source Receiver Diaphragm Measuring tube Signal analysis Receiver Source Measuring tube We protect technology.

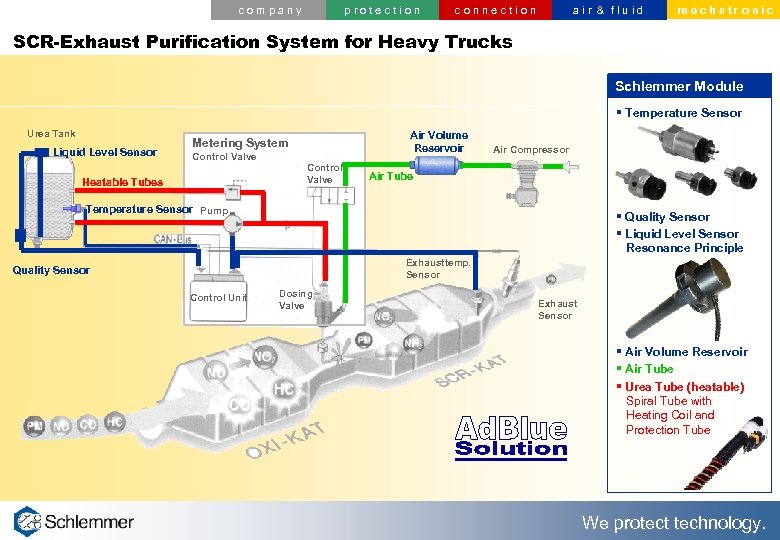

protection company connection air & fluid mechatronic SCR-Exhaust Purification System for Heavy Trucks Schlemmer Module § Temperature Sensor Urea Tank Liquid Level Sensor Air Volume Reservoir Metering System Control Valve Heatable Tubes Control Valve Air Compressor Air Tube Temperature Sensor Pump § Quality Sensor § Liquid Level Sensor Resonance Principle Exhausttemp. Sensor Quality Sensor Control Unit Dosing Valve Exhaust Sensor § Air Volume Reservoir § Air Tube § Urea Tube (heatable) Spiral Tube with Heating Coil and Protection Tube We protect technology.

company protection connection air & fluid mechatronic Strenghts & References Customer references for Mechatronic Projects § Speedy Realization because of long-standing competence in R&D § Customer Specific Solutions for big and low quantities BOSCH § New miniaturization technologies like SMD/SMT and ASIC § Flexible and short-dated Production based on Inhouse Manufacturing § Cost-optimized Project processing because of Synergy in Toolmaking, Injection moulding, Extrusion & Electronics § Competence in four Product Divisions: Protection / Connection / Air&Fluid / Mechatronic We protect technology.
