Company Profile Adel this brand name comes from

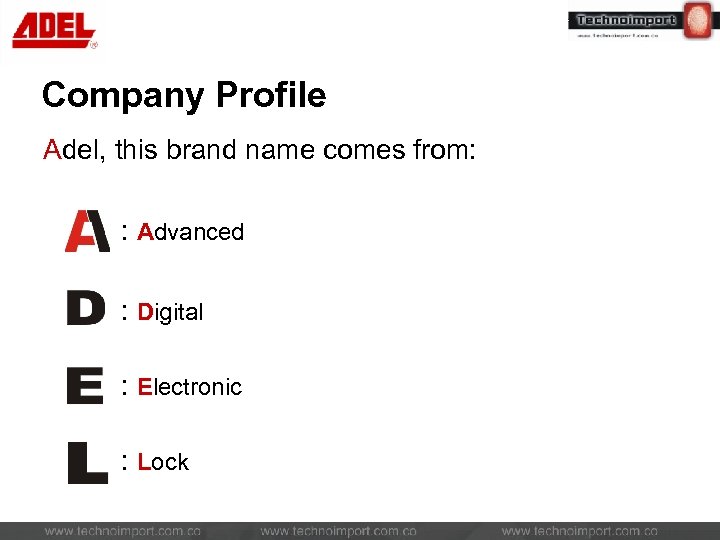

Company Profile Adel, this brand name comes from: : Advanced : Digital : Electronic : Lock

Company Profile Over 10 years experience in manufacturing electronic locks, hotel locks The Leading electronic locks supplier in China hotel locks supplier in China Business over 60 countries e. g. USA, Europe, South-East Asia Over 7000 hotels using our locking system

Company Profile Some of our hotel groups clients:

Company Profile Other clients: Government sector e. g. Zhongnanhai University e. g. Zhejiang University in PRC Land development company e. g. Henderson Land Development Company Limited Big Enterprise e. g. CCTV in PRC.

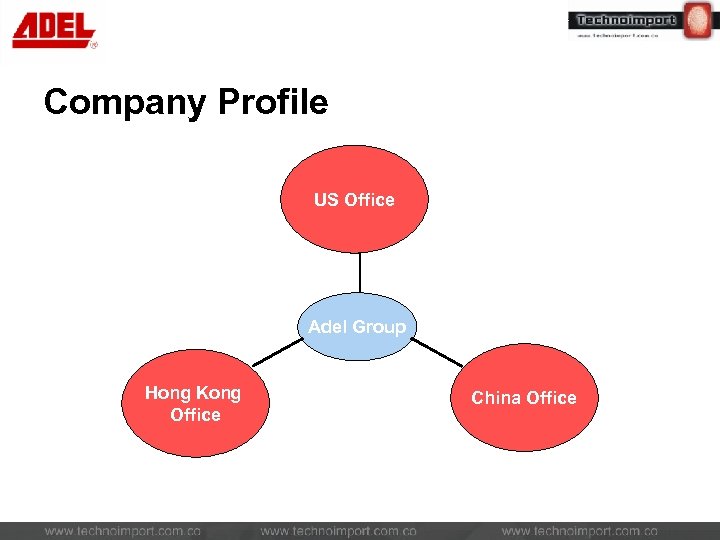

Company Profile US Office Adel Group Hong Kong Office China Office

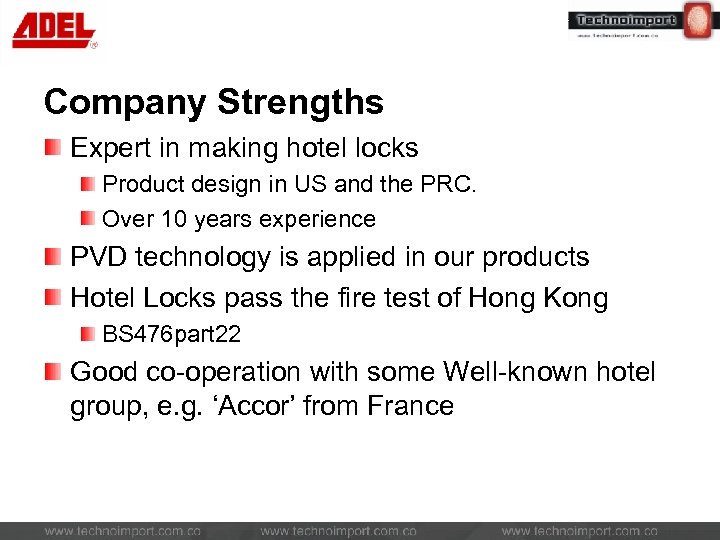

Company Strengths Expert in making hotel locks Product design in US and the PRC. Over 10 years experience PVD technology is applied in our products Hotel Locks pass the fire test of Hong Kong BS 476 part 22 Good co-operation with some Well-known hotel group, e. g. ‘Accor’ from France

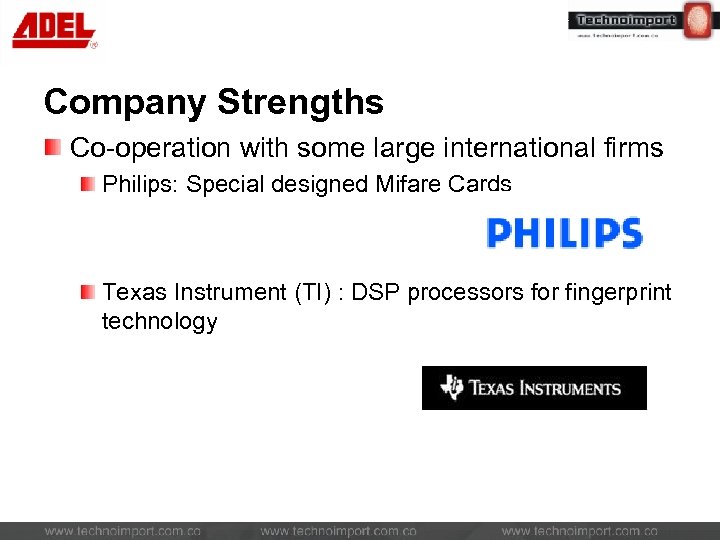

Company Strengths Co-operation with some large international firms Philips: Special designed Mifare Cards Texas Instrument (TI) : DSP processors for fingerprint technology

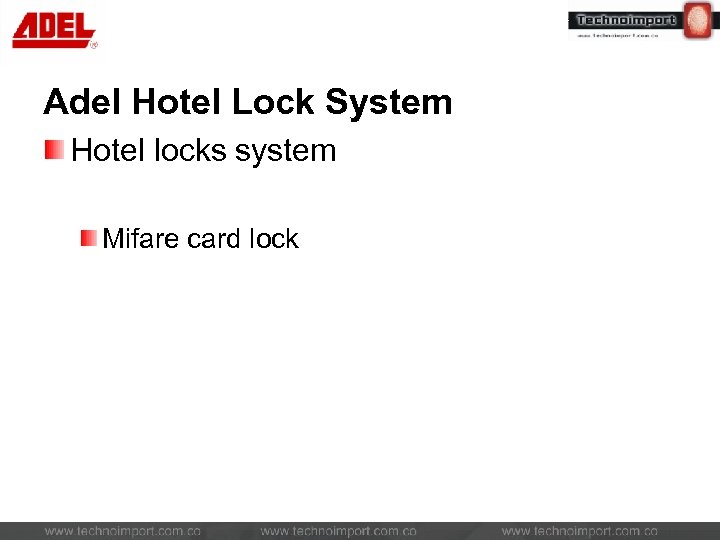

Adel Hotel Lock System Hotel locks system Mifare card lock

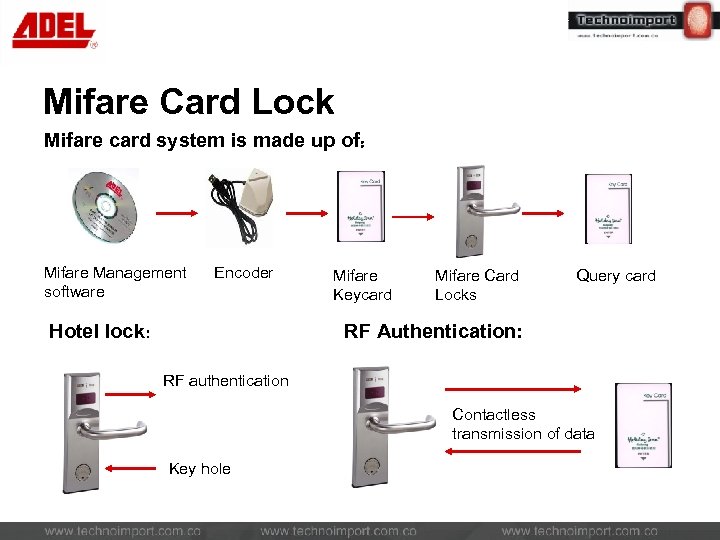

Mifare Card Lock Mifare card system is made up of：　 Mifare Management software Encoder Hotel lock: 　 Mifare Keycard Mifare Card Locks Query card RF Authentication: RF authentication Contactless transmission of data Key hole

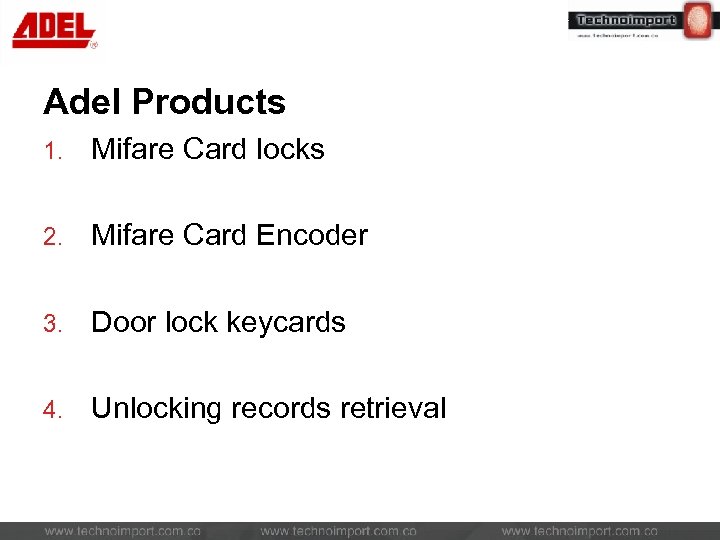

Adel Products 1. Mifare Card locks 2. Mifare Card Encoder 3. Door lock keycards 4. Unlocking records retrieval

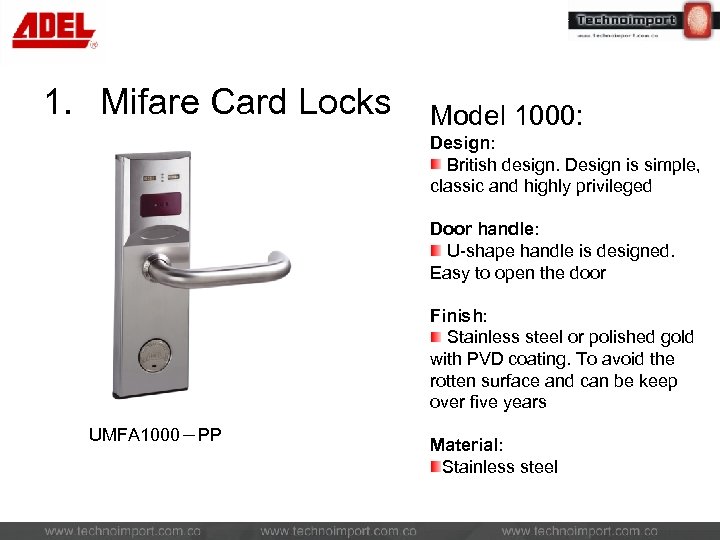

1. Mifare Card Locks Model 1000: Design: British design. Design is simple, classic and highly privileged Door handle: U-shape handle is designed. Easy to open the door Finish: Stainless steel or polished gold with PVD coating. To avoid the rotten surface and can be keep over five years UMFA 1000－PP Material: Stainless steel

1. Mifare Card Locks Model 2000: Design: French design. Design is elegant, classic Door handle: U-shape handle is designed. Easy to open the door Finish: Stainless steel or polished gold with PVD coating. To avoid the rotten surface and can be keep over five years UMFB 2000－RR Material: Stainless steel

1. Mifare Card Locks Model 6000: Design: American design. Design is elegant, classic Door handle: G-shape handle is designed. Easy to open the door Finish: Satin Chrome or Polished gold with PVD coating. To avoid the rotten surface and can be keep over five years DMFB 6000－RR Material: Stainless steel

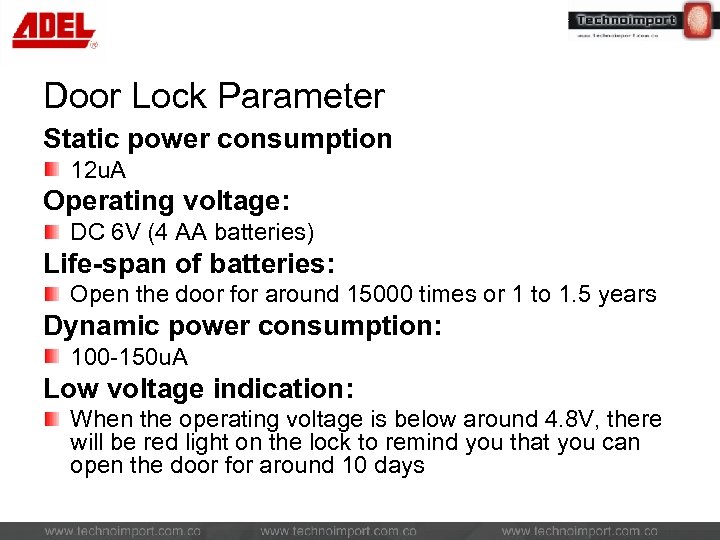

Door Lock Parameter Static power consumption 12 u. A Operating voltage: DC 6 V (4 AA batteries) Life-span of batteries: Open the door for around 15000 times or 1 to 1. 5 years Dynamic power consumption: 100 -150 u. A Low voltage indication: When the operating voltage is below around 4. 8 V, there will be red light on the lock to remind you that you can open the door for around 10 days

Door Lock Parameter Lock open record: “EEPROM” inside the lock can save 828 records There will be door open records when you use the mechanical key to open the door Guaranteed condition: After the lock socket is contacted with unrestricted card, the lock can also work normally Mechanical key: Can be used independently and open the door in emergency Installation of door lock Thickness of the door should be between 38～ 55 mm

2. Mifare Card Encoder Standard：ISO 1443－4－2001 & GB/T 182392－2000 Operating voltage: 5 V(DC) Manual Mifare encoder Communication mode: RS 232； Manual Encoder dimension: 85 X 75 mm Weight: 0. 5 kg / 1 kg Automatic Mifare encoder

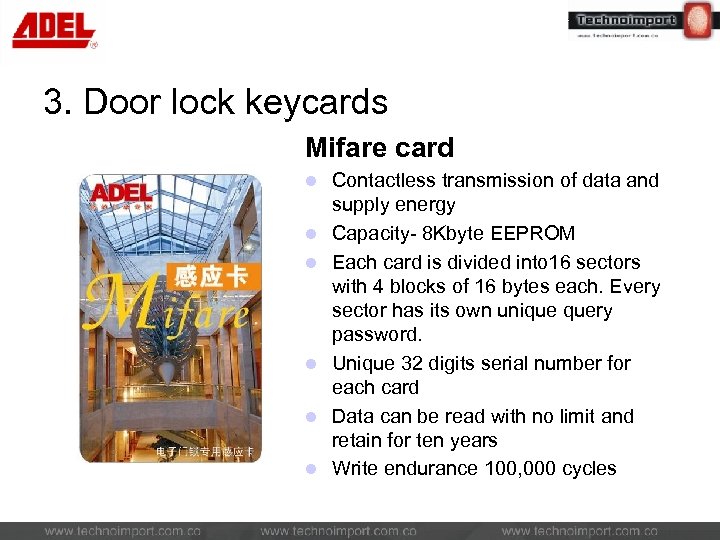

3. Door lock keycards Mifare card l l l Contactless transmission of data and supply energy Capacity- 8 Kbyte EEPROM Each card is divided into 16 sectors with 4 blocks of 16 bytes each. Every sector has its own unique query password. Unique 32 digits serial number for each card Data can be read with no limit and retain for ten years Write endurance 100, 000 cycles

4. Unlocking Records Retrieval Mifare card unlocking data record retrieval process: Door lock l Query card Software Mifare card collects the unlocking data from the door lock directly and retrieves the data through the software.

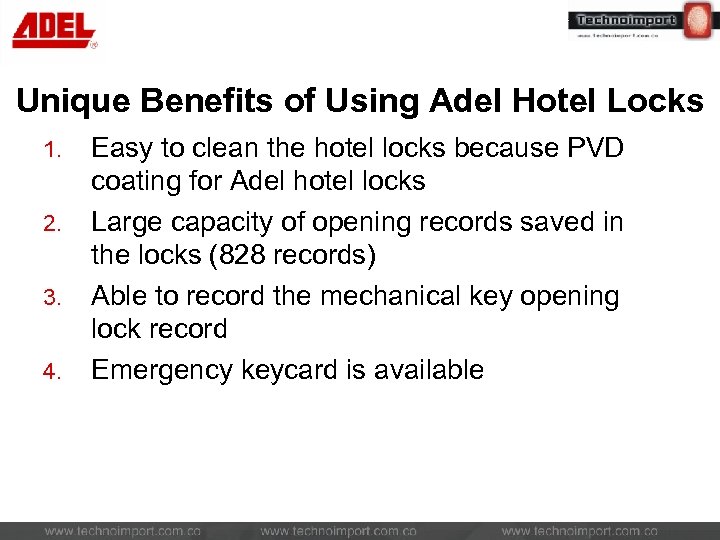

Unique Benefits of Using Adel Hotel Locks 1. 2. 3. 4. Easy to clean the hotel locks because PVD coating for Adel hotel locks Large capacity of opening records saved in the locks (828 records) Able to record the mechanical key opening lock record Emergency keycard is available

Unique Benefits of Using Adel Hotel Locks 6. ‘No disturbing’ function is provided 7. Anticollision design for PCB 8. Door clock automatic time auditing 9. Multi-application card benefits - good management for hotel

Multi-application card functions: l Adel hotel system can compromise with many hotels’ system. l It is convenient for the hotel to manage their system. It helps to run the all-in-one card functions.

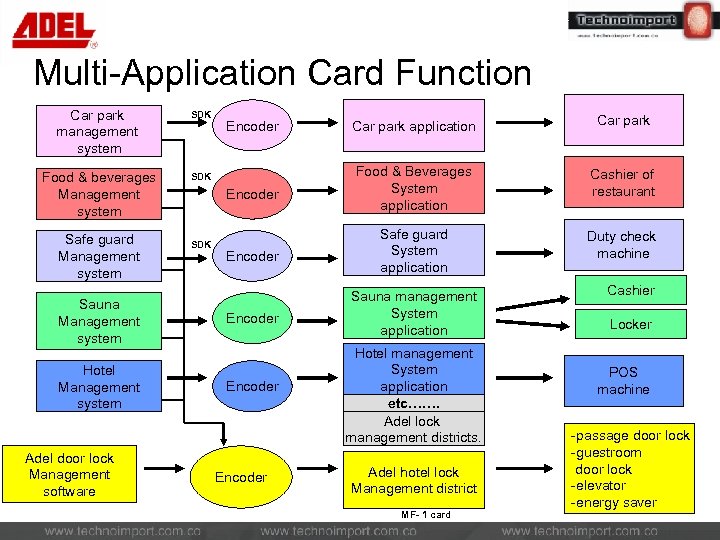

Multi-Application Card Function Car park management system SDK Food & beverages Management system SDK Encoder Car park application Car park Encoder Food & Beverages System application Cashier of restaurant Encoder Safe guard System application Duty check machine Sauna Management system Encoder Sauna management System application Hotel Management system Encoder Safe guard Management system Adel door lock Management software SDK Encoder Hotel management System application etc……. Adel lock management districts. Adel hotel lock Management district MF- 1 card Cashier Locker POS machine -passage door lock -guestroom door lock -elevator -energy saver

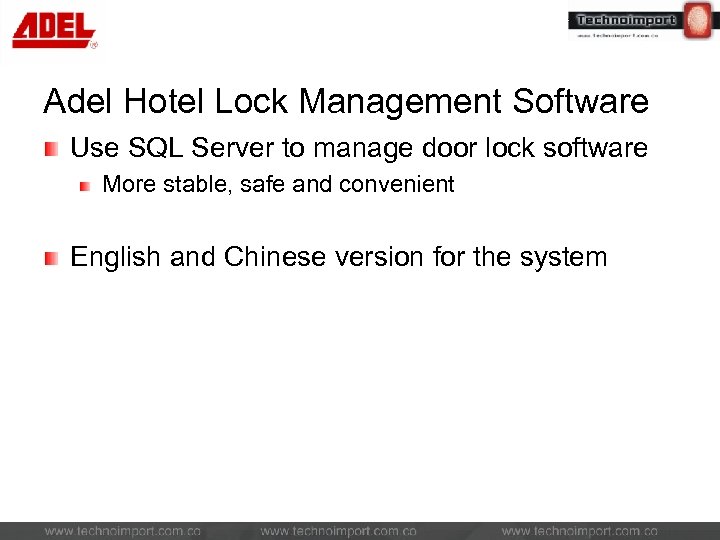

Adel Hotel Lock Management Software Use SQL Server to manage door lock software More stable, safe and convenient English and Chinese version for the system

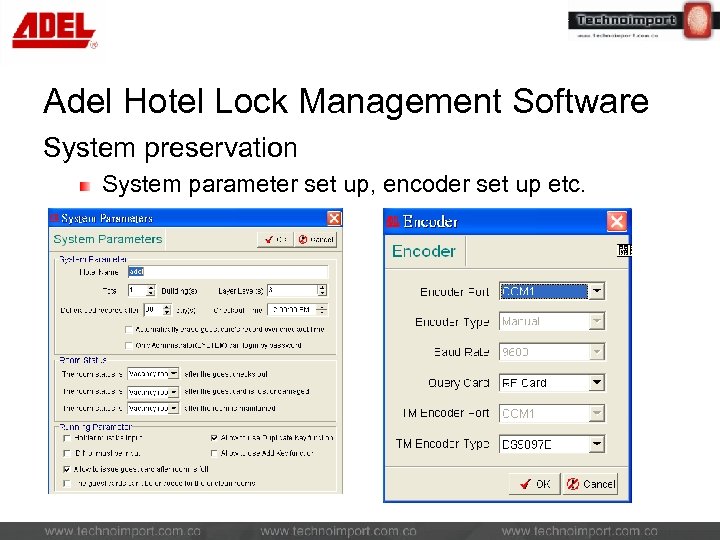

Adel Hotel Lock Management Software System preservation System parameter set up, encoder set up etc.

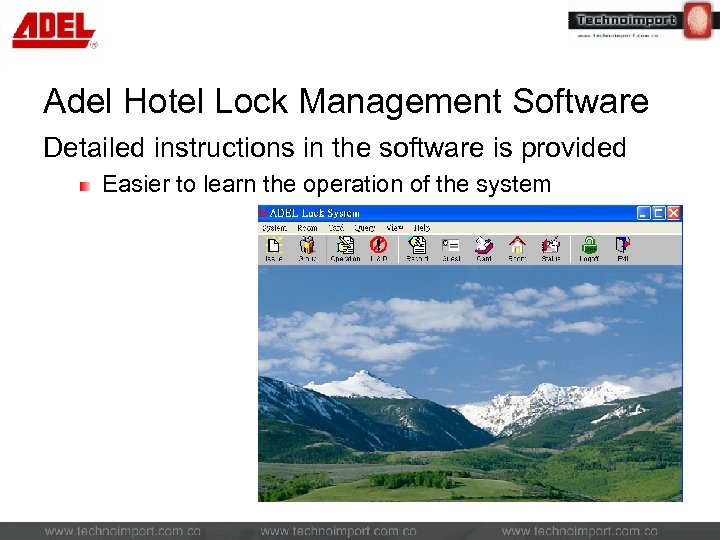

Adel Hotel Lock Management Software Detailed instructions in the software is provided Easier to learn the operation of the system

Adel Hotel Lock Management Software Control on system operator System operators are set by the hotel management

Adel Hotel Lock Management Software Date record for system users

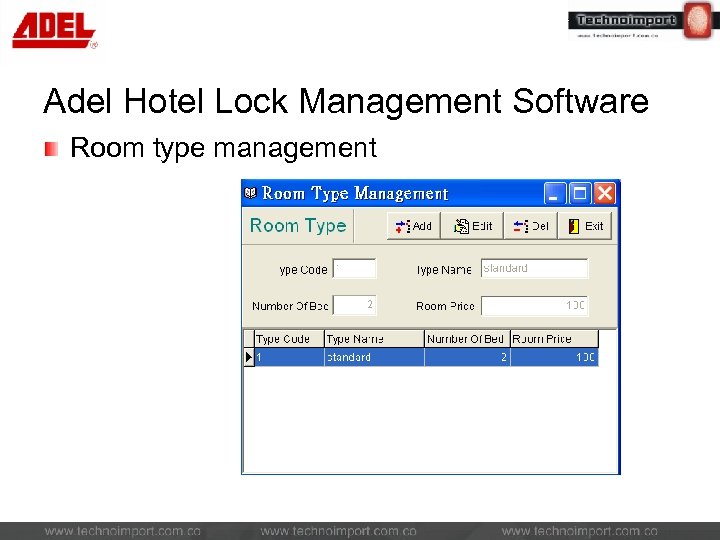

Adel Hotel Lock Management Software Room type management

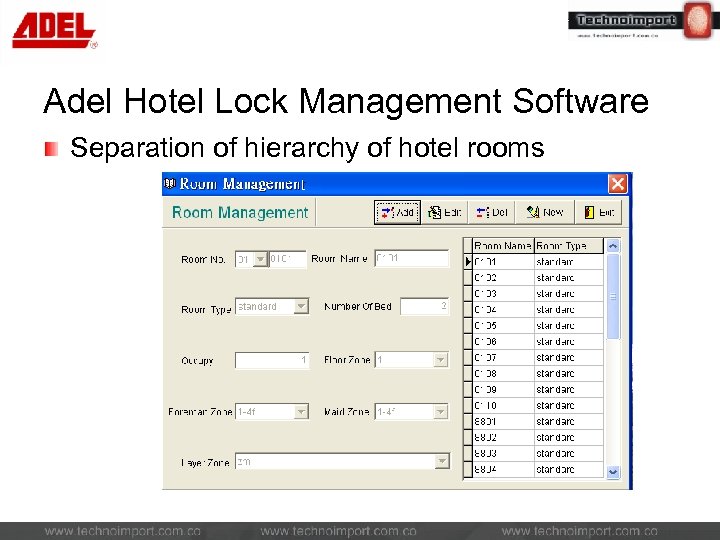

Adel Hotel Lock Management Software Separation of hierarchy of hotel rooms

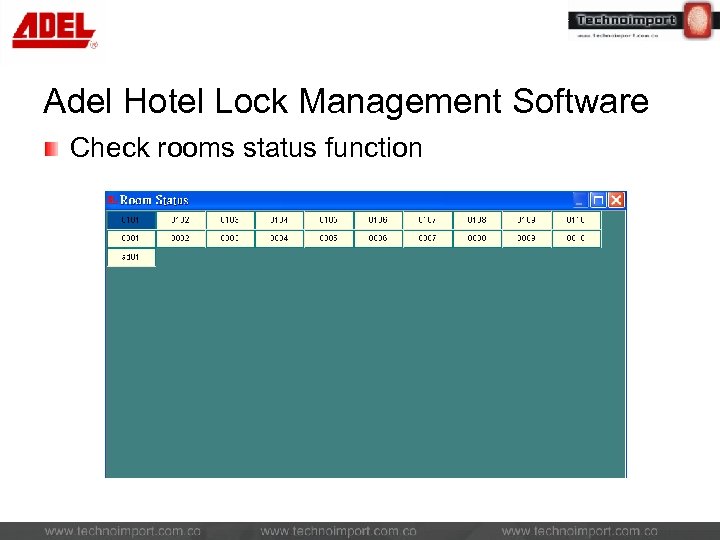

Adel Hotel Lock Management Software Check rooms status function

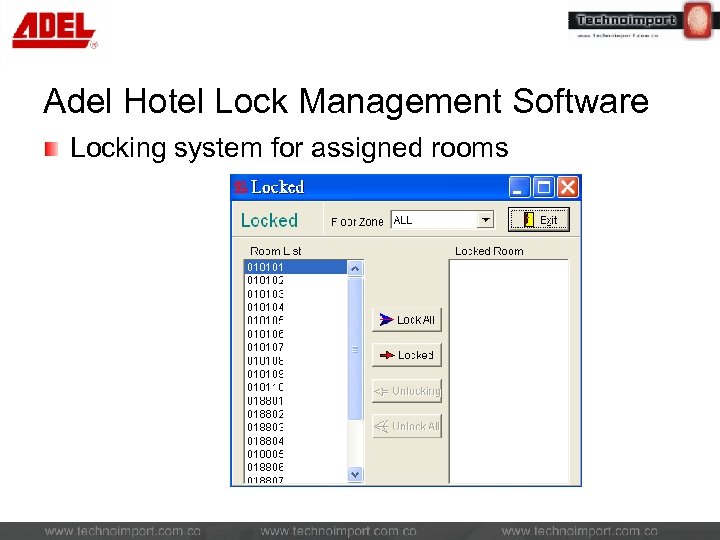

Adel Hotel Lock Management Software Locking system for assigned rooms

Adel Hotel Lock Management Software Perfect enquiry function

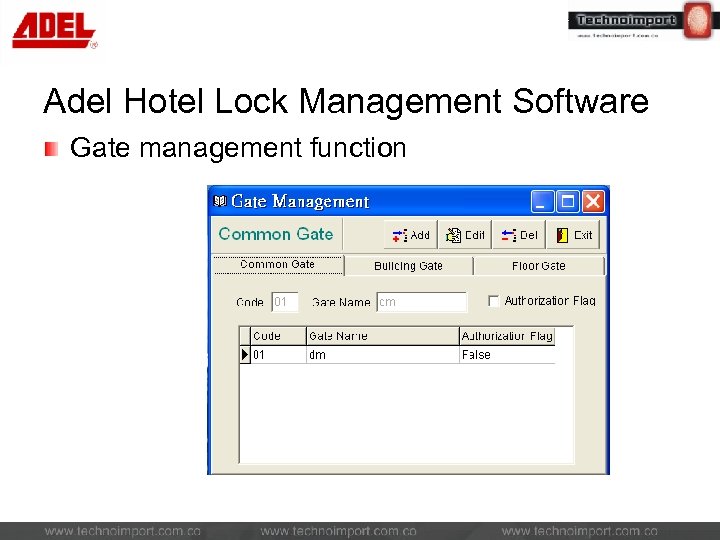

Adel Hotel Lock Management Software Gate management function

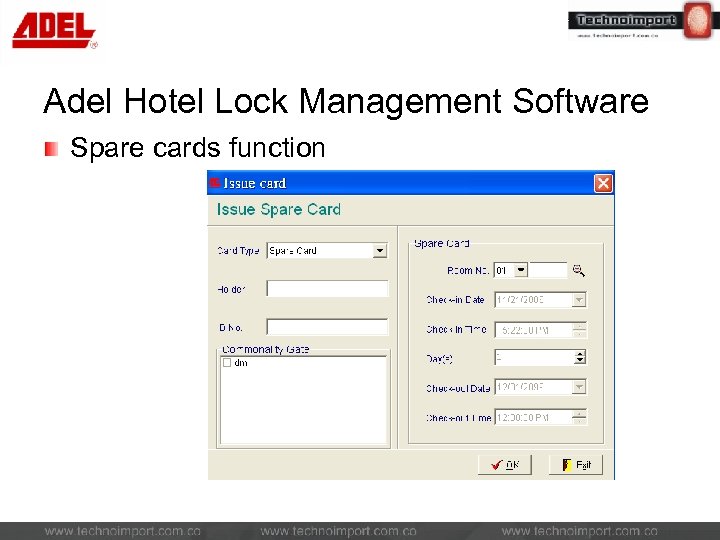

Adel Hotel Lock Management Software Spare cards function

Adel Hotel Lock System Accessories 1. 2. 3. 4. 5. 6. Elevator controller Energy saver Office entrance guard Passage lock Bathroom lock Safe

After Sales Service is provided online. If necessary, our company will send our technicians to hotel as soon as possible. One year free of charge maintenance (start from the shipping day ) Within one year, all the mechanical parts for the locks will be repaired except man-made cases (free of charge) Provided continuous maintenance for the locks after one year and all the maintenance cost is just based on cost of repairing
