Company Profile 2010 To Secure the World with

Company Profile 2010 To Secure the World with You!

Agenda n n n Company Profile Product Introduction Roadmap 2011

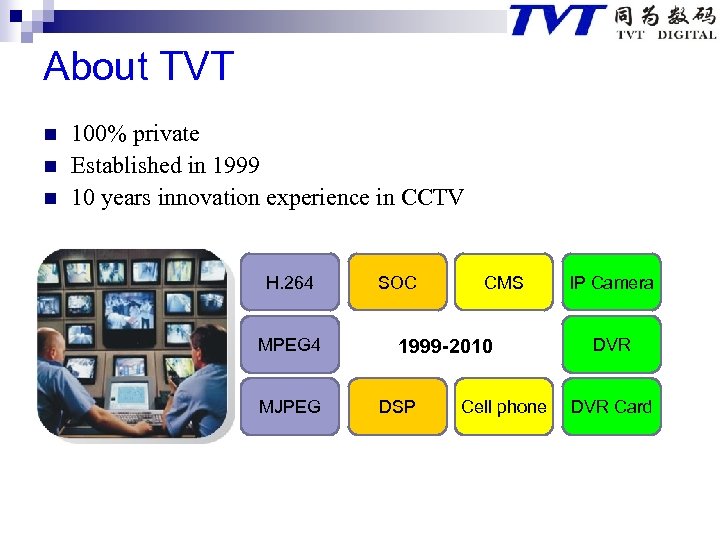

About TVT n n n 100% private Established in 1999 10 years innovation experience in CCTV H. 264 MPEG 4 MJPEG SOC CMS 1999 -2010 DSP Cell phone IP Camera DVR Card

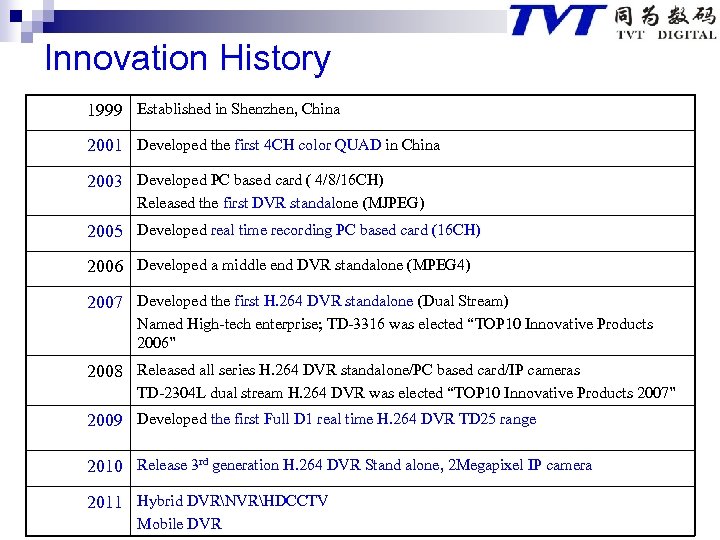

Innovation History 1999 Established in Shenzhen, China 2001 Developed the first 4 CH color QUAD in China 2003 Developed PC based card ( 4/8/16 CH) Released the first DVR standalone (MJPEG) 2005 Developed real time recording PC based card (16 CH) 2006 Developed a middle end DVR standalone (MPEG 4) 2007 Developed the first H. 264 DVR standalone (Dual Stream) Named High-tech enterprise; TD-3316 was elected “TOP 10 Innovative Products 2006” 2008 Released all series H. 264 DVR standalone/PC based card/IP cameras TD-2304 L dual stream H. 264 DVR was elected “TOP 10 Innovative Products 2007” 2009 Developed the first Full D 1 real time H. 264 DVR TD 25 range 2010 Release 3 rd generation H. 264 DVR Stand alone, 2 Megapixel IP camera 2011 Hybrid DVRNVRHDCCTV Mobile DVR

H. 264 Updates History 2011, NVR/HDcctv 2010, H. 264 3 rd Generation So. C, D 1@30 fps, Hybrid HDMI, HDCCTV Professional CMS Android, Blackberry 2009, H. 264 2 nd Generation DSP, So. C, D 1@30 fps i. Phone 2008, H. 264 2 nd Generation DSP, So. C, CIF@30 fps Cellphone, CMS 2007, H. 264 1 st Generation DSP, CIF@30 fps 2005, MPEG 4 PC based DSP, CIF@30 fps

Team n n 291 employees 87 engineers, or 30% ¨ 49%(42) have at least 3 years R&D experience in TVT Till 16 th, Oct. 2010

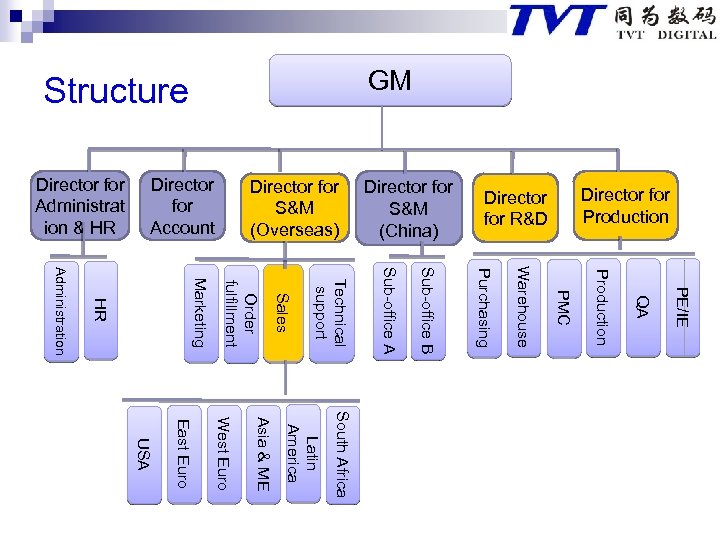

Director for Production Director for R&D Director for S&M (China) Director for S&M (Overseas) Director for Account Director for Administrat ion & HR GM Structure PE/IE QA Production PMC Warehouse Purchasing Sub-office B Sub-office A Technical support Sales Order fulfillment Marketing HR Administration South Africa Latin America Asia & ME West Euro East Euro USA

Organized R&D S&M R&D Product Dept Driver Team Hardware Team App Team Software Testing Team SDK OSD IE/Mac Cell Phone Application Linux Windows Intelligence Compression ID Mechanic Network Team Hardware Algorithm Team CMS ID Team

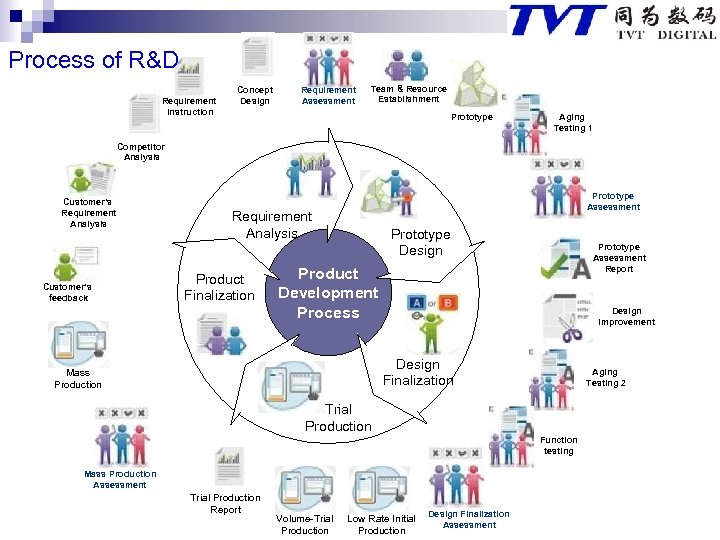

Process of R&D Requirement Instruction Concept Design Requirement Assessment Team & Resource Establishment Prototype Aging Testing 1 Competitor Analysis Customer’s Requirement Analysis Customer’s feedback Prototype Assessment Requirement Analysis Product Finalization Prototype Design Prototype Assessment Report Product Development Process Design Improvement Design Finalization Mass Production Aging Testing 2 Trial Production Function testing Mass Production Assessment Trial Production Report Volume-Trial Production Low Rate Initial Production Design Finalization Assessment

Production n 6000㎡ 4 assembly lines 35, 000 Units per Month Manufacturing Process IQC Assembling Function Test 1 Aging Test Function Test 2 OQC New factory online from 30 th, Sep. 2010

Practice of Quality Control Sales & Service Level 1 Level 2 Level 3 • Technical consultant • Or Complaint • Or Requirement • Application background • What is supposed to happen or happened R&D Production • Aging Test • 20 days for firmware updates • 2 -8 months for hardware updates • 10 -18 months for line updates • 365*24 aging • Supplier certificate • Material certificate • IC Test • PCBA Aging test • Intensity Test: 7 days • Tempreture: 0℃~50℃ • Humidity: 10%~90% • Vibratility test • Repeating operation • Function test 1 • Function test 2 • Aging test • OQC • Functionality Test • Video quality • Function • Compatibility • Low rate initial production • Volume trial production

RMA Rate from 2007 -2010 (DVR standalone only) 2 nd Generation H. 264 Till Mar. 12

Sales Turnover n n n Sales turnover: 20 M+ USD in 2009 Europe and America: 80%+ CGR: 50%+

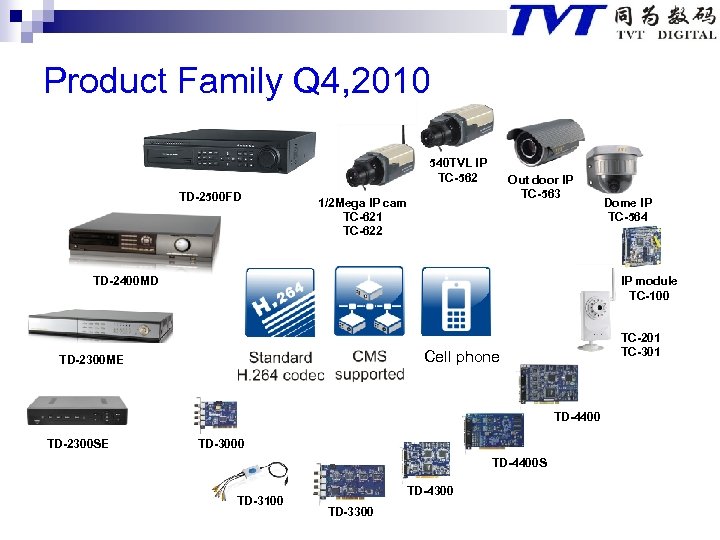

Product Family Q 4, 2010 540 TVL IP TC-562 TD-2500 FD Out door IP TC-563 1/2 Mega IP cam TC-621 TC-622 TD-2400 MD IP module TC-100 TC-201 TC-301 Cell phone TD-2300 ME TD-4400 TD-2300 SE Dome IP TC-564 TD-3000 TD-4400 S TD-3100 TD-4300 TD-3300

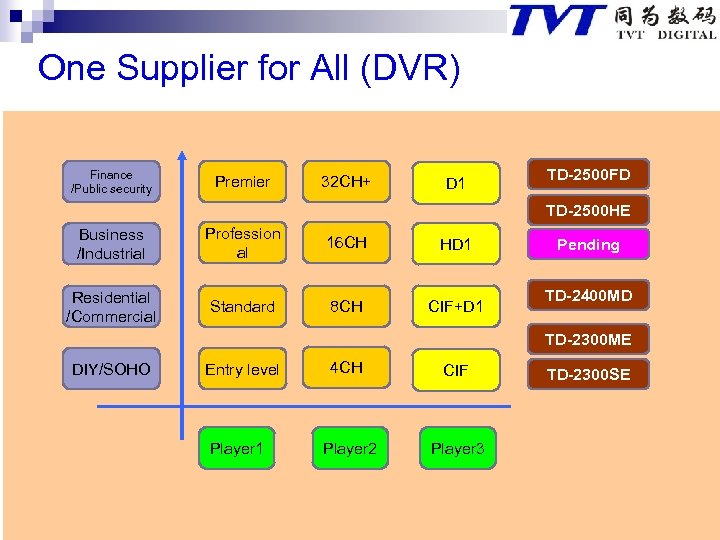

One Supplier for All (DVR) Finance /Public security Premier 32 CH+ D 1 TD-2500 FD TD-2500 HE Business /Industrial Profession al 16 CH HD 1 Residential /Commercial Standard 8 CH CIF+D 1 Pending TD-2400 MD TD-2300 ME DIY/SOHO Entry level Player 1 4 CH CIF Player 2 Player 3 TD-2300 SE

Model TD 2300 SE TD 2300 ME TD 2400 MD No 4/8/16 CH(*) YES* Embedded Linux Signal Format 4/8/16 CH H. 264 (Main Profile) Operating System TD 2500 FD 4/8/16 CH Compression TD 2500 HE NTSC or PAL Video Input 4/8 CH 4/8/16 CH Video Output 1 BNC Spot Output Optional Loop Output No 1 BNC No 4/8/16 CH VGA Output HDMI Output 1 VGA: 1280*1024 No No YES* Max Recording Rate at CIF (per CH) 25/30 fps MAx Recording Rate at Full D 1 (per CH) 6/7 fps 6/7 or 25/30 fps Playback 4/8 CH 4/8/16 CH Audio Input 4 CH 4 CH/Full audio Audio Output 1 Output (RCA Jack) 2 way audio 25/30 fps YES Alarm Input Optional 4/8/16 CH Alarm Output Optional 1 ch 4 CH Ethernet 10 / 100 Mbps Ethernet (RJ-45), 1000 Mbps* 10 / 100 / 1, 000 Mbps Ethernet (RJ-45) PTZ Control RS-485 Serial Port 1 (Terminal Block) USB Port 2 x USB 2. 0 HDD (2 TB) 1 SATA 2 SATA 4 SATA 2/3 SATA 8 SATA Power supply 12 V/3 A Adapter 100 to 240 VAC Dimension mini 1 U 1 U 2 U NTP Server No GMT & Auto DST YES Programmable Main Monitor No YES Professional Authority No YES Other advanced features No Yes, or pending

Product Introduction n n DVR local CMS IE Cell phone

True Color GUI

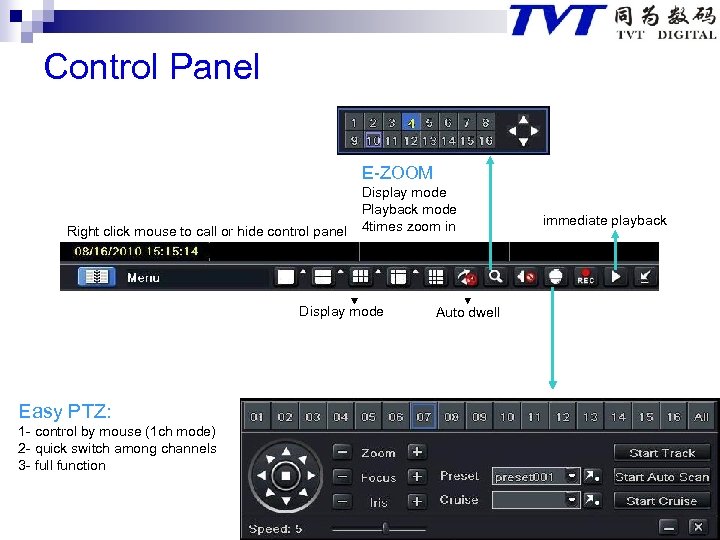

Control Panel E-ZOOM Right click mouse to call or hide control panel Display mode Playback mode 4 times zoom in Display mode Easy PTZ: 1 - control by mouse (1 ch mode) 2 - quick switch among channels 3 - full function Auto dwell immediate playback

True VGA 1280*1024 VGA: 1280*1024 HDMI: 1920*1080 (for specific model) CVBS( BNC out): D 1(720*576) 1 - Startup wizard: to lead user finish basic settings of the DVR 2 - Multi language 3 - Screen saver: to lock screen automatically when user left Tips: default output is VGA. Press “ESC/Stop” to switch to CVBS or HDMI* HDMI will be available in next version

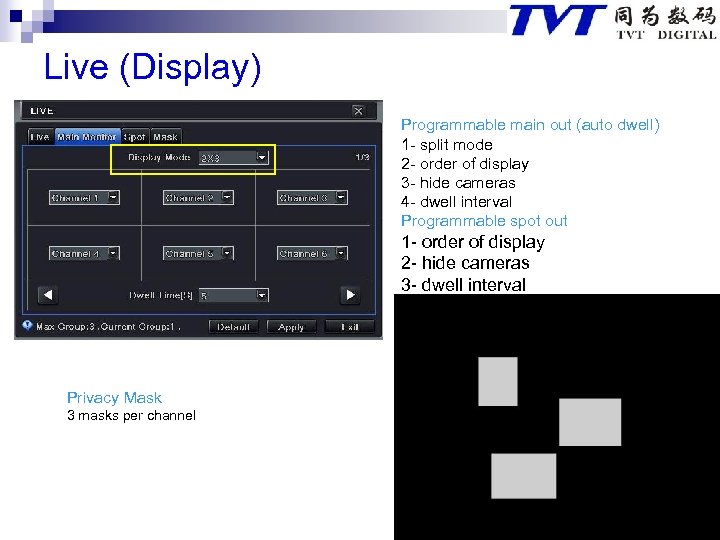

Live (Display) Programmable main out (auto dwell) 1 - split mode 2 - order of display 3 - hide cameras 4 - dwell interval Programmable spot out 1 - order of display 2 - hide cameras 3 - dwell interval Privacy Mask 3 masks per channel

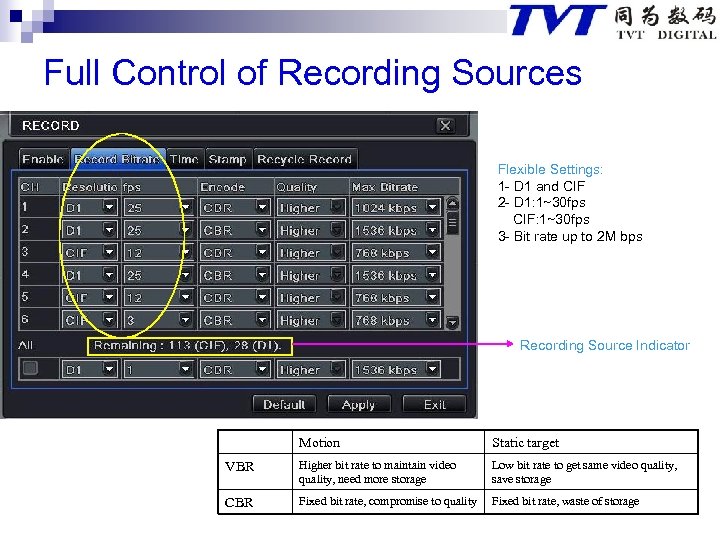

Full Control of Recording Sources Flexible Settings: 1 - D 1 and CIF 2 - D 1: 1~30 fps CIF: 1~30 fps 3 - Bit rate up to 2 M bps Recording Source Indicator Motion Static target VBR Higher bit rate to maintain video quality, need more storage Low bit rate to get same video quality, save storage CBR Fixed bit rate, compromise to quality Fixed bit rate, waste of storage

Pre-alarm 1 - 5 sec~4 min* Expired days 1 -to define how long you want to keep the video without recycling recording 2 - 0~60 days, or never 3 -channel independent setting to fit different priority Recording with characters and time (water mark) * Available in next version accurate figures refer to official information

Schedule Quick setting: 1 -accurate to 30 mins 2 -easily by clicking girds Accurate setting: 1 - double click to enter 2 - accurate to 1 min Schedule for 1 - continues recording 2 - motion 3 - sensor

Motion 1 motion = 5 to 120 Secs Different channel, different settings, to fit the priority Motion area 1 - define by dragging mouse 2 - sensitivity from 1 -8 levels

Smart Search Smart search: 1 - accurate 2 - simple 3 - no loss of file when time changes Search by time 1 - click time bar to specify a time 2 - or input accurate time Search by event 1 - just motion 2 - just sensor 3 - both Search by file 1 - find all files 2 - including file hidden after changing time

Playback E-ZOOM 4 times 16 ch simultaneously playback 1/4/6/9 ch playback available FF: 1 - up to 16 times speed 2 - 1/2 , 1/4 time speed available 3 - up to 16 times frame by Progress bar 1 - dragging for quick search frame FF Play next file

Versatile Notification Full Screen Notification 1 - Triggering specific channel to go full screen 2 - Full screen lasts 10 sec, or close by clicking Email Notification: 3 address, up to 3 photos (JPEG) Full Screen Email Record Triggering Recording 1 - any 1 or more channels to record PTZ 1 - cruise 2 - preset

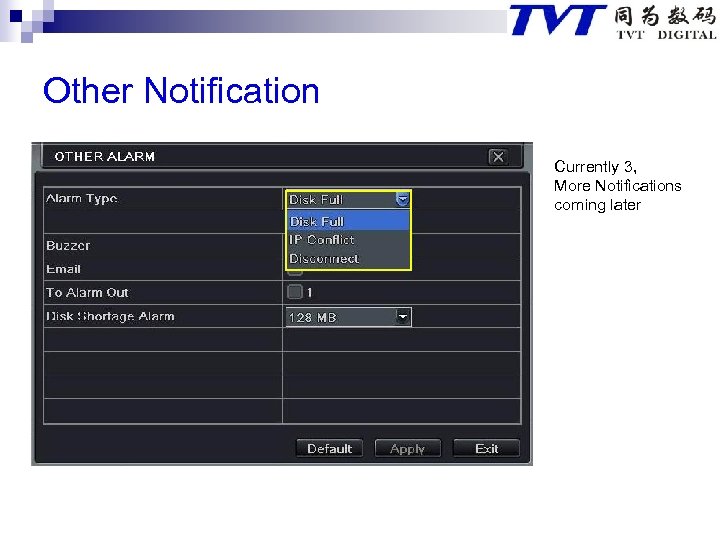

Other Notification Currently 3, More Notifications coming later

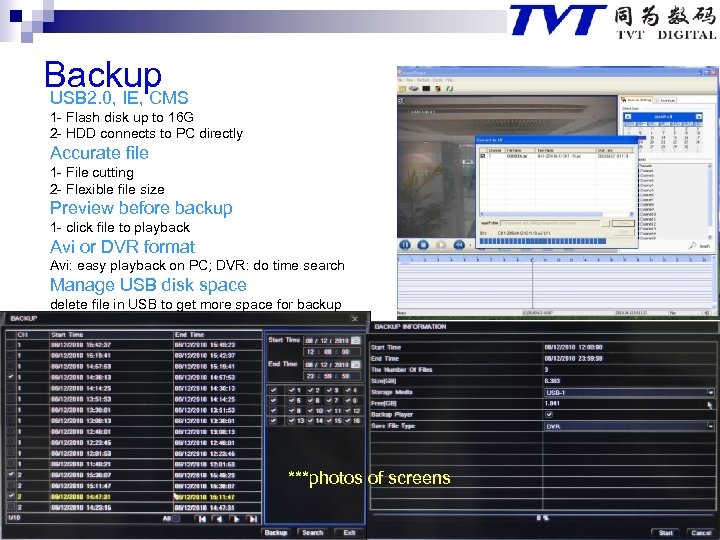

Backup USB 2. 0, IE, CMS 1 - Flash disk up to 16 G 2 - HDD connects to PC directly Accurate file 1 - File cutting 2 - Flexible file size Preview before backup 1 - click file to playback Avi or DVR format Avi: easy playback on PC; DVR: do time search Manage USB disk space delete file in USB to get more space for backup ***photos of screens

Network stream: 1 - CIF, up to 1 -25 fps per channel 2 - Bit rate: 32 kbps*~768 kps DDNS: 1 - Free DDNS 2 - Update interval: up to 3 hours Email 1 - 3 Receivers 2 - attach up to 3 photos 3 - photo intervals: every 1 ~ 5 Secs

User Management Specific user, specific authority 1 - operation independent 2 - channel independent Disconnect an user

Event and Log Operation log 1 - complete operation record 2 - export (html) Event log 1 - detailed information 2 - export (html)

Others: DST&NTP Auto DST GMT Time Zone NTP (Network Time Protocol)

Others: Configuration management

Device: PTZ Protocol Pelco P Lilin Minking Neon Star Vido DSCP VISCA Samsung RM 110 128 presets 32 cruises Pelco D HY

Device: Sensor name up to 36 letters 1 Sensor (holding time)=5 -120 Secs

Startup Wizard

Introduction n n DVR local CMS IE Cell phone

Device manager n n n 1000+cameras DVR Capture card IP camera Auto search Group *For bigger project, we have a distributed CMS for choice.

E-map n n 256 maps BMP/JPEG Camera status Live video

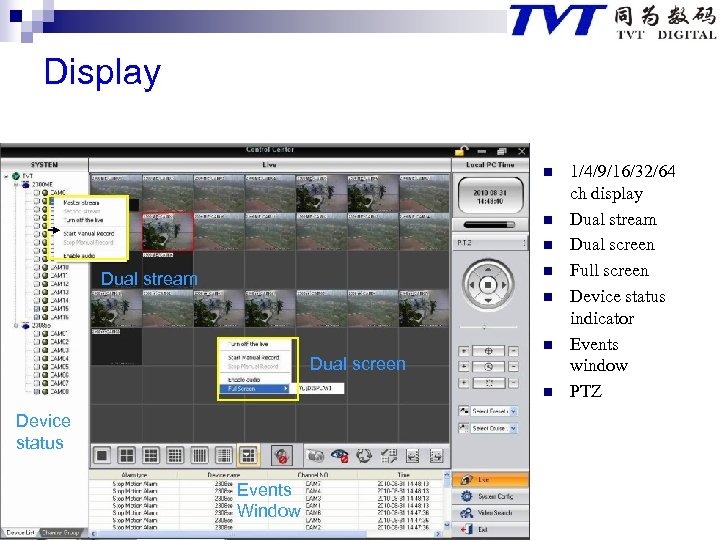

Display n n Dual stream n n Dual screen n Device status Events Window 1/4/9/16/32/64 ch display Dual stream Dual screen Full screen Device status indicator Events window PTZ

Remote configuration n n All devices Full control

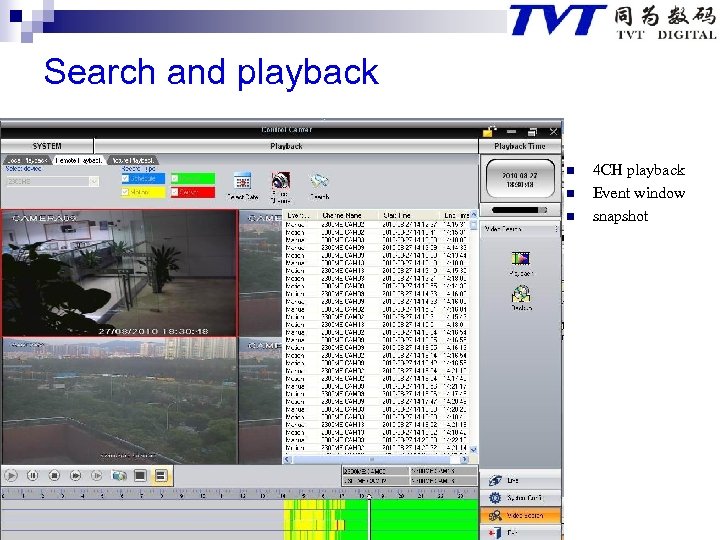

Search and playback n n n 4 CH playback Event window snapshot

Backup

Log n Event n Operation log n All devices

Product Introduction n n DVR local CMS IE Cell phone Mac Under Testing

Display n n 1/4/9/16 ch display Dual stream Channel independent ¨ Indicator ¨ n n *Mac will be supported later Snapshot 2 way audio Local recording PTZ

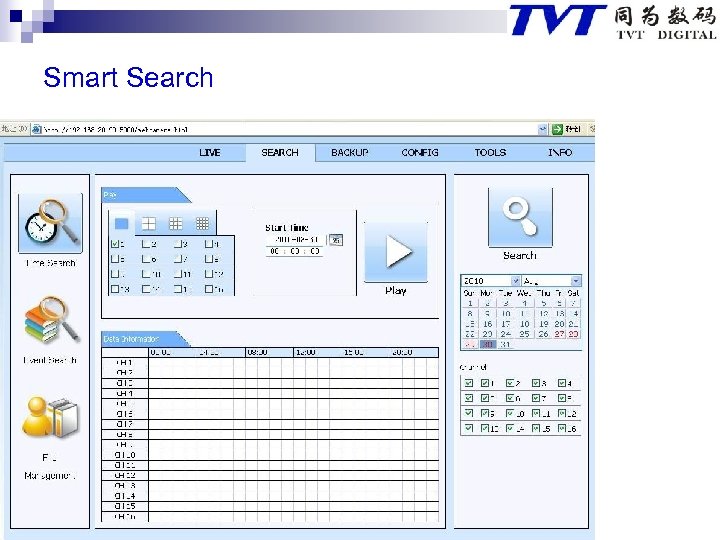

Smart Search

Playback n n 1/4/9/16 ch Playback Snapshot FF Full screen

Backup

Product Introduction n n DVR local CMS IE Cell phone

Super. Cam (pro) i. Pad (App store) Symbian (embedded) i. Phone (App store) Android (Google shop) Windows CE/mobile (embedded) Blackberry (embedded)

GUI (i. Phone) Login Server list/Favorite Manu

Main function 1/4 ch Display Snapshot Local recording PTZ Blackberry supports 1 ch display, and no local recording and playback in version 3. 1. 2 Local playback

Product Roadmap (2010, 2011) Hybrid Q 4, 2010 TD-2500 FD NVR HD CCTV Intelligence TD-2600 V. B 1080 P/4 ch V. B Capture card V. B TD-2600 720 P/8 ch V. B Capture card TD-2400 MD TD-2500 FD TD-2500 HE Q 1, 2011 Pending TD-2500 HE TD-2500 FD V. B TD-2300 ME TD-2400 MD Q 2, TD-2300 ME 2011 IPC TD-2600 plus TD-2500 FD TD-2300 SE Q 3, 2011 1080 P/8 ch TD-2400 MD

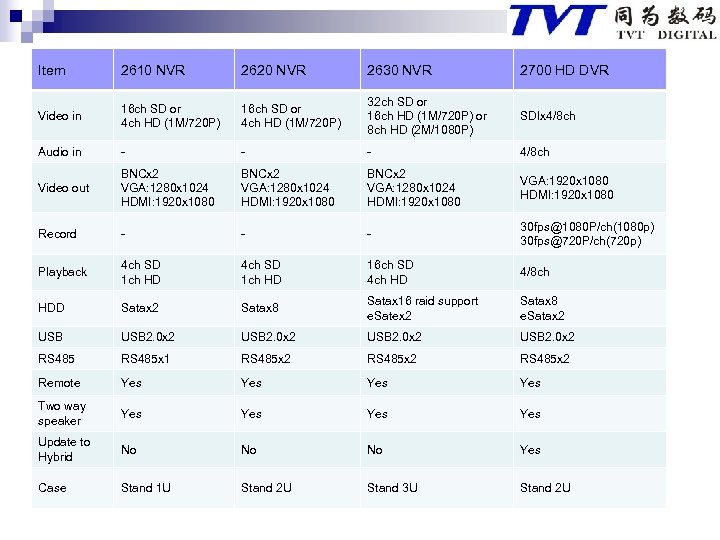

Item 2610 NVR 2620 NVR 2630 NVR 2700 HD DVR Video in 16 ch SD or 4 ch HD (1 M/720 P) 32 ch SD or 16 ch HD (1 M/720 P) or 8 ch HD (2 M/1080 P) SDIx 4/8 ch Audio in - - - 4/8 ch Video out BNCx 2 VGA: 1280 x 1024 HDMI: 1920 x 1080 VGA: 1920 x 1080 HDMI: 1920 x 1080 Record - - - 30 fps@1080 P/ch(1080 p) 30 fps@720 P/ch(720 p) Playback 4 ch SD 1 ch HD 16 ch SD 4 ch HD 4/8 ch HDD Satax 2 Satax 8 Satax 16 raid support e. Satex 2 Satax 8 e. Satax 2 USB 2. 0 x 2 RS 485 x 1 RS 485 x 2 Remote Yes Yes Two way speaker Yes Yes Update to Hybrid No No No Yes Case Stand 1 U Stand 2 U Stand 3 U Stand 2 U

TVT Your Reliable and Valuable Partner!
