Company and Product Overview An Introduction to BEA and Our Products

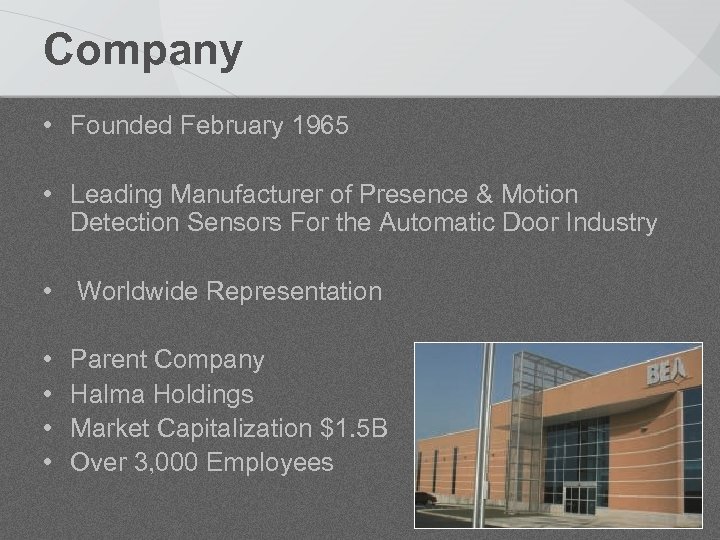

Company • Founded February 1965 • Leading Manufacturer of Presence & Motion Detection Sensors For the Automatic Door Industry • Worldwide Representation • • Parent Company Halma Holdings Market Capitalization $1. 5 B Over 3, 000 Employees
Global BEA USA Europe China Japan Brazil Pittsburgh, PA Los Angeles, CA Liege, Belgium Beijing Tokyo Hong Kong Shangai Rio de Janeiro

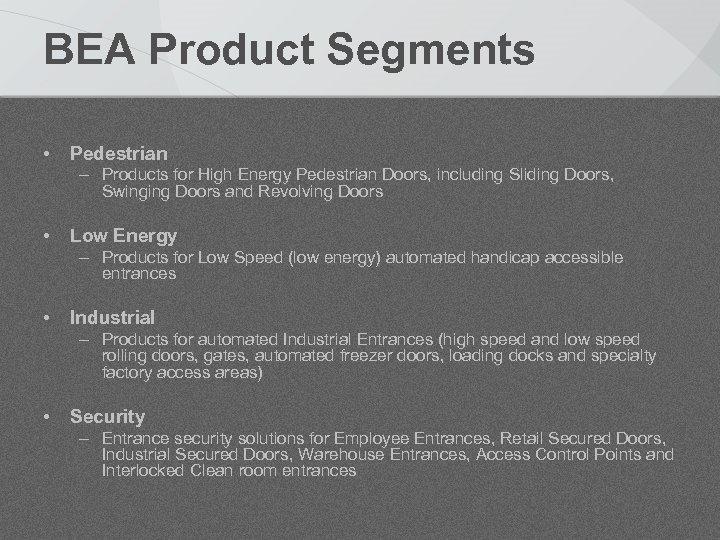

BEA Product Segments • Pedestrian – Products for High Energy Pedestrian Doors, including Sliding Doors, Swinging Doors and Revolving Doors • Low Energy – Products for Low Speed (low energy) automated handicap accessible entrances • Industrial – Products for automated Industrial Entrances (high speed and low speed rolling doors, gates, automated freezer doors, loading docks and specialty factory access areas) • Security – Entrance security solutions for Employee Entrances, Retail Secured Doors, Industrial Secured Doors, Warehouse Entrances, Access Control Points and Interlocked Clean room entrances

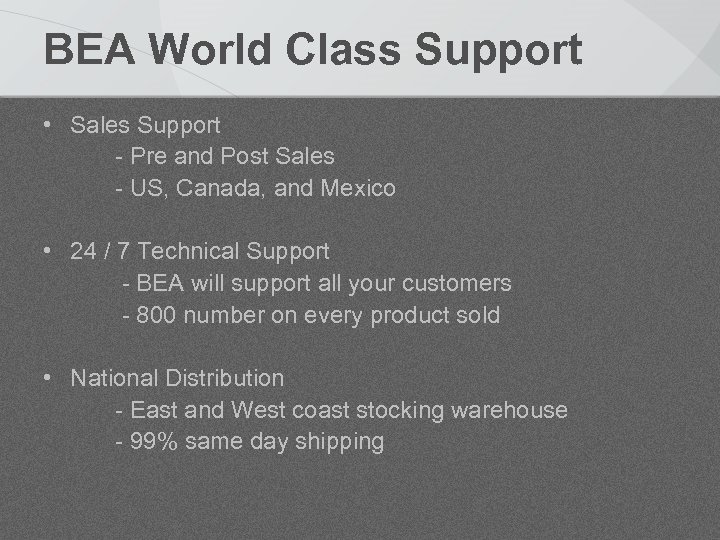

BEA World Class Support • Sales Support - Pre and Post Sales - US, Canada, and Mexico • 24 / 7 Technical Support - BEA will support all your customers - 800 number on every product sold • National Distribution - East and West coast stocking warehouse - 99% same day shipping
Security & Access Control Products As of October 2011

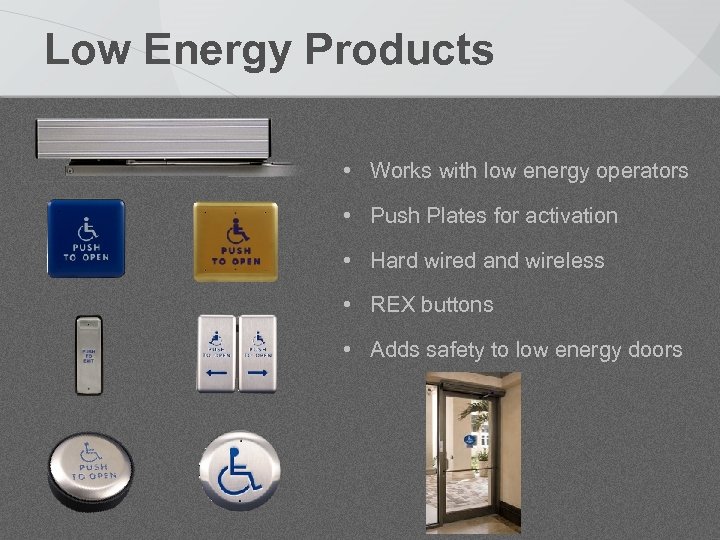

Low Energy Products • Works with low energy operators • Push Plates for activation • Hard wired and wireless • REX buttons • Adds safety to low energy doors

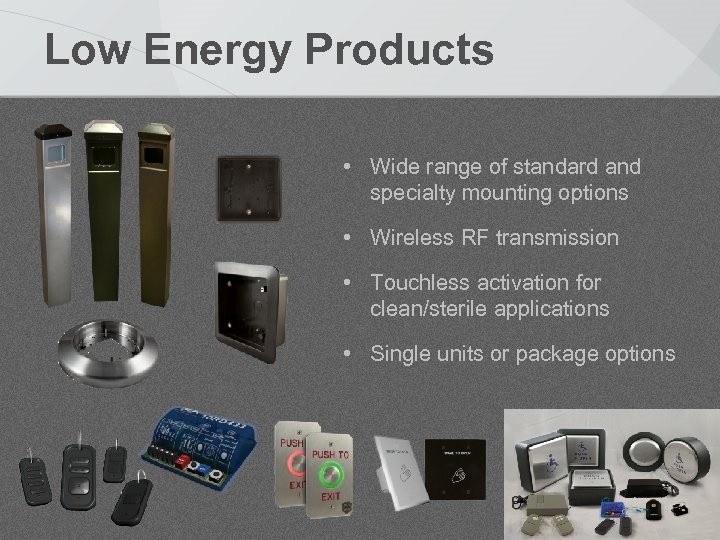

Low Energy Products • Wide range of standard and specialty mounting options • Wireless RF transmission • Touchless activation for clean/sterile applications • Single units or package options

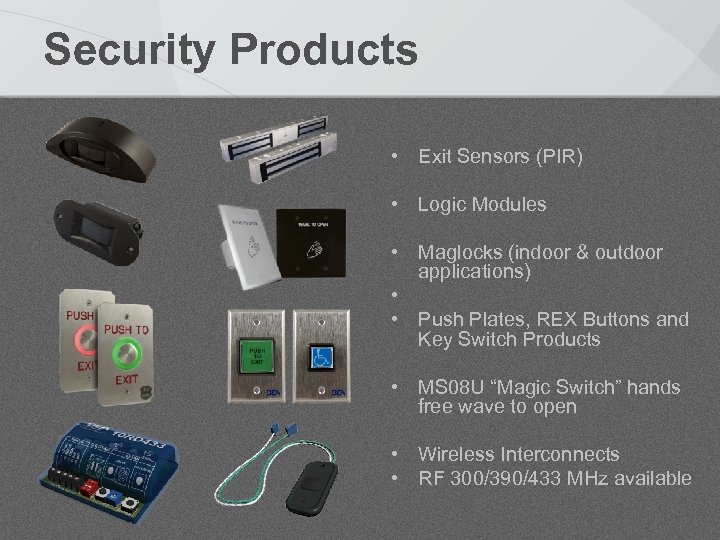

Security Products • Exit Sensors (PIR) • Logic Modules • Maglocks (indoor & outdoor applications) • • Push Plates, REX Buttons and Key Switch Products • MS 08 U “Magic Switch” hands free wave to open • Wireless Interconnects • RF 300/390/433 MHz available

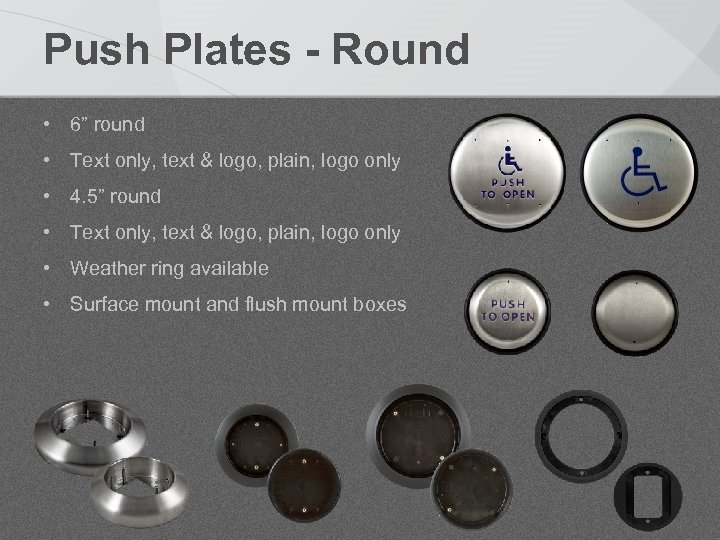

Push Plates - Round • 6” round • Text only, text & logo, plain, logo only • 4. 5” round • Text only, text & logo, plain, logo only • Weather ring available • Surface mount and flush mount boxes

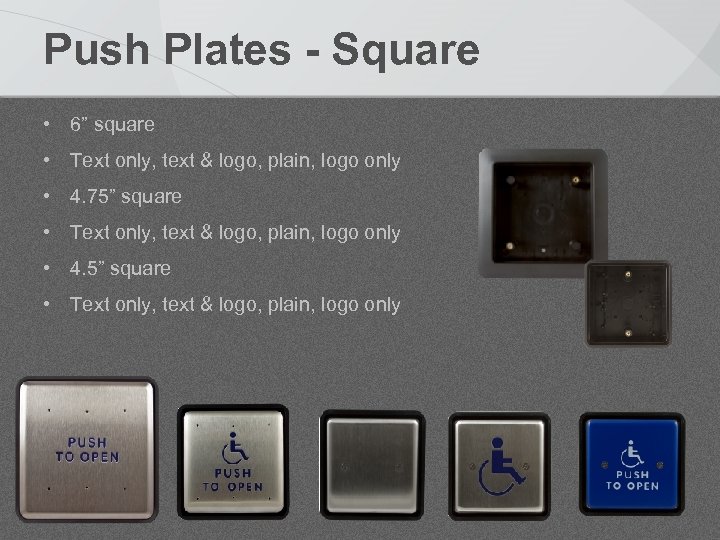

Push Plates - Square • 6” square • Text only, text & logo, plain, logo only • 4. 75” square • Text only, text & logo, plain, logo only • 4. 5” square • Text only, text & logo, plain, logo only

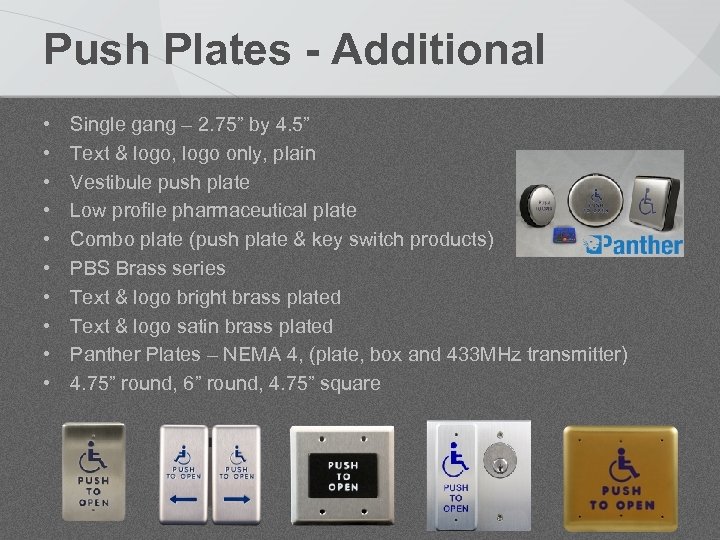

Push Plates - Additional • • • Single gang – 2. 75” by 4. 5” Text & logo, logo only, plain Vestibule push plate Low profile pharmaceutical plate Combo plate (push plate & key switch products) PBS Brass series Text & logo bright brass plated Text & logo satin brass plated Panther Plates – NEMA 4, (plate, box and 433 MHz transmitter) 4. 75” round, 6” round, 4. 75” square

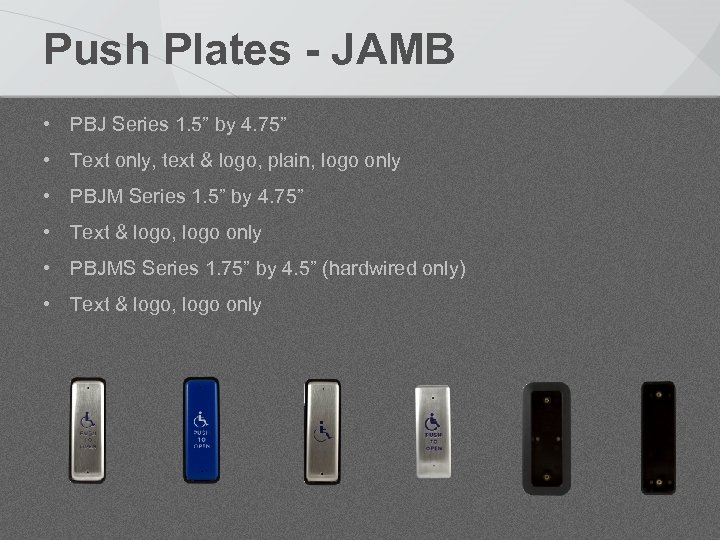

Push Plates - JAMB • PBJ Series 1. 5” by 4. 75” • Text only, text & logo, plain, logo only • PBJM Series 1. 5” by 4. 75” • Text & logo, logo only • PBJMS Series 1. 75” by 4. 5” (hardwired only) • Text & logo, logo only

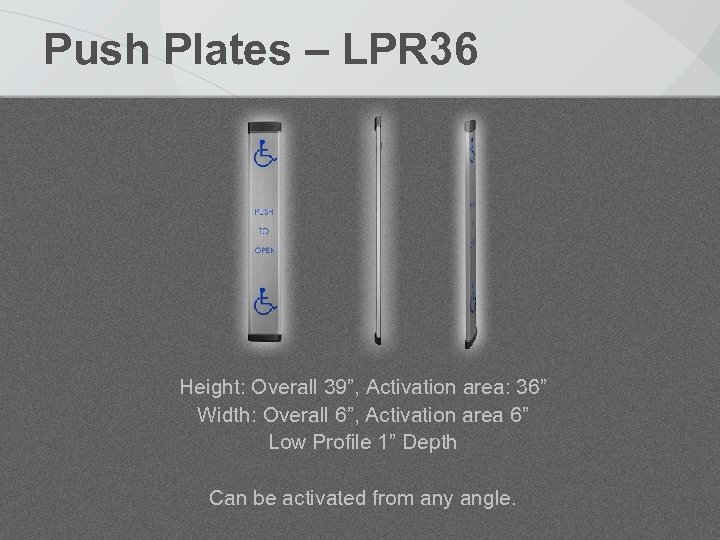

Push Plates – LPR 36 Height: Overall 39”, Activation area: 36” Width: Overall 6”, Activation area 6” Low Profile 1” Depth Can be activated from any angle.

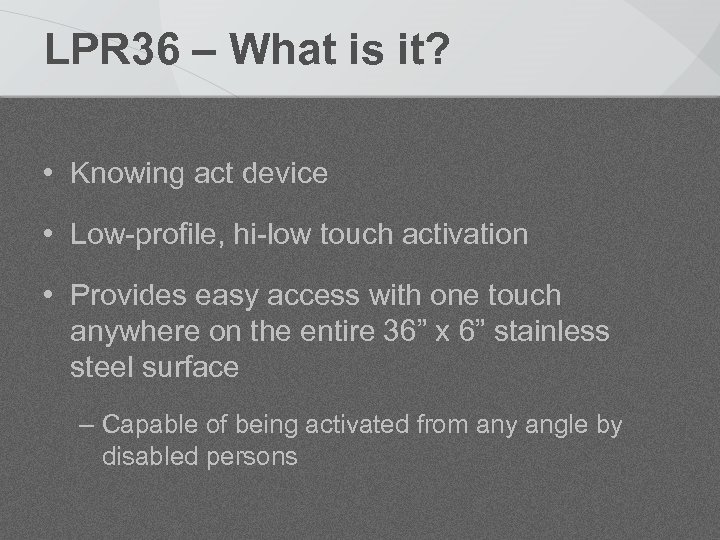

LPR 36 – What is it? • Knowing act device • Low-profile, hi-low touch activation • Provides easy access with one touch anywhere on the entire 36” x 6” stainless steel surface – Capable of being activated from any angle by disabled persons

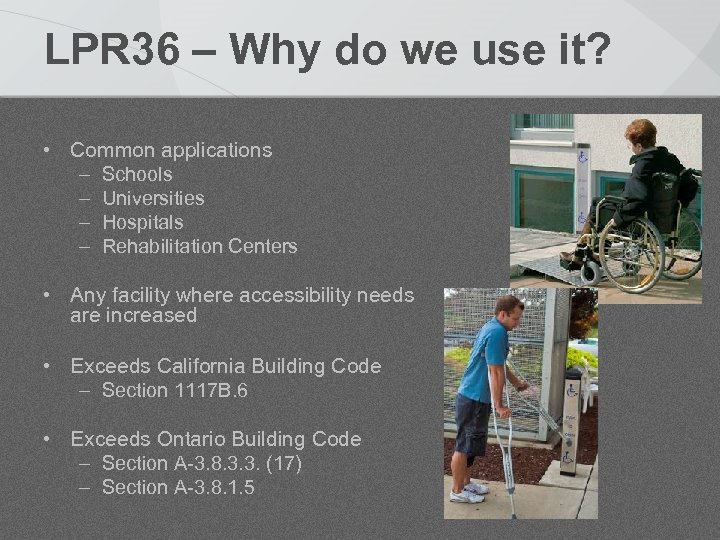

LPR 36 – Why do we use it? • Common applications – Schools – Universities – Hospitals – Rehabilitation Centers • Any facility where accessibility needs are increased • Exceeds California Building Code – Section 1117 B. 6 • Exceeds Ontario Building Code – Section A-3. 8. 3. 3. (17) – Section A-3. 8. 1. 5

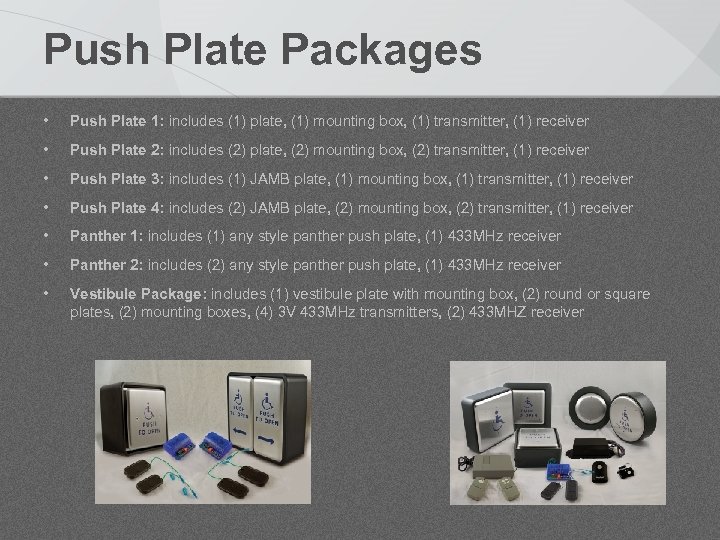

Push Plate Packages • Push Plate 1: includes (1) plate, (1) mounting box, (1) transmitter, (1) receiver • Push Plate 2: includes (2) plate, (2) mounting box, (2) transmitter, (1) receiver • Push Plate 3: includes (1) JAMB plate, (1) mounting box, (1) transmitter, (1) receiver • Push Plate 4: includes (2) JAMB plate, (2) mounting box, (2) transmitter, (1) receiver • Panther 1: includes (1) any style panther push plate, (1) 433 MHz receiver • Panther 2: includes (2) any style panther push plate, (1) 433 MHz receiver • Vestibule Package: includes (1) vestibule plate with mounting box, (2) round or square plates, (2) mounting boxes, (4) 3 V 433 MHz transmitters, (2) 433 MHZ receiver

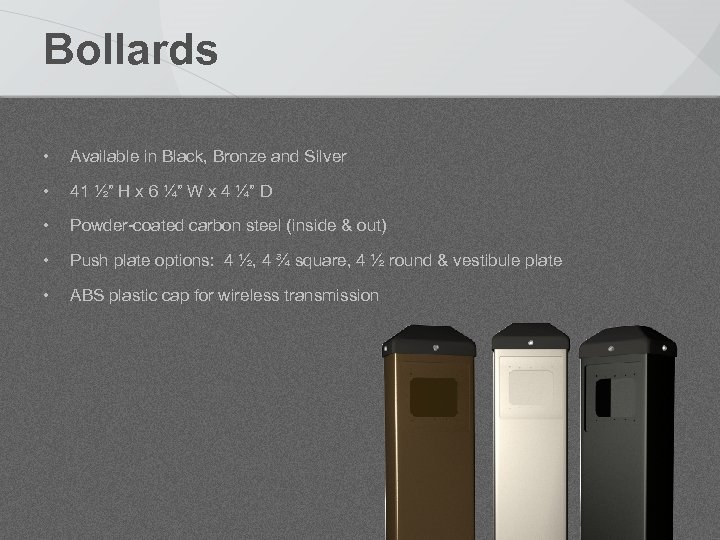

Bollards • Available in Black, Bronze and Silver • 41 ½” H x 6 ¼” W x 4 ¼” D • Powder-coated carbon steel (inside & out) • Push plate options: 4 ½, 4 ¾ square, 4 ½ round & vestibule plate • ABS plastic cap for wireless transmission

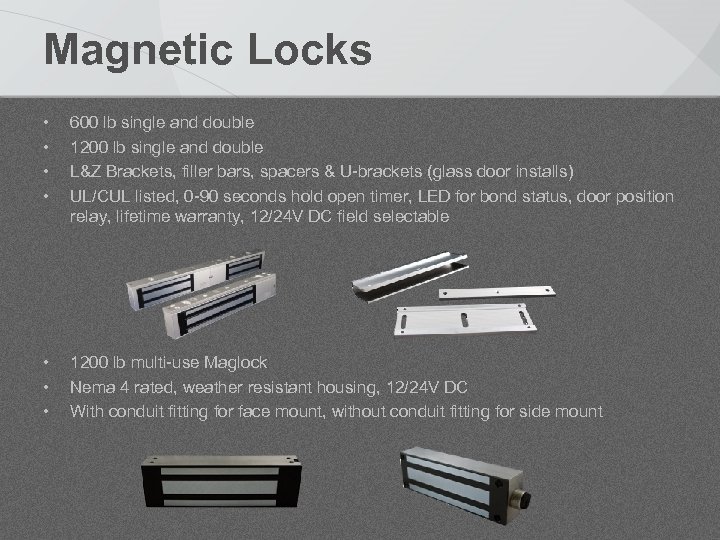

Magnetic Locks • • 600 lb single and double 1200 lb single and double L&Z Brackets, filler bars, spacers & U-brackets (glass door installs) UL/CUL listed, 0 -90 seconds hold open timer, LED for bond status, door position relay, lifetime warranty, 12/24 V DC field selectable • • • 1200 lb multi-use Maglock Nema 4 rated, weather resistant housing, 12/24 V DC With conduit fitting for face mount, without conduit fitting for side mount

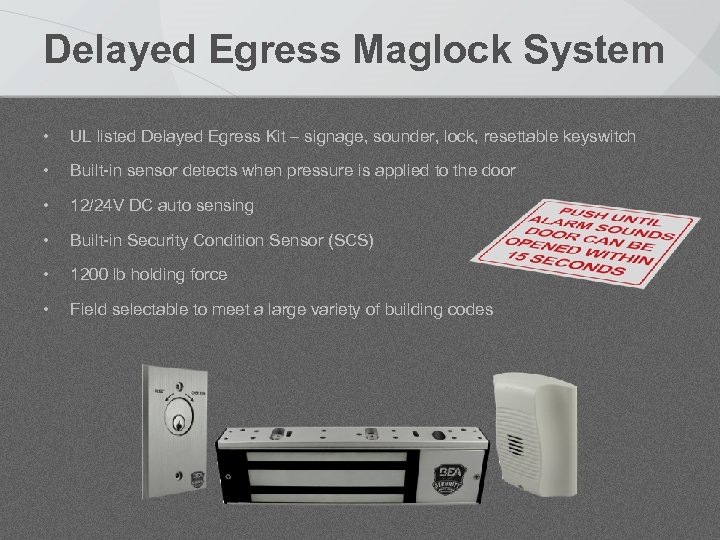

Delayed Egress Maglock System • UL listed Delayed Egress Kit – signage, sounder, lock, resettable keyswitch • Built-in sensor detects when pressure is applied to the door • 12/24 V DC auto sensing • Built-in Security Condition Sensor (SCS) • 1200 lb holding force • Field selectable to meet a large variety of building codes

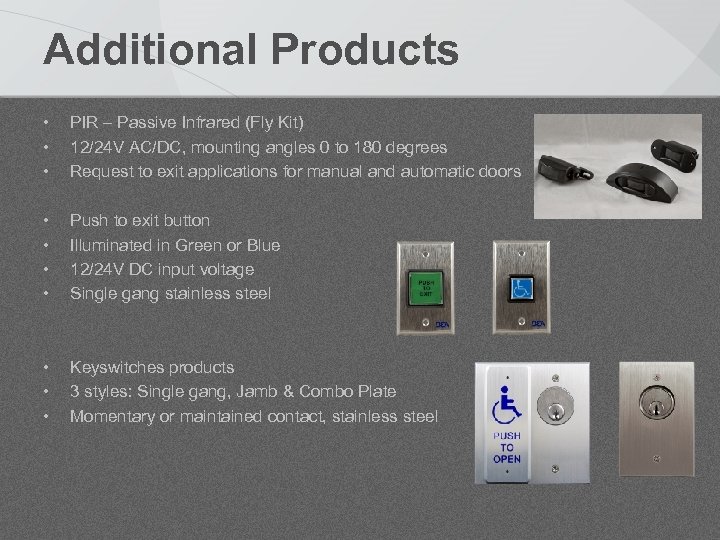

Additional Products • • • PIR – Passive Infrared (Fly Kit) 12/24 V AC/DC, mounting angles 0 to 180 degrees Request to exit applications for manual and automatic doors • • Push to exit button Illuminated in Green or Blue 12/24 V DC input voltage Single gang stainless steel • • • Keyswitches products 3 styles: Single gang, Jamb & Combo Plate Momentary or maintained contact, stainless steel

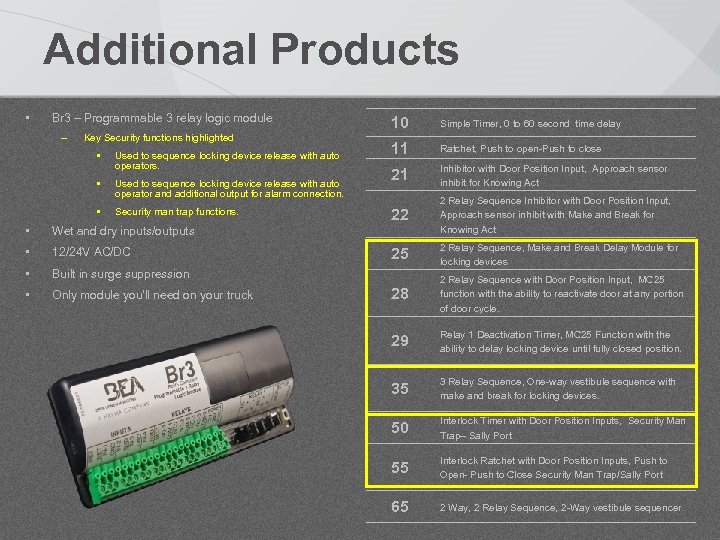

Additional Products • Br 3 – Programmable 3 relay logic module – Key Security functions highlighted • Used to sequence locking device release with auto operators. • Used to sequence locking device release with auto operator and additional output for alarm connection. • Security man trap functions. • 12/24 V AC/DC • Only module you’ll need on your truck 11 Ratchet, Push to open-Push to close 21 Inhibitor with Door Position Input, Approach sensor inhibit for Knowing Act 22 2 Relay Sequence Inhibitor with Door Position Input, Approach sensor inhibit with Make and Break for Knowing Act 25 2 Relay Sequence, Make and Break Delay Module for locking devices 28 2 Relay Sequence with Door Position Input, MC 25 function with the ability to reactivate door at any portion of door cycle. 29 Relay 1 Deactivation Timer, MC 25 Function with the ability to delay locking device until fully closed position. 35 3 Relay Sequence, One-way vestibule sequence with make and break for locking devices. 50 Interlock Timer with Door Position Inputs, Security Man Trap– Sally Port 55 Interlock Ratchet with Door Position Inputs, Push to Open- Push to Close Security Man Trap/Sally Port 65 2 Way, 2 Relay Sequence, 2 -Way vestibule sequencer Built in surge suppression • Simple Timer, 0 to 60 second time delay Wet and dry inputs/outputs • 10

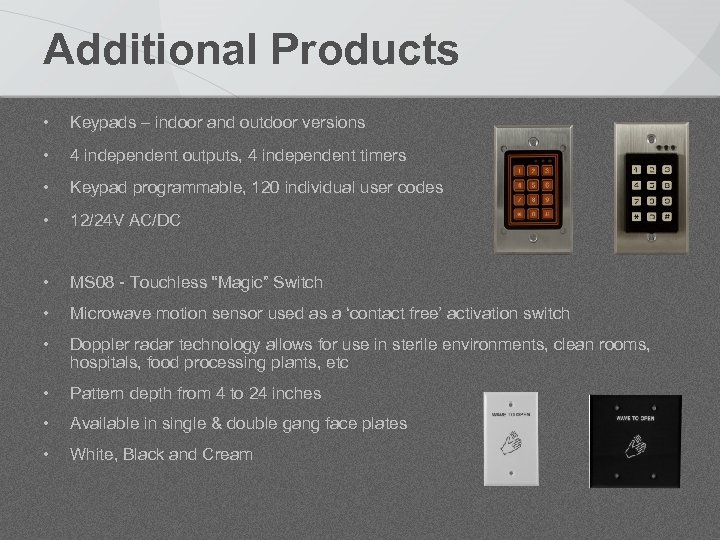

Additional Products • Keypads – indoor and outdoor versions • 4 independent outputs, 4 independent timers • Keypad programmable, 120 individual user codes • 12/24 V AC/DC • MS 08 - Touchless “Magic” Switch • Microwave motion sensor used as a ‘contact free’ activation switch • Doppler radar technology allows for use in sterile environments, clean rooms, hospitals, food processing plants, etc • Pattern depth from 4 to 24 inches • Available in single & double gang face plates • White, Black and Cream
RF – Wireless Communication • BEA offers three radio frequencies: 300 MHz, 390 MHz & 433 MHz • 300 MHz: Analog radio control, transmitters and receivers connected through dip switch settings. Over 1, 000 unique codes. Hand held 1, 2 and 4 button options. • 390 MHz: Digital radio control, transmitters and receiver is set up with a ‘learn code’ button. Hand held versions or prewired flag connectors plug directly to the BEA push plates. Up to 7 transmitters per receiver. • 433 MHz: Digital radio control operates with a unique rolling code for each activation. Multiple applications built into the receiver such as vestibule sequencing and ratchet relay with delay or no delay. Up to 100 transmitters per receiver.

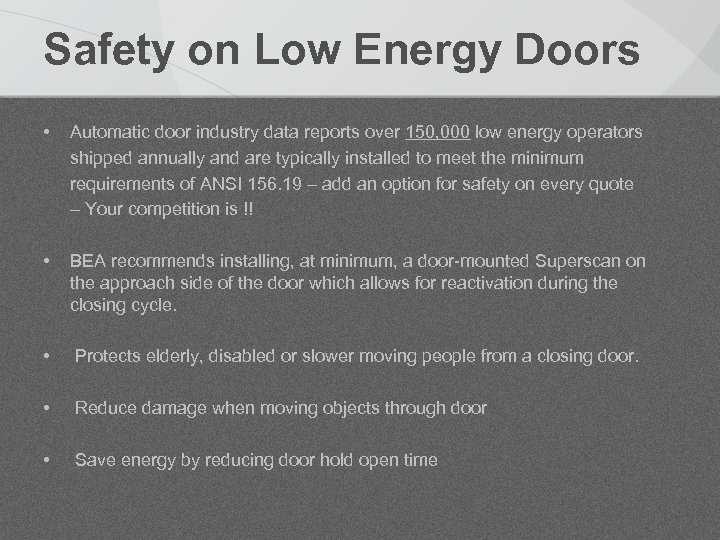

Safety on Low Energy Doors • Automatic door industry data reports over 150, 000 low energy operators shipped annually and are typically installed to meet the minimum requirements of ANSI 156. 19 – add an option for safety on every quote – Your competition is !! • BEA recommends installing, at minimum, a door-mounted Superscan on the approach side of the door which allows for reactivation during the closing cycle. • Protects elderly, disabled or slower moving people from a closing door. • Reduce damage when moving objects through door • Save energy by reducing door hold open time

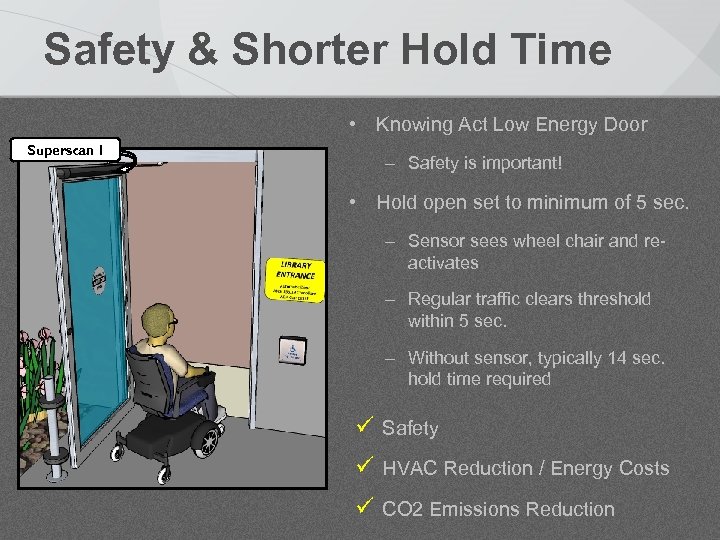

Safety & Shorter Hold Time • Knowing Act Low Energy Door Superscan I – Safety is important! • Hold open set to minimum of 5 sec. – Sensor sees wheel chair and reactivates – Regular traffic clears threshold within 5 sec. – Without sensor, typically 14 sec. hold time required ü Safety ü HVAC Reduction / Energy Costs ü CO 2 Emissions Reduction

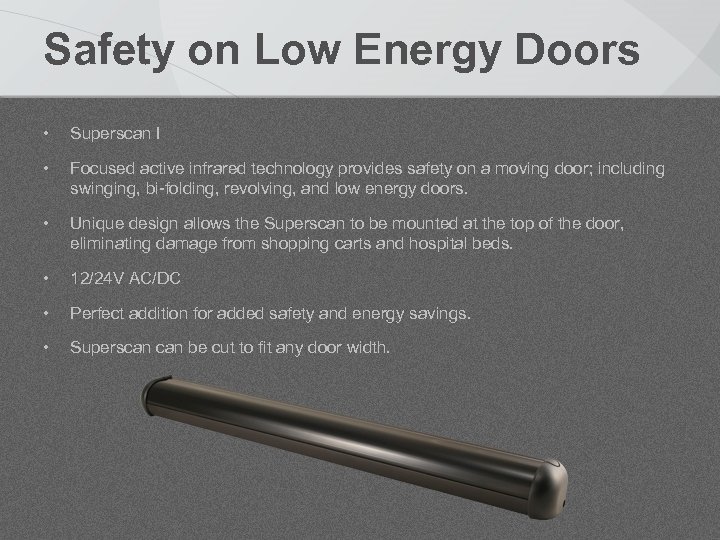

Safety on Low Energy Doors • Superscan I • Focused active infrared technology provides safety on a moving door; including swinging, bi-folding, revolving, and low energy doors. • Unique design allows the Superscan to be mounted at the top of the door, eliminating damage from shopping carts and hospital beds. • 12/24 V AC/DC • Perfect addition for added safety and energy savings. • Superscan be cut to fit any door width.
R. K. Security Distributors Support Contacts BEA Technical Support 800 -523 -2462

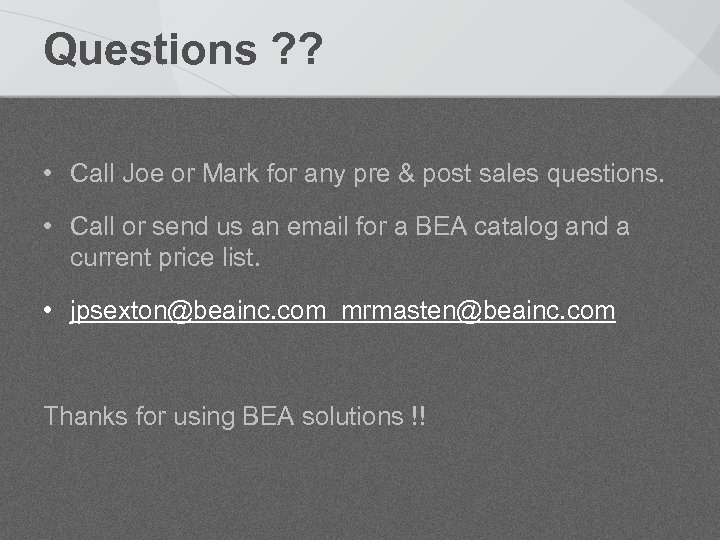

Questions ? ? • Call Joe or Mark for any pre & post sales questions. • Call or send us an email for a BEA catalog and a current price list. • jpsexton@beainc. com mrmasten@beainc. com Thanks for using BEA solutions !!
