Collaborative Modeling Best Practices for Distributed Teams Ben Constable Chief Operations Officer Sparx Systems ISO/TC 211: 31 st Plenary Meeting, Canberra, 2010 www. sparxsystems. com © Sparx Systems Pty Ltd 2010

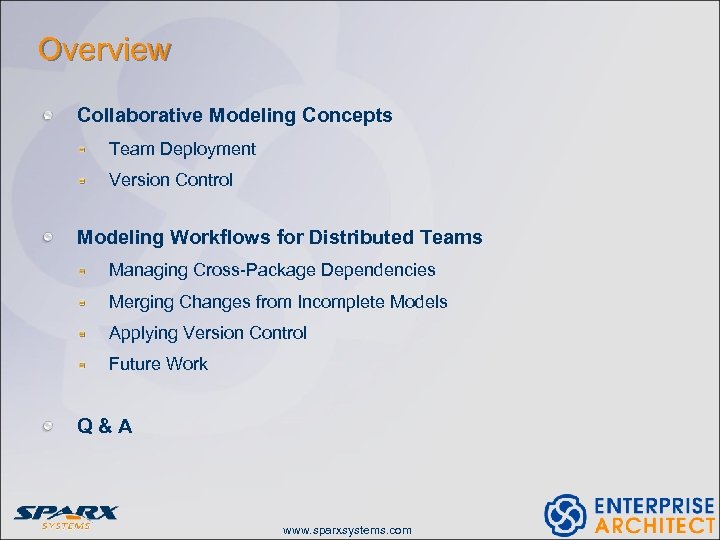

Overview Collaborative Modeling Concepts Team Deployment Version Control Modeling Workflows for Distributed Teams Managing Cross-Package Dependencies Merging Changes from Incomplete Models Applying Version Control Future Work Q&A www. sparxsystems. com

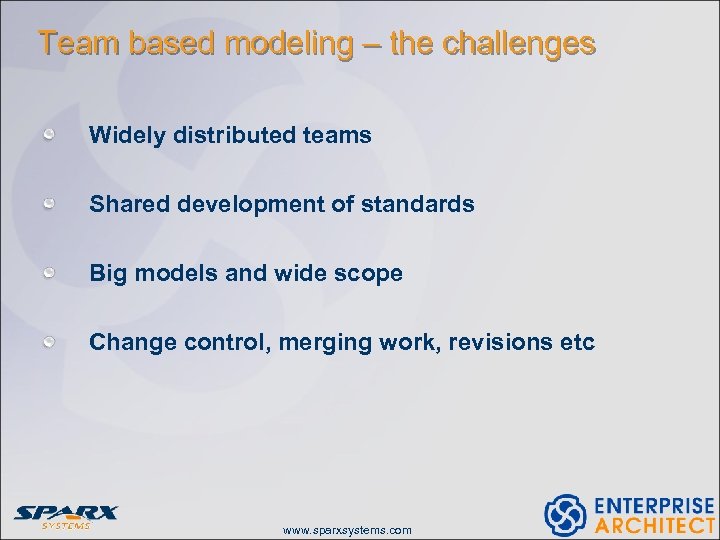

Team based modeling – the challenges Widely distributed teams Shared development of standards Big models and wide scope Change control, merging work, revisions etc www. sparxsystems. com

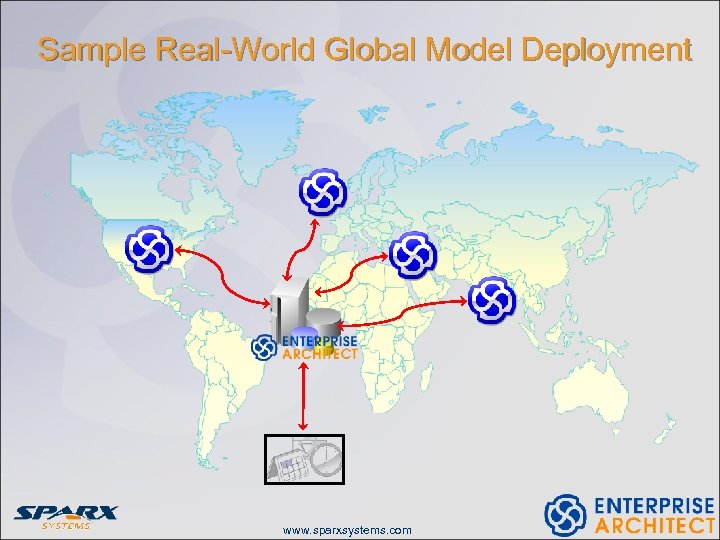

Sample Real-World Global Model Deployment www. sparxsystems. com

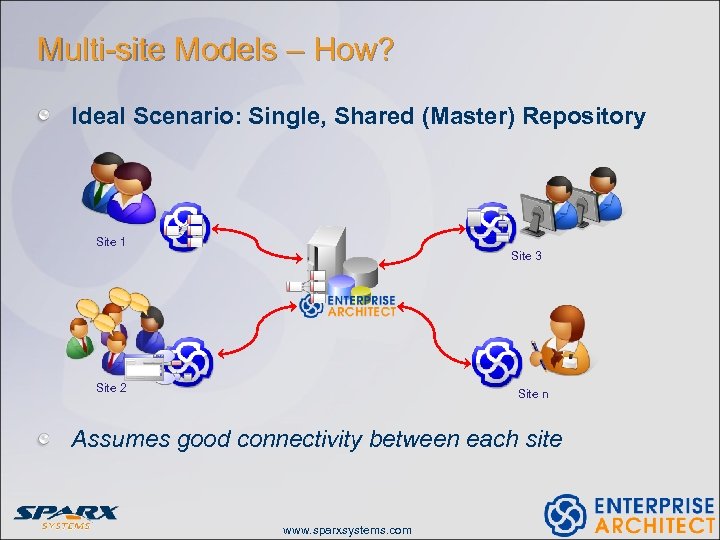

Multi-site Models – How? Ideal Scenario: Single, Shared (Master) Repository Site 1 Site 3 Site 2 Site n Assumes good connectivity between each site www. sparxsystems. com

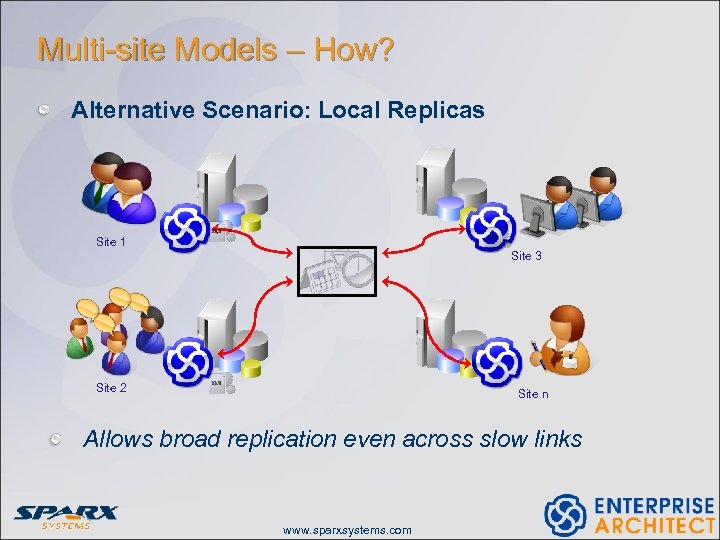

Multi-site Models – How? Alternative Scenario: Local Replicas Site 1 Site 3 Site 2 Site n Allows broad replication even across slow links www. sparxsystems. com

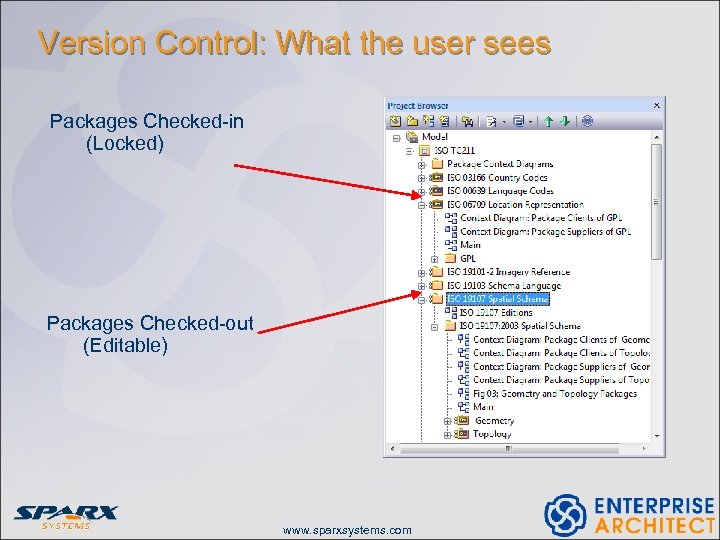

Version Control: What the user sees Packages Checked-in (Locked) Packages Checked-out (Editable) www. sparxsystems. com
Version Control: Behind the scenes interfaces www. sparxsystems. com
Version Control: Multiple Users, Local Models

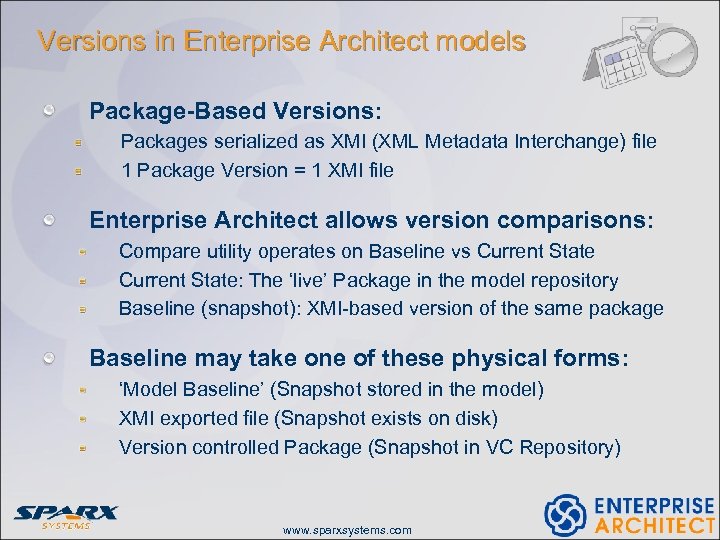

Versions in Enterprise Architect models Package-Based Versions: Packages serialized as XMI (XML Metadata Interchange) file 1 Package Version = 1 XMI file Enterprise Architect allows version comparisons: Compare utility operates on Baseline vs Current State: The ‘live’ Package in the model repository Baseline (snapshot): XMI-based version of the same package Baseline may take one of these physical forms: ‘Model Baseline’ (Snapshot stored in the model) XMI exported file (Snapshot exists on disk) Version controlled Package (Snapshot in VC Repository) www. sparxsystems. com

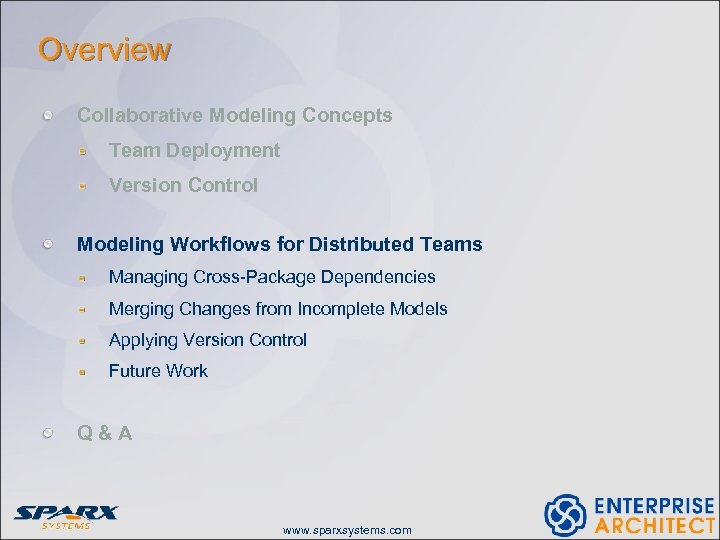

Overview Collaborative Modeling Concepts Team Deployment Version Control Modeling Workflows for Distributed Teams Managing Cross-Package Dependencies Merging Changes from Incomplete Models Applying Version Control Future Work Q&A www. sparxsystems. com

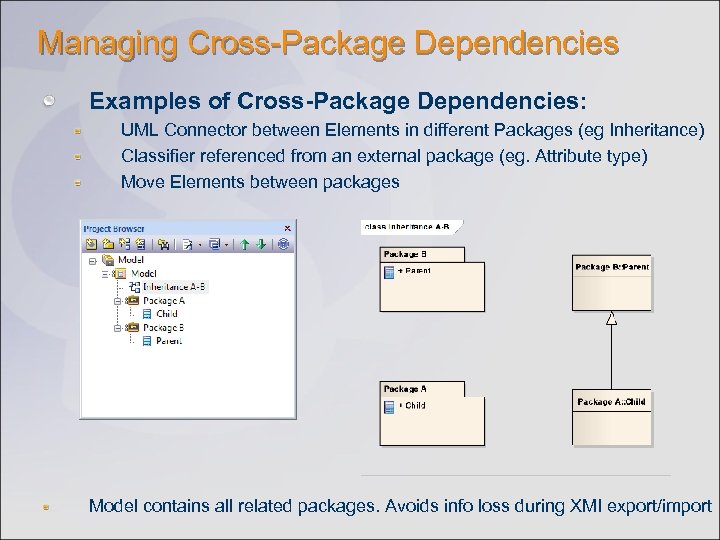

Managing Cross-Package Dependencies Examples of Cross-Package Dependencies: UML Connector between Elements in different Packages (eg Inheritance) Classifier referenced from an external package (eg. Attribute type) Move Elements between packages Model contains all related packages. Avoids info loss during XMI export/import
Managing Cross-Package Dependencies Sharing Packages Across Multiple Projects: www. sparxsystems. com
Model Merge When it’s needed: Concurrent work on a single package needs synchronization Offline work needs to be ‘uploaded’ Selective roll-back of changes Selective inclusion of changes (‘Phase based’ development) Occurs at the package level Between versions of a package 1 -way merge of Model Baseline to live Package Baseline may exist in another model, file (eg. version control) Requires same starting Package Think version, not ad-hoc model merge www. sparxsystems. com

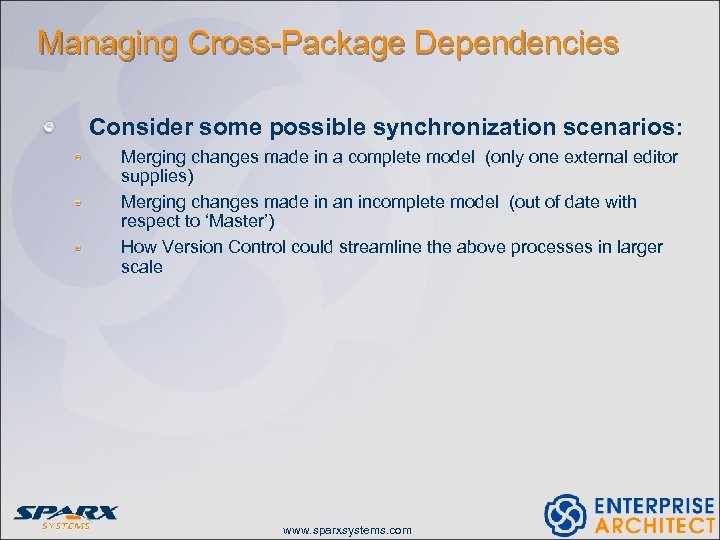

Managing Cross-Package Dependencies Consider some possible synchronization scenarios: Merging changes made in a complete model (only one external editor supplies) Merging changes made in an incomplete model (out of date with respect to ‘Master’) How Version Control could streamline the above processes in larger scale www. sparxsystems. com

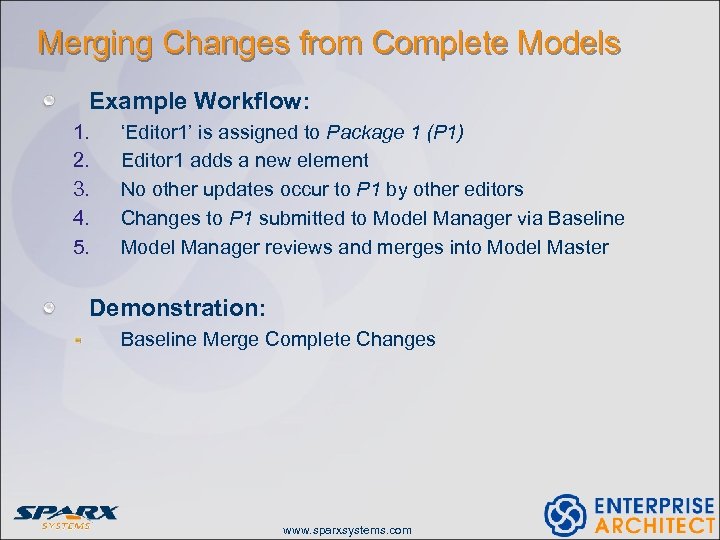

Merging Changes from Complete Models Example Workflow: 1. 2. 3. 4. 5. ‘Editor 1’ is assigned to Package 1 (P 1) Editor 1 adds a new element No other updates occur to P 1 by other editors Changes to P 1 submitted to Model Manager via Baseline Model Manager reviews and merges into Model Master Demonstration: Baseline Merge Complete Changes www. sparxsystems. com

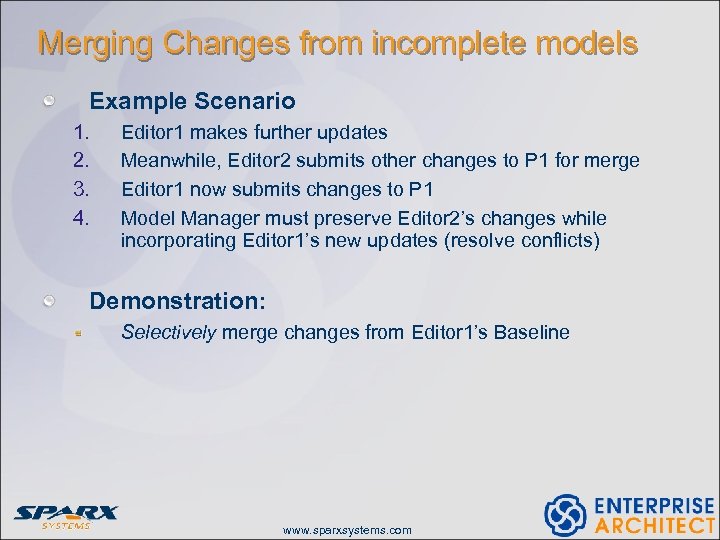

Merging Changes from incomplete models Example Scenario 1. 2. 3. 4. Editor 1 makes further updates Meanwhile, Editor 2 submits other changes to P 1 for merge Editor 1 now submits changes to P 1 Model Manager must preserve Editor 2’s changes while incorporating Editor 1’s new updates (resolve conflicts) Demonstration: Selectively merge changes from Editor 1’s Baseline www. sparxsystems. com
Applying Version Control Benefits Allows all editors to work with complete models Distribution of model information automated Conflicts avoided by version control locks Enables check-out of all cross-dependant packages Demonstration: Version Controlled Packages www. sparxsystems. com

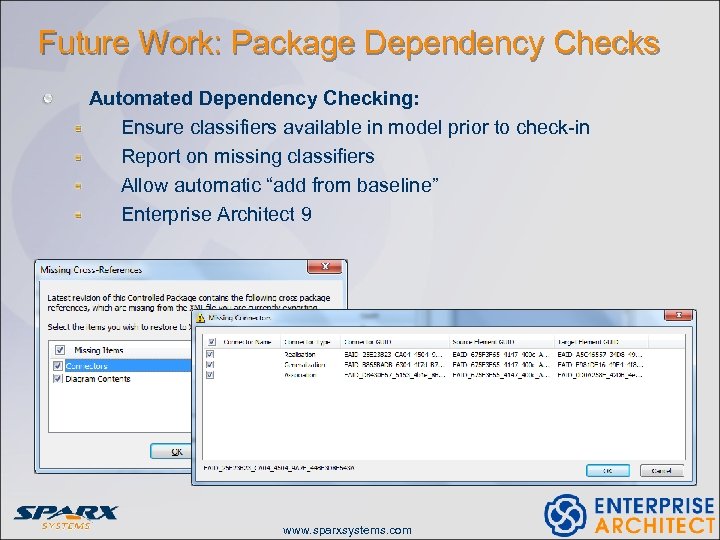

Future Work: Package Dependency Checks Automated Dependency Checking: Ensure classifiers available in model prior to check-in Report on missing classifiers Allow automatic “add from baseline” Enterprise Architect 9 www. sparxsystems. com

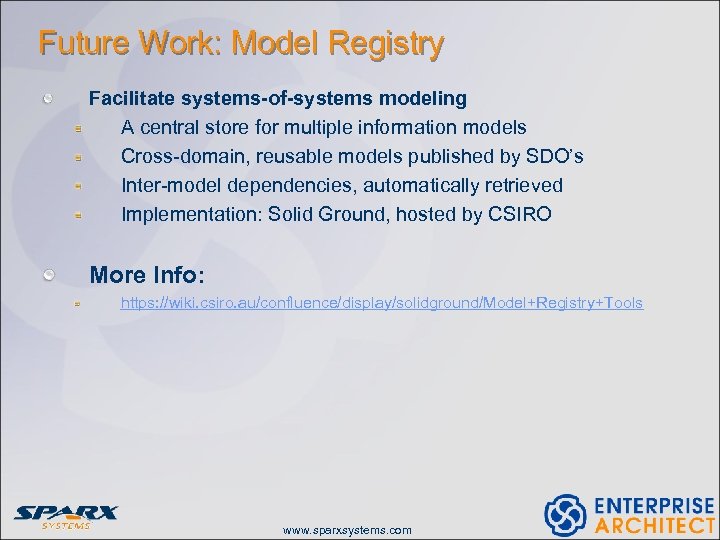

Future Work: Model Registry Facilitate systems-of-systems modeling A central store for multiple information models Cross-domain, reusable models published by SDO’s Inter-model dependencies, automatically retrieved Implementation: Solid Ground, hosted by CSIRO More Info: https: //wiki. csiro. au/confluence/display/solidground/Model+Registry+Tools www. sparxsystems. com

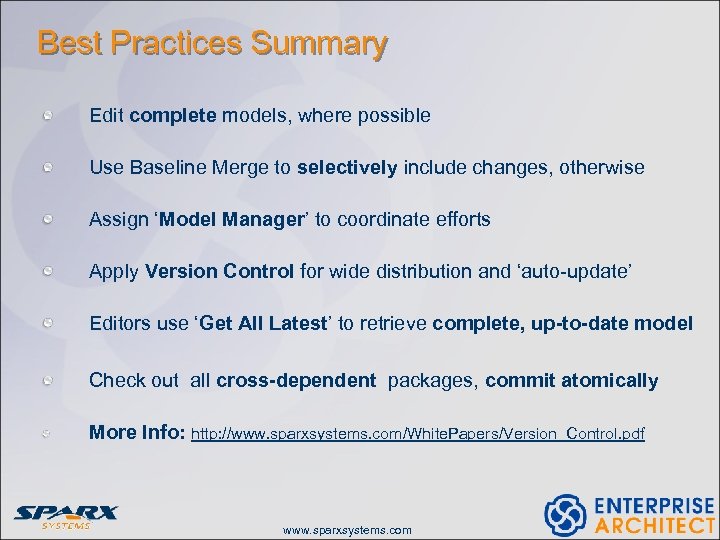

Best Practices Summary Edit complete models, where possible Use Baseline Merge to selectively include changes, otherwise Assign ‘Model Manager’ to coordinate efforts Apply Version Control for wide distribution and ‘auto-update’ Editors use ‘Get All Latest’ to retrieve complete, up-to-date model Check out all cross-dependent packages, commit atomically More Info: http: //www. sparxsystems. com/White. Papers/Version_Control. pdf www. sparxsystems. com

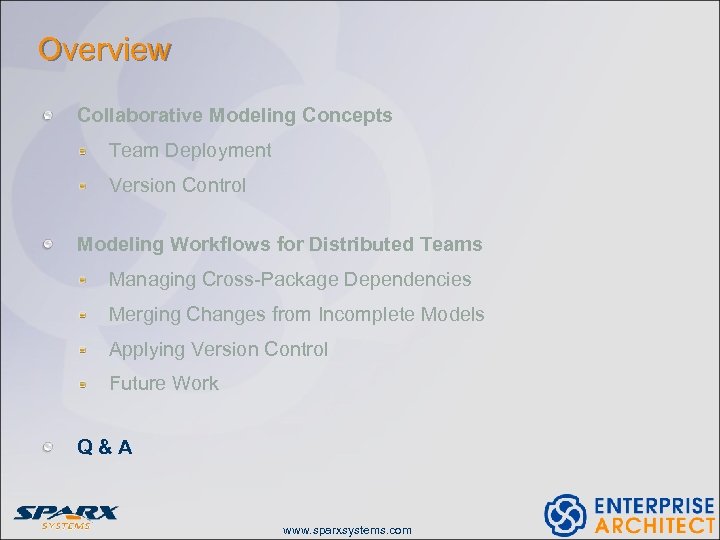

Overview Collaborative Modeling Concepts Team Deployment Version Control Modeling Workflows for Distributed Teams Managing Cross-Package Dependencies Merging Changes from Incomplete Models Applying Version Control Future Work Q&A www. sparxsystems. com
thank you for your attention!
